Toyota 4Runner (06-09) Xtreme LED Pro (Low Beam)

6 Reviews

Brand: Headlight Revolution




PART #: 1 x XD.LED040

*Guaranteed Fitment
Easy Return

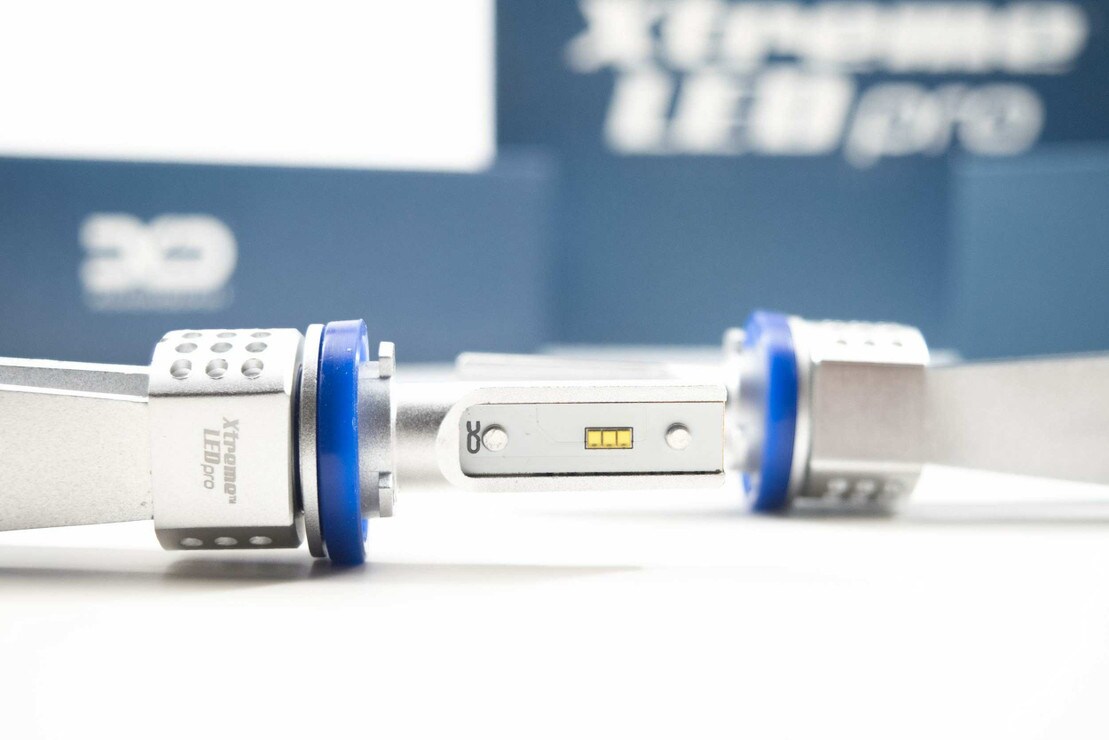

Introducing the Xtreme LED Pro Series: the ultimate upgrade for your vehicle's lighting system. Unleash unparalleled brightness and performance with genuine Lumileds ZES emitters, expertly designed to replicate the original halogen filament size, ensuring optimal optical alignment. With a patented aluminum alloy leaf passive heat sink, these bulbs deliver exceptional heat dissipation, maintaining peak output over the long haul. Rated at a stable 1750 Lumens and 5500K color temperature, you'll experience true white light without compromising visibility. Elevate your driving experience today with the top-performing Xtreme LED Pro Series – where quality, durability, and enhanced illumination meet.


  • Bright Illumination: Genuine Lumileds ZES emitters for unmatched brightness.
  • Optimal Beam: Replicates halogen size for precise beam alignment.
  • Advanced Cooling: Aluminum alloy heat sink for consistent performance.
  • True White Light: 1750 Lumens, 5500K temperature for clear visibility.
  • Lasting Quality: Xtreme LED Pro Series delivers durability and top performance.


  • BULBS: 2x Xtreme LED Pro


This product includes a 2 Year limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.


  • INTENSITY: 1,750lm (Stable)

  • EMITTERS: 6x LumiLEDS ZES / bulb

  • ADJUSTABILITY: Fully Clockable Base


  • LIFESPAN: 50,000hrs (Estimated)



  • Toyota 4Runner: 2006-2009

  • Housings: Designed for, and confirmed to fit, Stock Housings

2006-2009 Toyota 4Runner LED Low Beam Bulbs: Looking for upgraded LED Low Beam Bulbs from a reputable brand and value the fact that we've actually tested them on your truck? Our HR Tested kits include all the right components to ensure perfect fit, function, and performance from the upgrade. At Headlight Revolution, we do 2003-2009 Toyota 4Runner LED lighting upgrades better!

Xtreme LED Pro: Xtreme LED Pro series of drop-in fog light bulbs are just better--right from the start. They incorporate today's most advanced components and features for unparalleled compatibility and performance. Hold one in your hand and you'll immediately discern their uncommonly high-quality fit, finish, and feel: they're made of premium materials, formed and assembled with precise craftsmanship.

Optimal Heat Dissipation: The next thing you'll notice is their all-new patented aluminum alloy leaf passive heat sink. Its compact and readily configurable design allows an easy fit in most any fog lamp housing, and with its much larger contiguous thermal path, it does a better job shedding heat off the LEDs than past-type flexible mesh heat sinks. With no flex-mesh junctions to break and no motorized fans to make noise and electrical interference, clog, or fail, the superior heat rejection performance of the alloy leaf passive heat sink is retained over the long haul, for the full rated life of the emitters. That translates directly to excellent performance; the cooler LEDs can be kept, the higher their output.

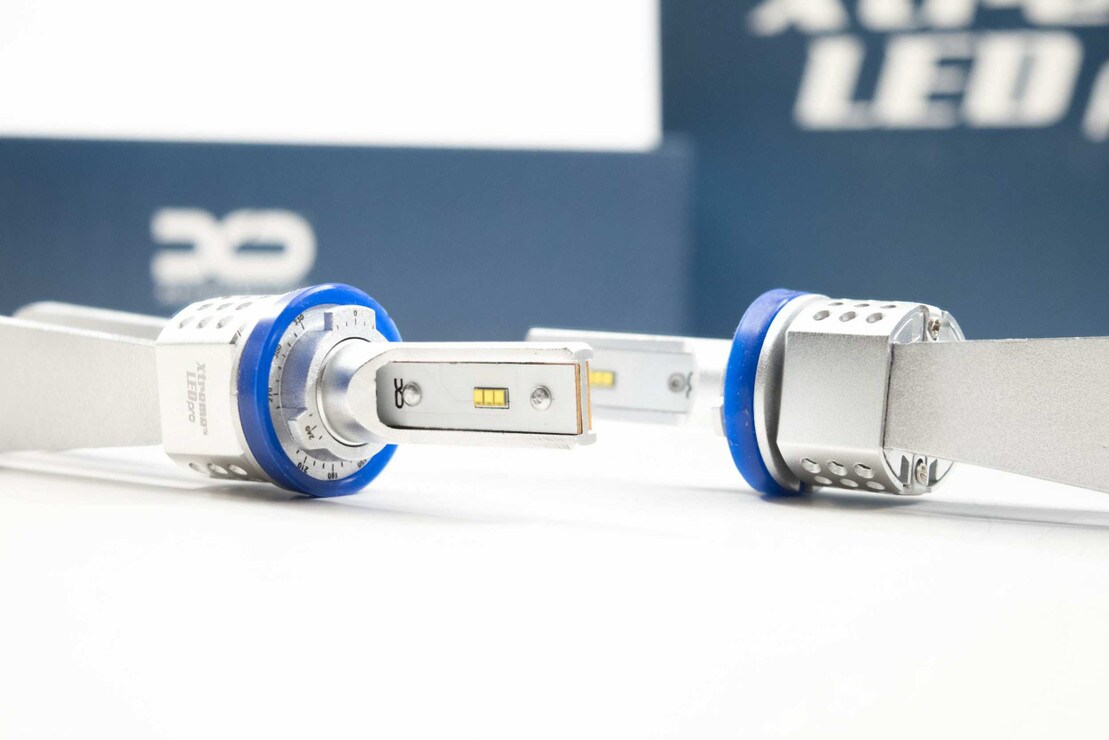

Beam Pattern: The emitters themselves are genuine Lumileds ZES, three on each side of the light head, and this together with their undomed configuration means they closely replicate the size of the original halogen filament. That means a better optical match than longer 4-emitter arrays or domed COB emitters, both of which violate the light source box your fog lamp's optics were designed around, and because the high output comes from three chips rather than four, luminance is higher for better beam punch and spread.

Lumens and Light Output: Anyone can throw around inflated lumen numbers--and most vendors do. Some of those numbers have no basis in reality, they're just fibs. Some of them are somewhat accurate, but only immediately after the bulb is lit up in a cold chamber, without accounting for the significant 'droop' that happens when improperly chosen emitters are inadequately cooled--don't drink the kool-aid! The Xtreme LED Pro bulbs are rated honestly: 1750 lumens stable, measured after the bulbs have been operating continuously for an hour in 60C heat. That's a rating that means (and gives you) exactly what it says. With the 5500K color temperature of our emitters, we're giving you true white light, not artificially jacking up the lumen rating with a bunch of useless deep-blue light that can only attract unwanted police attention, not help you see.

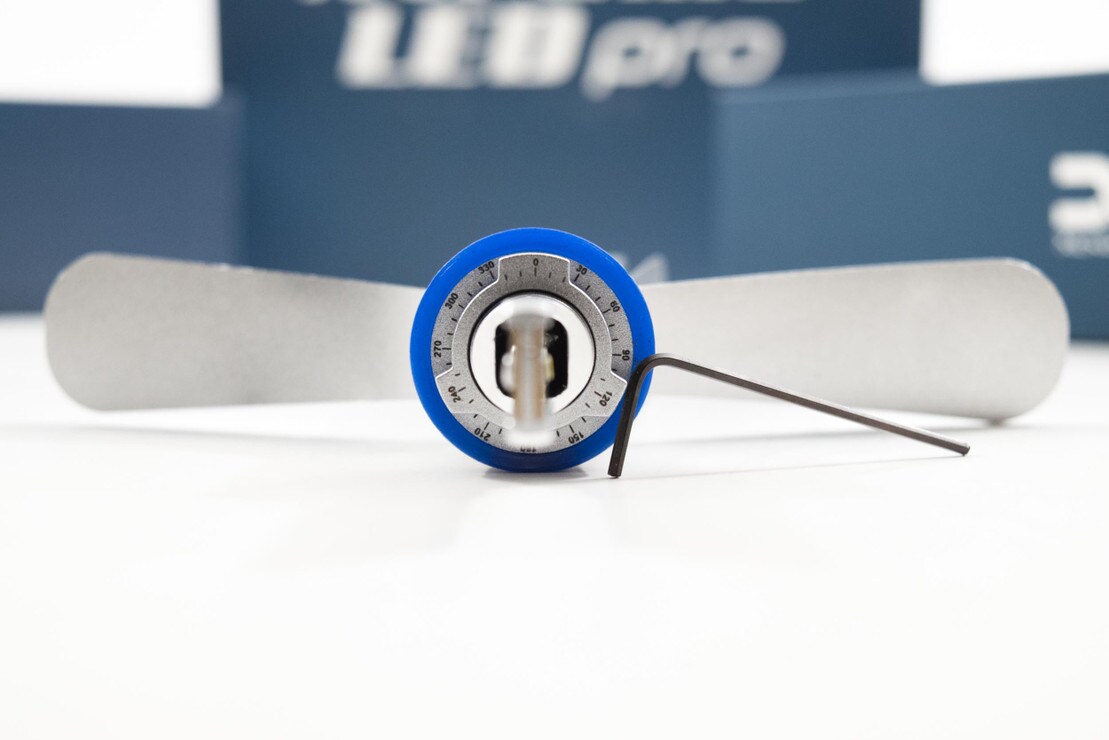

In Summary, They're Just Better: There's more clean-sheet engineering where you can't see it: we've used copper circuit boards for optimal thermal conductivity, and our compact base means the rigid tail of the light head is only 25mm--much smaller than other LED bulbs on the market. You'll note the light head is remarkably compact, without bulky over-length that prevents many other LED bulbs from fitting all the way into many fog lamps. And the light head is clockable, too, so you can fine-tune the output for the best optical match with any lamp you might install them in. Truly, this is the top-performing LED bulb with OE-level quality and "fit it and forget it" durability and dependability.

HR Tested: Here at Headlight Revolution, we've spent the time to install and test all HR Tested products, so we know it'll work exactly as shown and right out of the box! Not only that, but we don't favor one particular brand. We just deliver the best product for the application, period. Be sure to reference our install videos for helpful tips on making the installation process quick, painless, and clear. HR Tested: We ensure fitment and function. You do the install. For other compatible upgrades, use the Buyers Guide on our homepage!


Poor fit


The light does not seat solidly into the headlamp housing. There is no solid, reassuring click into place and it takes very little pressure to rotate them back out of place. There's a slight wiggle even when properly seated. I'm concerned about how these are going to remain seated during off-roading. I have aftermarket headlight housings that were also replaced as part of this project and I thought those sockets might be out of spec but they fit loosely in the OEM headlight housing, as well. It's an identical issue between aftermarket and OEM. The Brightness is awesome. Customer service was helpful when I couldn't figure out the correct way to plug things in.


Toyota Tundra headlights

by -

Received order in a timely manner. Easy installation. Perfect output


2005 4runner

by -

Received H11s but realized 2005 4runners are 9006 lamps. Suggest make difference more clear on website. Return process easy but cost $$ to ship H11s back. 9006 easy to install and light pattern and brightness is good as advertised. Will purchase fogs next.


Terrible Customer service

by -

Ordered lights for my 04 4runner on Jan 22nd for a trip we were taking on Feb 7th. I then waited over a week for them to get shipped. When they arrived they were for the wrong vehicle. Waited for hours on the phone and never got through so I had to take to Instagram and complain loudly to get someone to call back. After explaining things over the phone and going through the proper part numbers I was over nighted a new set of bulbs...they sent the exact same set. Again I cannot get through on the phone. I take IG again and no one responds. I call right at 10am and wait on hold for 1 hour and 42 minutes before I get to speak with someone. He again says he will over night me the proper set of bulbs and they would be here by 10am the following day (we were leaving for a trip to Utah that afternoon). Bulbs don't arrive to me till Monday so no new bulbs for our trip. Should have just ordered from Xenon Depot from the get go will never order another thing from this company.


Reverse Polarity

by -

Bought LED headlight replacements for my 2008 4 Runner. One light didn't work. Called they sent out another that also didn't work. Called again and they said I would need to reverse the plugs. I did and lights worked. None of this was in the instructions that came with the lights. They said it only an issue with the Toyota. So why don't they add a small piece of paper to the instructions that notes that. I wasted 2 weeks on this.
