  • Dodge Ram (09-18) CSP Mini LED Reflector Low Beam Bulbs

Dodge Ram (09-18) CSP Mini LED Reflector Low Beam Bulbs

16 Reviews
Questions?

Brand: Headlight Revolution

B-HRT-0108-HR

$165.20 Original Price:$206.5020% OFF

PRODUCT OPTIONS

PART #: 1 x HRT0168



*Guaranteed Fitment
Easy Return

DESCRIPTION

Elevate your driving experience with our state-of-the-art LED Low Beam Bulb Kit for Dodge Ram (09-18) trucks. Engineered for excellence, our HR Tested kit ensures a seamless upgrade to powerful LED lighting, perfectly designed to fit and function flawlessly. Say goodbye to inadequate factory lighting – our LED bulbs bring brilliance to the road, enhancing visibility and modernizing your vehicle's appearance. Crafted with GTR Lighting technology, our bulbs guarantee durability and performance, even on the most challenging journeys. Experience hassle-free installation and compatibility with the Dodge Ram CANBUS system, thanks to our proven expertise. Illuminate your path like never before – choose the ultimate upgrade for your Dodge Ram with our trusted LED Low Beam Bulb Kit!

FEATURES & BENEFITS

  • Enhanced Visibility: Upgrade to powerful LED Low Beam Bulbs for optimal road illumination.
  • Perfect Fit and Function: Our HR Tested kit ensures seamless compatibility and performance.
  • Modernized Appearance: Transform your vehicle's look with advanced LED lighting technology.
  • GTR Lighting Technology: Crafted with high-quality components for long-lasting durability.
  • Easy Installation: Hassle-free setup with proven compatibility with Dodge Ram CANBUS system.

WHAT’S INCLUDED

  • LED BULBS: 2x (One Pair) GTR Lighting H11 CSP Mini LED Bulbs (Click For Details)

  • Anti-Flicker Harness: 2x (One Pair) GTR Lighting H11 PWM Interface Modules (Click For Details)

WARRANTY INFORMATION

This product includes a 2 Year limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.

TECHNICAL SPECIFICATIONS

  • INTENSITY: 2500lm (each; Raw)

  • Power: 16w (each)

  • Current: 1.17A @ 14V DC

  • Light Color: 6000K (Cool White)

LINE DRAWINGS

COMPATIBILITY

  • Dodge Ram: 2009-2018

  • Housings: Designed for, and confirmed to fit, Stock Housings

COMPLIANCE

IP67

2009-2018 Dodge Ram LED Low Beam Bulbs: Looking for upgraded LED Headlight Bulbs from a reputable brand and value the fact that we've actually tested them on your truck? Our HR Tested kits include all the right components to ensure perfect fit, function, and performance from the upgrade. At Headlight Revolution, we do 2009-2018 Dodge Ram LED lighting upgrades better!


NOT FOR USE WITH OEM PROJECTOR-STYLE HEADLIGHTS THAT WERE AN OPTION ON THESE TRUCKS! Since 2009 until 2012 the Ram trucks used a big reflector style headlight housing and most people say it could have come with better lighting. If you want to upgrade to brighter lighting without changing the entire housing out, then this LED bulb upgrade kit is what you need. This conversion kit will allow you to run LED lights in the low beam and high beam without any issues. Many LED kits don't interface well with the Dodge Ram CANBUS system but our HR Tested system works great when partnered with the Dodge specific resistor harness as shown in our install video.

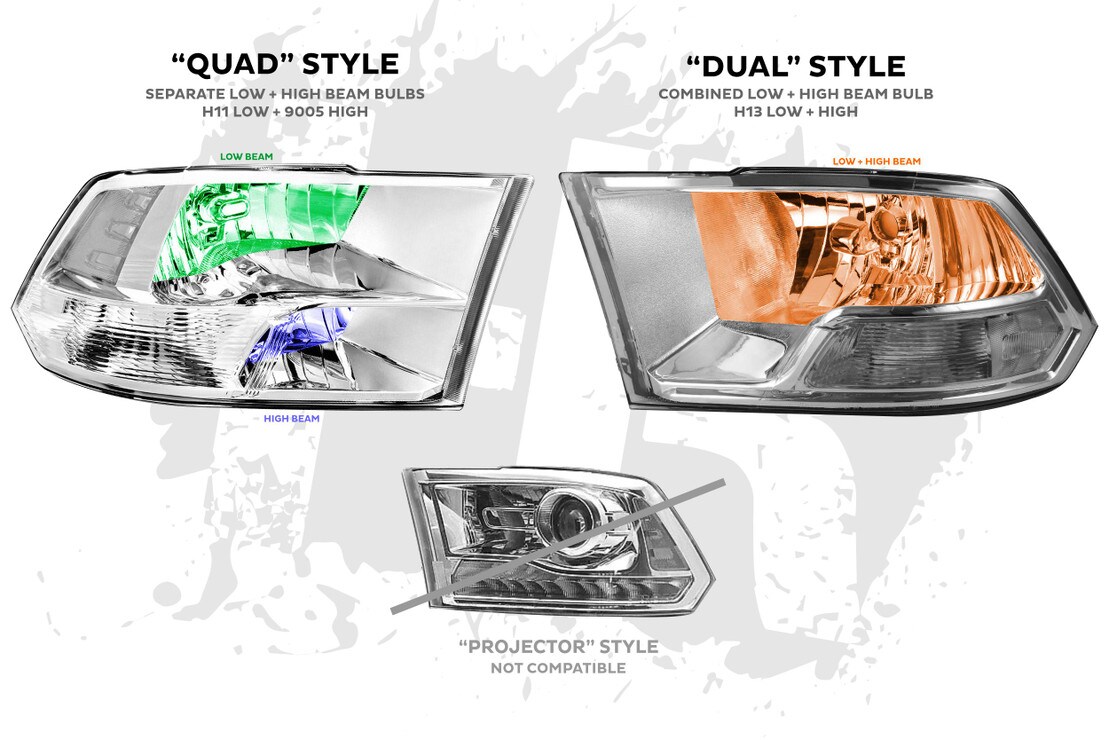

SOLD AS A COMPLETE KIT FOR QUAD BEAM STYLE HEADLIGHTS - Not for use with H13 bulbs! The 09-12 Ram comes available with 2 different types of reflector headlights. Single Beam (each bulb does one single beam, low or high) and Dual Beam (each bulb does dual beams, low and high in one). This listing is specifically for the H11/9005 Quad beam reflector headlights.

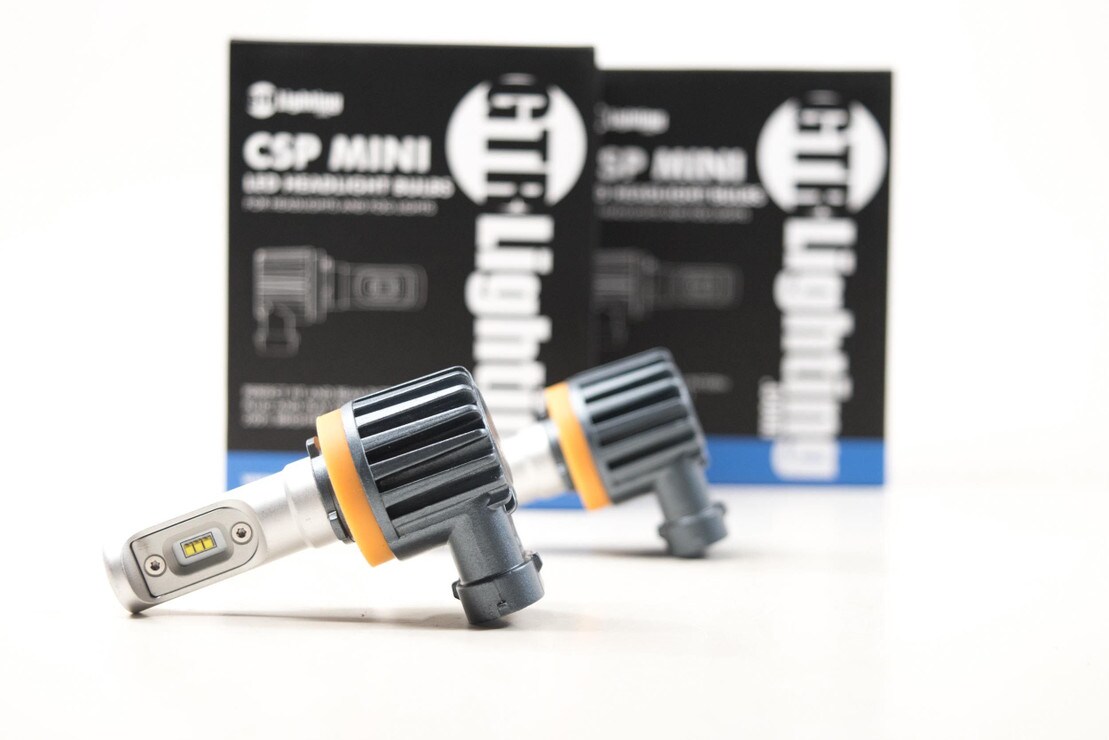

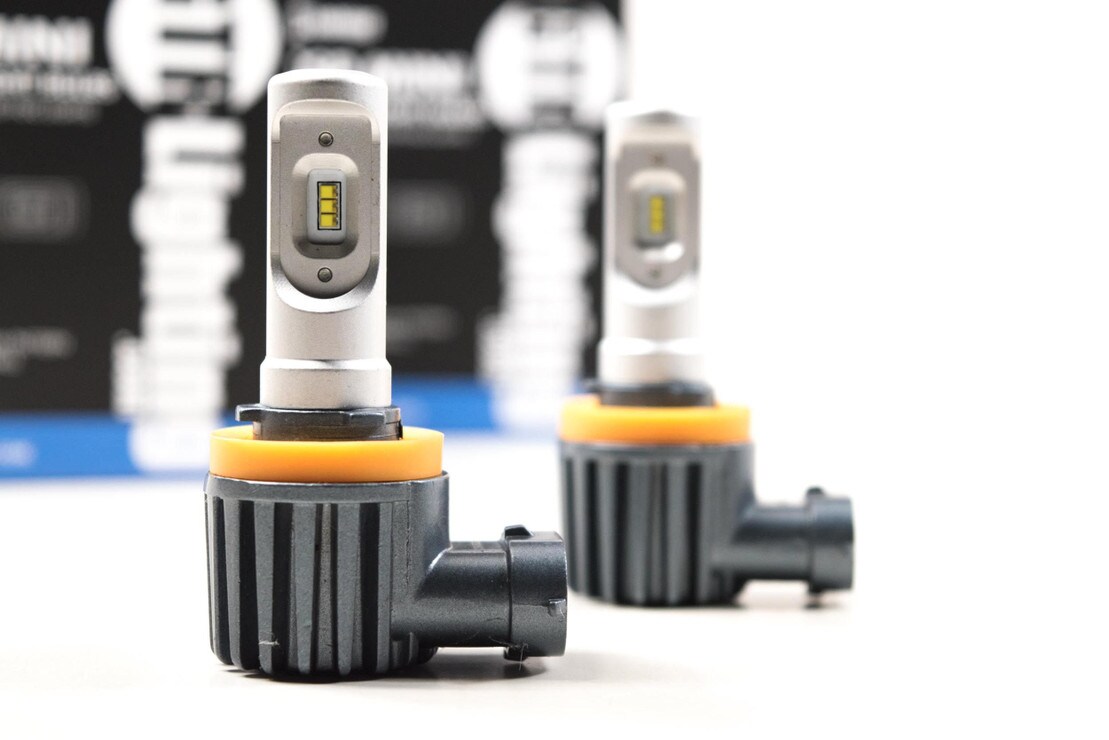

The GTR Lighting CSP Mini LED bulb: was designed with two main ideas in mind: #1: Perfect Fitment into any fog light housing - specially designed to closely mimic the size and shape of your original halogen light bulb for maximum capability! #2: Perfect Beam Pattern due to the alignment and design of the low-profile copper PCB and Philips Z ES "CSP" style LED chips.


This LED configuration: creates a similar light output profile as compared with the original filament bulb for an accurate beam pattern.


Heat Sink Technology: No Fan Noise! Fans work well to cool down powerful LED fog light bulbs, but the GTR Lighting CSP Mini is unique blend of power and efficiency that does not require active cooling. Coming in at only 16 watts of power, and featuring the Philips Z ES high-efficiency chips, these bulbs create about 2 times as much light as your original halogen bulbs at less 33% less power consumption. In short, they're super efficient so they don't need a huge fan mounted to the heat sink to stay cool! The powder-coated aluminum body of the bulb acts as the heat sink for both the internal driver and the LED bulbs themselves.


Thermal Management: The GTR Lighting CSP Mini LED bulbs are equipped with a sophisticated thermal protection circuit to avoid failures due to overheating problems. We've tested these bulbs at 194 degrees Fahrenheit for 15 days straight without failure! The maximum power draw of these bulbs is 16 watts of power and if the LED thermister sensor reaches a temperature of 140 degrees Fahrenheit or hotter the temperature protection kicks in and reduces the light output to a safe level. This smart technology allows the bulbs to never get so hot that they burn out the chips, which is the most common reason for LED bulb failure. Even at a reduced level of 13 watts of power consumption (to prevent over-heating...), the GTR Lighting CSP Mini LED fog light bulbs will still be noticeably brighter than your old halogen bulbs! This function happens 100% automatically and ensures the longest possible lifespan of your fog light bulbs!


Furthermore: the GTR Lighting CSP Mini LED fog light bulbs are equipped with the highest quality possible chip technology. We use the genuine Philips Z ES "CSP" style LED chips that have a higher heat-resistance rating than other similar versions. Beware of imitators! If someone is selling a bulb that looks like ours, make sure they're using the good chips like Philips ZES! These LED chips are rugged, heat-resistant and create the tightest optical source for the best beam pattern. Your fog light bulb LED chips really do make a difference!


Brightness: Your original halogen incandescent fog light bulbs produce roughly 1,000 Lumen per light bulb, at about 55w of power consumption. The GTR Lighting CSP Mini bulbs produce 2,500 Lumen of light at only 16w of power consumption! Not only do these bulbs have the ability to be 2-3 times brighter than your old light bulbs, in most applications they will also mimic the OEM beam pattern to protect other drivers' vision at night!


Want your fog lights: to shine brighter and further but your current bulbs just aren't cutting it? Want to get rid of that old yellow tinted light and give your ride an updated look with a cool white light beam? Look no further! Built with high power premium quality Philips Z ES LEDs, these LED fog light bulbs will cast a precise light beam that will give you increased visibility, a wider viewing angle, and a much longer Limited Lifetime over conventional halogen bulbs. The bulbs feature great heat management with 1070 aluminum construction, Intelligent Thermal Management, and the newest "CSP" style LED chipset from Philips.


Fitment: Match the bulb number of your original application (example: 9005, 9006, H4, H13, etc...) with the matching GTR Lighting CSP Mini LED fog light bulb and replace bulb for bulb. Fits all applications including projectors, and fog lights with dust shield covers.


NOTICE: If your vehicle uses a CAN BUS system to operate the fog lights, you may need additional parts like an LED CANBUS or PWM module. Contact us for details if you are unsure.


HR Tested: Here at Headlight Revolution, we've spent the time to install and test all HR Tested products, so we know it'll work exactly as shown and right out of the box! Not only that, but we don't favor one particular brand. We just deliver the best product for the application, period. Be sure to reference our install videos for helpful tips on making the installation process quick, painless, and clear. HR Tested: We ensure fitment and function. You do the install. For other compatible upgrades, use the Buyers Guide on our homepage!

5

Ram tradesman

by -

Huge improvement over OEM halogen light. Much brighter and whiter... very pleased with their recommendations.

3

Perfect Upgrade

by -

These are much brighter than stock. I replaced both high and low beam bulbs. It took a little bit to figure out how to route the wiring in my Ram. This is to be expected since every application will be different.

4

Took some effort to configure

by -

Took some effort to configure all the components into the driver's side light cavity. I have to use the pigtail provided in order for it to barely fit into the slot.

5

Bright Headlights

by -

Just installed the bulbs, very easy. very bright, now i can see at night.

5

Great package

by -

After purchasing from another less expensive vender and having issues I purchased from HR and had zero problems and really appreciated the videos showing the nuisances of the installation

1

Not satisfied

by -

Requested assistance troubleshooting why lights where not operating and requested assistance with getting the lights to work. I included pictures of all connections. No call back or resolve was provided. I would like to return the item for a full refund

5

Delivered on time,easy install,better than

by -

Delivered on time,easy install,better than what I expected!

5

Ram low beam replacement

by -

Easy upgrade. Watching the video is a must. Super bright but not too bright. Very pleased with just a hint of dark spot. Has them in for a week so far impressed

5

Nice

by -

Bright clean lighting. Order got messed up and they were quick to fix. Great customer service.

5

Best Replacement for Halogen Headlights

by

These lights are exactly as described, they mimic a halogen light's output pattern and are bright without blinding other drivers. The install was easy and the CANBUS modules work perfectly. I will definitely recommend these PerfectFit LED lights to anyone that has Reflector headlights.
