Dodge Ram (09-18) S-V.4 LED (Quad / High Beam)

51 Reviews
Questions?

Brand: Headlight Revolution

B-HRT-0101-HR

$300.50

PRODUCT OPTIONS

PART #: 2 x SN.LED104, 1 x GTR.H098, 2 x GTR.A015



*Guaranteed Fitment
Easy Return

DESCRIPTION

Introducing the S-V.4 LED Headlight Bulbs for Dodge Ram (09-18) trucks – your ultimate upgrade for enhanced visibility and style on the road! Experience cutting-edge LED chip technology that produces a brilliant, seamless light output, surpassing traditional bulbs. These bulbs are meticulously designed with a focus on performance and longevity. Crafted from high-quality 6063 aluminum, the thermal management ensures optimal cooling and prolonged usage. Say goodbye to flickering and errors with built-in CANBUS integration, making installation hassle-free. Brighten your drive with a precise light beam, wider angle, and a sleek cool white glow. Upgrade to the S-V.4 and transform your driving experience today!

FEATURES & BENEFITS

  • Enhanced Visibility: Upgrade to S-V.4 LED Headlight Bulbs for brighter, precise light.
  • Cutting-Edge Chip: Advanced multi-core LED chip design for seamless output.
  • Efficient Cooling: Premium aluminum construction for excellent heat dissipation.
  • CANBUS Integration: Hassle-free install with anti-flicker circuitry.
  • Modern Style: Cool white light, wider angle, sleek appearance.

WHAT’S INCLUDED

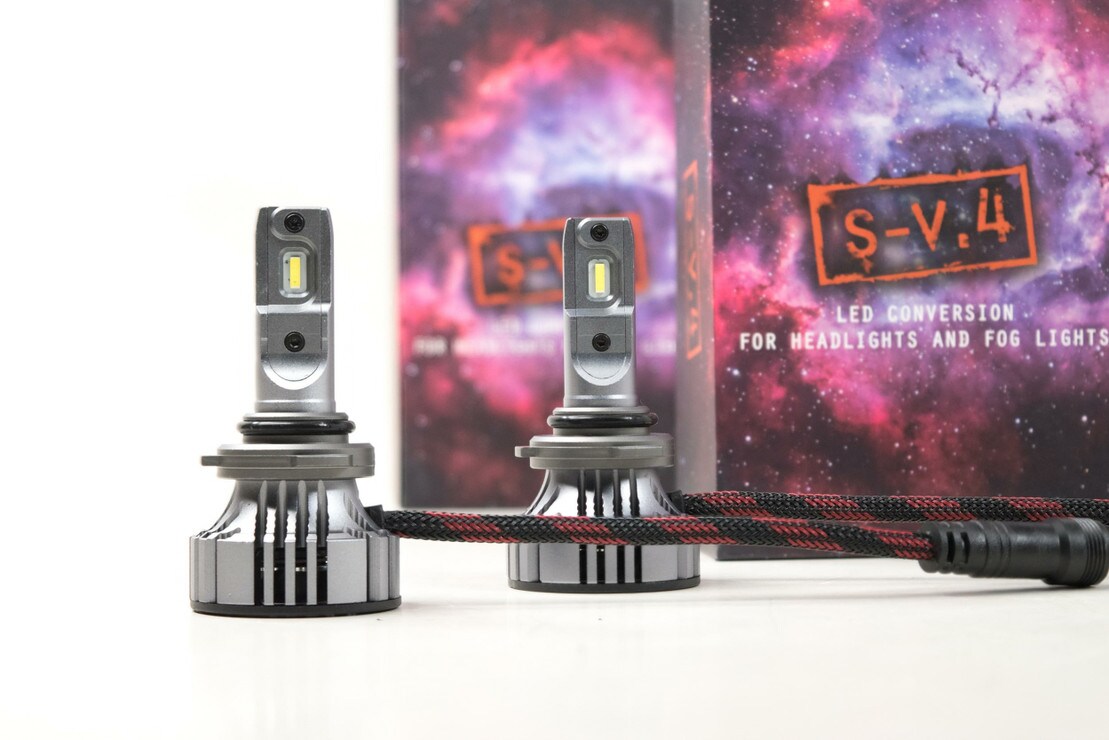

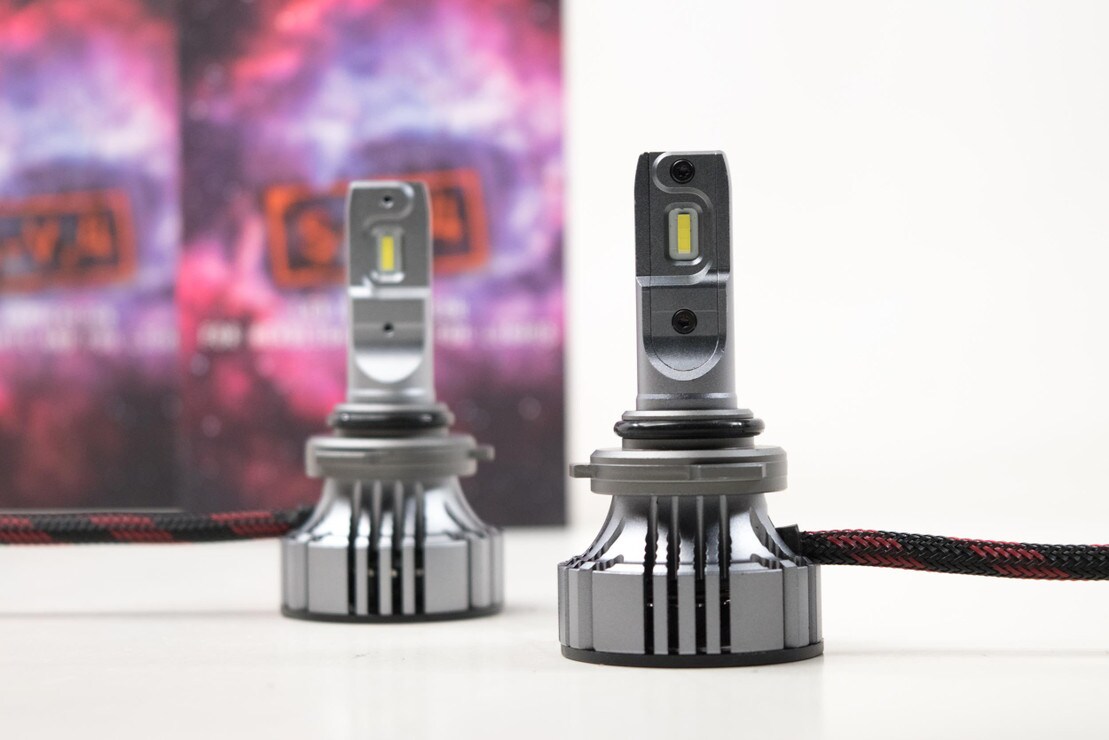

  • S-V.4 BULBS: 2x (One Pair)

WARRANTY INFORMATION

This product includes a 2 Year limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.

TECHNICAL SPECIFICATIONS

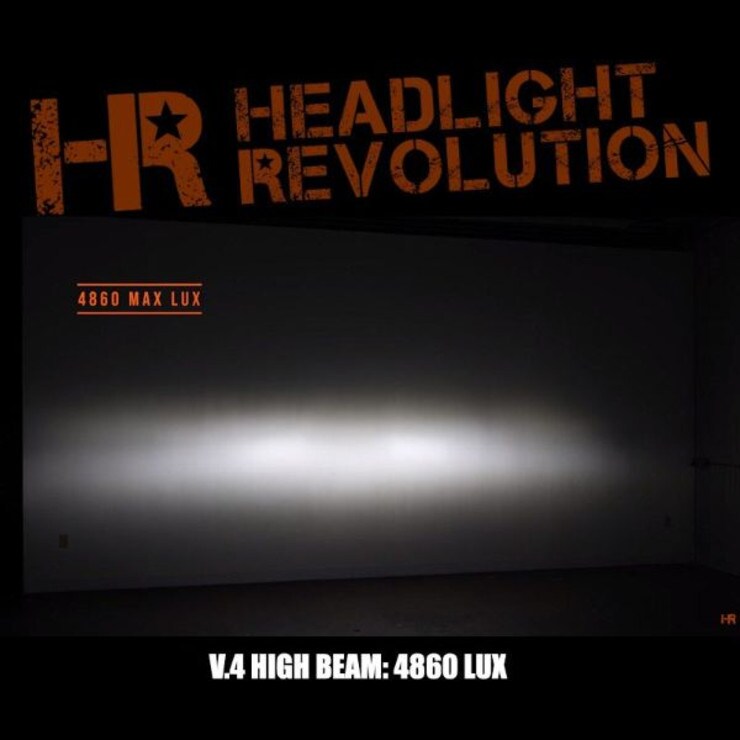

  • INTENSITY: 3600lm / bulb (each)

  • Current: 2.5A @ 14V DC

  • Power: 36W (each)

  • Light Color: 6000K (Cool White)

LINE DRAWINGS

COMPATIBILITY

  • Dodge Ram: 2009-2018 (excl. 2015MY)

  • Housings: Designed for, and confirmed to fit, Stock Housings

2009-2018 Dodge Ram LED High Beam Bulbs: Looking for upgraded LED Headlight Bulbs from a reputable brand and value the fact that we've actually tested them on your truck? Our HR Tested kits include all the right components to ensure perfect fit, function, and performance from the upgrade. At Headlight Revolution, we do 2009-2018 Dodge Ram LED lighting upgrades better!

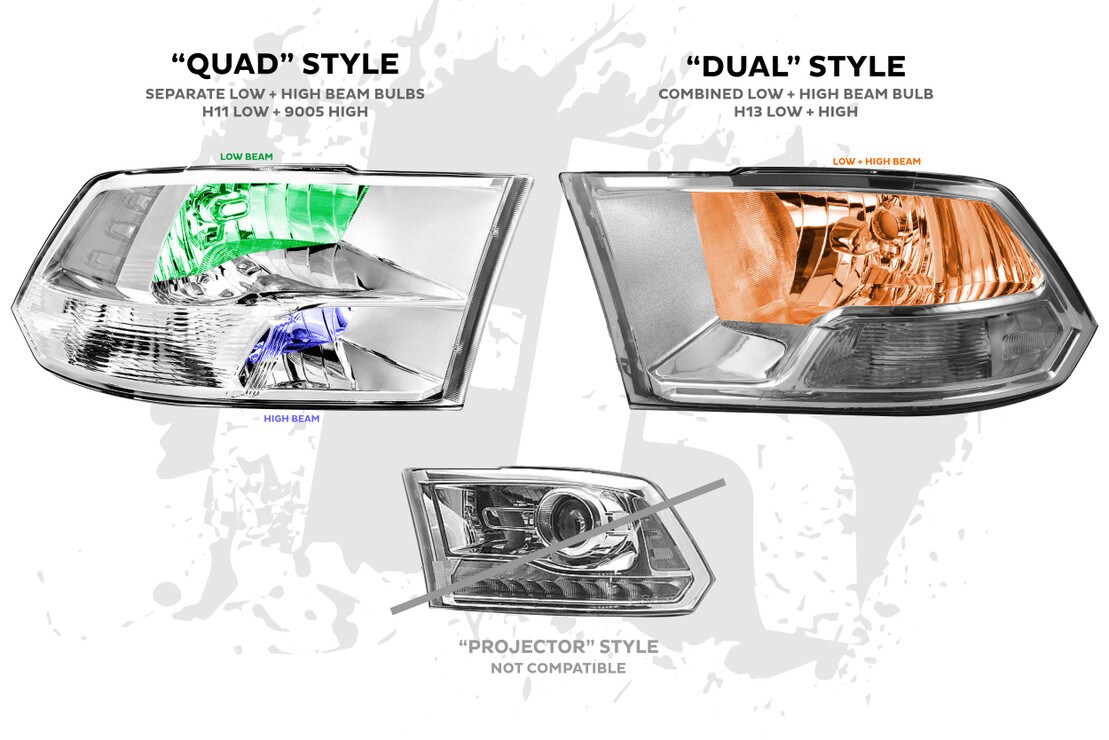

NOT FOR USE WITH OEM PROJECTOR-STYLE HEADLIGHTS THAT WERE AN OPTION ON THESE TRUCKS! Since 2009 until 2012 the Ram trucks used a big reflector style headlight housing and most people say it could have come with better lighting. If you want to upgrade to brighter lighting without changing the entire housing out, then this LED bulb upgrade kit is what you need. This conversion kit will allow you to run LED lights in the low beam and high beam without any issues. Many LED kits don't interface well with the Dodge Ram CANBUS system but our HR Tested system works great when partnered with the Dodge specific resistor harness as shown in our install video.


SOLD AS A COMPLETE KIT FOR QUAD BEAM STYLE HEADLIGHTS - Not for use with H13 bulbs! The 09-12 Ram comes available with 2 different types of reflector headlights. Single Beam (each bulb does one single beam, low or high) and Dual Beam (each bulb does dual beams, low and high in one). This listing is specifically for the H11/9005 Quad beam reflector headlights.


Cutting-Edge LED Chip Technology: We challenge you to find another bulb on the market that produces as much light as the S-V.4 while still retaining a perfect beam pattern! The S-V.4 LED headlight bulbs utilize the newest multi-core LED chip styles that feature one long crystal over the entire diode array to create a seamless light output source. Most LED headlight bulbs on the market essentially create 2, 3, 4, or 6 different light sources by stacking 2-6 different chips together in a line. The NLW1860CV2 chips are based on XD14 technology developed by CREE, this custom designed LED chip has no light gap between diodes which gives it a closer function compared to the original filament bulb, thus achieving a greater beam accuracy that works best in any headlight or fog light housing.

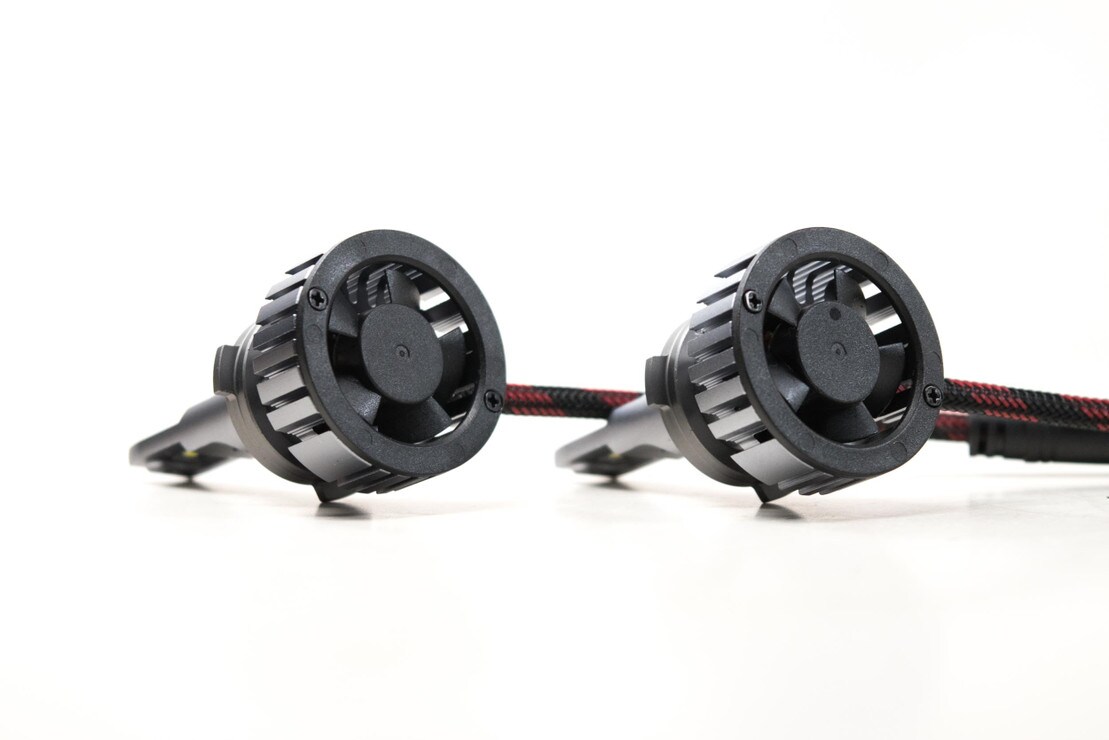

Thermal Management: The S-V.4 LED headlight bulbs are built from the highest quality 6063 aluminum material originally designed for aircraft and space craft applications. This material has amazing heat dissipation qualities as well as is 100% corrosion resistant in automotive applications. On the bottom of the heat sink lies a high-speed double ball bearing micro-fan that is fully submersible and waterproof! If the fan stops working, the sophisticated thermal management system inside the bulb will dim the headlight until it is safe to use. Considering that these bulbs can be up to 6x brighter than your original bulbs, even at 50% power, they will still be safe to use on the street in most situations. The heavy duty LED bulb power driver has a built in smart fan circuit that ramps up the speed of the cooling fan as necessary so it's as quiet as possible when it can be.


Compact Design: Most LED headlight bulbs that use a fan-based active cooling system are known for not being small or easy to fit inside headlight housings with a dust cover. The S-V.4 is designed to be as compact as possible. The mounting depth is 20-25mm on most bulb variants, low profile enough to fit even the most demanding of spaces! The heat sink / fan diameter is only 39mm! The LED driver on this bulb is larger than the previous generation, but it is still the right size to fit inside most headlight housings comfortably.


CANBUS Compliant: Do your LED headlight bulbs flicker, pulse, give you errors and warnings on the dash? Do they even work at all?? Chances are your vehicle employs some version of CANBUS or PWM to control the lighting functions. These complex OEM systems rely on the physical readings of your original headlight filament to determine of your bulbs are operating properly. Simply put, when you install an LED headlight bulb, that function sometime determines that the bulb is broken, or missing entirely and will cause the truck to malfunction. Sometimes this means they don't come on at all, other times they flash, and sometimes they will suddenly shut off while you're driving! All of these things are solved by the built in CANBUS integration circuit found already inside the S-V.4 LED driver. Sometimes an extra PWM module may still be necessary, but this bulb is totally plug and play on the vast majority of vehicles on the road today, even brand new models!


Dimming: The S-V.4 bulbs dim less and less bright until they turn off at 8V DC.


DRL: If the DRL function is lower than 8V DC, the bulbs will just not turn on at all. But if they use CANBUS or PWM at 12V DC they will work normally.

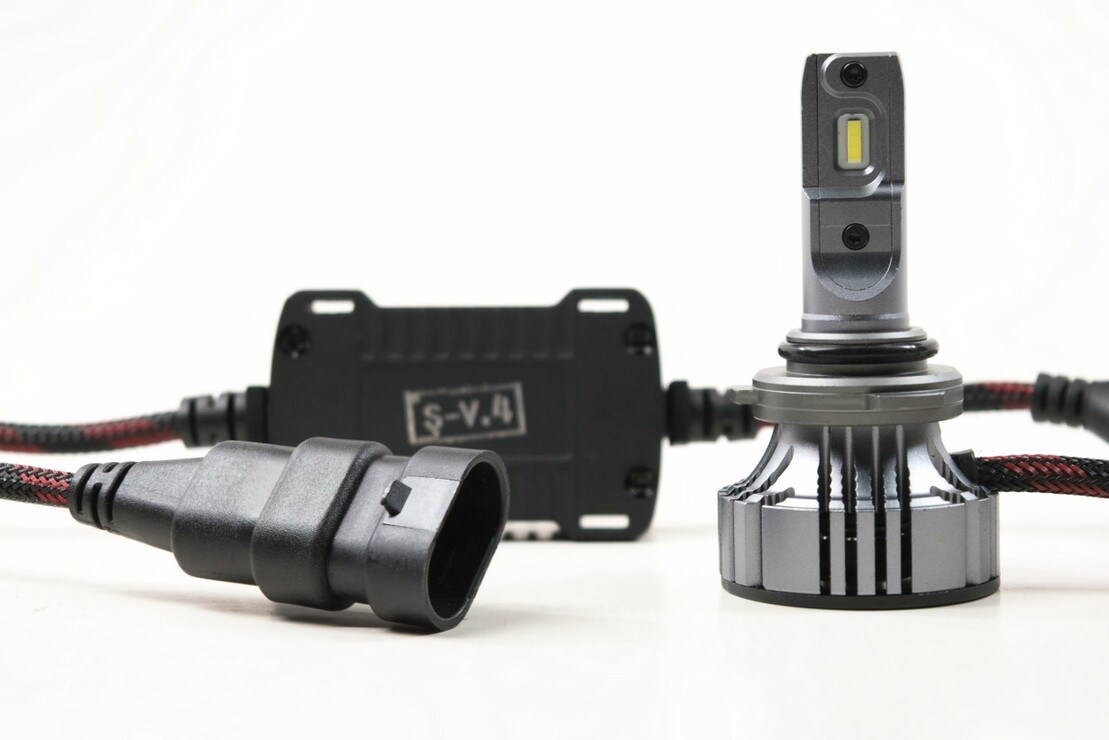

CANBUS: Some vehicles use CANBUS function to monitor and control your headlight and fog light bulbs. The S-V.4 has a slightly larger LED driver than normal because the CANBUS anti-flicker and anti-error circuitry is built in! No external components should be needed to install these bulbs with a CANBUS-Equipped vehicle. Easy plug and play installation. 2 year warranty.


Want your headlights: to shine brighter and further but your current bulbs just aren't cutting it? Want to get rid of that old yellow light tint and give your ride an updated look with a cool white light beam? Look no further! These LED headlight bulbs will cast a precise light beam that will give you increased visibility, a wider viewing angle, and a much longer Limited Lifetime over conventional halogen bulbs.


The S-V.4: comes in every popular style to replace any headlight or fog light bulb. Match the bulb number of your original application (example: 9005, 9006, H4, H13, etc...) with the matching S-V.4 LED headlight bulb and replace bulb for bulb. Fits all applications including projectors, and headlights with dust shield covers.


HR Tested: Here at Headlight Revolution, we've spent the time to install and test all HR Tested products, so we know it'll work exactly as shown and right out of the box! Not only that, but we don't favor one particular brand. We just deliver the best product for the application, period. Be sure to reference our install videos for helpful tips on making the installation process quick, painless, and clear. HR Tested: We ensure fitment and function. You do the install. For other compatible upgrades, use the Buyers Guide on our homepage!

4

2009-2018 DODGE RAM S-V.4 LED (QUAD / HIGH BEAM)

by

2011 Ram 1500 Sport quad headlights…I rated the high beam at a 4 star because they are amazing!!!!! and should have a 5 star review however they will not fit the quad headlight with the dust cover. The dust covers will not reinstall. This was taken directly from their product description. Product Specs ” HOUSINGS: Designed for, and confirmed to fit, Stock Housings” “Fits all applications including projectors, and headlights with dust shield covers.” (Very deceiving) Before you buy watch the HR videos and read the reviews. I should have trusted the reviews. Live and learn!!!! However I did repurpose the bulbs as driving lights. They fit perfectly with a little adjustment to clock the beam pattern. I can now see the shoulders of the road clearly (Probably 15 feet or so on both sides of the road). They are very bright with an amazing pattern. I am very happy with my purchase and would purchase again.

5

Better than expected

by -

This lights works great. Nice beam pattern. way better when compared to economic HID on the market.

5

Dodge Ram 2015 quad headlights :{

by -

Finally high beams that work ,Absolutely amazing performance from these bulbs .Still trying to come up with a solution to allow dust covers to fit over bulbs that extend too far out .Would be nice if HR provided after market covers for us .

5

Work great... easy install.

by -

Work great... easy install.

5

Nice lights. Great fit,

by -

IÄôm really happy with the lights on my 2018 Ram 1500 Big Horn. Bolted right up and look great.

5

Really good headlights

by -

Before these lights I had OPT7 lights and just outside of warranty they failed. However even though these lights rate just a little bit better they are by far a whole lot better. With low beams on they are bright and you cans see a lot however click the high beams on and they are extremely bright. I drive a lot of country roads at night and deer are an issue but with these you can see deer that are 300 feet in front of you if not farther. All be the install of the headlights was pretty easy and tapping in resistors on the turn signals wasn't to hard installation was still a breeze.

5

Great product

by -

Fit was tighter than I would have liked, but with a little trimming the inside of the cap everything worked out just fine.

5

2015 Ram 1500 w/ Projectors

by -

Highbeams are awesome. Great pattern. Reviews wonÄôt show you them lighting up the treetops and sides of the road as well as they do. And the light carries very well. Originally wanted GTRÄôs, because the tests said they were brighter, but the customer support agent said there was a clearance issue. Went with these. Definitely not a let down. Install was easier that the HIDÄôs I put in the low beams. WORD TO THE WISE: check the tightness of the factory set screw. Had one that was loose and after it was in and I went to back it out, it spun in place and got stuck. Gave me a headache for about 30 minutes because space in there is so tight. Got it out, tightened the screw, and got it clocked perfectly. After that, no issues. Just nice usable light. Siscal and Ebert wouldÄôve gave these two thumbs way up.

5

Awesome Lights

by -

Awesome lights, and had one little snag and called the guys at HR and they helped in a jiff. Will use these guys again.

1

Dodge High Beam.

by -

Not happy with the fit. Only 2 of the three tabs locked in on my truck to get LED to face left to right. Plus in Canada we have DRLs and it uses the high beam bulb with only half power sent to them this causes my new LEDs to flash constantly. Talked to the techs at HR and they said canÄôt do anything. Suggested I talked to my dealer to see if they can be programmed to not send power but dealer says no. Would I recommend these to friends. NO
