HR Tested Fit and Function

2018+ Jeep Wrangler (JL) CSP Mini LED (Fog Lights)

B-HRT-0293-HR

PART #: 2 x SN.LED140


[ In Stock: 0 pieces ]

Product Details

2018+ Jeep Wrangler JL LED Fog Light Bulbs: Looking for upgraded LED Fog Light Bulbs from a reputable brand and value the fact that we've actually tested them on your truck? Our HR Tested kits include all the right components to ensure perfect fit, function, and performance from the upgrade. At Headlight Revolution, we do 2018+ Jeep Wrangler JL LED lighting upgrades better!

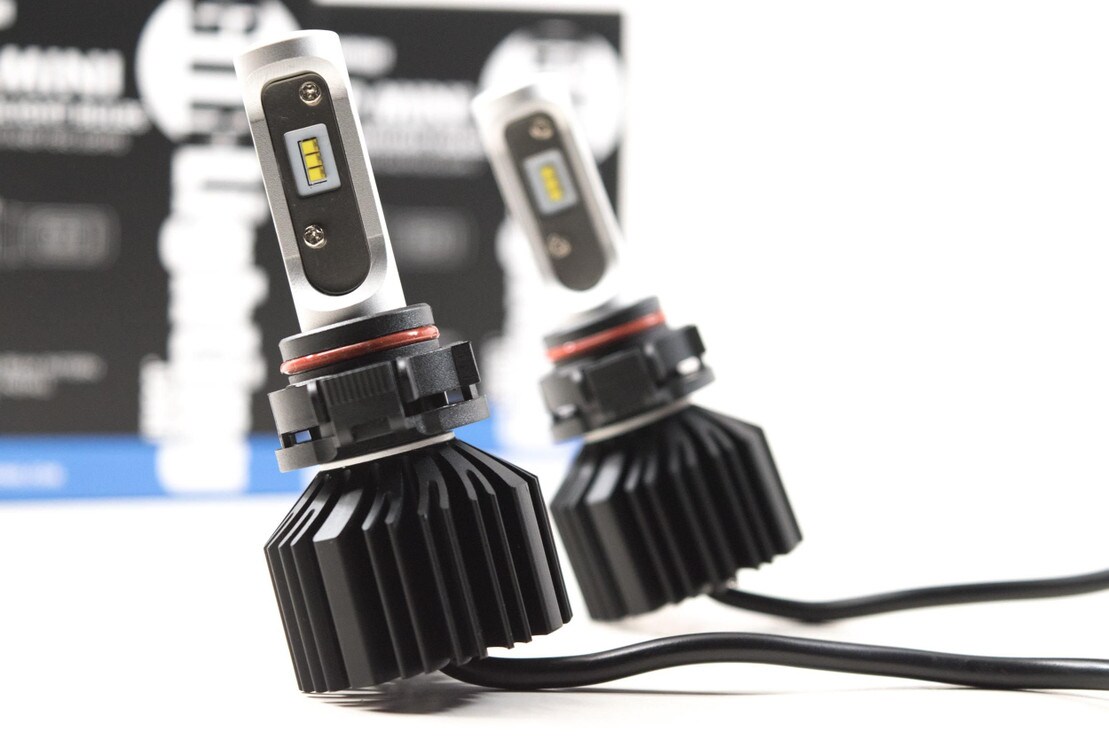

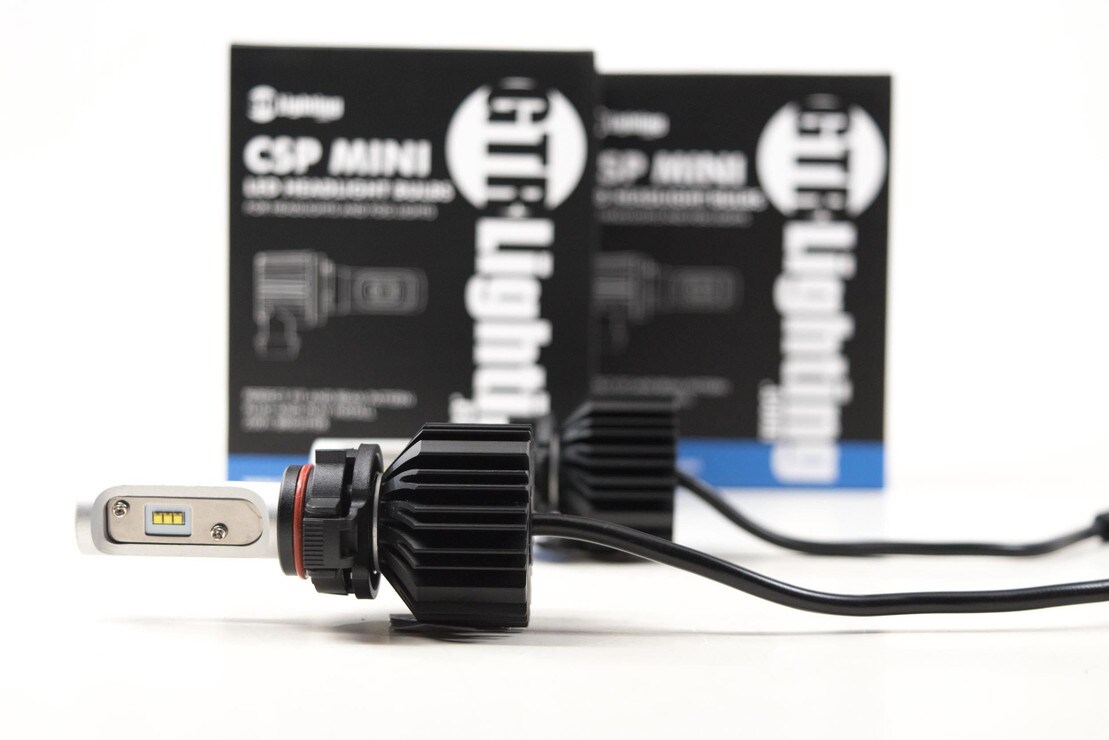

The GTR Lighting CSP Mini LED bulb: was designed with two main ideas in mind: #1: Perfect Fitment into any fog light housing - specially designed to closely mimic the size and shape of your original halogen light bulb for maximum capability! #2: Perfect Beam Pattern due to the alignment and design of the low-profile copper PCB and Philips Z ES "CSP" style LED chips.

This LED configuration: creates a similar light output profile as compared with the original filament bulb for an accurate beam pattern.

Heat Sink Technology: No Fan Noise! Fans work well to cool down powerful LED fog light bulbs, but the GTR Lighting CSP Mini is unique blend of power and efficiency that does not require active cooling. Coming in at only 16 watts of power, and featuring the Philips Z ES high-efficiency chips, these bulbs create about 2 times as much light as your original halogen bulbs at less 33% less power consumption. In short, they're super efficient so they don't need a huge fan mounted to the heat sink to stay cool! The powder-coated aluminum body of the bulb acts as the heat sink for both the internal driver and the LED bulbs themselves.

Thermal Management: The GTR Lighting CSP Mini LED bulbs are equipped with a sophisticated thermal protection circuit to avoid failures due to overheating problems. We've tested these bulbs at 194 degrees Fahrenheit for 15 days straight without failure! The maximum power draw of these bulbs is 16 watts of power and if the LED thermister sensor reaches a temperature of 140 degrees Fahrenheit or hotter the temperature protection kicks in and reduces the light output to a safe level. This smart technology allows the bulbs to never get so hot that they burn out the chips, which is the most common reason for LED bulb failure. Even at a reduced level of 13 watts of power consumption (to prevent over-heating...), the GTR Lighting CSP Mini LED fog light bulbs will still be noticeably brighter than your old halogen bulbs! This function happens 100% automatically and ensures the longest possible lifespan of your fog light bulbs!

Furthermore: the GTR Lighting CSP Mini LED fog light bulbs are equipped with the highest quality possible chip technology. We use the genuine Philips Z ES "CSP" style LED chips that have a higher heat-resistance rating than other similar versions. Beware of imitators! If someone is selling a bulb that looks like ours, make sure they're using the good chips like Philips ZES! These LED chips are rugged, heat-resistant and create the tightest optical source for the best beam pattern. Your fog light bulb LED chips really do make a difference!

Brightness: Your original halogen incandescent fog light bulbs produce roughly 1,000 Lumen per light bulb, at about 55w of power consumption. The GTR Lighting CSP Mini bulbs produce 2,500 Lumen of light at only 16w of power consumption! Not only do these bulbs have the ability to be 2-3 times brighter than your old light bulbs, in most applications they will also mimic the OEM beam pattern to protect other drivers' vision at night!

Want your fog lights: to shine brighter and further but your current bulbs just aren't cutting it? Want to get rid of that old yellow tinted light and give your ride an updated look with a cool white light beam? Look no further! Built with high power premium quality Philips Z ES LEDs, these LED fog light bulbs will cast a precise light beam that will give you increased visibility, a wider viewing angle, and a much longer Limited Lifetime over conventional halogen bulbs. The bulbs feature great heat management with 1070 aluminum construction, Intelligent Thermal Management, and the newest "CSP" style LED chipset from Philips.

Fitment: Match the bulb number of your original application (example: 9005, 9006, H4, H13, etc...) with the matching GTR Lighting CSP Mini LED fog light bulb and replace bulb for bulb. Fits all applications including projectors, and fog lights with dust shield covers.

NOTICE: If your vehicle uses a CAN BUS system to operate the fog lights, you may need additional parts like an LED CANBUS or PWM module. Contact us for details if you are unsure.

HR Tested: Here at Headlight Revolution, we've spent the time to install and test all HR Tested products, so we know it'll work exactly as shown and right out of the box! Not only that, but we don't favor one particular brand. We just deliver the best product for the application, period. Be sure to reference our install videos for helpful tips on making the installation process quick, painless, and clear. HR Tested: We ensure fitment and function. You do the install. For other compatible upgrades, use the Buyers Guide on our homepage!

Product Specs

  • Compatibility

  • Jeep Wrangler JL: 2018+

  • Housings: Designed for, and confirmed to fit, Stock Housings

  • Tech Specs

  • INTENSITY: 2500lm (each; raw)

  • Power: 16w (each)

  • Current: 1.17A @ 14V DC

  • INPUT VOLTAGE: 9-16V DC

  • Light Color: 6000K (Cool White)

  • WATERPROOF: IP67 Standard

Product Reviews

3.6 out of 5 stars

10 Reviews   Write a Review

2 out of 5 stars

GTR lightening CSP mlni

Thomas Banach

Very disappointed in the fitment in my case 2020 jeep Wrangler Rubicon with OEM halogen Fog lights The plastic alignment pins on the light didn't fit into the housing. The connecting plug Wiring is reversed cannot recommend these replacement bulbs in my case I thought for the price the quality would be better


5 out of 5 stars

Headlights

William F Cassady

Love them!


4 out of 5 stars

nice but be prepared to do some work

Todd Richmond

On my 2020 Wrangler JL, the tabs on the light didn't line up with the slots in the light housing. I had to trim the tabs off the light housing (leaving 2 out of the 3 and shortening one of them). In addition the boot plastic housing is too long so I couldn't get the connector to click in place (so I shaved it - already had the utility knife out to remove the tabs). Once I did, I also found that the + and - are swapped, so the sit=de with the nub for the latch is on the wrong side. I didn't want to hassle with rewiring the factory connector, so instead just turned the plug over on the light, pushed it in all the way, and then used electrical tape to ensure the connector didn't shake loose. Much better light than the stock halogen, but you may need to be ready to do some tweaking.


5 out of 5 stars

Led

kenworth

Yeah these fog lights rock bright


1 out of 5 stars

Said I have them but I don't

MICHELLE LARGE

$380 And 3 months no bulb no money back stay way


4 out of 5 stars

Almost perfect

Ron Duncan

The lights themselves are fantastic! The fitment is not perfect as printed on the box and depicted in the installation video. That being said, I was able to eventually get them to snap in enough to hold them in place. Time (and some off-roading) will tell if they stay in place.


4 out of 5 stars

Great fogs for the JL

rob allen

Took a bit of finagling to get them to lock in place but are very nice units


5 out of 5 stars

JL fog light

Jack Rote

Awesome 3 times as bright than original bulb


1 out of 5 stars

Fit not even close, Like the build quality option says, "Garbage"

Andrew Sankovich

None of the line up tabs matched what is in the factory light housing. Had to cut off all the tabs, and shave off plastic to get them to seat fully too. Had to shave down the plastic surrounding the end of the bulb wiring to seat fully into the factory plug. And if you installed the plug to have the nub to be engaged in the factory harness like you think it is supposed to be, the polarity is wrong. Had to shave off the nub, reverse the polarity, and tape the plugs together to hold them. Not super bridge but much clearer white light than the factory bulbs.


5 out of 5 stars

cant go wrong

harley rice

i was pleasantly surprised. If you have watched any YouTube videos then you get exactly what is described. Much brighter and whiter than non-LED stock lights... certainly worth the money!
