LED Fog Light Bulbs
9005: GTR Lighting CSP MiniX.PF1.9005-HR
[ In Stock: 0 pieces ]
Starting at $X.XX/month with

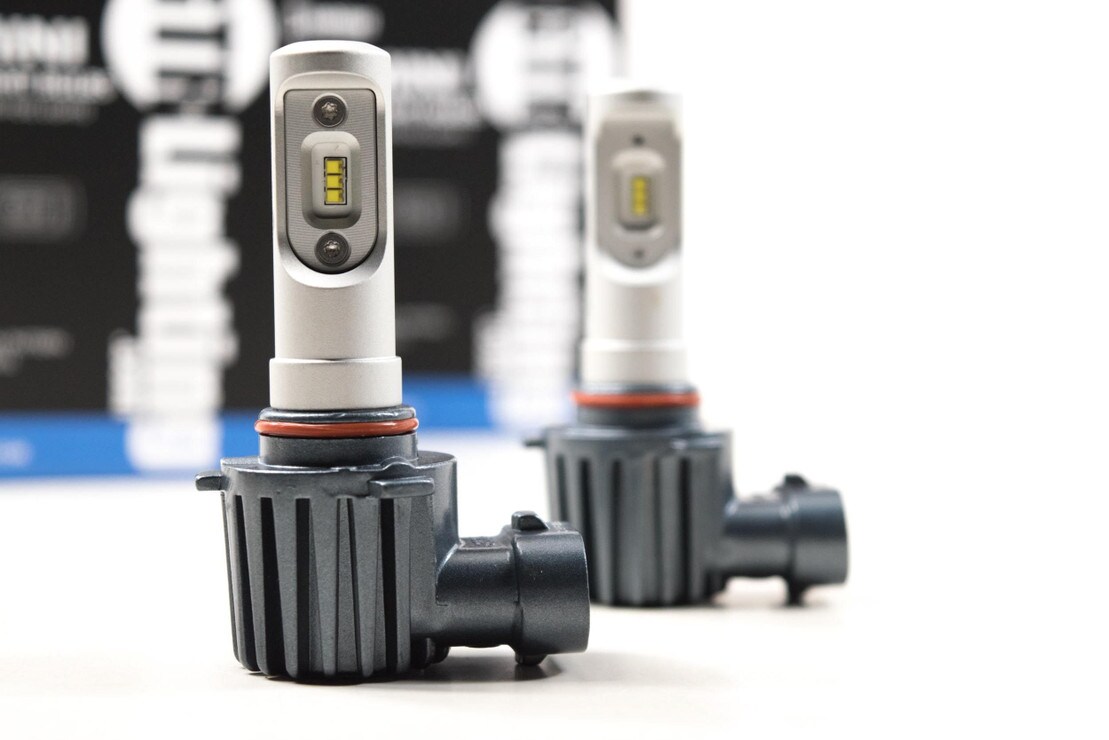

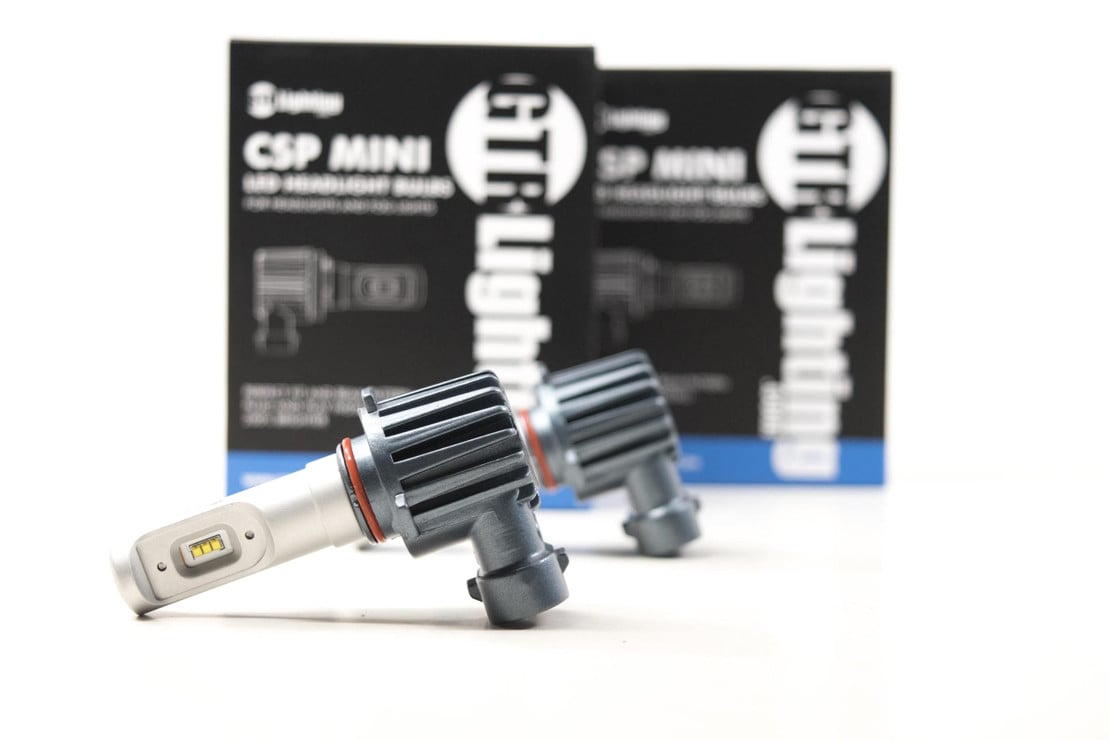

GTR Lighting 9005 CSP Mini Series: The 9005 CSP Mini from GTR Lighting is a fantastic gateway into LED Fog Lighting Upgrades. At only 16w it draws roughly a third less power and is twice as bright as many OEM Bulbs. The design is especially impressive with a copper PCB and Z ES Chips that are perfectly aligned to emulate the filament they’re replacing. You’ll get 2500 lumens and a shockproof, waterproof lighting upgrade that will last for years.
Fitment: Perhaps one of the things we love most about the CSP is its small stature. Thanks to that low power draw it doesn’t require the complex heat sinks you see on other lights. The compact heatsink is more than adequate and that allows the bulb to fit just as easily as the original bulb did.
Adequete +: When we say that this thing evacuates heat adequately we mean it. It’s been tested at a temperature of 194 degrees for 15 days straight without failure. You could live on Mars and this LED bulb would function just fine.
Keeping Cool: Part of that successful heat evacuation is due to an integrated heatsink that’s built from the highest quality aircraft-grade aluminum. That provides them the ability to shed heat more quickly than any other option without needing a fan. So you won’t get any noise either.
HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you’ll find for sale. We don’t favor any particular brand, so our commitment to you is that we’ll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the "buyers guide" on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!
BULBS: 2x CSP Mini LED
WARRANTY: 2 Years
APPLICATION: HID and LED bulbs are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country. For detailed clarification on street use, CLICK HERE Note: This usage regulation is not unique to GTR Lighting bulbs. All LED and HID bulbs from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA.
HOMOLOGATION ECE: NO
DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)
INTENSITY: 2500lm (each; raw)
WATTAGE: 16w (each)
CURRENT LOAD: 1.17A @ 14V DC
INPUT VOLTAGE: 9-16V DC
LIGHT COLOR: 6000K (Cool White)
WATERPROOF: IP67 Standard
Thank you for the product. Lights are working great.
GTR cap mini fog
F150. Much better ditch lighting but not the down range lux expected. Nice easy install except for left side/ poor Ford engineer design!
Well worth it.
John S Horine
Recently purchased some CSP Mini's and am extremely satisfied. Bright, very well made, and fanless. Fans are just something else to fail and these don't have them. I will probably be getting some more for our other vehicles.
No fan should hopefully mean better longevity that shouldn't be impacted by mud collection.
On the darkest unlit highway
These 9005 LEDs provide excellent high beam sight distance.
Very east to install, very good light for it's size
Good quality bulbs
Good quality bulbs
These 9006 are amazing you wonÃÃ´t be disappointed
I put these GTRs in my 2001 GMC Sierra 2500hd and wow did they wake the truck up I can honestly see so clearly at night and they are not offensive to oncoming traffic so I liked them so much I bought a matching set for my 2004 Chevy Corvette and guess what I love them there too super crisp much better visibility and I also grabbed the GTR fog lights to match
The GTR MINI WERE EAST
The GTR MINI WERE EAST TO INSTALL AND ARE BRIGHT AS HELL THANKS ALOT Y'ALL were very helpful with the back order to
If I can install these anyone can...
I have zero mechanical skills, but these were super easy to install. The halogens on my Subaru Ascent sucked. I could barley tell when they were on. These are easily twice as bright! Highly recommend for all Ascent owners.
