4Banger LED Fog Lights: Lexus

(0) No Reviews yet
Questions?

Brand: Morimoto

B-4B-FOGKIT43-HR

$0.00

PRODUCT OPTIONS

PART #: 1 x BAF005.2, 1 x BAF014



*Guaranteed Fitment
Easy Return

ON SALE! Get 10% off from 4/12 - 4/21!!!

DESCRIPTION

Introducing the Morimoto 4Banger Fog Lights – the ultimate upgrade for your vehicle's illumination needs! These SAE Compliant fog lights set new industry standards for safety and performance. With a sleek design that fits seamlessly, they're engineered for an easy bolt-on, plug-n-play setup, eliminating the need for vehicle modifications. Plus, their fully adjustable brackets ensure precise aim, keeping the intense wide beam pattern where it belongs – on the road. But that's not all! Morimoto has taken it a step further with built-in ductwork for active cooling, enhancing longevity. Choose between a white-output version for all-around visibility or a yellow-output version for unbeatable performance in adverse weather conditions. The HXB Wide Beam, powered by Osram HX Boost LEDs, delivers unrivaled brightness and control, making it the top choice for both on and off-road adventures. And if you're looking for efficiency, the NCS Wide Beam, with LEDs from Nichia, outshines competitors while consuming less power.

FEATURES & BENEFITS

  • Unmatched Performance: Elevate your visibility with SAE Compliant fog lights for maximum safety.
  • Streamlined Design: Compact 4Banger footprint eliminates the need for unsightly adapter kits.
  • Easy Installation: Bolt-on and plug-n-play design with high-quality wiring adapters included.
  • Customizable Beam: Enjoy full adjustability to fine-tune your beam pattern for maximum control.
  • Heat-Free Performance: Built-in air cooling prevents heat-soak, ensuring long-lasting brightness.

WHAT’S INCLUDED

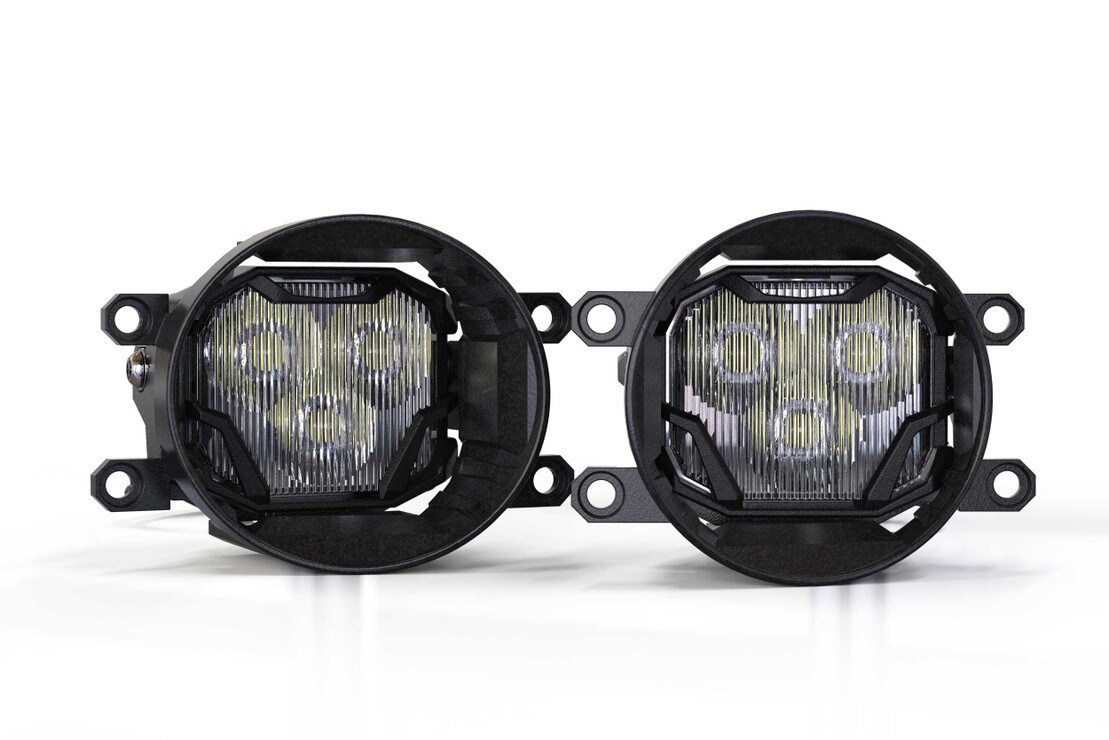

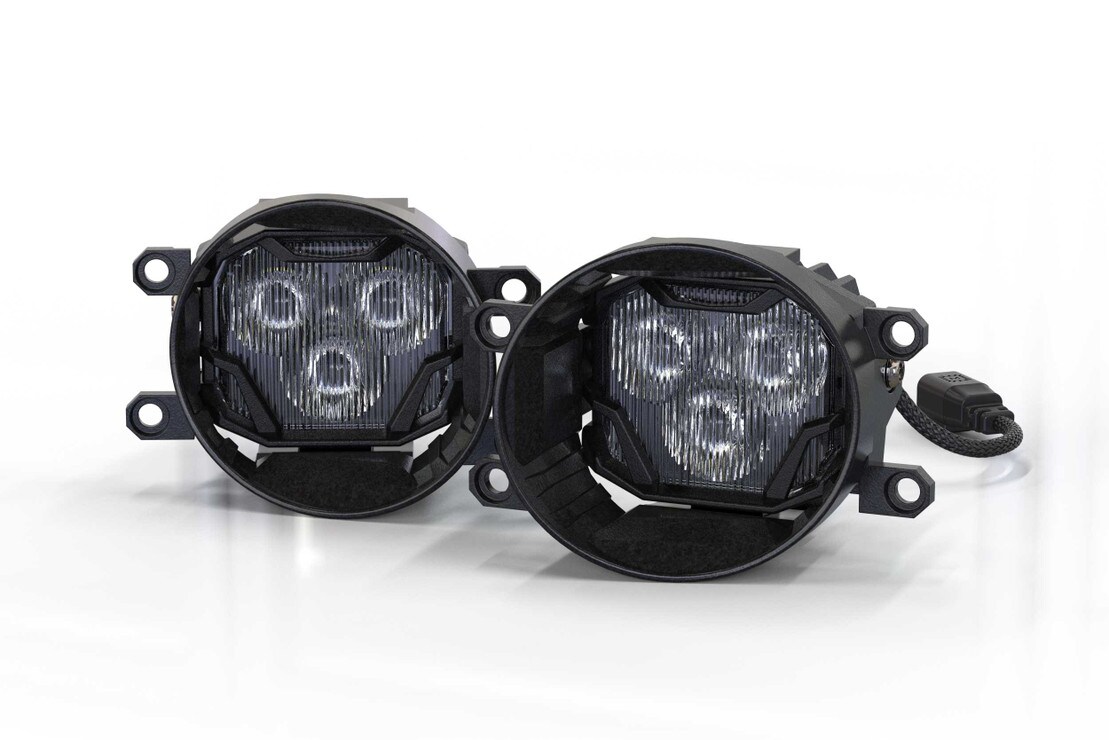

  • Fog Light Brackets: 2x (One Pair) BAF014 Brackets

  • LED Pods: 2x (One Pair) Morimoto 4Banger (Optional Color / Beam)

  • Hardware: Complete Pack (Stainless Steel)

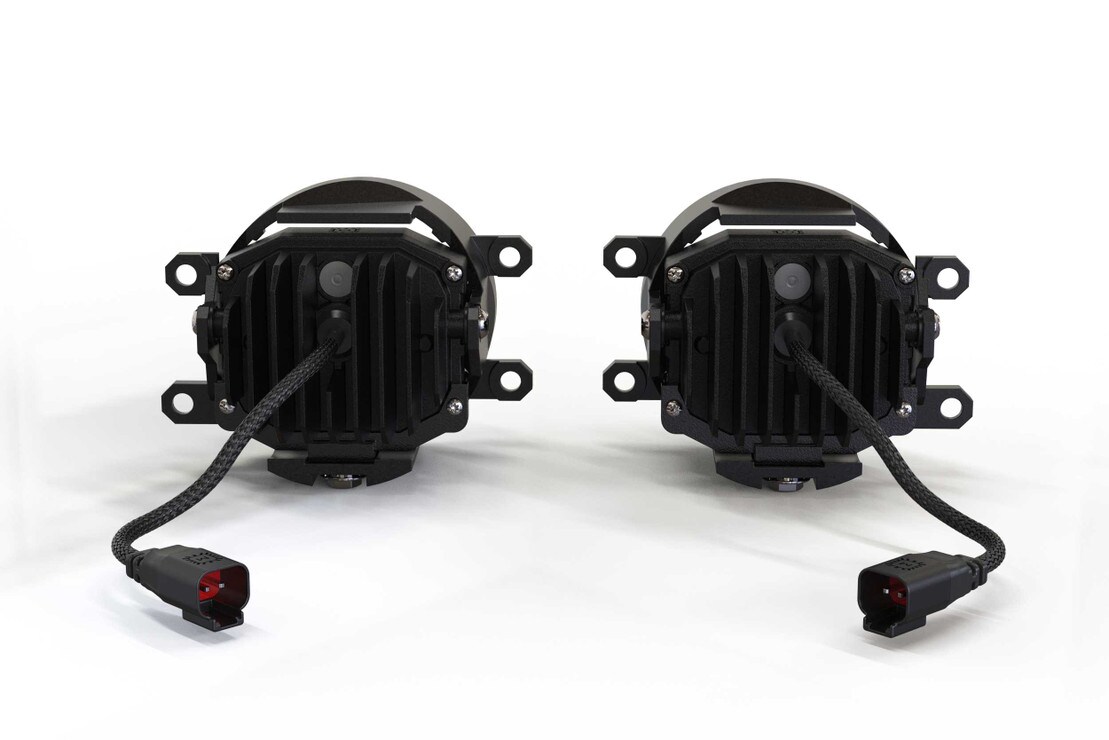

  • Wiring: Plug N Play Connection Kit

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Note: These specifications are per pod / each!

  • Intensity:

  • NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)

  • NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)

  • HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)

  • Input Voltage: 9-18V DC

  • Power (stabilized): 15.6w (NCS) 42w (HXB)

  • Current: 1.5A (NCS) or 3.2A (HXB)

  • Peak Luminosity (lm)(Raw): 1,300lm (NCS), 3,000lm (HXB)

  • Dimensions: 82mm W, 67mm H, 60mm D

  • Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost

  • Input: Proprietary Overmolded Deutsch DT 2-Pin

  • Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

LINE DRAWINGS

COMPATIBILITY

  • LEXUS CT: 2011-2017

  • LEXUS ES: 2013-2015

  • LEXUS GS: 2013-2015

  • LEXUS HS: 2010-2012

  • LEXUS IS: 2011-2014

  • LEXUS ISF: 2008-2013

  • LEXUS LX: 2008-2015

  • LEXUS GX: 2010-2014

  • LEXUS RX: 2010-2015

  • REPLACES TOYOTA PART #: 81220-06071, 81210-08020

  • NOTE: There are two standards for Toyota fog lights with slightly different spacing between the mounting points. These will work with both, but may be a tight fit if your Toyota uses the "wider" spacing.

COMPLIANCE

Wide beam photometrics are SAE F 20 compliant (HXB Report)(NCS Report)

INSTALLATION DOCUMENTS

SAE Compliant Fog Lights: The Morimoto 4Banger NCS SAE Wide Beam out-performs the competition while complying with the latest SAE F regulations for a street legal fog light. The 4Banger HXB Wide Beam sets a new industry benchmark for intensity. But what's better than producing the best and brightest beam patterns that are safe for use on public roads as a fog light? The best fog-light specific mounting brackets for your Lexus, of course.

Engineered Solution: Thanks to the smaller than usual footprint of the 4Banger, we now have a powerful fog light upgrade that fits properly and looks right. Other adapter kits for more traditionally-sized LED pods stick out like a sore thumb. Not here. Morimoto engineers spent hundreds of hours hands-on in the garage during development of the 4Banger brackets alone. Repeated rounds of design, prototyping, and test fitting have spawned the most refined set of fog light brackets that a Lexus owner could ask for.

Easy Setup: Everything is designed to bolt-on and plug-n-play. No modifications are required to your vehicle or its wiring to install the 4Banger off-road lights in your fogs. Each kit includes all of the necessary hardware and high-quality wiring adapters to connect with your factory fog light harness. Note, your vehicle must have stock fog lights.

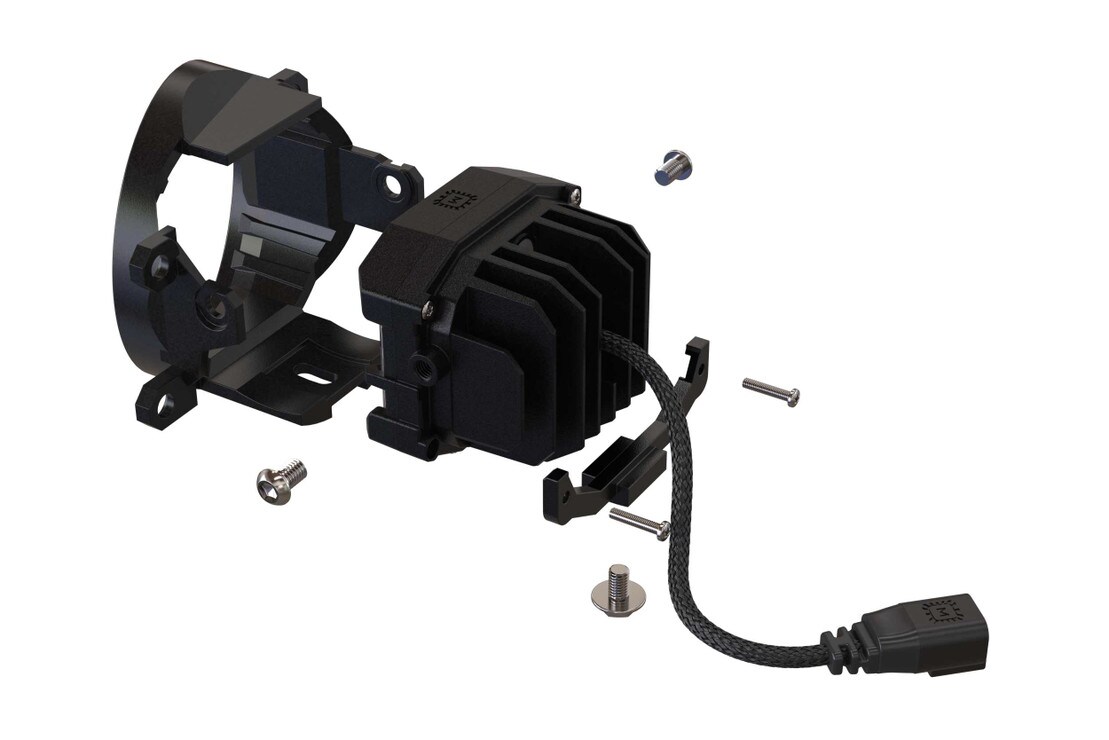

Fully Adjustable: These things are powerful, and while their wide beam pattern is perfect for use as a fog light, power is nothing without control. All brackets have +/- 6 degrees of vertical adjustability so that you can dial in the aim and ensure every ounce of intensity ends up on the road ahead, not in the eyes of oncoming traffic.

Air Cooled: As if the style, the fitment, the adjustability aren't enough --we have incorporated duct work into each bracket to actively cool the LED pods. This improves lumen maintenance by eliminating heat-soak, which is common in other LED Pod fog light kits that have no ventilation for the heat sink.

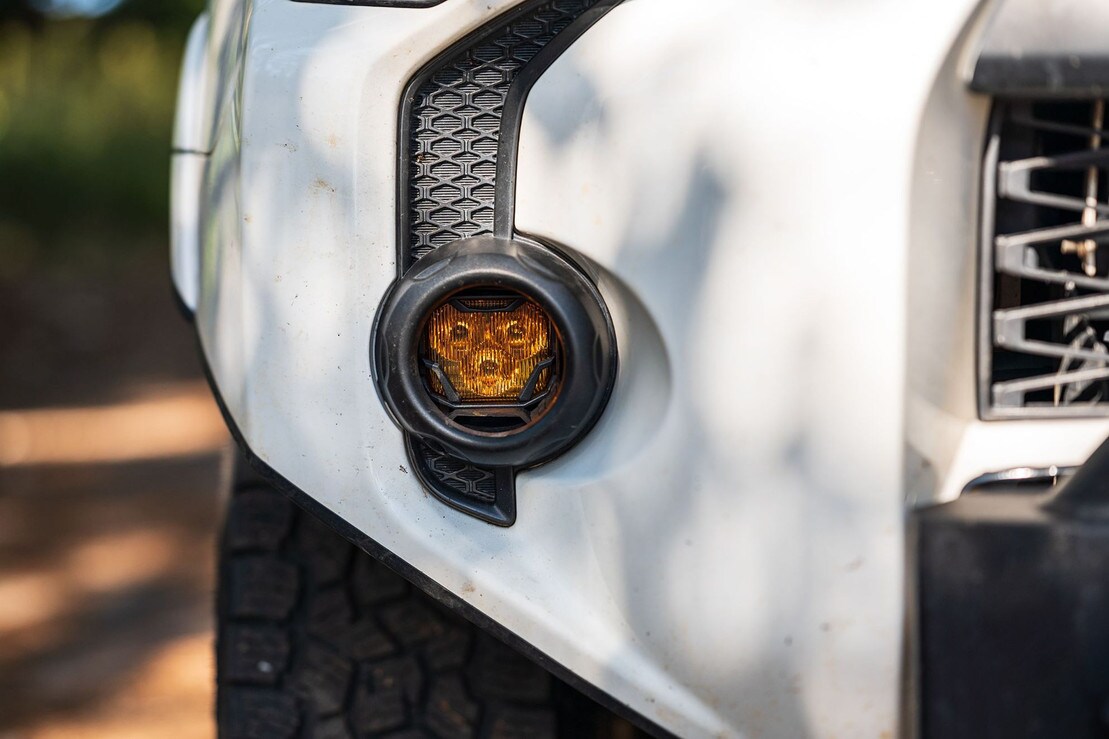

All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog --the Yellow-output version will slay in sour weather. For NCS models, Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).

HXB Wide Beam: Offers an extremely wide beam pattern backed with powerful Osram HX Boost LEDs, making these the brightest SAE-Compliant fog light pod on the market today (80% brighter than Rigid D-Series SAE Fog and photometrics verified SAE Compliant by Calcoast ITL). The 4Banger HXB Wide beam delivers the best combination of width, intensity, and control - making it the most effective on and off-road LED fog light in the world.

NCS Wide Beam: Offers the same super wide beam pattern backed with LEDs from Nichia. Their superior vertical gradient control also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light, making them highly effective on the ground and glare-free for oncoming traffic. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W).
