DESCRIPTION
FEATURES & BENEFITS
- Customizable: Personalize power, color, length, and radius for a unique lighting experience.
- High-Performance: Nichia & Osram LED technology ensure powerful illumination.
- Flexible Design: Easily adapt the straight or curved setup for various applications.
- Wide Coverage: Combo, spot, and wide beam pods offer superior visibility.

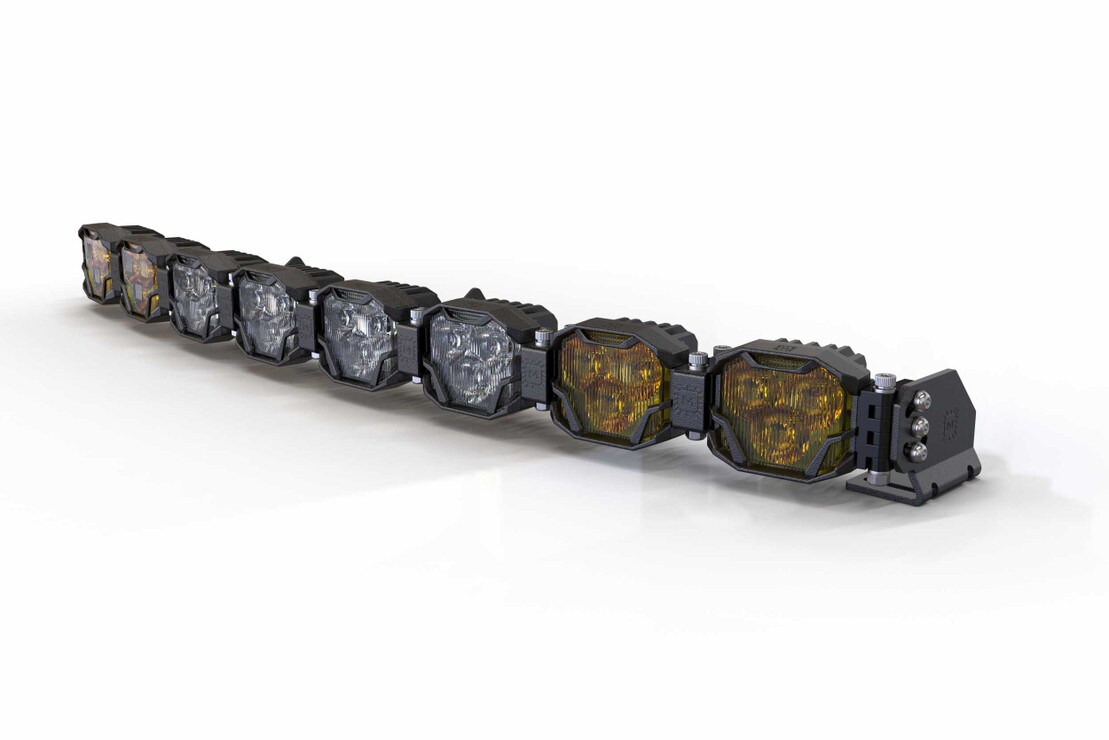

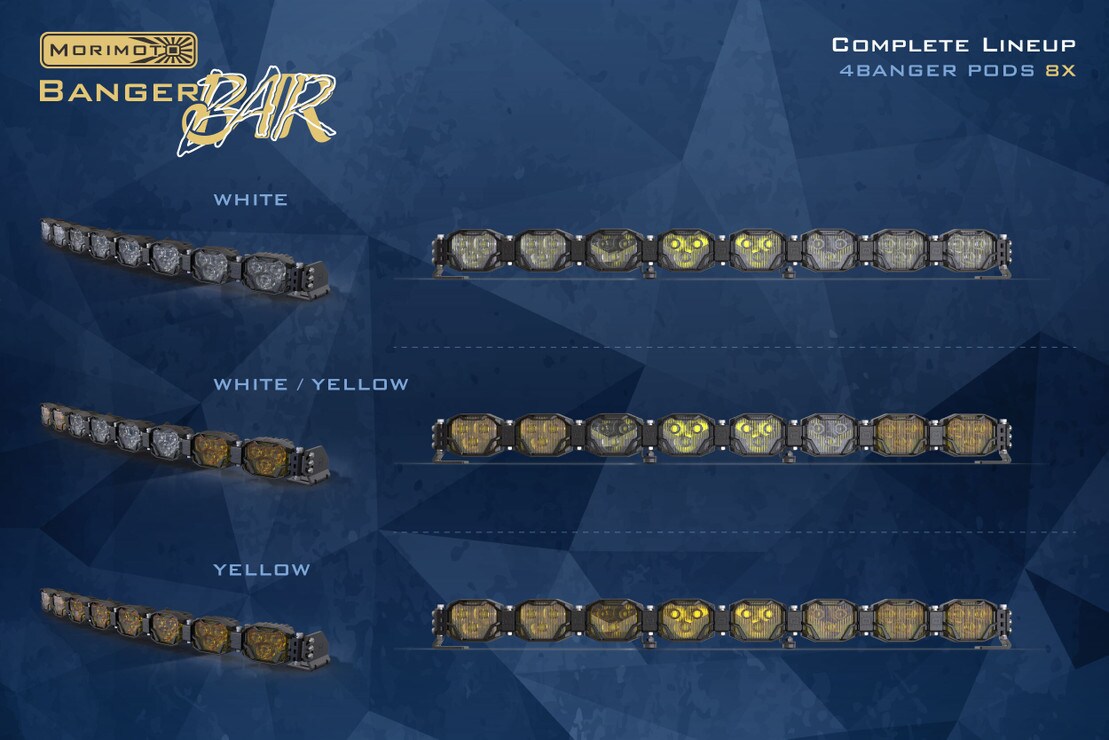

- All-Weather: Choose white, yellow, or combo setups for optimal performance in any condition.
WHAT’S INCLUDED

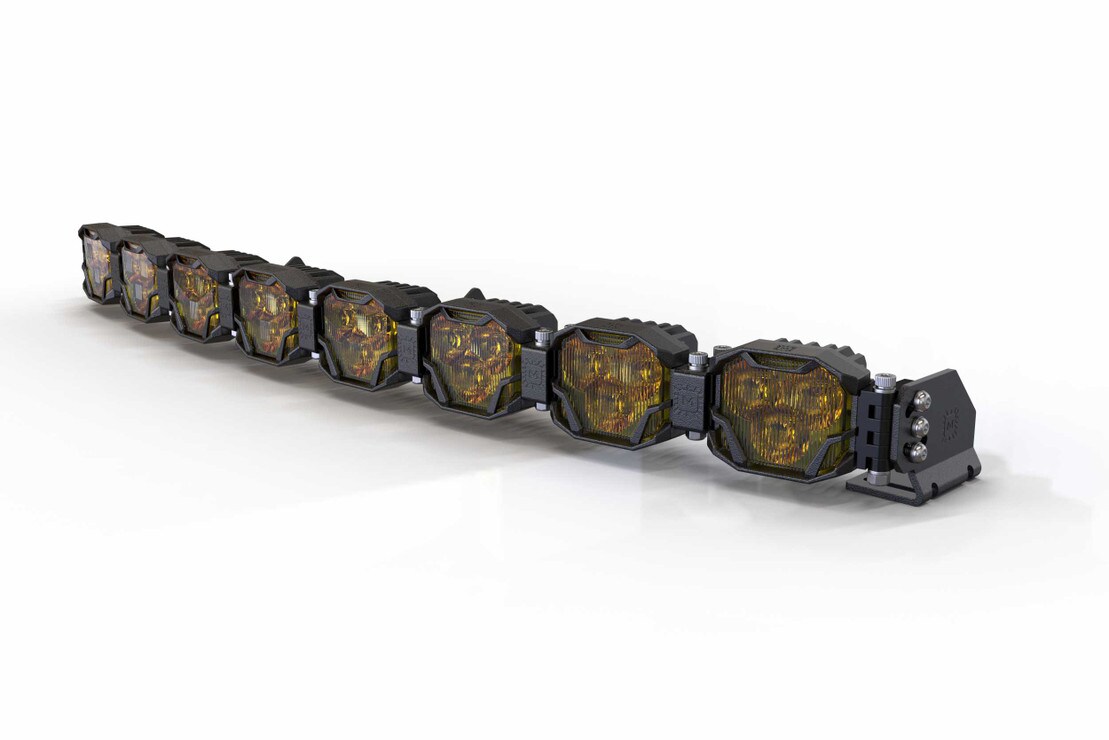

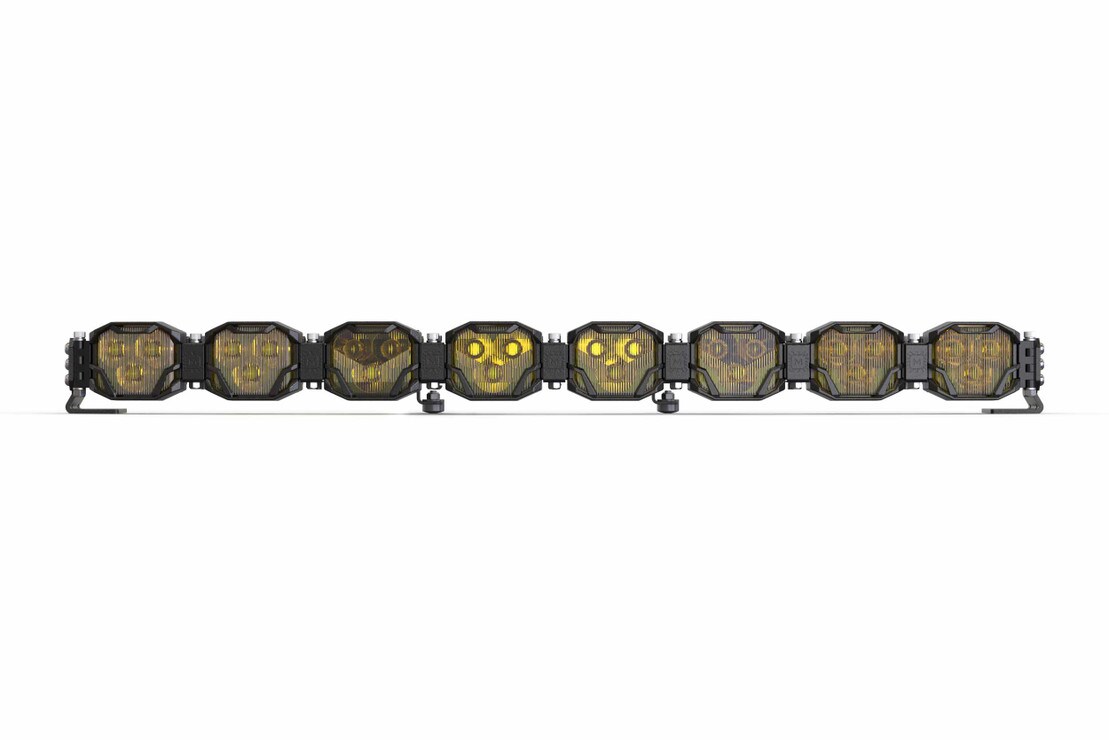

LED Pods: 4x Morimoto 4Banger Combo (White or Yellow)
LED Pods: 4x Morimoto 4Banger Wide (White or Yellow)
Pod Links: 7x 4Banger Adjustable CNC Links w/ Hardware
Center Support Legs: 2x Adjustable Central Support Legs w/ Hardware
Universal Mounting Feet: 2x Adjustable Surface Mounts w/ Hardware
Relay Harness: 1x Morimoto Switched Power Harness
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Peak Luminosity (raw): 10,800lm (NCS), 24,000lm (HXB)
Intensity (HXB White): 401,600 Cd (4,016 lux @ 10m)
Intensity (HXB Dual Color): 370,800 Cd (3,708 lux @ 10m)
Intensity (HXB Yellow): 277,200 Cd (2,772 lux @ 10m)
Intensity (NCS White): 279,600 Cd (2,796 lux @ 10m)
Intensity (NCS Dual Color): 256,720 Cd (2,568 lux @ 10m)
Intensity (NCS Yellow): 190,120 Cd (1,901 lux @ 10m)
Power (stabilized): 124.8w (NCS), 336.0w (HXB)
Current (amps @ 13.5V DC): 12.00A (NCS), 25.60A (HXB)
COMPATIBILITY
Universal: Mounts anywhere w/ included mounting Feet

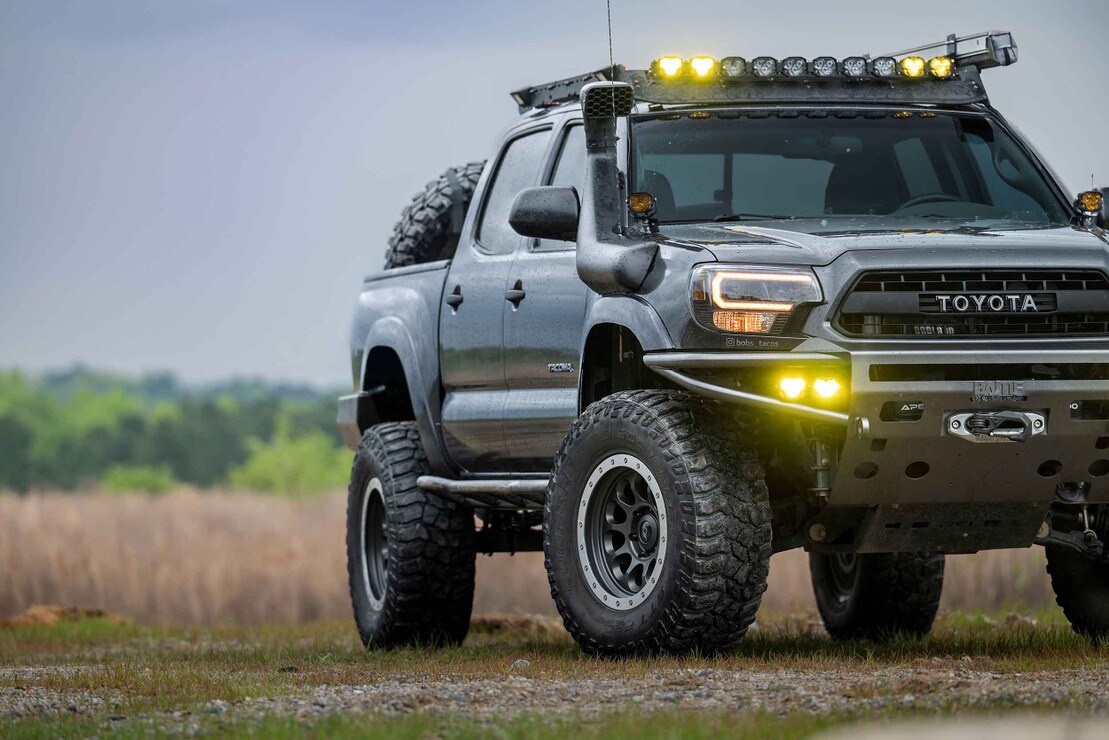

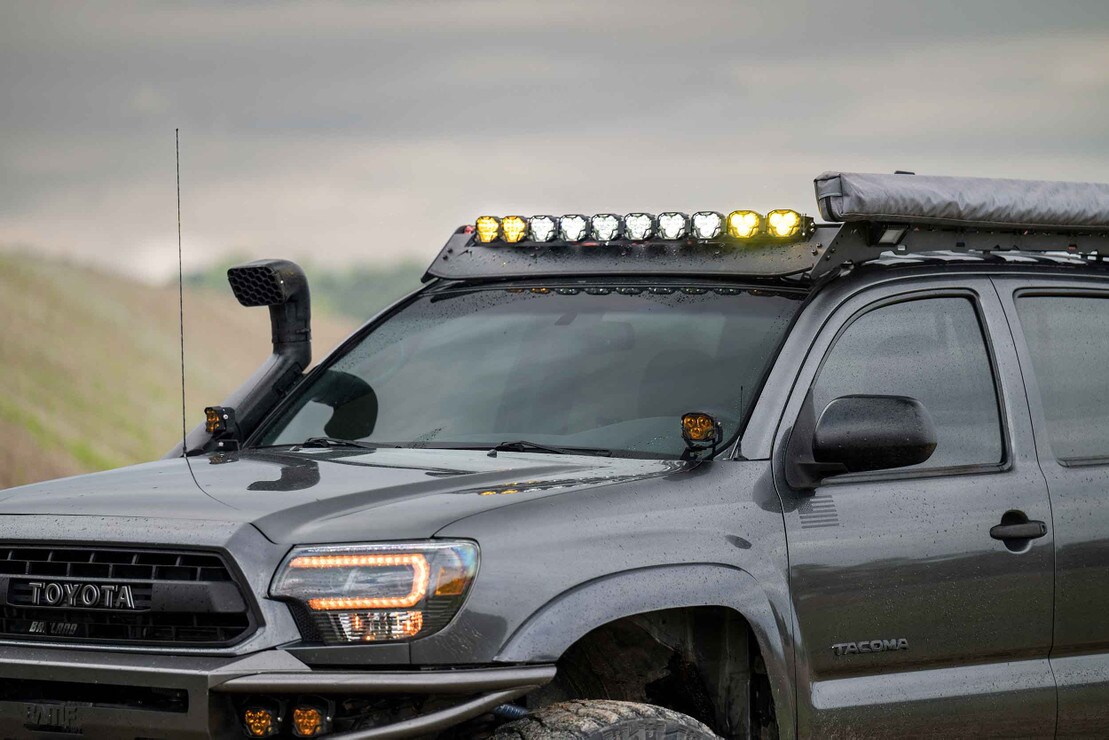

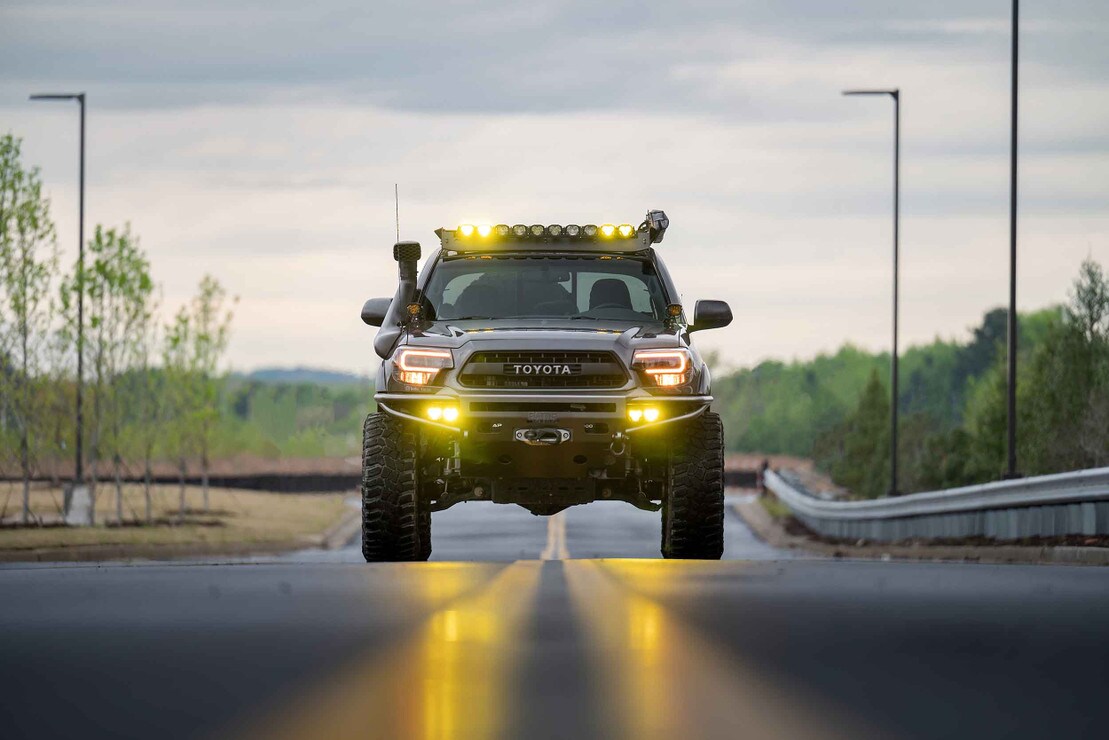

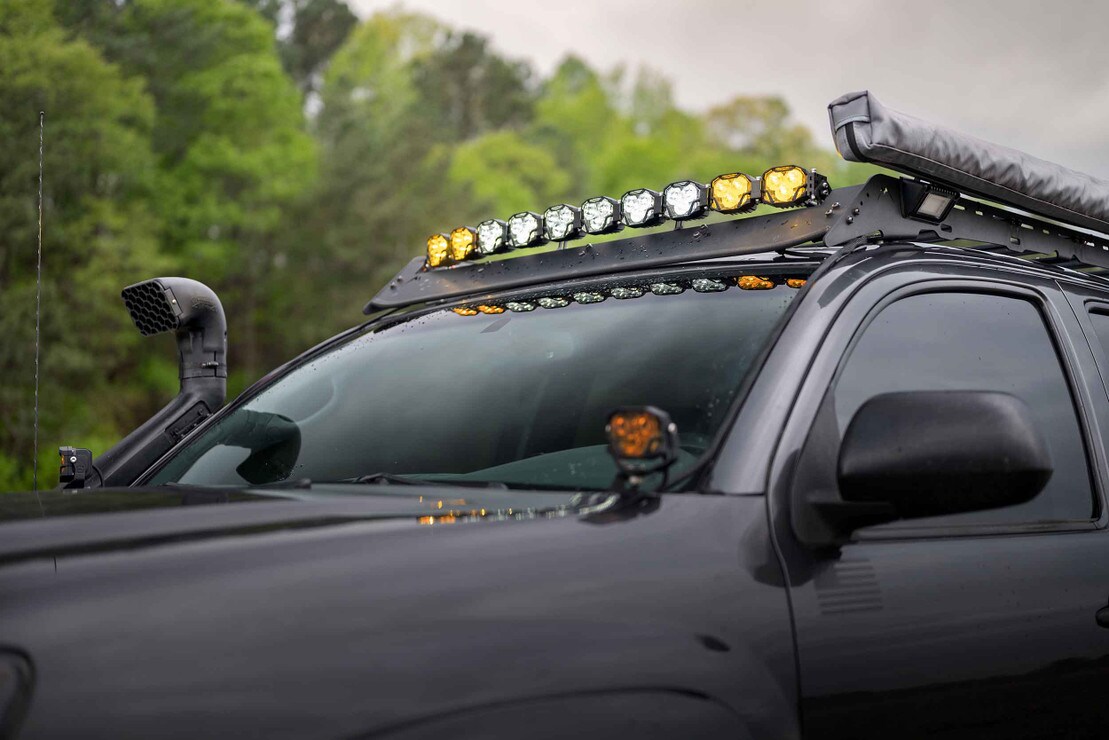

Ideal for: Steel Roof Racks and Bumpers

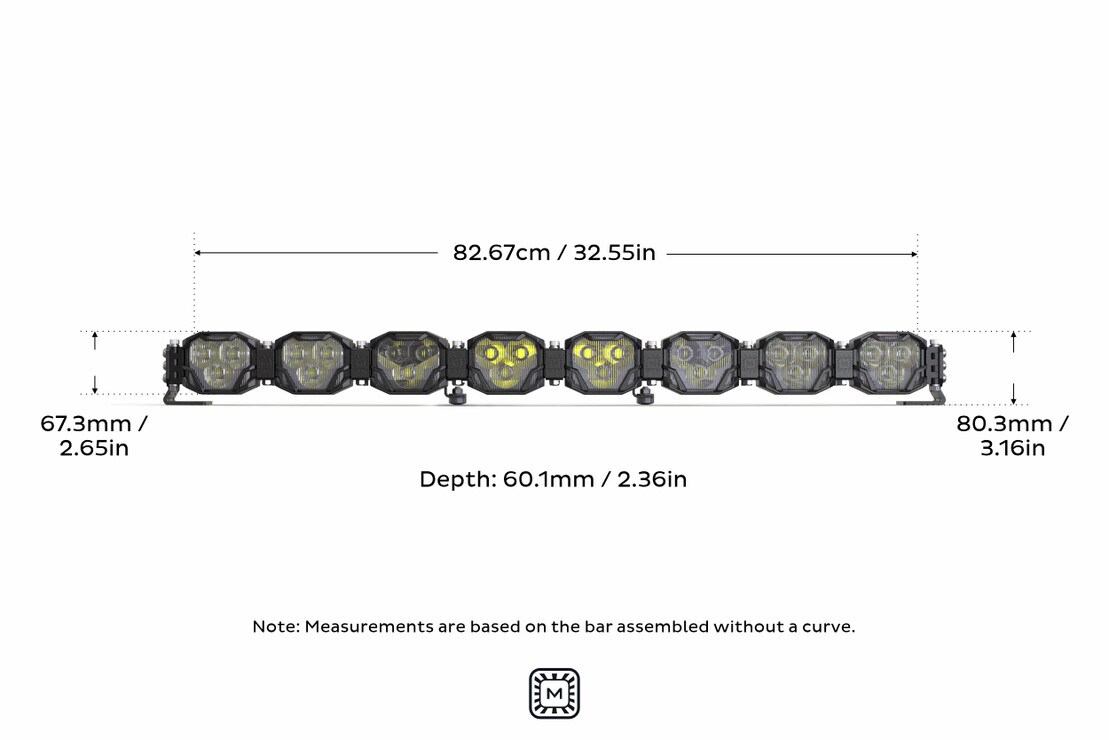

Width: 82.67cm / 32.55in
Height: 49.8mm / 1.96in
Depth: 59.2mm / 2.33in
Weight: 7.35kg / 16.21lb
Mounting Width Range: 30.3-35.05" / 76.96-89.03cm
