4.5" Round LED Work Light
JW Speaker Model 6703P-JW19-HR
Some products are out of stock and require a special order from J.W. Speaker. Delivery may take up to 12-15 weeks.
[ In Stock: 0 pieces ]
Starting at $X.XX/month with
Headlight Revolution: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

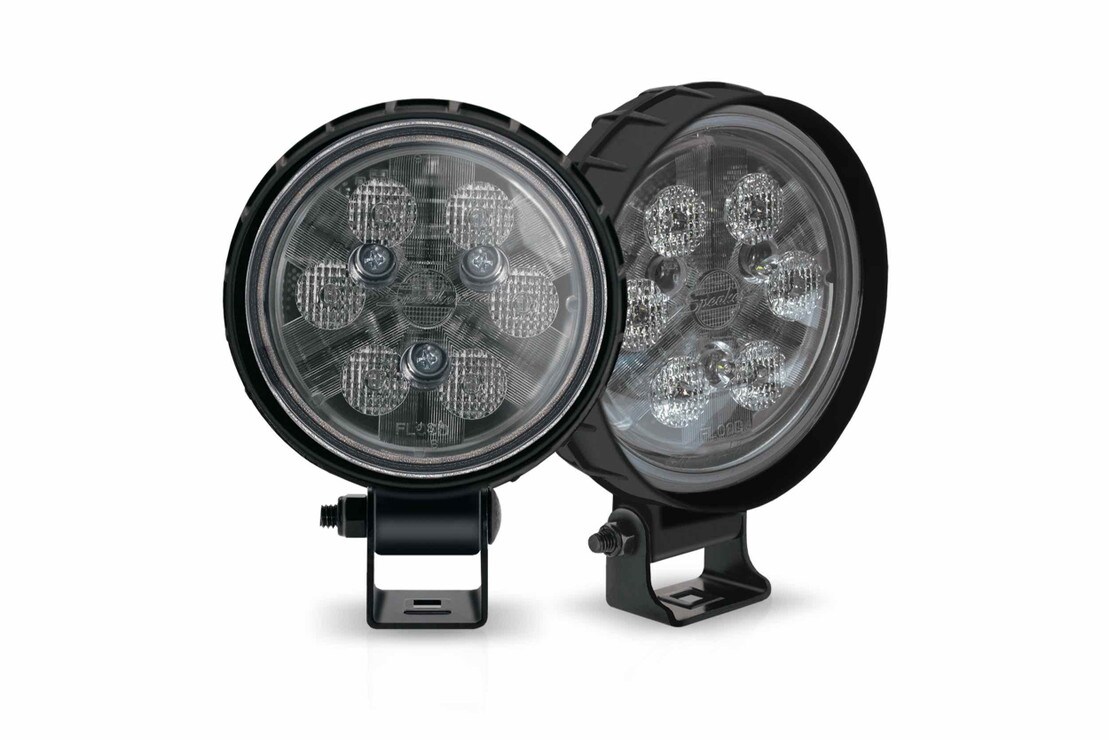

The 670 XD LED: work light offers a safety solution including improved light output, glare reduction, and light placement for heavy-duty trucking on-road. With the addition of a SmartHeat heated lens, you'll find better and long-lasting visibility in any condition! (Note: Not meant for high speed plowing.)
Features: Available with an SmartHeat heating system that automatically de-ices headlight according to ambient temperature, Low profile design deters ice build-up, Multiple beam patterns available, UV-resistant polycarbonate lens for rugged durability, Universal mount.

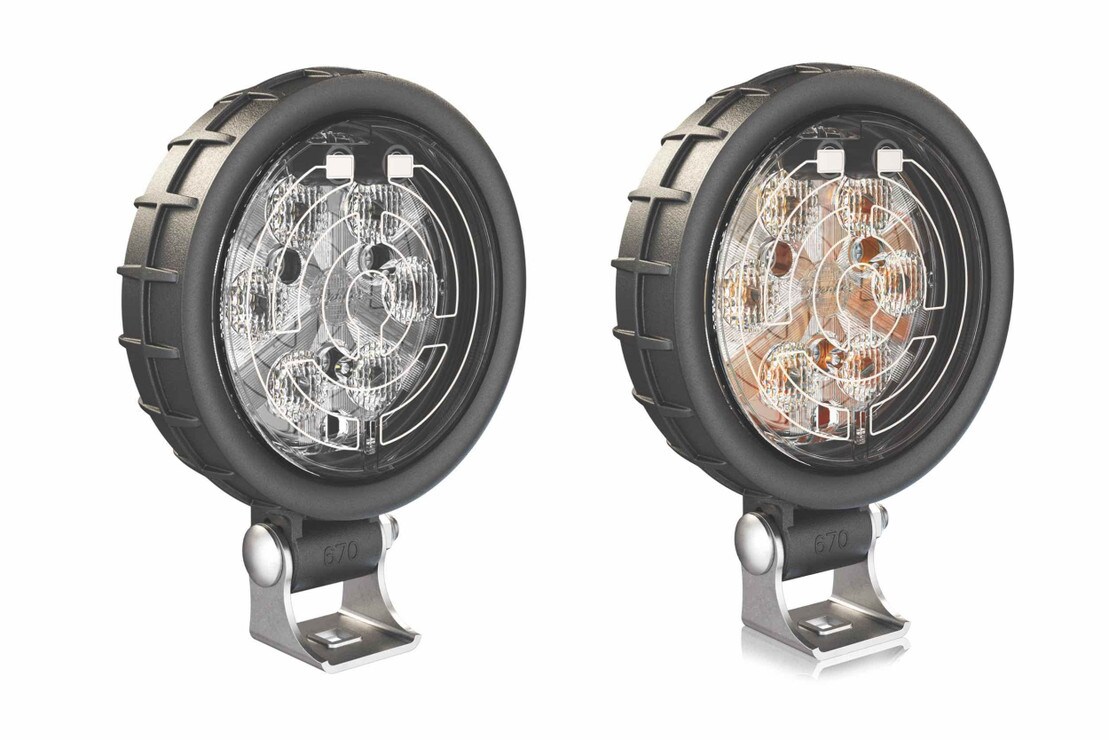

SmartHeat Heating System: The heated versions of the Model 670 XD feature a thermally conductive grid system that will de-ice the lens up to twice as fast as other lights.
This system: will turn on when the light is on, generating enough heat to prevent ice build-up. The SmartHeat Heating System will turn off automatically when sensing that the ice & snow build up is gone and light is at a warmer temperature.
HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you'll find for sale. We don't favor any particular brand, so our commitment to you is that we'll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the Buyer's Guide on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!
Housing: 1x Model 670 LED Work Light
Part Numbers: 1403471, 1403491, 1403301, 1403311, 1403241, 1403281, 1403481, 1403501, 1403261, 1403271, 1403251
Warranty:5 Years (Click for Details)

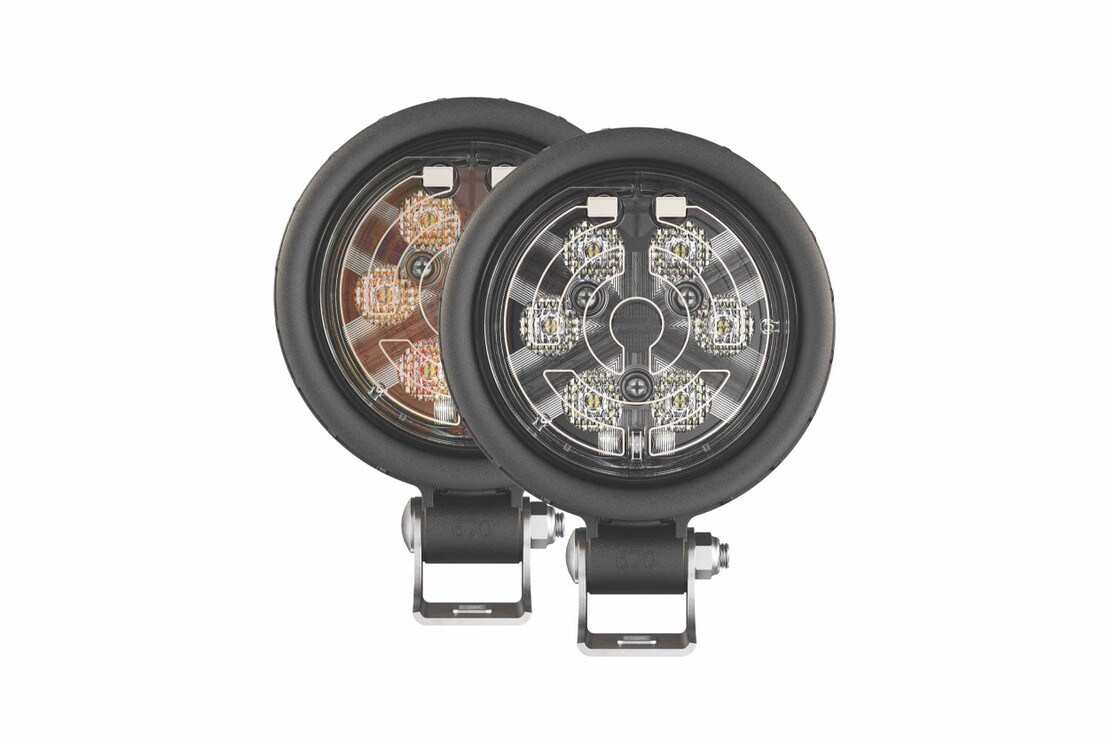

1403471: JW Speaker: 670F-12/24V Heated Worklamp - Flood Beam
1403491: JW Speaker: 670F-12/24V Heated Worklamp Amber - Flood Beam
1403301: JW Speaker: 670F-12/24V LED Worklamp BLUE
1403311: JW Speaker: 670F-12/24V LED Worklamp RED
1403241: JW Speaker: 670F-12/24V XD LED Worklamp - Flood Beam
1403281: JW Speaker: 670S-12/110V XD LED Worklamp Spot Beam
1403481: JW Speaker: 670S-12/24V Heated Worklamp Spot Beam
1403501: JW Speaker: 670S-12/24V Heated Worklamp Amber Spot
1403261: JW Speaker: 670S-12/24V XD LED Worklamp Spot Beam
1403271: JW Speaker: 670T-12/110V XD LED Worklamp - Trapezoid Beam
1403251: JW Speaker: 670T-12/24V XD LED Worklamp - Trapezoid Beam

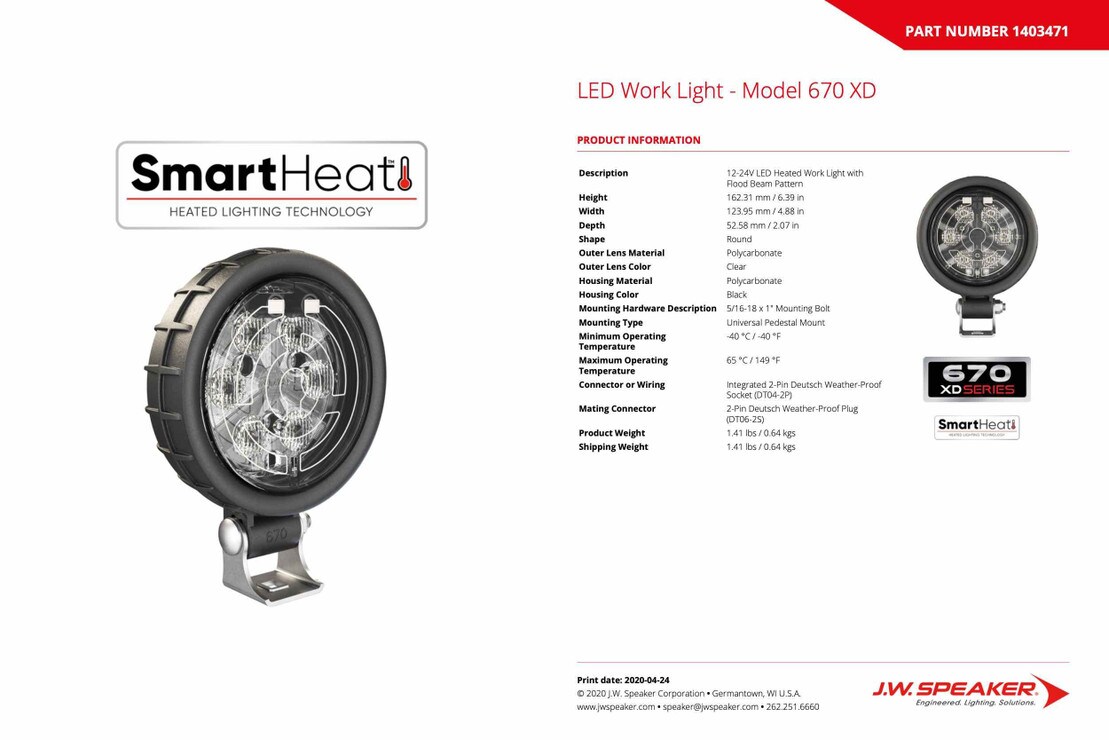

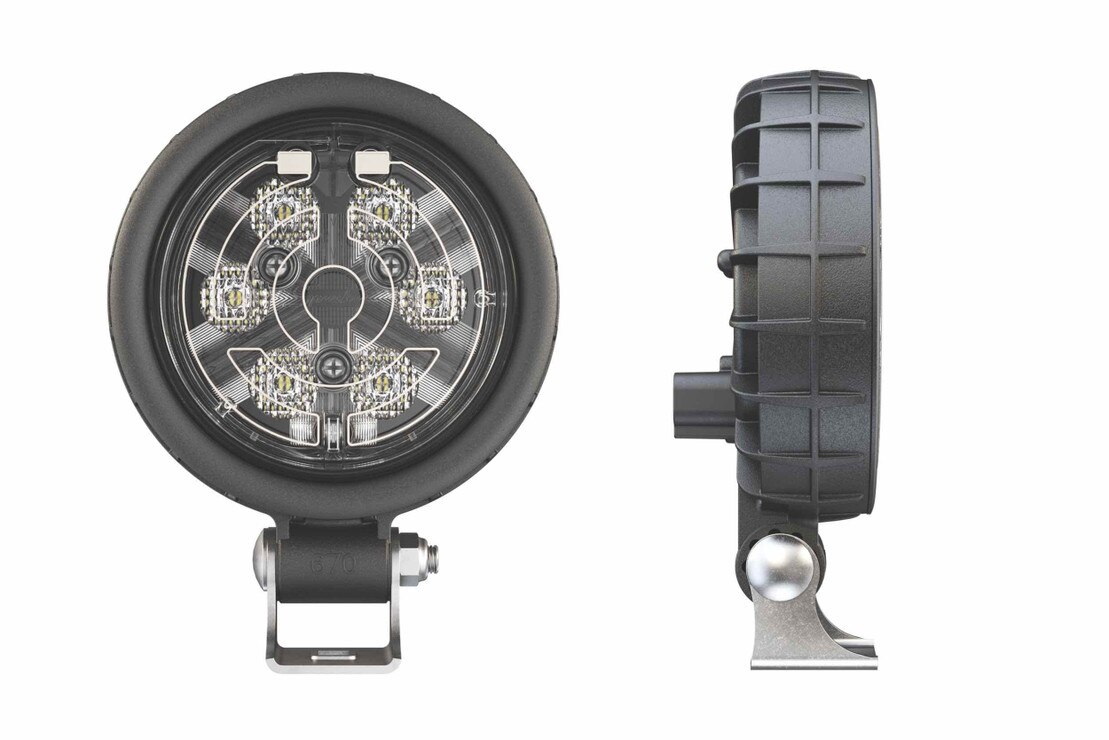

Height: 162.31 mm / 6.39 in
Width: 123.95 mm / 4.88 in
Depth: 52.58 mm / 2.07 in
Outer Lens Material: Polycarbonate
Outer Lens Color: Clear
Housing Material: Polycarbonate
Housing Color: Black
Mounting Hardware Description: 5/16-18 x 1" Mounting Bolt
Mounting Type: Universal Pedestal Mount
Minimum Operating Temperature: -40 degC / -40 degF
Maximum Operating Temperature: 65 degC / 149 degF
Connector or Wiring: Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P)
Mating Connector: 2-Pin Deutsch Weather-Proof Plug (DT06-2S)
Product Weight: 1.41 lbs / 0.64 kgs
Shipping Weight: 1.41 lbs / 0.64 kgs
Input Voltage: 12-24V DC
Operating Voltage: 10-30V DC
Red Wire: Positive
Black Wire: Negative
Current Draw: 1.3A @ 12V DC (Without Heat)
Current Draw: 0.6A @ 24V DC (Without Heat)
Current Draw: 2.1A @ 12V DC (With Heat)
Current Draw: 1.1A @ 24V DC (With Heat)
