LED Work Light

JW Speaker Model 791

JW25-HR

PART #: 1 x 1603511


[ In Stock: 0 pieces ]

Product Details

Headlight Revolution: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

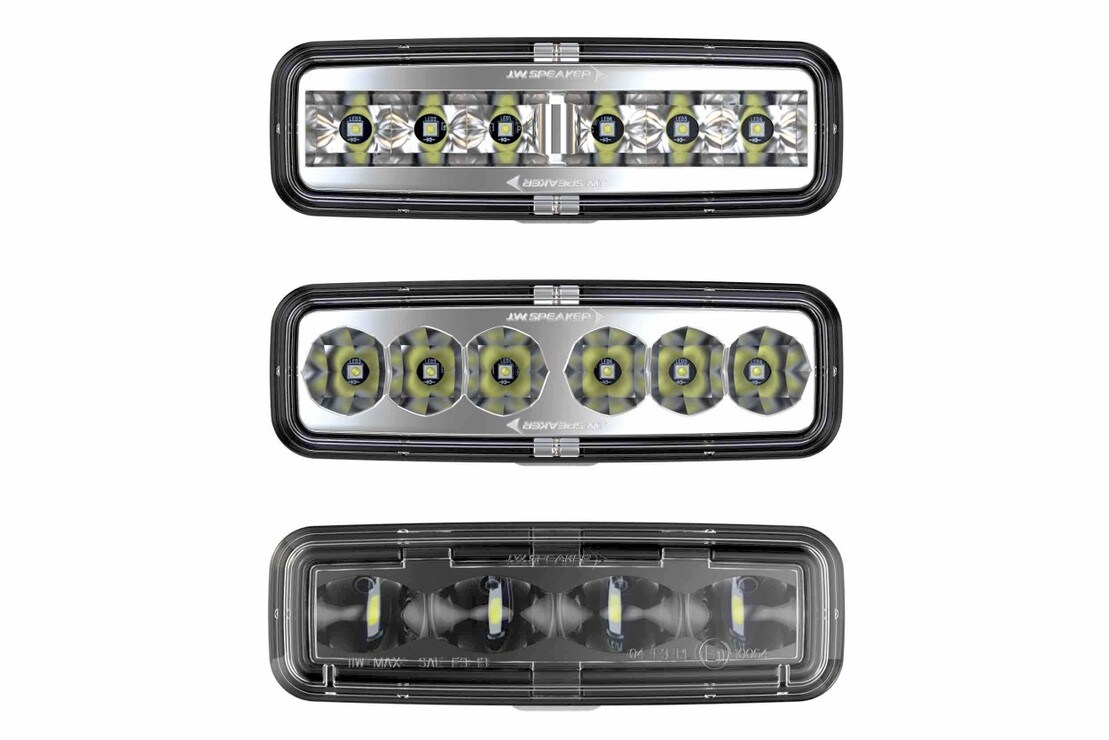

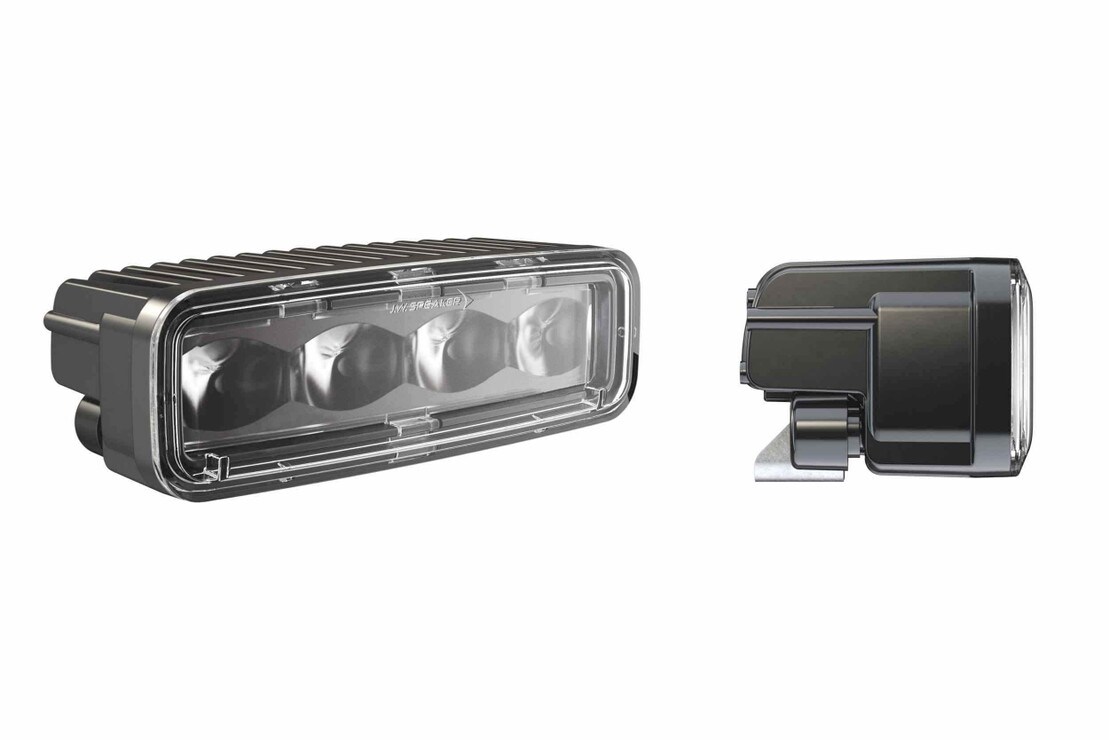

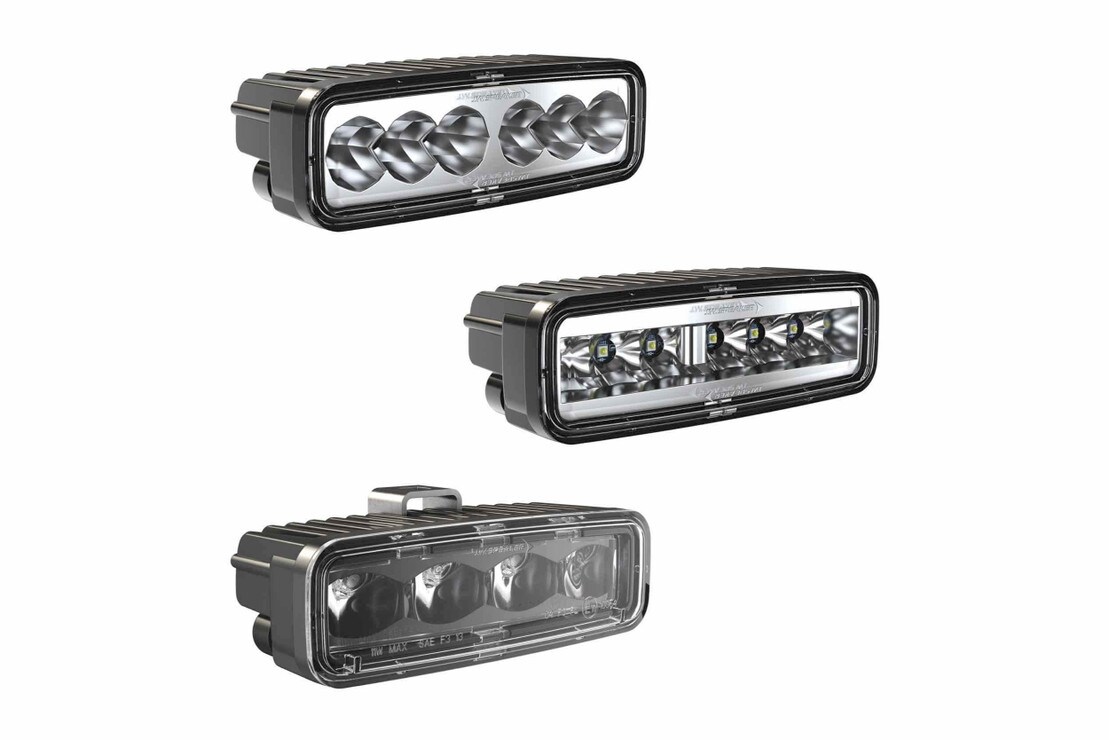

The new Model 791 combines high performance optics and a compact design to provides a powerful punch and mount almost anywhere! Designed with rugged aluminum housing and universal mounting bracket, this 6in x 2in LED work light is ideal for a variety of applications, anywhere from off-road to agriculture.

Features: The rugged aluminum housing is highly durable and light weight, Convenient, bright-white work light offering maximum visibility, Available in driving light and flood beam patterns, Universal mounting bracket provides flexible mounting options for a variety of applications.

HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you'll find for sale. We don't favor any particular brand, so our commitment to you is that we'll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the Buyer's Guide on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

Product Specs

  • What's Included

  • HOUSING: 1x JW Speaker Model 791 LED Work Light

  • PART NUMBER: 1603511

  • WARRANTY: Lifetime Limited

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

  • 1603511: JW Speaker: 791D-12/24 DRIVING LAMP

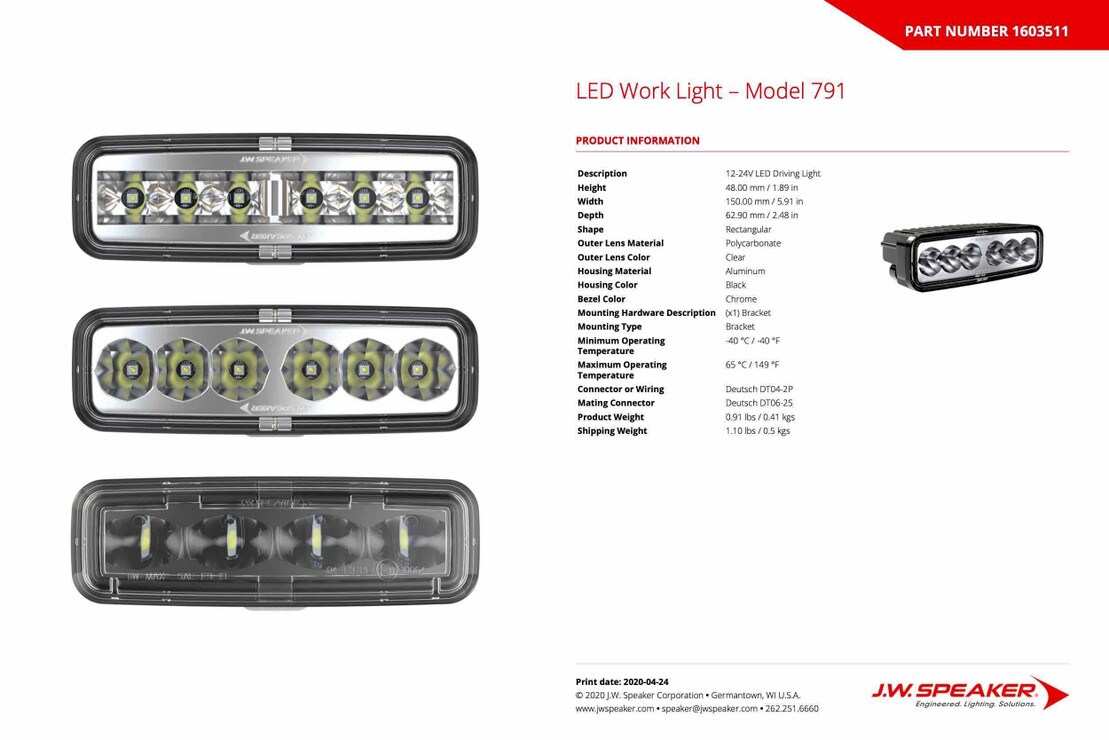

  • Tech Specs

  • Height: 48.00 mm / 1.89 in

  • Width: 150.00 mm / 5.91 in

  • Depth: 62.90 mm / 2.48 in

  • Shape: Rectangular

  • Outer Lens Material: Polycarbonate

  • Outer Lens Color: Clear

  • Housing Material: Aluminum

  • Housing Color: Black

  • Bezel Color: Chrome

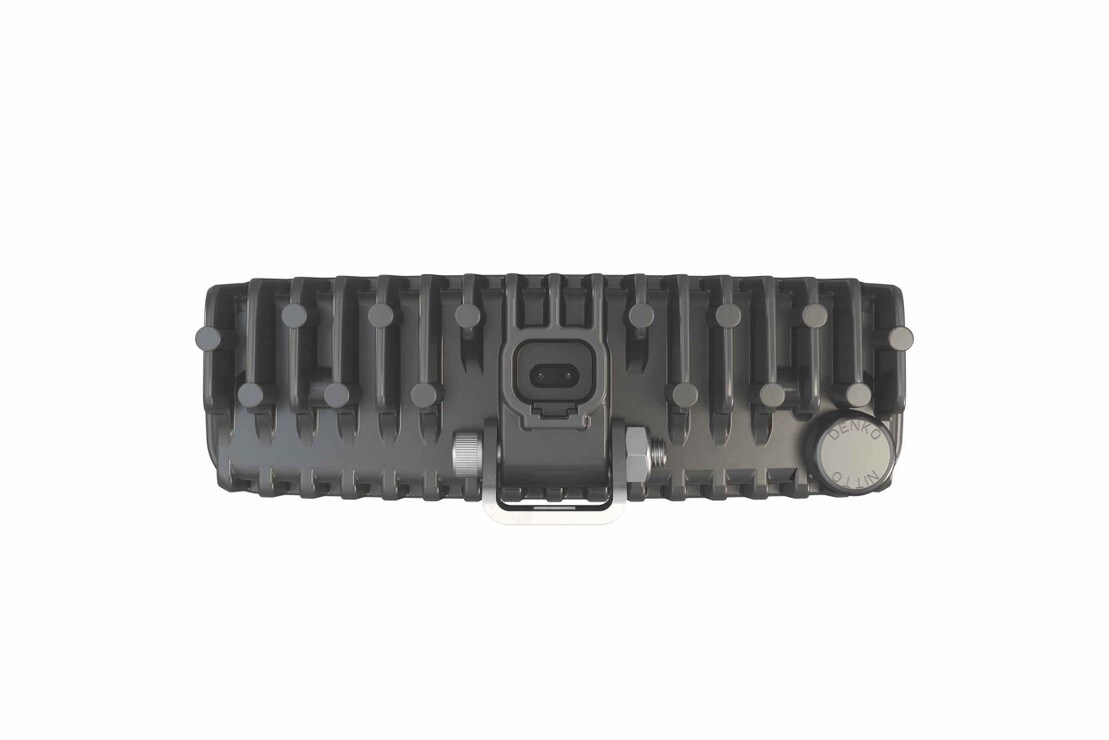

  • Mounting Hardware Description: (x1) Bracket

  • Mounting Type: Bracket

  • Minimum Operating Temperature: -40 degC / -40 degF

  • Maximum Operating Temperature: 65 degC / 149 degF

  • Connector or Wiring: Deutsch DT04-2P

  • Mating Connector: Deutsch DT06-2S

  • Product Weight: 0.91 lbs / 0.41 kgs

  • Shipping Weight: 1.10 lbs / 0.5 kgs

  • Input Voltage: 12-24V DC

  • Operating Voltage: 9-32V DC

  • Transient Spike Protection: 150V Peak @ 1 HZ-100 Pulses

  • Current Draw: 1.27A @ 12V DC, 0.78A @ 24V DC
