Pedestal Mount 7" Round LED Headlights
JW Speaker Model 8791JW38-HR
[ In Stock: 0 pieces ]
Headlight Revolution: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.
The NEW Adaptive 2 Series: headlights have been improved to feature Adaptive technology when using the high beam, in addition to the low beam. Providing ditch-to-ditch lighting to eliminate dark corners on sharp turns and a punch of light 1,500 feet down the road to give you a safer and more confident ride to master the corners.

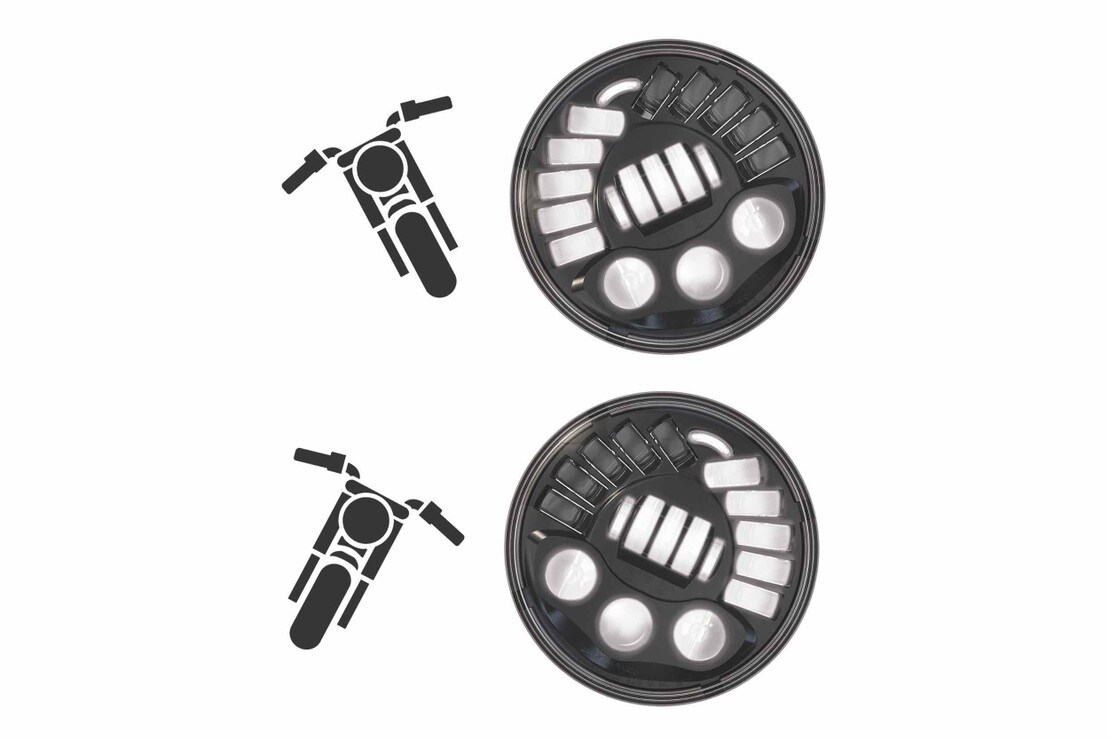

The Adaptive 2 Series: uses proprietary technology and on-board sensors to calculate bank angles on a real-time basis, automatically directing the light array up or down as the motorcycle leans. This additional illumination fills in the gaps to the left or right of the motorcycle that traditional headlights can't.

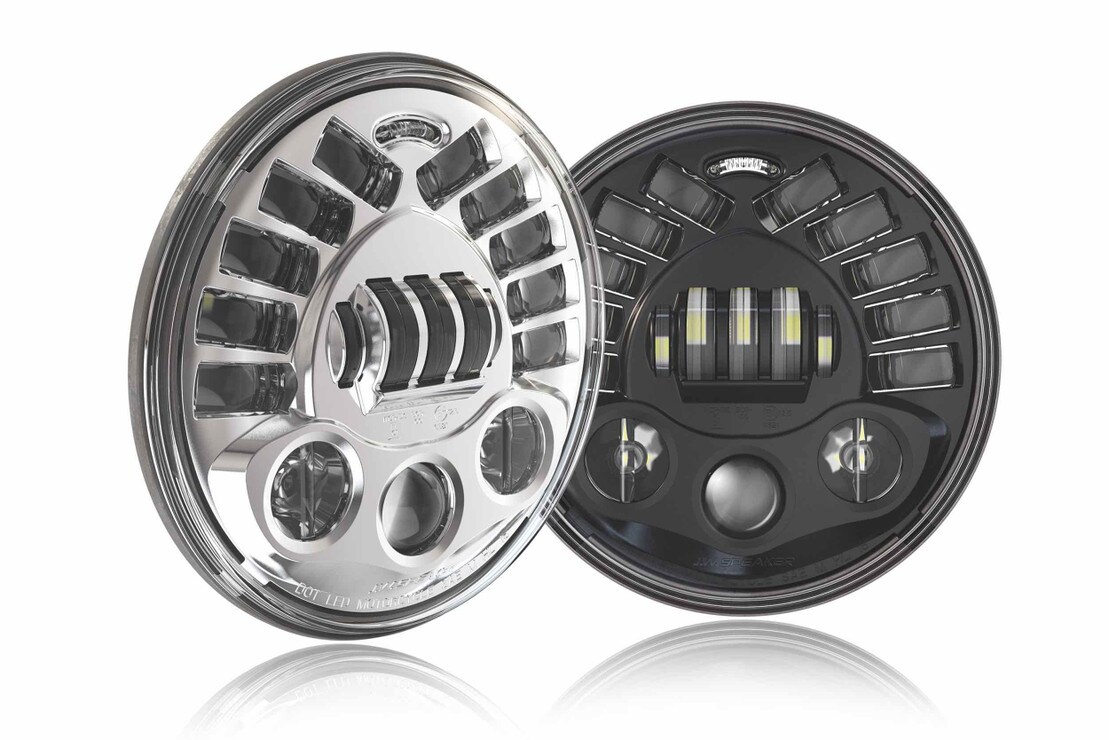

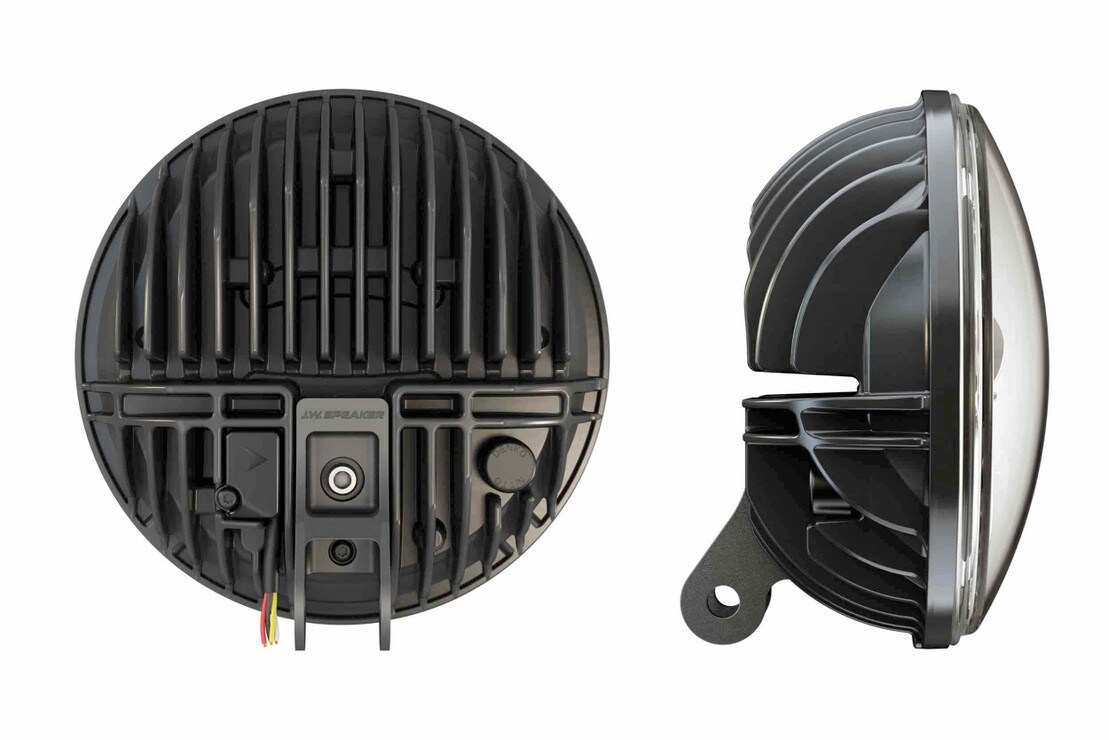

The Model 8791 Adaptive 2: utilizes high-quality LEDs, ComfortLite high beam optics and adaptive technology to produce a superior beam pattern and dramatically improve rider comfort and safety. Heavy-duty, die-cast aluminum housing and state-of-the-art LEDs not only deliver premium performance, but also give a bike a truly unique look!

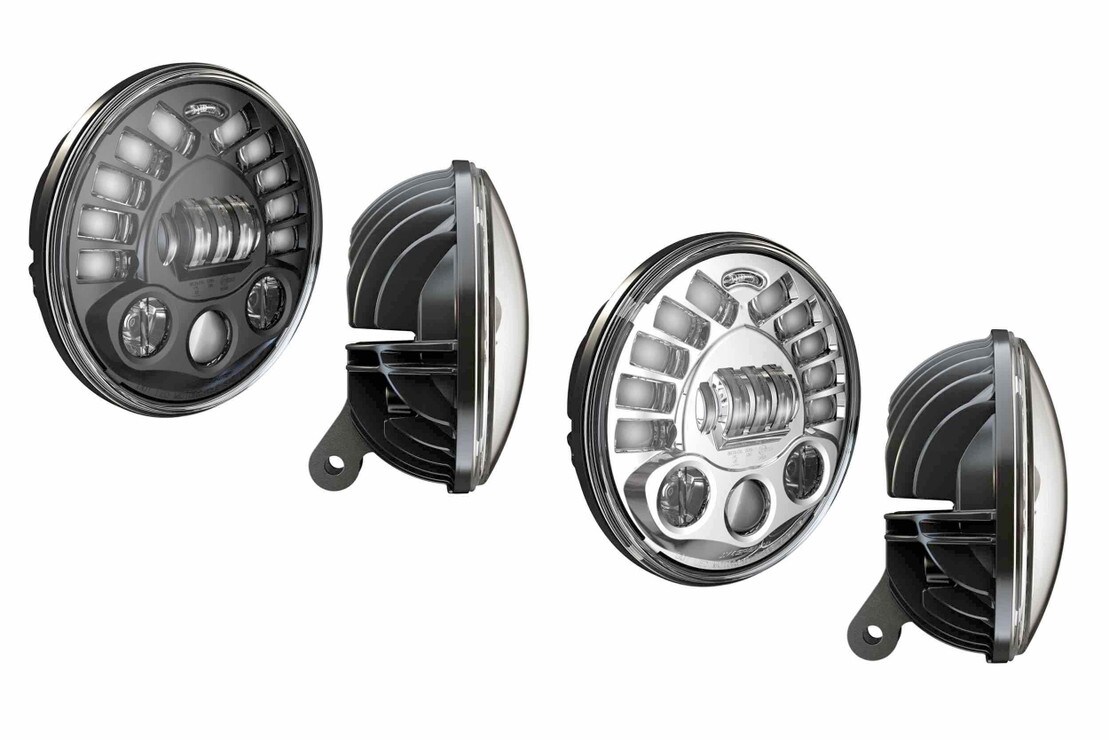

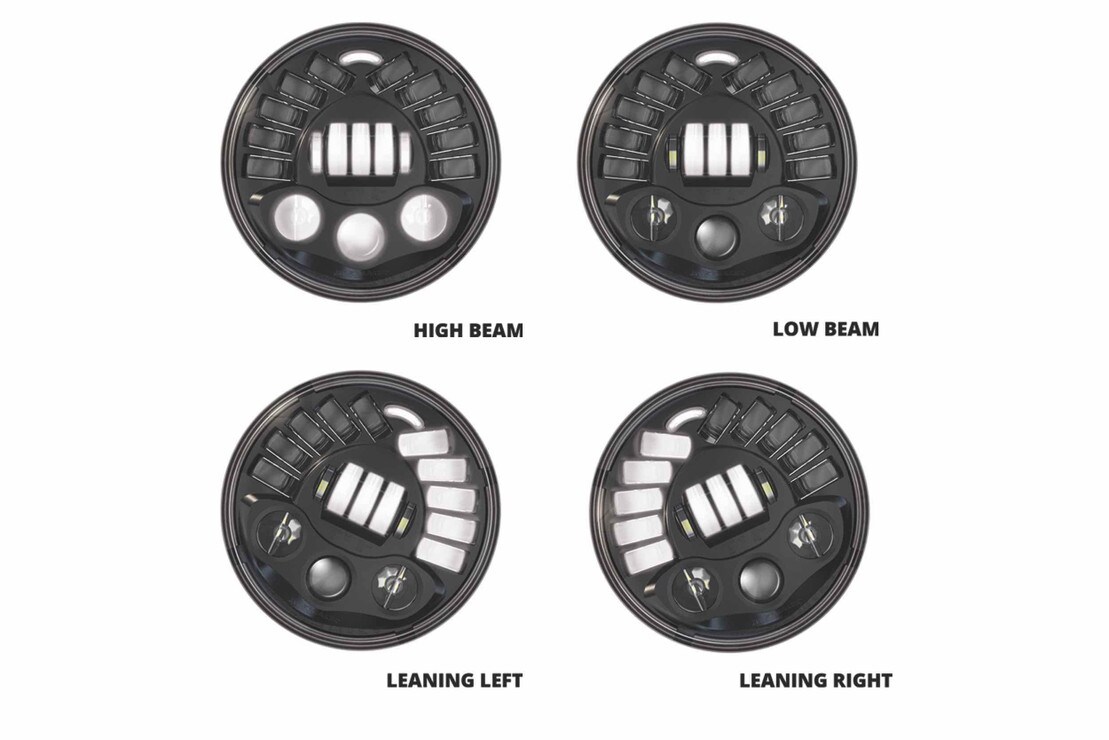

Features: Improved to feature adaptive technology with the high beam, in addition to the low beam, Pedestal mount for 7in round (also known as PAR56) motorcycle headlights, On-board intelligence senses leaning angles when cornering to control light, Dynamically fills in dark areas while turning, Breakthrough improvement in visibility and safety, DOT & ECE dual-compliant headlight, Dual Burn high & low beam optics for extra punch of light, ComfortLite high beams, Also available in a bucket mount with our Model 8790 Adaptive Series .
HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you'll find for sale. We don't favor any particular brand, so our commitment to you is that we'll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the Buyer's Guide on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!
HOUSING: 1x JW Speaker Model 8791 Pedestal Mount LED Headlight
PART NUMBER: 555071, 555081, 553441, or 553451
WARRANTY: Lifetime Limited
OTHER: Instruction Card + JW Speaker Sticker
555071: JW Speaker: 8791A2-12V Pedestal Mount (Black)
555081: JW Speaker: 8791A2-12V Pedestal Mount (Chrome)
553441: JW Speaker: 8791M 12V Fixed Pedestal Mount (Black)
553451: JW Speaker: 8791M 12V Fixed Pedestal Mount (Chrome)
Height: 180.00 mm / 7.09 in
Width: 180.00 mm / 7.09 in
Depth: 94.00 mm / 3.7 in
Outer Lens Material: Polycarbonate
Outer Lens Color: Clear
Housing Material: Aluminum
Housing Color: Black
Bezel Color: Black
Mounting Hardware: Description 0.75" Pedestal
Retrofits: Pedestal 7" Round Headlights (PAR56)
Minimum Operating Temperature: -40 degC / -40 degF
Maximum Operating Temperature: 65 degC / 149 degF
Connector or Wiring: Bare Leads
Product Weight: 3.92 lbs / 1.78 kgs
Shipping Weight: 3.92 lbs / 1.78 kgs
Input Voltage: 12V DC
Operating Voltage: 9-16V DC
Transient Spike Protection: 150V Peak @ 1 HZ-100 Pulses
Black Wire: Ground
White Wire: High Beam
Yellow Wire: Low Beam
Red Wire: Front Position
Current Draw: 2.9A @ 13.5V DC (High Beam)
Current Draw: 1.9A @ 13.5V DC (Low Beam)
Current Draw: 0.092A @ 13.5V DC (Front Position)
Current Draw: 3.5A @ 13.5V DC (Low Beam at Full Lean)
Current Draw: 4.5A @ 13.5V DC (High Beam at Full Lean)
