Heated 5x7 LED Headlights

JW Speaker Model 8910

JW43-1-HR

PART #: 1 x 554481


[ In Stock: 0 pieces ]

Product Details

Headlight Revolution: Is J.W. Speaker's biggest distributor in the Southeast! From Milwaukee, Wisconsin to Atlanta, GA: We stock and more of their products to our retail and wholesale customer groups and our volume allows us to afford you the best price! If you're interested, but on the edge, give us a call for a quote and we're sure you'll be sold.

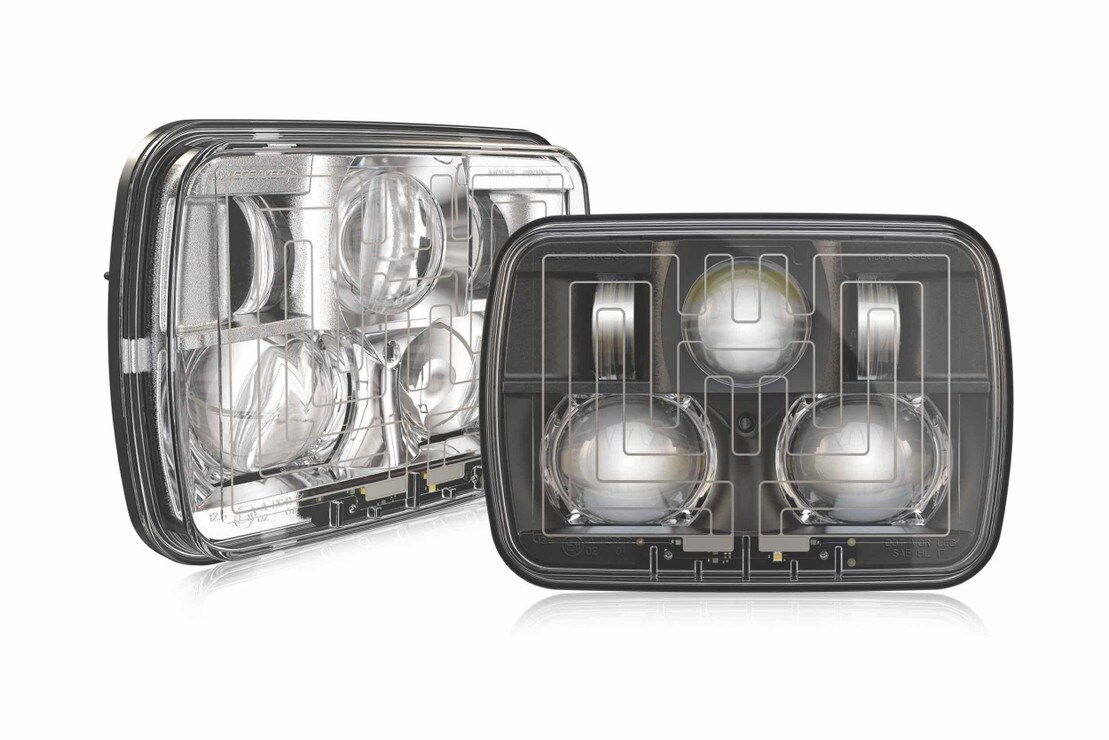

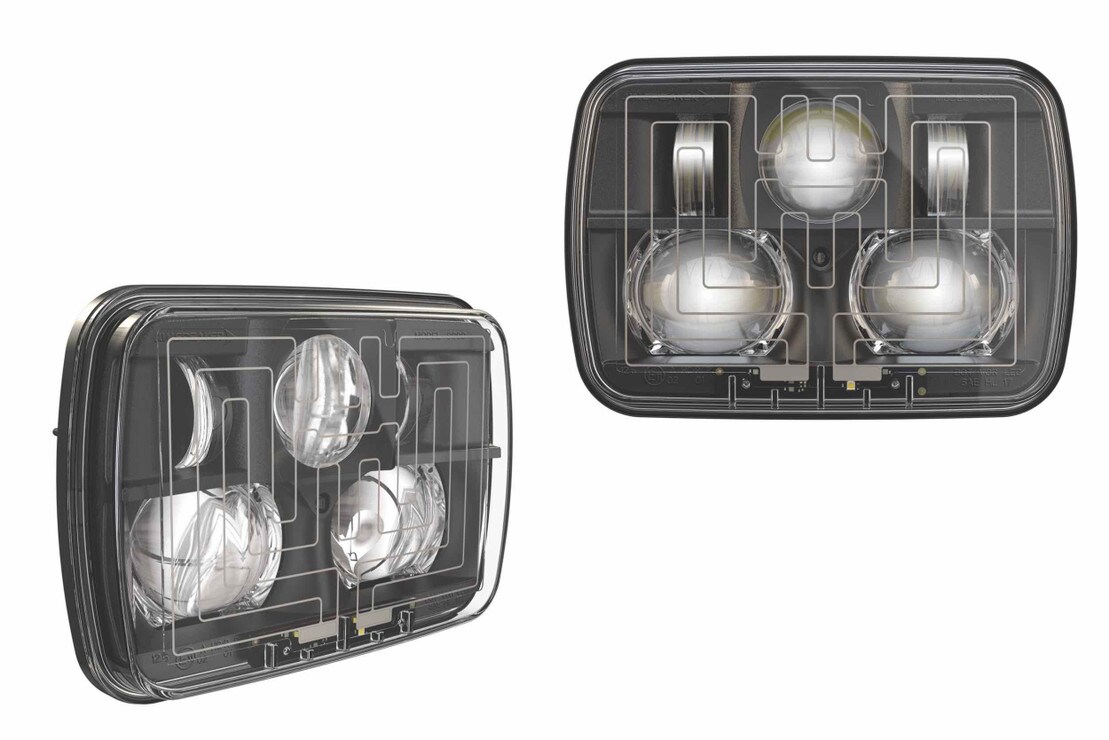

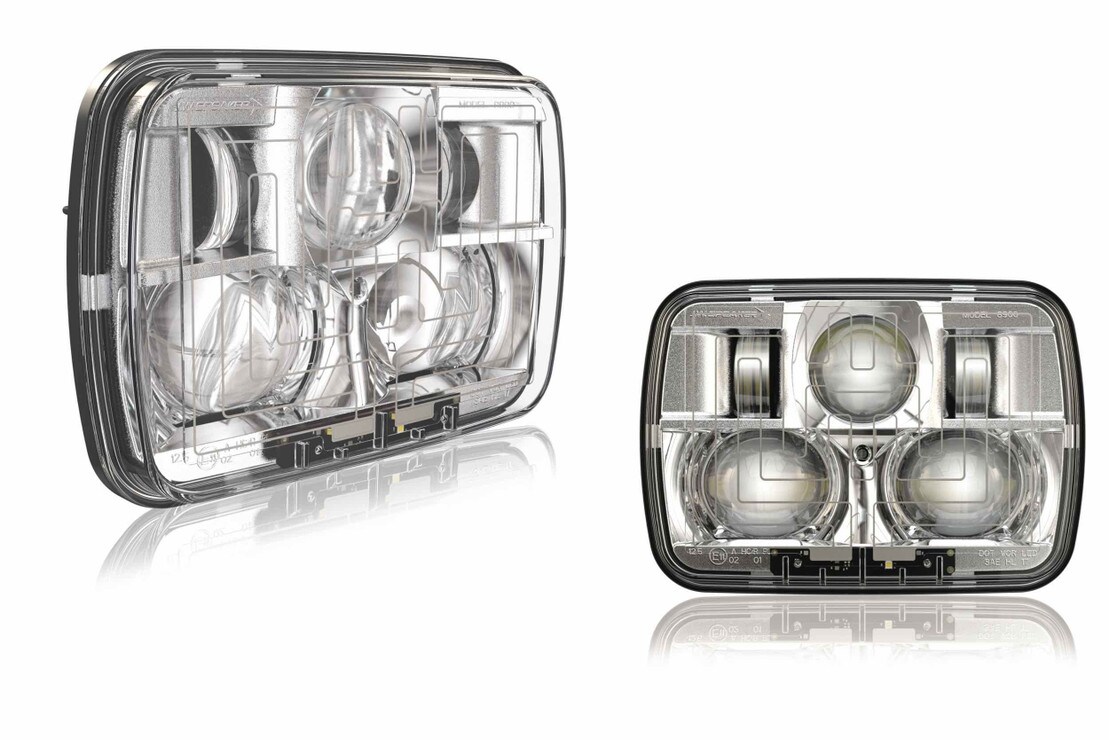

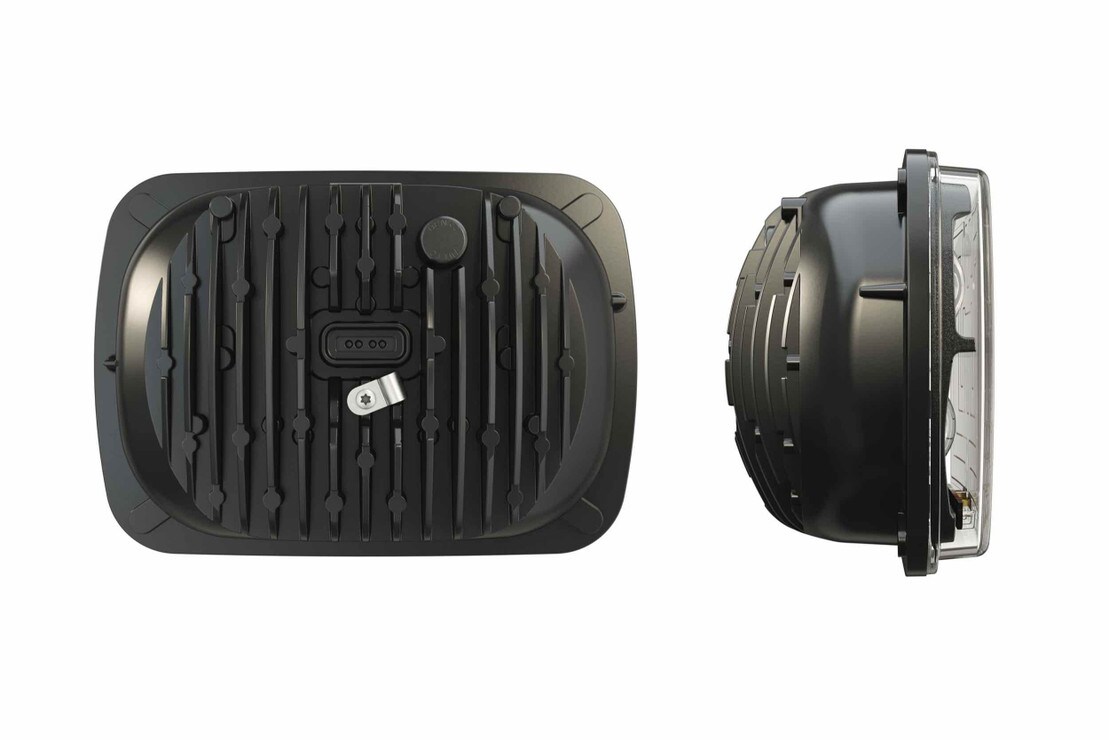

The 8910 Evolution 2: provides a high performance 5 x7in LED headlight, available with a SmartHeat heated lens and Dual Burn technology!

The 8910 Evolution 2 heated: LED headlights provide a high performance safety solution with improved light output, and glare reduction, and are now available with SmartHeat heated lenses!

Features: Dual Burn high beam optics for extra punch of light, Available with SmartHeat Technology that automatically de-ices headlight according to ambient temperature, Meets proposed National Highway Transportation Safety Administration (NHTSA) guidelines for a 5-Star NCAP-compliant low beam headlight, Drop-in replacement heated LED headlights for typical buckets/panels used in heavy-duty trucks, Tough, die-cast aluminum housing and polycarbonate lens, with added protection from salt spray for efficient thermal management, Superior condensation management, Street legal supporting DOT, Transport Canada ECE and Military standards & requirements, Also available in a non-heated version (Model 8900 Evolution 2).

5-Star NCAP-compliant Technology: The Model 8910 Evolution 2 will exceed the proposed FMVSS 108 standard in at least these three criteria, meeting 5-Star compliance: 1. Light output, measured in lux, 2. Beam pattern, resulting in minimal glare, 3. Light placement, as dictated by mounting locations prescribed for vehicles.

Dual Burn Technology:Not your average high beam! Dual Burn technology goes beyond the average high beam pattern with a three-part beam pattern designed to help people see better and stay safe. Read more.

SmartHeat Heating System:This heated LED headlight : Model 8910 Evolution 2 features a thermally conductive grid system that will de-ice the lens up to twice as fast as other lights. This intelligent system reacts to temperature changes on a real-time basis with no action required by the driver.

Installation:Red Wire is for ECE (Front Position) lights only. Front position light is a requirement outside of North America. If your vehicle is operated in North America, you do not need to connect this wire unless your vehicle is equipped with a front position light.

Street legal supporting DOT, ECE and Military standards:DOT versions are for use in the U.S. DOT-compliant guarantees that your lights are legal on the road, meeting section 108 requirements of the Federal Motor Safety Standards. Your DOT-compliance is clearly etched on the lens of the light. ECE versions are for use outside of the U.S. ECE-compliant guarantees your lights are compliant in the European Union and in non-European countries that have adopted ECE Regulations for visibility, durability, and reliability.

HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you'll find for sale. We don't favor any particular brand, so our commitment to you is that we'll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the Buyer's Guide on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

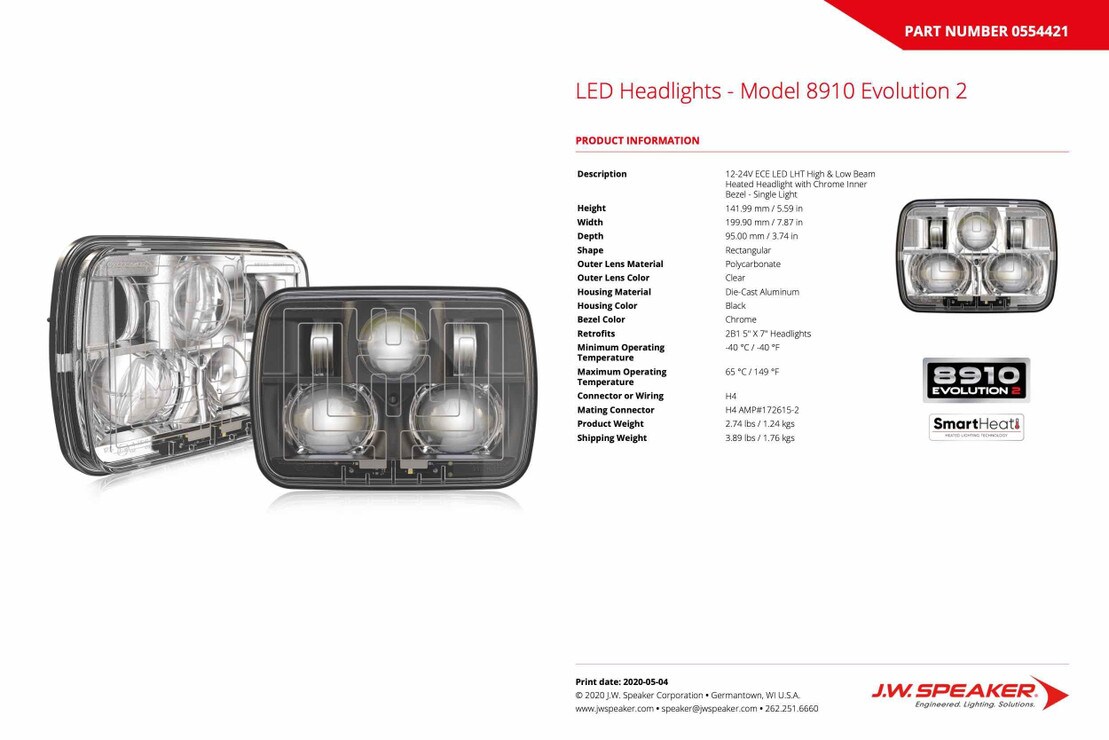

Product Specs

  • What's Included

  • HEADLIGHT: 1x JW Speaker 8910 Heated 5x7 LED Headlight

  • PART NUMBER: 554481 or 554461

  • WARRANTY: Lifetime Limited

  • OTHER: Instruction Card + JW Speaker Sticker

  • Compatibility

  • 554481: JW Speaker: 8910 DOT/ECE RHT Heated BLK

  • 554461: JW Speaker: 8910 DOT/ECE RHT Heated (Chrome)

  • Tech Specs

  • Height: 141.99 mm / 5.59 in

  • Width: 199.90 mm / 7.87 in

  • Depth: 95.00 mm / 3.74 in

  • Shape: Rectangular

  • Outer Lens Material: Polycarbonate

  • Outer Lens Color: Clear

  • Housing Material: Die-Cast Aluminum

  • Housing Color: Black

  • Bezel Color: Black

  • Retrofits: 2B1 5" X 7" Headlights

  • Minimum Operating Temperature: -40 degC / -40 degF

  • Maximum Operating Temperature: 65 degC / 149 degF

  • Connector or Wiring: H4

  • Mating Connector: H4 AMP#172615-2

  • Product Weight: 2.74 lbs / 1.24 kgs

  • Shipping Weight: 3.89 lbs / 1.76 kgs

  • Input Voltage: 12-24V DC

  • Operating Voltage: 10-32V DC

  • Transient Spike Protection: 150V Peak @ 1 HZ-100 Pulses

  • Black Wire: Ground

  • Yellow Wire: Low Beam

  • White Wire: High Beam

  • Red Wire: Front Position*

  • Current Draw: 5.35A @ 12V DC (High Beam)

  • Current Draw: 4.30A @ 12V DC (Low Beam)

  • Current Draw: 2.80A @ 12V DC (Front Position)

  • Current Draw: 2.50A @ 24V DC (High Beam)

  • Current Draw: 2.10A @ 24V DC (Low Beam)

  • Current Draw: 1.32A @ 24V DC (Front Position)

Product Reviews

4 out of 5 stars

5 Reviews   Write a Review

1 out of 5 stars

Jw speaker

Lee Clift

You asking me to leave a review and I've only received one light so far. After I get both of them then ask me again


4 out of 5 stars

Leaps and bounds better then stock 9004 headlamps.

Mathieu Plante

Did a conversion in a 90 F-150 from the stock headlamps to the J.W. Speaker 8910 sealed beams very well made lamps. Light output is stunning with crisp cut offs and illuminate the ditches well. The lamps are heated so if you have snow and ice to drive in its a great feature. They are pricey but you get what you pay for. If you want the best in DOT legal LED 5x7s you've found them. I have to mention HR did not have these in stock and they order them from the manufacturer so there is an additional wait time which took over 3 weeks to get. This tidbit was not mentioned when I ordered and had to call to ask about delivery times (mildly annoying)


5 out of 5 stars

Way Better

anonymous

Installed on a 1986 Ford E350 Ambulance to Camper Conversion.
Amazing Lights.


5 out of 5 stars

JW Speaker Heated

anonymous

Really nice and bright replacement lights. Night and day difference.


5 out of 5 stars

Great product!

anonymous

These lights are amazing. However the staff at HR needs do some more research on the products they sell. I was told these plug right into my 1985 Toyota and should have no problem. That's not true. Older Japanese vehicles switch the negative poles and not the positive poles, therefore I had to install some relays to reverse the polarity. With that being said, I would like to mention that the staff at HR is very friendly, cordial, and responsive to questions! I will absolutely use them in the future for my next lighting needs.
