Subaru Outback SS3 Fog Lights

(0) No Reviews yet

Brand: Diode Dynamics




PART #: 1 x DD6635


Elevate your Outback's lighting game with the SS3 LED Kit from Diode Dynamics. This state-of-the-art kit, leveraging Total Internal Reflection (TIR) technology, ensures you lose minimal light, outshining many competitors. Whether you're cruising city streets or navigating rugged terrains, the SS3's SAE Driving or Fog Light patterns have got you covered. Dive deep into customization with the Sport or Pro models and select the lens color that suits your style. And with an 8-year warranty, Diode Dynamics not only promises superior lighting but also lasting trust.


  • TIR Technology Superior brightness with minimal loss.
  • Dual Patterns SAE Driving or Fog for versatile lighting.
  • Custom Choices Sport/Pro models & lens colors.
  • 8-Year Warranty A testament to enduring quality.

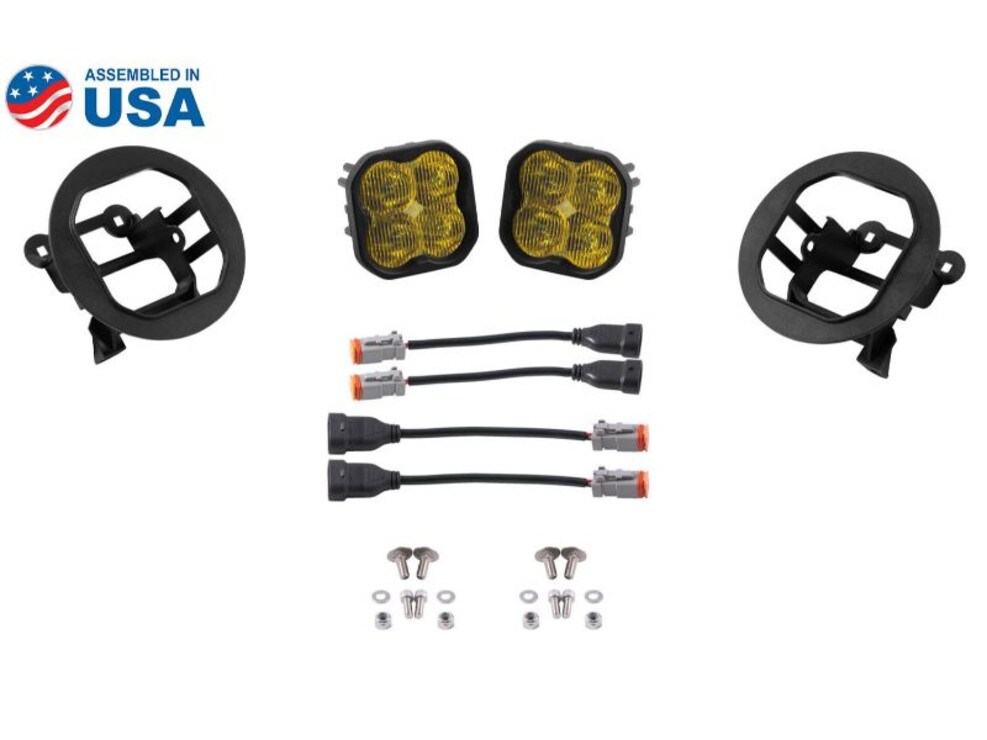

  • Complete Kit Brackets & wiring for a seamless installation.

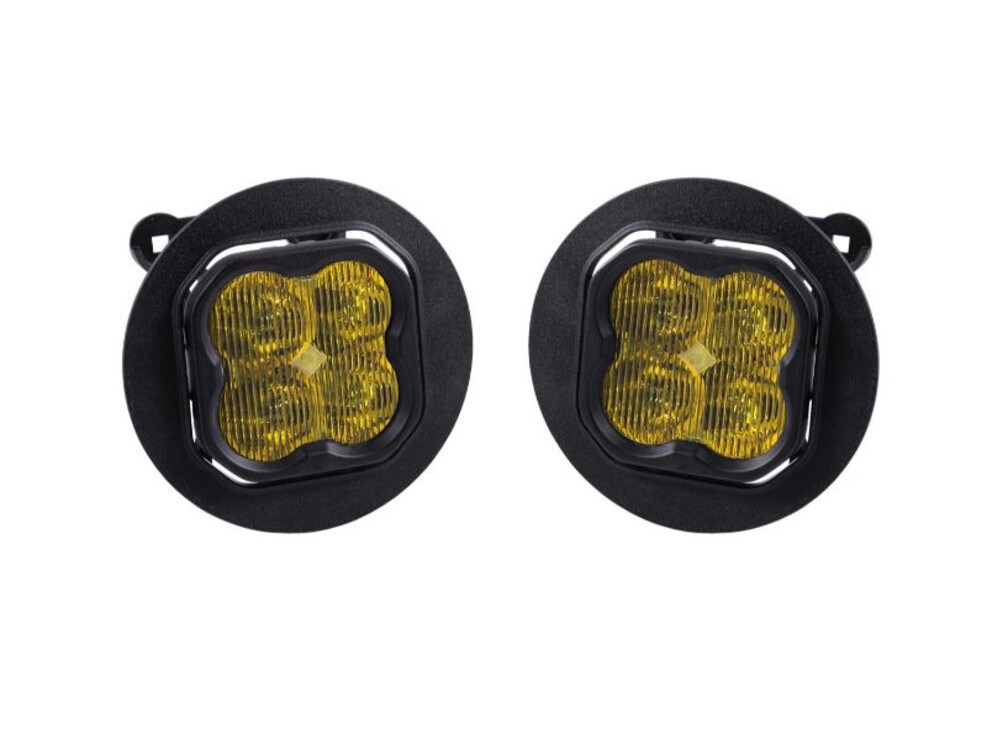

  • Light Pods: 2x (One Pair) SS3 LED Light Pods

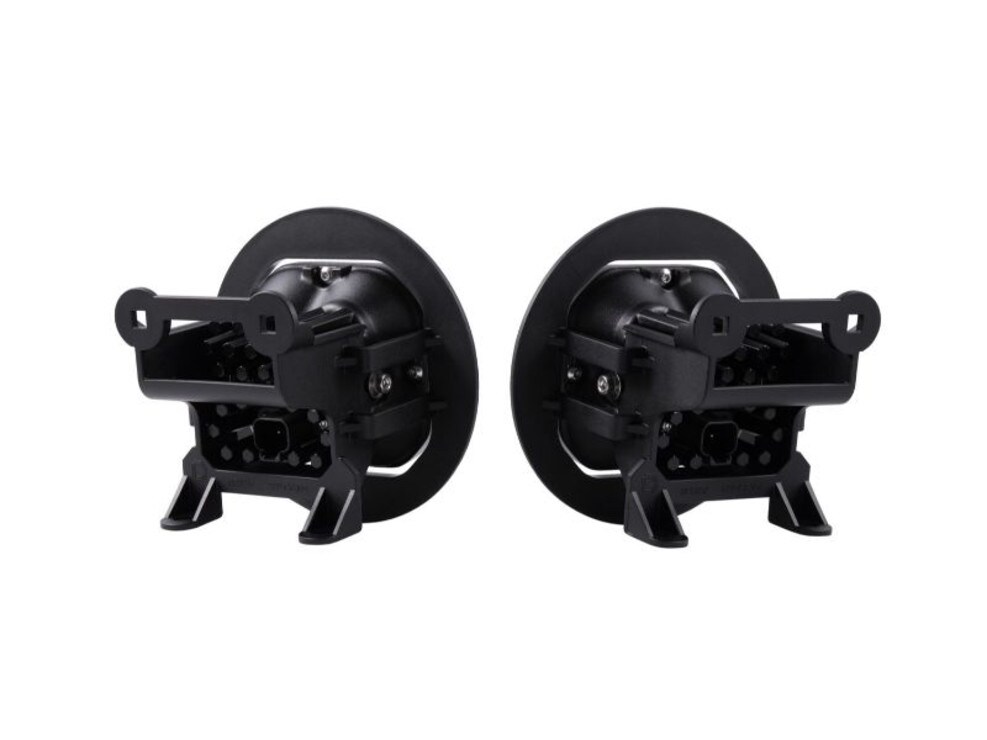

  • Hardware: Brackets, Mounting Hardware

  • Wiring: 2x Input Pigtails


This product is covered by a 8 year limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Power: 36w

  • Current: 2.7A @ 13.2V DC

  • Input Voltage: 9-16V DC

  • Material: Aluminum, Polycarbonate (Lens)

  • Light Source: CREE XP-L HI

  • Input: Deutsch DT


  • Subaru Outback: 2005-2009 and 2013-2019

  • EXCLUSIONS: 2010-2012 Model Years



One Light To Rule: Considering how good the SS3 LED Kit from Diode Dynamics is, it's tough to argue that there's a much better product on the market in terms of performance per dollar for your Outback. It uses proprietary Total Internal Reflection (TIR) technology to channel every bit of the LED Light source onto the target. That may not sound like much but consider this. Most rivals lose up to 10% of their output to internal surfaces and glare. That means that the SS3 ends up with more usable light on your target. It also comes with everything you'll need to get the job done right with brackets and wiring ready to go.

Driving or Fog: The SS3 is available in SAE Driving or Fog Light patterns. Both are exceptionally good at accomplishing the task at hand with a base lumen output of 1,300 and ramping up to a mighty 3,000 depending on your personal configuration.

Make It Yours: Speaking of configuration, the SS3 can be had in many flavors. Aside from choosing driving or fog patterns, you can also pick from the Sport model or double the power by going with the Pro version. Add to that yellow or white lenses and you really can tailor the SS3 to your personal preference.

Confidence: Diode Dynamics has real belief in their products and they back that up with an unprecedented 8 year warranty on this product.
