Dodge Ram (09-18) XB LED Headlights

47 Reviews

Brand: Morimoto




PART #: 1 x LF520-ASM

*Guaranteed Fitment
Easy Return

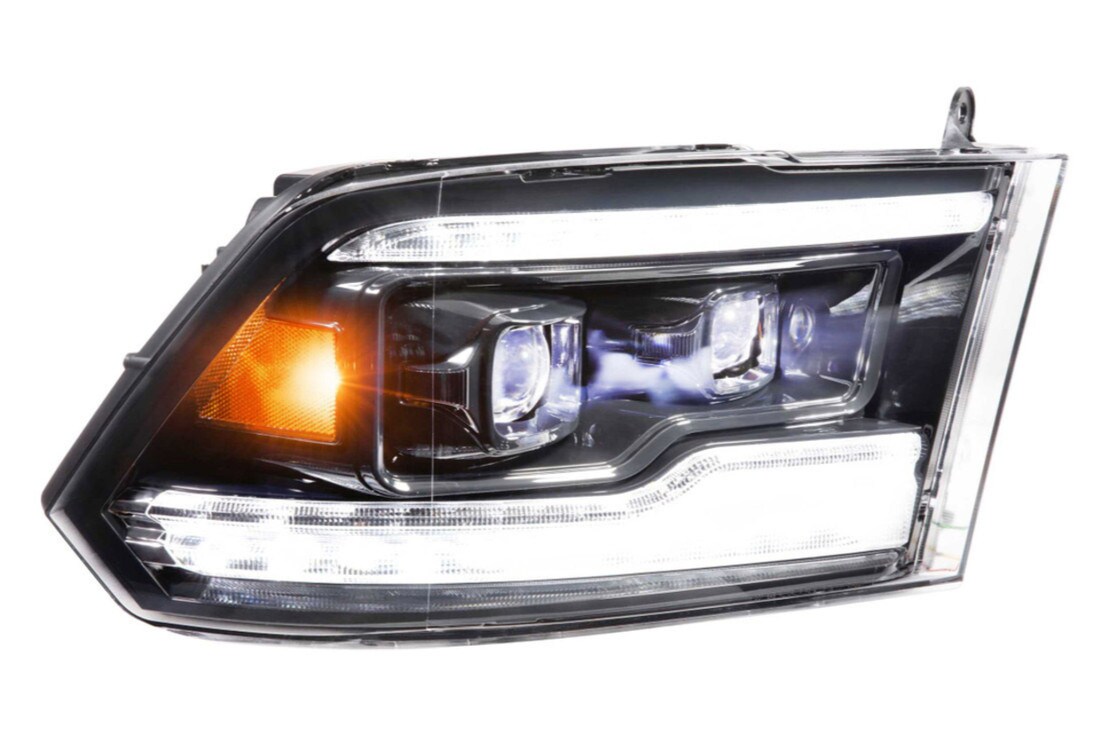

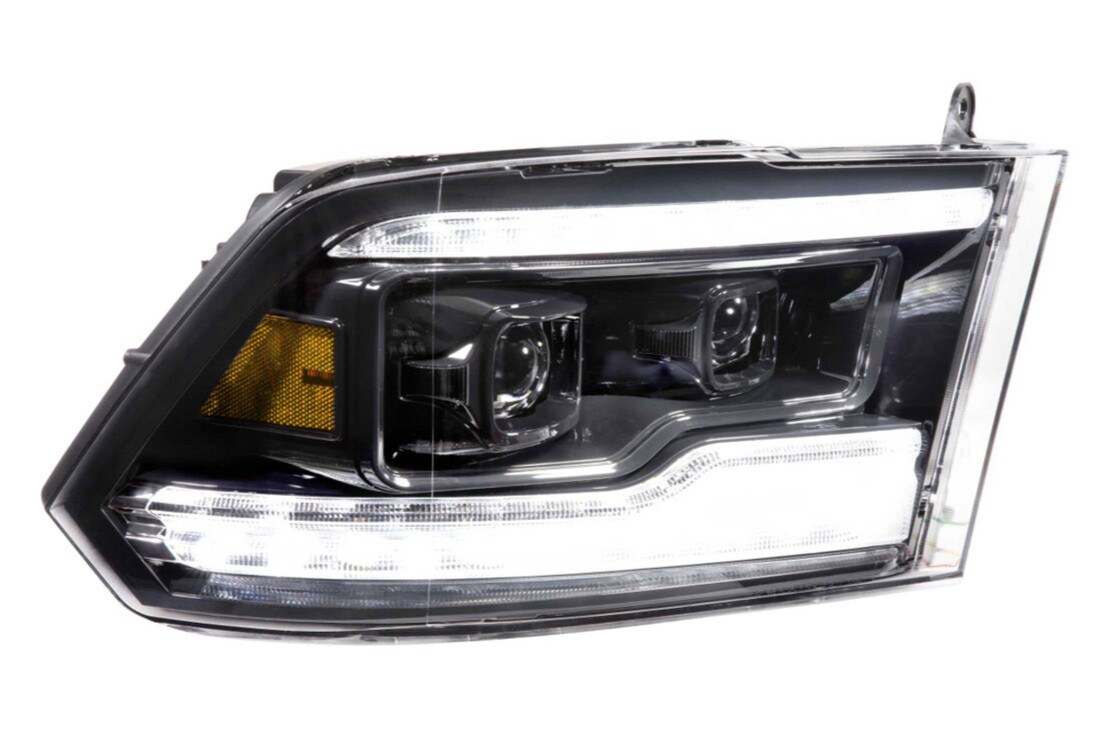

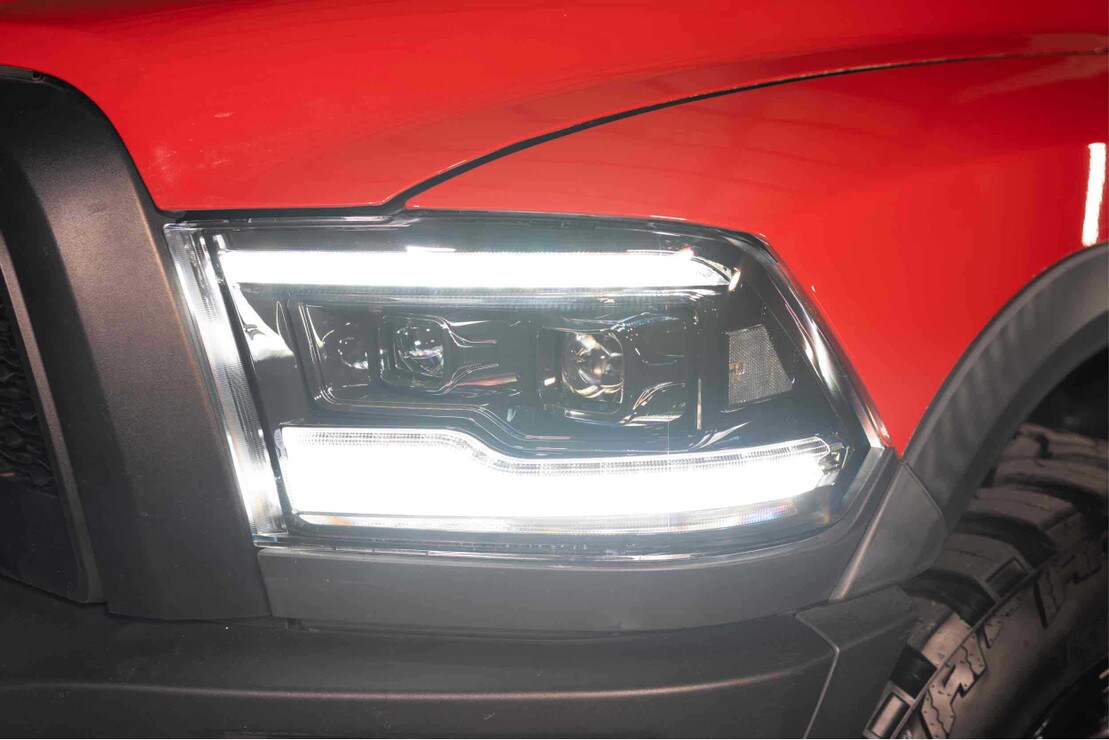

The Morimoto XB LED Headlights for the Ram, the ultimate upgrade for your vehicle's lighting system. Say goodbye to outdated halogen bulbs and experience a remarkable transformation in performance and aesthetics. These headlights not only look great but are built to last with a virtually infinite lifespan and an unbeatable warranty. The double Bi-LED setup delivers a well-defined beam pattern, offering superior width, intensity, and light distribution for improved nighttime visibility. DOT-approved and designed for a hassle-free installation, these headlights meet and exceed all regulations while ensuring a plug-and-play experience without error codes or flickering. The Morimoto XB LED headlights are backed by a UV-coated polycarbonate lens and a durable PPS plastic housing, guaranteeing longevity and resilience. With a stunning design inspired by top-of-the-line 2019+ Ram headlights, these lights are sure to impress both in looks and performance. Upgrade your Ram's lighting with Morimoto XB LED Headlights for a safer, stylish, and long-lasting driving experience.


  • Enhanced Visibility: Improved nighttime visibility with a precise beam pattern and wide coverage.
  • Durable: Virtually infinite lifespan and backed by an unbeatable warranty for long-lasting performance.
  • DOT-Approved: Meets and exceeds safety regulations for worry-free compliance.
  • Easy Installation: Hassle-free plug-and-play setup with no errors or flickering.
  • Stylish Design: Modern, sleek appearance inspired by top-of-the-line 2019+ Ram headlights.

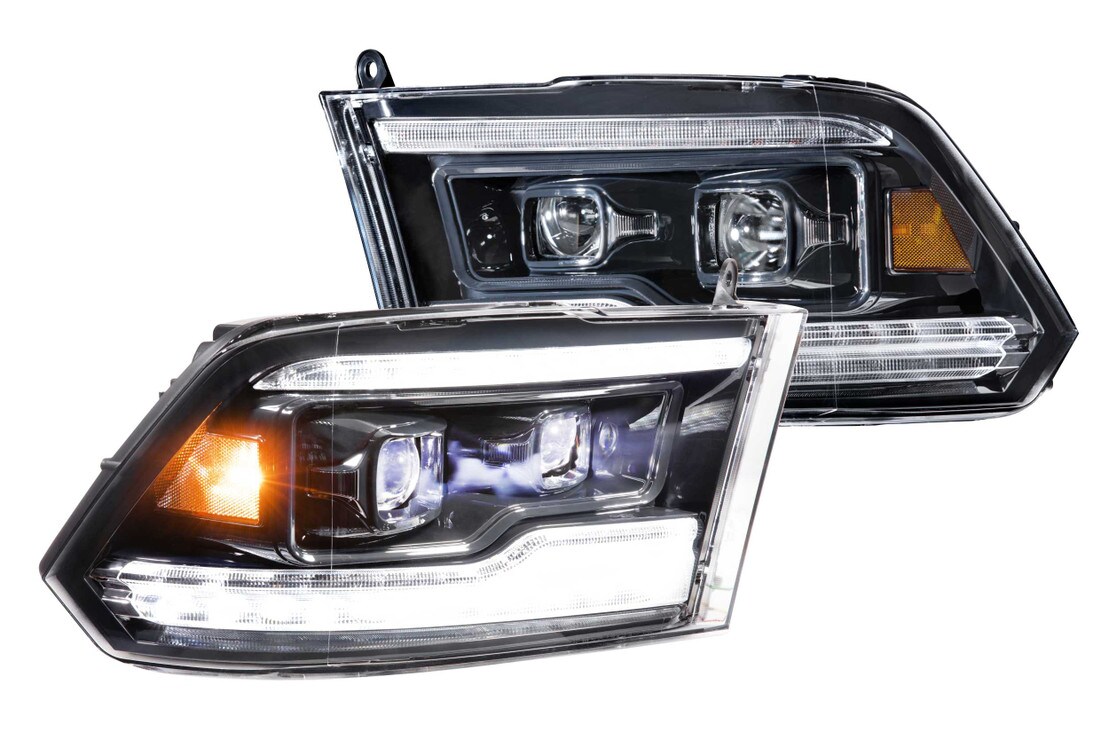

  • Headlights: 2x (One Pair) 09-18 Dodge Ram XB LED Headlights

  • Wiring: Plug and Play Harness, Fuse Tap


This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.


  • Traffic Pattern: LHD Only

  • Input: Mopar Multi-Pin OEM

  • Functions: DRL (White), Turn, Parking, Low, High

  • Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Optic: Kuria Optic Bi-LED

  • UV Coating: Momentive UVHC3000



  • Dodge Ram 1500/HD: 2009-2018 (Note: 2013-2014 trucks may require reprogram for OE Projector to avoid error codes)

  • Resistors: Required for 2015 Trucks

  • Replaces Mopar Part #: 55277409AD, 55277409AE, 55277409AF, 55277410AD, 55277410AE, 55277410AF, 68001485AG, 68001484AG, 68096439AC

  • NOTE: These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.



No Substitutes: If your Ram is still rocking OEM headlights, then it's time for an upgrade. Even the latest and greatest OE "projector" headlights for the Ram are still powered by halogen bulbs and their light output is laughable at best. Thankfully the new Morimoto XB LED headlights: Look great. Are well-built. Have a virtually infinite life span. An unbeatable warranty, and out-perform every alternative. Easily the best LED headlights on the market today for the Ram aftermarket

OEM Plus: At Headlight Revolution we live, eat, and sleep headlights. While the Dodge Ram LEDs from Morimoto cost a bit more relative to other options in the aftermarket; as the saying goes "you pay for what you get". We've seen it all, and their fit and finish is far superior to everything else out there. Guaranteed.

Performance: We've always been blown away by the fact that the other brands don't even consider how well their headlights perform on the road at night. Most often, they're a downgrade compared to even the standard halogen setup, and that's a shame considering how bad Mopar's OEM Projector headlights are in the first place. The double Bi-LED setup in the new Ram LED headlights produces a well-defined beam pattern with a great amount of width, intensity, and a proper distribution of light. These are much more than an aesthetic upgrade, they will illuminate the road much more effectively too.

DOT Approved: Make no mistake, these will produce a much different [better] result than slapping some LED replacement bulbs into your stock housings. Their quad-projector optics meet & exceed all SAE, DOT, and FMVSS108 regulations when aimed properly...and that's easy to do with their integrated adjusters.

Plug-n-Play: Wiring is easy too! Morimoto's Ram LED headlights are designed to work on your truck without any modifications. They will plug into the factory connectors for the stock headlights and each assembly includes all necessary connectors, rubber seals, and pigtails for a plug n play install. No error codes, no flickering, hyper-flashing, or radio interference. They can easily be removed, and will not void your factory warranty.

NOTE: 2015 Model Year trucks require the optional resistors. This is only for 2015 year trucks, not 2015 or newer!

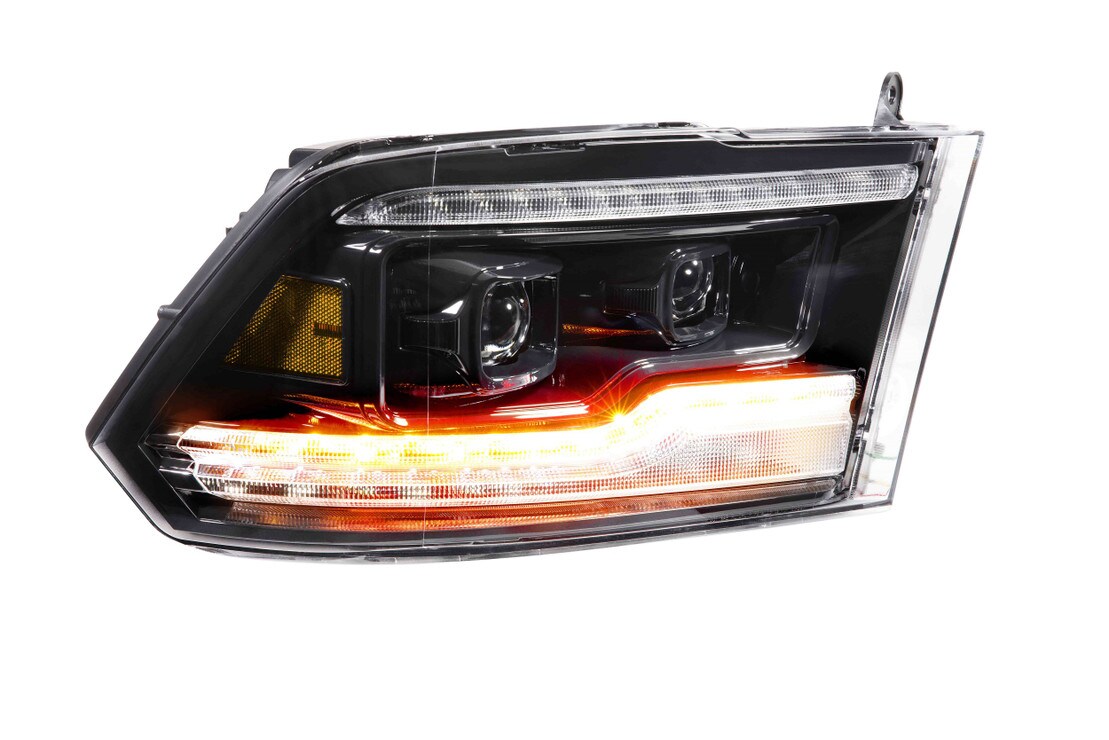

Sequential LED DRL: Game Changer! Their LED daytime running light is powered by Osram 5000K LEDs and is insanely bright, easily visible during the day. A separate optic that's dedicated to the turn signal function uses amber LED's to produce a full sequential turn signal. For those who are a bit more traditional, they can also be setup to run as solid on/off style signals too.

Well-Built: Their UV-coated polycarbonate lens will resist the test of time, ensuring your truck's new headlights will look good as new for many years to come. The PPS plastic housing is light-weight and much stronger than comparable alternatives. The die-cast aluminum heat-sinks inside the housings provide more than an adequate amount of cooling for the OEM grade LED chips that produce the light. These complete headlights may be new to the market, but Morimoto's XB LED fog lights have proven themselves perfect after 5+ years out now, which is confidence inspiring.

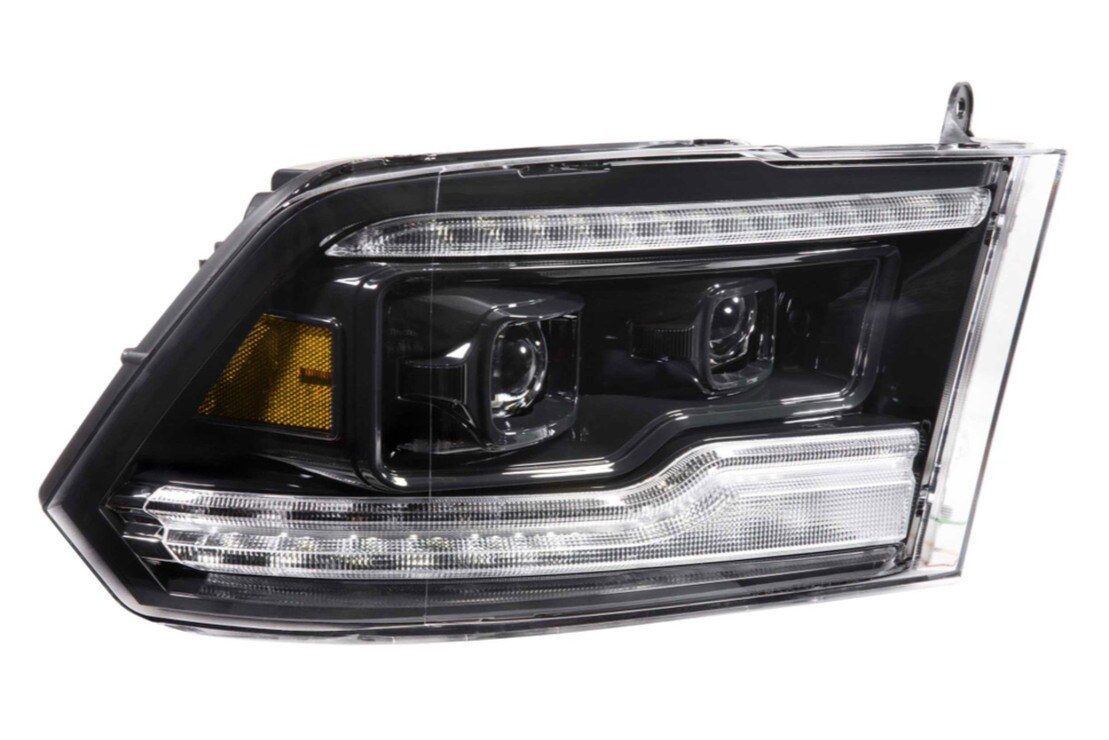

They Look: Amazing. At least in our opinion! Their design was inspired by the top of the line headlights on the 2019+ Ram. The subtle elements inside are more than enough to make them stand out, but they're clean enough to be considered original-equipment to those who don't know any better. The piano black trim and smoked gray sidemarkers keep the color scheme neutral, and the quad kuria-optic projectors are as modern as it gets.


Great Product

by -

I should have gone this route earlier. These lights are a direct bolt in replacement. Great fit and finish. Great color, you will have to call tech support or go to morimoto.com for complete install details. Easy install after you see what needs to be done.


Brighter, better looking, no regrets

by -

Been on over a year now, I'm in Fairbanks Alaska and they've done well through 40 below and blizzards, and our summer thunderstorms. Much brighter then stock, I wish I could find the actual lumens but they are an excellent headlight for our ultra dark winters.


Morimoto XBs are amazing!


I tried a few different brands of headlights but they are no comparison to the Morimoto XBs. Satisfied beyond my expectations. Thank you Headlight Revolution.



by -

If you're not rocking XB's on your Ram you're missing out. Period.


Terrible customer service

by -

Called three times the day I made my order to confirm the right fog lights were ordered. Last call I asked for an email confirmation because that's how sure I was about they're incompetence. After talking to three different employees who could care less. No email was sent when I called back regarding no email being sent for the forth time in the same day they were closed. I've never felt like I've had to hold a companies hand to make sure they did they're job as much as I did that day with headlight revolutions. Guess what the fog lights showed up and they weren't the right ones. This is no joke. This company is terrible. After the wrong fog lights showed up and I called they told me how sorry they were and how they were going to make it right. Next day I get an email saying that it will be 4-6 weeks until I get the fog lights I ordered. I can't make this stuff up this is honestly how worthless this company is. So happy that they sent me an email asking me to give a review. Won't let me give zero starts or I would. Honestly the worst company I've ever dealt with hope the manufacturers of the products they sell will see this review and consider the extent that this Headlight Revolutions is ruining their reputation.


Waited for months

by -

The best ever, met every expectation, very easy to install


Super bright

by -

On dim these are brighter than my old lights when they was on bright. They also change the Look of the whole truck.


awsome headlights

by -

very nice product you will not be disapointed with these headlights



by -

Simple easy to install just as taking apart the original, you will need to use some parts from the originals to mount these in.


Great headlights

by -

The factory really dropped the ball on the projector halogen headlights. The rest of my truck has LED bulbs. I installed these LED headlights from Morimoto and they really shine.
