DESCRIPTION
Features: Compatible with 2014-2024 Toyota 4Runner. Allows you to mount two 6in light bars in the upper grille opening. Street legal output as Driving Lights. Utilizes existing mounting points for easy installation - no cutting or drilling required.

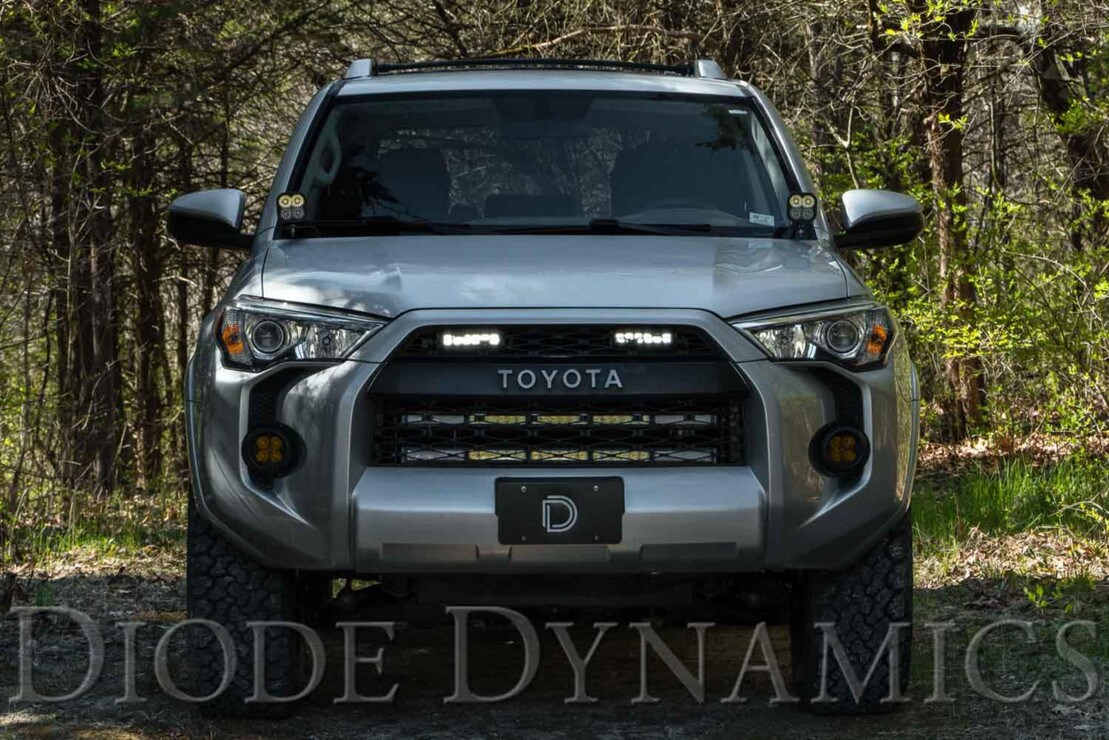

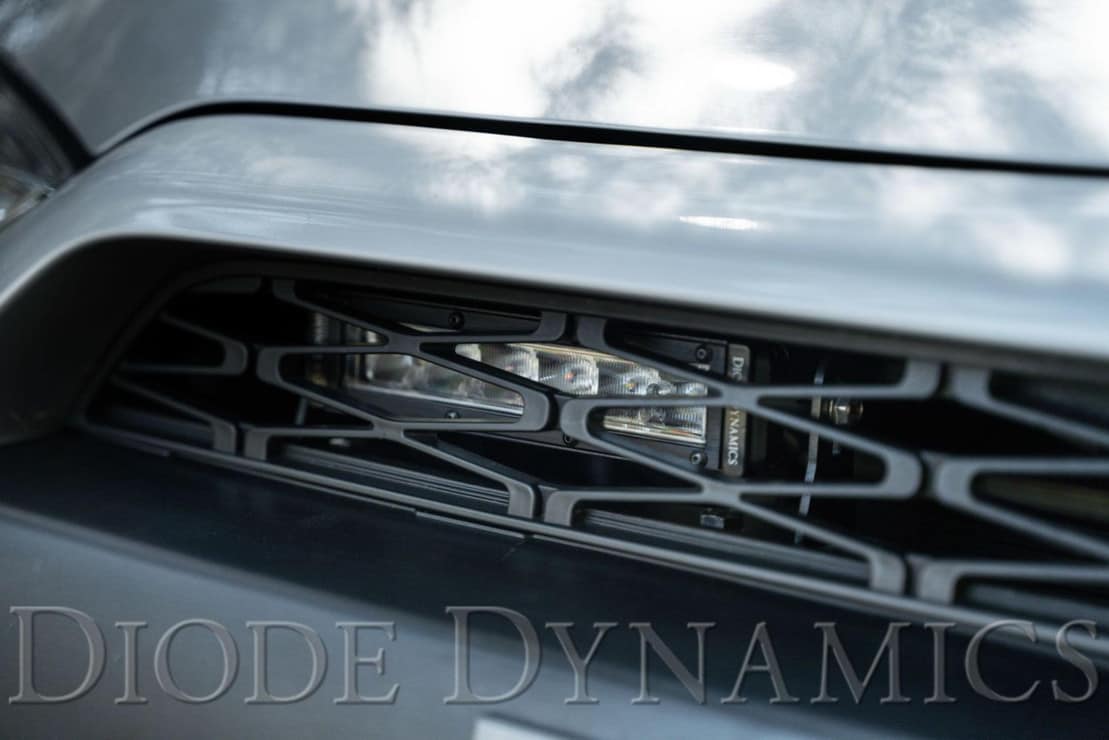

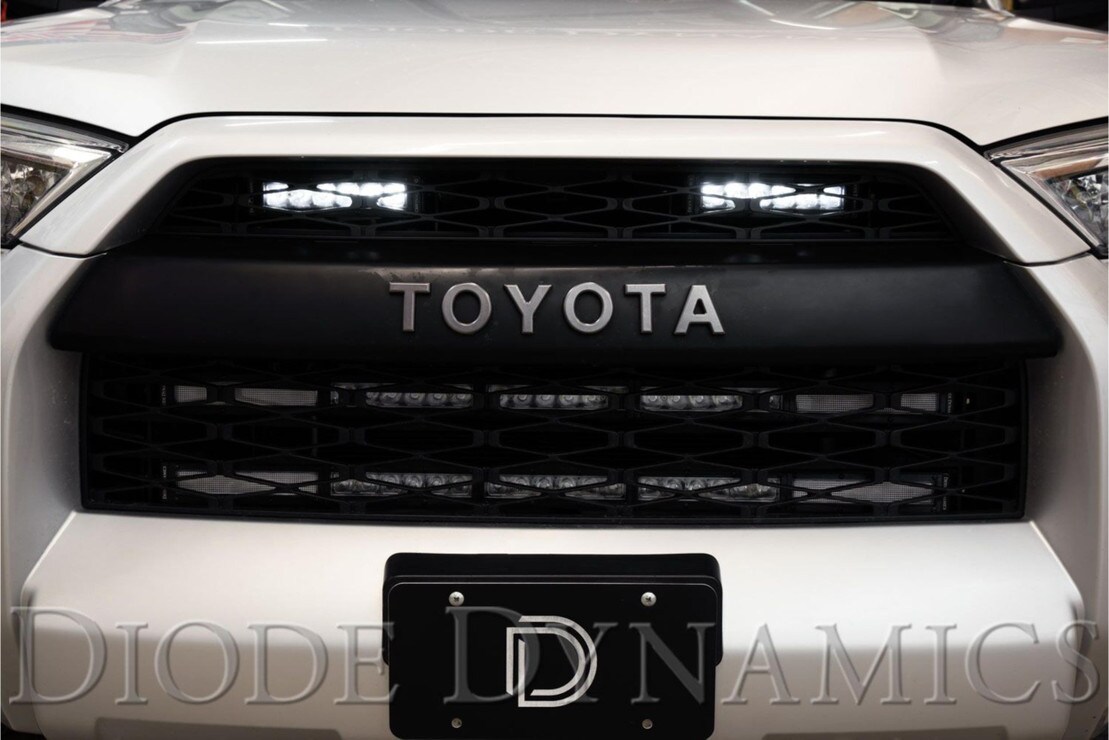

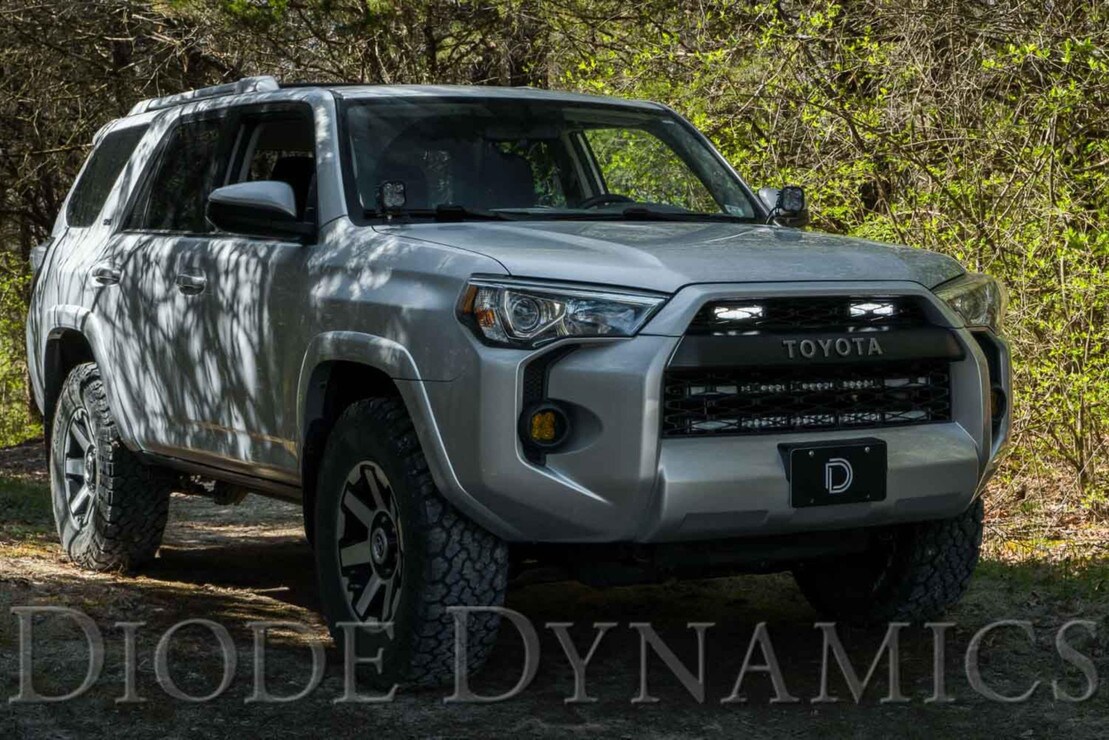

Perfect Fitment: The SAE/DOT LED Lightbar Kit compatible with the Toyota 4Runner 2014-2024 from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6in Light Bars in the upper grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

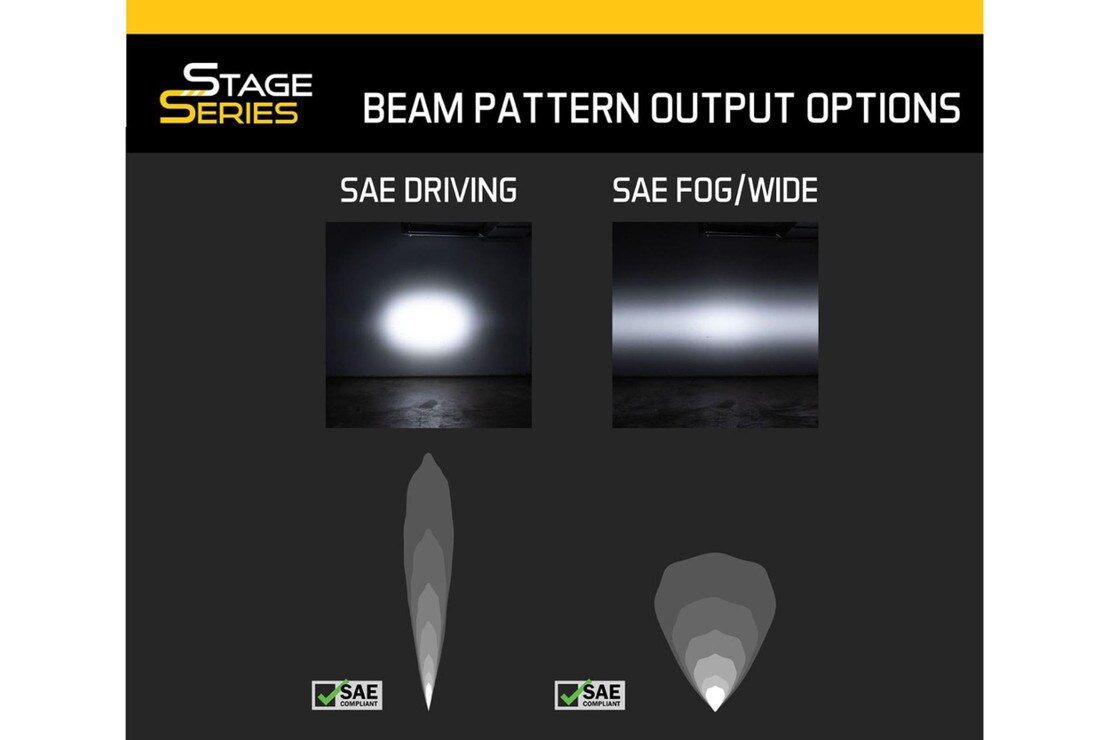

Street Legal Output: This kit isn't just for off road! It is legal for on-road use as driving lights (Please check your local laws and regulations for aiming installation and applicability). With the included plug-and-play wiring harness you can control the kit through your toggle switch. The Driving pattern was designed to supplement your high beams. Rather than a simple spot pattern the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

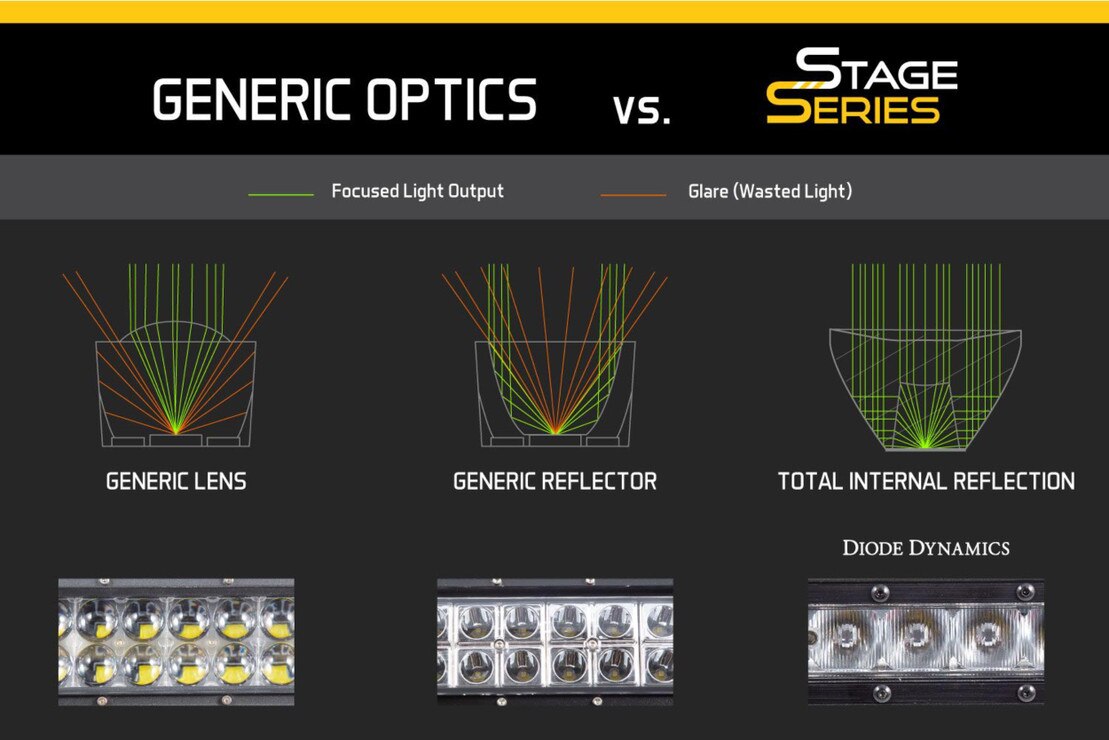

Designed For Performance: Using optical simulation modeling Diode Dynamics Stage Series light bars have been designed for maximum functionality with compact size custom-engineered TIR optics and a useful beam pattern all in a highly durable package. Our light bars shine light in a highly functional and useful beam pattern much more focused than older LEDs on the market. NOTE: Compatible with all Toyota 4Runner 2014-2019 trims but only compatible with 2020-2024 TRD Pro trim package.

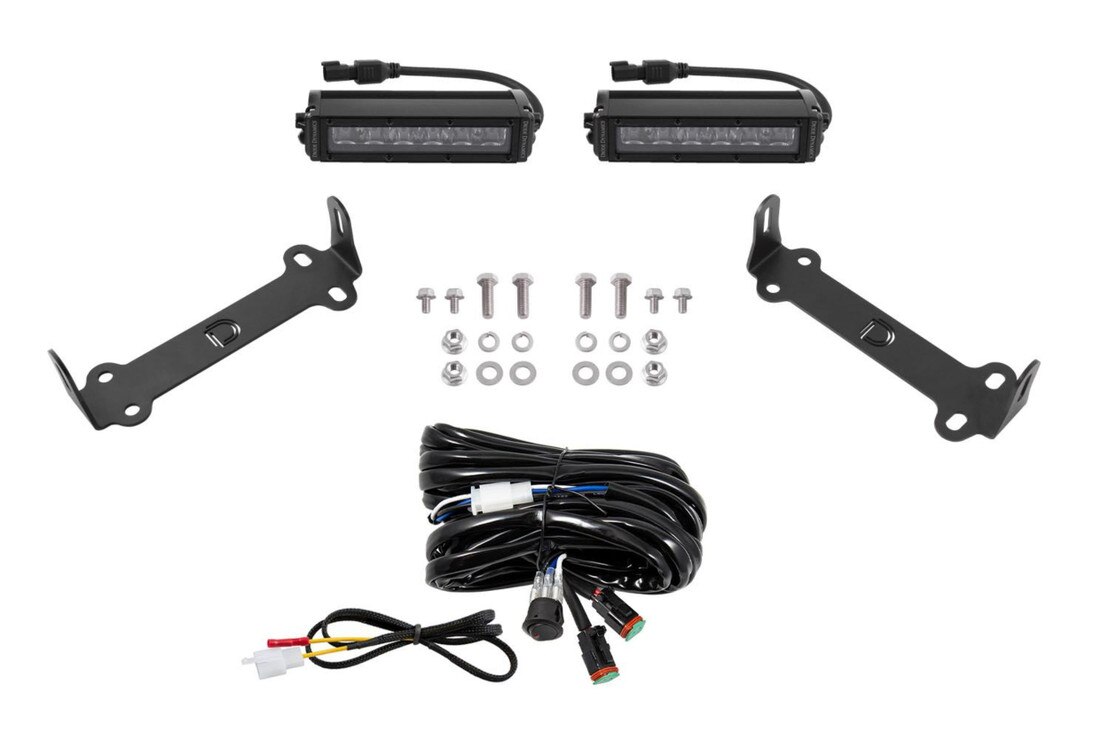

WHAT’S INCLUDED
Brackets: One (1) Pair
Light Bars: 2x SS6 Light Bars
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Note: These specifications are per pod / each!
Intensity (White Driving): 55,000cd
Intensity (White Wide): 13,000cd
Intensity (Amber Driving): 33,000cd
Intensity (Amber Wide): 7,400cd
Raw Lumens (White): 2,280lm
Raw Lumens (Amber): 1,140lm
Color Temp (CCT): 2000K, 6000K
Beam Angle: Wide, 100 x 8, Driving, 20 x 8
Power (watts): 26.6
Operating Voltage: 9-24V
Current (amps @ 14V): 1.9
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
Cooling: Passive, heatsink
COMPATIBILITY
Toyota 4Runner: 2014-2024
DD6757: Stage Series SAE/DOT LED Lightbar Kit Amber Driving
DD6758: Stage Series SAE/DOT LED Lightbar Kit Amber SAE/DOT Wide
DD6755: Stage Series SAE/DOT LED Lightbar Kit White SAE/DOT Driving
DD6756: Stage Series SAE/DOT LED Lightbar Kit White SAE/DOT Wide
