14-24 Toyota 4Runner SS5 Stealth Grille Lights

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD123-HR

$999.95

PRODUCT OPTIONS

PART #: 1 x DD7536



Save 15% on Diode Dynamics products with code DIODE15 at checkout!

DESCRIPTION

Features: Bolt-on fitment compatible with 2014-2024 Toyota 4Runner. Allows you to mount two to four SS5 pods behind the grille. Ultra-high intensity with custom-engineered TIR optics. Selectable backlight color with eight color options. Torture-tested heavy-duty construction. SS5 Pods are assembled in the USA.

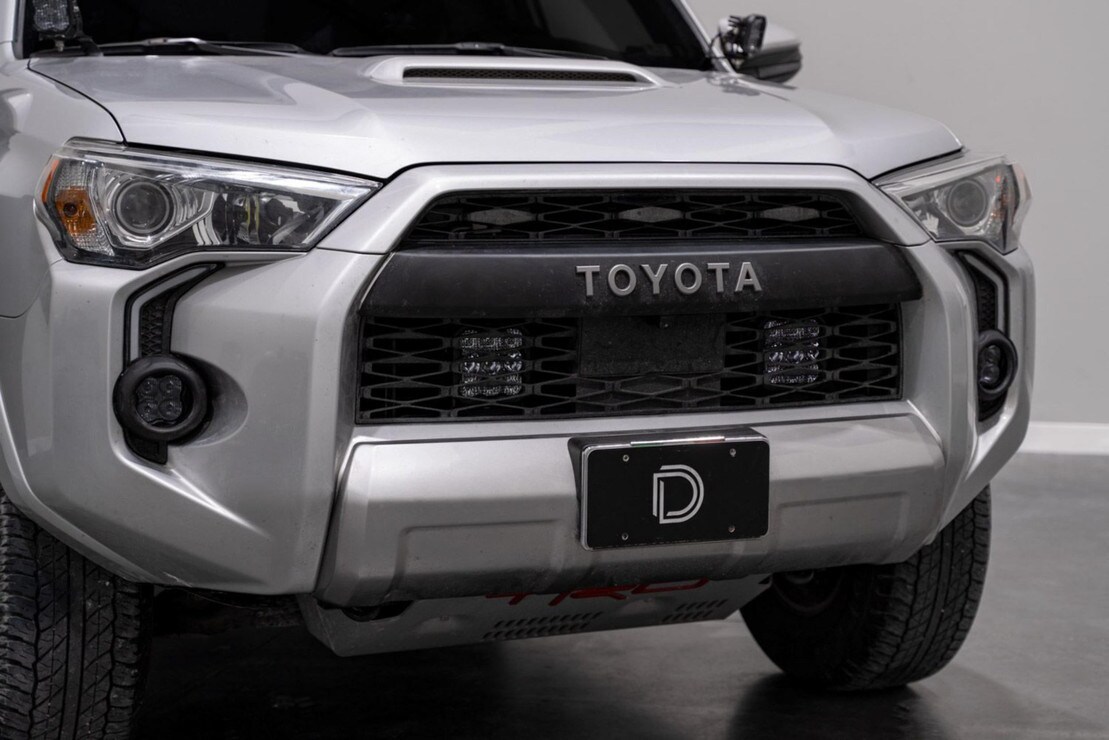

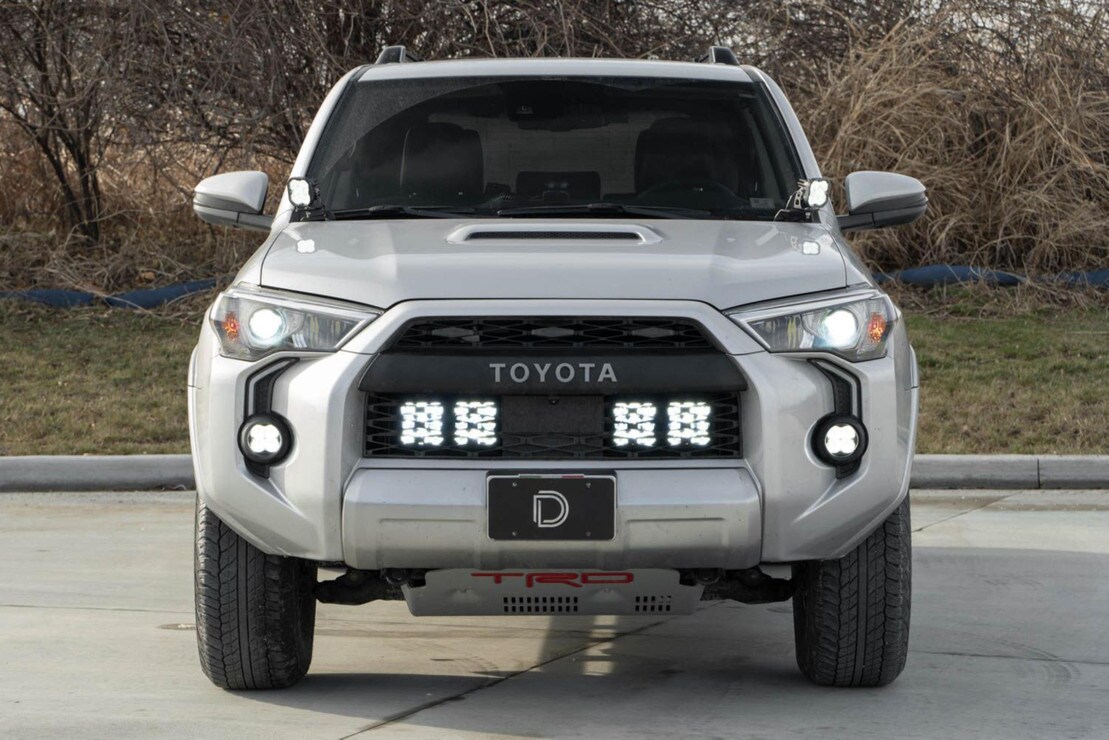

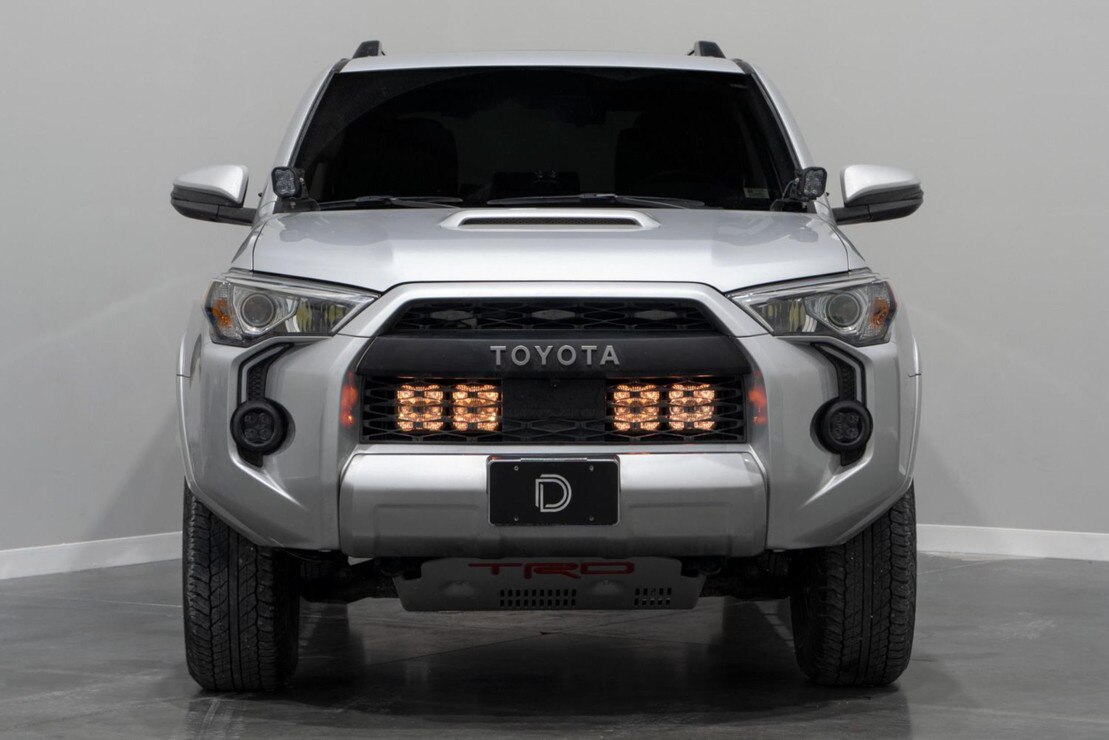

Perfect Fitment: The SS5 Stealth Grille LED Pod Kit compatible with Toyota 4Runner 2014-2024 from Diode Dynamics allows you to mount two to four Stage Series 5-inch LED pods behind the factory grille without interfering with the Safety Sense feature! These application-specific brackets were CAD-designed to bolt on using factory mounting points on the factory bumper. No cutting or drilling required!

Mounting Options: This kit is available in a two or four-pod configuration which will not interfere with the Safety Sense feature. If your vehicle does not come equipped with Safety Sense feature you can mount an additional fifth SS5 LED Pod Light on the center of the crossbar for even greater output!

Designed for Performance: Featuring the highest output intensity of any 5-inch LED pod on the market these auxiliary lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics. The brackets included with this kit are made of durable powder-coated steel and have been precision tested to ensure your SS5 Pods will not vibrate while you're off-road.

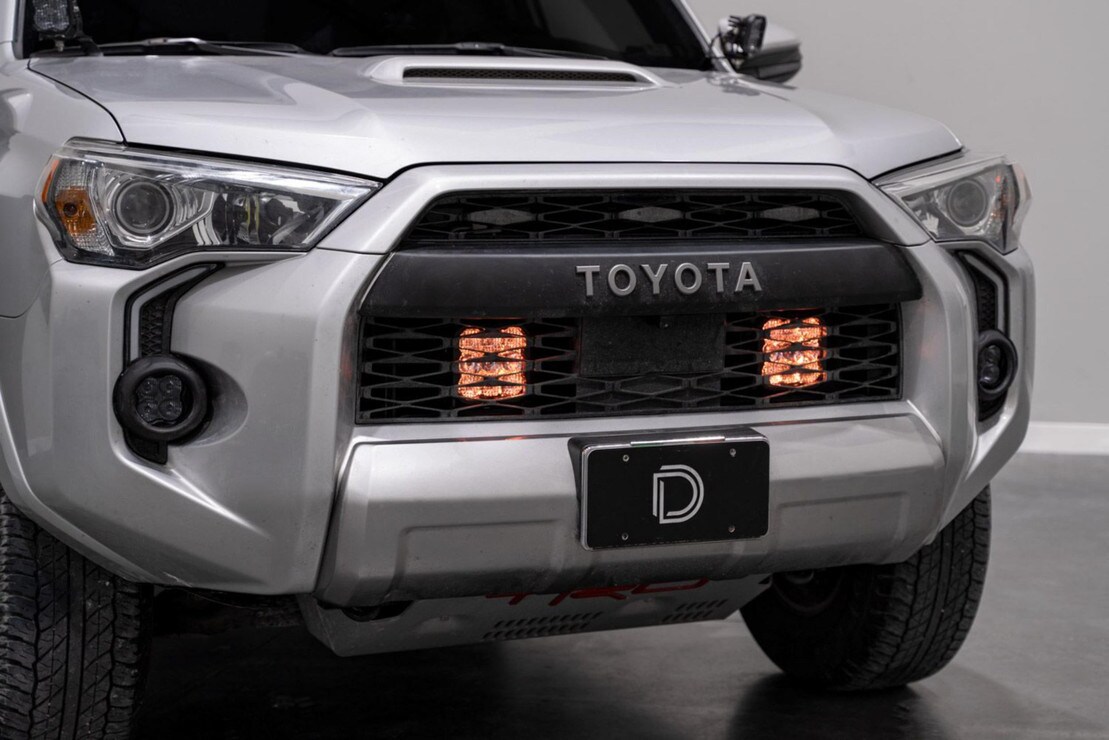

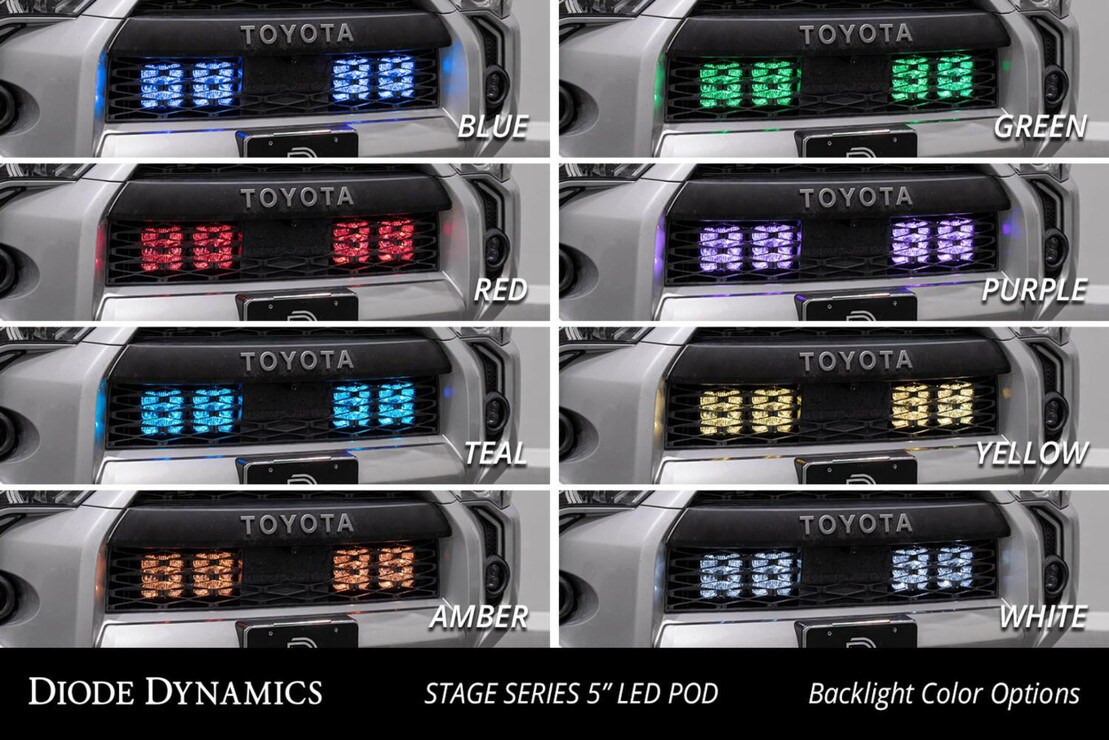

Selectable Backlight: The Stage Series 5-inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent that you won't find on other LED pods. NOTE: The Yellow kit is only available with an Amber backlight color.

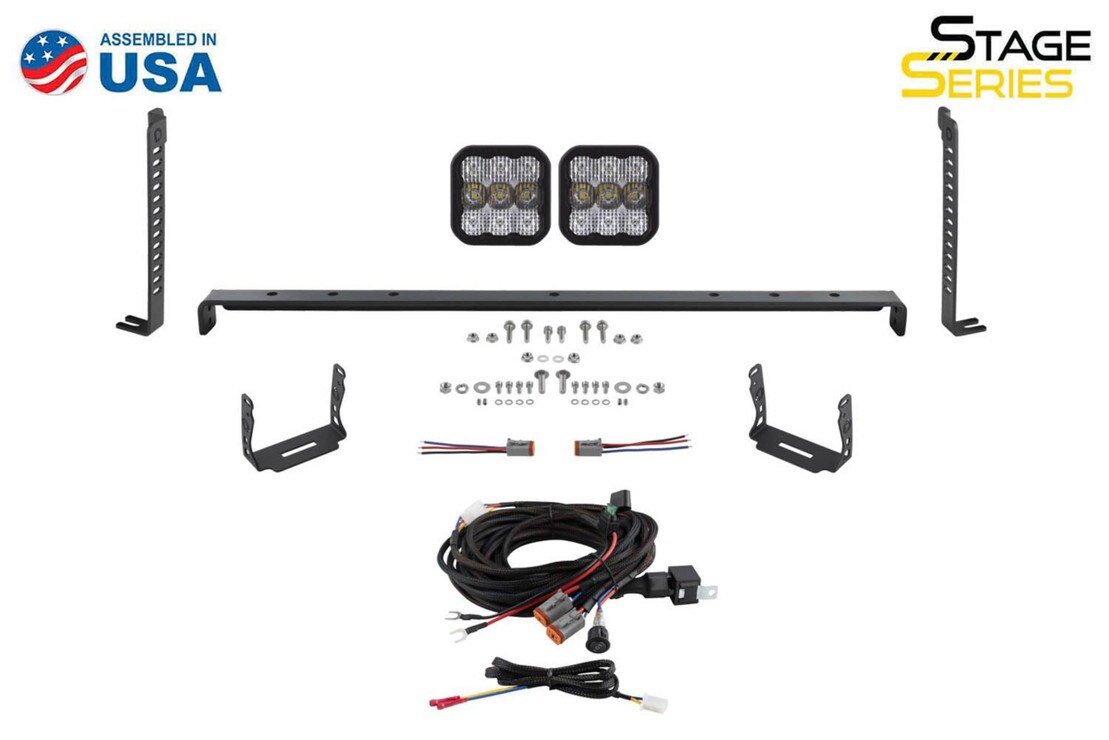

WHAT’S INCLUDED

  • Brackets: One (1) Pair

  • Optional Light Pods: 2x or 4x SS5 Pods

WARRANTY INFORMATION

This product is covered by a Lifetime limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Note: These specifications are per pod / each!

  • Intensity (Combo White Sport): 81,600cd

  • Intensity (Combo Yellow Sport): 75,700cd

  • Intensity (Combo White Pro): 58,500cd

  • Intensity (Combo Yellow Pro): 75,000cd

  • Raw Lumens (Combo White Sport): 4,800lm

  • Raw Lumens (Combo Yellow Sport): 9,700lm

  • Raw Lumens (Combo White Pro): 4,800lm

  • Raw Lumens (Combo Yellow Pro): 8,900lm

  • Main Beam Power (watts): Sport - 40w, Pro - 90w

  • Backlight Power (watts): White - 3.17w, Yellow - 3.07w

  • Main Beam Current (amps @ 12.8V): Sport White - 2.75, Sport Yellow - 2.8, Pro - 6

  • Backlight Current (amps @ 12.8V): White - 0.25, Yellow - 0.24

  • Color Temp (CCT): 3000K, 6000K

  • Beam Angle: Combo (Driving and Flood)

  • Operating Voltage: 9-16V

  • Polarity: Polarity Specific

  • Operating Temperature: -40C to 85C (-40F to 185F)

  • LED Emitter: Luxeon Z ES, Cree XP-L HI

  • Connector(s): Deutsch DT Input

  • Driver Features: Constant Current

  • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

  • Cooling: Passive, Pin-Fin heatsink

  • Intrusion Ratings: IP69K Waterproof, High Pressure

COMPATIBILITY

  • Toyota 4Runner: 2014-2024

  • DD7536: SS5 Stealth Grille LED 2-Pod Kit Pro White Combo

  • DD7540: SS5 Stealth Grille LED 2-Pod Kit Pro White Driving

  • DD7537: SS5 Stealth Grille LED 2-Pod Kit Pro Yellow Combo

  • DD7541: SS5 Stealth Grille LED 2-Pod Kit Pro Yellow Driving

  • DD7534: SS5 Stealth Grille LED 2-Pod Kit Sport White Combo

  • DD7538: SS5 Stealth Grille LED 2-Pod Kit Sport White Driving

  • DD7535: SS5 Stealth Grille LED 2-Pod Kit Sport Yellow Combo

  • DD7539: SS5 Stealth Grille LED 2-Pod Kit Sport Yellow Driving

  • DD7544: SS5 Stealth Grille LED 4-Pod Kit Pro White Combo

  • DD7548: SS5 Stealth Grille LED 4-Pod Kit Pro White Driving

  • DD7545: SS5 Stealth Grille LED 4-Pod Kit Pro Yellow Combo

  • DD7549: SS5 Stealth Grille LED 4-Pod Kit Pro Yellow Driving

  • DD7542: SS5 Stealth Grille LED 4-Pod Kit Sport White Combo

  • DD7546: SS5 Stealth Grille LED 4-Pod Kit Sport White Driving

  • DD7543: SS5 Stealth Grille LED 4-Pod Kit Sport Yellow Combo

  • DD7547: SS5 Stealth Grille LED 4-Pod Kit Sport Yellow Driving

  • DD7550: SS5 Stealth Grille LED Pod Bracket Kit
