DESCRIPTION
Features: Bolt-on fitment compatible with 2019-2024 Ram 1500. Allows you to mount a four-pod CrossLink lightbar across the grille. Ultra-high intensity with custom-engineered TIR optics. Selectable backlight color with eight color options. Torture-tested heavy-duty construction. Utilizes existing mounting points for easy installation. Assembled in USA.

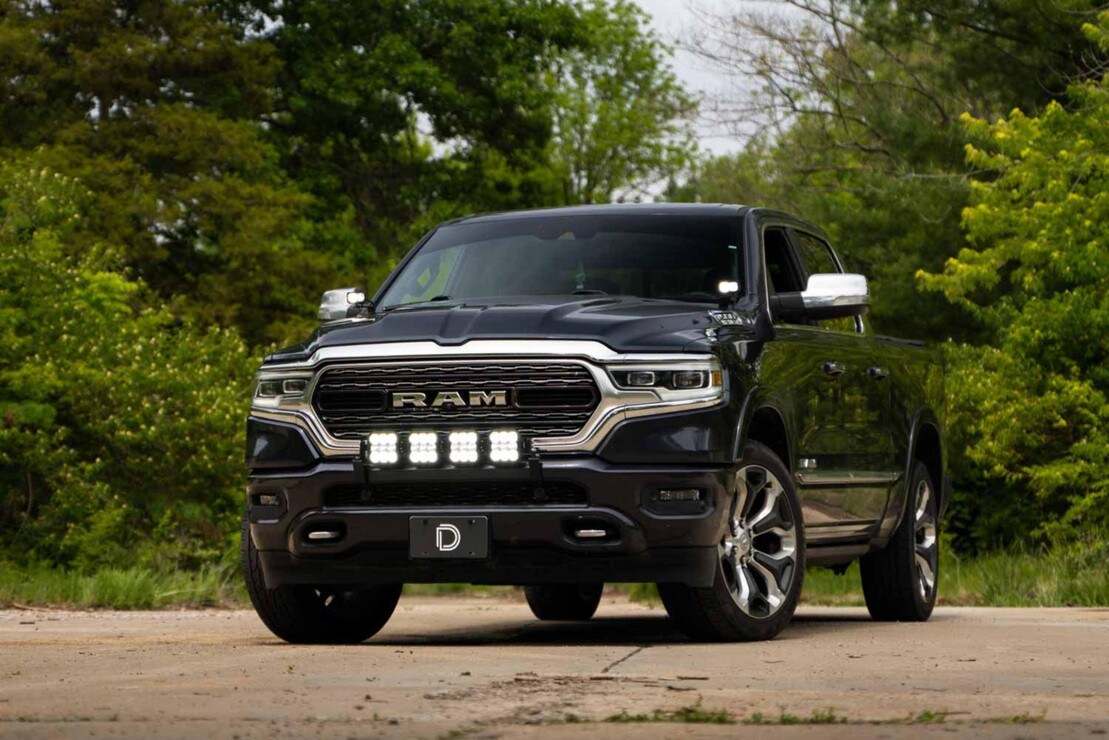

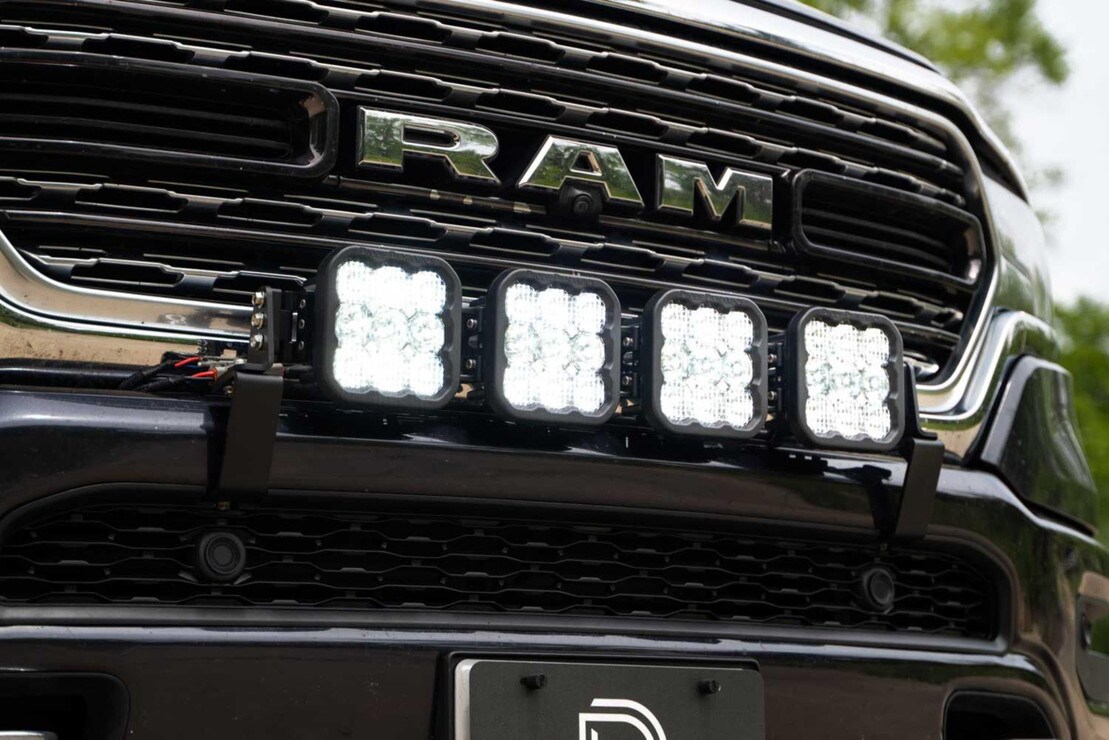

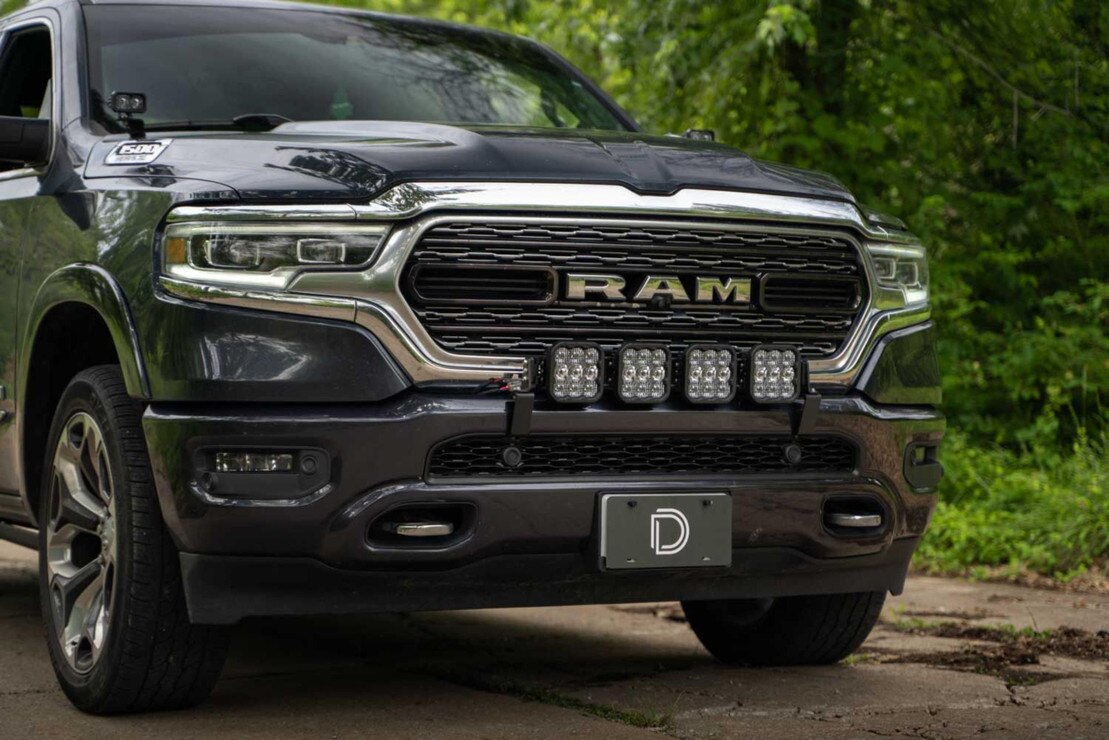

Perfect Fitment: The Grille CrossLink Lightbar Kit compatible with Ram 1500 2019-2024 from Diode Dynamics allows you to mount four linked SS5 LED pods on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the bumper. No cutting or drilling required!
Designed for Performance: Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.

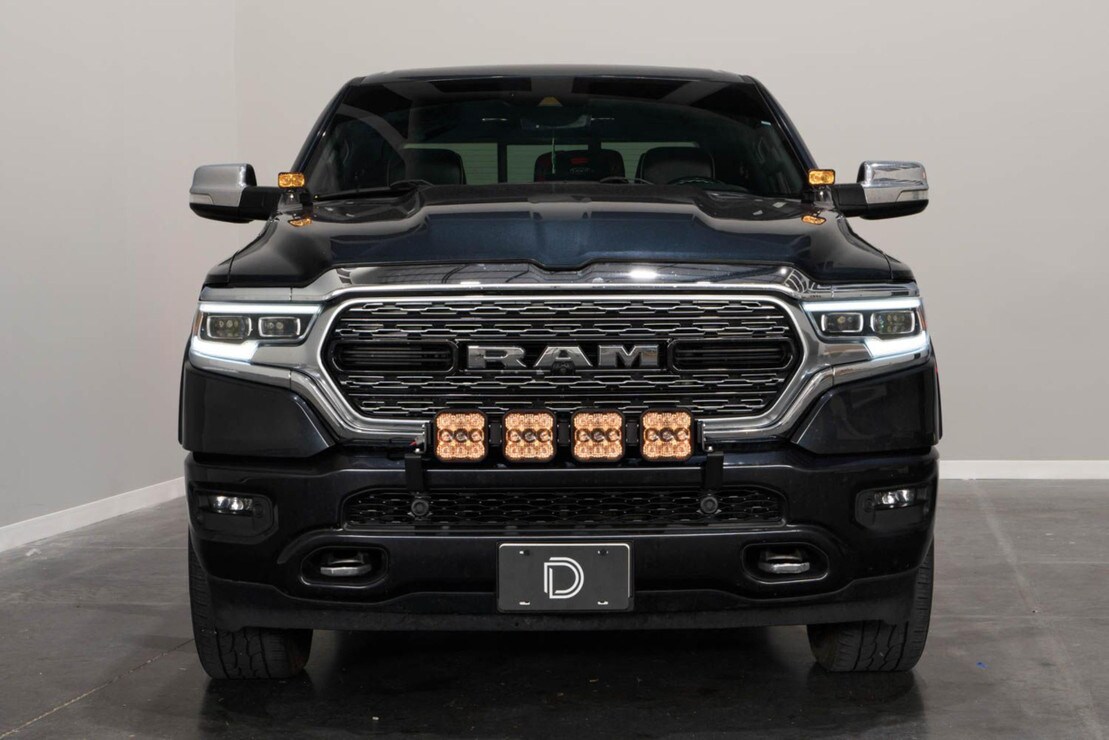

Selectable Backlight: The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent that you won't find on other LED pods. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic. NOTE: The Yellow kit is only available with an Amber backlight color.
CrossLink: Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable for both straight and curved configurations.

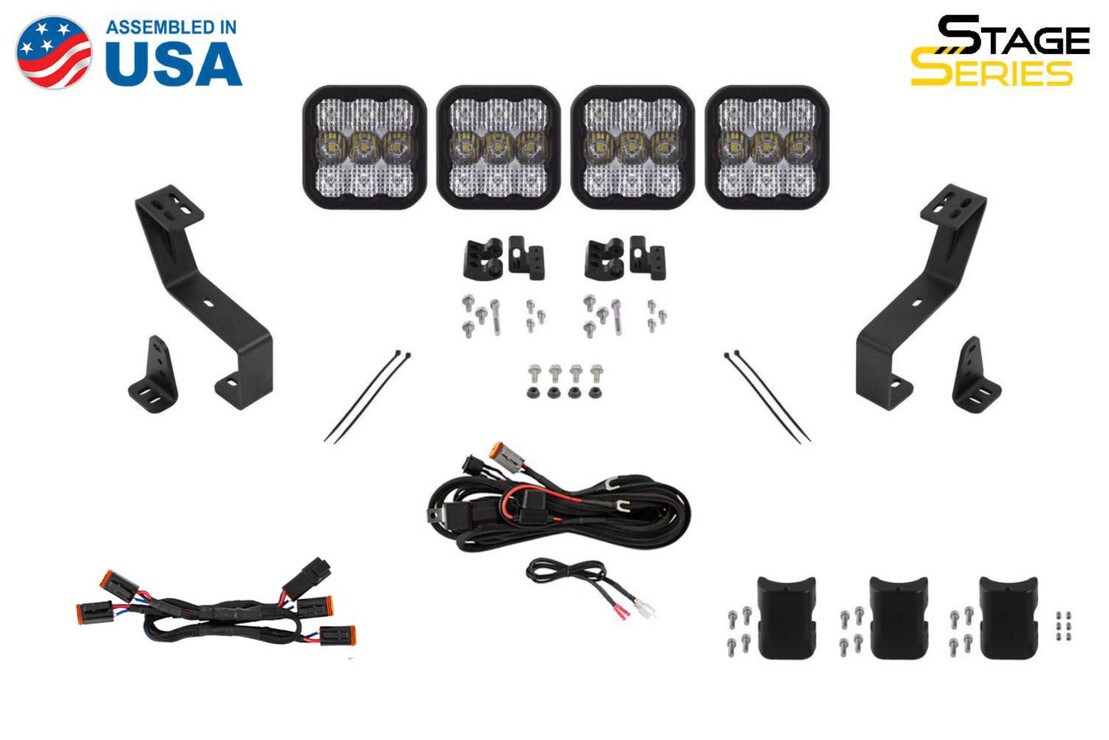

WHAT’S INCLUDED
Brackets : One (1) Pair
Optional Light Pods : 4x SS5 Pods
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Note : These specifications are per pod / each!
Intensity (Combo White Sport) : 81,600cd
Intensity (Combo Yellow Sport) : 75,700cd
Intensity (Combo White Pro) : 58,500cd
Intensity (Combo Yellow Pro) : 75,000cd
Raw Lumens (Combo White Sport) : 4,800lm
Raw Lumens (Combo Yellow Sport) : 9,700lm
Raw Lumens (Combo White Pro) : 4,800lm
Raw Lumens (Combo Yellow Pro) : 8,900lm
Main Beam Power (watts) : Sport - 40w, Pro - 90w
Backlight Power (watts) : White - 3.17w, Yellow - 3.07w
Main Beam Current (amps @ 12.8V) : Sport White - 2.75, Sport Yellow - 2.8, Pro - 6
Backlight Current (amps @ 12.8V) : White - 0.25, Yellow - 0.24
Color Temp (CCT) : 3000K, 6000K
Beam Angle : Combo (Driving and Flood)
Operating Voltage : 9-16V
Polarity : Polarity Specific
Operating Temperature : -40C to 85C (-40F to 185F)
LED Emitter : Luxeon Z ES, Cree XP-L HI
Connector(s) : Deutsch DT Input
Driver Features : Constant Current
Materials : Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling : Passive, Pin-Fin heatsink
Intrusion Ratings : IP69K Waterproof, High Pressure
COMPATIBILITY
Dodge Ram 1500 : 2019-2024
DD7607P : Stage Series Grille Bracket Kit
DD7610 : SS5 Grille CrossLink Lightbar Kit Pro White Combo
DD7611 : SS5 Grille CrossLink Lightbar Kit Pro Yellow Combo
DD7608 : SS5 Grille CrossLink Lightbar Kit Sport White Combo
DD7609 : SS5 Grille CrossLink Lightbar Kit Sport Yellow Combo
