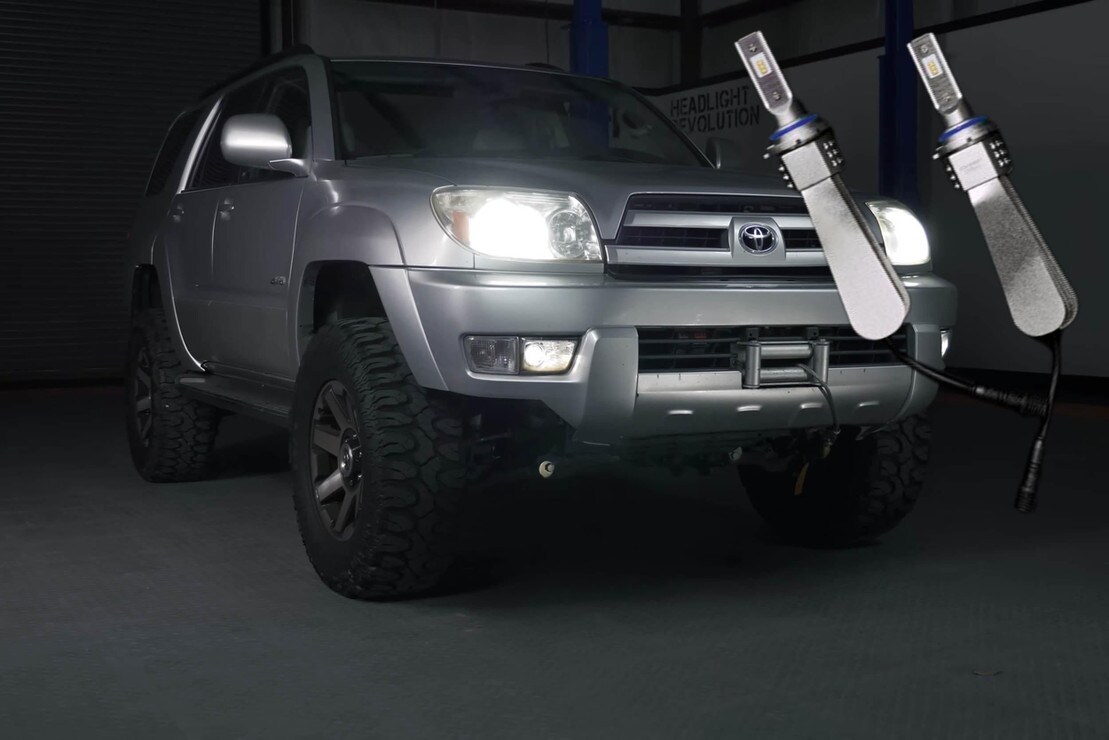

  • Toyota 4Runner (03-05) Xenon Depot XTREME LED Low Beam Bulbs

Xenon Depot XTREME LED Low Beam Bulbs

2 Reviews

Brand: Headlight Revolution




PART #: 1 x XD.LED020

*Guaranteed Fitment
Easy Return


Experience unmatched illumination with our Xtreme LED Pro series fog light bulbs. Designed for the 2003–2005 Toyota 4Runner, these bulbs deliver an astonishing 339% increase in brightness compared to standard halogen bulbs. With an effortless plug-and-play installation, no modifications are needed for your vehicle. Our bulbs feature a patented aluminum alloy leaf passive heat sink for optimal heat dissipation, ensuring long-lasting performance even in demanding conditions. Genuine Lumileds ZES emitters replicate the original halogen filament size, providing superior beam pattern and spread. Rated at a stable 1750 Lumens and 5500K color temperature, our bulbs deliver true white light without unnecessary blue hues. Elevate your driving experience with top-tier quality and unmatched performance – upgrade to Xtreme LED Pro today!


  • Brighter Illumination: Achieve 339% brightness compared to halogen bulbs.
  • Easy Setup: Plug-and-play design for quick installation.
  • Effective Cooling: Patented aluminum alloy heat sink for durability.
  • Precise Beam: Genuine Lumileds ZES emitters for accurate spread.
  • True White Light: 1750 Lumens, 5500K for clear visibility.


  • 9006 Xtreme LED Pro BULBS: 2x (One Pair)


This product includes a 2 Year limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.


  • Intensity: 1,750lm

  • Input Voltage: 12-24V DC

  • Adjustability: Fully Clockable Base



  • Toyota 4Runner: 2003-2005

  • Housings: Designed for, and confirmed to fit, Stock Housings

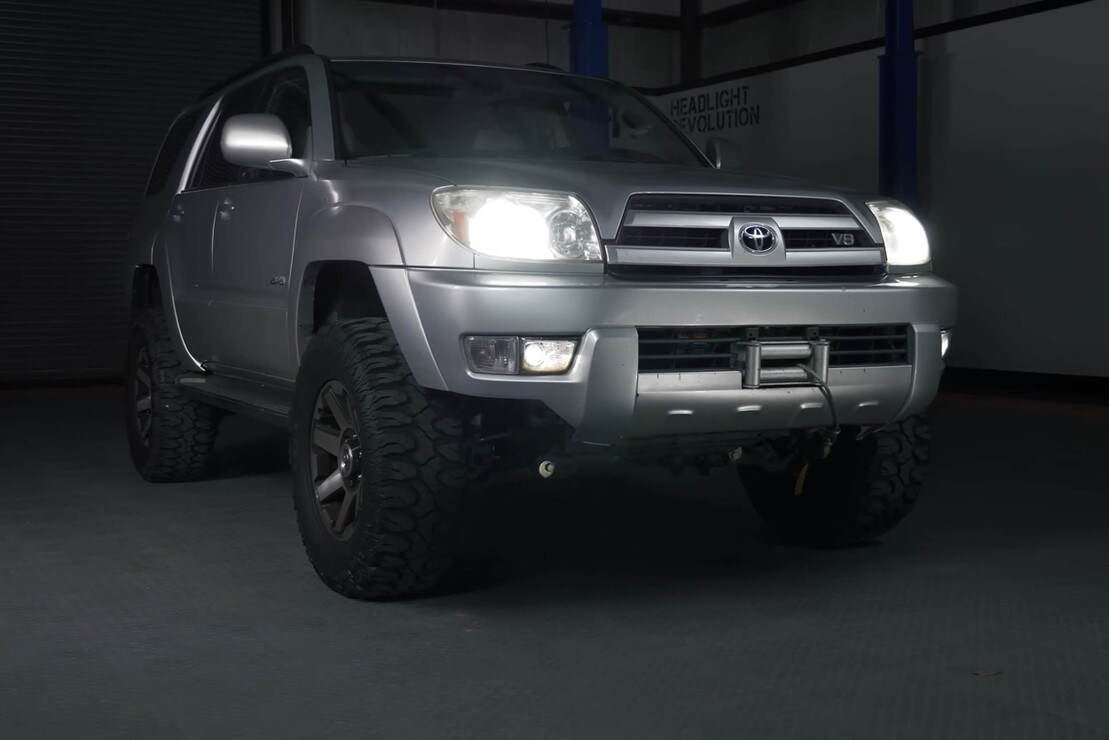

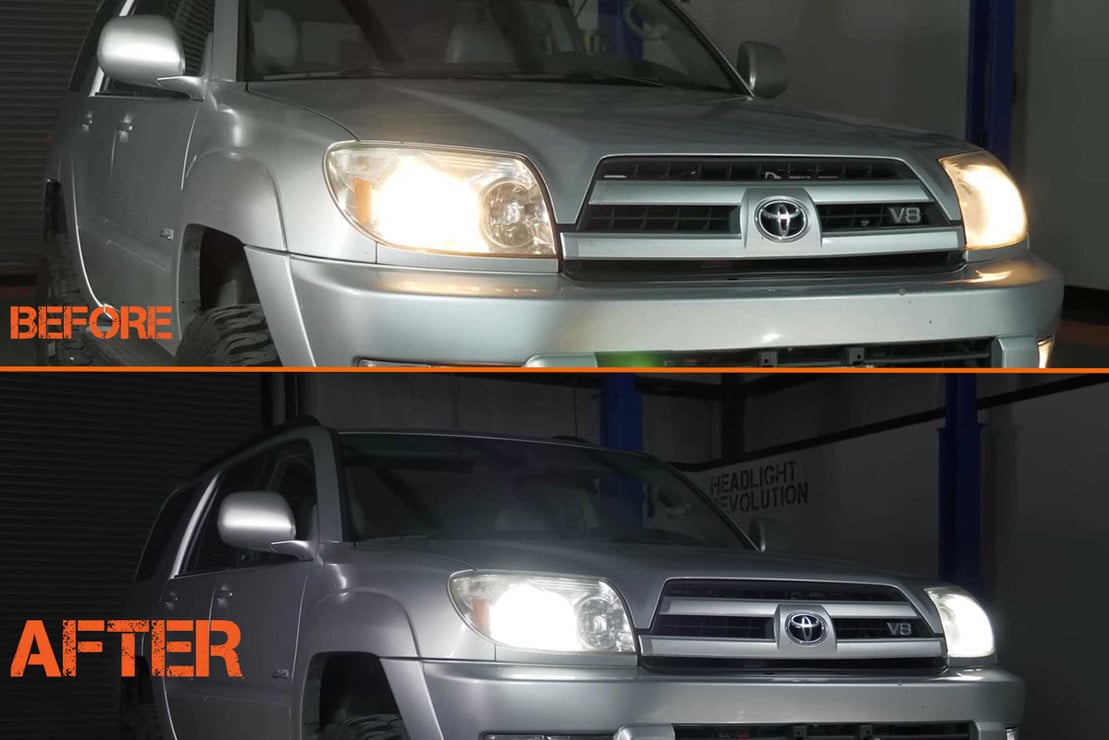

339% Brighter 2003 - 2005 LED LOW BEAM BULBS FOR THE TOYOTA 4RUNNER: In 2003, 2004, and 2005, the Toyota 4Runner used a halogen reflector headlight and the bulbs included in this kit are easy to install and totally plug and play requiring no modification to your vehicle. The bulbs we found to work well are the Xenon Depot Xtreme LED Pro bulbs that are 339% brighter than the original halogen bulb that come with the 4Runner. This is a great upgrade if you want to create more light output for the trails and seeing farther in front of you, and wider out to the sides.

We found that LED bulbs from GTR Lighting and Xenon Depot performed the best, and fit the vehicle without modification so those are the two options we recommend for guaranteed fitment and performance.


Xtreme LED Pro: Xtreme LED Pro series of drop-in fog light bulbs are just better--right from the start. They incorporate today's most advanced components and features for unparalleled compatibility and performance. Hold one in your hand and you'll immediately discern their uncommonly high-quality fit, finish, and feel: they're made of premium materials, formed and assembled with precise craftsmanship.

Optimal Heat Dissipation: The next thing you'll notice is their all-new patented aluminum alloy leaf passive heat sink. Its compact and readily configurable design allows an easy fit in most any fog lamp housing, and with its much larger contiguous thermal path, it does a better job shedding heat off the LEDs than past-type flexible mesh heat sinks. With no flex-mesh junctions to break and no motorized fans to make noise and electrical interference, clog, or fail, the superior heat rejection performance of the alloy leaf passive heat sink is retained over the long haul, for the full rated life of the emitters. That translates directly to excellent performance; the cooler LEDs can be kept, the higher their output.

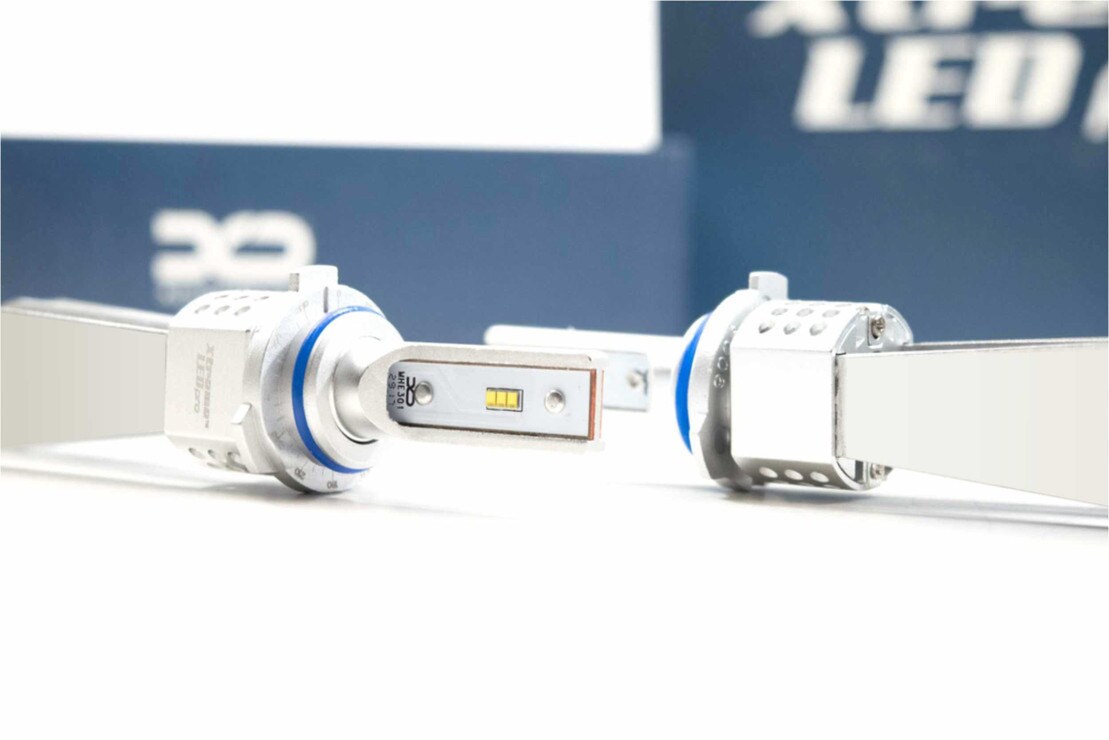

Beam Pattern: The emitters themselves are genuine Lumileds ZES, three on each side of the light head, and this together with their undomed configuration means they closely replicate the size of the original halogen filament. That means a better optical match than longer 4-emitter arrays or domed COB emitters, both of which violate the light source box your fog lamp's optics were designed around, and because the high output comes from three chips rather than four, luminance is higher for better beam punch and spread.

Lumens and Light Output: Anyone can throw around inflated lumen numbers--and most vendors do. Some of those numbers have no basis in reality, they're just fibs. Some of them are somewhat accurate, but only immediately after the bulb is lit up in a cold chamber, without accounting for the significant 'droop' that happens when improperly chosen emitters are inadequately cooled--don't drink the kool-aid! The Xtreme LED Pro bulbs are rated honestly: 1750 lumens stable, measured after the bulbs have been operating continuously for an hour in 60C heat. That's a rating that means (and gives you) exactly what it says. With the 5500K color temperature of our emitters, we're giving you true white light, not artificially jacking up the lumen rating with a bunch of useless deep-blue light that can only attract unwanted police attention, not help you see.

In Summary, They're Just Better: There's more clean-sheet engineering where you can't see it: we've used copper circuit boards for optimal thermal conductivity, and our compact base means the rigid tail of the light head is only 25mm--much smaller than other LED bulbs on the market. You'll note the light head is remarkably compact, without bulky over-length that prevents many other LED bulbs from fitting all the way into many fog lamps. And the light head is clockable, too, so you can fine-tune the output for the best optical match with any lamp you might install them in. Truly, this is the top-performing LED bulb with OE-level quality and "fit it and forget it" durability and dependability.

HR Tested: Here at Headlight Revolution, we've spent the time to install and test all HR Tested products, so we know it'll work exactly as shown and right out of the box! Not only that, but we don't favor one particular brand. We just deliver the best product for the application, period. Be sure to reference our install videos for helpful tips on making the installation process quick, painless, and clear. HR Tested: We ensure fitment and function. You do the install. For other compatible upgrades, use the Buyers Guide on our homepage!
