2024+ Toyota Tacoma SS5 Grille Lights

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD121-HR

$1,699.95

PRODUCT OPTIONS

PART #: 1 x DD8029



Save 15% on Diode Dynamics products with code DIODE15 at checkout!

DESCRIPTION

Features: Bolt-on fitment compatible with 2024+ Toyota Tacoma. Allows you to mount a four-pod CrossLink lightbar across the grille. Ultra-high intensity with custom-engineered TIR optics. Selectable backlight color with eight color options. Torture-tested heavy-duty construction. Utilizes existing mounting points for easy installation. Assembled in USA.

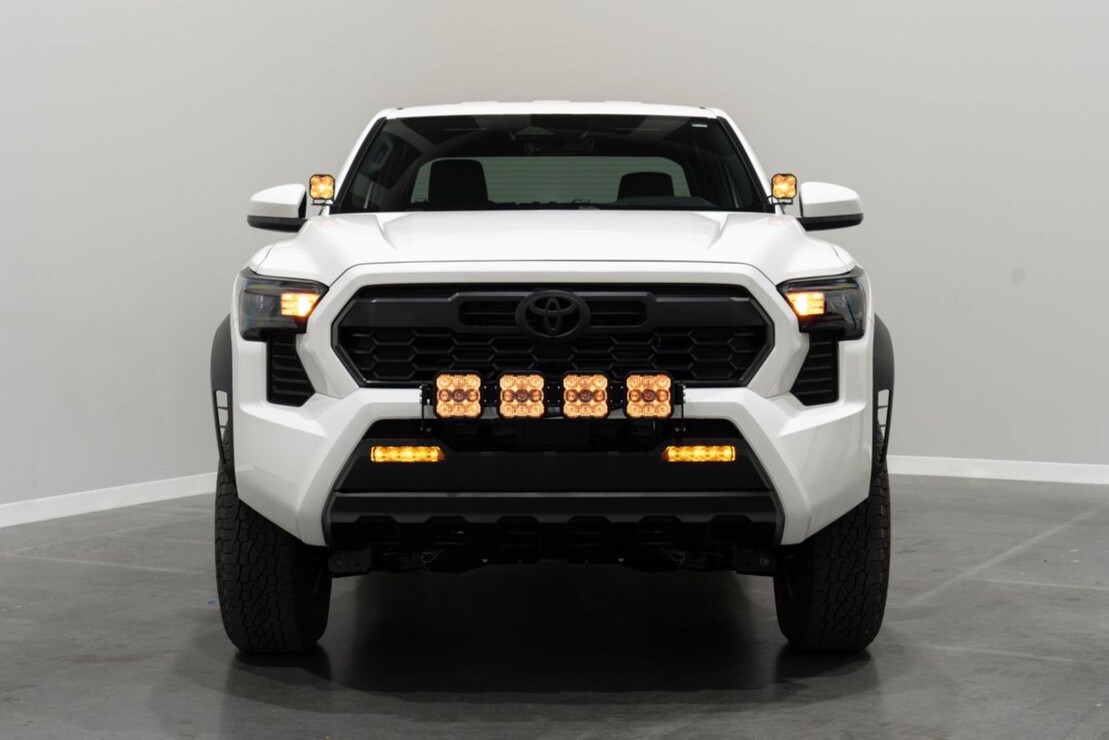

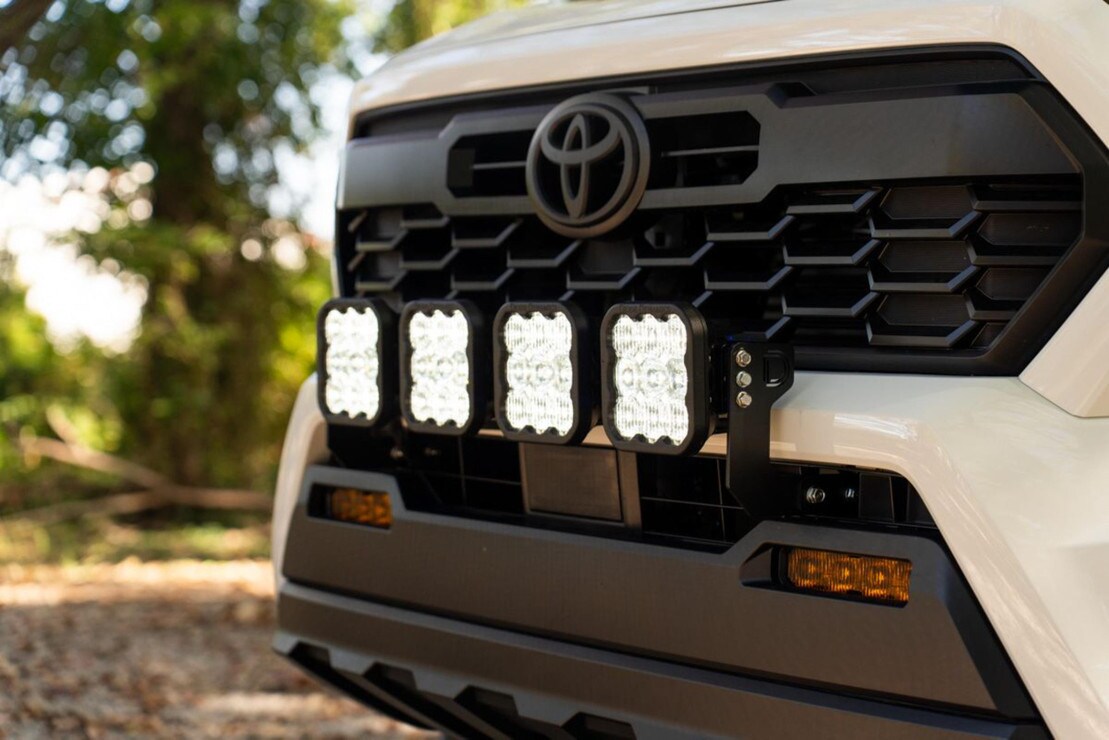

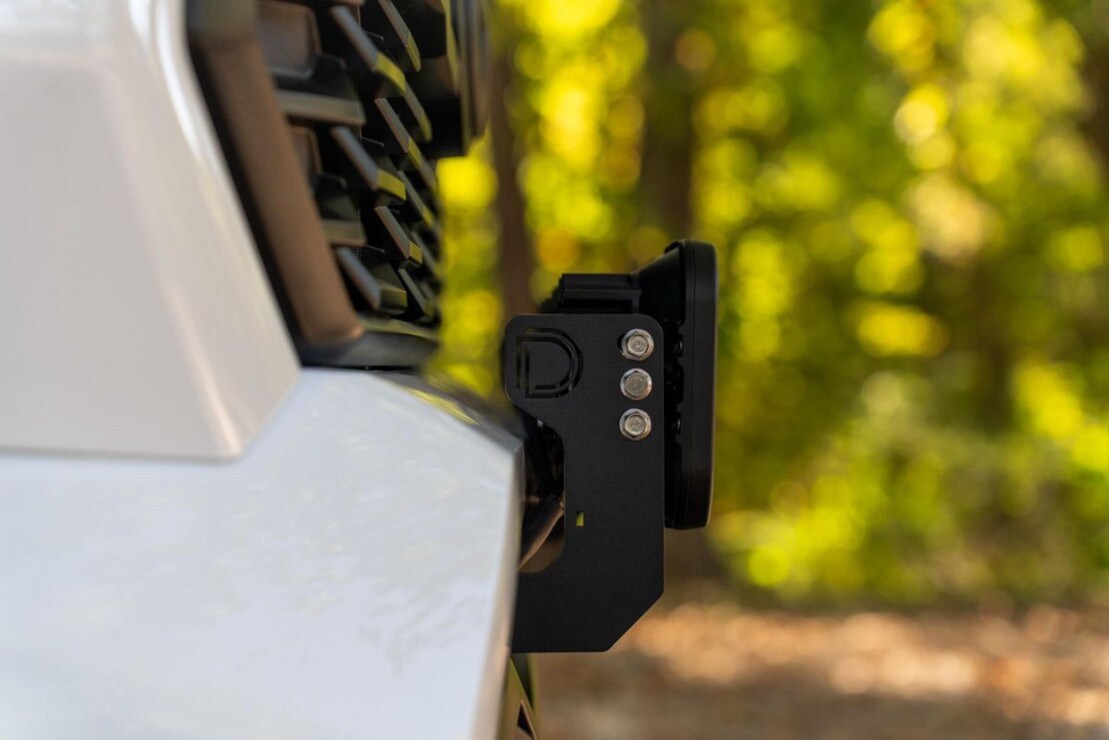

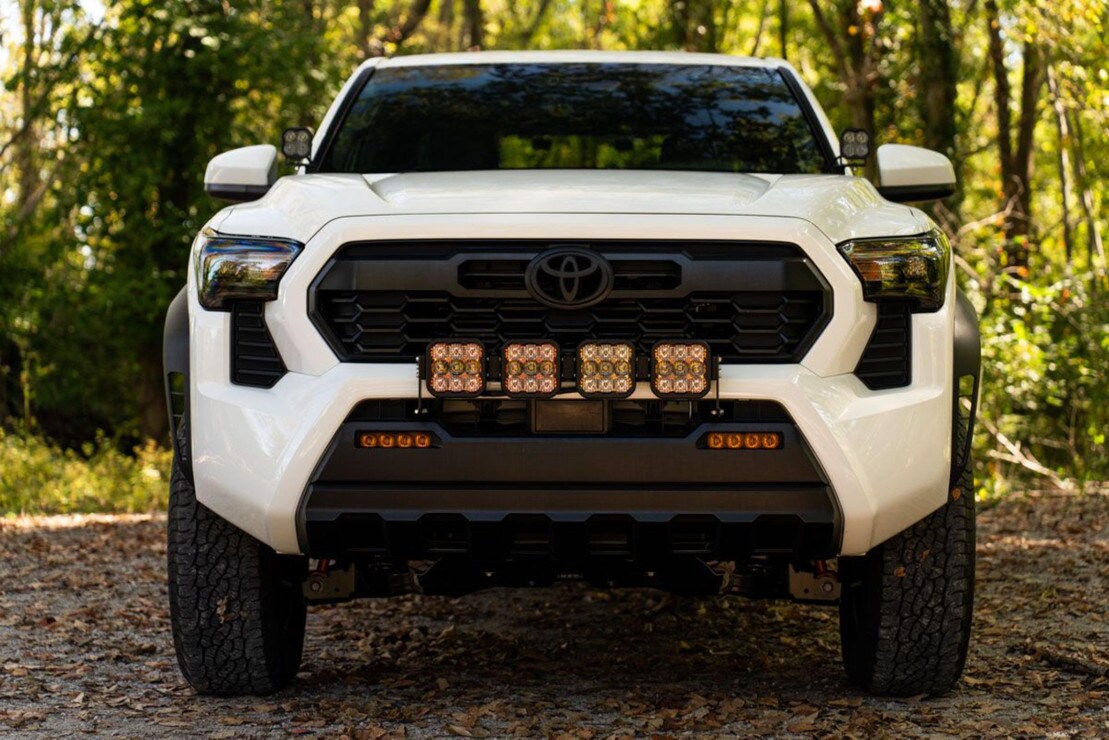

Perfect Fitment: The Grille CrossLink Lightbar Kit compatible with Toyota Tacoma 2024+ from Diode Dynamics allows you to mount four linked SS5 LED pods on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the bumper. No cutting or drilling required!

Designed for Performance: Featuring the highest output intensity of any 5-inch LED pod on the market, these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.

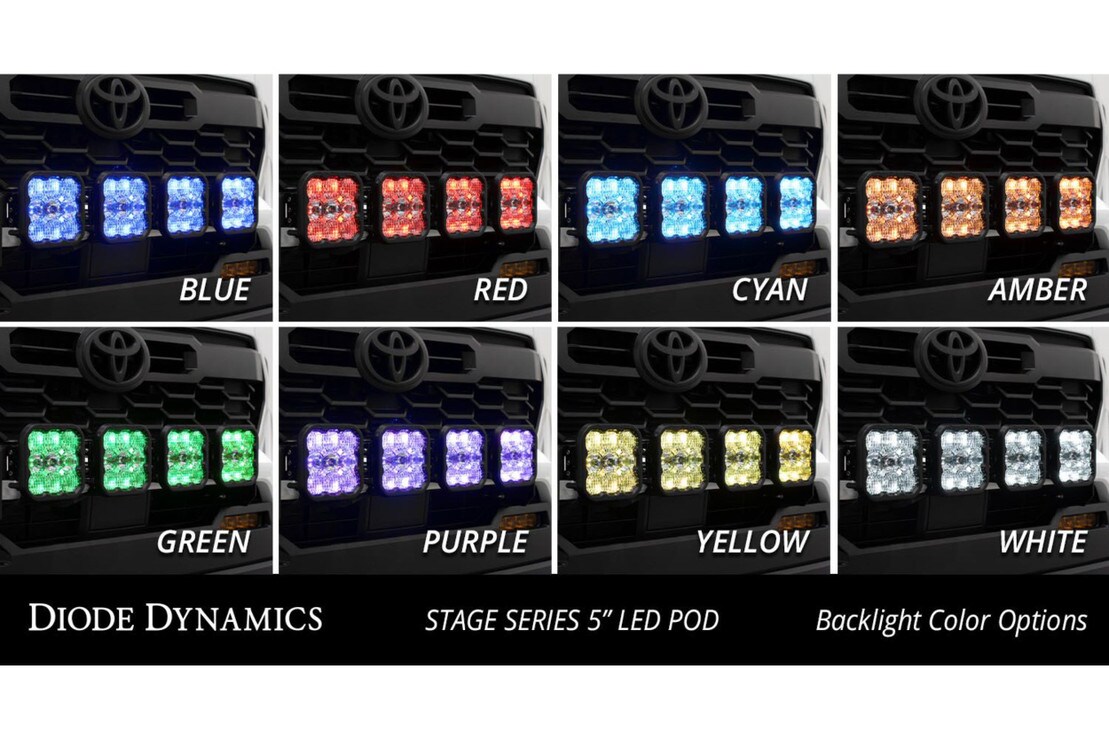

Selectable Backlight: The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent that you won't find on other LED pods. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic. NOTE: The Yellow kit is only available with an Amber backlight color.

CrossLink: Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable for both straight and curved configurations.

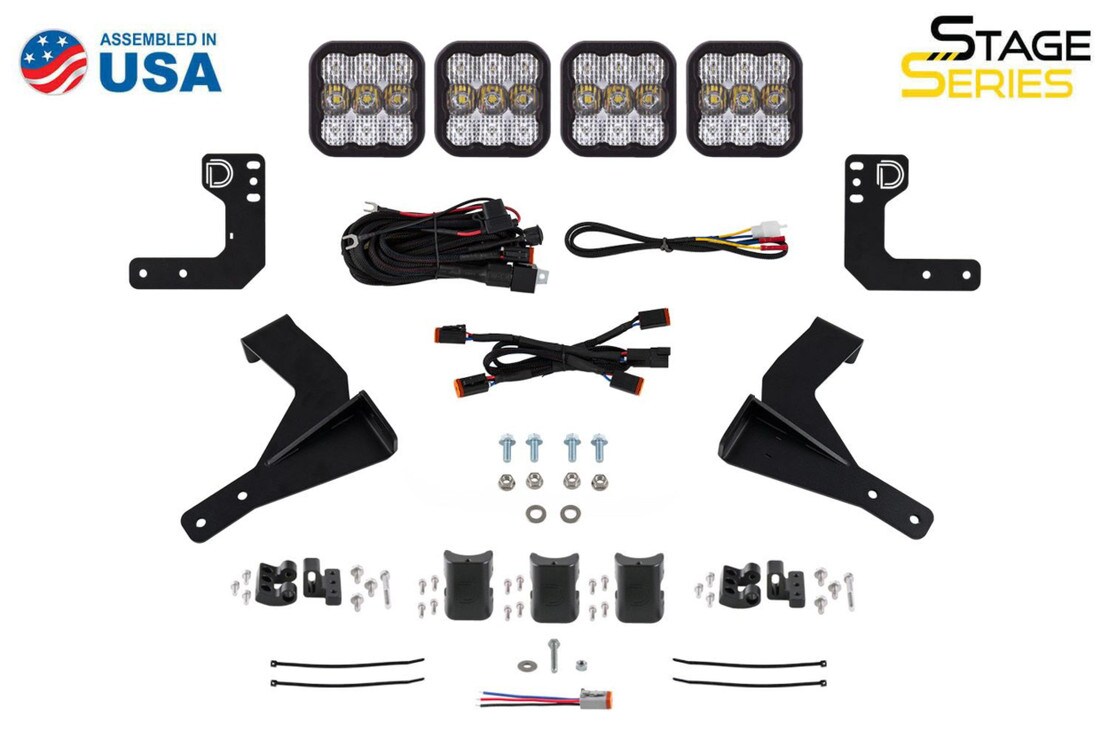

WHAT’S INCLUDED

  • Brackets: One (1) Pair

  • Optional Light Pods: 4x SS5 Pods

WARRANTY INFORMATION

This product is covered by a Lifetime limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Note: These specifications are per pod / each!

  • Intensity (Combo White Sport): 81,600cd

  • Intensity (Combo Yellow Sport): 75,700cd

  • Intensity (Combo White Pro): 58,500cd

  • Intensity (Combo Yellow Pro): 75,000cd

  • Raw Lumens (Combo White Sport): 4,800lm

  • Raw Lumens (Combo Yellow Sport): 9,700lm

  • Raw Lumens (Combo White Pro): 4,800lm

  • Raw Lumens (Combo Yellow Pro): 8,900lm

  • Main Beam Power (watts): Sport - 40w, Pro - 90w

  • Backlight Power (watts): White - 3.17w, Yellow - 3.07w

  • Main Beam Current (amps @ 12.8V): Sport White - 2.75, Sport Yellow - 2.8, Pro - 6

  • Backlight Current (amps @ 12.8V): White - 0.25, Yellow - 0.24

  • Color Temp (CCT): 3000K, 6000K

  • Beam Angle: Combo (Driving and Flood)

  • Operating Voltage: 9-16V

  • Polarity: Polarity Specific

  • Operating Temperature: -40C to 85C (-40F to 185F)

  • LED Emitter: Luxeon Z ES, Cree XP-L HI

  • Connector(s): Deutsch DT Input

  • Driver Features: Constant Current

  • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

  • Cooling: Passive, Pin-Fin heatsink

  • Intrusion Ratings: IP69K Waterproof, High Pressure

COMPATIBILITY

  • Toyota Tacoma: 2024+

  • DD8026P: Stage Series Grille Bracket Kit

  • DD8029: SS5 Grille CrossLink Lightbar Kit Pro White Combo

  • DD8030: SS5 Grille CrossLink Lightbar Kit Pro Yellow Combo

  • DD8027: SS5 Grille CrossLink Lightbar Kit Sport White Combo

  • DD8028: SS5 Grille CrossLink Lightbar Kit Sport Yellow Combo
