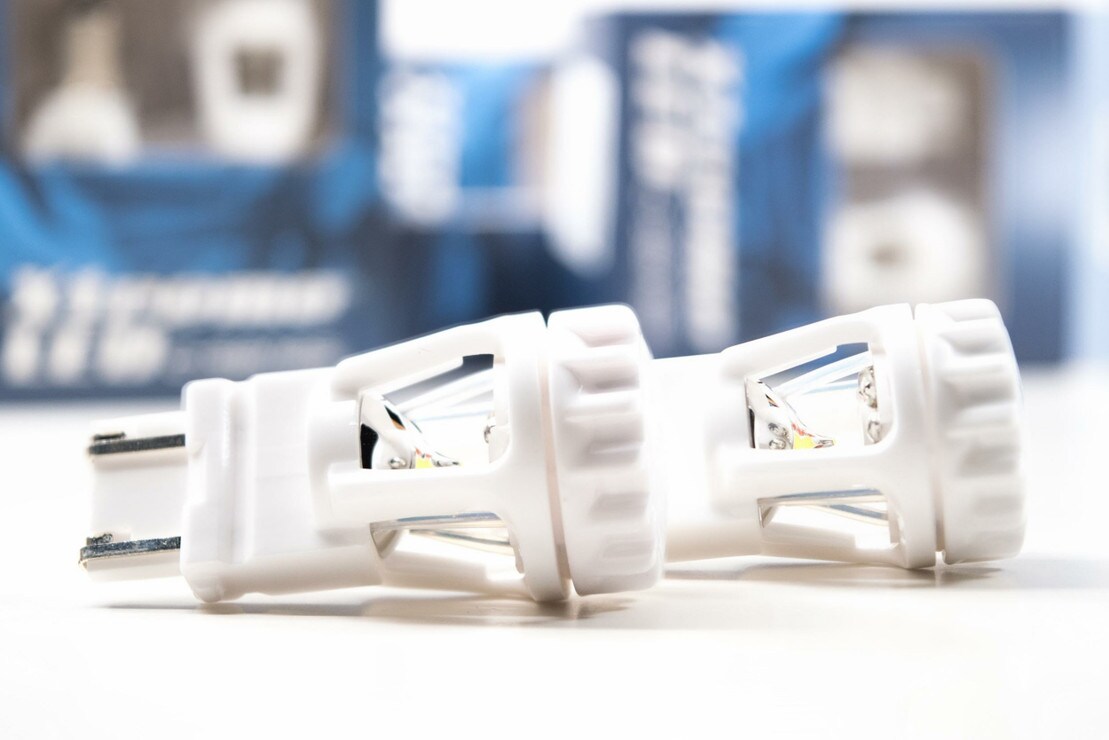

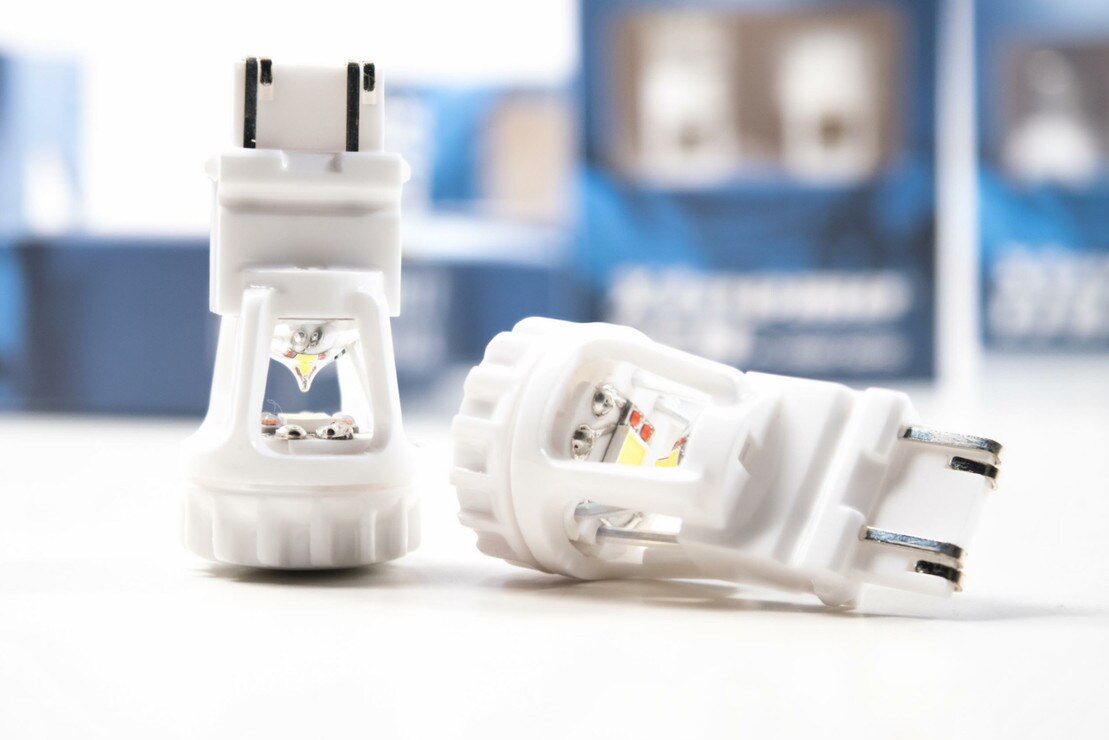

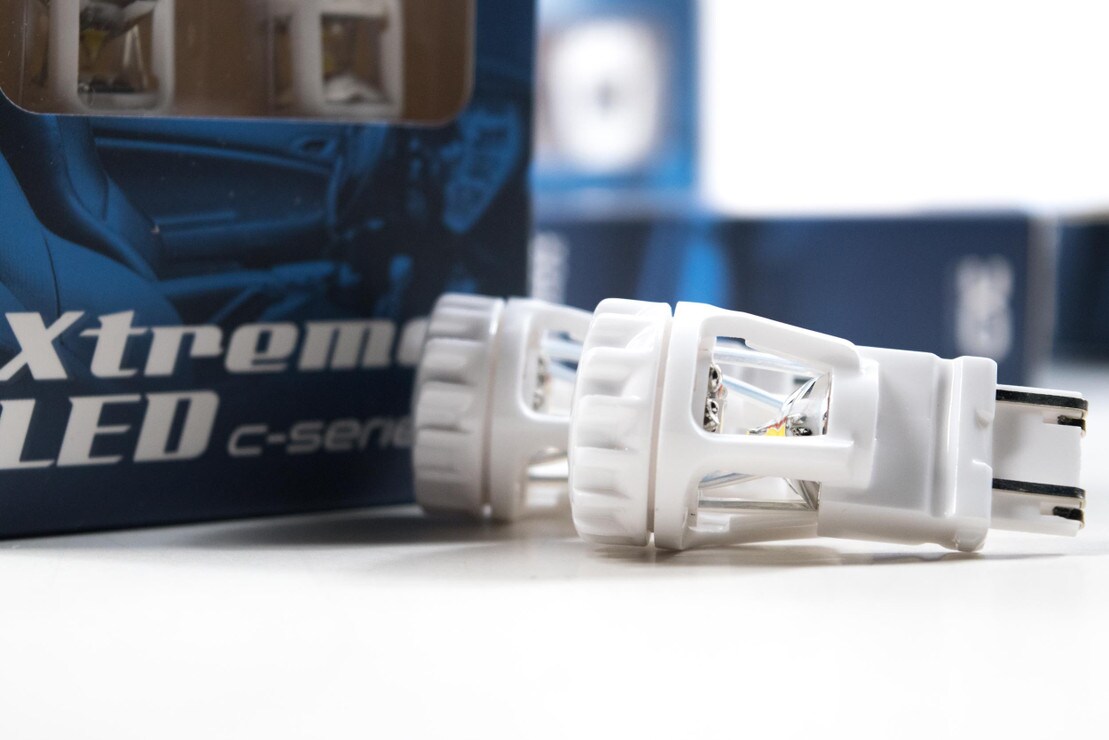

3156/3157: XTR C-Series Ceramic LED Bulbs

1 Review

Brand: XenonDepot




PART #: 1 x XD.LED253


Introducing the XTR C Series: Unleash LED elegance like never before! Engineered for perfection, these bulbs redefine the way you light up the road. Crafted from cutting-edge ceramic, the C Series guarantees exceptional thermal resistance. Designed with precision conical reflectors, they radiate light evenly, illuminating every angle. Choose from a captivating range of red, amber, and white options in the 3157 XTR C series. Its carefully selected LED package ensures the most accurate Color Rendering Index (CRI). Complete your vehicle's transformation with the full family range, maintaining consistent style and performance from front to back. Never compromise on safety – the C Series boasts a contrast ratio that matches OE Systems, ensuring heightened visibility for fellow drivers. Plus, bid farewell to hyperflash worries; our optional LED Load Resistors balance your electrical system seamlessly. Elevate your driving experience with the XTR C Series.


  • Elegant Design: XTR C Series LED Bulbs combine aesthetics and functionality.
  • Durable Construction: Crafted from ceramic for longevity.
  • Optimal Illumination: Conical reflectors ensure even lighting.
  • Color Options: Choose from red, amber, and white.
  • Hyperflash Prevention: Optional LED Load Resistors ensure balance.

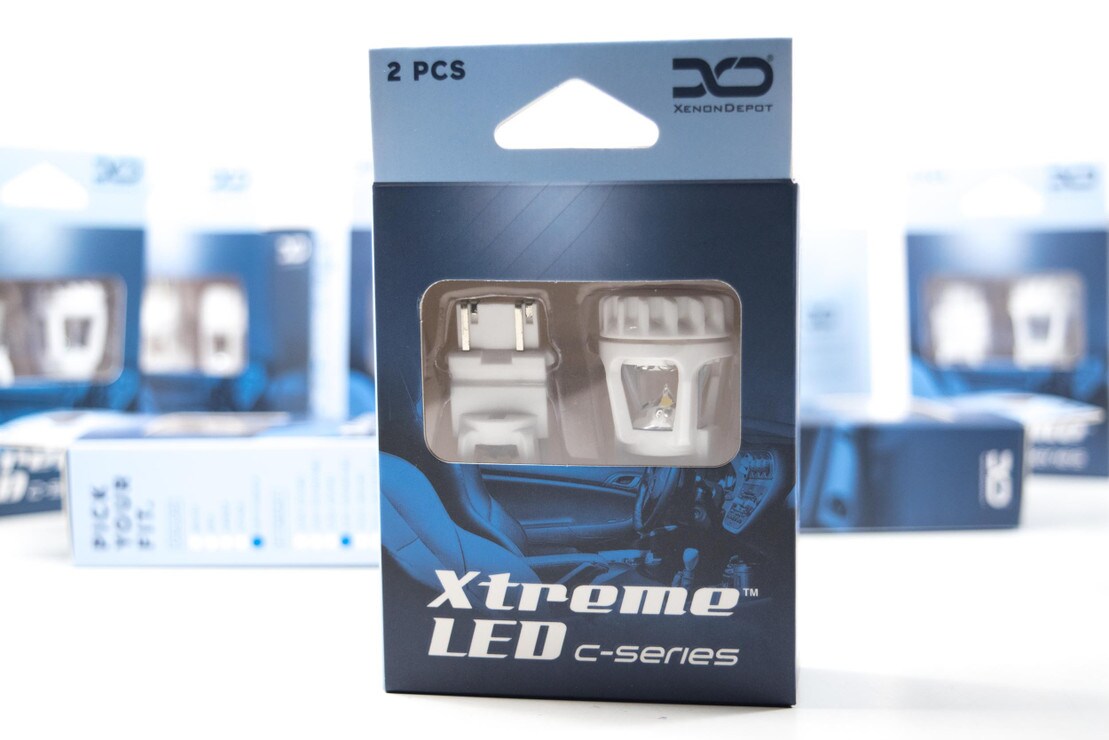

  • LED Bulbs: 2x (One Pair) 3156/3157 XTR C-Series LED Bulbs

  • Resistors: Optional


This XenonDepot product includes a 3 Year limited warranty, serviced and supported by the XenonDepot team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.


  • Intensity: 240lm (White), 60lm (Red), 40lm (Amber)

  • Power: 2.3-3.1w

  • Material: Ceramic (Base)

  • Light Source: CREE MHBA (6000K Cool White), CREE XBD (625nm Red,590nm Amber)



  • Cross Compatibility: 3156, 3157, 3057, 3155, 3156, 3357, 3457, 4057, 4157

  • FITMENT: Signal, Marker, Brake, Tail, Reverse Lights

  • CIRCUITS: CK or Non-CK Compatible

  • BLINKER CIRCUITS: Should Use Resistors

LED Elegance: The XTR C Series family isn't designed to hammer an insane amount of intensity out of your turn signals or brake lights. These are the most sensibly designed replacements for incandescent bulbs that are engineered to provide you with all the benefits of LED in a package that's built to last.

Engineered: There is nothing else quite like the C Series in the world. They are molded entirely of ceramic, which we've selected for its resistance to thermal soak. The mounts for the optics are molded in, as is the LED driver and its electrical circuitry. The Xenon Depot name and reputation aren't enough to justify the higher than average market price. It's justified by the exotic design and technically advanced construction.

Optically: We've engineered with the conical reflectors to distribute light in an even radius to properly illuminate the reflectors in all turn signals, marker lights, brake, and back-up lights. The contrast ratio between low and high intensity modes is equivalent to the OE System to ensure that other traffic is fully aware of your intentions.

Options: The 3157 XTR C series is available in red, amber, and white. They LED package has been carefully selected to produce the most appropriate CRI in their application.

Family: The C Series family includes a full range of LED bulbs in all sizes. Because they're so unique, we recommend matching your selections from front-to back within the family to ensure consistent looks, performance, and functionality. These are the last LED bulbs you'll ever need to buy, so do it once and do it right with the XTR C Series.

Hyperflash: Like most LED bulbs on the market, the XTR C series consumes less power than the original bulbs and could trigger hyperflash if used in a signal application. We recommend installing the optional LED Load Resistors in those cases to re-balance your electrical system.
