Bolt-On by Diode Dynamics

Cowl-Mount LED Light Bar Kit: Wrangler JL

DD31-HR

PART #: 1 x DD6092


NORMAL BLACK FRIDAY SALE DOES NOT APPLY TO DIODE DYNAMICS PRODUCTS. WE ARE ONLY ABLE TO DISCOUNT UP TO 15% OFF. USE CODE DIODE15 FOR 15% OFF DURING BLACK FRIDAY!

[ In Stock: 0 pieces ]

Product Details

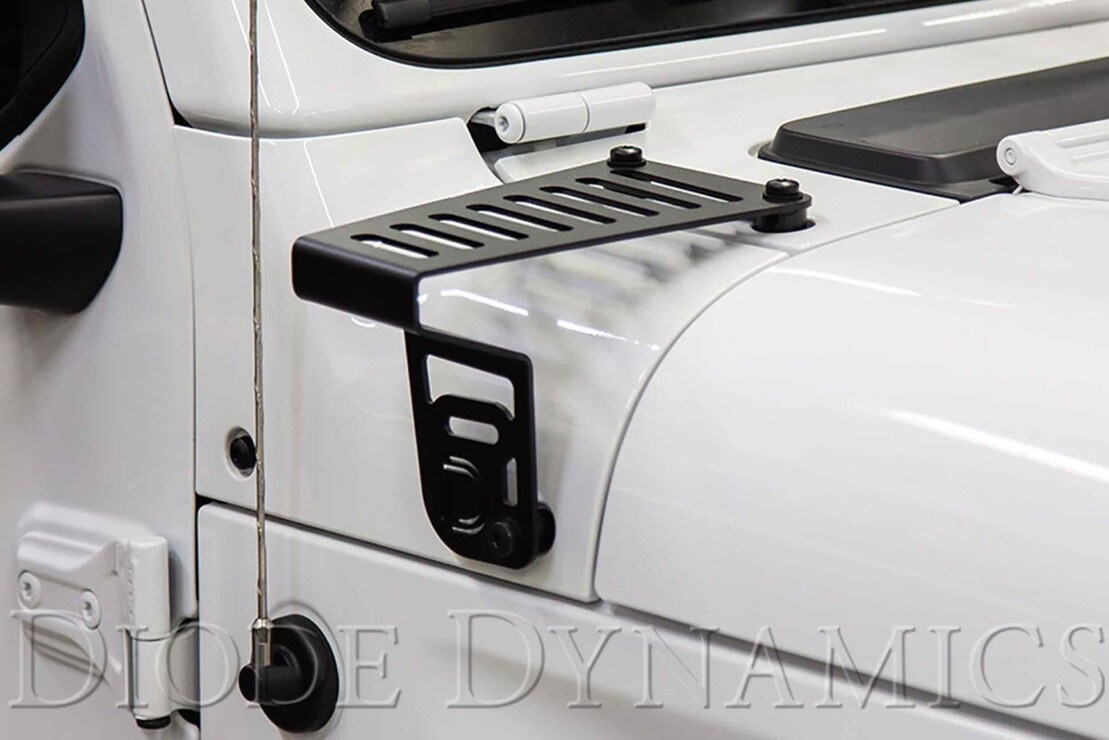

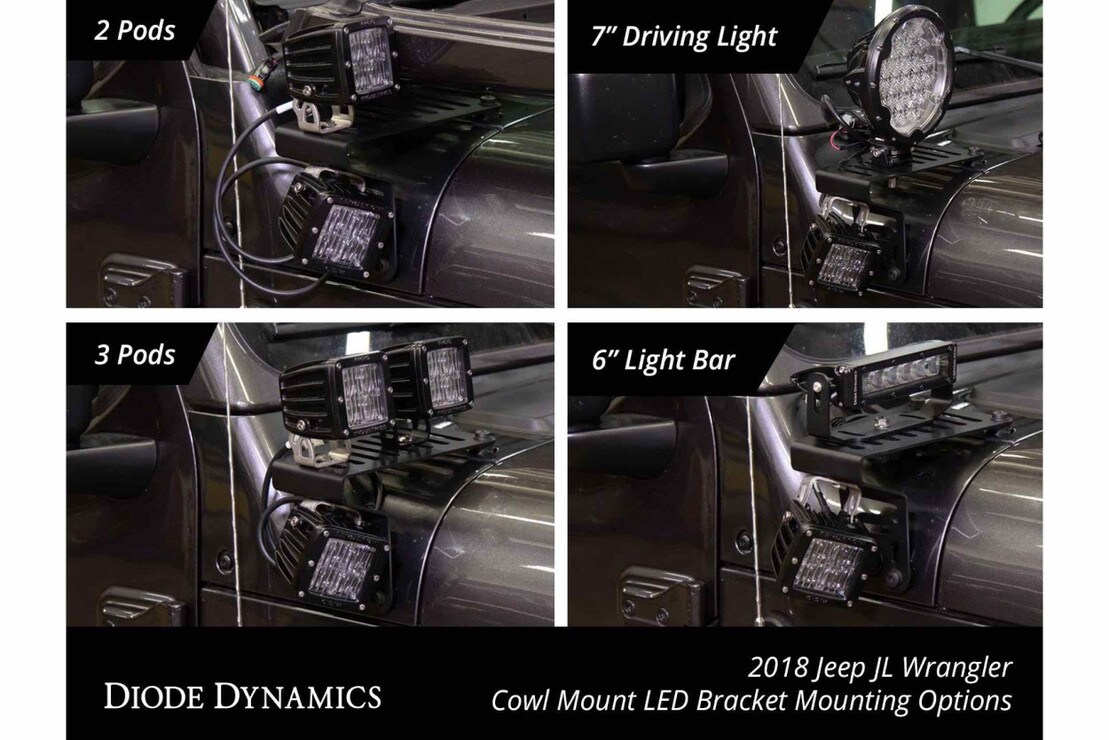

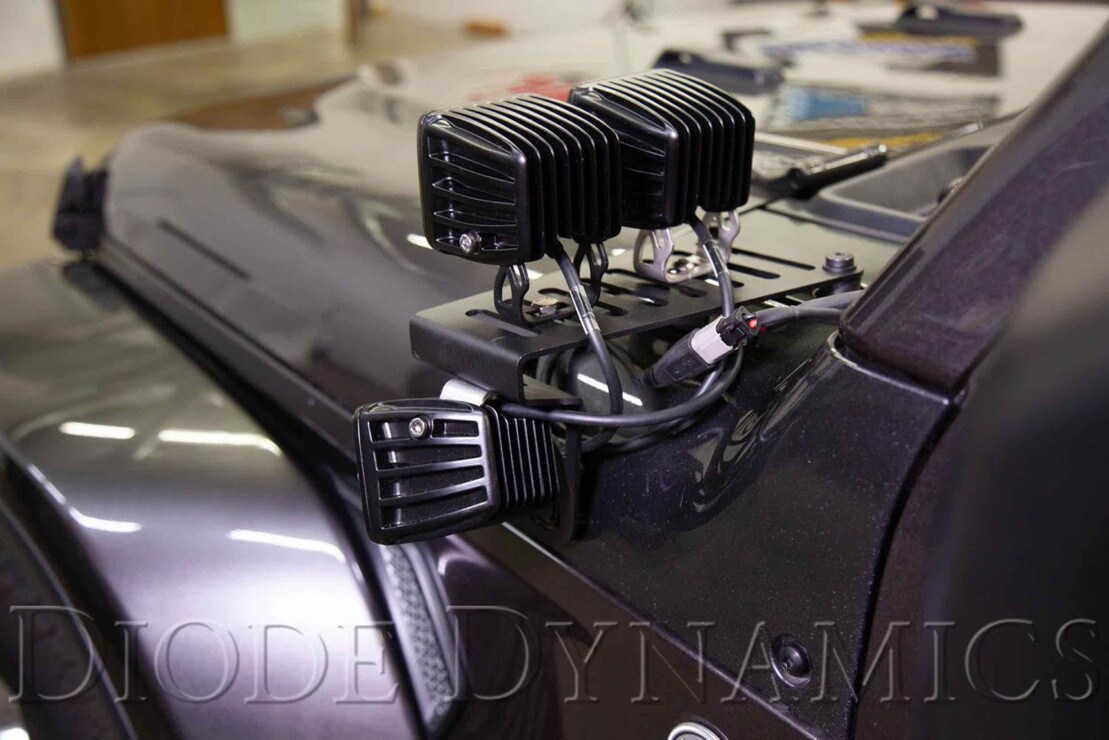

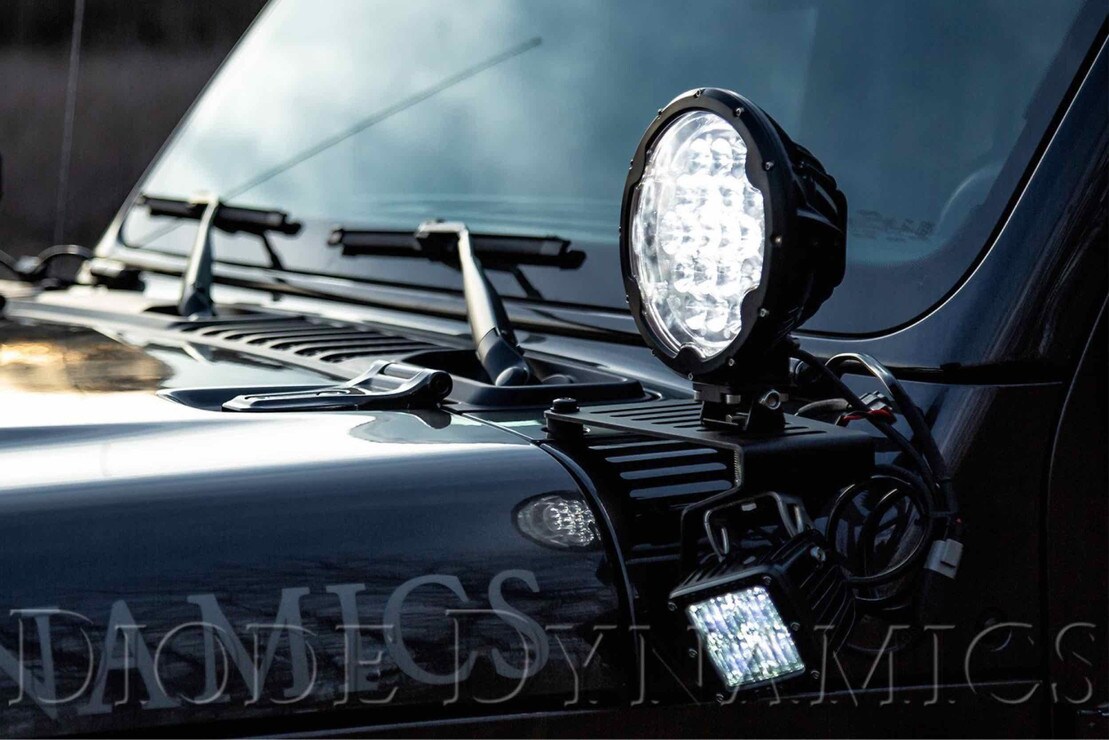

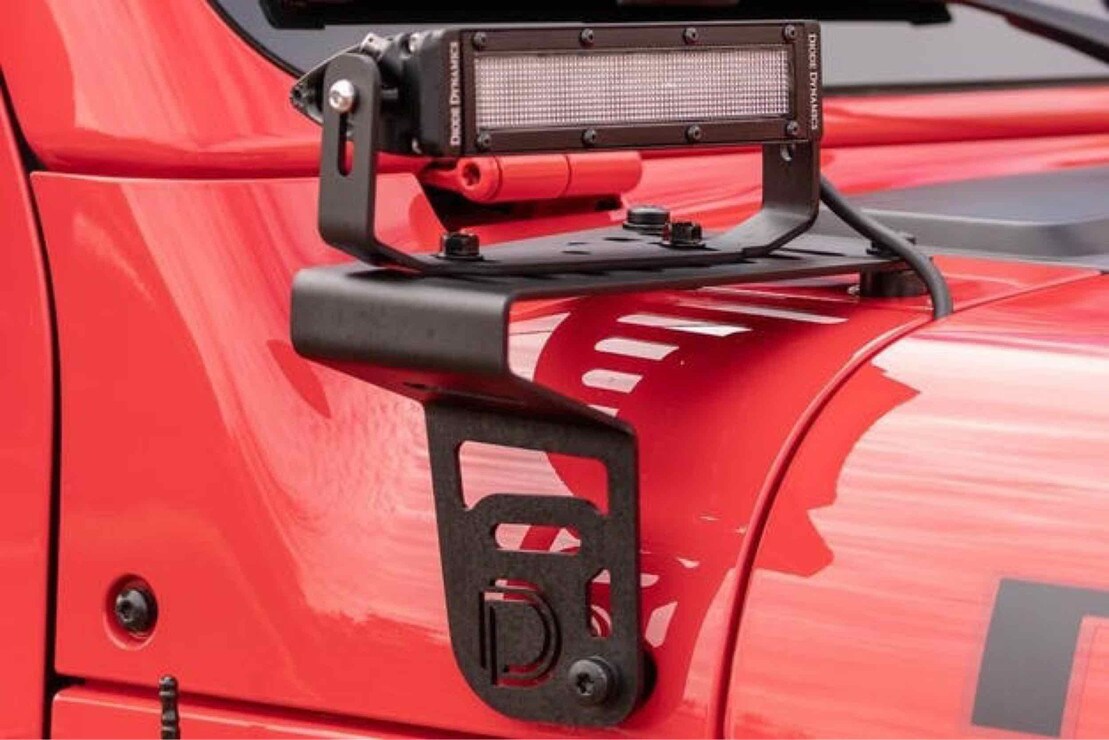

Options Galore: If you want the freedom to mount whatever kind of lighting you could possibly need, and change it up with ease, the Cowl Mounts from Diode Dynamics are the perfect choice for your Jeep Wrangler JL. Mount up to 3 pods, one 6” light bar, or a 7” Driving Light all from the same secure mount.

Factory Controls: Don’t Settle for less than seamless integration. No matter which lighting option you choose for your Jeep, they’ll connect to your factory auxiliary switches thanks to the easy to use wiring harness included in this kit.

Measurable Performance: Each kit comes with two 6” SS6 Stage Series LED Light bars. These lights aren’t just created based on opinion or previous designs. They’re put through a rigorous optical simulation during the design phase to ensure they’re going to perform with maximum lighting and efficiency. Diode Dynamics takes full advantage of their TIR optics and high-grade materials to create a light bar that’s unrivaled.

HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you’ll find for sale. We don’t favor any particular brand, so our commitment to you is that we’ll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the "buyers guide" on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

Product Specs

  • What's Included

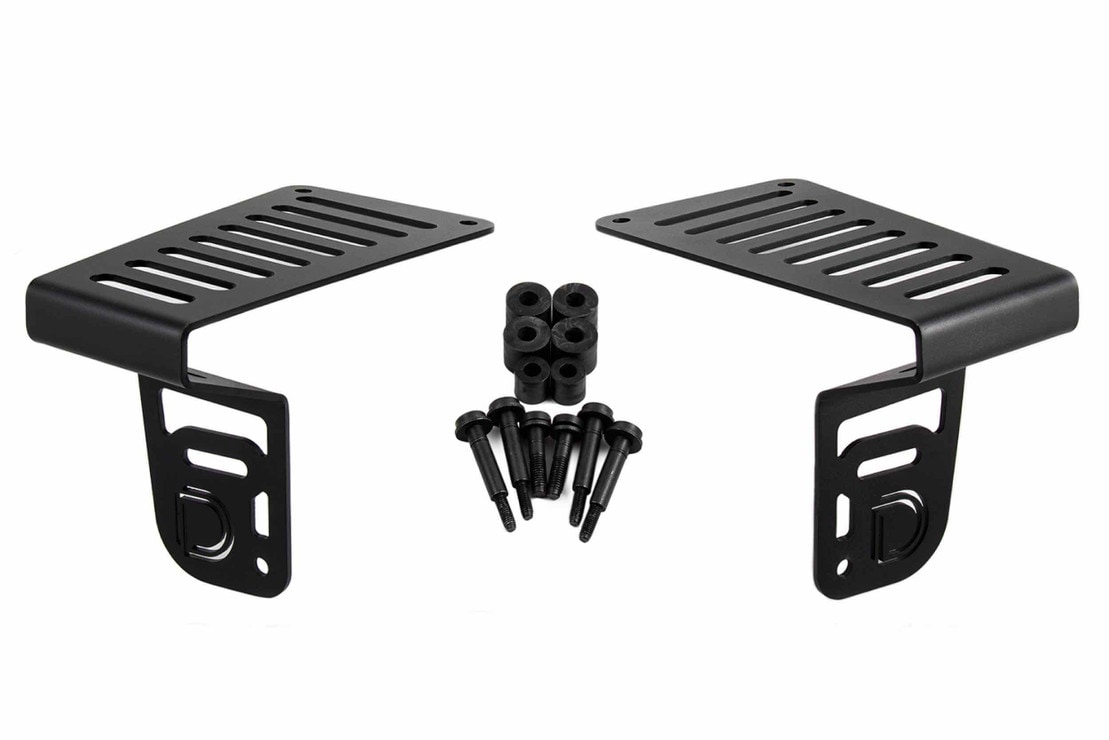

  • Brackets Only:

  • 2x: Application-specific cowl mount brackets for installation on 2018-2019 Jeep Wrangler

  • 6x: Delrin spacers

  • 6x: OEM-style automotive grade bolts

  • 1x: Installation Guide

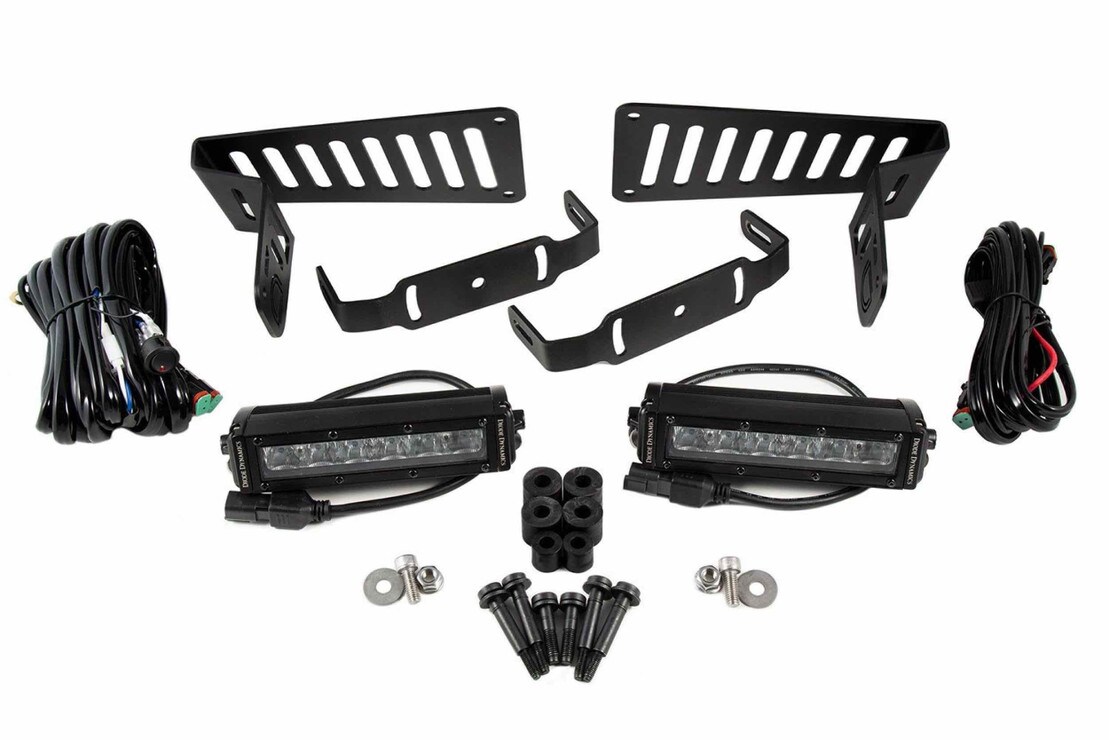

  • Cowl Mount Bracket Light Bar Kit:

  • 2x: Application-specific cowl mount brackets for installation on 2018-2019 Jeep Wrangler

  • 2x: U-brackets

  • 2x: SS6 Stage Series 6" Light Bars

  • 1x: OEM Auxillary Switch Dual-Output Harness

  • 1x: Light Duty Dual-Output Harness

  • 6x: Delrin spacers

  • 6x: OEM-style automotive grade bolts

  • 1x: Installation Guide

  • Quantity: Pair (Left and Right Side)

  • Warranty: 3 year warranty

  • 100%: Satisfaction Guarantee

  • Compatibility

  • Make: Jeep

  • Model: Wrangler

  • Years: 2018, 2019, 2020

  • Electrical Compatibility: No electrical issues (tested and confirmed)

  • NOTE: This kit is compatible with all Sport, Sport S, Sahara, and Rubicon trim levels.

  • Tech Specs

  • Intensity @ 10m: 470 lux (Driving)

  • Raw Output: 2280 lumens

  • Measured Lumens: 1400

  • Intensity (cd): 47,000

  • Color Temp (CCT): 2000K, 6000K

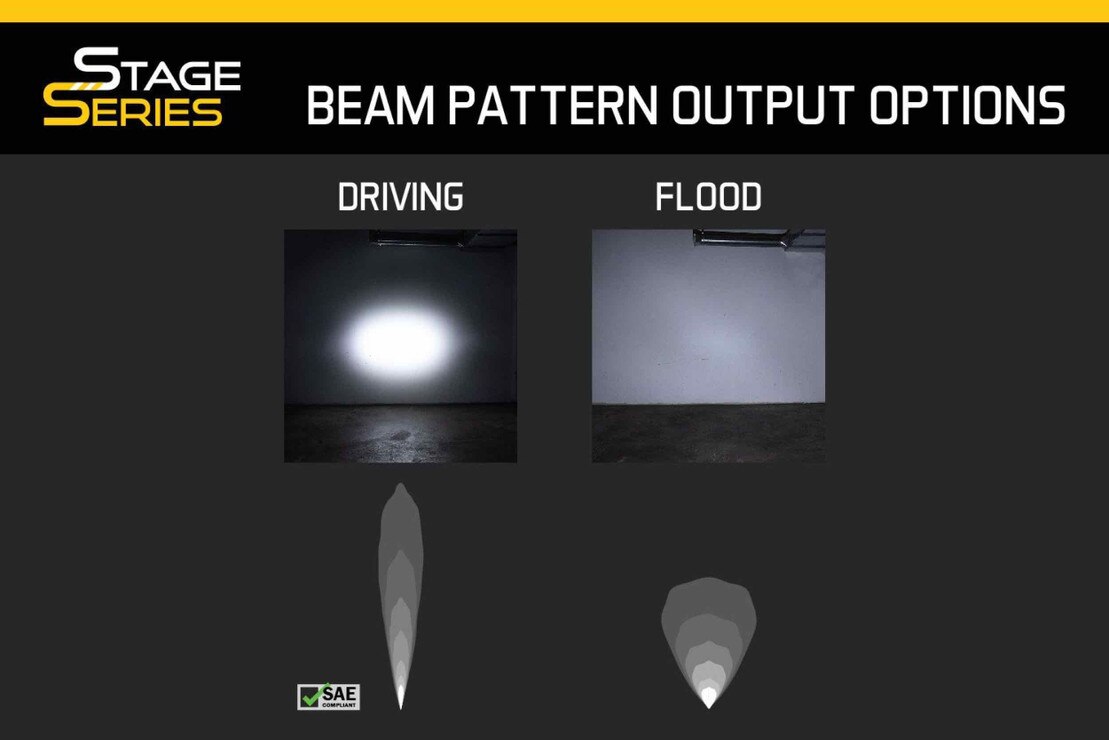

  • Beam Angle: Driving, 20degx8deg, Flood, 80degx50deg

  • Power (watts): 26.6

  • Operating Voltage: 9-16V

  • Current (amps @ 13.2V): 1.9

  • Polarity: Polarity Specific

  • Operating Temperature: -40C to 85C (-40F to 185F)

  • LED Emitter: Luxeon Z ES

  • Connector(s): Deutsch DT Input

  • Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink

  • Cooling: Passive, heatsink

  • Intrusion Ratings: IP68 Waterproof

  • Product Dimensions (in): 7x3x1.63
