DESCRIPTION
FEATURES & BENEFITS
- High-Performance: Delivers flicker-free, reliable power for Morimoto BigBanger pods.
- Durable Build: Features sealed relays, over-molded fuse holders, and stainless steel terminals.
- Easy Installation: Plug-and-play design powers up to seven BigBangers with a smart layout.
- Dynamic Backlight: Enjoy full intensity or dim for night driving with DRL Drive.
- Universal Compatibility: Works with Morimoto BigBanger and other 4-pin LED pods.
WHAT’S INCLUDED

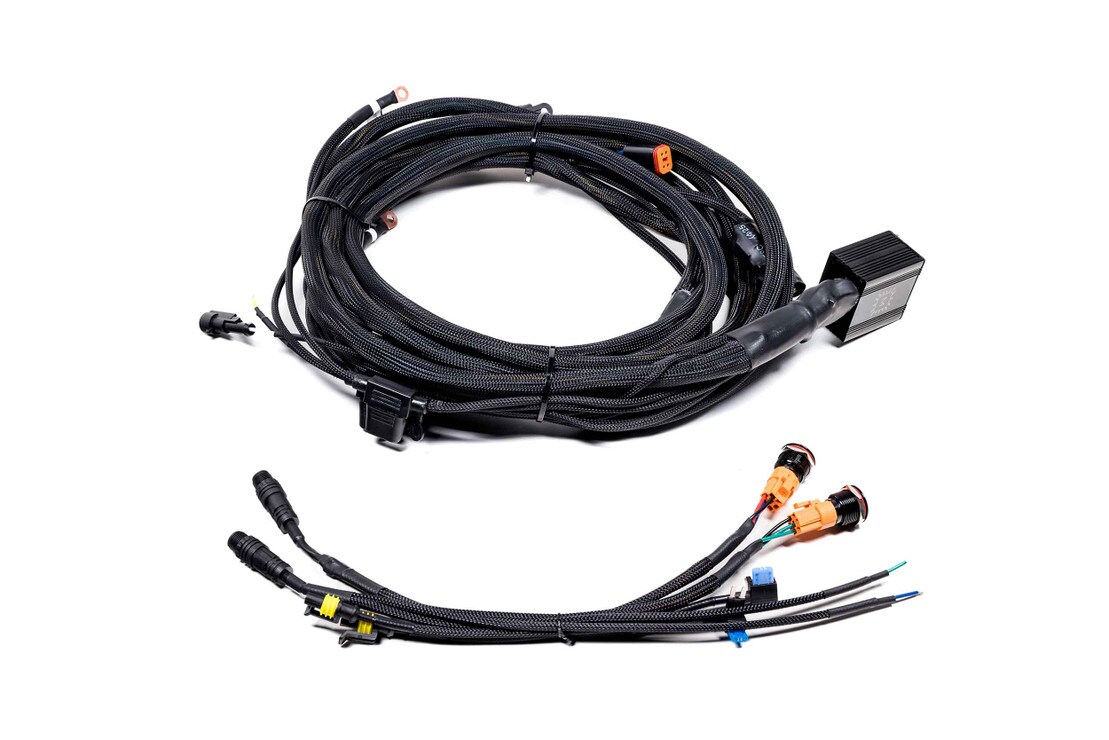

Harness: 1x Morimoto BigBanger 7-Pod Power Harness

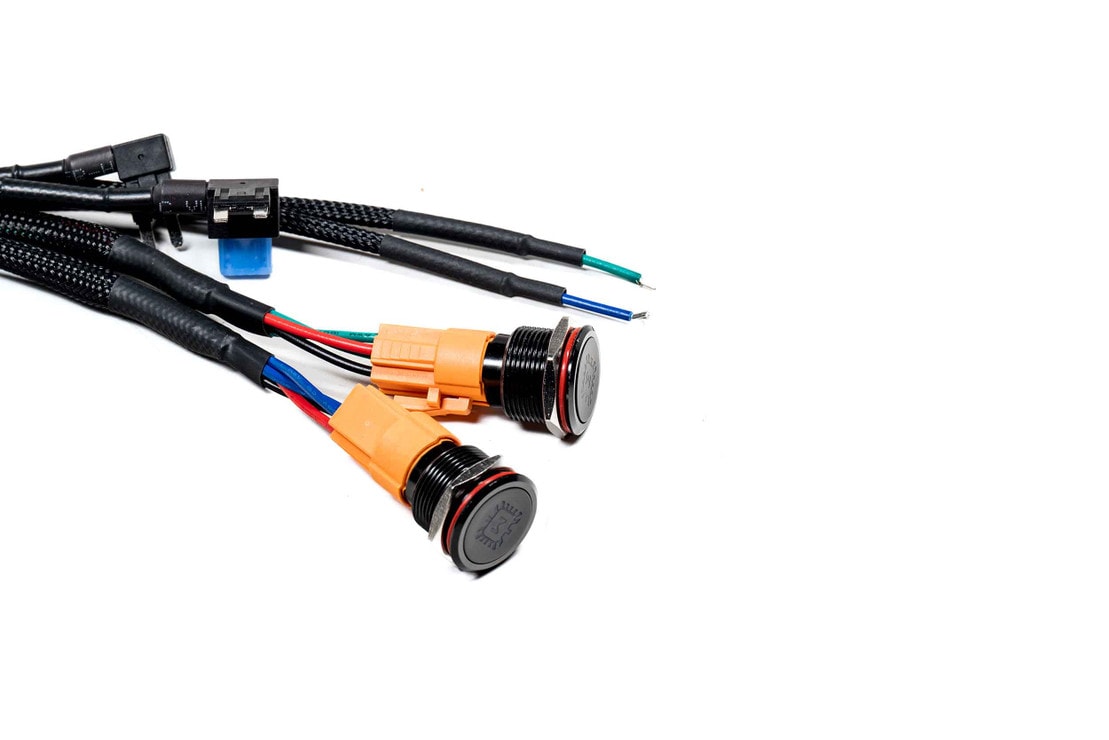

Switch Subharness 1: 2x M-Spec Push Button Switches
Switch Subharness 2: Upfitter Switch Inputs (35cm 20AWG)
Backlight Power Kit: 1x Mini Fuse Tap, 1x Micro Fuse Tap
Output Caps: 7x (for un-used outputs)
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Relays: Custom 2x 60A M-Spec (Hard-Potted)
Switches: 2x Normally-Off M-Spec w/ Amber backlight
Outputs: 7x Deutsch DT 4-Pin Female
Main Input: 12V+/- Battery Ring Terminals (8.5mm ID / 15mm OD)
Wiring: 8AWG-20AWG Copper Stranded
: cklight Input::1x Mini 7.5A Fuse Tap or 1x Micro 7.5A Fuse Tap
Insulation: Black Tech Flex Braided Mesh
COMPATIBILITY
LED Pods: Morimoto BigBanger
BangerBar System: Yes
Pod Quantity: 3-7
INSTALLATION DOCUMENTS
Power Up: The Morimoto BigBanger Bar is a piece of equipment designed to set a new standard in in its segment, and the same goes for the wiring. This harness is designed to control a series of BigBanger pods and their dual intensity backlight with ease.

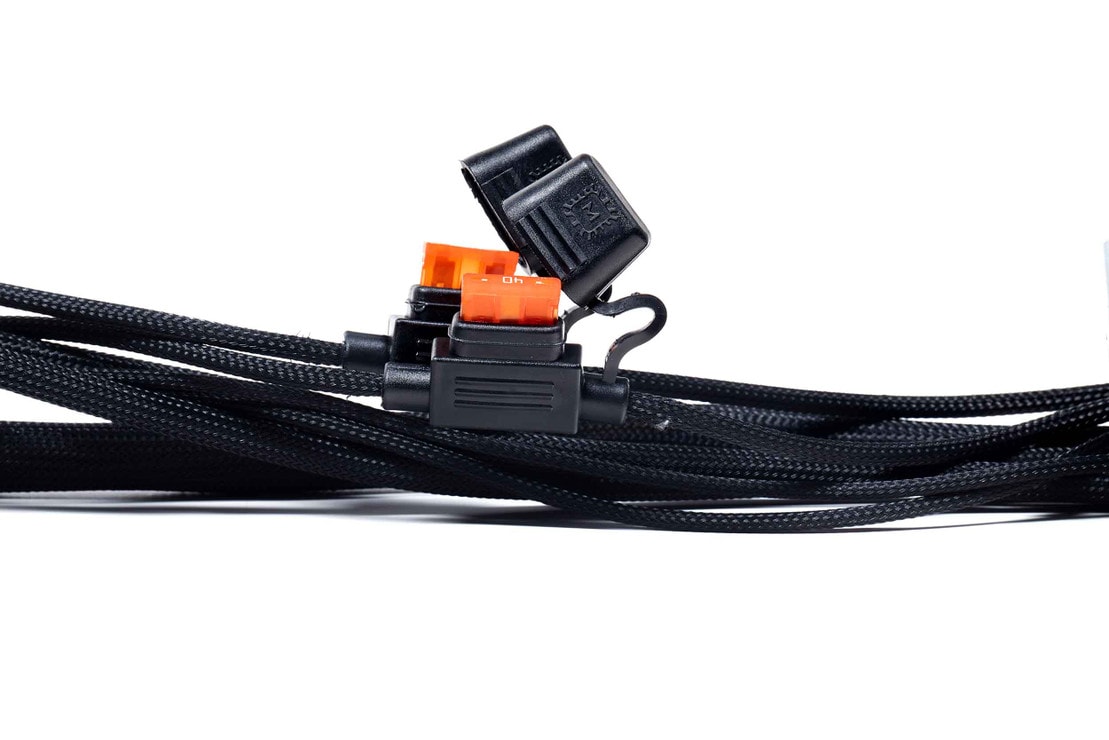

OEM+: Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-4S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with amber-LED backlight.
Proper: All wiring is properly sized and relays rated for flicker-free, reliable power delivery. Every line of the 16 awg copper wiring is protected with black mesh insulation. Every connector has been over-molded, sealed, or protected with heavy duty heat shrink. Your factory wire harness will fall apart before this thing.

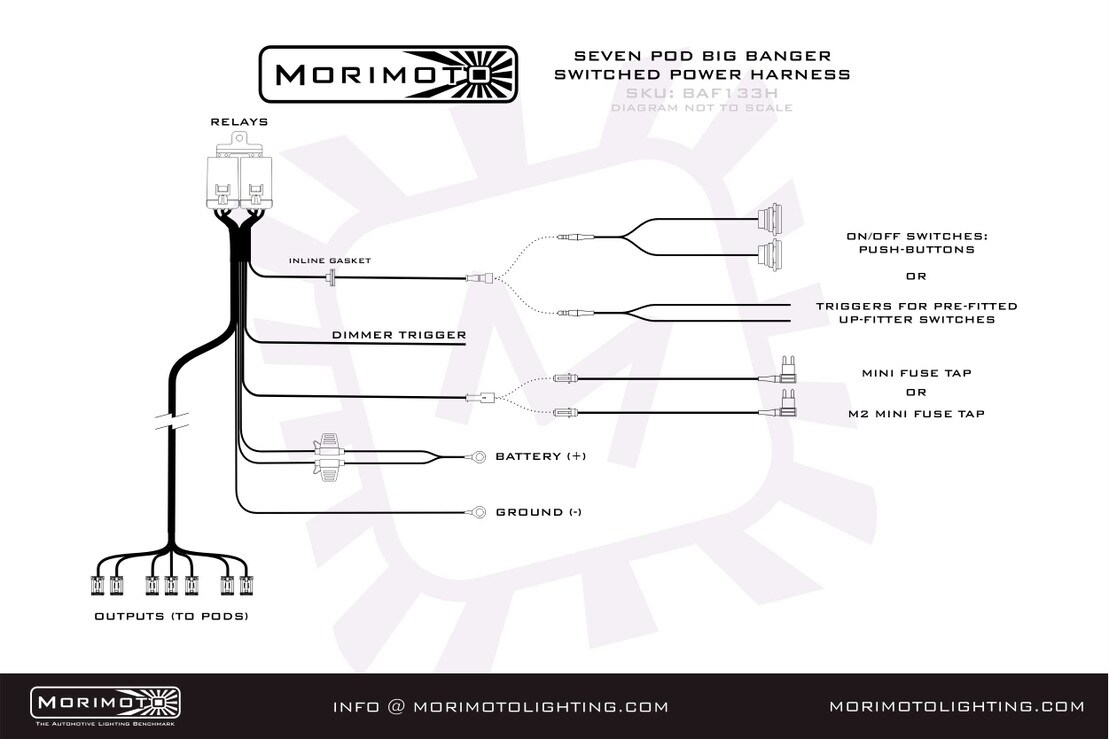

Plug n Play: The connections on the harness have been laid out in a logical way to power up to seven BigBangers linked together with the BangerBar links. The wiring for the in-cabin push button switch has an in-line barrel connector that drastically improves ease of installation, since you don't have to jam the switch mechanism through the firewall. The harness also includes an input line that's ideal for use with upfitter switches.
DRL Drive: The harness is designed to send power to the BigBanger backlight using an ignition-switched power source in your fuse box. To do so, the harness includes both a mini and micro fuse tap to ensure success regardless of your make/model. This will make the backlight run at full intensity. In order to dim the backlight for dusk or night time driving, the harness has a separate line that should be tapped into your parking light or low beam circuit.
Compatible: This harness is a perfect match for Morimoto BigBanger LED pods linked together as a light bar. It is purposely designed to deliver enough power, and control the dual intensity backlight. While it may work with other 4-pin LED pods on the market, it is not designed it to be universal. Note: The harness is built to work with up to 7 pods, however, it can also be used to power shorter bars. If running 6 pods instead of 7, skip one of the middle three connectors for a 2+2+2 switching configuration. If running 5 pods instead of 7, skip the first and last connector for a 1+3+1 switching configuration. Remember to use the included DT connector caps to seal off any unused connectors.
