4Banger Bar: 10 Pod / 40.5"

(0) No Reviews yet
Questions?

Brand: Morimoto

B-2RBAR-40.5IN-HR

$0.00

PRODUCT OPTIONS

PART #: 1 x BAF001.2, 2 x BAF003.2, 2 x BAF005.2, 1 x BAF088SF, 9 x BAF088, 2 x BAF088SB, 1 x BAF131H



DESCRIPTION

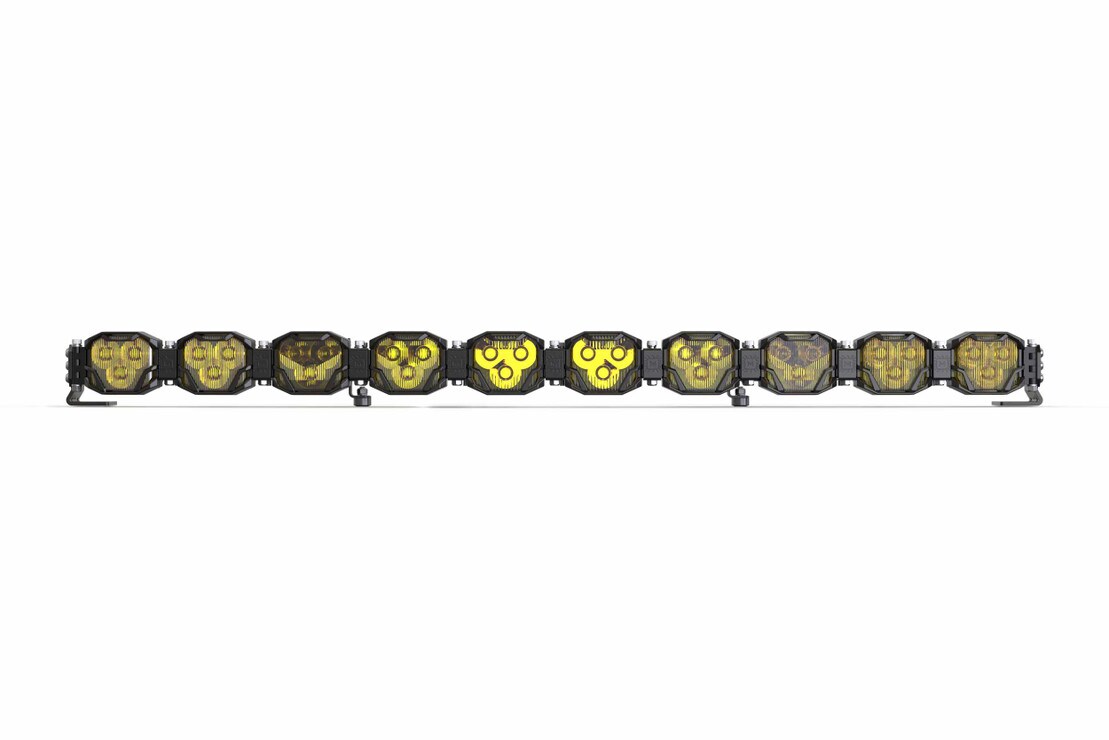

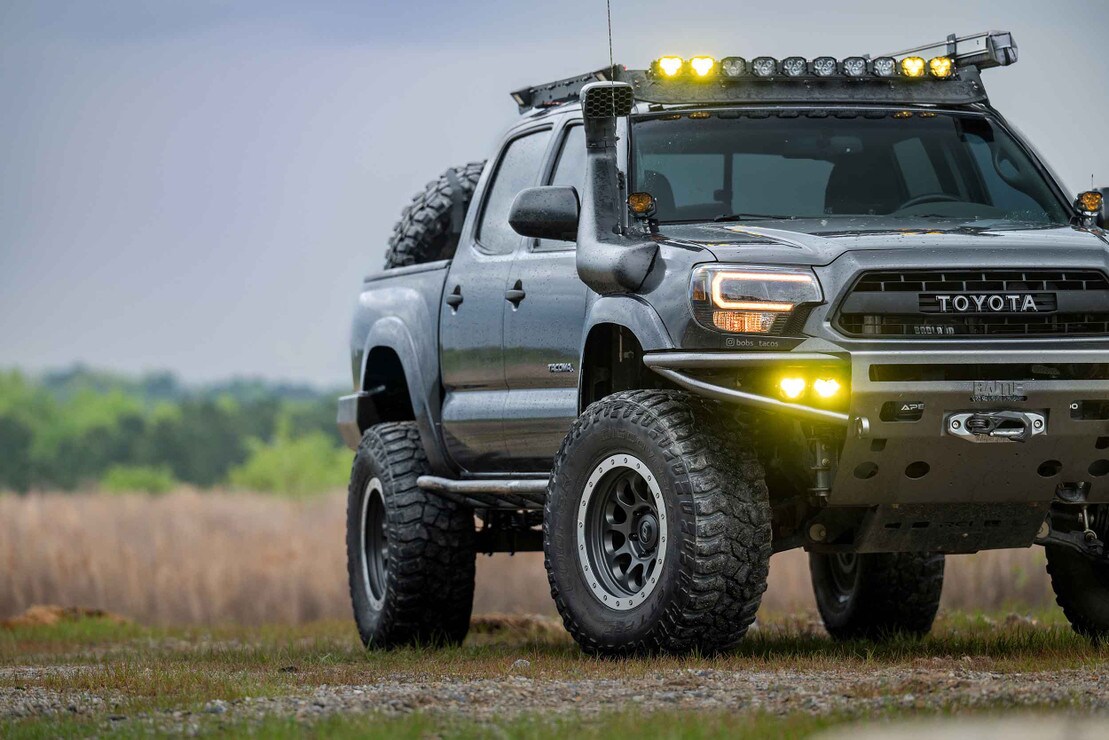

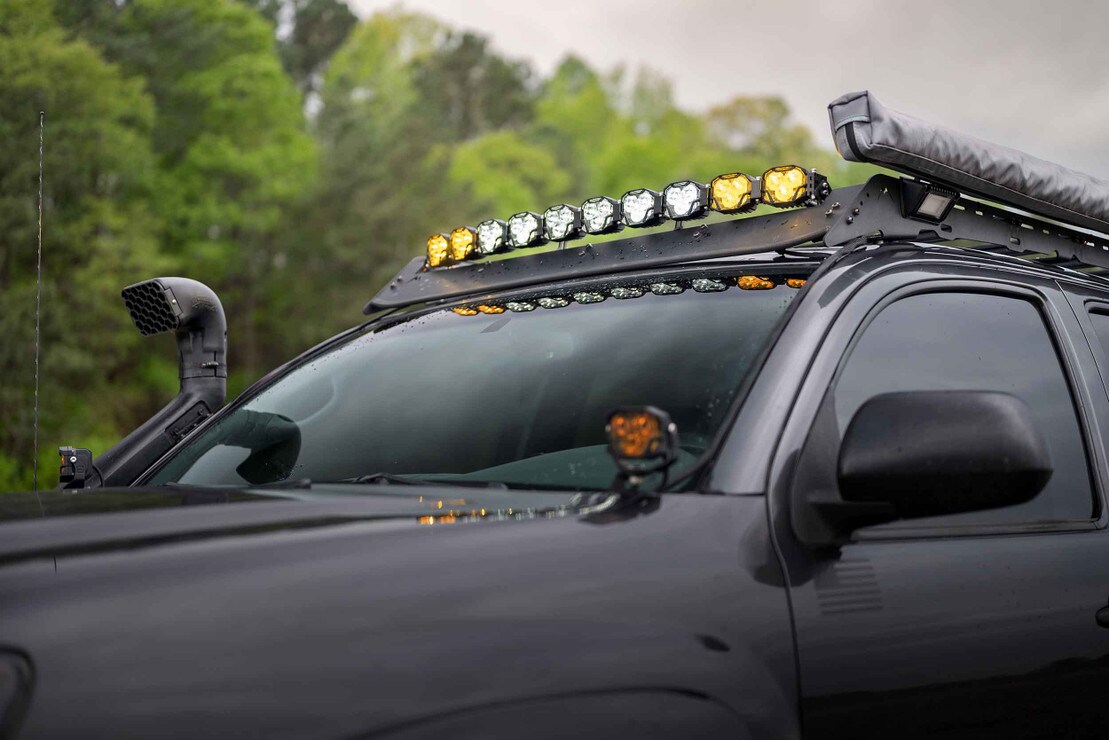

Introducing the Morimoto Double Row BangerBar – the ultimate off-road lighting upgrade for your vehicle! Since 2008, Morimoto has been setting the standard for performance, reliability, and style in the automotive aftermarket. With the BangerBar, you're in control: choose your power, color, length, and radius, and leave darkness behind. This bespoke light bar comes pre-equipped with 4Banger Pods, CNC machined aluminum links for adjustable setup, and universal end-mounts, ensuring a perfect fit for any application. Featuring high-output LEDs from Nichia and Osram, the BangerBar offers outstanding performance with combo, spot, and wide beam pods. Get the best of both worlds with the Combo beam for width and distance, wide optics for improved side visibility, and a focused spot beam for long-range clarity. With weather-resistant options like white, yellow, or a white/yellow combo, you're prepared for any condition. Reliability is paramount, with a copper DTP PCB, IP69K-rated design, and rugged construction that can withstand the toughest conditions. Plus, the included wire harness is meticulously crafted with proprietary components for easy installation and control.

FEATURES & BENEFITS

  • Customizable Design: Tailor the power, color, length, and radius to your preferences.
  • NCS & HXB Versions: Choose between the budget-friendly NCS or high-performance HXB options.
  • Advanced LED Technology: Utilizes cutting-edge Osram LEDs for powerful illumination.

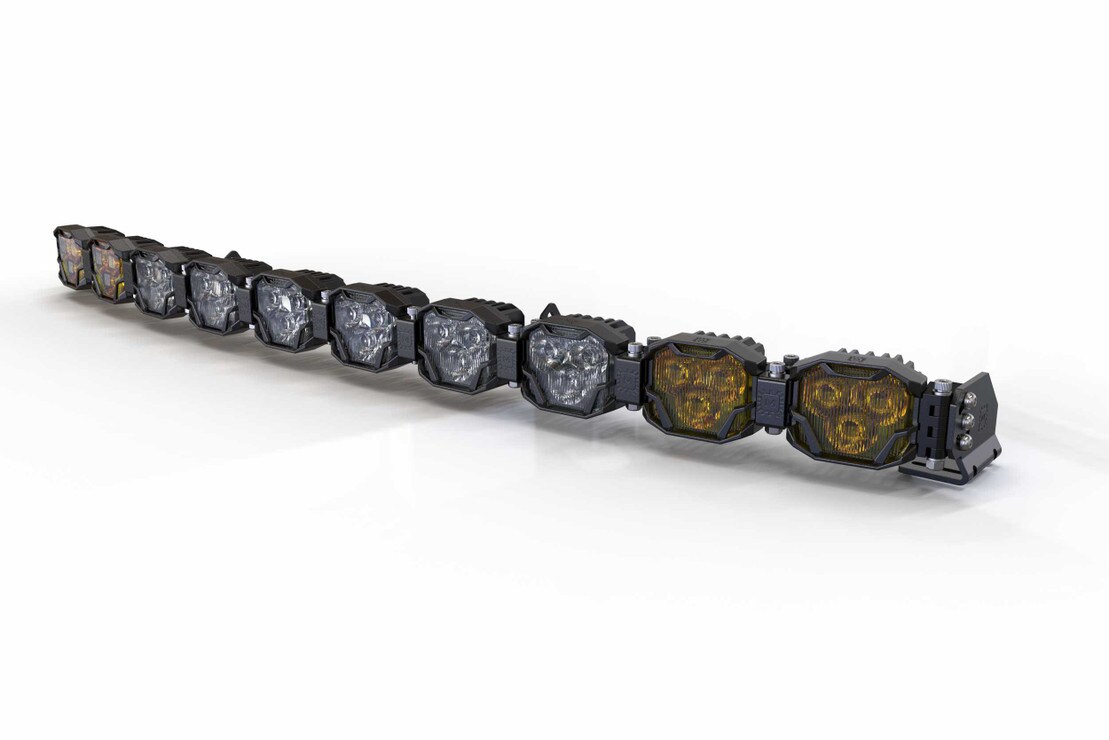

  • Versatile Installation: Adjustable straight or curved configurations with CNC machined aluminum links.

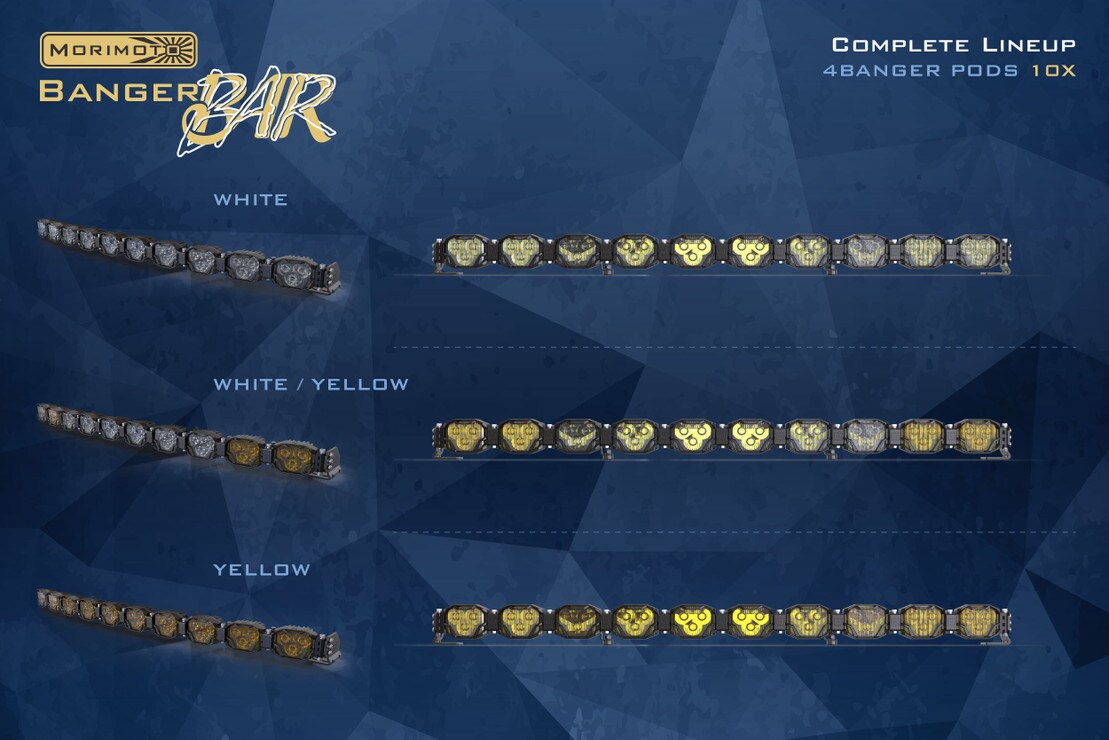

  • All-Weather Performance: Available in white, yellow, or white/yellow combo setups to tackle various weather conditions.

WHAT’S INCLUDED

  • LED Pods: 2x Morimoto 4Banger Spot (White or Yellow)

  • LED Pods: 4x Morimoto 4Banger Combo (White or Yellow)

  • LED Pods: 4x Morimoto 4Banger Wide (White or Yellow)

  • Pod Links: 9x 4Banger Adjustable CNC Links w/ Hardware

  • Center Support Legs: 2x Adjustable Central Support Legs w/ Hardware

  • Universal Mounting Feet: 2x Adjustable Surface Mounts w/ Hardware

  • Relay Harness: 1x Morimoto Switched Power Harness

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (raw): 13,500lm (NCS), 30,000lm (HXB)

  • Intensity (HXB White): 741,600 Cd (7,416 lux @ 10m)

  • Intensity (HXB Dual Color): 710,800 Cd (7,108 lux @ 10m)

  • Intensity (HXB Yellow): 515,200 Cd (5,152 lux @ 10m)

  • Intensity (NCS White): 489,600 Cd (4,896 lux @ 10m)

  • Intensity (NCS Dual Color): 466,720 Cd (4,667 lux @ 10m)

  • Intensity (NCS Yellow): 337,120 Cd (3,371 lux @ 10m)

  • Power (stabilized): 156.0w (NCS), 420.0w (HXB)

  • Current (amps @ 13.5V DC): 15.00A (NCS), 32.00A (HXB)

COMPATIBILITY

  • Universal: Mounts anywhere w/ included mounting Feet

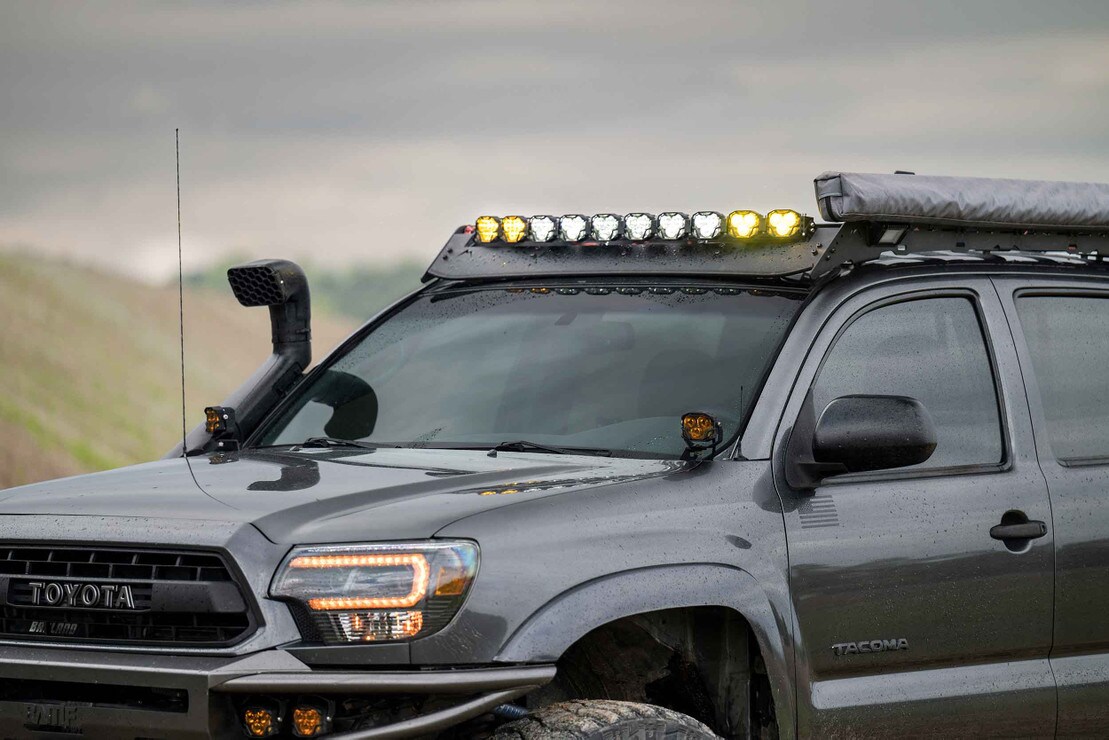

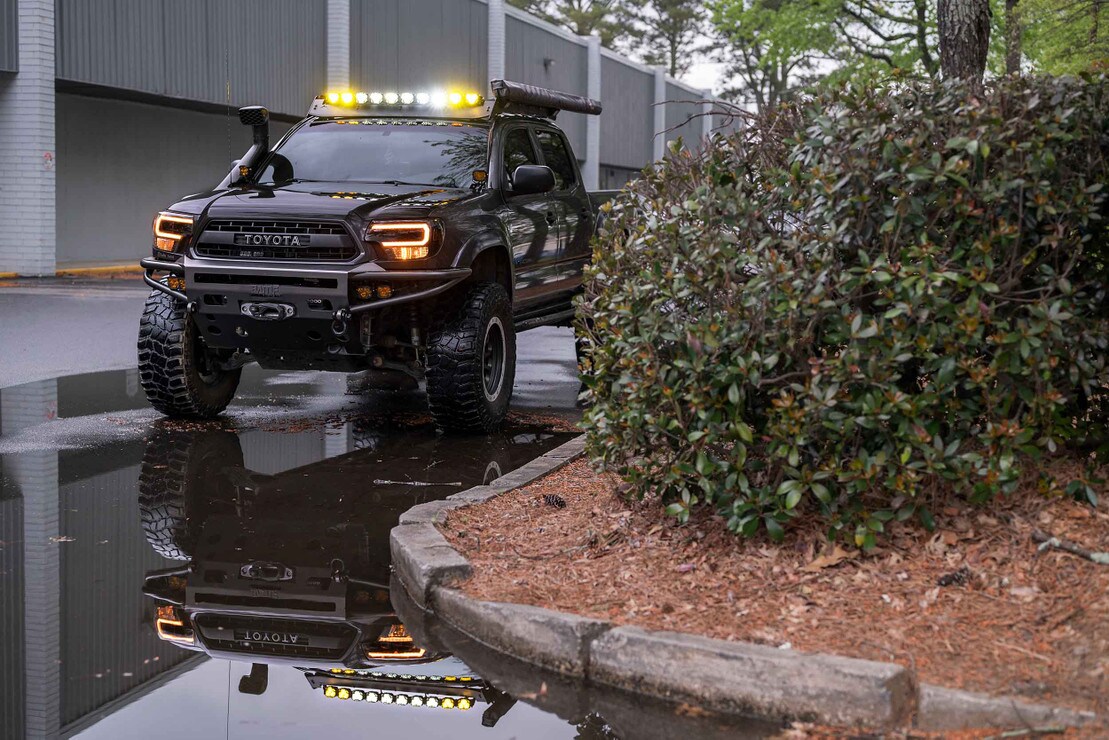

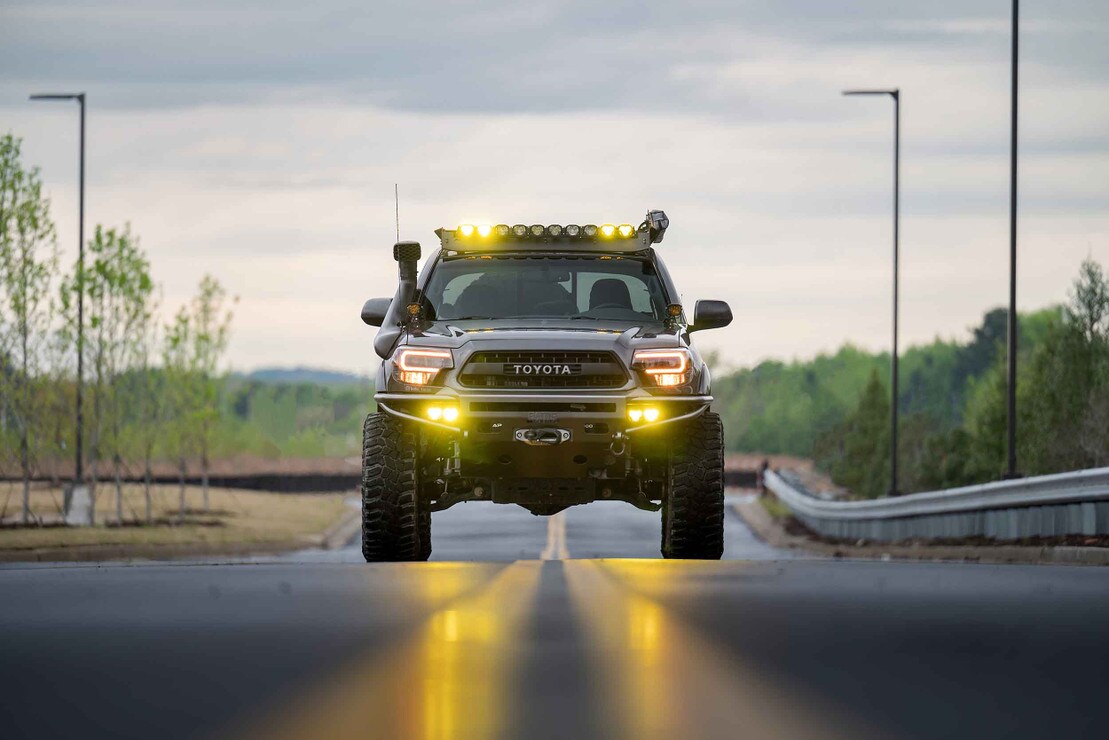

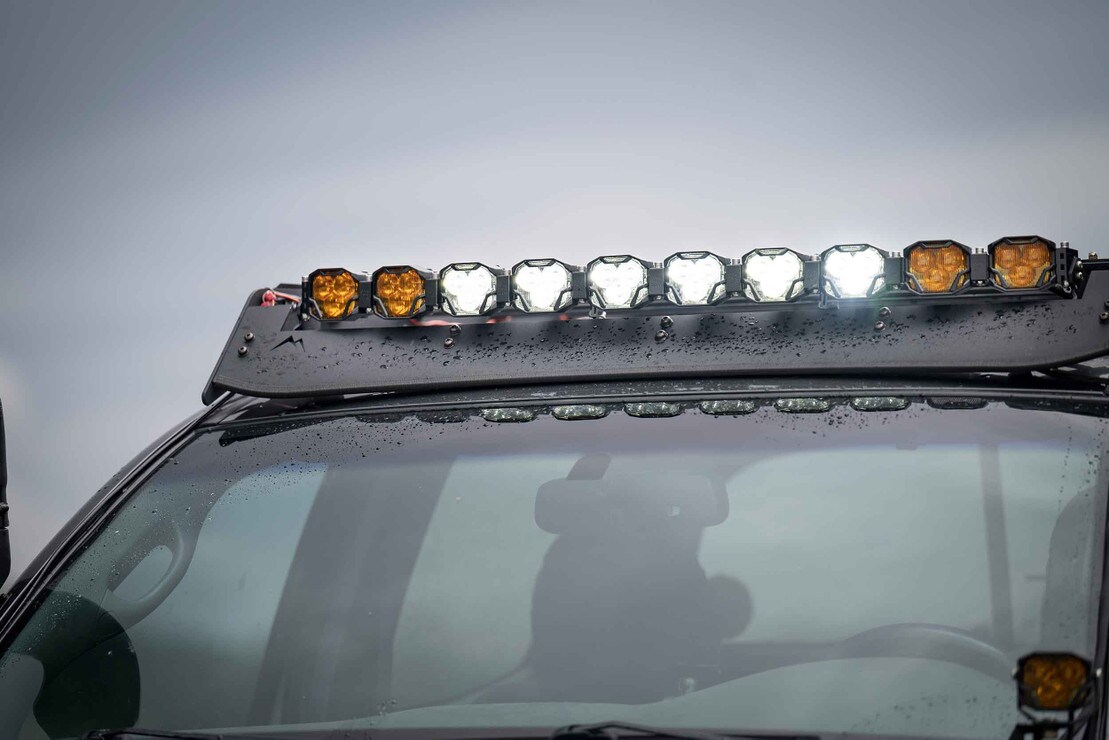

  • Ideal for: Steel Roof Racks and Bumpers

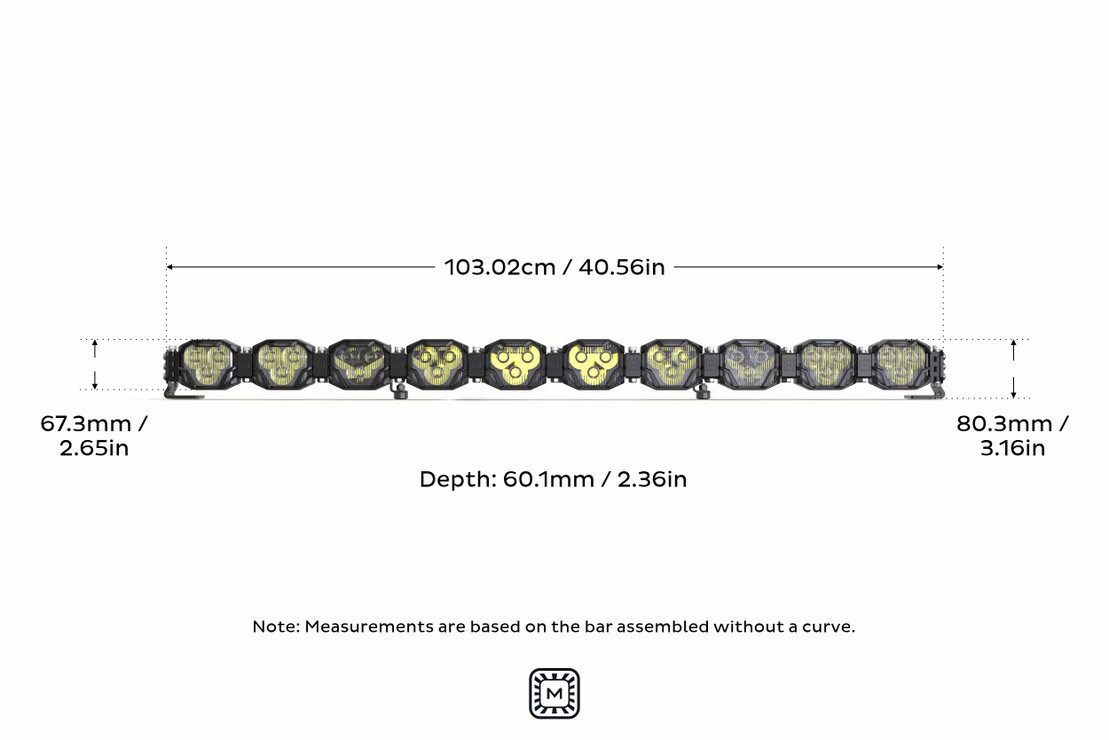

  • Width: 103.02cm / 40.56in

  • Height: 49.8mm / 1.96in

  • Depth: 59.2mm / 2.33in

  • Weight: 11.33kg / 24.79lb

  • Mounting Width Range: 38.31-43.06" / 97.31-109.37cm

INSTALLATION DOCUMENTS
