XPL Curved LED Light Bars

(0) No Reviews yet

Brand: Vision X

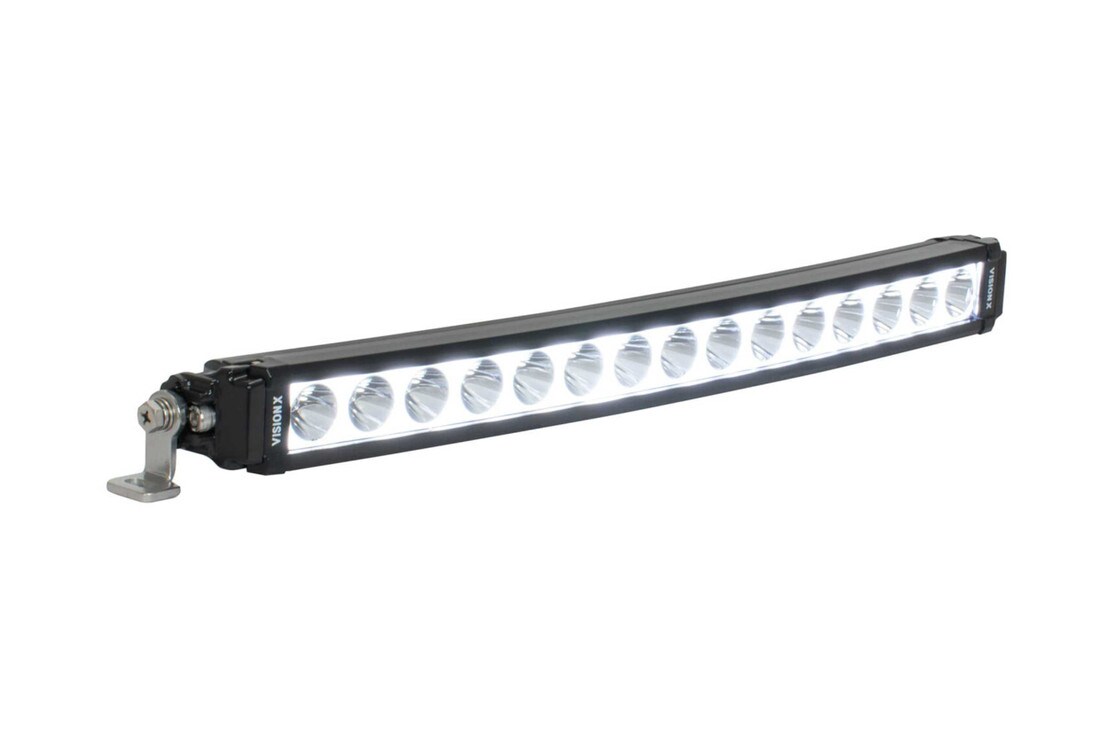

Vision X introduces its masterpiece, the XPL Curved Halo Series LED Light Bar. With its ultra-slim 2-inch housing and robust 5W LEDs, this curved bar is the epitome of design and functionality. The unique Iris Reflector Technology, along with its distinctive curve, allows for a wide-reaching spot beam, illuminating over 1,800ft. Moreover, with newly redesigned mounting feet, users can effortlessly set up the light bar according to their preferences. As a leading name in automotive lighting, Vision X ensures both reliability and performance in one sleek package.


  • Advanced Design Combines ultra-slim 2-inch housing with potent 5W LEDs.
  • Extended Reach Wide spot beam illumination reaching over 1,800ft.
  • Mounting Versatility Multiple options including redesigned mounting feet and side wing mounts.
  • Innovative Technology Incorporates the unique Iris Reflector Technology.
  • Reliable Branding Vision X's longstanding legacy in automotive lighting.


  • Light Bar: 1x XPL Curved LED Light Bar

  • Hardware: Mounting Brackets, Hardware

  • Wiring: 1x Wire Harness


This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Intensity: 8,025lm (15-LED), 12,305lm (23-LED), 16,585lm (31-LED), 20,865lm (39-LED), 23,005lm (42-LED)

  • Power: 75w (15-LED), 115w (23-LED), 155w (31-LED), 195w (39-LED), 210w (42-LED)

  • Current: 6.25A (15-LED), 9.58A (23-LED), 12.92A (31-LED), 16.25A (39-LED), 17.5A (42-LED) @ 12V DC

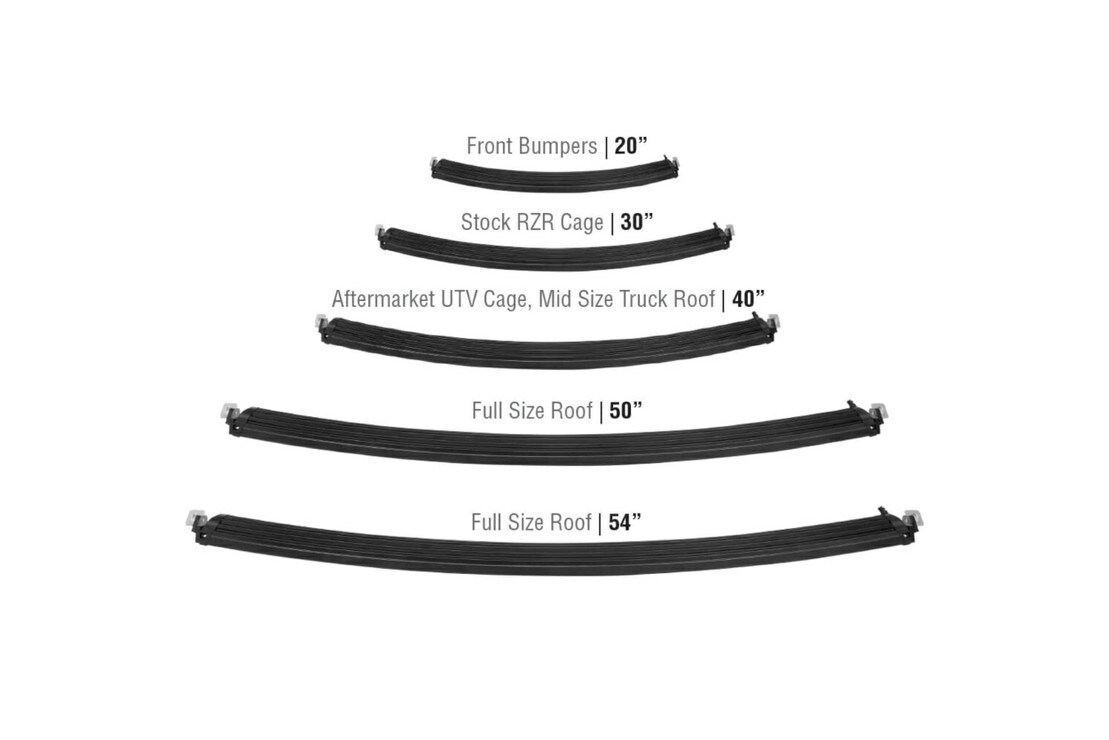

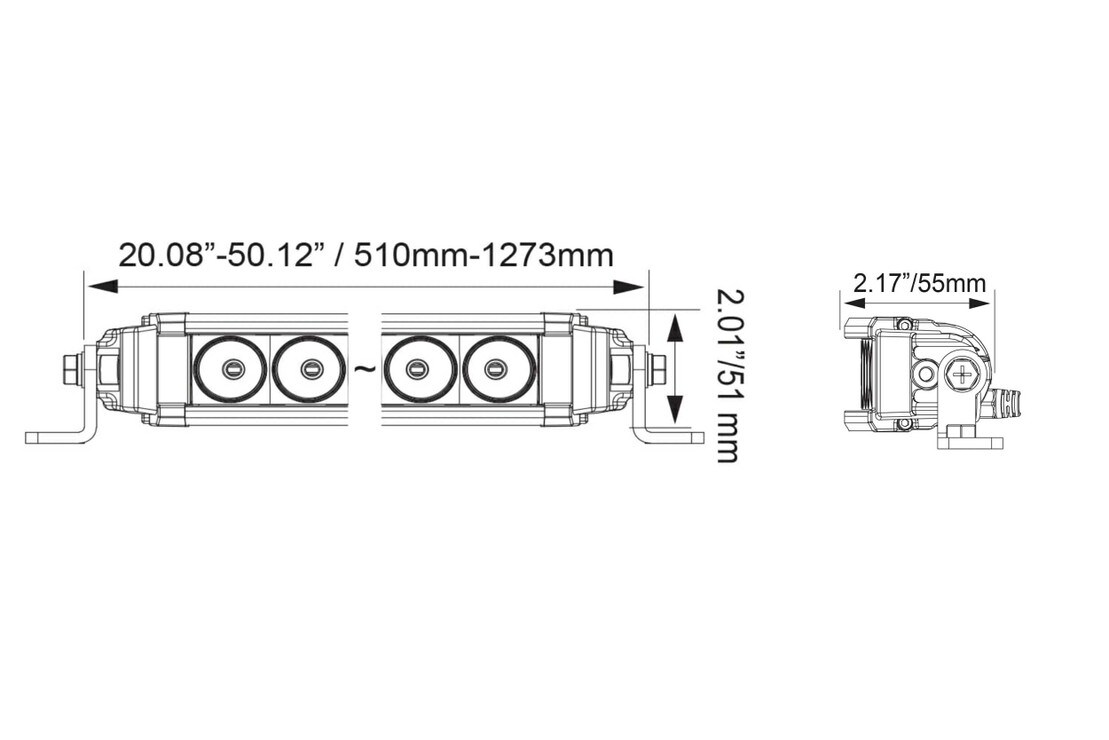

  • XPL-HC15EMH : Vision X Light Bar: 20.08" (15-LED / XPL / Curved / Halo / Incl. L Brackets & Harness)

  • XPL-HC23EMH: Vision X Light Bar: 30.18" (23-LED / XPL / Curved / Halo / Incl. L Brackets & Harness)

  • XPL-HC31EMH: Vision X Light Bar: 40.20" (31-LED / XPL / Curved / Halo / Incl. L Brackets & Harness)

  • XPL-HC39EMH: Vision X Light Bar: 50.12" (39-LED / XPL / Curved / Halo / Incl. L Brackets & Harness)

  • XPL-HC42EMH: Vision X Light Bar: 53.81" (42-LED / XPL / Curved / Halo / Incl. L Brackets & Harness)

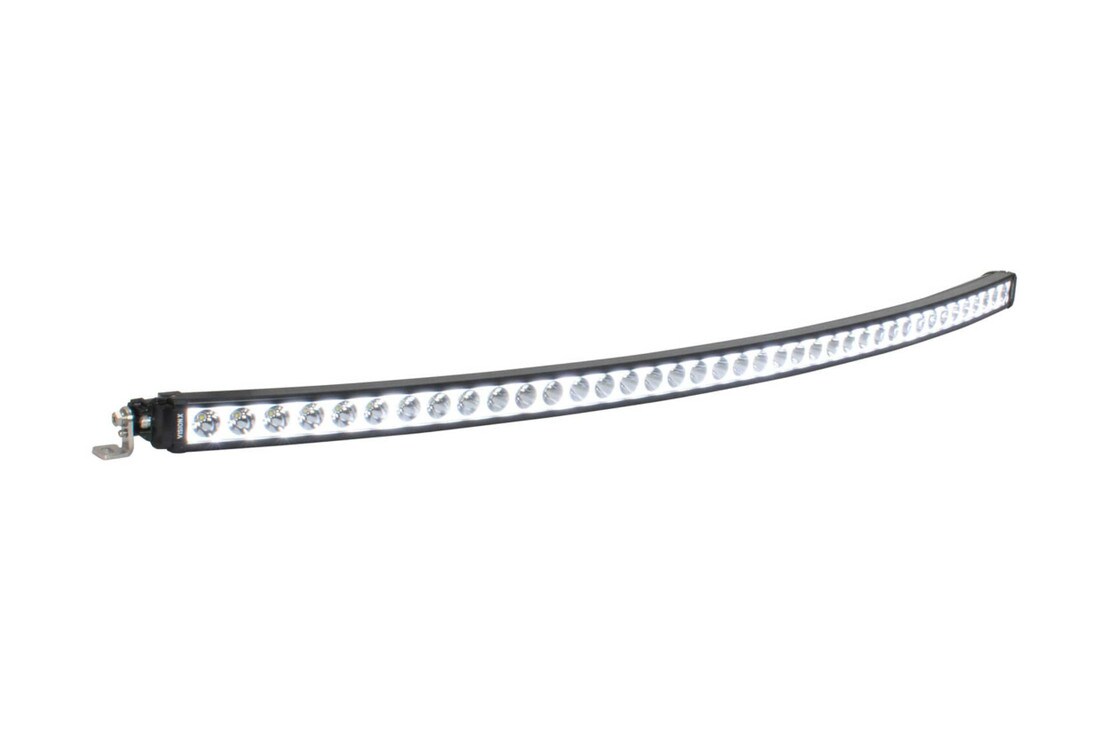

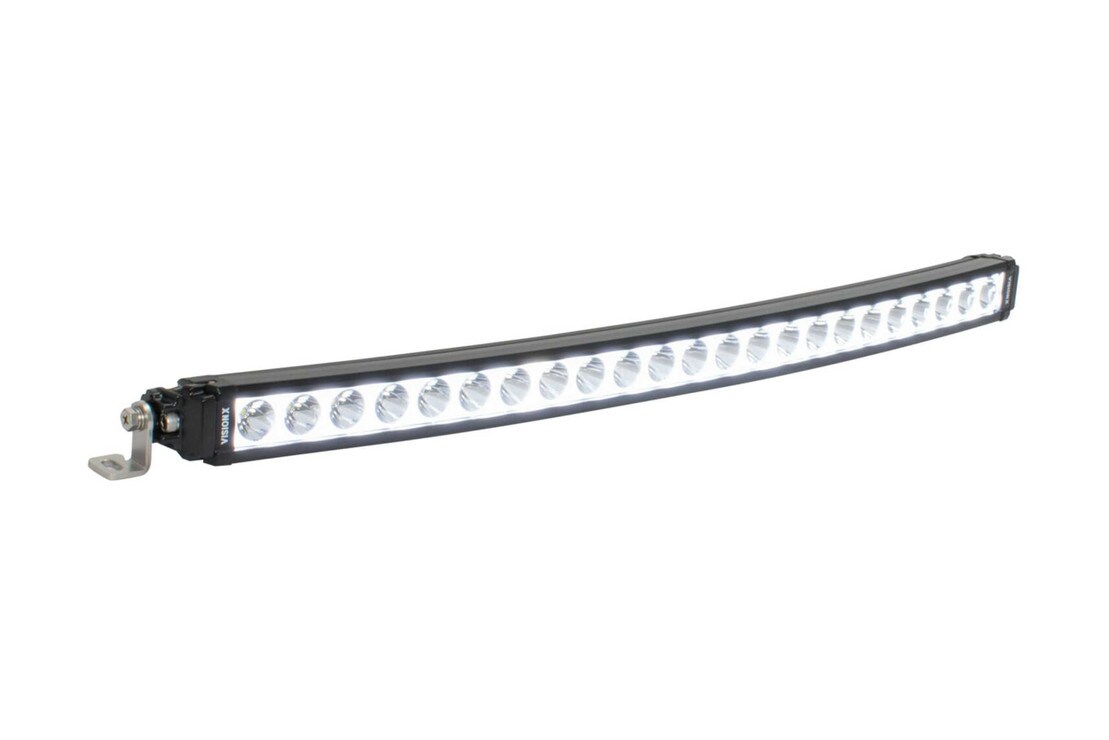

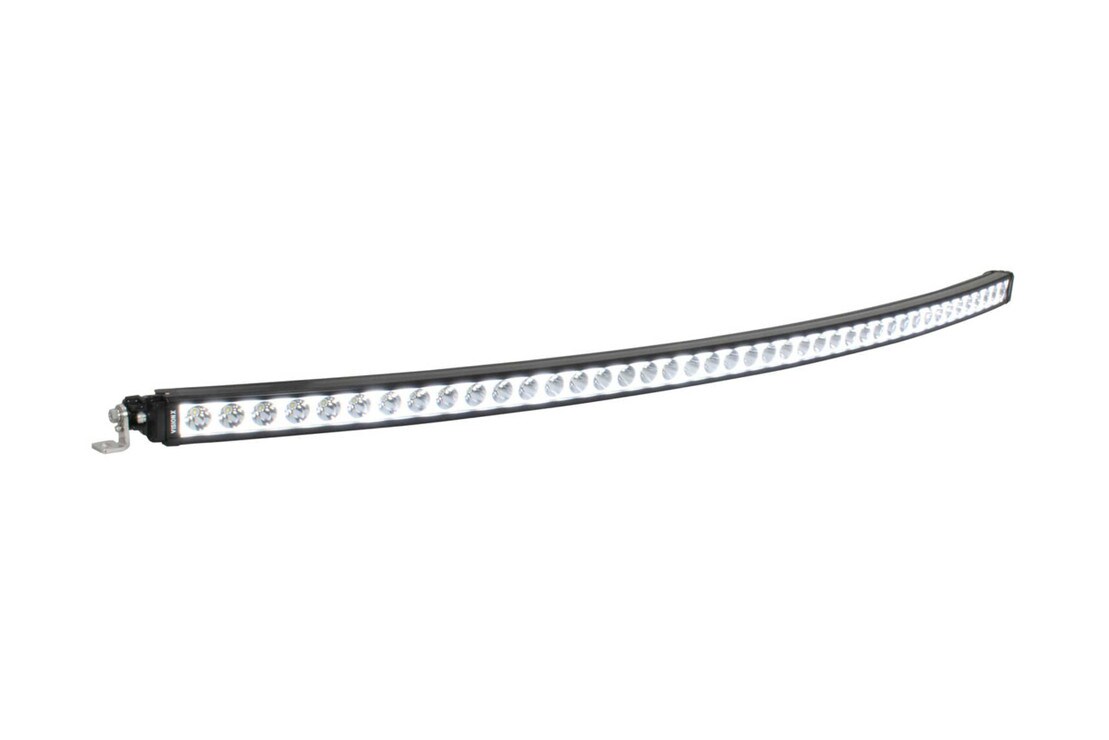

XPL Curved: The XPL Curved Halo Series LED Light Bar is our solution to growing demand for high performance curved light bars. We did it better and we are the first to do it featuring an ultra slim 2inhousing with high intensity single row 5W LEDs. Utilizing our Iris Reflector Technology coupled with the unique curve of the bar, the XPL Curved Series produces a broad spot beam pattern that reaches over 1,800ft with up 23,005 raw lumens. All XPL Curved Series LED Light Bars come with end cap side wing mounts, a wiring harness with lighted rocked switch and our limited lifetime warranty.

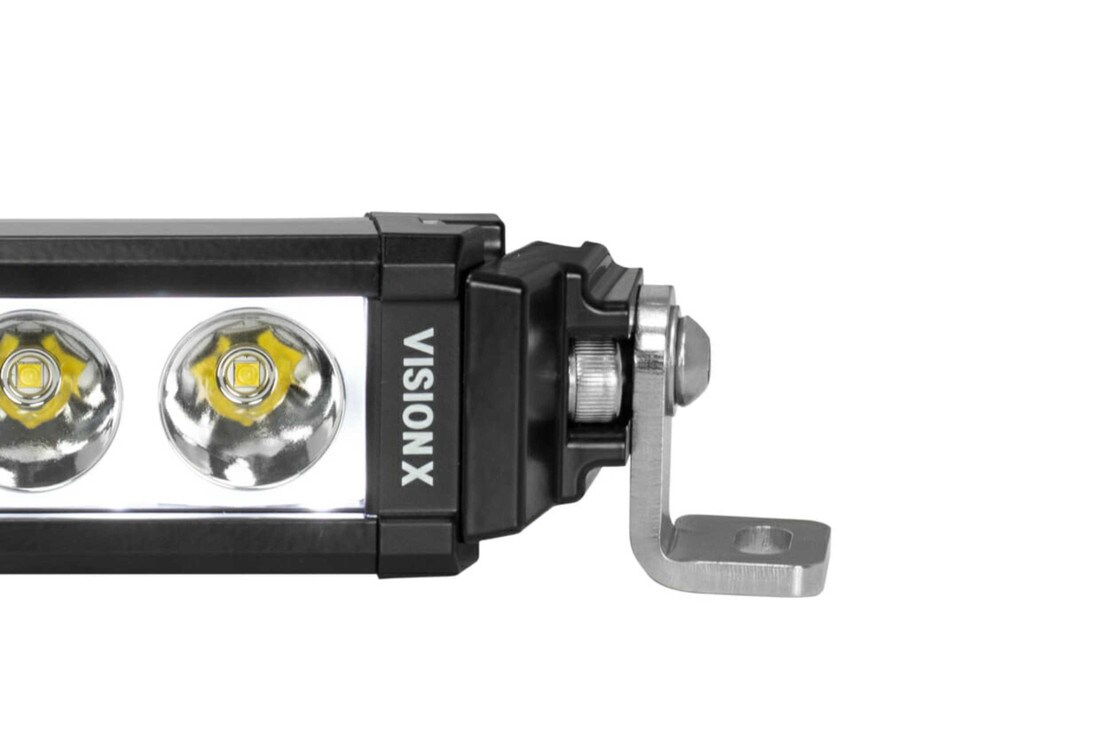

Product Line Updates: The XPL Series Light Bar comes standard with the newly redesigned mounting feet and the option to add wiring harness and/or side wing mounts. Allowing the option to mount with Side Wings off each end cap or with Vision X's foot mounting design. Both mounting options allow for adjustability once installed, so you can aim the light for optimal visibility.

Vision X: Is known for producing some of the automotive industry's most unique, highest performing LED Light bars and LED Spot lights for the modern demands of enthusiasts today. Their products perform on par with the best names in the business like Rigid, KC, and Baja, are affordable, bomb proof, and look great too. Vision X has their North American Headquarters in Washington State, and Headlight Revolution has been a proud master distributor for the brand for many years.
