2018+ Jeep JL / JT SS5 Bumper Lights

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD134-HR

$859.95

PRODUCT OPTIONS

PART #: 1 x DD7279



DESCRIPTION

Features: Bolt-on fitment compatible with 2018+ Jeep JL Wrangler. Ultra-high intensity with custom-engineered TIR optics. Selectable backlight color with eight color options. Torture-tested heavy-duty construction. Control through factory aux switch bank using the included harness. Assembled in USA.

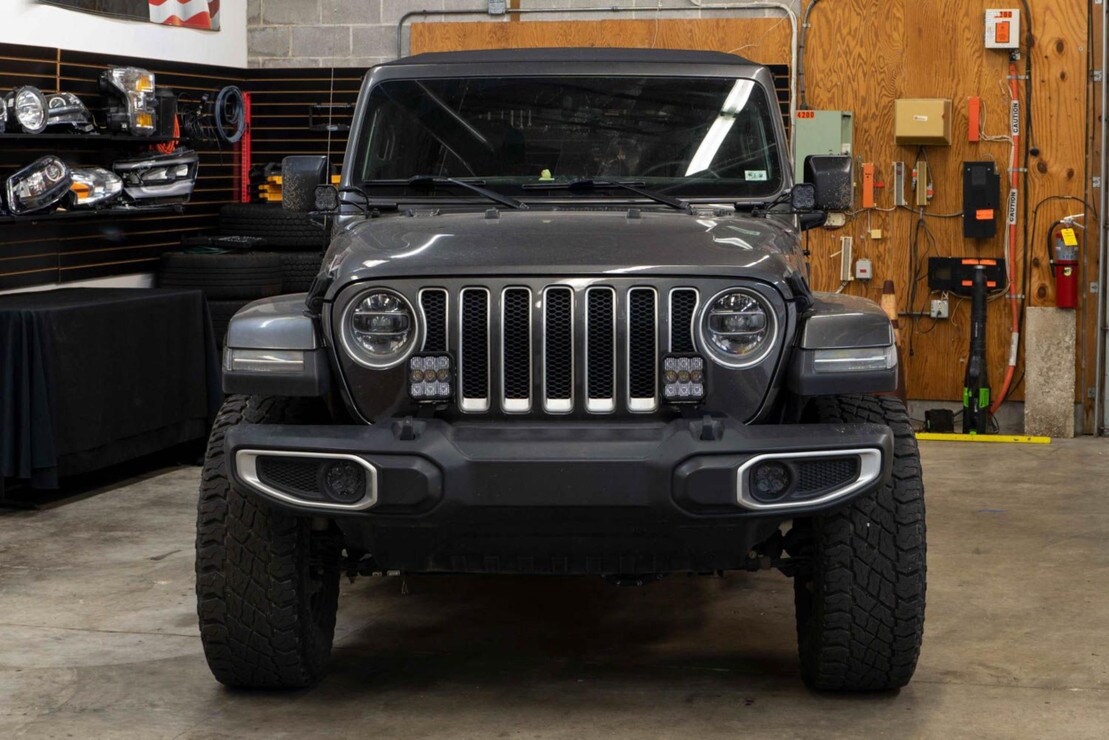

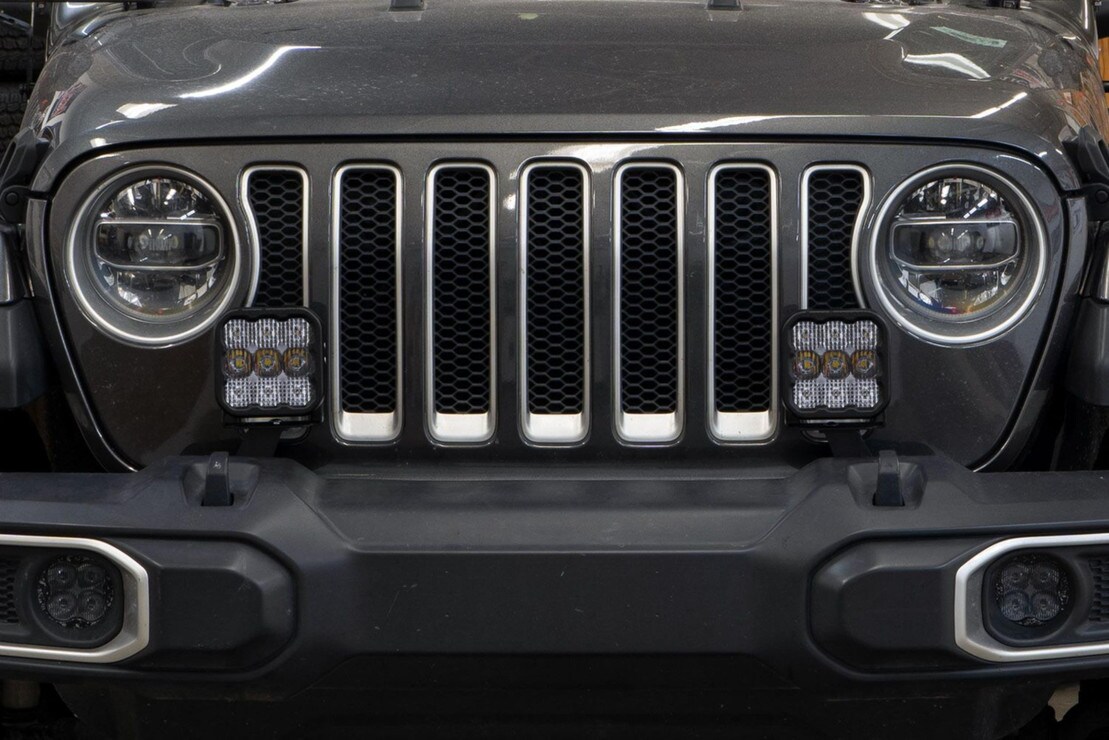

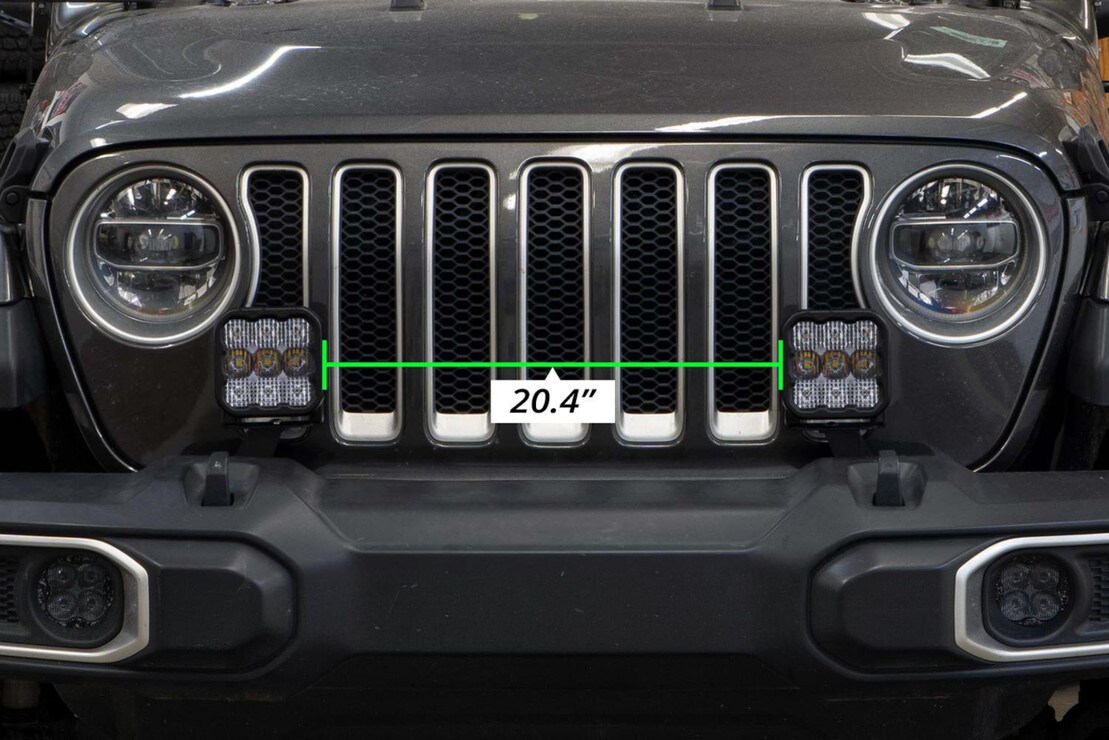

Perfect Fitment: The Bumper LED Pod Light Kit compatible with Jeep JL Wrangler 2018-2021 from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points. No cutting or drilling required!

Designed for Performance: Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.

Selectable Backlight: The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you're not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There's no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.

WHAT’S INCLUDED

  • Brackets: One (1) Pair

  • Optional Light Pods: 2x SS5 Pods

WARRANTY INFORMATION

This product is covered by a Lifetime limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Note: These specifications are per pod / each!

  • Intensity (Combo White Sport): 81,600cd

  • Intensity (Combo Yellow Sport): 75,700cd

  • Intensity (Combo White Pro): 58,500cd

  • Intensity (Combo Yellow Pro): 75,000cd

  • Raw Lumens (Combo White Sport): 4,800lm

  • Raw Lumens (Combo Yellow Sport): 9,700lm

  • Raw Lumens (Combo White Pro): 4,800lm

  • Raw Lumens (Combo Yellow Pro): 8,900lm

  • Main Beam Power (watts): Sport - 40w, Pro - 90w

  • Backlight Power (watts): White - 3.17w, Yellow - 3.07w

  • Main Beam Current (amps @ 12.8V): Sport White - 2.75, Sport Yellow - 2.8, Pro - 6

  • Backlight Current (amps @ 12.8V): White - 0.25, Yellow - 0.24

  • Color Temp (CCT): 3000K, 6000K

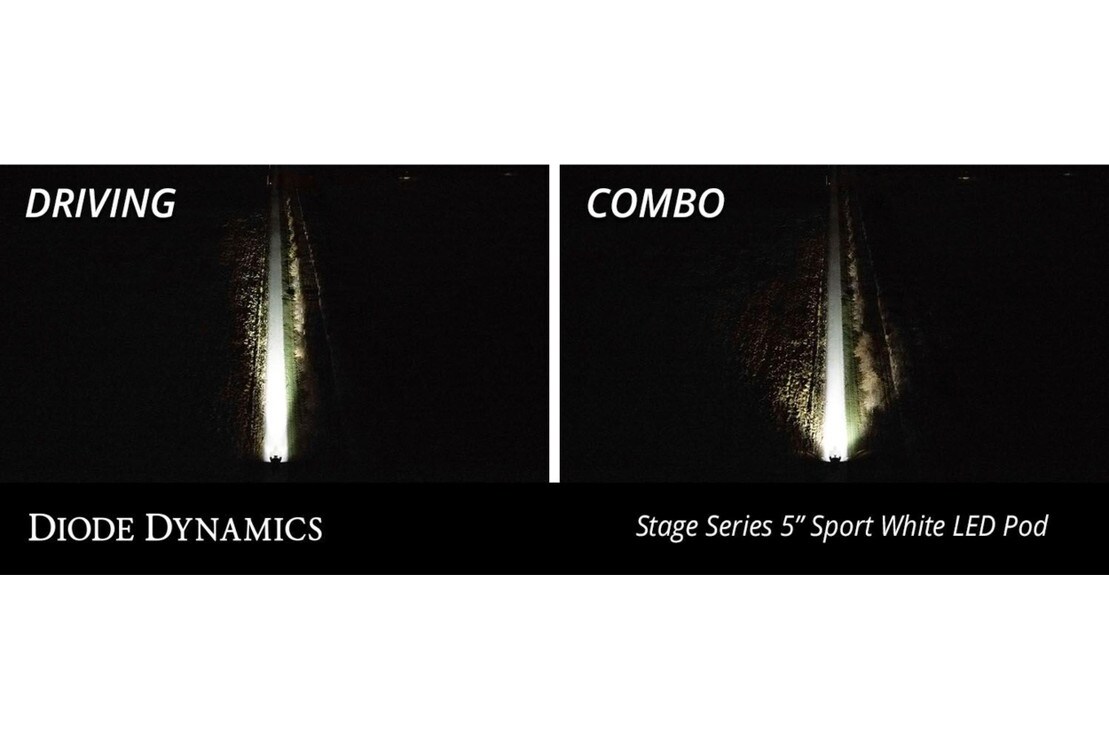

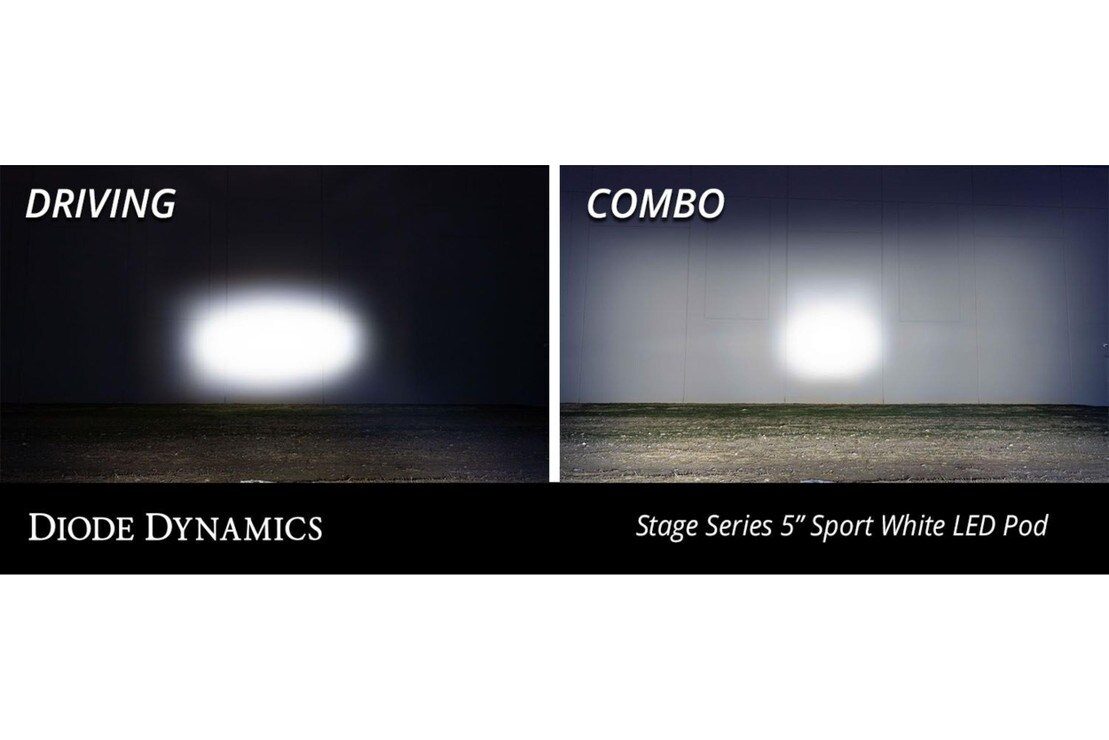

  • Beam Angle: Combo (Driving and Flood)

  • Operating Voltage: 9-16V

  • Polarity: Polarity Specific

  • Operating Temperature: -40C to 85C (-40F to 185F)

  • LED Emitter: Luxeon Z ES, Cree XP-L HI

  • Connector(s): Deutsch DT Input

  • Driver Features: Constant Current

  • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

  • Cooling: Passive, Pin-Fin heatsink

  • Intrusion Ratings: IP69K Waterproof, High Pressure

COMPATIBILITY

  • Jeep Wrangler JL: 2018+

  • Jeep Gladiator JT: 2020+

  • DD7283P: Stage Series Bumper Bracket Kit

  • DD7279: SS5 CrossLink Bumper Lightbar Kit Pro Combo

  • DD7281: SS5 CrossLink Bumper Lightbar Kit Pro Driving

  • DD7278: SS5 CrossLink Bumper Lightbar Kit Sport Combo

  • DD7280: SS5 CrossLink Bumper Lightbar Kit Sport Driving

  • DD7289: SS5 Bumper LED Pod Light Kit Pro Yellow Combo

  • DD7291: SS5 Bumper LED Pod Light Kit Pro Yellow Driving

  • DD7288: SS5 Bumper LED Pod Light Kit Sport Yellow Combo

  • DD7290: SS5 Bumper LED Pod Light Kit Sport Yellow Driving
