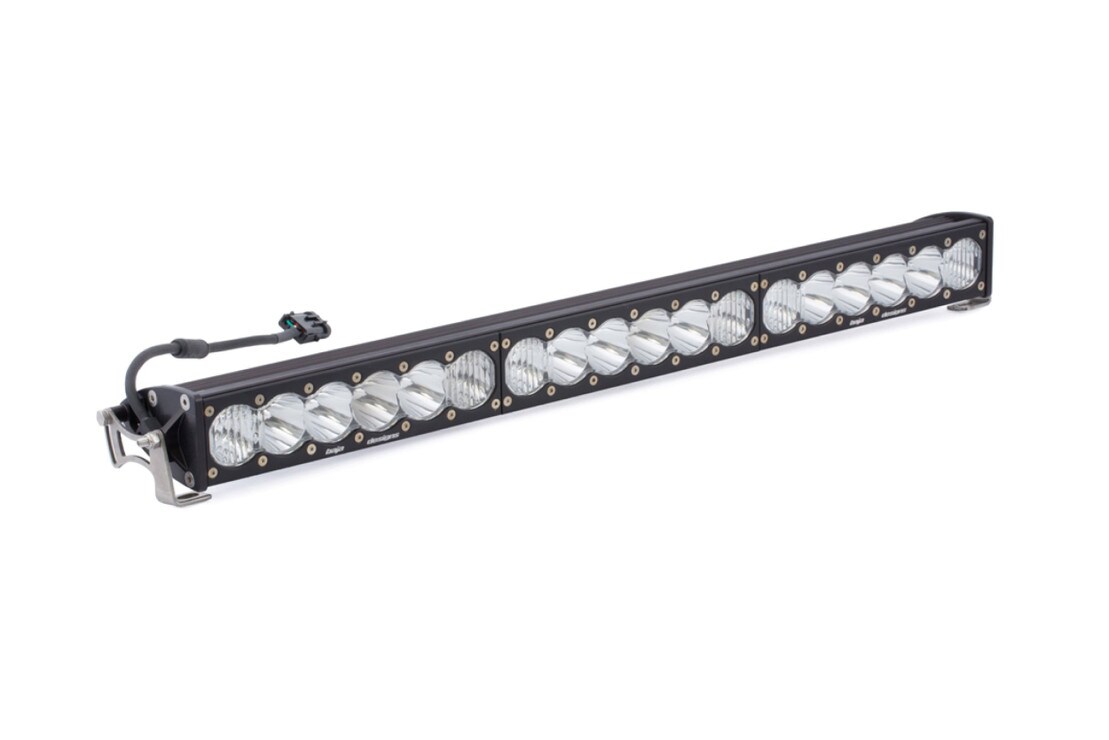

OnX6 LED Light Bar (30in)

(0) No Reviews yet
Questions?

Brand: Baja Designs

3P-BD12-HR

$0.00

PRODUCT OPTIONS

PART #: 1 x 453003



DESCRIPTION

Elevate your off-road experience with Baja Designs' OnX6+ LED Light Bar. Built for racers, it projects a powerful 31,910 lumens, ensuring unparalleled visibility. The High-Speed Spot Reflector ensures the furthest light projection on the market. Experience flicker-free lighting with Battery Management Technology and adapt with the uService modular program, allowing lens and optics changes on-the-go. MoistureBlock technology offers water resistance. Backed by a 30-Day Satisfaction Guarantee and Limited Lifetime Warranty.

FEATURES & BENEFITS

  • High-Speed Spot Reflector Maximum light projection for tough terrains.
  • Battery Management Flicker-free performance; protects vehicle systems.
  • uService Program Flexibility to switch lenses and optics as needed.
  • MoistureBlock Waterproof, ensuring uninterrupted journeys.
  • Warranty 30-Day Satisfaction Guarantee & Limited Lifetime Warranty.

WHAT’S INCLUDED

  • Light Bar: 1x OnX6 30in LED Light Bar

  • Wiring: 1x Hi-Low Dongle

  • Hardware: Mounting Brackets

WARRANTY INFORMATION

This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Intensity: 32,070lm (High), 25,610lm (Low)

  • Power: 278w (High), 222w (Low)

  • Current: 21.7A (High), 17.1A (Low)

  • Weight: 11.45lbs

  • Light Color: 5000K (Pure White)

  • Material: Hard Coated Polycarbonate (Lens), Anodized Aluminum (Housing), Billet Aluminum (Bezel), Stainless Steel (Hardware, Bracket)

COMPATIBILITY

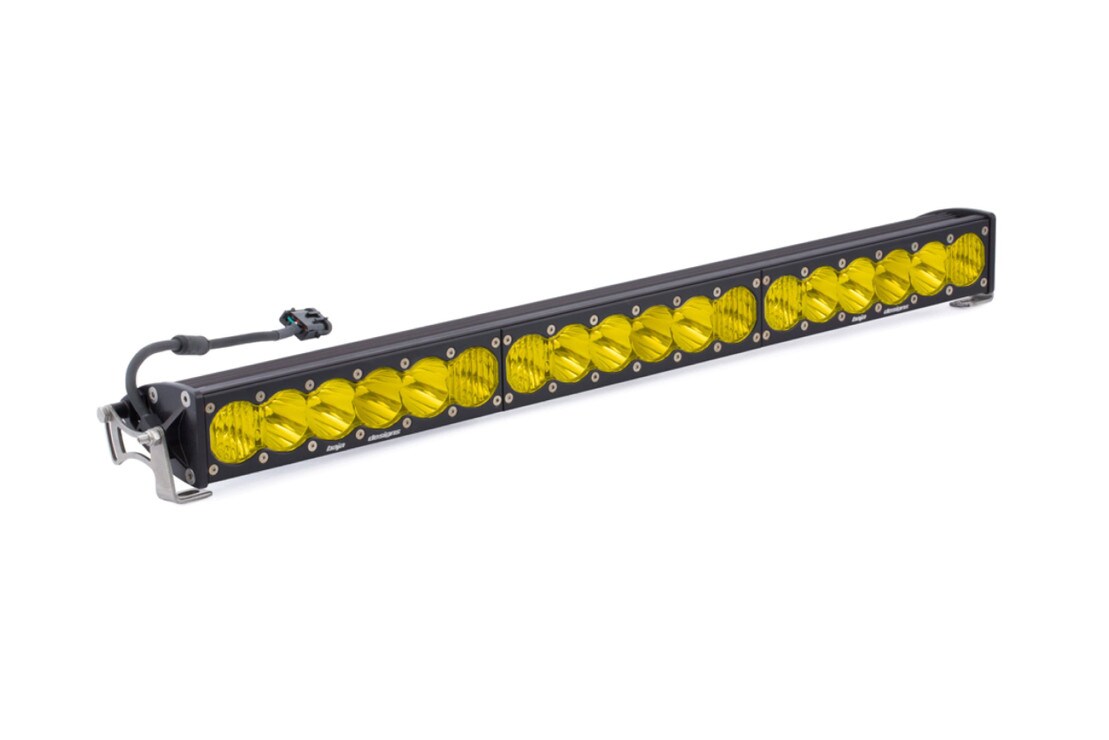

  • 453014: 30" OnX6 LED Light Bar: (Amber / Wide Driving Beam)

  • 523003DC: 30" OnX6 LED Light Bar: (Amber+White / Dual Control Pattern / Arc Series)

  • 463014: 30" OnX6 LED Light Bar: (Amber+White / Dual Control Pattern)

  • 413002: 30" OnX6 LED Light Bar: (White / High Speed Spot Beam - Racer Edition)

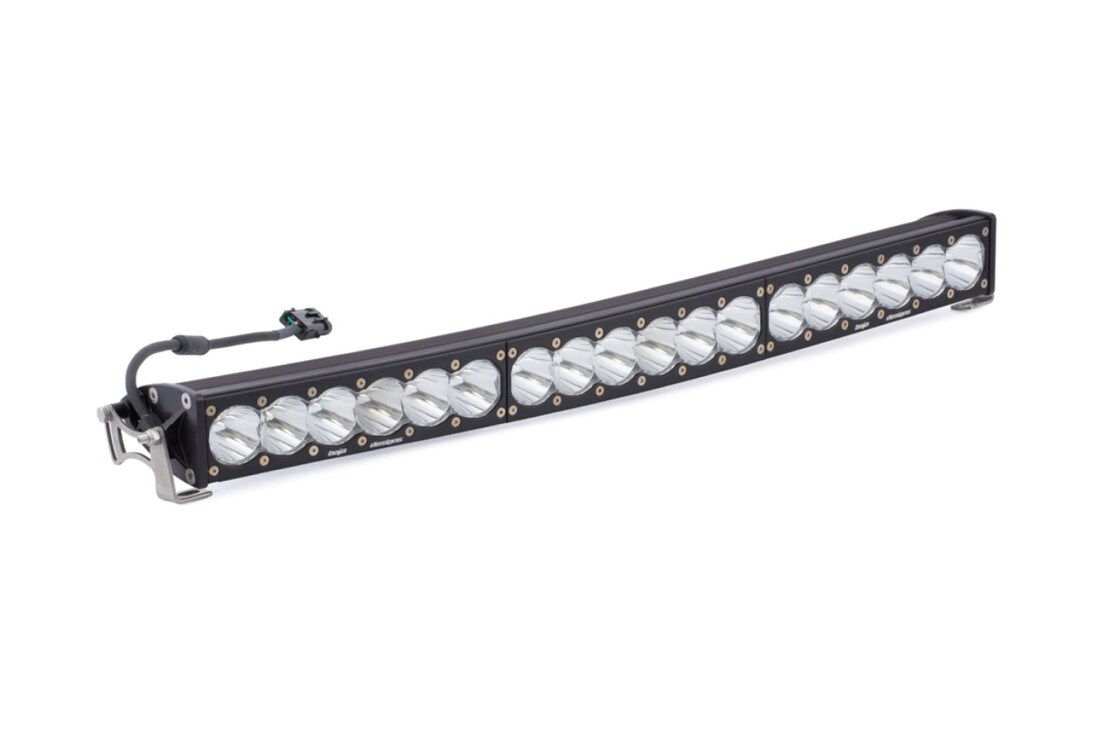

  • 523001: 30" OnX6 LED Light Bar: (White / High Speed Spot Beam / Arc Series )

  • 453001: 30" OnX6 LED Light Bar: (White / High Speed Spot Beam)

  • 523004: 30" OnX6 LED Light Bar: (White / Wide Driving Beam / Arc Series)

  • 453004: 30" OnX6 LED Light Bar: (White / Wide Driving Beam)

  • 453003: 30" OnX6 LED Light Bar: (White / Wide+Driving Combo Beam )

  • 423003: 30" OnX6 LED Light Bar: (White / Wide+Driving Combo Beam / Arc Series - Racer Edition)

  • 523003: 30" OnX6 LED Light Bar: (White / Wide+Driving Combo Beam / Arc Series)

COMPLIANCE

IP69K, IK10, MIL-STD810G

Race Day: When Baja Designs goes racing their Team Enlightened Racers take with them a bar featuring the same High-Speed Spot Reflector as the one found in this 30in OnX6+ LED Light Bar. That reflector helps ensure that this stout light can output a whopping 31,910 lumens without breaking a sweat. It also means that you're getting the furthest projecting LED Lightbar on the market today. Don't settle, go further with Baja Designs OnX6+.

This bar is equipped with BMT: Battery Management Technology. Elimination Of Flickering at Low Voltage. Added Protection to Vehicle Wiring and Systems. Protection from Dangerous Current Spikes.

uService from Baja Designs: uService is one of the coolest modular programs we've seen from any lighting company and it's no surprise that Baja Designs has pioneered it. With uService you have the freedom to change your lenses and optics with ease at a moment's notice. Gone are the days of being locked into one style or beam pattern. In addition, there's no need to worry about water, these have MoistureBlock baked in so H2O doesn't stand a chance no matter how deep in the creek you may get.

Warranty: Don't settle for less! Baja Designs features their industry-first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty on this light.
