H8: Xtreme LED Pro Bulbs

(0) No Reviews yet
Questions?

Brand: XenonDepot

B-LHB-XTR-H8-HR

$145.00

PRODUCT OPTIONS

PART #: 1 x XD.LED040



*Delivery times are estimated, NOT guaranteed. Every effort will be made to ship as soon as possible!

DESCRIPTION

Introducing the Xtreme LED Pro series – the ultimate upgrade for your fog lights. Experience unparalleled performance and compatibility with our advanced drop-in fog light bulbs. Crafted with precision and premium materials, these bulbs guarantee a high-quality fit and finish. Say goodbye to overheating issues with our patented aluminum alloy leaf passive heat sink, designed for optimal heat dissipation. The genuine Lumileds ZES emitters closely mimic the size of original halogen filaments, ensuring a superior beam pattern for enhanced visibility. Rated at a stable 1750 Lumens, the Xtreme LED Pro bulbs provide true white light with a 5500K color temperature, without unnecessary blue hues. Our copper circuit boards ensure optimal thermal conductivity for long-lasting performance. With a compact design and clockable light head, these bulbs effortlessly fit various fog lamp housings. Elevate your driving experience with OE-level quality and reliability – choose the Xtreme LED Pro series today.

FEATURES & BENEFITS

  • Enhanced Performance: Upgrade to Xtreme LED Pro for superior compatibility and performance.
  • Premium Craftsmanship: Uncommonly high-quality fit and finish from premium materials.
  • Efficient Cooling: Patented alloy leaf heat sink prevents overheating.
  • Precise Beam: Lumileds ZES emitters replicate halogen filaments for optimal light.
  • Clear Visibility: 1750 Lumens, 5500K color, without attracting unwanted attention.

WHAT’S INCLUDED

  • LED Bulbs: 2x (One Pair) H8 Xtreme LED Pro LED Bulbs

  • LED Drivers: 2x Xtreme LED Pro

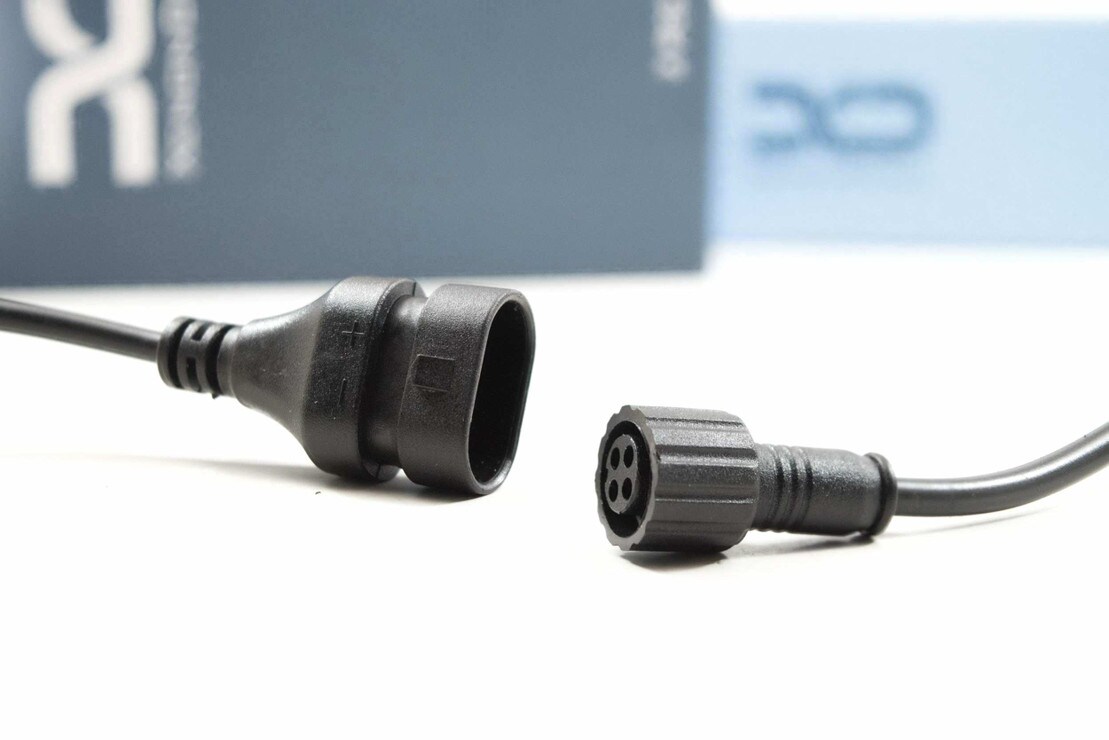

  • Wiring: H8 Plug and Play Inputs

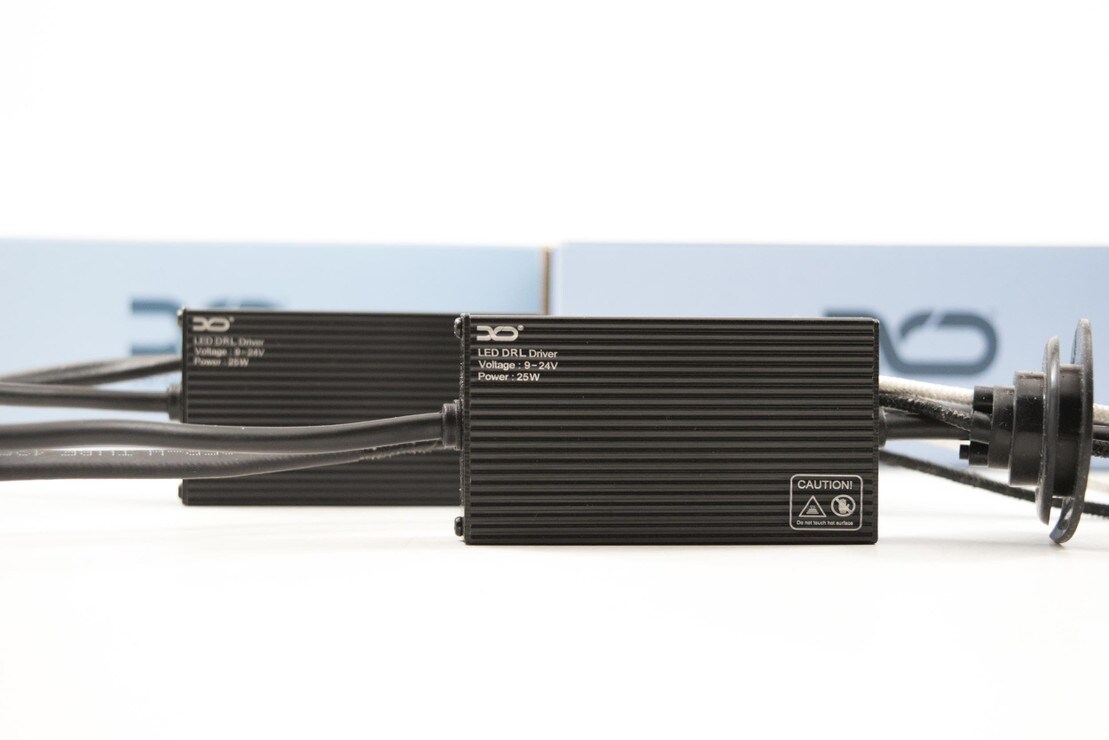

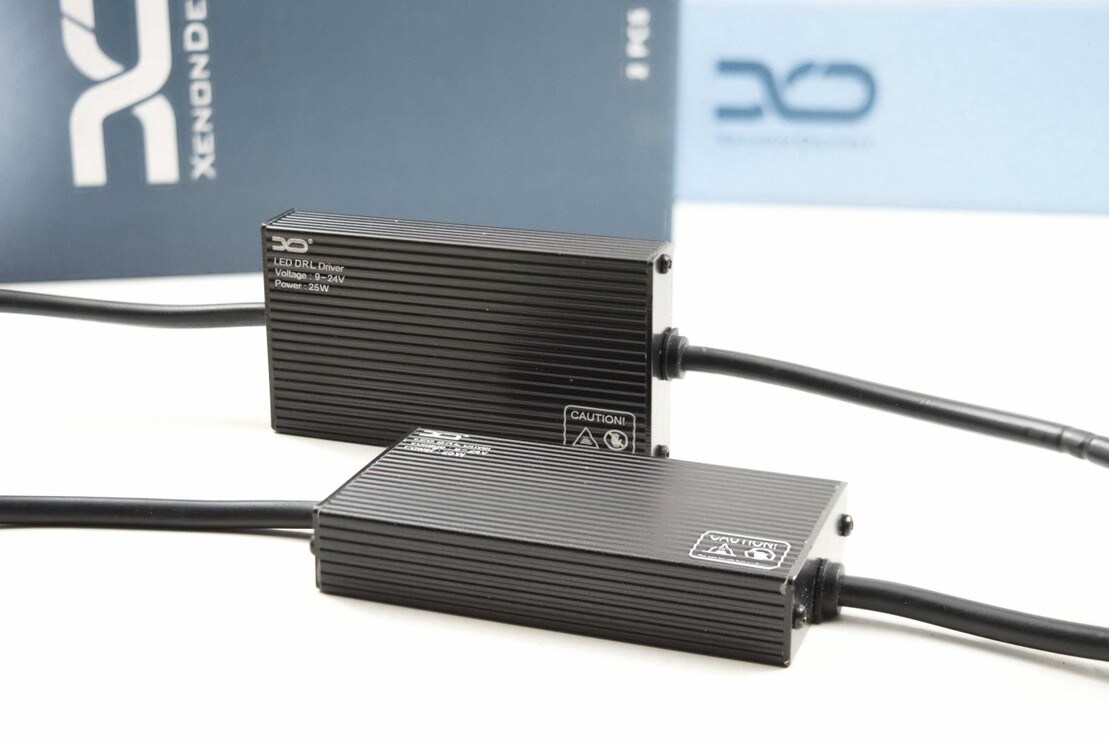

  • Optional DRL Drivers: 2x (One Pair)

WARRANTY INFORMATION

This XenonDepot product includes a 2 Year limited warranty, serviced and supported by the XenonDepot team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.

TECHNICAL SPECIFICATIONS

  • Intensity: 1,750lm

  • Input Voltage: 12-24V DC

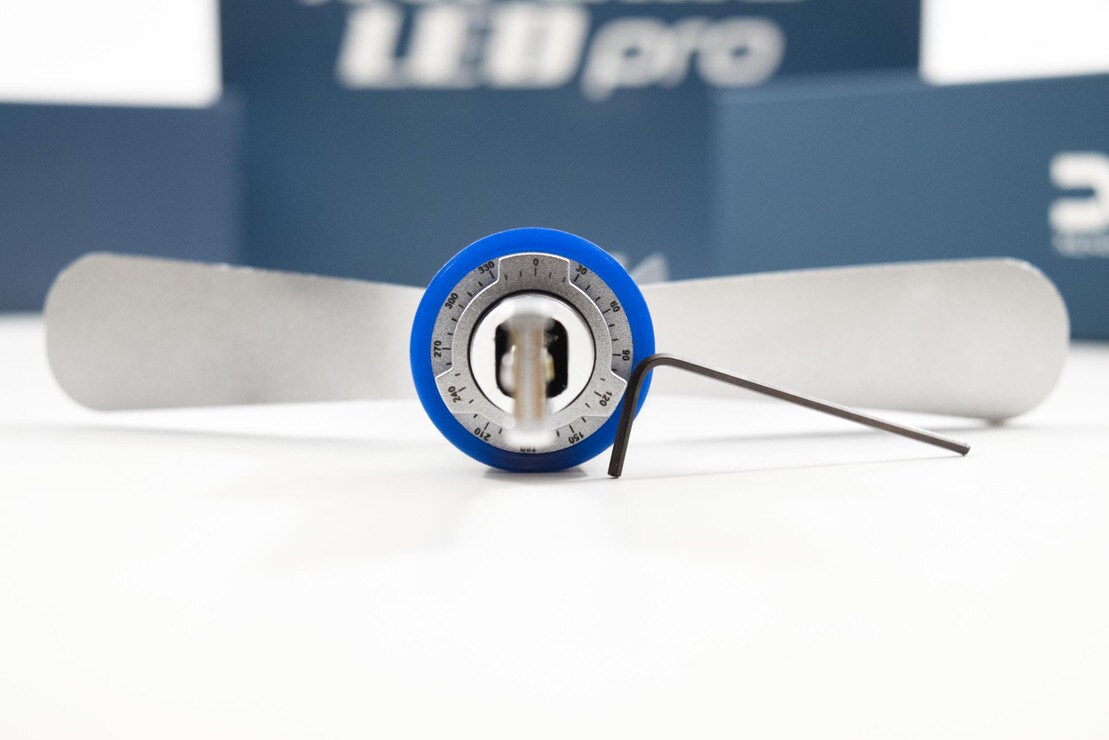

  • Adjustability: Fully Clockable Base

LINE DRAWINGS

COMPATIBILITY

  • BASE/FITMENT: H8

  • Do I need PWM / Anti-Flicker Modules?: When using in Fog Lights: Unlikely. With low beams that double as Daytime Running Light: Likely.With high beams that double as Daytime Running Light: Likely. When the vehicle is late model American (Chrysler, Dodge, Jeep, Ford, GM): Likely.

COMPLIANCE

APPLICATION: HID and LED bulbs are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country. For detailed clarification on street use, CLICK HERE
Note: This usage regulation is not unique to this item. All LED and HID bulbs from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA.

HOMOLOGATION ECE: NO

DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)

Xtreme LED Pro: Xtreme LED Pro series of drop-in fog light bulbs are just better--right from the start. They incorporate today's most advanced components and features for unparalleled compatibility and performance. Hold one in your hand and you'll immediately discern their uncommonly high-quality fit, finish, and feel: they're made of premium materials, formed and assembled with precise craftsmanship.


Optimal Heat Dissipation: The next thing you'll notice is their all-new patented aluminum alloy leaf passive heat sink. Its compact and readily configurable design allows an easy fit in most any fog lamp housing, and with its much larger contiguous thermal path, it does a better job shedding heat off the LEDs than past-type flexible mesh heat sinks. With no flex-mesh junctions to break and no motorized fans to make noise and electrical interference, clog, or fail, the superior heat rejection performance of the alloy leaf passive heat sink is retained over the long haul, for the full rated life of the emitters. That translates directly to excellent performance; the cooler LEDs can be kept, the higher their output.

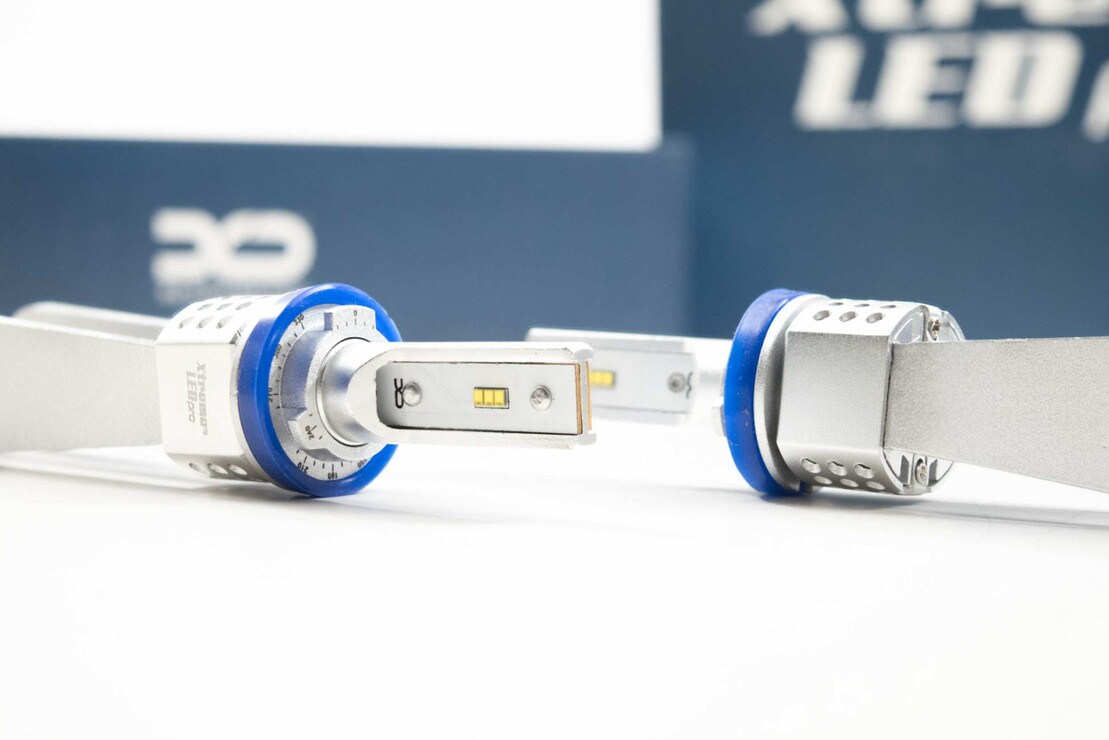

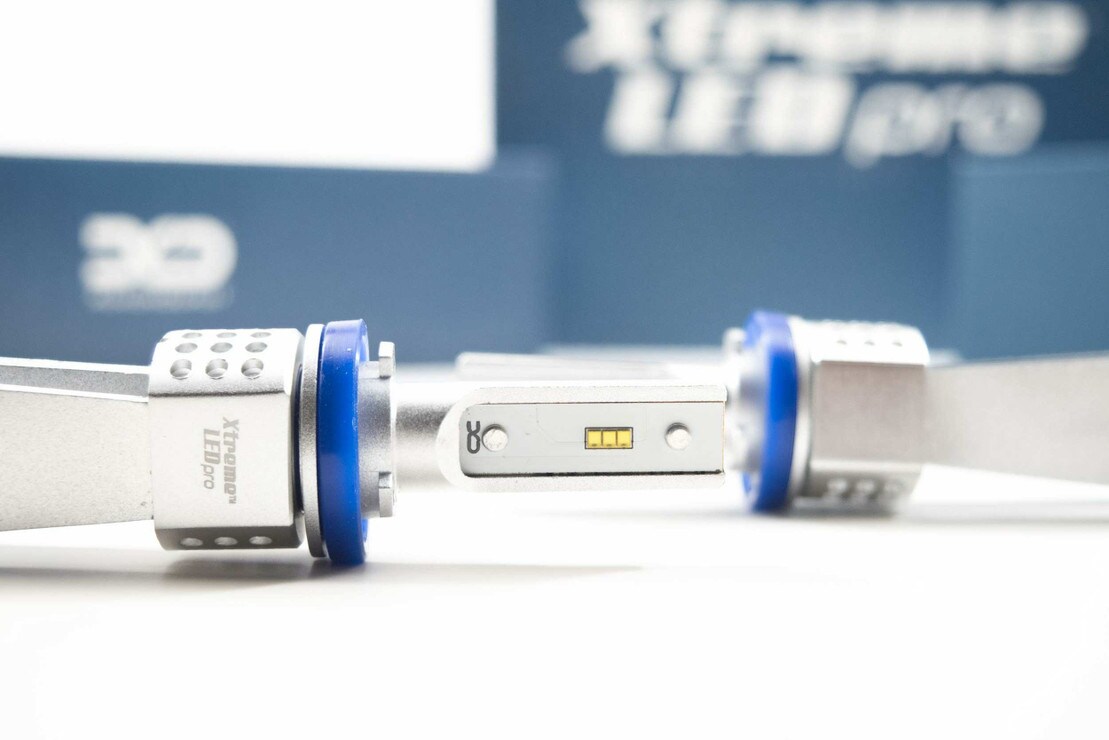

Beam Pattern: The emitters themselves are genuine Lumileds ZES, three on each side of the light head, and this together with their undomed configuration means they closely replicate the size of the original halogen filament. That means a better optical match than longer 4-emitter arrays or domed COB emitters, both of which violate the light source box your fog lamp's optics were designed around, and because the high output comes from three chips rather than four, luminance is higher for better beam punch and spread.


Lumens and Light Output: Anyone can throw around inflated lumen numbers--and most vendors do. Some of those numbers have no basis in reality, they're just fibs. Some of them are somewhat accurate, but only immediately after the bulb is lit up in a cold chamber, without accounting for the significant 'droop' that happens when improperly chosen emitters are inadequately cooled--don't drink the kool-aid! The Xtreme LED Pro bulbs are rated honestly: 1750 lumens stable, measured after the bulbs have been operating continuously for an hour in 60C heat. That's a rating that means (and gives you) exactly what it says. With the 5500K color temperature of our emitters, we're giving you true white light, not artificially jacking up the lumen rating with a bunch of useless deep-blue light that can only attract unwanted police attention, not help you see.


In Summary, They're Just Better: There's more clean-sheet engineering where you can't see it: we've used copper circuit boards for optimal thermal conductivity, and our compact base means the rigid tail of the light head is only 25mm--much smaller than other LED bulbs on the market. You'll note the light head is remarkably compact, without bulky over-length that prevents many other LED bulbs from fitting all the way into many fog lamps. And the light head is clockable, too, so you can fine-tune the output for the best optical match with any lamp you might install them in. Truly, this is the top-performing LED bulb with OE-level quality and "fit it and forget it" durability and dependability.
