BigBanger 2-Pod Power Harness

(0) No Reviews yet
Questions?

Brand: Morimoto

B-BB-2HARNESS-HR

$0.00

PRODUCT OPTIONS

PART #: 1 x BAF132H



Easy Return

DESCRIPTION

Introducing the Morimoto BigBanger LED Pod Wiring Harness – the ultimate solution for upgrading your vehicle's lighting system. Engineered with precision and quality in mind, this harness is designed to set a new standard in its segment. With meticulous attention to detail, every component is crafted to perfection, from the triple-sealed proprietary 4-pin relay to the stainless steel power and ground terminals. The 16 AWG copper wiring, protected by black mesh insulation, ensures flicker-free, reliable power delivery. Installation is a breeze, thanks to the logical layout of connections and the in-cabin push-button switch with an in-line barrel connector. Plus, the harness adapts to your lighting needs, offering full intensity or dimmed backlight options. While purpose-built for the Morimoto BigBanger LED pods, this harness may also work with other 4-pin LED pods on the market, making it a versatile choice. Don't compromise on quality; power up your lighting system with the Morimoto BigBanger LED Pod Wiring Harness today!

FEATURES & BENEFITS

  • Peak Performance: Meticulously designed for optimal performance and longevity.
  • Easy Installation: Streamlined layout and in-line barrel connector for hassle-free setup.
  • Universal Compatibility: Perfectly matched for Morimoto BigBanger LED pods and compatible with other 4-pin LED pods.
  • Flicker-Free Power: Relays rated for flicker-free, reliable power delivery.
  • Adjustable Backlight: DRL Drive feature for customizable backlight intensity, ideal for nighttime driving.

WHAT’S INCLUDED

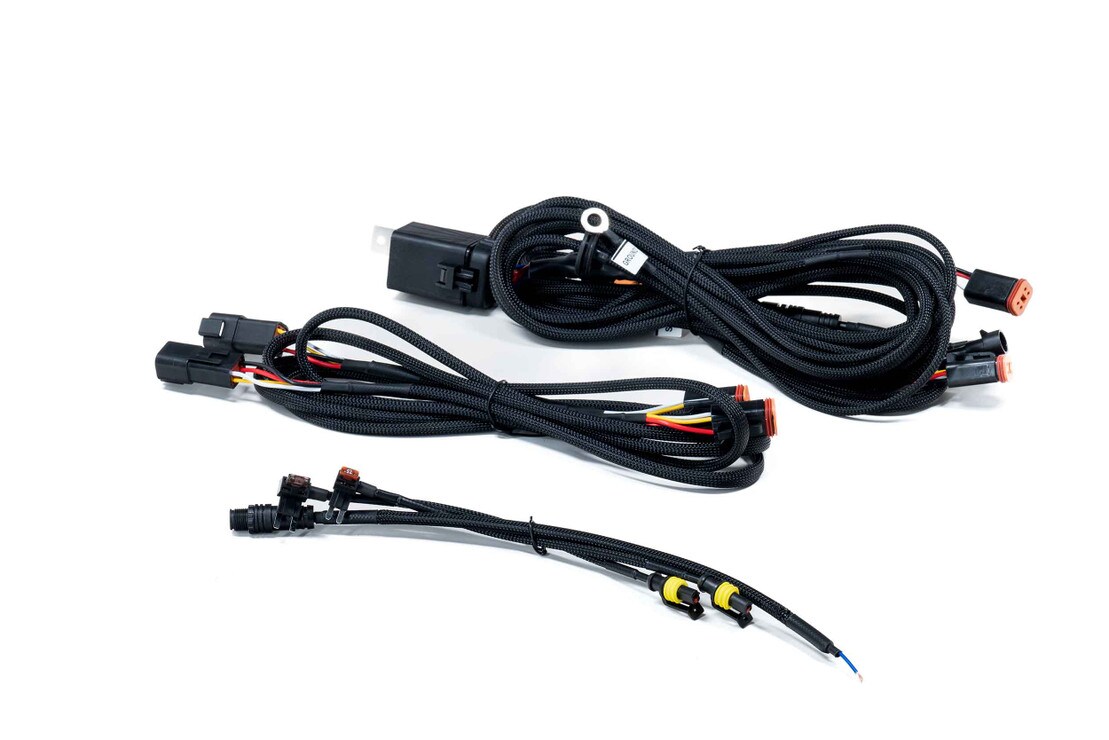

  • Harness: 1x Morimoto BigBanger 2-Pod Power Harness

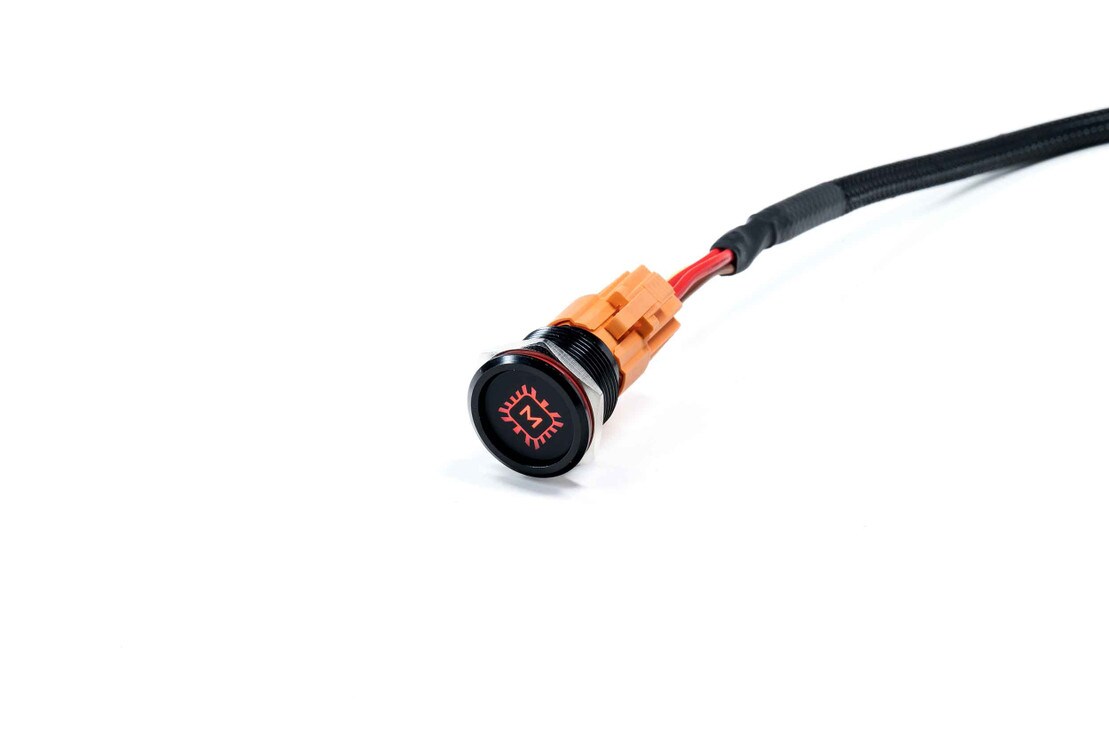

  • Switch Subharness 1: 1x M-Spec Push Button Switch

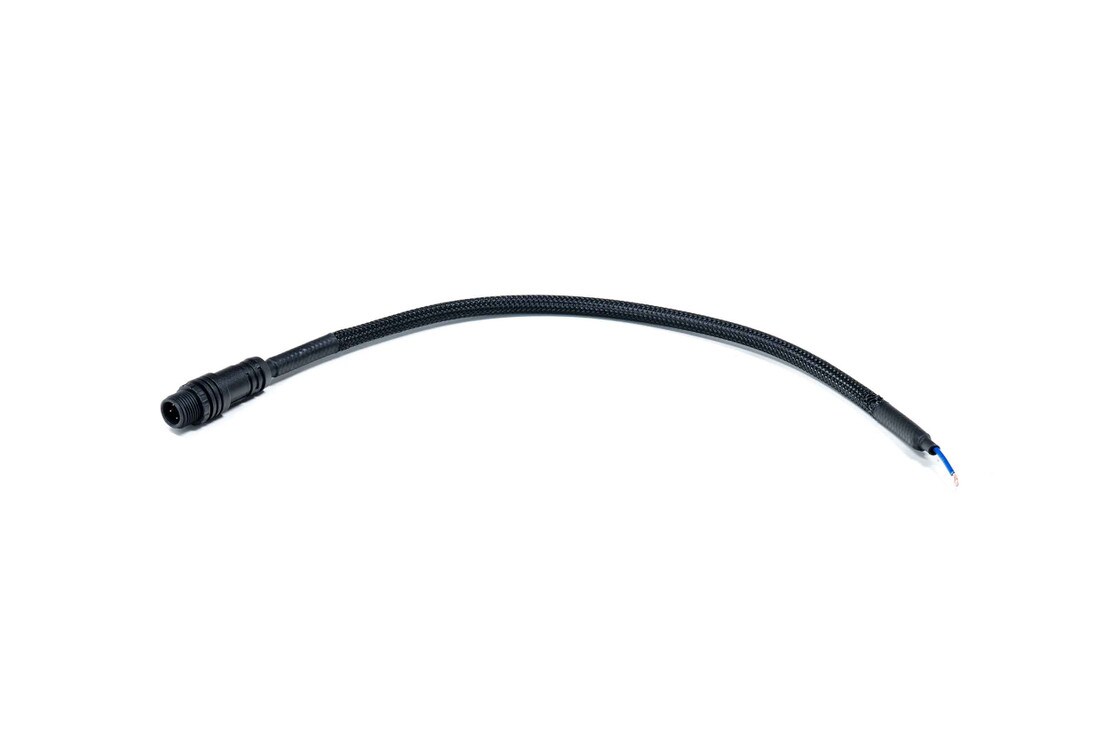

  • Switch Subharness 2: Upfitter Switch Inputs (35cm 20AWG)

  • Output Extension: 1x 1.25m/49.2in Extension

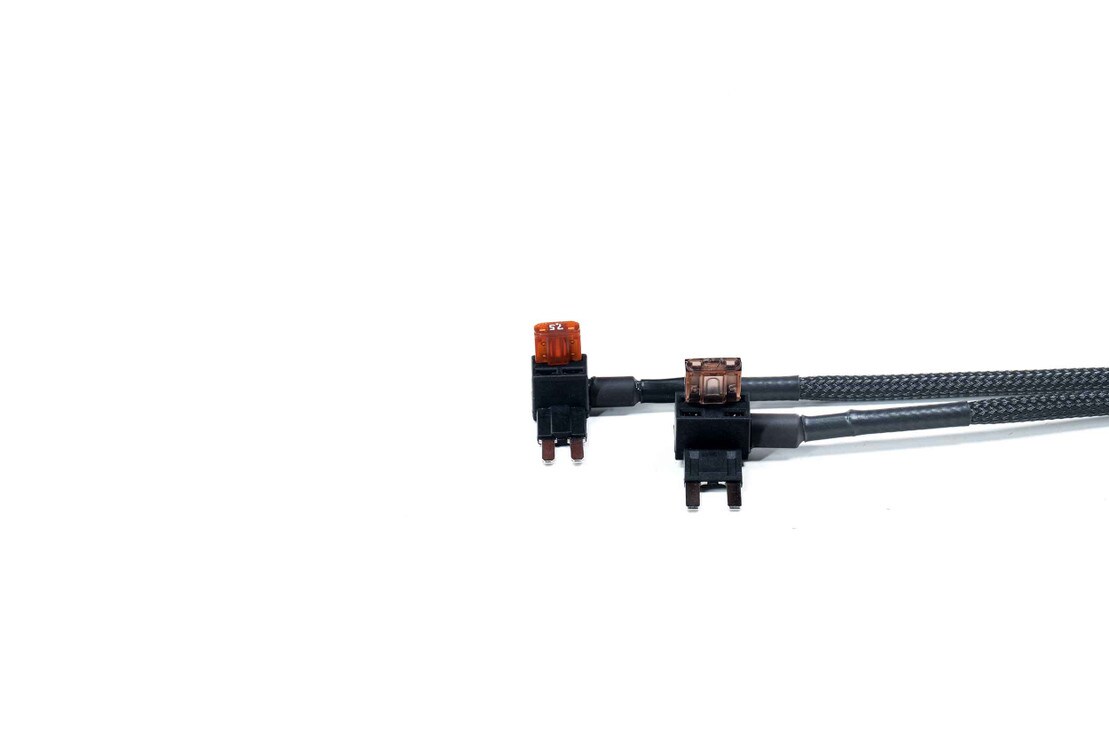

  • Backlight Power Kit: 1x Mini Fuse Tap, 1x Micro Fuse Tap

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Relay: Triple-Sealed 40A M-Spec

  • Switch: Normally-Off M-Spec w/ Amber backlight

  • Outputs: 2x Deutsch DT 4-Pin Female

  • Main Input: 12V+/- Battery Ring Terminals (8.5mm ID / 15mm OD)

  • Wiring: 14AWG-20AWG Copper Stranded

  • : cklight Input::1x Mini 7.5A Fuse Tap or 1x Micro 7.5A Fuse Tap

  • Insulation: Black Tech Flex Braided Mesh

COMPATIBILITY

  • LED Pods: Morimoto BigBanger

  • Pod Quantity: Two

  • A-Pillar Setups: Yes

  • Universal Mount Setups: Yes

  • Fog Light Setups: Yes

INSTALLATION DOCUMENTS

Power Up: The Morimoto BigBanger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the wiring. This harness is designed to control the pods and their dual intensity backlight with ease.


OEM+: Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-4S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with amber-LED backlight.


Proper: All wiring is properly sized and relays rated for flicker-free, reliable power delivery. Every line of the 16 awg copper wiring is protected with black mesh insulation. Every connector has been over-molded, sealed, or protected with heavy duty heat shrink. Your factory wire harness will fall apart before this thing.

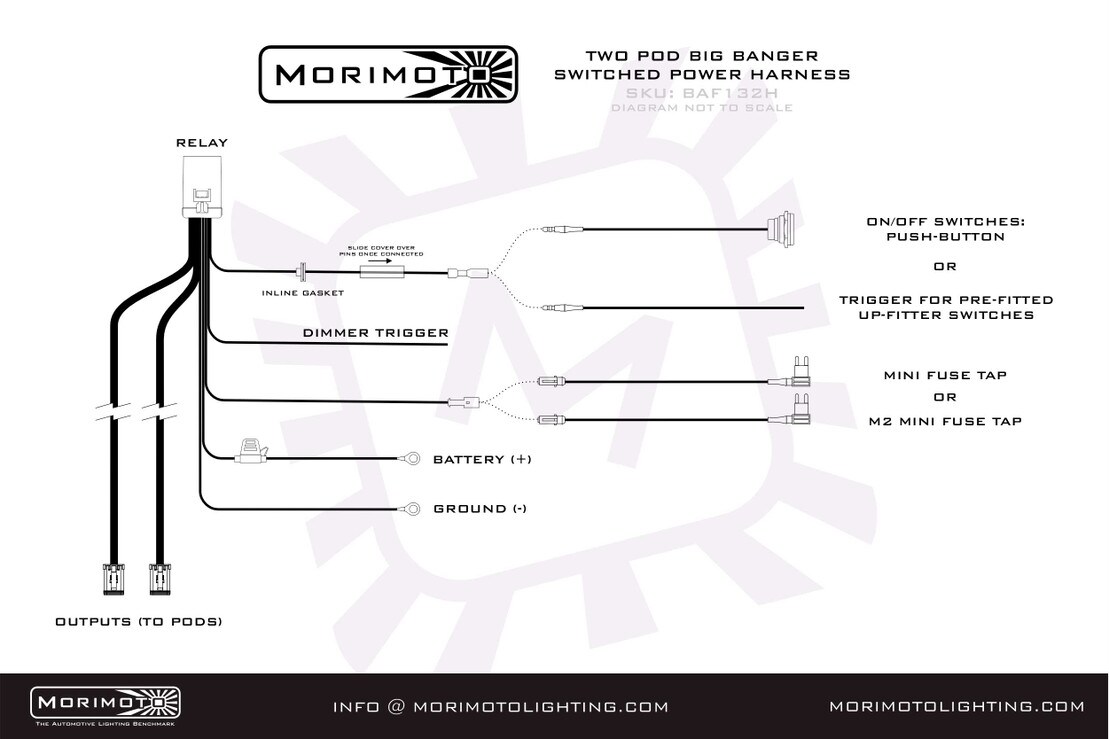

Plug n Play: The connections on the harness have been laid out in a logical way to power a BigBanger LED pod on each side of your vehicle. There are two deutsch outputs. A positive battery terminal, a ground terminal, and a switch. The wiring for the in-cabin push button switch has an in-line barrel connector that drastically improves ease of installation, since you don't have to jam the switch mechanism through the firewall. The harness also includes an input line that's ideal for use with upfitter switches.


DRL Drive: The harness is designed to send power to the BigBanger backlight using an ignition-switched power source in your fuse box. To do so, the harness includes both a mini and micro fuse tap to ensure success regardless of your make/model. This will make the backlight run at full intensity. In order to dim the backlight for dusk or night time driving, the harness has a separate line that should be tapped into your parking light or low beam circuit.


Compatible: This harness is a perfect match for the Morimoto BigBanger LED pods. It is purposely designed to deliver enough power, and control the dual intensity backlight. While it may work with other 4-pin LED pods on the market, we have not designed it to be universal.
