2Banger Bar: 12 Pod / 47"

(0) No Reviews yet
Questions?

Brand: Morimoto

B-1RBAR-47IN-HR

$1,563.14 Original Price:$1,839.0015% OFF

PRODUCT OPTIONS

PART #: 1 x BAF104, 3 x BAF106, 2 x BAF108, 1 x BAF090SF, 11 x BAF090, 2 x BAF090SB, 1 x BAF131H



Easy Return

DESCRIPTION

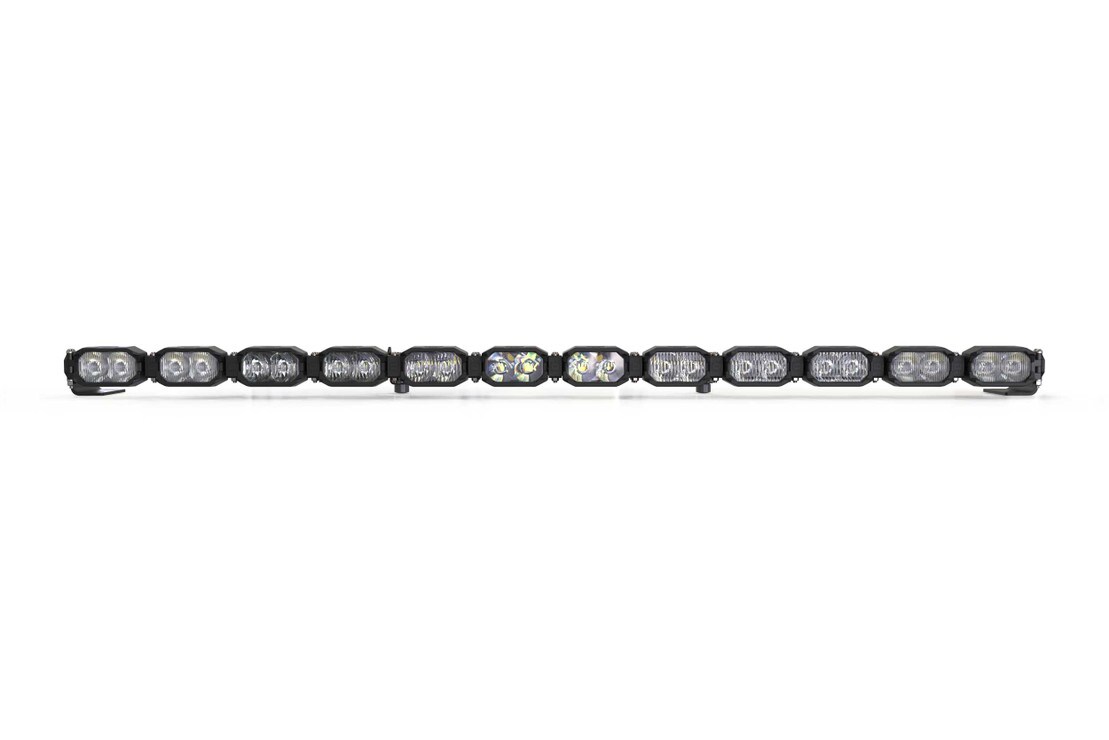

Introducing the Morimoto Single Row BangerBar – the pinnacle of customizable, high-performance lighting solutions. With the BangerBar, you're in control, from power and color to length and radius, delivering unrivaled brightness that banishes darkness. This premium light bar includes 2Banger Pods, universal end-mounts, and all necessary hardware for easy assembly. Choose from the 2Banger NCS for maximum value or the HXB for peak performance, both boasting Osram LEDs for exceptional power. Whether straight or curved, its adjustable design fits any application, perfect for bumpers, grilles, or roof racks. Engineered for intense illumination, the BangerBar combines combo, spot, and wide beam pods with cutting-edge Nichia and Osram LEDs. Experience superior visibility in all conditions, thanks to weather-resistant construction and high-efficiency thermal management. Upgrade your ride with the Morimoto BangerBar – setting a new standard in lighting, delivering unmatched reliability, power, and style.

FEATURES & BENEFITS

  • Customizable Brightness: Tailor the BangerBar's power to your preference for perfect visibility.
  • 2 Versions: Choose NCS or HXB for tailored performance.
  • Precision Design: CNC aluminum links ensure a perfect fit, straight or curved.
  • Advanced LEDs: Equipped with Osram LEDs and 2Banger Pods for exceptional lighting.
  • All-Weather Reliability: IP69K rated, copper DTP PCB – dependable in any conditions.

WHAT’S INCLUDED

  • LED Pods: 2x Morimoto 2Banger Spot (White or Yellow)

  • LED Pods: 6x Morimoto 2Banger Combo (White or Yellow)

  • LED Pods: 4x Morimoto 2Banger Wide (White or Yellow)

  • Pod Links: 11x 2Banger Adjustable CNC Links w/ Hardware

  • Center Support Legs: 2x Adjustable Central Support Legs w/ Hardware

  • Universal Mounting Feet: 2x Adjustable Surface Mounts w/ Hardware

  • Relay Harness: 1x Morimoto Switched Power Harness

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (raw): 10,800lm (NCS), 24,000lm (HXB)

  • Intensity (HXB White): 555,800 Cd (5,558 lux @ 10m)

  • Intensity (HXB Dual Color): 547,200 Cd (5,472 lux @ 10m)

  • Intensity (HXB Yellow): 367,700 Cd (3,677 lux @ 10m)

  • Intensity (NCS White): 356,100 Cd (3,561 lux @ 10m)

  • Intensity (NCS Dual Color): 348,600 Cd (3,486 lux @ 10m)

  • Intensity (NCS Yellow): 184,200 Cd (1,842 lux @ 10m)

  • Power (stabilized): 162.0w (NCS), 288.0w (HXB)

  • Current (amps @ 13.5V DC): 18.00A (NCS), 21.33A (HXB)

COMPATIBILITY

  • Universal: Mounts anywhere w/ included mounting Feet

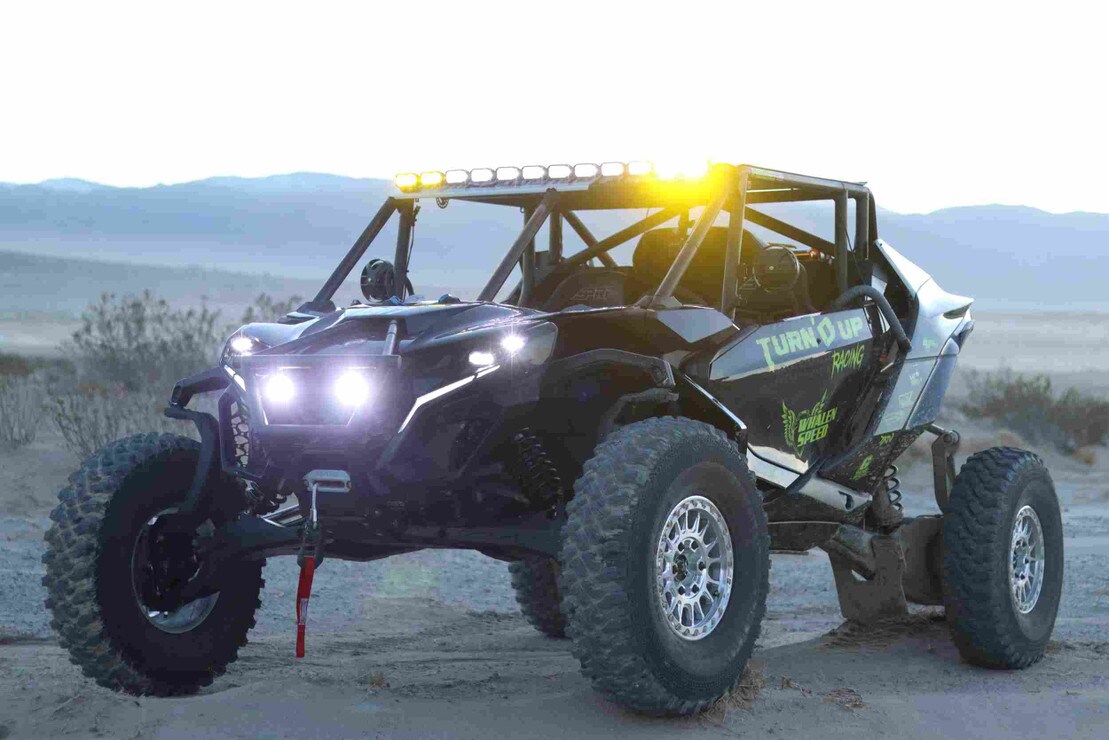

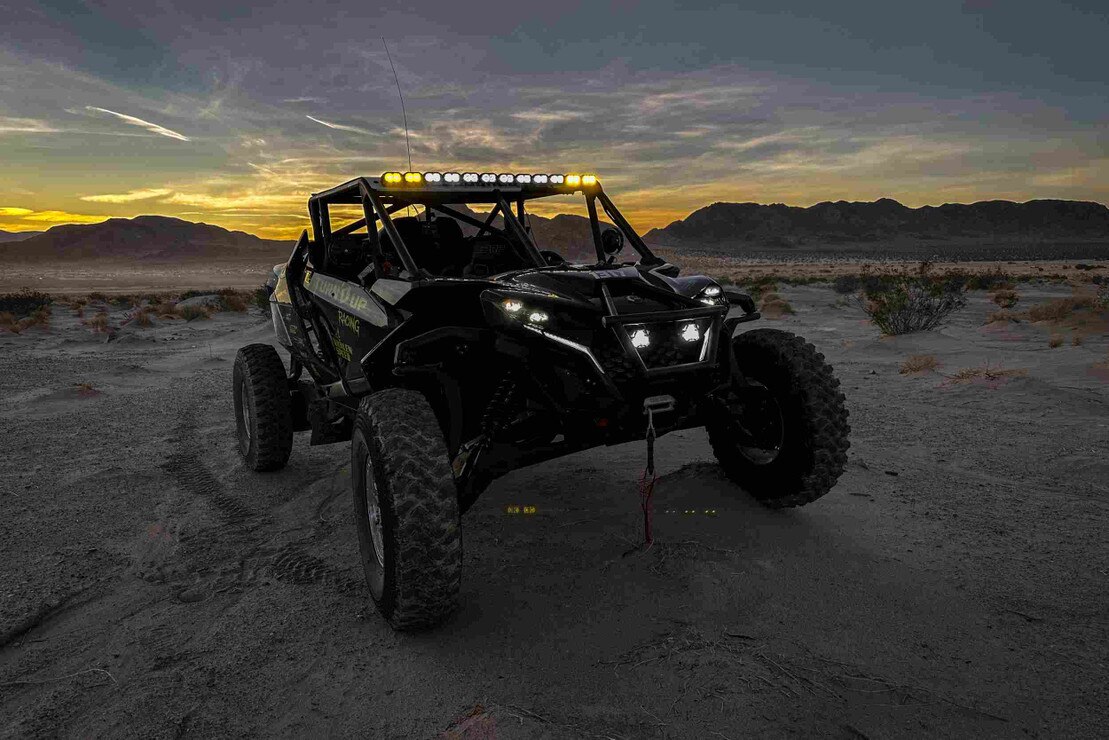

  • Ideal for: Steel Roof Racks and Bumpers

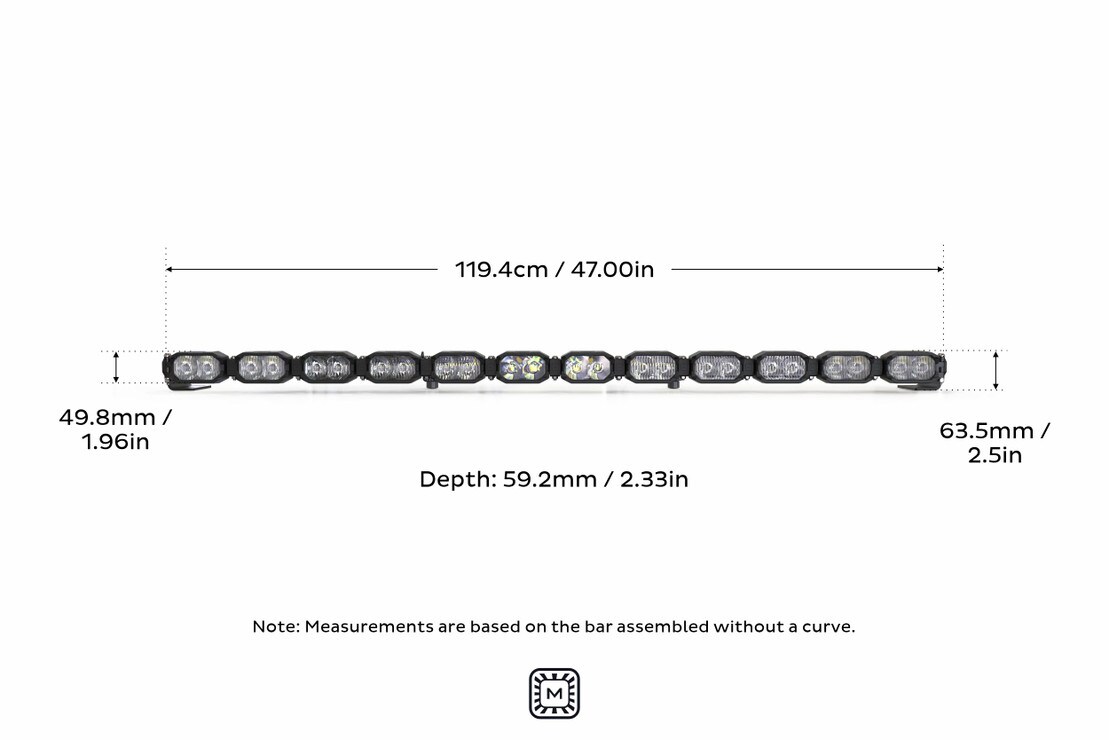

  • Width: 119.4cm / 47.00in

  • Height: 49.8mm / 1.96in

  • Depth: 59.2mm / 2.33in

  • Weight: 8.50kg / 18.73lb

  • Mounting Width Range: 44.38-49.88" / 112.73-126.70cm

INSTALLATION DOCUMENTS

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. The Single row BangerBar continues that tradition as a bespoke light bar, where you spec the power. You spec the color. You spec the length. You set the radius. And then you destroy the darkness. Every bar is pre-spec'd with the 2Banger Pods, the inner links, a set of universal end-mounts, and all the hardware necessary to assemble.


2Banger NCS and HXB: The 2Banger is extremely low profile, making them the perfect platform for the single row BangerBars. The NCS version provides maximum bang for the buck and out-performs most everything else in their class. The HXB version sits at the top of the performance totem-poll, produces maximum output. With the latest LED chips from Osram inside, each pod is a serious powerhouse of its own.

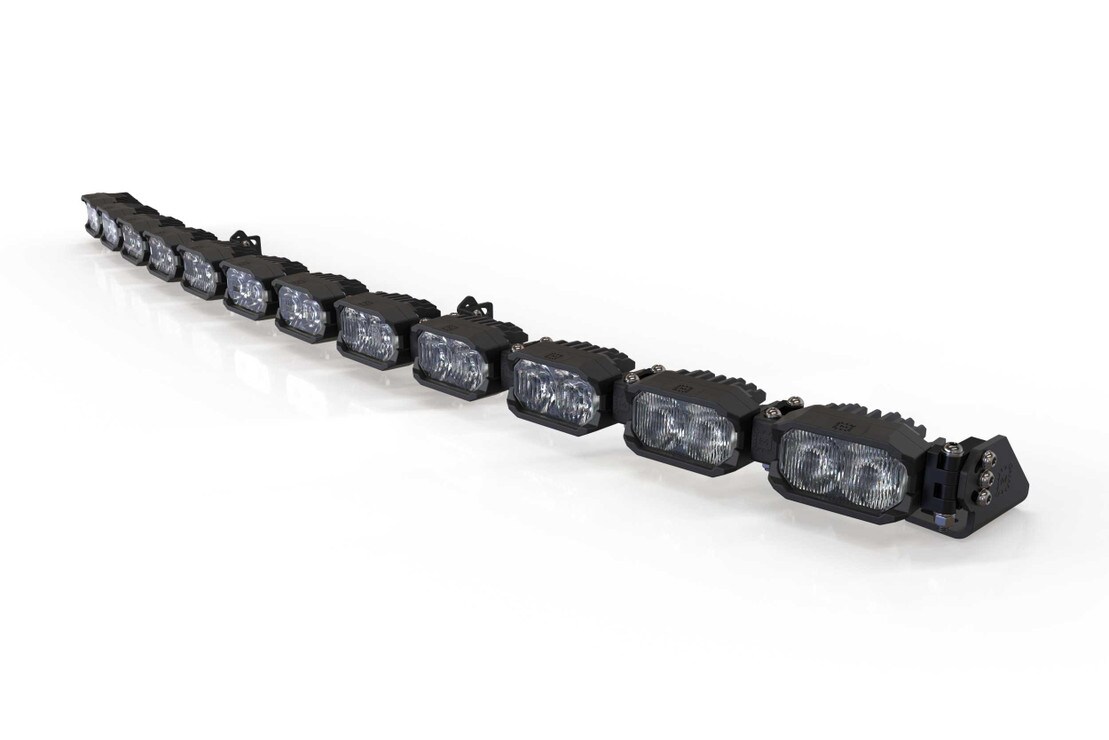

Straight or Curved: Here, you have a full range of adjustability. The entire bar can be setup either straight or curved from the end to end. It can also be setup straight in the center, and angled only on the outer edges. The beefy, CNC machined aluminum links are all independently adjustable, allowing you to dial it in for every application. They are a perfect addition to any front bumper, grille, or roof rack.


Performance: The Single Row BangerBars are configured to pack some serious punch by pairing our combo, spot, and wide beam pods into a high output light bar. LucidShape and SolidWorks were used to optimize both optical and thermal performance around the most modern, lumen-dense LEDs from Nichia and Osram. With two performance tiers, white, yellow or a white/yellow combo setup, there is a single row BangerBar to suit every performance need and driving style.


Intensity and Coverage: The Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The wide optics produce a very wide beam that drastically improves visibility off to the sides of the road. The spot beam Illuminates well into the distance and features a highly focused 5-degree hot spot, making it the perfect weapon for long range visibility. While each of these easily does the job on its own--nothing will compare to their coverage when combined.

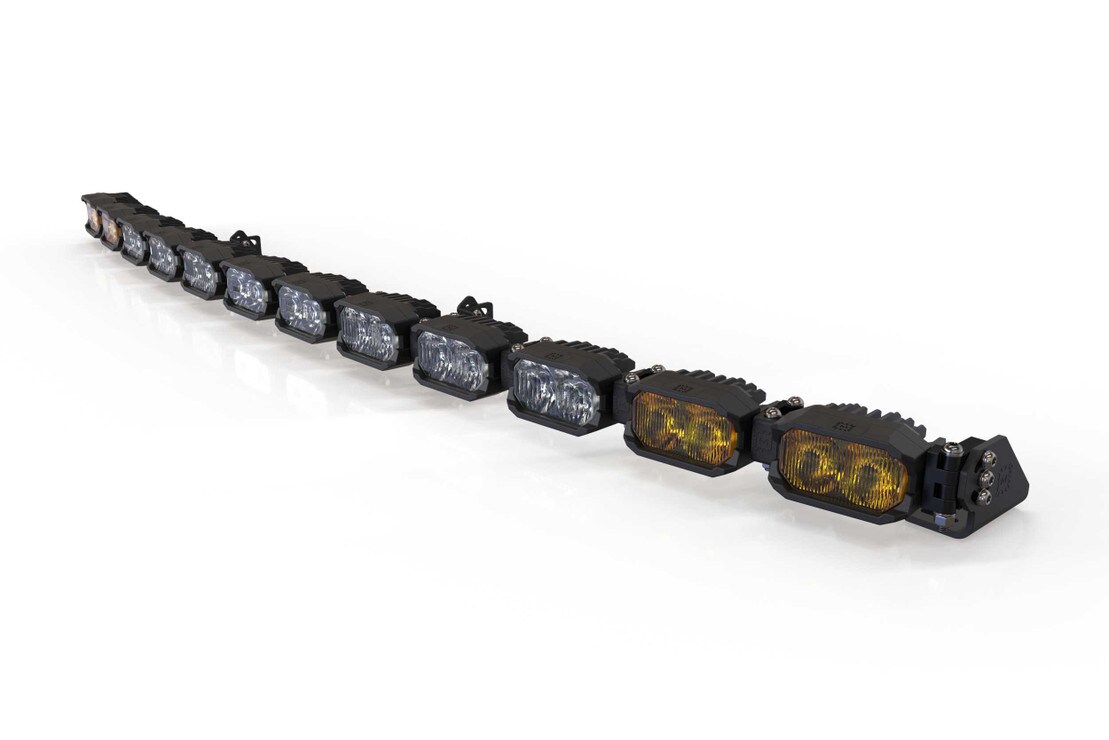

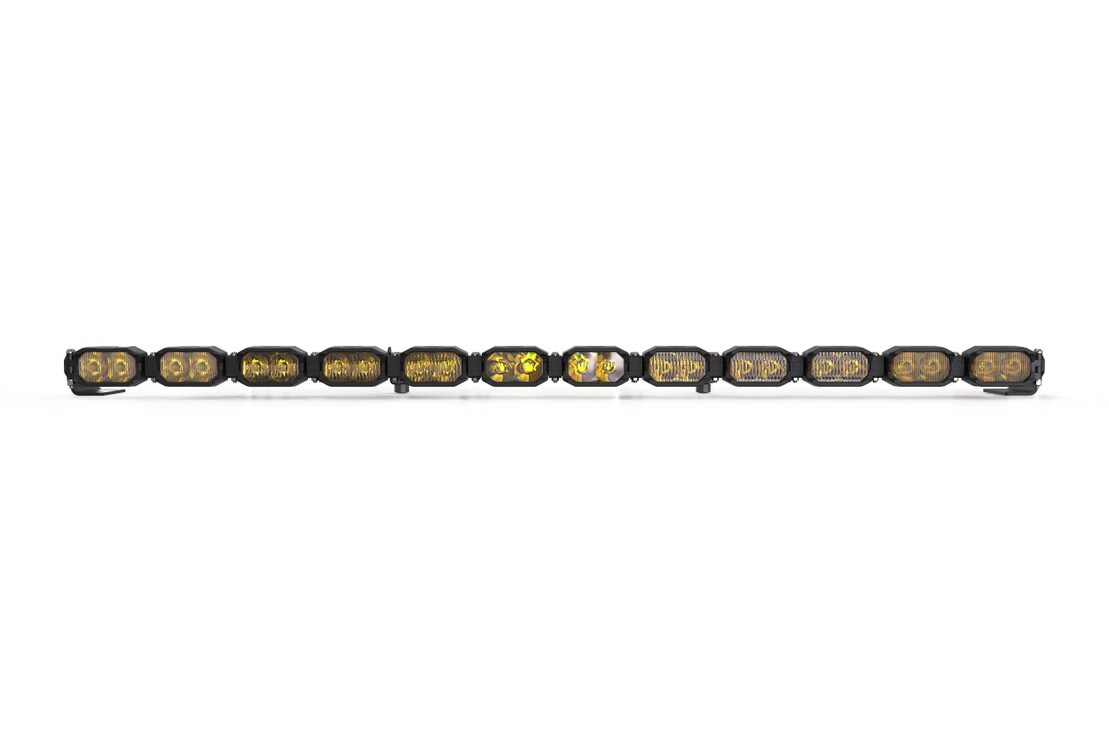

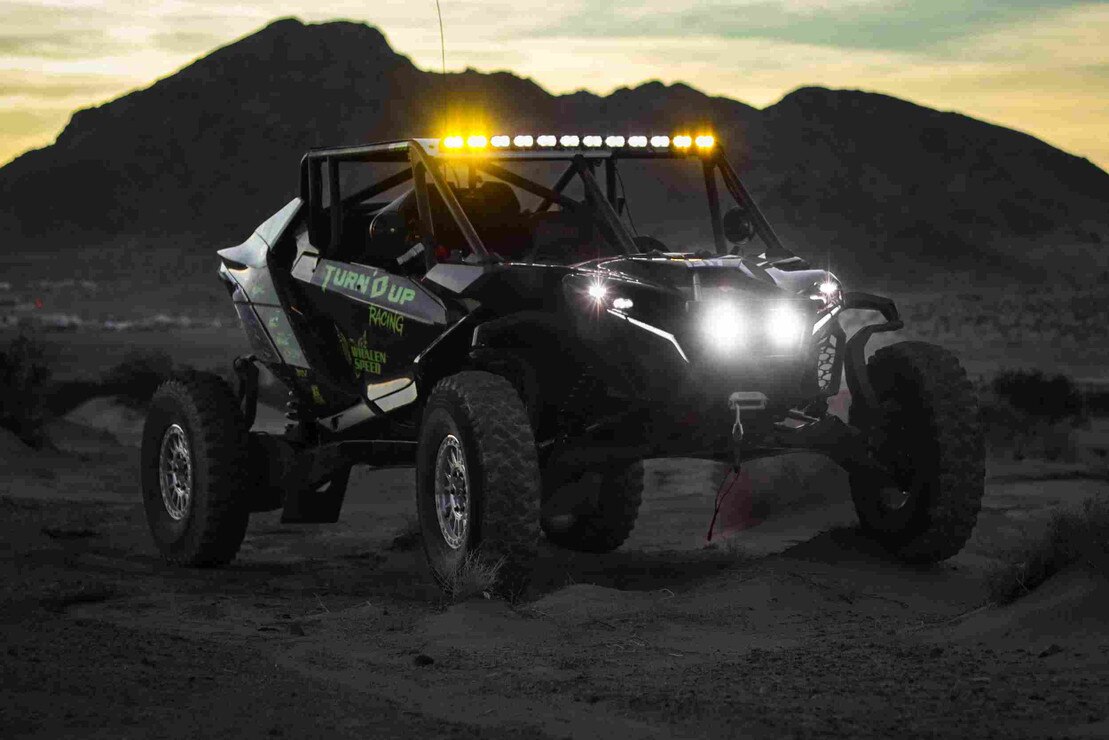

All Weather: The white-output version is ideal for maximum-visibility in the middle of the night. For those who desire optimal output in rain, snow, or fog; the Yellow-output version will slay in shady weather--and if you are ready to roll rain or shine, go with the white/yellow combo; where we spec yellow optics that are ideal for nearfield visibility and white output for central illumination.


Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 2Banger pods features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves all designed according to IP69K standards for full weather resistance. All BangerBar hardware is CNC machined from solid aluminum and then protected with a dual-layer anodized finish. Your roof rack will rip off your truck before the BangerBar fails.


Power Up: The Morimoto BangerBar has been developed from the ground up to set a new standard in their segment, and the same goes for the wire harness that comes included. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder. DT06-2S female outputs with dual seals. Proprietary M-Spec push button switch with Amber-LED backlight is wired with a quick-disconnect for an easy installation into the cabin. The harness can be setup to control all pods together, or the inner and outer pods independently.
