DESCRIPTION
FEATURES & BENEFITS
- Unique Design: Inspired by the Mk6 GTI's "eyelid" style for a sleek appearance.
- Durable Construction: High-quality plastic with a resilient metalized chrome finish for longevity.
- Secure Fit: Optional centric rings ensure a stable fit on various projectors.
- Stability Enhancement: JB Quik Weld prevents shrouds from vibrating loose over time.
- Easy Integration: Effortless trimming allows seamless integration into different headlight housings for customized retrofitting.
WHAT’S INCLUDED

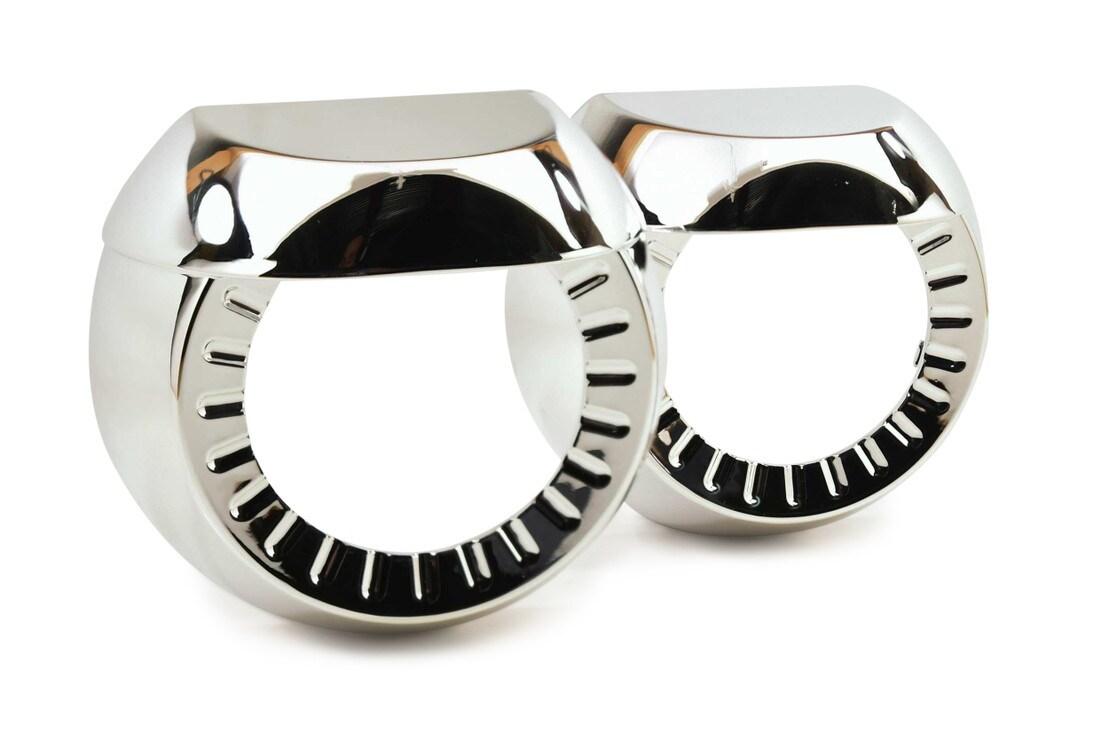

Shrouds : 2x (One Pair) GTi-r 2.0 Projector Shrouds
Optional Accessories : Centric Rings and Halos
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
Dimensions : 123mm W, 113mm H, 62mm D
Finish : Forever Finish Chrome
Material : High Temp Resistant Polycarbonate
LINE DRAWINGS
COMPATIBILITY
MORIMOTO PROJECTORS : All except Matchbox
OEM PROJECTORS : Most except TL, LS430, LS460, Q45
LENS DIAMETERS : 2.5in and 3in Compatible
MOUNTS WITH : Centric Rings and/or JB Quik Weld
INSTALLATION DOCUMENTS
GTi-R 2.0: The Mk6 GTI brought us many treats, this unique "eyelid" shroud design included! Want OEM+? Here you are!
In Comparison: Don't make the mistake of thinking all shrouds are created equal. Even though less expensive alternatives may be available elsewhere: Morimoto shrouds are made from the highest quality plastic and have by far the most durable metalized chrome finishes. The cheap-o's out there are flimsy enough to deform from the heat just a 35W HID bulb, and their chrome finish easily flakes off.
Mounting: Centric Rings are not included by default, but are highly recommended to improve ease of installation on many projectors. The Centric Rings are simple reducers that clip into the shroud to reduce the inside diameter, making them more of a "press fit" onto the lens holder of the projector. JB Quik Weld is also recommended in order to prevent the shrouds from vibrating loose over time.
Trimming: Please note that trimming shrouds is a common task when retrofitting. Whether required to clear part of the projector, or fit within the geometry of your headlight housing; it's normal. Luckily, they're made of plastic - making that easily possible. We recommend a Dremel hand tool with EZ Lock cutting wheels to make the job easy.
