Toyota Tacoma (16-23) Headlight & Tail Light Combo

(0) No Reviews yet
Questions?

Brand: Morimoto

B-BND-2016TACO-HR

$2,081.65 Original Price:$2,449.0015% OFF

PRODUCT OPTIONS

PART #: 1 x HEADTAILKIT57



*Guaranteed Fitment
Easy Return

DESCRIPTION

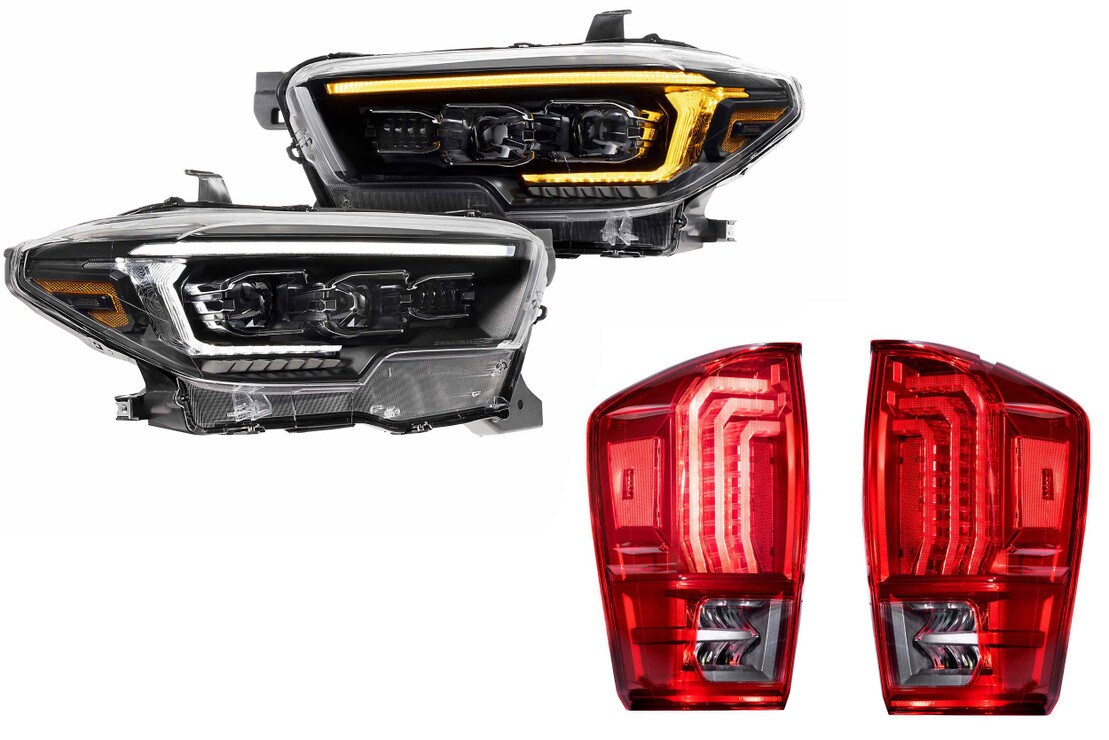

Upgrade your Toyota Tacoma with the ultimate Morimoto lighting bundle, featuring the XB Evo headlights, XB Evo Hybrid headlights, and XB LED Tail Lights for unmatched performance and style. The XB Evo headlights are packed with advanced features, including a patent-pending heating system to minimize frost buildup in winter, customizable DRLs and turn signals, and multi-stage illumination for a unique lighting effect. Built to last with superior quality, these headlights are backed by a five-year warranty. The XB Evo Hybrid headlights offer a more affordable option without sacrificing performance. Featuring the same Bi-LED projectors as the premium model, they deliver an incredibly bright low beam and powerful high beam. Powered by OE-grade LEDs from Nichia, these headlights also come with a five-year warranty, ensuring long-lasting performance at a great value. The Morimoto XB LED Tail Lights add the perfect finishing touch, combining style and functionality. With easy plug-and-play installation, integrated TIR optics, amber turn signal illumination, and high-output LED reverse lights, these tail lights enhance safety and visibility. Built with durable, UV-treated polycarbonate and ABS housing, they're designed to withstand the elements for years to come. This bundle delivers a complete, high-quality lighting solution that enhances both your Tacoma's appearance and safety.

FEATURES & BENEFITS

  • XB Evo Headlights: Feature frost-reducing heating, customizable DRLs/turn signals, and a dynamic startup sequence for style and performance.
  • XB Evo Hybrid Headlights: Offer bright Bi-LED projectors and Nichia LEDs for high output at a more affordable price.

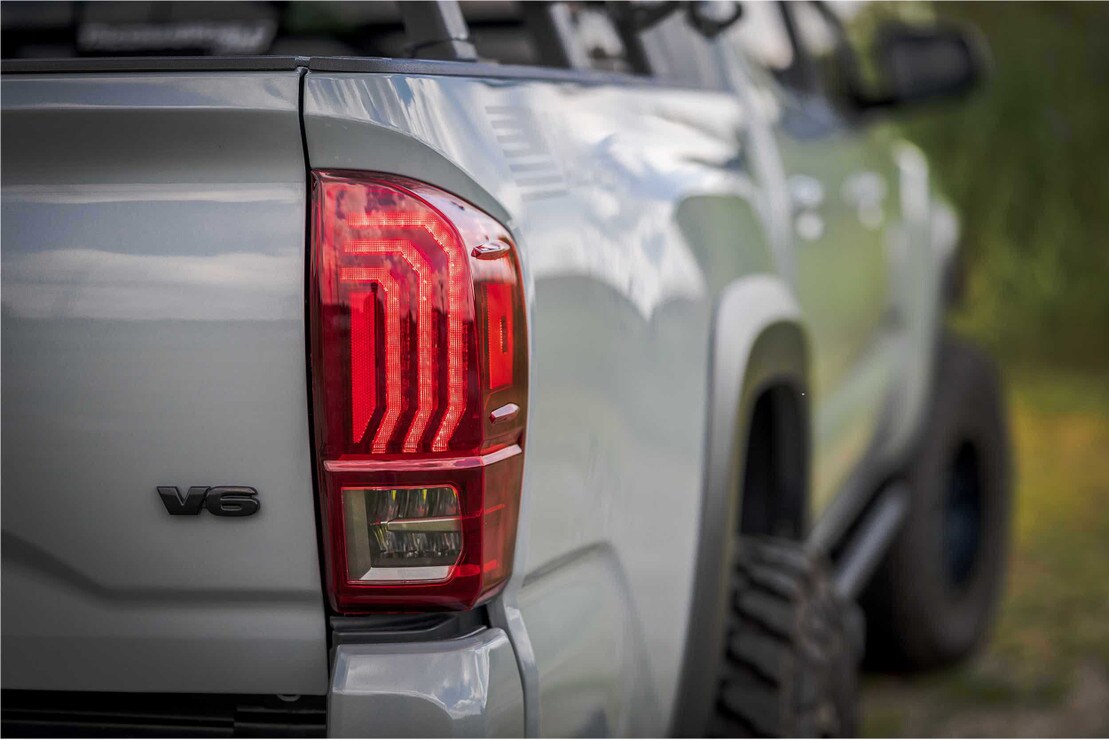

  • XB LED Tail Lights: Include amber turn signals, LED reverse lights, and enhanced visibility with TIR optics.

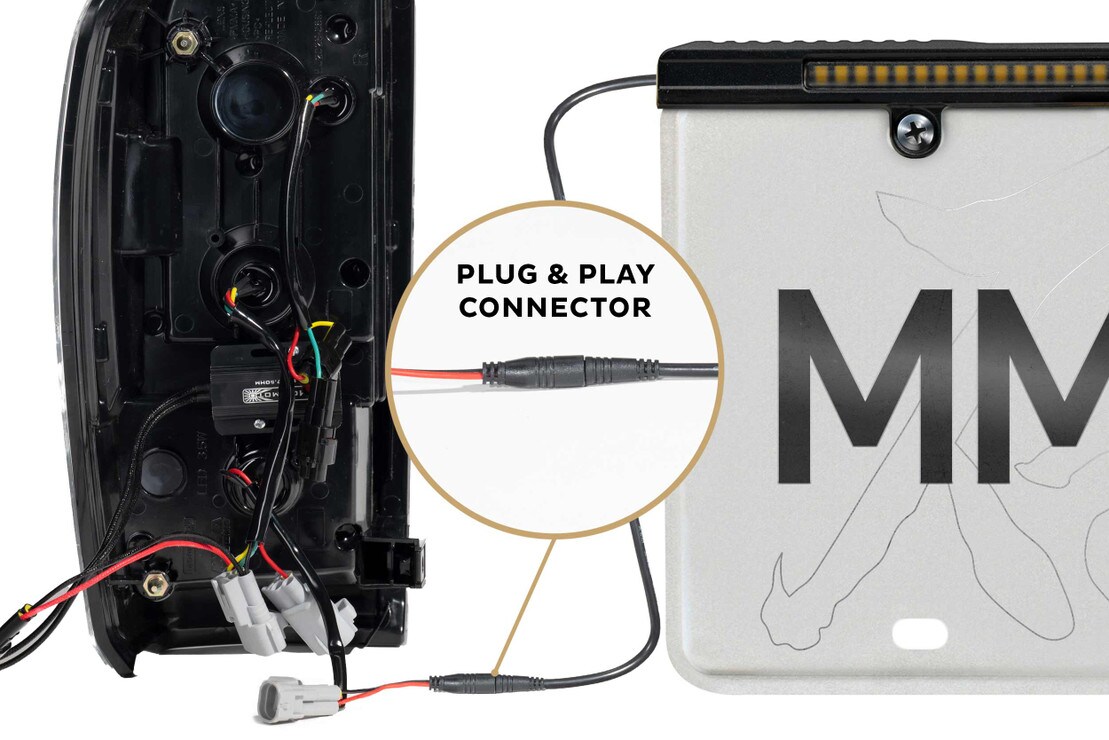

  • Easy Installation: Plug-and-play design with durable construction for long-lasting reliability.
  • 5-Year Warranty: All components are backed by a 5-year warranty for peace of mind.

WHAT’S INCLUDED

  • Headlight Choices:

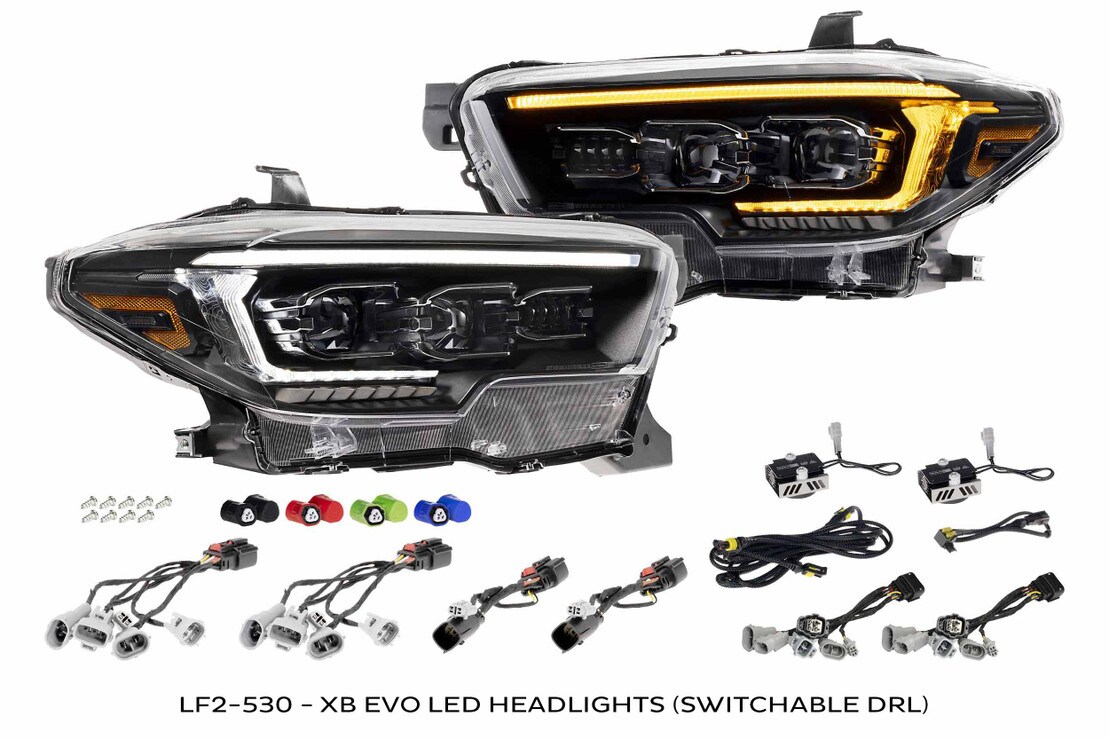

    Morimoto XB Evo LED Headlights: 16-23 Toyota Tacoma (White/Amber DRL) Click for Details

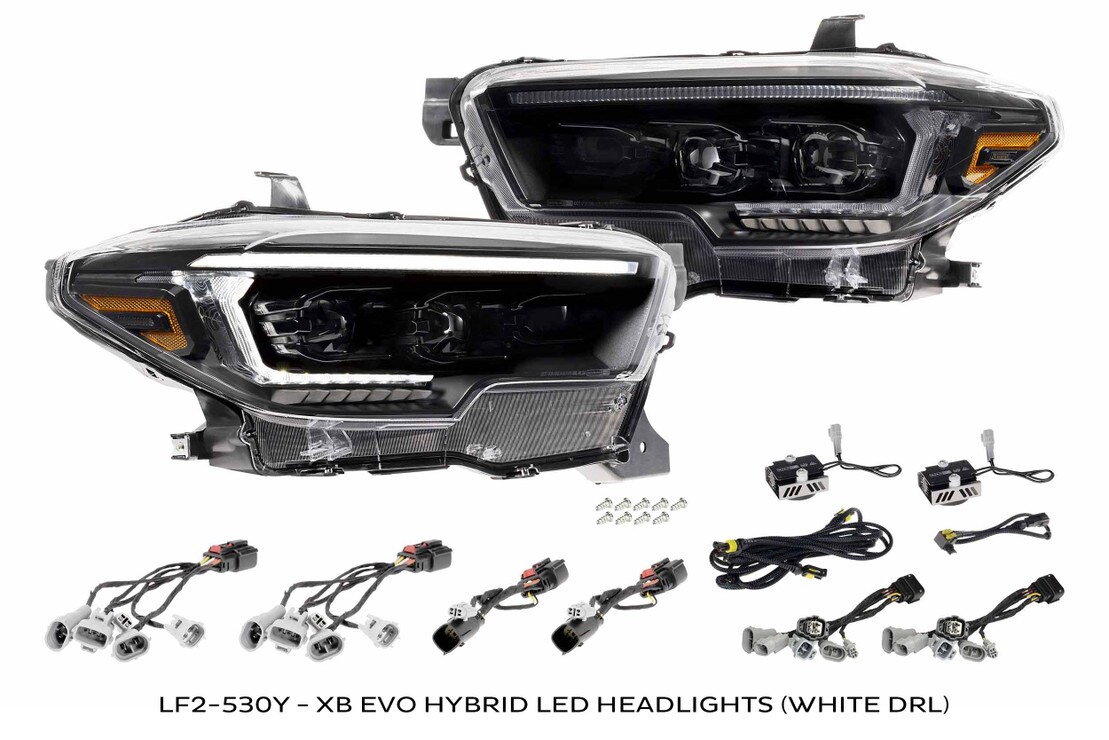

    Morimoto XB Evo Hybrid LED Headlights: 16-23 Toyota Tacoma (White DRL) Click for Details

  • Tail Light Choices:

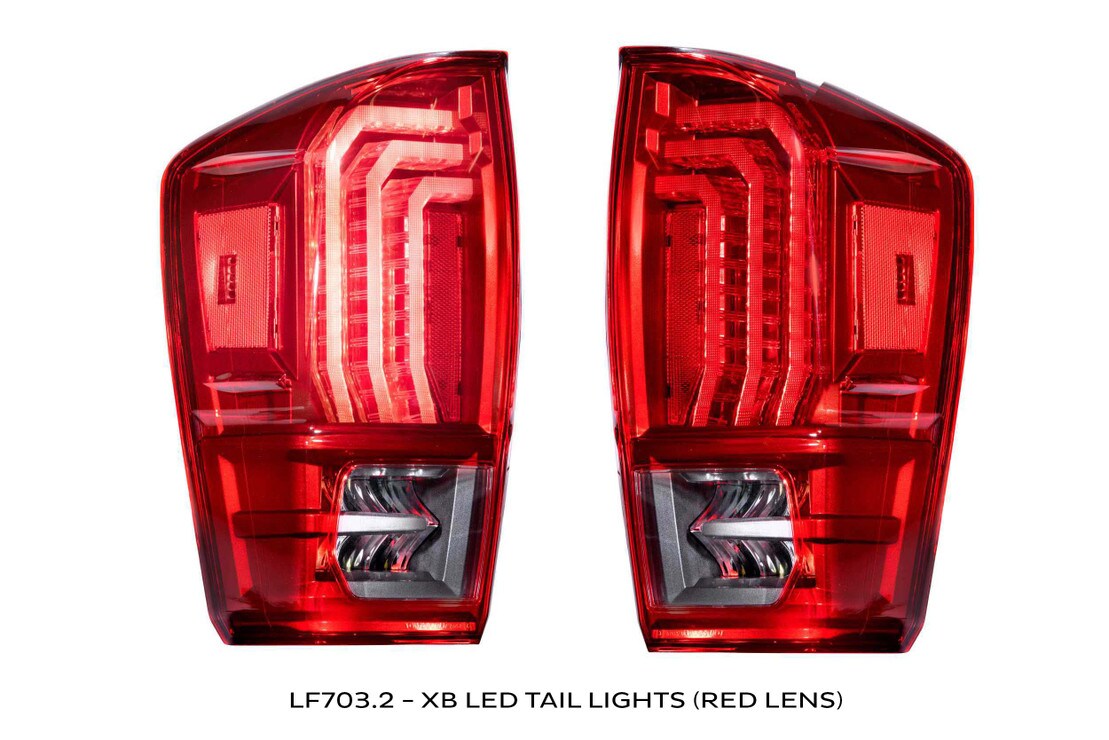

    Morimoto XB LED Tail Lights: 16-23 Toyota Tacoma (Red Lens) Click for Details

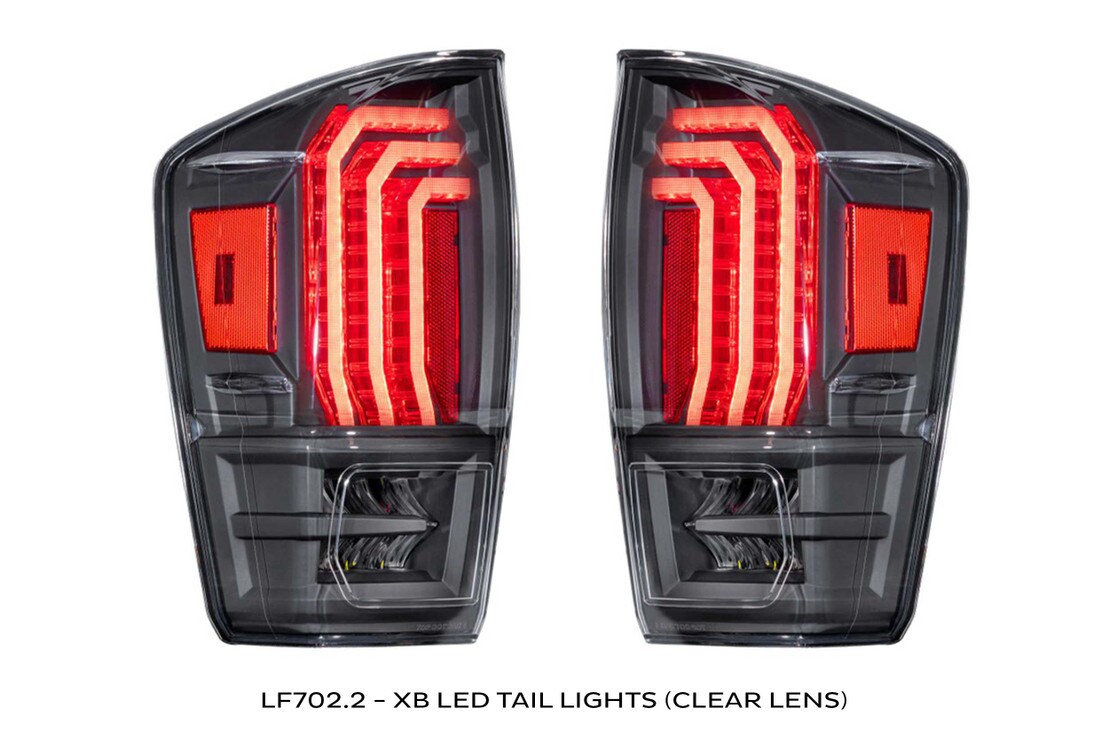

    Morimoto XB LED Tail Lights: 16-23 Toyota Tacoma (Clear Lens) Click for Details

WARRANTY INFORMATION

This Morimoto product includes a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Headlights:

  • Traffic Pattern: LHD / Right Hand Traffic Only

  • Output (Standard Drivers): DOT (FVMSS108) Compliant (LB2V and UB2)

  • Output (Supercharged Drivers): Non-Compliant

  • Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)

  • High Beam Assist: 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)

  • Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating

  • Turn Signal Modes: Sequential or Fade Off (Integrated)

  • DRL Colors: White or Amber (Integrated)

  • DRL/Signal Optics: Glass-like 3D TIR Optics with Topography sidewall pattern

  • Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans

  • Internal Finish: Two-Tone Piano Black and Titanium w/ contrasting textures

  • Side marker: Amber side reflex reflector (DOT compliant)

  • Wiring: Plug n Play for all sub-models within model year range

  • Lens Details: Polycarbonate with UV-Shield Hard coating (Exceeds OE Toyota benchmark)

  • Tail Lights:

  • Input: Toyota Multi-Pin OEM

  • Material: ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)

  • Light Source: SSC LED

  • Brake Light: Red (Bright)

  • Parking Light: Red (Dim)

  • Turn Signal: Amber

COMPATIBILITY

  • Toyota Tacoma: 2016-2023 (SR, SR5, TRD Sport, TRD Off-Road, Limited, Trail Special Edition, and TRD Pro)

  • Compliance: Meets all DOT, SAE and FMVSS108 Standards*

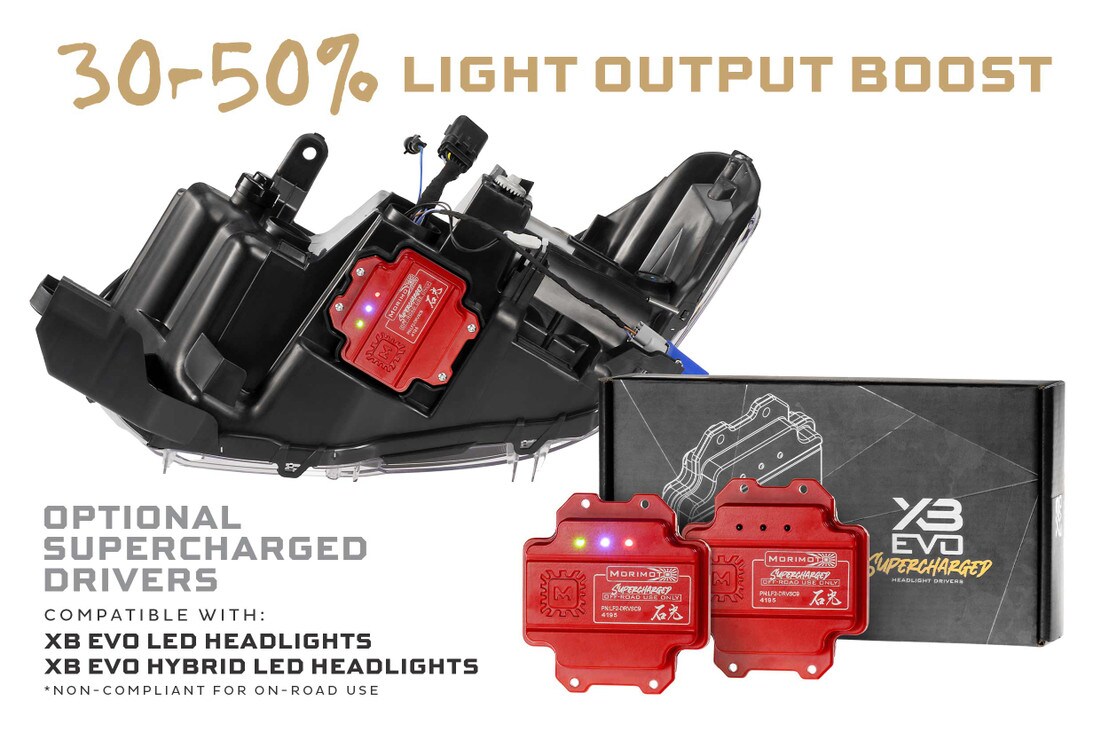

  • Supercharged Drivers: LF2-DRVSC9*

  • *NOTE: Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.

  • Replaces Toyota Part #: 8115004270, 8111004270, 8115004280, 8111004280, 8115004250, 8111004250, 8115004260, 8111004260, 8156004170, 8155004170, 8156004180, 8155004180, 8156004190, 8155004190, 8156004200, 8155004200, 8156004181, 8155004181, 8156004230, 8155004230, 8156004210, 8155004210, 8156004220, 8155004220, TO2800197, TO2801197, TO2800198, TO2801198, TO2800199, TO2801199, TO2800201, TO2801201, TO2800203, TO2801203, TO2800207, TO2801207, TO2800206, TO2801206, TO2800205, TO2801205

  • NOTE: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

COMPLIANCE

Meets all DOT, SAE, and FMVSS108 Standards. *NOTE: Installation of Optional Supercharged Drivers in headlights results in non-compliant intensity. Not for on-road use in USA or Canada.
