LED License Plate Reverse Light Bar for 2009-2018 Dodge Ram

2 Reviews

Brand: Headlight Revolution




PART #: 1 x XD.LED400, 1 x WP322

*Guaranteed Fitment
Easy Return


Introducing the Dodge Ram Red XTR LP LED License Plate Reverse Light Bar – your ultimate solution for enhanced rear visibility. Upgrade your taillight bulbs to high-power LEDs and take it a step further with our license-plate-mounted LED light bar. Say goodbye to limited visibility while reversing – our easy-to-install reverse light boost bar attaches seamlessly to your factory Ram license plate bolts. Designed for 2009-2018 Ram 1500, 2500HD, and 3500HD models, it's a game changer that ensures safer maneuvers. With 54 CREE J Series 2835 LEDs and an engineered beam pattern, you'll experience unmatched brightness and coverage. Don't settle for less – invest in the XTR LP for a safer driving experience.


  • Enhanced Visibility: Upgrade your reverse lights for superior rear visibility.
  • Easy Installation: Attaches effortlessly to factory Ram license plate bolts.
  • High-Power LEDs: Equipped with 54 CREE J Series 2835 LEDs for unmatched brightness.
  • Optimized Beam Pattern: Engineered beam pattern ensures maximum coverage.
  • Wide Compatibility: Designed for 2009-2018 Ram 1500, 2500HD, and 3500HD models.

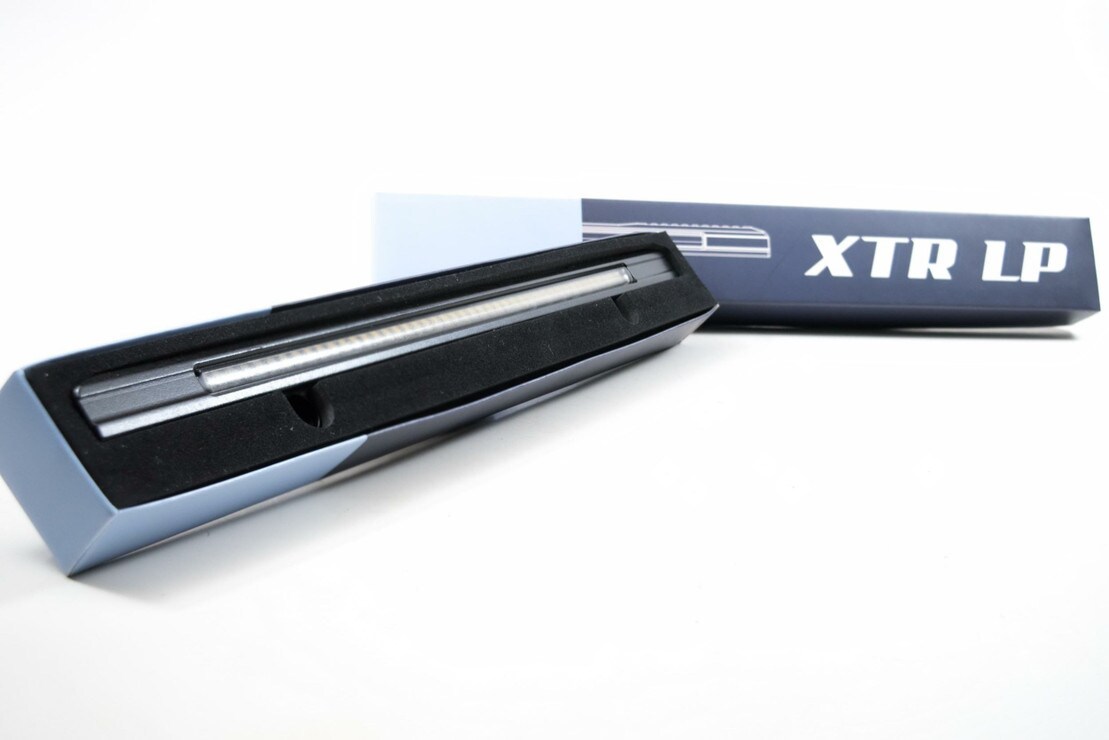

  • Reverse Light: 1x XTR LP LED Reverse Light

  • Wiring: 1x Power Tap Kit


This product includes a 5 Year limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.


  • Intensity: 2,700lm (Raw), 1,950lm (Effective)

  • Power: 29w

  • Optic: -30deg to +15deg vertical range


  • Dodge Ram: 2009-2018

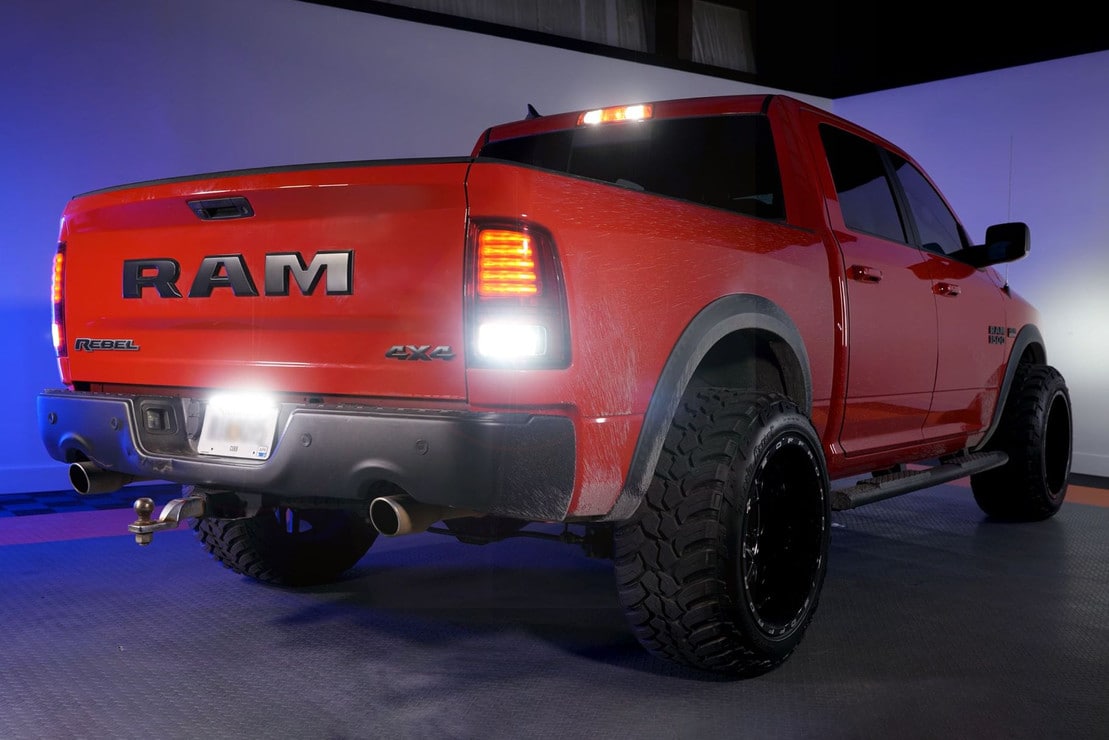

2009-2018 Dodge Ram Red XTR LP LED License Plate Reverse Light Bar: When it comes to better light output from your Dodge Ram reverse lights, upgrading your taillight bulbs to high power LED is a no-brainer! but if you're like most people who want to see everything behind them, adding a license-plate-mounted LED light bar is really the icing on the cake! If you've ever wished you could see better in reverse this is the solution. Our reverse light boost bar is easy to install on your factory Ram license plate bolts and installs by connecting the two wires to the factory reverse bulb wiring behind one of your taillights. Whether you use your Ram to pick up the kids from school, or tow a boat to the lake, this HR Tested LED Reverse Light Bar is a game changer and you'll never want a truck without one again!

This reverse light light bar is almost as bright as your stock headlights, so you know it packs a punch and installs on any 2009 - 2018 Ram 1500, 2500HD or 3500HD in less than 30 minutes with basic hand tools. Watch the video above for a full step by step guide on how to do the install yourself.

Back it Up: Up front we've already got bright low beams, high beams, and fog lights, but too often overlooked is our ability to see well while backing up in the dark. While there are plenty of LED bulb upgrades out there for stock reverse lights; when it comes to a backup light boost there's simply no comparison to the XTR LP.

Engineered: The XTR LP is the only system on the market that leverages optical refinement over raw power to produce the perfect reverse light beam pattern. We started by understanding the most typical installation angles and then optimized the lens to distribute the most possible light in the most effective pattern. To pack a real punch, the XTR LP packs more than just a lot of LED's into a line on the back of car. It's a fully engineered product.

What's Inside: 54 CREE J Series 2835 LEDs rated at 4500K/80CRI. 180mA driver produces 29.9W of maximum power pumps out 2700 raw lumens that's translated into 1950 real lumens after transmission through the optical lens.

Technically Speaking: At a 10-degree mounting angle, the vertical range is -20 to +25 degrees. At the most typical 0-degree mounting angle, the XTR LP provides a -30 to +15 degree vertical spread, which easily exceeds the illumination range of any standard backup for spread. Users should acknowledge that this product far exceeds the legal limit for output volume in a reverse light application.

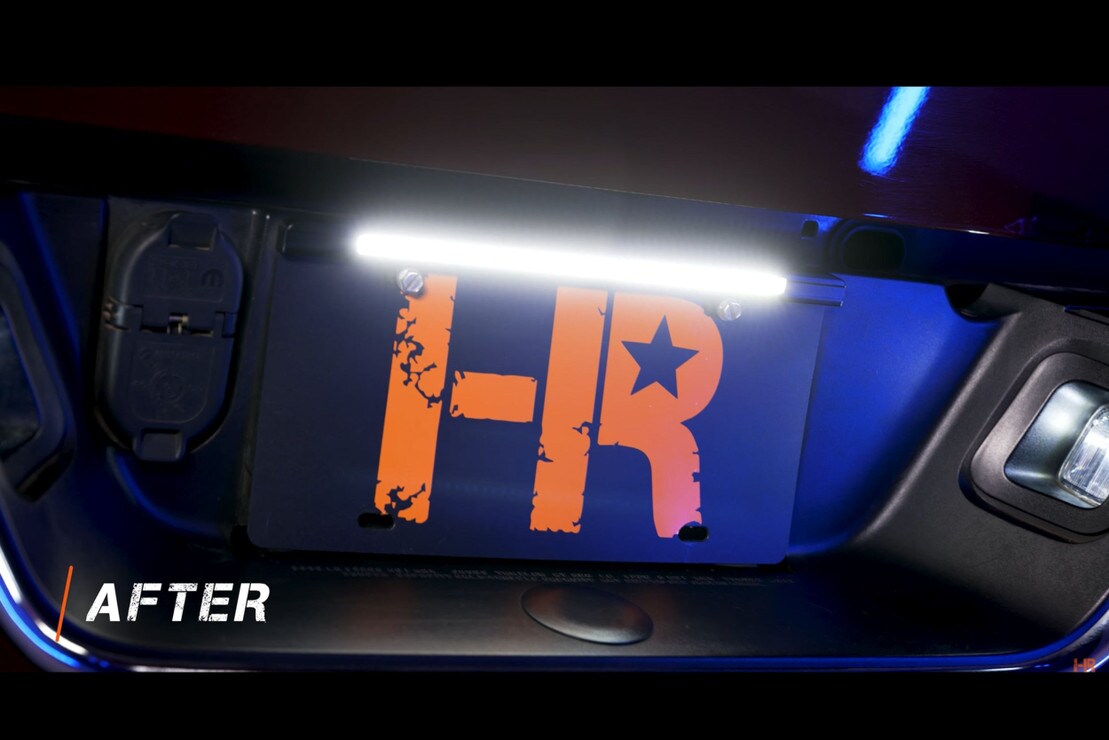

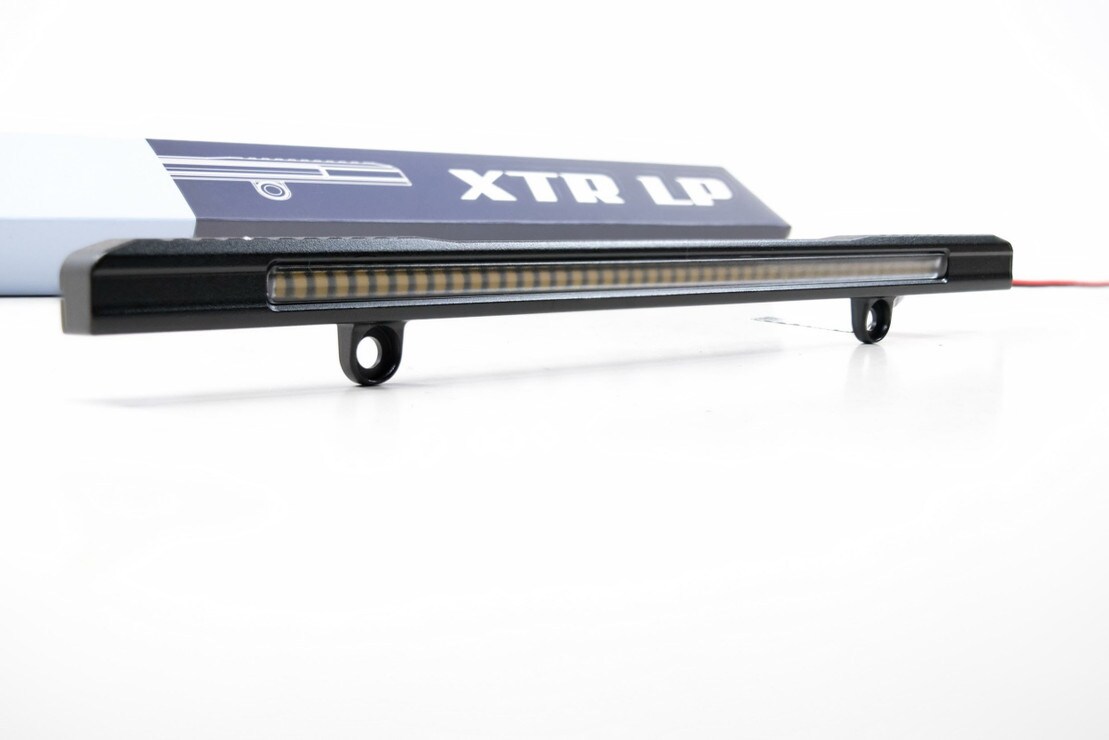

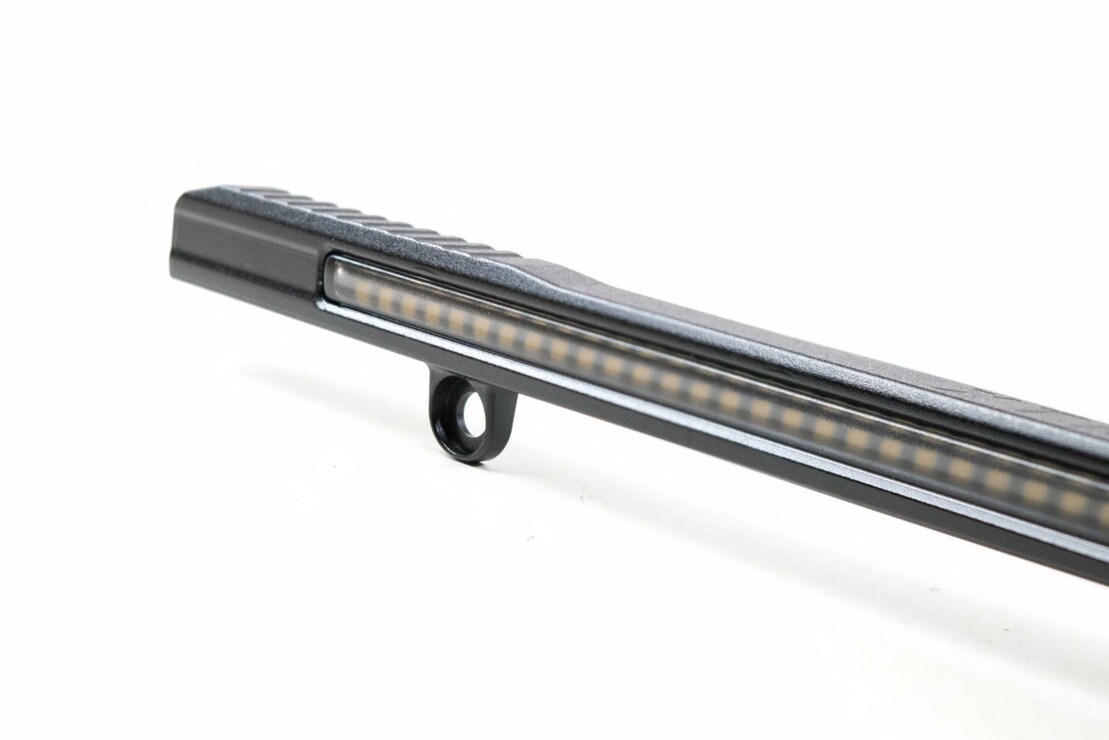

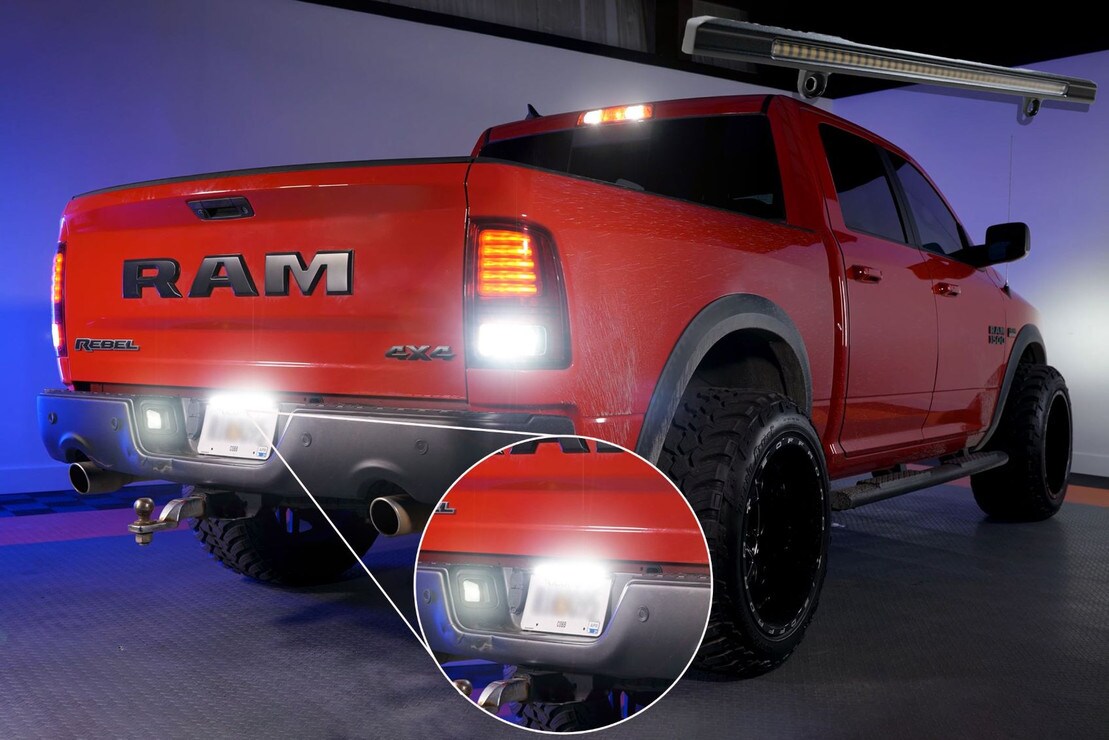

Bolt-On: The XTR LP will bolt onto your vehicle's top two license plate mounts. Its die-cast aluminum housing is contoured according to the geometry of US-spec license plates for a flush fit, and the mounting points are positioned according to the same universal standard. The system is finished in a satin black powder coat.

Wiring:The XTR LP is powered on with a simple +/- 12v circuit that's intended to tap in to your stock reverse light wiring. The system includes 1.5 meters of integrated wiring that can be trimmed back according to your application, a quick-disconnect for ease of install, and an integrated rubber grommet to keep moisture and dust out of a pass-through hole if necessary.

HR Tested: Here at Headlight Revolution, we've spent the time to install and test all HR Tested products, so we know it'll work exactly as shown and right out of the box! Not only that, but we don't favor one particular brand. We just deliver the best product for the application, period. Be sure to reference our install videos for helpful tips on making the installation process quick, painless, and clear. HR Tested: We ensure fitment and function. You do the install. For other compatible upgrades, use the Buyers Guide on our homepage!
