  • Lexus GX470 (03-09) 2Stroke 4.0 LED Low Beam Bulbs

Lexus GX470 (03-09) 2Stroke 4.0 LED Low Beam Bulbs

(0) No Reviews yet
Questions?

Brand: Headlight Revolution

B-HRT-0452-HR

$205.00

PRODUCT OPTIONS

PART #: 2 x LED2020



*Guaranteed Fitment
Easy Return

*Delivery times are estimated, NOT guaranteed. Every effort will be made to ship as soon as possible!

DESCRIPTION

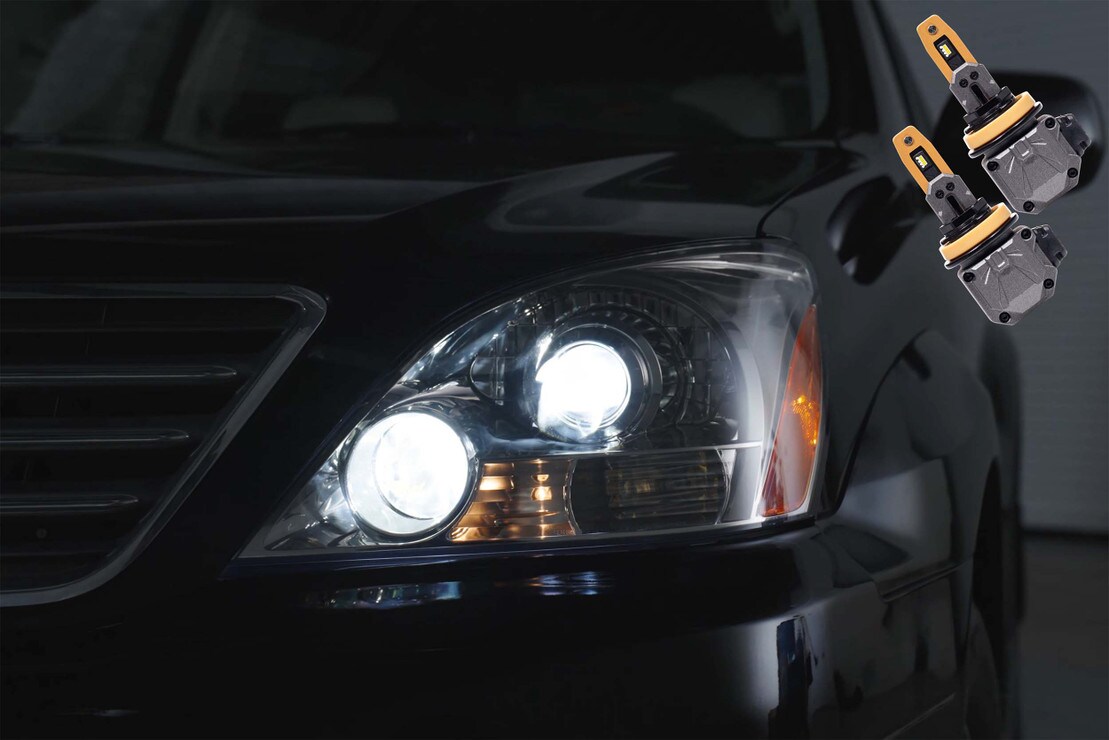

Introducing the H11 2Stroke 4.0 LED Bulb for the Lexus GX470: Revolutionize your driving experience with cutting-edge lighting technology designed specifically for your vehicle. Crafted after a year of relentless innovation, these bulbs redefine clarity and safety on the road. The 2Stroke 4.0 boasts unparalleled beam quality, replicating the original optics pattern of the Lexus GX470 while reducing glare for oncoming traffic. With a slender 1.45mm emission surface, advanced PCB technology guarantees optimal performance tailored for your Lexus GX470. Achieve precise beam distribution with the filament-sized accuracy of the 2Stroke 4.0, making every drive secure and well-lit. Its adjustable base accommodates the reflectors of the GX470, and the built-in cooling system ensures longevity, even in extreme conditions. Upgrade now and illuminate your Lexus GX470 journey with confidence.

FEATURES & BENEFITS

  • Better Visibility: More light on the road with less glare for other drivers.
  • Advanced Technology: Special ceramic circuit board and high-quality LED chips for a precise beam pattern.
  • Perfect Fit: Unique spring mechanism and 360-degree rotation for easy adjustment.
  • Efficient Cooling: Fast fan prevents overheating, ensuring long-lasting performance and better cold weather operation.
  • Consistent Performance: Gradual increase from 18W to 22.5W, made from high-quality materials with a lifetime warranty.

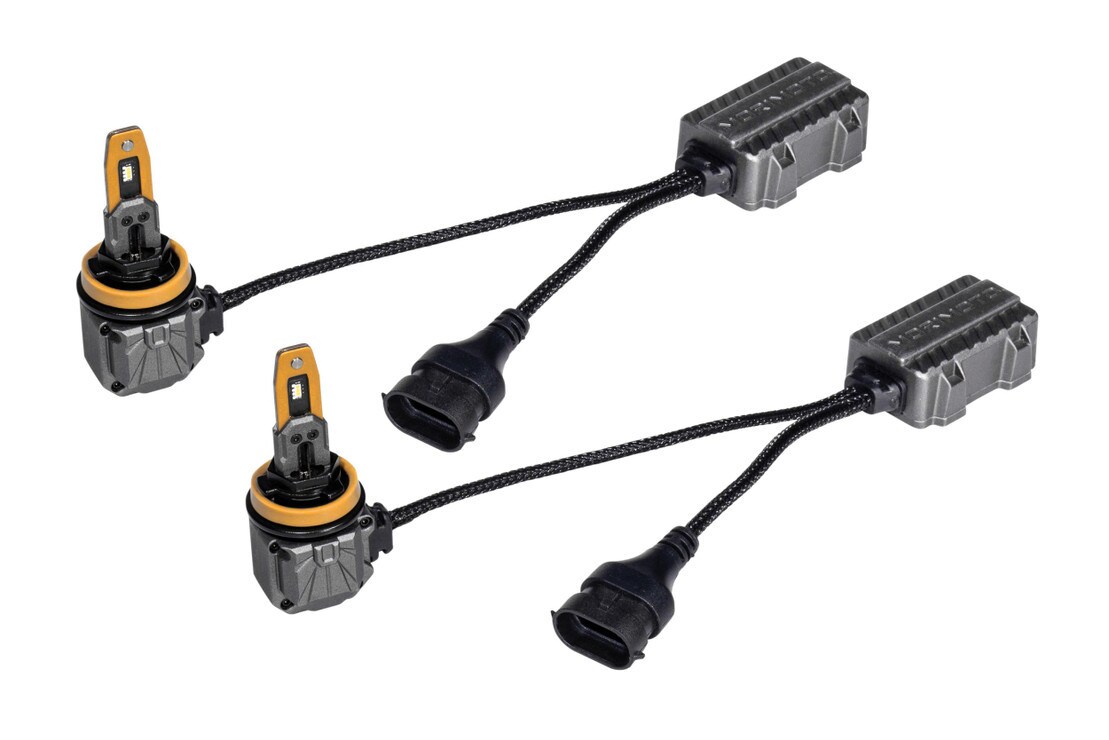

WHAT’S INCLUDED

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Luminous Flux: 2,600lm

  • Power: 18-22.5W

  • Input Voltage: 9V-16V DC

  • Material: Electroplated Aluminum

  • Current: 1.5-1.88A @ 12V DC

  • Light Source: Osram Oslon Black Flat S 5500K (Pure White)

  • Patent:US Patent #11079090 (Click for Details)

COMPATIBILITY

  • Lexus GX470: 2003-2009

  • Housings: Designed for, and confirmed to fit, Stock Housings

COMPLIANCE

APPLICATION: HID and LED bulbs are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country. For detailed clarification on street use, CLICK HERE
Note: This usage regulation is not unique to this item. All LED and HID bulbs from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA.

HOMOLOGATION ECE: NO

DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)

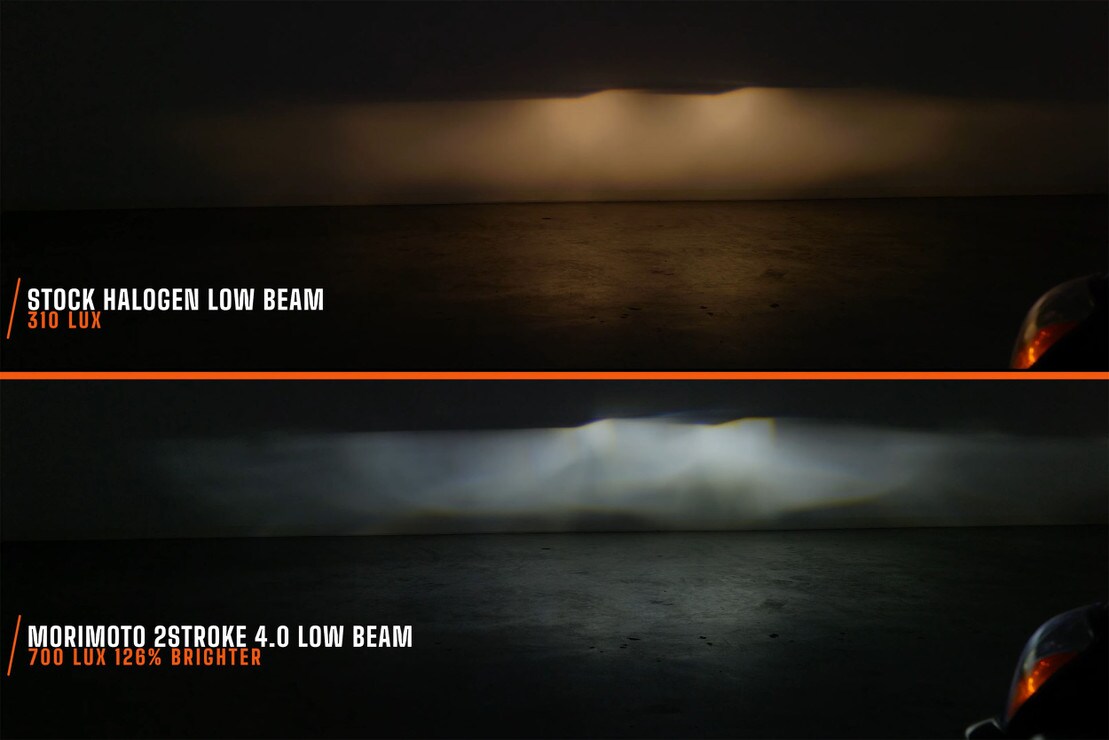

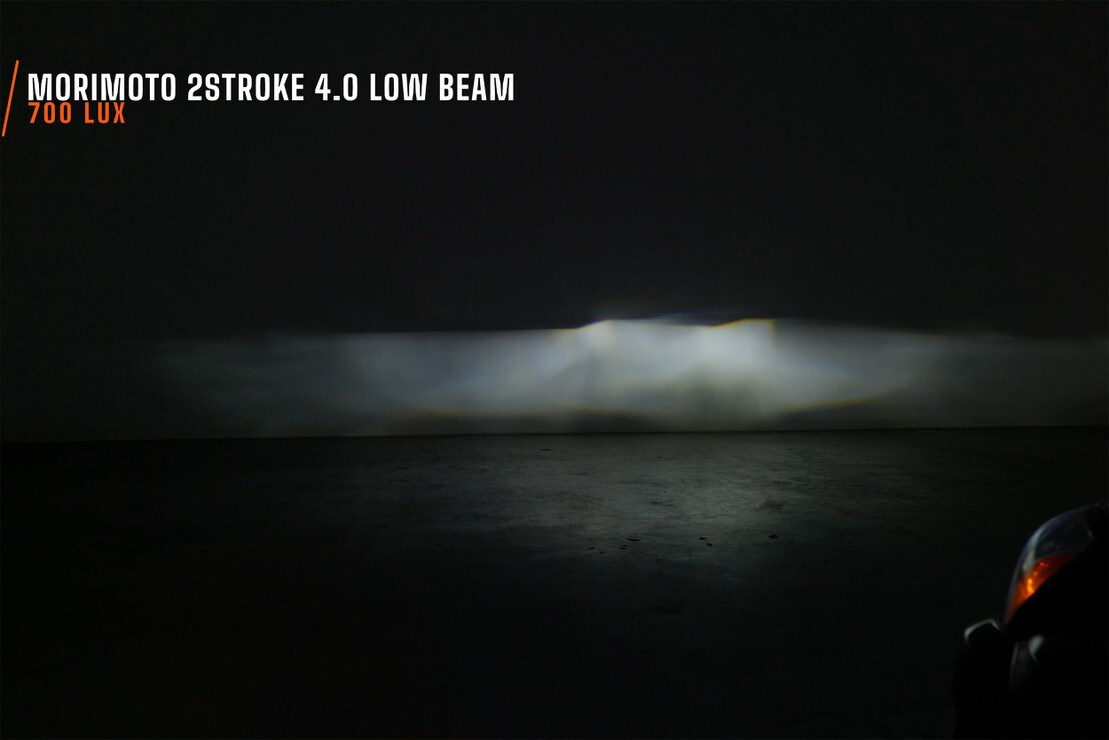

Benchmark: While the rest of the industry has been asleep at the wheel in this category, Morimoto was hard at work developing the successor to the incredible 2Stroke 3.0 LED bulbs. The 4.0 re-creates the original beam pattern from your optics effectively by doing more with less. They will put more light on the road for you as the driver, while creating less glare for oncoming traffic compared to any other LED bulb on the market today. While LED bulbs still aren't DOT approved for use in headlights in the states; foreign markets and fog light users can enjoy the best plug n play LED bulb to date. The 2Stroke 4.0. (Featuring technology patented by Morimoto)


Superior Beam Quality: The advanced Aluminum Nitride Ceramic circuit board in the center of the 2S4 sets allows the bulbs to produce the most precise beam pattern possible, with its 1.45mm surface-emission interval. For reference, the tungsten filament in a halogen bulb is 1.4mm, and the previous record for an LED bulb was 2.0mm, set by the outgoing 2Stroke 3.0 bulb! Using the industry-first ceramic PCB, we have eliminated the need for the dielectric layer and a separate thermal element, which, in combination with the Osram Oslon HJL531.TE LED chips makes for unmatched performance when used in all reflector and projector-based headlights designed for halogen bulbs.


Optimized focal length: Each size in the 2Stroke 4.0 lineup has been painstakingly optimized for proper output in its designated application. The critical reference distance has been calculated based on the geometry of the bulb base and the footprint of the Osram HJL531 emitter. To ensure consistency, special tools were designed to quality-control the accuracy of each bulb as it comes off the production line. Most other LED light bulbs on the market use a 'set it and forget it' reference distance across all sizes in the series, making for sub-optimal focus in most applications... not the case with the 2Stroke series of bulbs.


H11 Tension Spring: The base of the of the 2Stroke 4.0 H11/H9 bulbs has an integrated tension spring that pushes the entire bulb base downward with 5nm of force, resulting in a bulb that's been properly seated according to the needs of optics. The complexity and cost that went into developing these parts alone was a significant investment, but one we had to make in our continuous pursuit of perfection. We would be impressed if you could find another brand who cares enough to make this kind of investment on this often-overlooked feature.


360 degrees of Rotation: Since no single standard exists across different headlight and fog lights, all bulbs in the 2Stroke 4.0 range are fully adjustable so that you can dial-in the position of the LED chips so that they sit perfectly at the 3 and 9-o-clock positions. On the previous gen bulbs, the gears on the base were prone to slipping when locking it into your headlight, but the new system is immune to that. In summary, setting up the alignment of your bulbs is now easier than ever!


Thermal management: The 2Stroke 4.0 uses an upgraded version of the patented system we first employed on the 3.0 bulbs. This unique cooling system uses a 12,000-rpm dual-layer fan to suck cool air into the body of the bulb and blow warm air out, back into the housing. On the intake side, cold air is sucked in past the sidewall of the PCB to exchange heat and is blown out the opposite side of the bulb. This effectively cools the bulb while warming the ambient temperature inside of the housing, increasing resistance to snow/ice buildup on the lens during the winter months. With even more static pressure than the previous version, the cooling system on the 2Stroke 4.0 maximizes longevity of the bulb, while serving up a bad-weather benefit not found elsewhere.

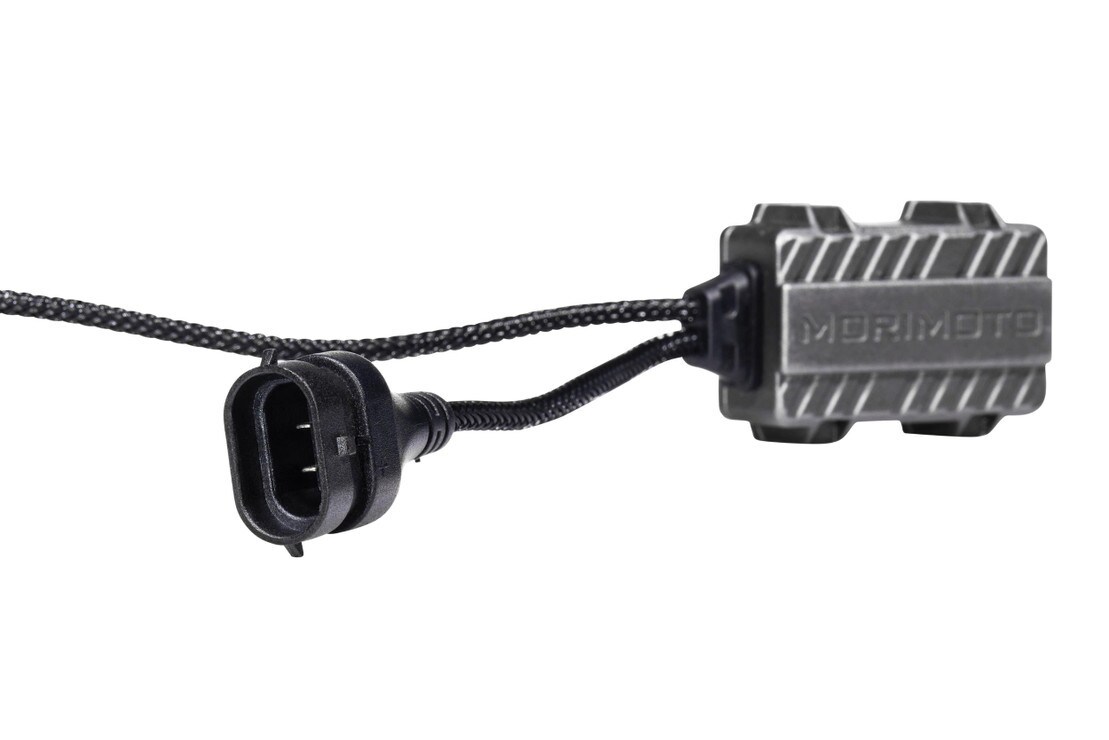

Unique Drive Logic: The LED drivers are programmed to start up at a conservative 18W, and then ramp-up in power over the first 15 minutes before stabilizing at 22.5W. Unlike every other bulb in the aftermarket which lose output intensity over the first 15 minutes of runtime (as the system heat-soaks), the performance from the 2Stroke 4.0 remains impressive from the moment you pull out of the driveway till the moment you park the car.


Lifetime Warranty: The Morimoto 2Stroke 4.0 bulbs are produced using the latest OE-grade materials, electronics, and LEDs for the automotive industry. The conservative LED drive rates and highly effective thermal management systems make for low operating temperatures. All of this adds up to a bulb that is designed to last, and that' why they are backed with an industry-leading lifetime warranty.
