DESCRIPTION
FEATURES & BENEFITS
- Elevated Visibility: Illuminate your drive with enhanced brightness.
- Custom Fit: Designed and HR Tested for 2014-2019 Chevrolet Silverado HD.
- Ultra Series 2 Bulbs: NLW753 chips for ultra-bright light and optimized beams.
- Reliability Redefined: Innovative heat-sink, fan, and housing ensure durability.
- Limited Lifetime Warranty: Drive confidently with our warranty coverage.
WHAT’S INCLUDED

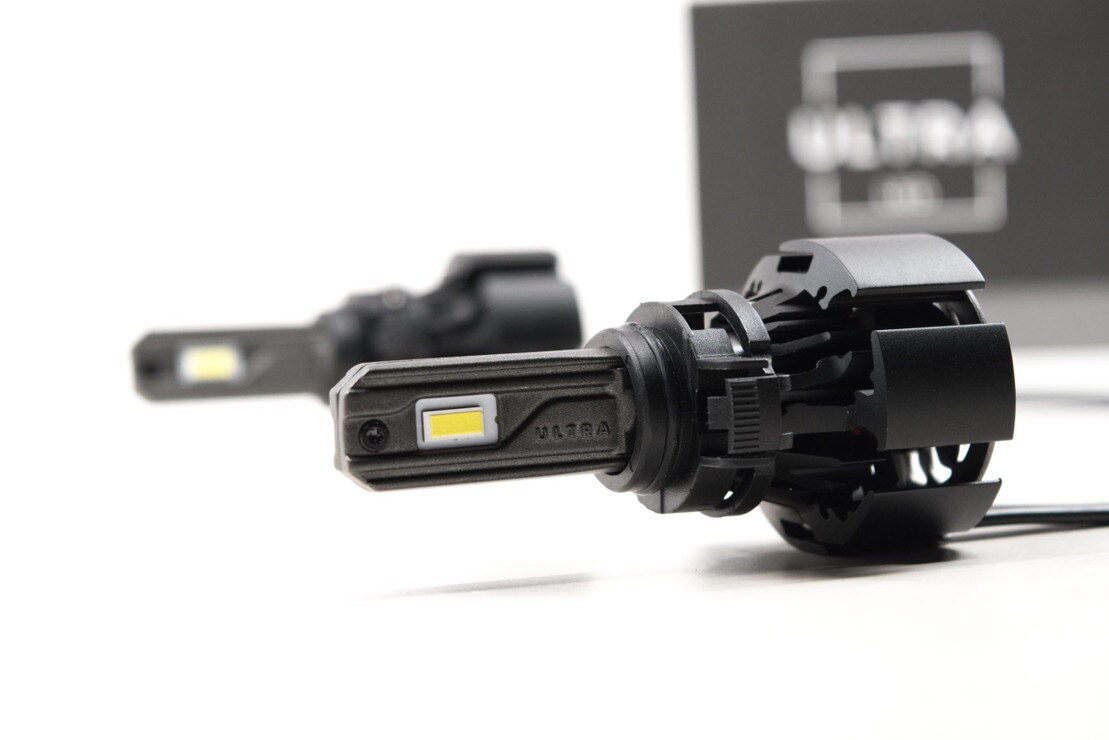

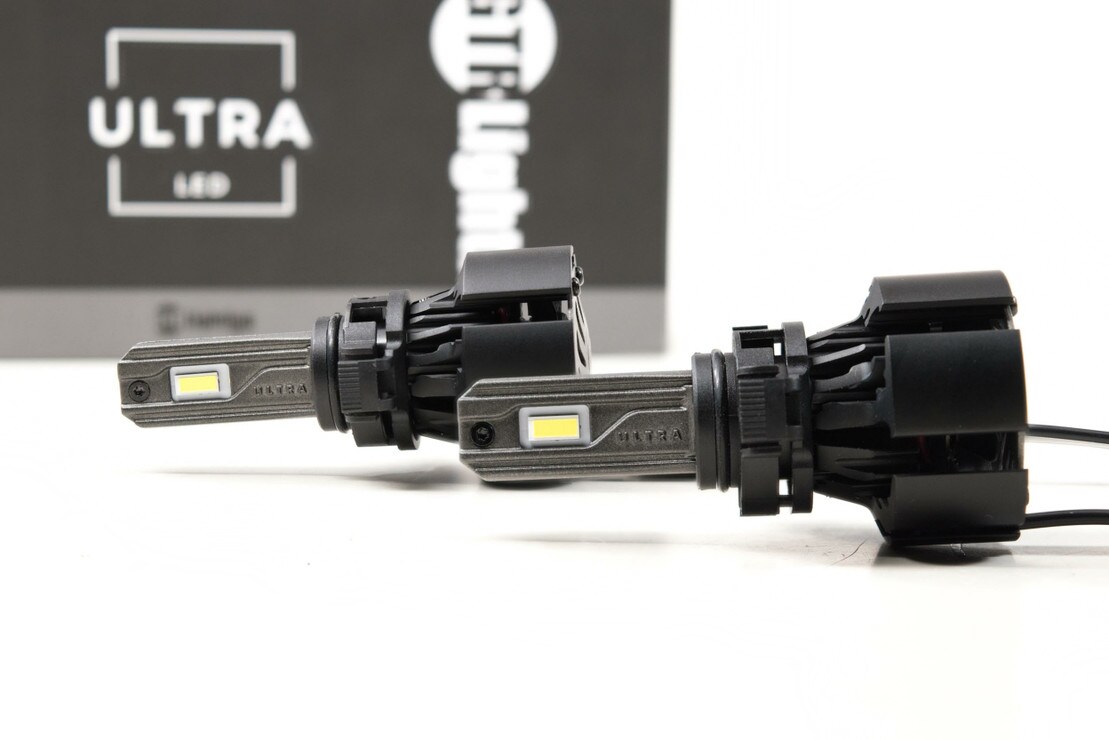

ULTRA 2 LED BULBS: 2x (One Pair)
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
COLOR RATING: 6000K (white)
Raw LUMENS: 3900lm
REAL LUMENS: 3350lm
Power: 41.5W (low beam)
Power: 30W (Hi/Lo)
LIGHT SOURCE: Elec-Tech NLW7535CV3
LINE DRAWINGS
COMPATIBILITY
Chevrolet Silverado 1500: 2014-2015
Chevrolet Silverado HD: 2014-2019
Housings: Designed for, and confirmed to fit, Stock Housings
2014-2019 Chevrolet Silverado HD LED Fog Light Conversion Kit: Looking for upgraded LED Fog Light Bulbs from a reputable brand and value the fact that we've actually tested them on your truck? Our HR Tested kits include all the right components to ensure perfect fit, function, and performance from the upgrade. At Headlight Revolution, we do 2014-2019 Chevrolet Silverado HD LED lighting upgrades better!
Better than Ever: After nearly a decade of experience developing and refining our designs, sourcing the best quality raw materials, and gathering feedback from end-users on what makes the best LED bulb with the most effective beam pattern; Were proud of the new Ultra 2. This an LED bulb upgrade that is brighter. That has a better beam pattern. Lasts longer. Has more adjustability. And is easier to install. It sets an all-new standard for what products in their class bulbs should be, and were proud to call it our own.
Brighter: The Ultra Series 2 bulbs from GTR Lighting utilize the best automotive grade multi-core LED chip technology to deliver ultra-bright light, in an ultra-focused beam pattern! Not only do the elec-tec automotive-grade NLW753 chips have more lumen density than popular (but now aging) options from CREE and Philips, but theres more to it. We have optimized the position of the LEDs so that once locked into the headlight, they are directly in-line with what the optics of the projector or reflector was designed for which will provide you, the driver the most useful and safe beam pattern. The collars have full rotational adjustability. Put simply: Youll see a lot more, but without producing extra glare to oncoming traffic.

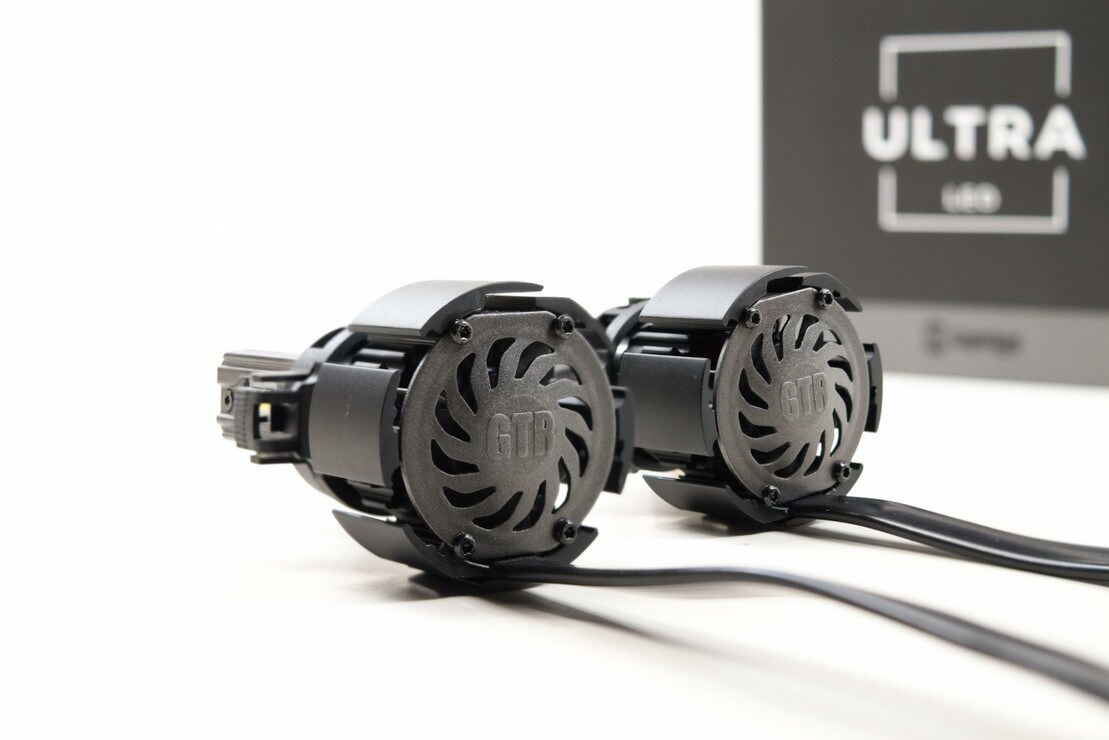

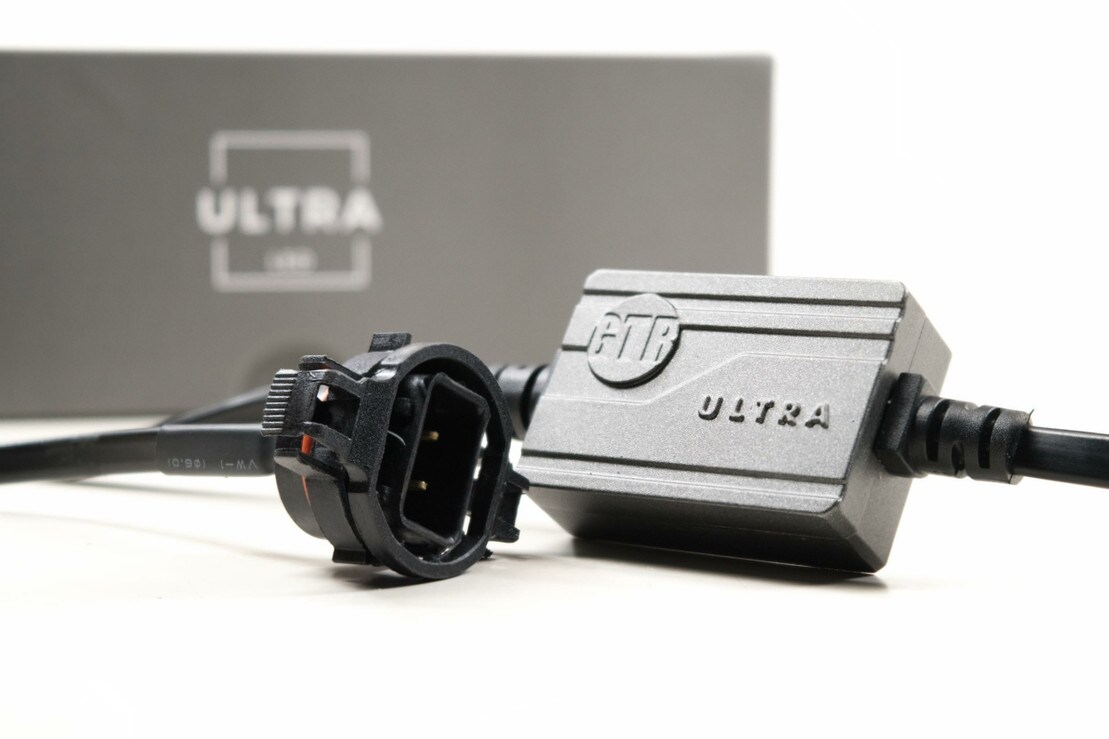

More Reliable: Performance aside, these are the last LED headlight bulbs you'll ever need! After many simulations, we arrived at a heat-sink design that is not only extremely effective at keeping the body of the bulb >80C, but looks cool too. Since maintaining low operating temperatures is key to LED lifespan, weve paired that with a bearing-less fan to actively cool the heat sink as well. The housing on our LED drivers is completely potted inside too, which is only possible with expensive-to-produce die-cast housings like the one that the Ultra 2 uses. Keeping cool and all components dry is crucial, and the Ultra 2 checks all the boxes.
Better Fitment: We challenge you to find an alternative that produces the same amount of output with the same small footprint that the Ultra 2 has. Here we took a balanced approach between maximizing output and minimizing geometry so that theyll fit in every application. Too much power and an inadequate heatsink? Premature failure. Too much power and a massive heat sink? Great, but wont fit anywhere. Due to their superior optical focus they can create up to 10x more usable light than other LED bulb options even though they only produce 4,100 Lumen of light. If you're looking for the brightest option thats a sure fit, you've found it.
Best Warranty: You can hit the road knowing that youll be backed with a Limited Lifetime warranty from here on out. If in the rare case something goes wrong, GTR Lighting will replace the product quickly.
HR Tested: Here at Headlight Revolution, we've spent the time to install and test all HR Tested products, so we know it'll work exactly as shown and right out of the box! Not only that, but we don't favor one particular brand. We just deliver the best product for the application, period. Be sure to reference our install videos for helpful tips on making the installation process quick, painless, and clear. HR Tested: We ensure fitment and function. You do the install. For other compatible upgrades, use the Buyers Guide on our homepage!
