  • Ram 1500 (2019+) Xtreme LED Pro (Low Beam)

Ram 1500 (2019+) Xtreme LED Pro (Low Beam)

(0) No Reviews yet
Questions?

Brand: Headlight Revolution

B-HRT-0299-HR

$145.20 Original Price:$181.5020% OFF

PRODUCT OPTIONS

PART #: 1 x HRT0157



*Guaranteed Fitment
Easy Return

DESCRIPTION

Introducing our revolutionary Ram 1500 (2019+) LED Low Beam Bulbs for unmatched lighting performance! Experience the upgrade you've been waiting for with our HR Tested kits, meticulously designed to fit seamlessly and deliver exceptional brightness. These bulbs are more than just a replacement – they're an upgrade that enhances visibility, style, and safety. Crafted with cutting-edge technology, our Xtreme LED Pro series fog light bulbs redefine excellence from the moment you hold them in your hands. With a patented aluminum alloy leaf passive heat sink, optimal heat dissipation ensures long-lasting performance. Achieve a superior beam pattern and true white light with genuine Lumileds ZES emitters, while the compact design guarantees a perfect fit in most fog lamp housings. Say goodbye to inflated lumen claims; our bulbs deliver a stable 1750 Lumens of brilliance, paired with a 5500K color temperature for optimal clarity. This is more than just an upgrade – it's a game-changer. Elevate your driving experience today!

FEATURES & BENEFITS

  • Enhanced Visibility: Experience unparalleled brightness with our LED Low Beam Bulbs.
  • Xtreme LED Pro Series: Advanced components for superior fog light performance.
  • Optimal Heat Dissipation: Patented alloy heat sink maintains peak output.
  • Precise Beam Pattern: Lumileds ZES emitters replicate halogen filaments.
  • True Lumen Output: 1750 Lumens stable at 5500K for clear white light.

WHAT’S INCLUDED

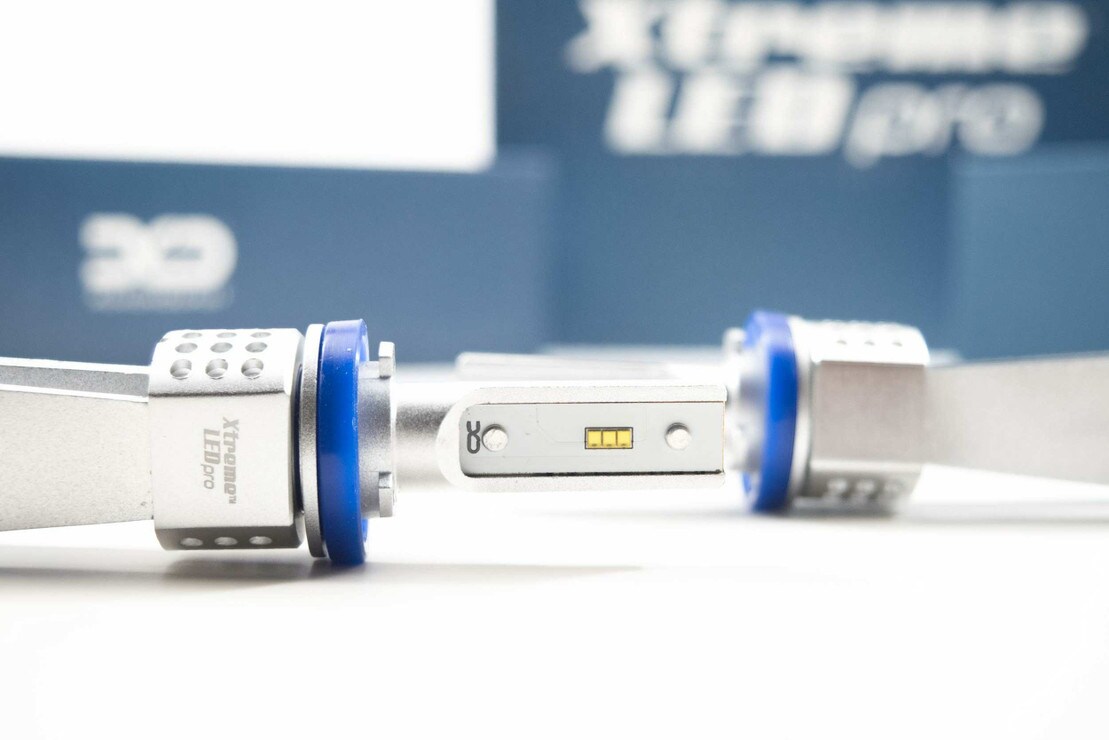

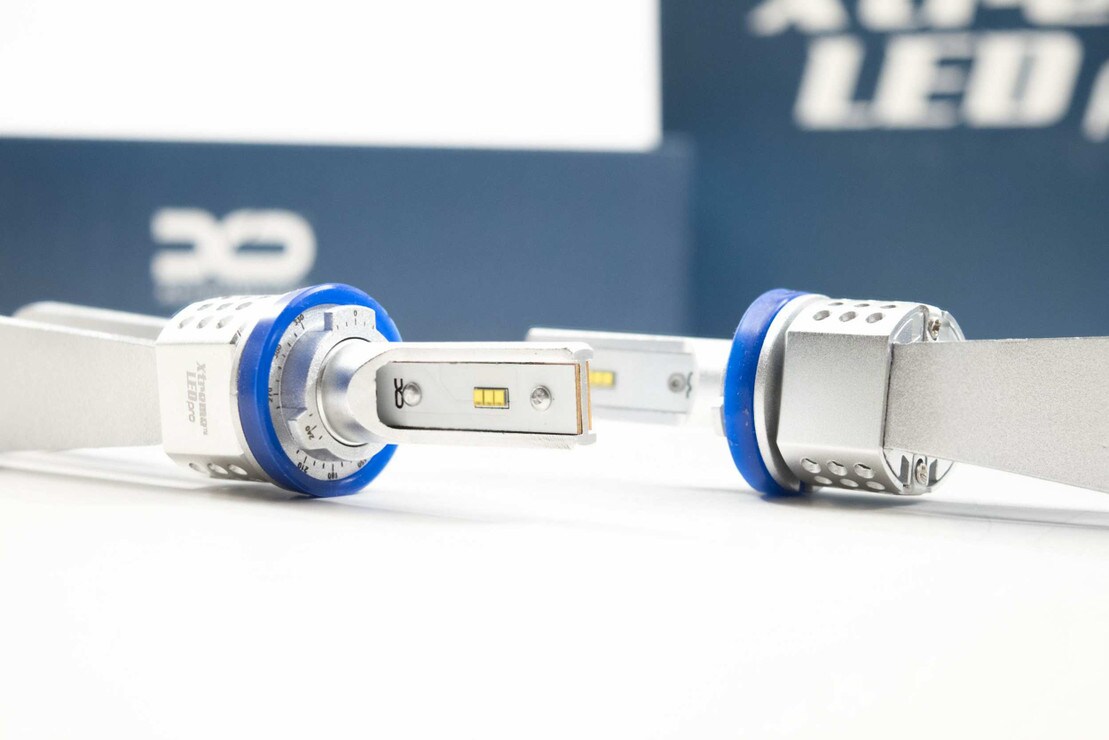

  • LED BULBS: 2x (One Pair) H11 Xenon Depot Xtreme LED Pro LED Bulbs (Click For Details)

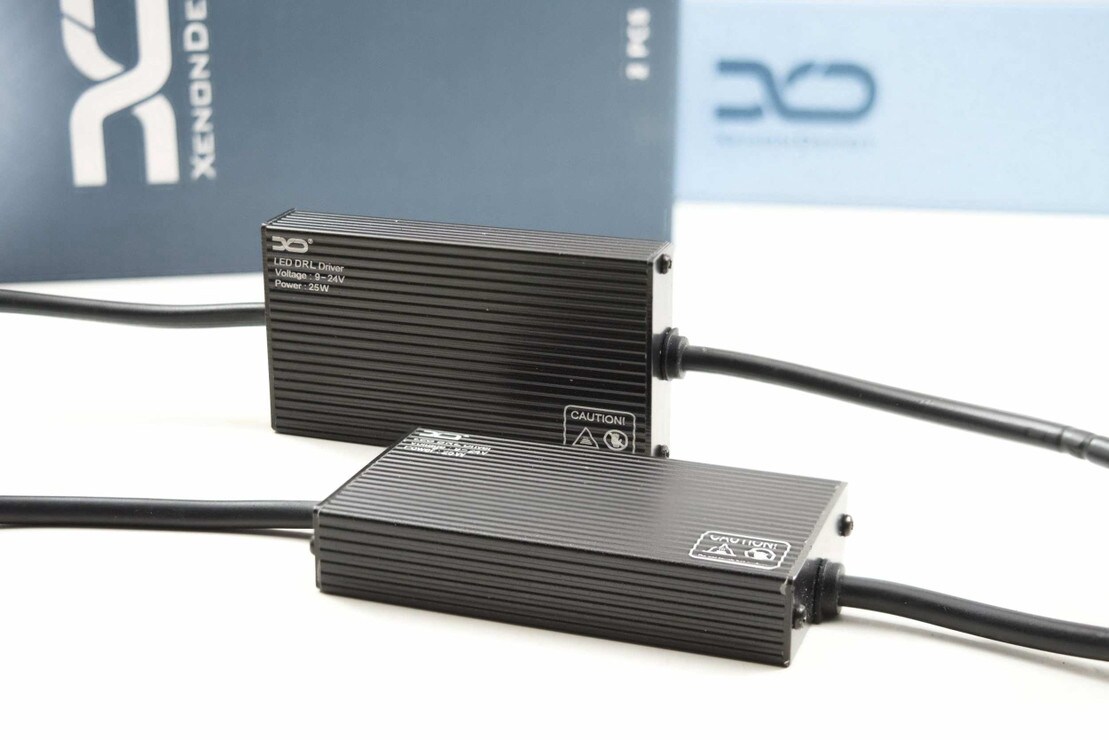

  • Anti-Flicker Harness: 2x (One Pair) Xenon Depot H11 PWM Interface Modules (Click For Details)

WARRANTY INFORMATION

This product includes a 2 Year limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.

TECHNICAL SPECIFICATIONS

  • INTENSITY: 1,750lm (Stable)

  • EMITTERS: 6x LumiLEDS ZES / bulb

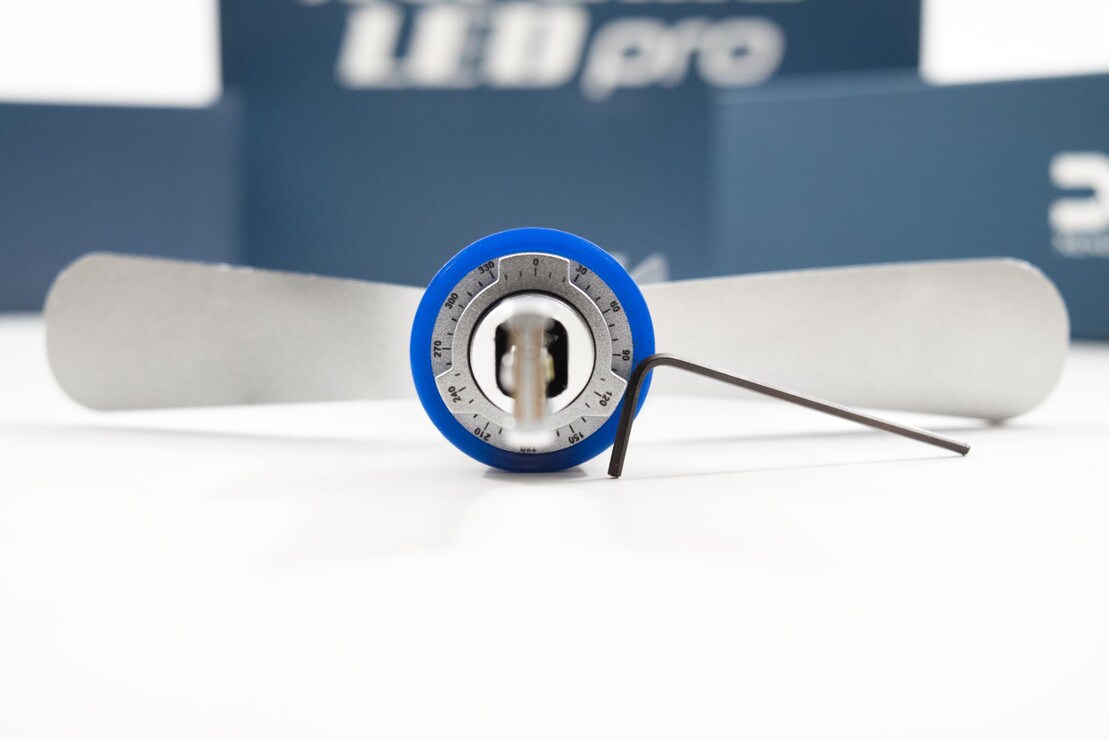

  • ADJUSTABILITY: Fully Clockable Base

  • INPUT VOLTAGE: 12-24V DC

  • LIFESPAN: 50,000hrs (Estimated)

LINE DRAWINGS

COMPATIBILITY

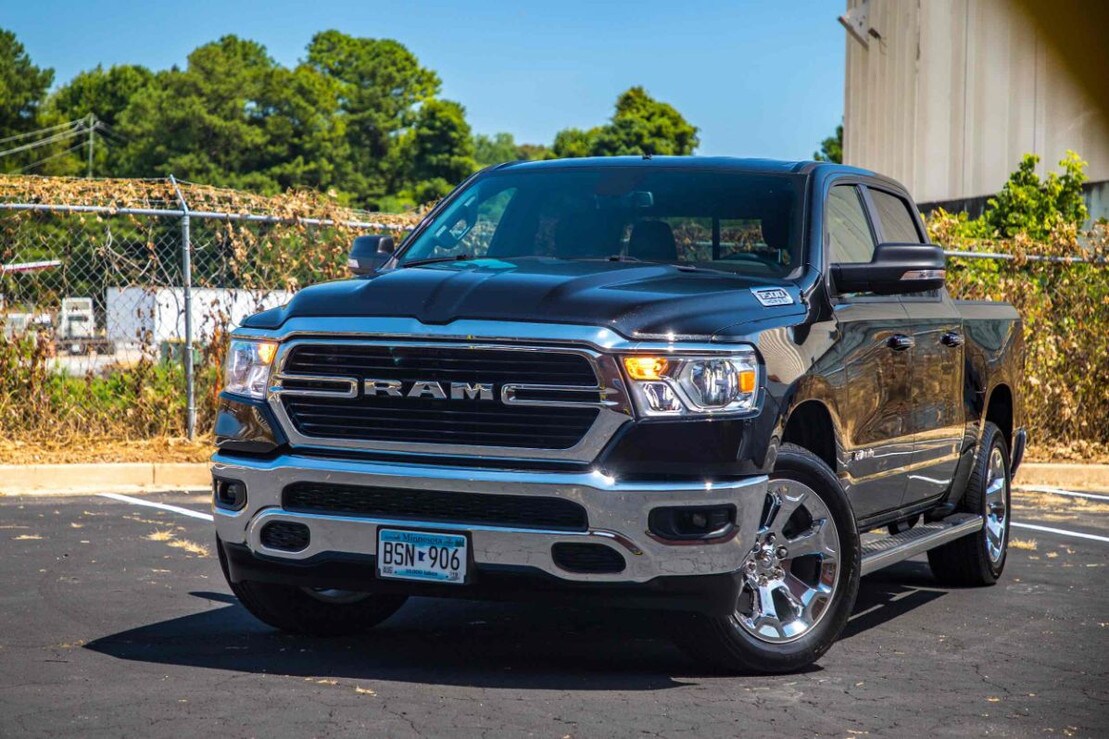

  • Dodge Ram 1500: 2019+

  • Housings: Designed for, and confirmed to fit, Stock Housings

2019+ Ram 1500 LED Low Beam Bulbs: Looking for upgraded LED Low Beam Bulbs from a reputable brand and value the fact that we've actually tested them on your truck? Our HR Tested kits include all the right components to ensure perfect fit, function, and performance from the upgrade. At Headlight Revolution, we do 2019+ Ram 1500 LED lighting upgrades better!


Xtreme LED Pro: Xtreme LED Pro series of drop-in fog light bulbs are just better--right from the start. They incorporate today's most advanced components and features for unparalleled compatibility and performance. Hold one in your hand and you'll immediately discern their uncommonly high-quality fit, finish, and feel: they're made of premium materials, formed and assembled with precise craftsmanship.


Optimal Heat Dissipation: The next thing you'll notice is their all-new patented aluminum alloy leaf passive heat sink. Its compact and readily configurable design allows an easy fit in most any fog lamp housing, and with its much larger contiguous thermal path, it does a better job shedding heat off the LEDs than past-type flexible mesh heat sinks. With no flex-mesh junctions to break and no motorized fans to make noise and electrical interference, clog, or fail, the superior heat rejection performance of the alloy leaf passive heat sink is retained over the long haul, for the full rated life of the emitters. That translates directly to excellent performance; the cooler LEDs can be kept, the higher their output.


Beam Pattern: The emitters themselves are genuine Lumileds ZES, three on each side of the light head, and this together with their undomed configuration means they closely replicate the size of the original halogen filament. That means a better optical match than longer 4-emitter arrays or domed COB emitters, both of which violate the light source box your fog lamp's optics were designed around, and because the high output comes from three chips rather than four, luminance is higher for better beam punch and spread.


Lumens and Light Output: Anyone can throw around inflated lumen numbers--and most vendors do. Some of those numbers have no basis in reality, they're just fibs. Some of them are somewhat accurate, but only immediately after the bulb is lit up in a cold chamber, without accounting for the significant 'droop' that happens when improperly chosen emitters are inadequately cooled--don't drink the kool-aid! The Xtreme LED Pro bulbs are rated honestly: 1750 lumens stable, measured after the bulbs have been operating continuously for an hour in 60C heat. That's a rating that means (and gives you) exactly what it says. With the 5500K color temperature of our emitters, we're giving you true white light, not artificially jacking up the lumen rating with a bunch of useless deep-blue light that can only attract unwanted police attention, not help you see.


In Summary, They're Just Better: There's more clean-sheet engineering where you can't see it: we've used copper circuit boards for optimal thermal conductivity, and our compact base means the rigid tail of the light head is only 25mm--much smaller than other LED bulbs on the market. You'll note the light head is remarkably compact, without bulky over-length that prevents many other LED bulbs from fitting all the way into many fog lamps. And the light head is clockable, too, so you can fine-tune the output for the best optical match with any lamp you might install them in. Truly, this is the top-performing LED bulb with OE-level quality and "fit it and forget it" durability and dependability.


HR Tested: Here at Headlight Revolution, we've spent the time to install and test all HR Tested products, so we know it'll work exactly as shown and right out of the box! Not only that, but we don't favor one particular brand. We just deliver the best product for the application, period. Be sure to reference our install videos for helpful tips on making the installation process quick, painless, and clear. HR Tested: We ensure fitment and function. You do the install. For other compatible upgrades, use the Buyers Guide on our homepage!
