2022+ Toyota Tundra TRD Pro Grille Light Bar

(0) No Reviews yet
Questions?

Brand: Diode Dynamics

3P-DD120-HR

$79.95

PRODUCT OPTIONS

PART #: 1 x DD7414P



DESCRIPTION

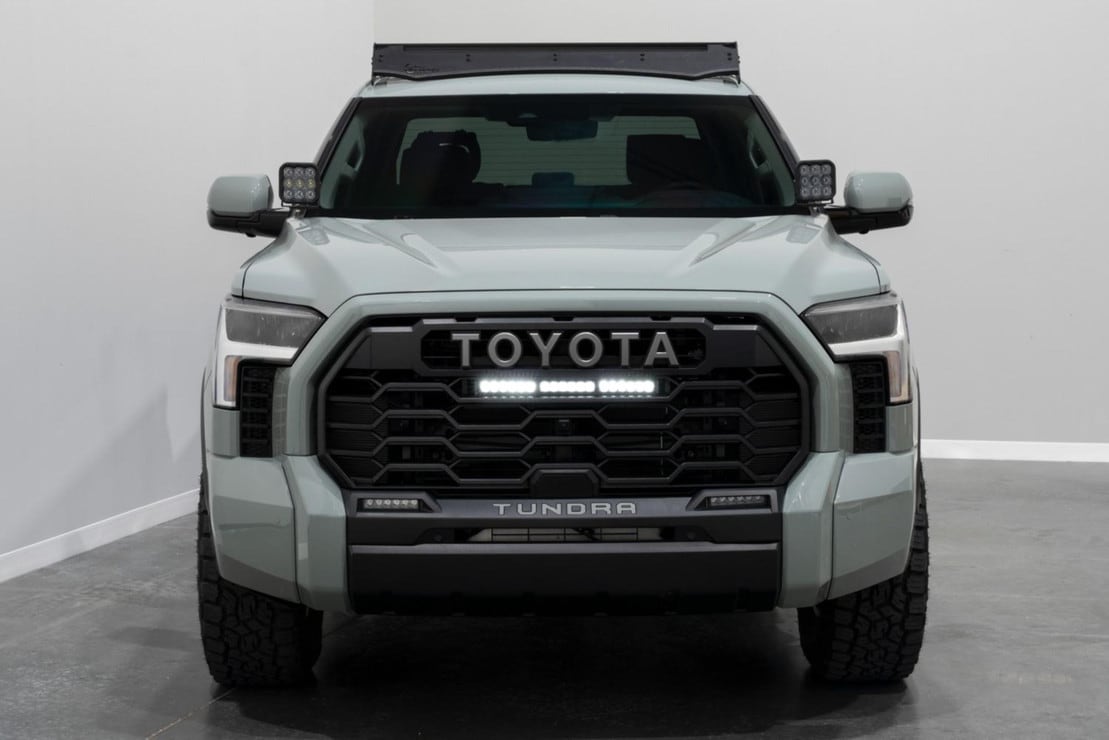

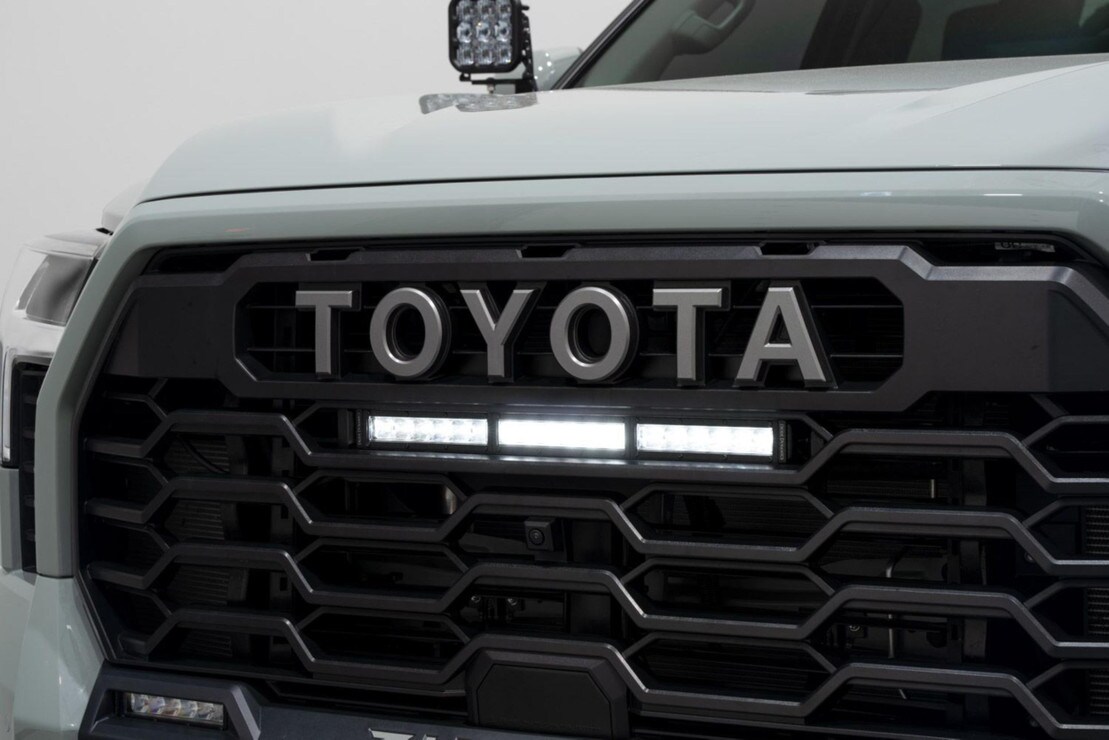

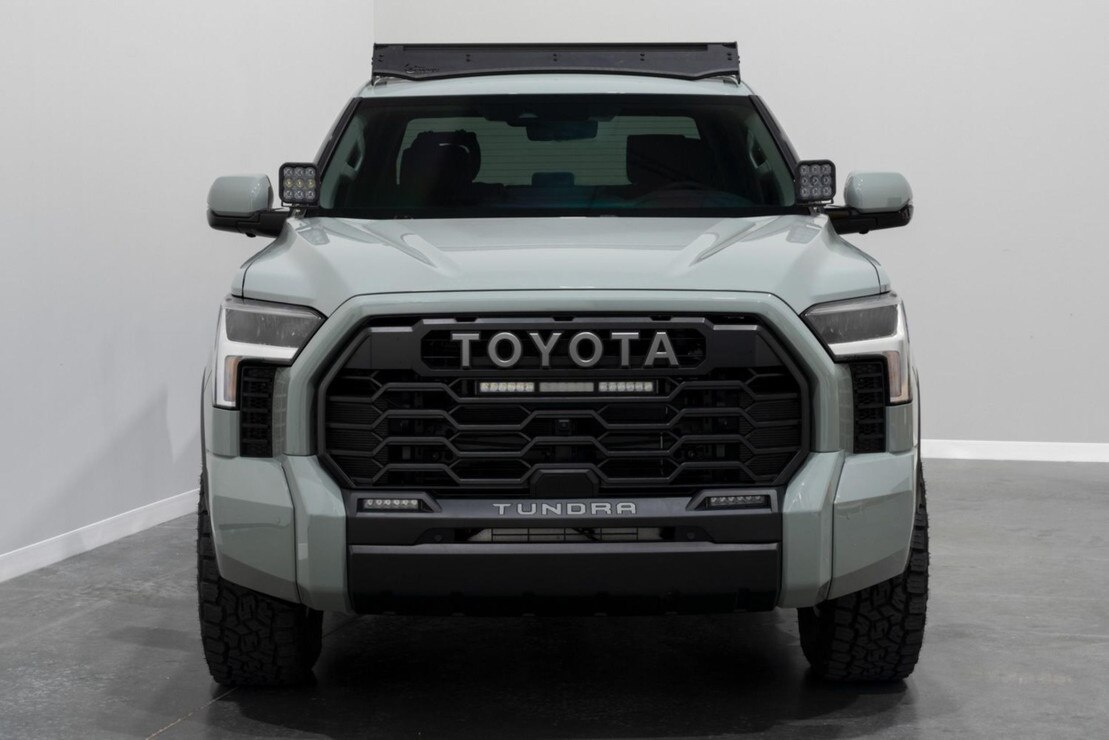

Features: Direct fitment on 2022+ Toyota Tundra TRD Pro. Allows you to mount one 18 inch light bar in the TRD Pro grille. Compatible with TRD Pro Grille conversions. CAD-designed for perfect fitment and OEM-like appearance. Utilizes existing mounting points for easy installation; no cutting or drilling required. Highly durable powdercoated steel construction. Plug-and-play wiring harness included to power light bars.

Compact: The lightbar is based on a narrow-profile extruded housing to allow fitment in small and tight areas. At less than 42mm tall, they'll fit in many places a traditional dual-row light bar won't while cutting total weight as well.

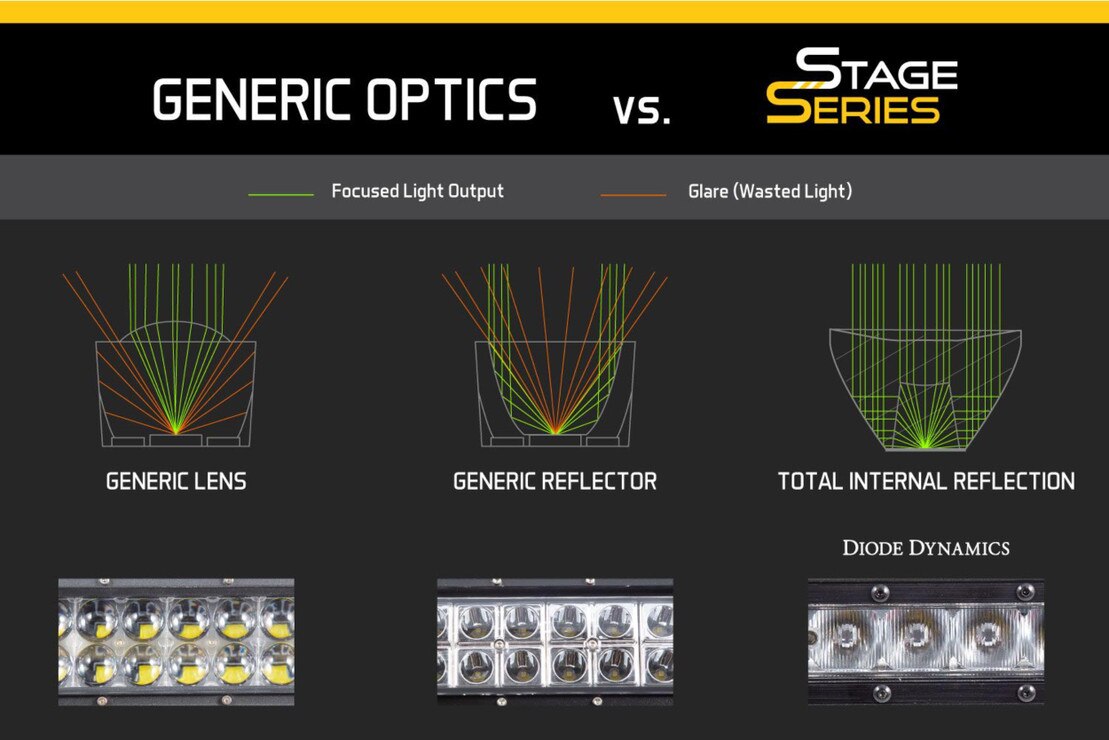

Focused: Thanks to the high-intensity LED chips coupled with our patent pending total internal reflection (TIR) optic, the total intensity is far higher than a standard generic light bar. The TIR optic collects all of the light from the LED and directs it only where you need it, drastically reducing glare and improving total efficiency.

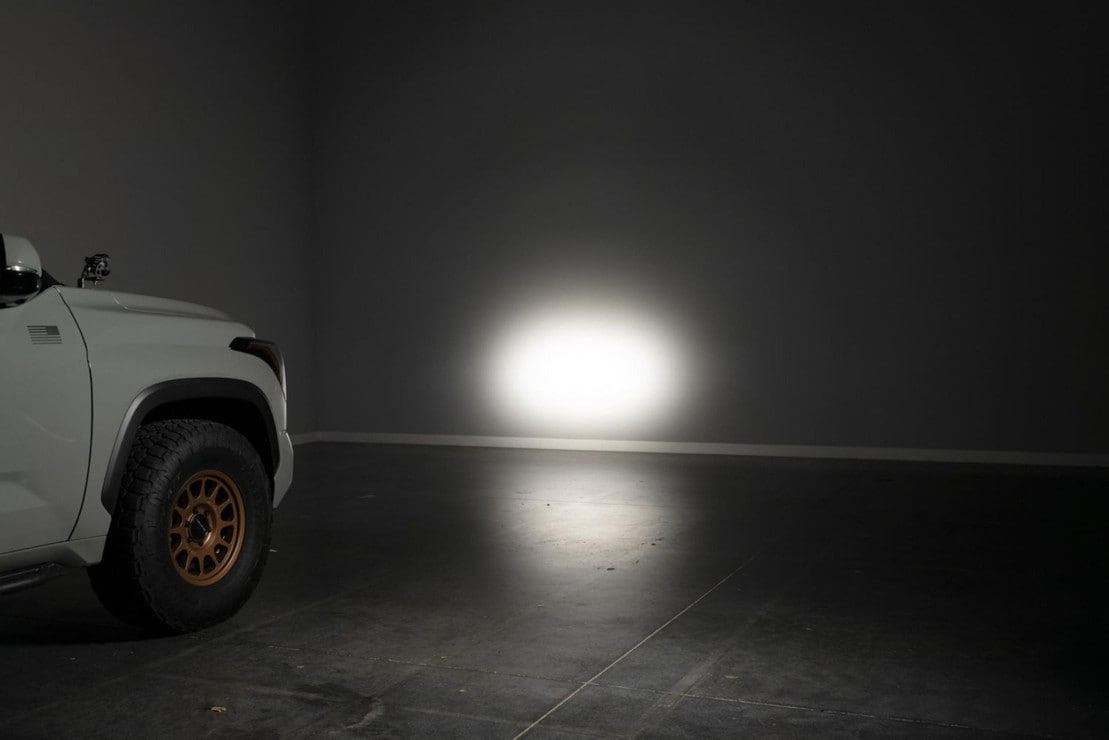

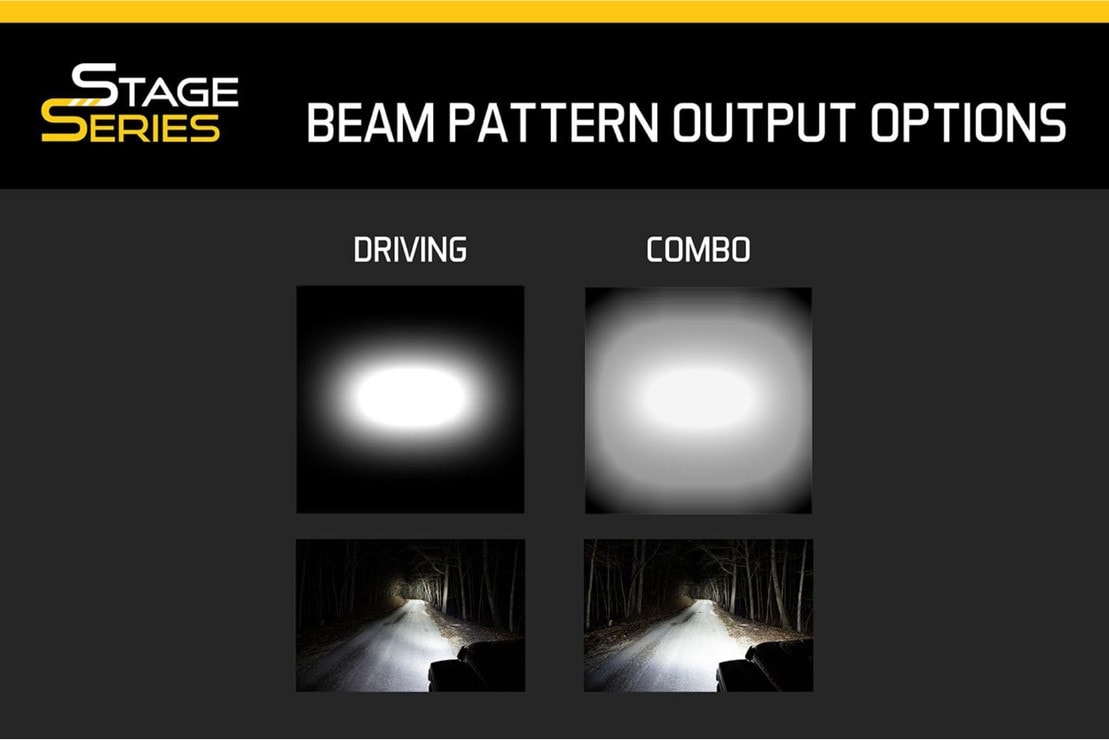

Functional Patterns: The Driving pattern was designed to supplement your high beams. Rather than a simple spot pattern, the Stage Series Driving pattern has a rectangular 30x20 degree pattern that is far more useful for directing light downrange at high speeds. The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused rectangular 30x20 degree pattern while also illuminating area around it in a full 80x50 degree spread.

WHAT’S INCLUDED

  • Brackets: One (1) Pair

  • Optional Light Bars: 3x SS6 Light Bars

WARRANTY INFORMATION

This product is covered by a Lifetime limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.

TECHNICAL SPECIFICATIONS

  • Intensity (White Driving): 165,000cd

  • Intensity (White Combo): 99,500cd

  • Raw Lumens: 6,850lm

  • Power (watts): 79.8w

  • Current (amps @ 14V): 5.7

  • Color Temp (CCT): 6000K

  • Beam Angle: Driving, 20 x 8, Combo (Driving and Flood)

  • Operating Voltage: 9-24V

  • Polarity: Polarity Specific

  • Operating Temperature: -40C to 85C (-40F to 185F)

  • LED Emitter: Luxeon Z ES

  • Connector(s): Deutsch DT Input

  • Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets

  • Cooling: Passive, heatsink

  • Intrusion Ratings: IP69K Waterproof

COMPATIBILITY

  • Toyota Tundra TRD Pro: 2022+

  • DD7414P: SS18 Pro Grille Bracket Kit

  • DD7415: TRD Pro Grille Light Bar Kit White Combo

  • DD7424: TRD Pro Grille Light Bar Kit White Driving
