Morimoto Backup Light Boost Bar

1 Review

Brand: Headlight Revolution




PART #: 1 x LED700

*Guaranteed Fitment
Easy Return


Introducing the 2022+ Ford Maverick Backup Light Boost Bar from Morimoto – the ultimate solution for enhanced visibility while reversing. Designed and tested by lighting experts at Headlight Revolution, this boost bar delivers an intense burst of light precisely where it's needed, providing unmatched safety and confidence in low-light situations. With advanced optics and sturdy construction, this boost bar ensures optimal performance and durability. Experience the power of cutting-edge technology that illuminates your path with exceptional brightness. Elevate your reverse lighting with Morimoto's Backup Light Boost Bar, where quality and innovation meet.


  • Enhanced Reversing Visibility: Introducing the 2022+ Ford Maverick Backup Light Boost Bar for superior reversing visibility.
  • Tested by Experts: Developed and tested by lighting specialists at Headlight Revolution.
  • Optimal Safety: Boosts light intensity for confident reversing in low-light situations.
  • Cutting-Edge Optics: Advanced optics provide precise light distribution and exceptional brightness.
  • Durable Build: Sturdy construction ensures performance and longevity.

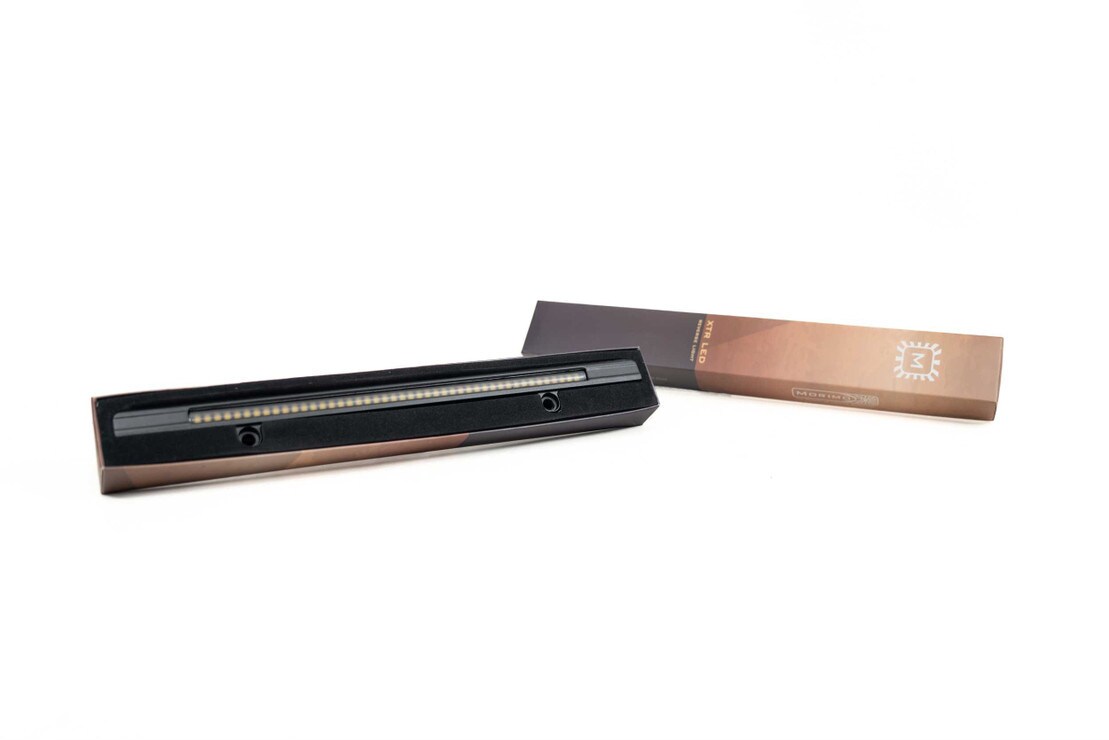

  • Reverse Light: 1x Morimoto Backup Light Boost Bar

  • Wiring: 1x Power Tap Kit


This product includes a 5 Year limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.


  • Intensity: 2,700lm (Raw), 1,950lm (Effective)

  • Power: 29w

  • Optic: -30deg to +15deg vertical range


  • Ford Maverick: 2022+

  • Housings: Designed for, and confirmed to fit, Stock Housings

2022+ Ford Maverick Backup Light Boost Bar: Here at Headlight Revolution, we do lighting better because we test! The Morimoto backup light boost bar is no exception, as it adds that extra punch of light when in reverse. Designed to enhance visibility and safety, this boost bar is specifically engineered to provide a powerful and concentrated beam of light precisely where you need it most. With its advanced technology and superior construction, the Morimoto backup light boost bar ensures optimal performance, illuminating your path with remarkable brightness. Whether you're navigating tight parking spaces or backing up in low-light conditions, this boost bar delivers an unparalleled level of illumination, giving you the confidence to maneuver with ease. Trust the Morimoto backup light boost bar to take your reverse lighting to new heights, because at Headlight Revolution, we never settle for anything less than exceptional quality.

High Output: While there are plenty of LED bulb upgrades out there for stock reverse lights; when it comes to a backup light boost that will compliment your Morimoto XB LED tail lights, this is a no brainer. The BLBB bolts on. It's Plug n Play. It generates maximum output... in reverse!

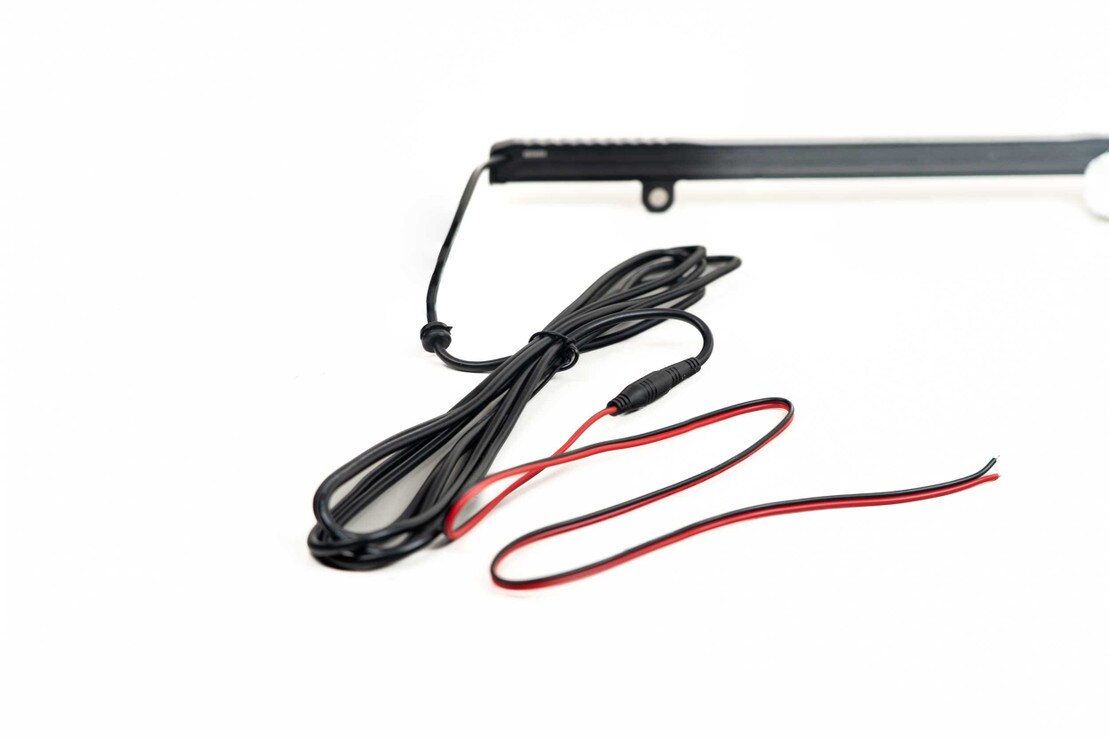

Easy Setup: If you're running a set of the new Morimoto XB tail lights with the Backup Light Boost connection, these will be super easy to install since the input connector will plug n play with the reverse light circuit wiring on the back of your tail lights. No Backup Light Boost connection? No problem. The system includes 1.5 meters of integrated wiring and a high-quality tap kit to draw 12V from your factory reverse light harness. An integrated rubber grommet keeps moisture and dust out of a pass-through hole if necessary too.

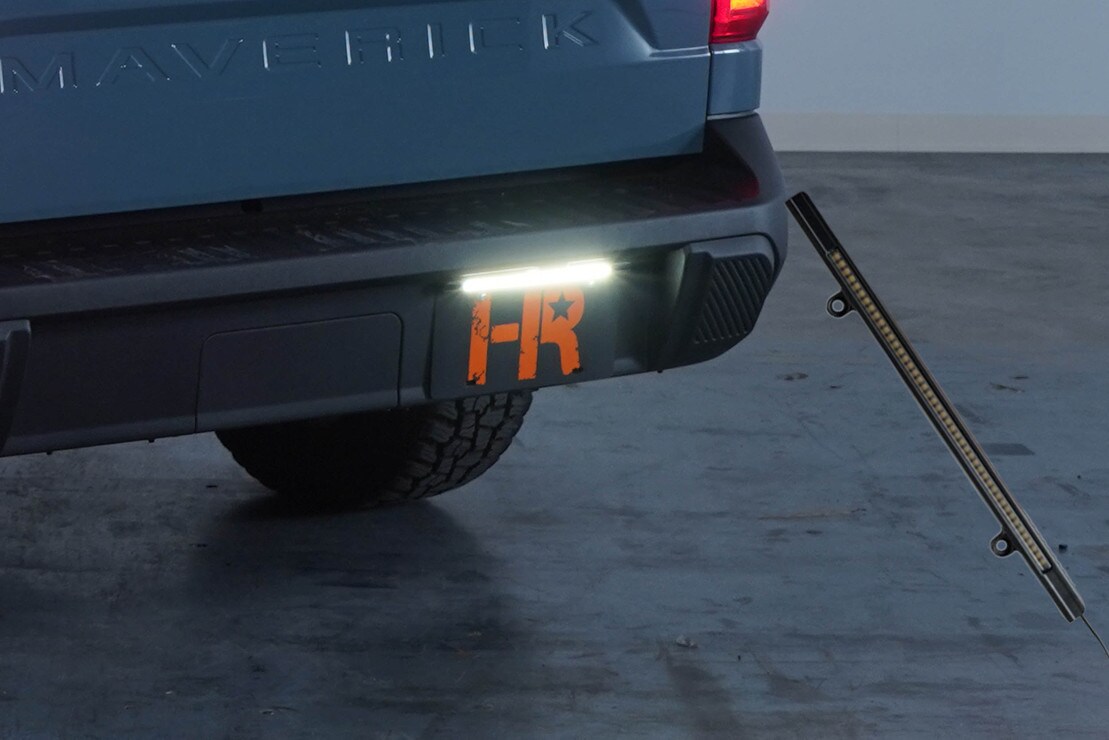

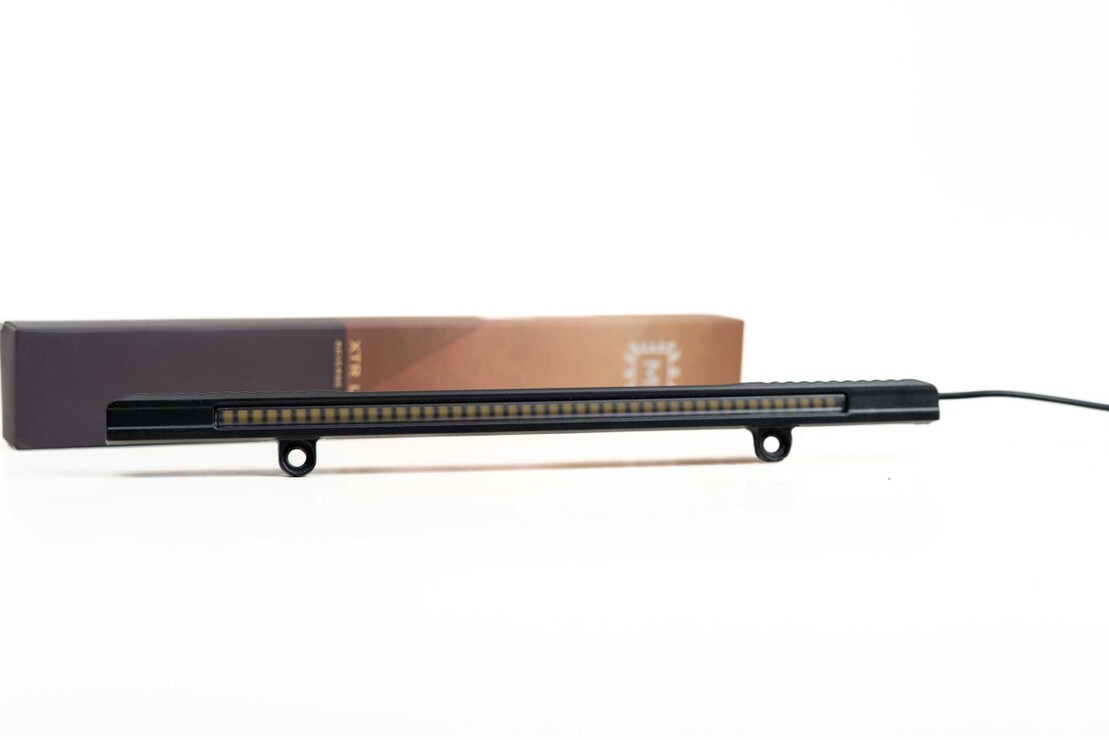

Bolt-On: The Backup Light Bar will bolt onto your vehicle's top two license plate mounts. Its die-cast aluminum housing is contoured according to the geometry of US-spec license plates for a flush fit, and the mounting points are positioned according to the same universal standard. The system is finished in a satin black powder coat.

Optically Advanced: The Morimoto Backup light boost light bar relies on a combination of optical refinement and raw power to produce the perfect reverse light beam pattern. Morimoto's optical engineering team optimized the lens to distribute the most possible light in the most effective beam pattern based on typical surface mounting angles. This is a fully engineered product, and that shows in the results.

Technically Speaking: At a 10-degree mounting angle, the vertical range is -20 to +25 degrees. At the most typical 0-degree mounting angle, the Morimoto Reverse Light Bar provides a -30 to +15 degree vertical spread, which easily exceeds the illumination range of any standard backup for spread. Though great to experience, its worth noting that the output produced by this product far exceeds the legal limit for a reverse light application.

Tech Specs: 54 CREE J Series 2835 LEDs rated at 4500K/80CRI. 180mA driver produces 29.9W of maximum power pumps out 2700 raw lumens that's translated into 1950 real lumens after transmission through the optical lens.
