DESCRIPTION
FEATURES & BENEFITS
- Designed & Engineered: By Morimoto in California, the 2Stroke 4.0 is packed with more patented, innovative features than any other bulb on the market today.
- Perfect Focus: The ceramic PCB and Osram HJL LEDs helps illuminate the road more effectively, with zero glare to oncoming traffic.
- Heat Exchanger: Cools the bulb while warming the ambient temperature inside of the housing, increasing resistance to snow/ice buildup on the lens during the winter months.
- Lifetime Warranty: Designed and built with OE grade materials, these bulbs are designed to last and that's why they are backed with an industry leading lifetime warranty.
WHAT’S INCLUDED

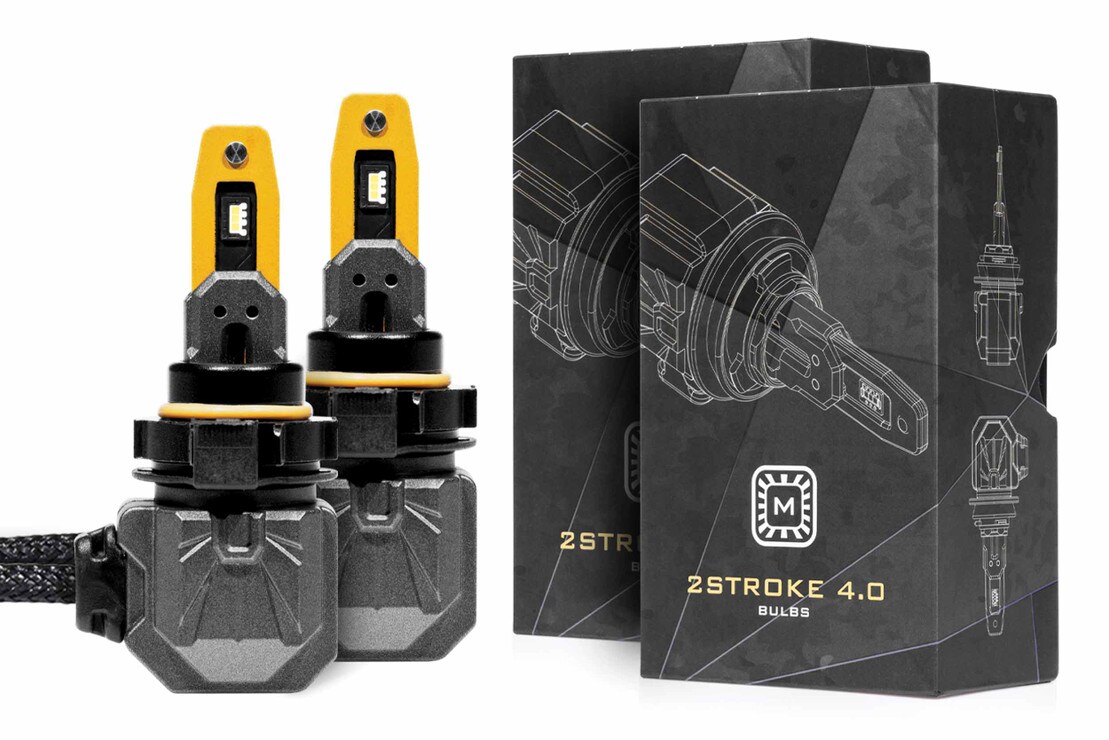

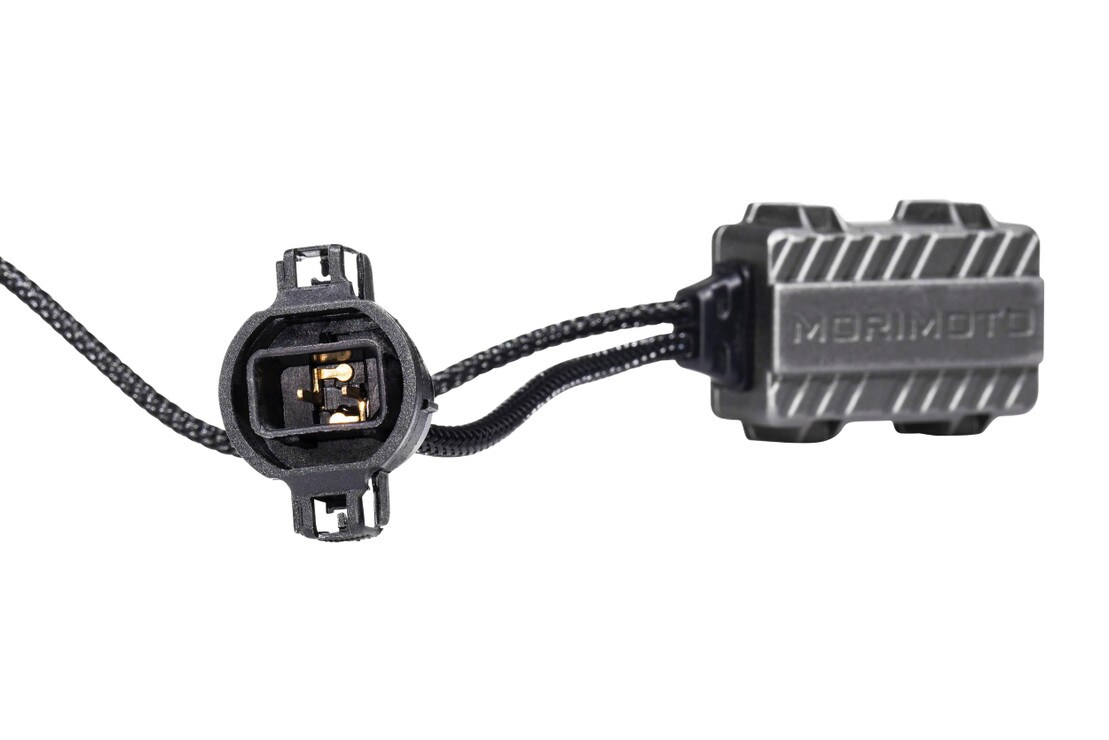

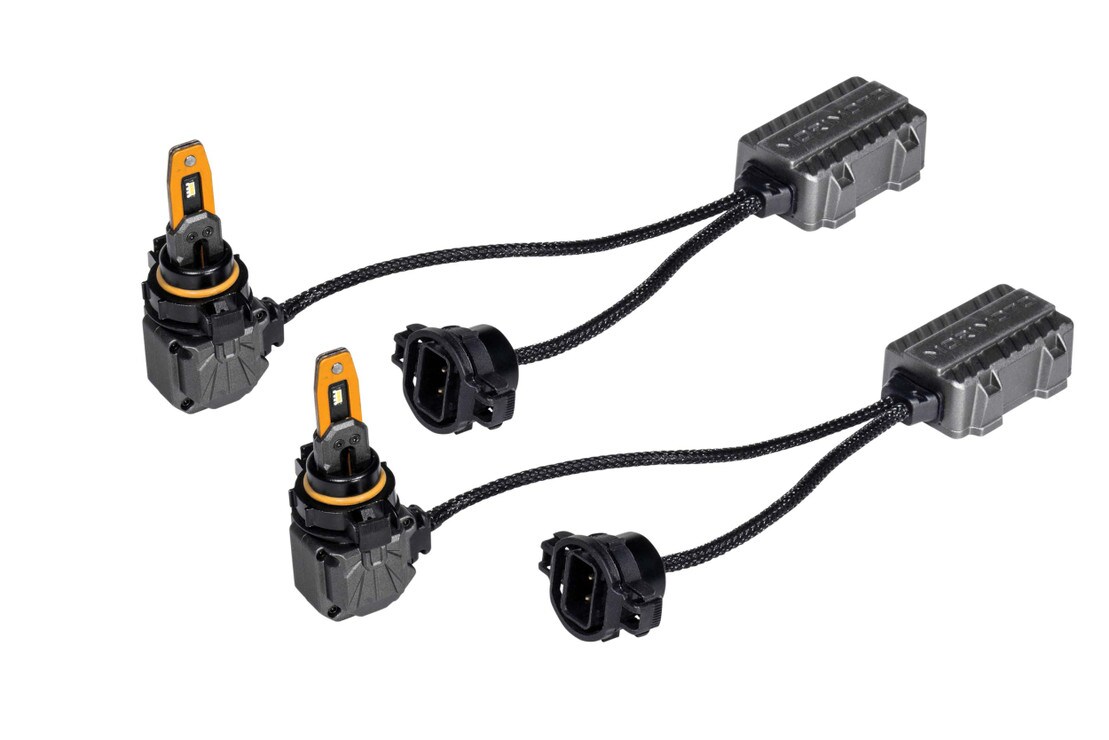

LED Bulbs : 2x (One Pair) 5202 2Stroke 4.0 LED Bulbs w/ Drivers
Warranty : Lifetime Limited
WARRANTY INFORMATION
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.
TECHNICAL SPECIFICATIONS
Luminous Flux : 2,600lm
Power : 18-22.5W
Input Voltage : 9V-16V DC
Material : Electroplated Aluminum
Current : 1.5-1.88A @ 12V DC
Light Source : Osram Oslon Black Flat S 5500K (Pure White)
COMPATIBILITY
ALIASES : 5202, 5204, PS24W, PS24WFF, PSX24W, PSX24, 2504, 5201, 9009, H16-EU, H16 Type B / 5202-style, 12085, 12085LLC1, 12086, 12086FFC1, 12276, 12276WVUB1, PS19W, P24W, P24, PS24N, 7201, 7202, PG20-3, PG20-7
OEM NUMBERS : General Motors 15839897; ACDelco 15839897; Mopar L000PSX24W; Mopar L0PSX24W; Chrysler L000PSX24W; Jeep L000PSX24W; Philips 12086FFC1 (PS24W); Philips 12276WVUB1 (PSX24W); OSRAM 5202 (PS24W); OSRAM 2504 (PSX24W); HELLA 8GA 223 569-001 (PSX24W); HELLA 358107841 (2504 / PSX24W); CEC 5202; CEC 2504; Eiko 06153 / 5202; Service Pro 5202; Sylvania 5202BP; Sylvania 2504BP
AFTERMARKET SKUS : Auxbeam XD000559 - 5202/5201/PS24W/H16-EU Q5 LED fog/DRL bulbs; Morimoto LED2025 - 5202 2Stroke 4.0 LED bulb; GTR Lighting GTR.LED735 - 5202/2504/PSX24W Ultra 2.0 LED bulbs; Diode Dynamics DD0477P - 5202/PSX24W White SL2 LED bulbs pair; Diode Dynamics DD0477S - 5202/PSX24W White SL2 LED single; Diode Dynamics DD0478P - 5202/PSX24W Yellow SL2 LED bulbs pair; Diode Dynamics DD0478S - 5202/PSX24W Yellow SL2 LED single; Diode Dynamics 5202/PSX24W HP48 LED bulbs; Diode Dynamics 5202/PSX24W XP80 LED bulbs; Lasfit LCplus5202 - 5202/2504/PSX24W LC Plus LED fog bulbs; Lasfit LAplus5202 - 5202/2504/PSX24W LA Plus LED fog bulbs; Lasfit LDplus5202 - 5202/2504/PSX24W LD Plus switchback LED fog bulbs; Sylvania 5202 / 5202BP - Basic halogen fog bulb; Sylvania 2504 / 2504BP - Basic PSX24W halogen fog bulb; Philips 12086FFC1 - PS24W standard halogen; Philips 12276WVUB1 - PSX24W WhiteVision ultra halogen; Philips 11086U2500CX - Ultinon Access PS24W/PSX24W LED fog bulbs; OSRAM 5202 - Original Line PS24W 12V 24W bulb; OSRAM 2504 - Original Line PSX24W 12V 24W bulb; HELLA 8GA 223 569-001 - PSX24W 12V 24W bulb; HELLA 358107841 - 2504/PSX24W 12V 24W bulb; SEALIGHT XF1 2504/PSX24W - 2504/PSX24W LED fog bulbs; Super Bright LEDs GTHL-5202 - 5202/H16-EU/PS24W LED fog bulbs; Super Bright LEDs GTHL-PSX24W - PSX24W/2504 LED fog bulbs; Alla Lighting 2504 PSX24W / 12276 - LED fog light bulbs; Alla Lighting 5201/5202 PS24W / 12085 - LED fog/DRL bulbs
FITMENT : Cars & Trucks
Chevrolet Avalanche : 2007-2013 (Fog Light)
Chevrolet Camaro (selected Trims) : 2010-2013 (Fog Light)
Chevrolet Colorado : 2015-2019 (Fog Light)
Chevrolet Silverado 1500 : 2007-2015 (Fog Light)
Chevrolet Silverado 2500 HD : 2007-2020 (Fog Light)
Chevrolet Silverado 3500 HD : 2007-2020 (Fog Light)
Chevrolet Sonic : 2017-2020 (Fog Light)
Chevrolet Spark : 2016-2020 (Fog Light)
Chevrolet Suburban : 2019-2020 (Fog Light)
Chevrolet Suburban 1500 : 2007-2014 (Fog Light)
Chevrolet Suburban 2500 : 2007-2013 (Fog Light)
Chevrolet Tahoe : 2007 (Fog Light)
Chevrolet Tahoe (selected Trims) : 2008-2014 (Fog Light)
Chevrolet Traverse : 2019-2020 (Fog Light)
Chevrolet Trax : 2019-2020 (Fog Light)
Chrysler 200 : 2011-2012 (Fog Light)
Chrysler 300 (selected Trims) : 2010 (Fog Light)
Chrysler Sebring (selected Trims) : 2010 (Fog Light)
Dodge Avenger : 2010-2012 (Fog Light)
Dodge Caliber : 2010-2012 (Fog Light)
Dodge Challenger (selected Trims) : 2011-2014 (Fog Light)
Dodge Charger (selected Trims) : 2010-2014 (Fog Light)
Dodge Dakota : 2010 (Fog Light)
Dodge Durango (selected Trims) : 2011-2013 (Fog Light)
Dodge Grand Caravan : 2010-2019 (Fog Light)
Dodge Journey : 2010, 2019 (Fog Light)
Dodge Journey (selected Trims) : 2011-2018 (Fog Light)
Dodge Nitro : 2010-2011 (Fog Light)
Ford Escape : 2007-2012 (Fog Light)
GMC Acadia (selected Trims) : 2007-2012 (Fog Light)
GMC Canyon : 2015-2020 (Fog Light)
GMC Sierra 1500 : 2009-2015 (Fog Light)
GMC Sierra 1500 (selected Trims) : 2007-2008 (Fog Light)
GMC Sierra 2500 HD : 2007-2020 (Fog Light)
GMC Sierra 3500 HD : 2007-2020 (Fog Light)
GMC Yukon : 2014, 2019-2020 (Fog Light)
GMC Yukon (selected Trims) : 2007-2013 (Fog Light)
GMC Yukon XL : 2019-2020 (Fog Light)
GMC Yukon XL 1500 : 2009-2014 (Fog Light)
GMC Yukon XL 1500 (selected Trims) : 2007-2008 (Fog Light)
GMC Yukon XL 2500 : 2007-2013 (Fog Light)
Jeep Cherokee : 2019 (Fog Light)
Jeep Cherokee (selected Trims) : 2014-2019 (Fog Light)
Jeep Compass : 2010-2013 (Fog Light)
Jeep Gladiator (selected Trims) : 2020 (Fog Light)
Jeep Grand Cherokee (selected Trims) : 2011 (Fog Light)
Jeep Patriot : 2010-2017 (Fog Light)
Jeep Wrangler : 2010-2016 (Fog Light)
Jeep Wrangler (selected Trims) : 2017-2020 (Fog Light)
Subaru BRZ : 2013-2016 (Fog Light)
Subaru Crosstrek (selected Trims) : 2017-2018 (Fog Light)
Subaru Impreza (selected Trims) : 2012-2016 (Fog Light)
Subaru XV Crosstrek (selected Trims) : 2013-2014 (Fog Light)
Volkswagen Routan (selected Trims) : 2010-2014 (Fog Light)
COMPLIANCE
APPLICATION: HID and LED bulbs are street legal in the USA for Fog Light use only. Not compliant with DOT / FMVSS108 and not street legal in the USA for Headlights. Legal for off-road use in Snowmobile and ATV headlights and off-road racing use only auxiliary or forward lighting. International street legality varies by country. For detailed clarification on street use, CLICK HERE
Note: This usage regulation is not unique to this item. All LED and HID bulbs from all other brands, regardless of marketing claims, are prohibited from street use in halogen headlights in the USA.
HOMOLOGATION ECE: NO
DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)
INSTALLATION DOCUMENTS
Benchmark: While the rest of the industry has been asleep at the wheel in this category, Morimoto was hard at work developing the successor to the incredible 2Stroke 3.0 LED bulbs. The 4.0 re-creates the original beam pattern from your optics effectively by doing more with less. They will put more light on the road for you as the driver, while creating less glare for oncoming traffic compared to any other LED bulb on the market today. While LED bulbs still aren't DOT approved for use in headlights in the states; foreign markets and fog light users can enjoy the best plug n play LED bulb to date. The 2Stroke 4.0. (Featuring technology patented by Morimoto)

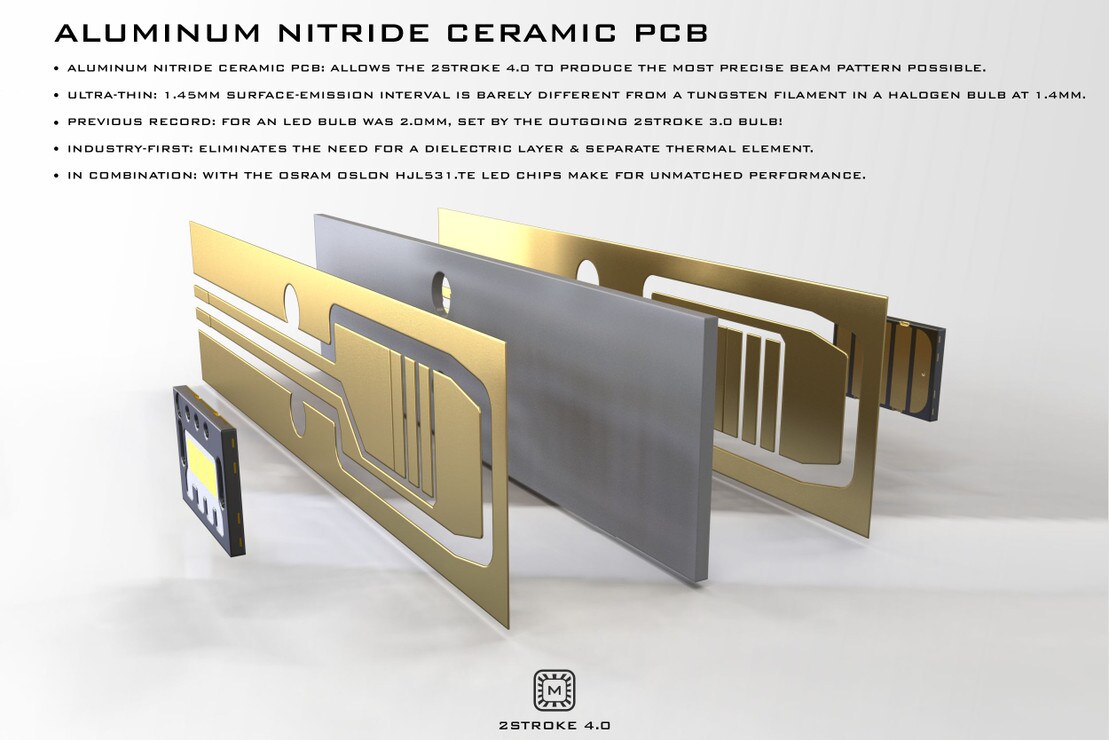

Superior Beam Quality: The advanced Aluminum Nitride Ceramic circuit board in the center of the 2S4 sets allows the bulbs to produce the most precise beam pattern possible, with its 1.45mm surface-emission interval. For reference, the tungsten filament in a halogen bulb is 1.4mm, and the previous record for an LED bulb was 2.0mm, set by the outgoing 2Stroke 3.0 bulb! Using the industry-first ceramic PCB, we have eliminated the need for the dielectric layer and a separate thermal element, which, in combination with the Osram Oslon HJL531.TE LED chips makes for unmatched performance when used in all reflector and projector-based headlights designed for halogen bulbs.
Optimized focal length: Each size in the 2Stroke 4.0 lineup has been painstakingly optimized for proper output in its designated application. The critical reference distance has been calculated based on the geometry of the bulb base and the footprint of the Osram HJL531 emitter. To ensure consistency, special tools were designed to quality-control the accuracy of each bulb as it comes off the production line. Most other LED light bulbs on the market use a 'set it and forget it' reference distance across all sizes in the series, making for sub-optimal focus in most applications... not the case with the 2Stroke series of bulbs.
360 degrees of Rotation: Since no single standard exists across different headlight and fog lights, all bulbs in the 2Stroke 4.0 range are fully adjustable so that you can dial-in the position of the LED chips so that they sit perfectly at the 3 and 9-o-clock positions. On the previous gen bulbs, the gears on the base were prone to slipping when locking it into your headlight, but the new system is immune to that. In summary, setting up the alignment of your bulbs is now easier than ever!

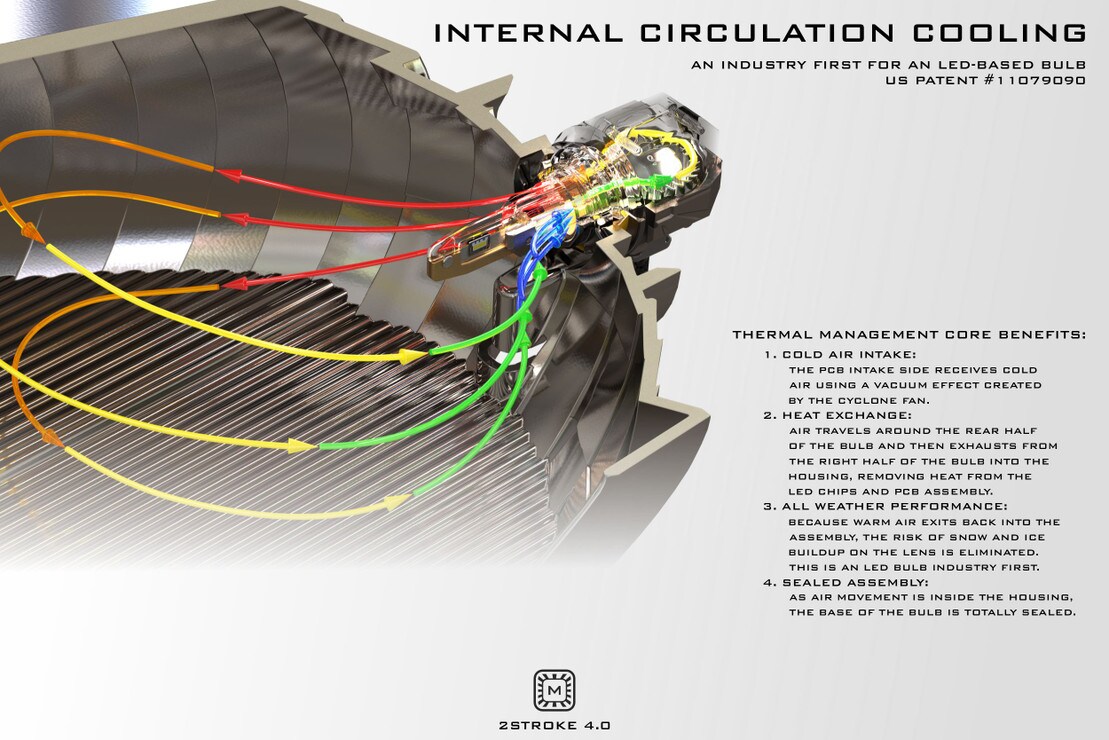

Thermal management: The 2Stroke 4.0 uses an upgraded version of the patented system we first employed on the 3.0 bulbs. This unique cooling system uses a 12,000-rpm dual-layer fan to suck cool air into the body of the bulb and blow warm air out, back into the housing. On the intake side, cold air is sucked in past the sidewall of the PCB to exchange heat and is blown out the opposite side of the bulb. This effectively cools the bulb while warming the ambient temperature inside of the housing, increasing resistance to snow/ice buildup on the lens during the winter months. With even more static pressure than the previous version, the cooling system on the 2Stroke 4.0 maximizes longevity of the bulb, while serving up a bad-weather benefit not found elsewhere.

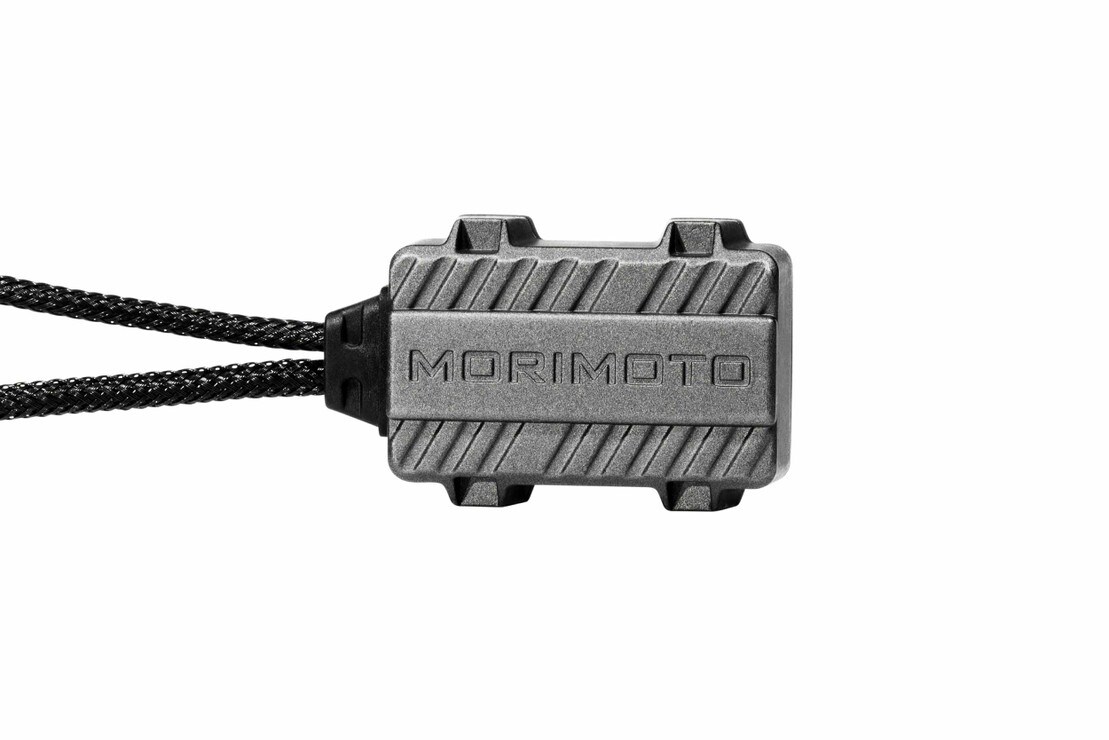

Unique Drive Logic: The LED drivers are programmed to start up at a conservative 18W, and then ramp-up in power over the first 15 minutes before stabilizing at 22.5W. Unlike every other bulb in the aftermarket which lose output intensity over the first 15 minutes of runtime (as the system heat-soaks), the performance from the 2Stroke 4.0 remains impressive from the moment you pull out of the driveway till the moment you park the car.
Lifetime Warranty: The Morimoto 2Stroke 4.0 bulbs are produced using the latest OE-grade materials, electronics, and LEDs for the automotive industry. The conservative LED drive rates and highly effective thermal management systems make for low operating temperatures. All of this adds up to a bulb that is designed to last, and that' why they are backed with an industry-leading lifetime warranty.
