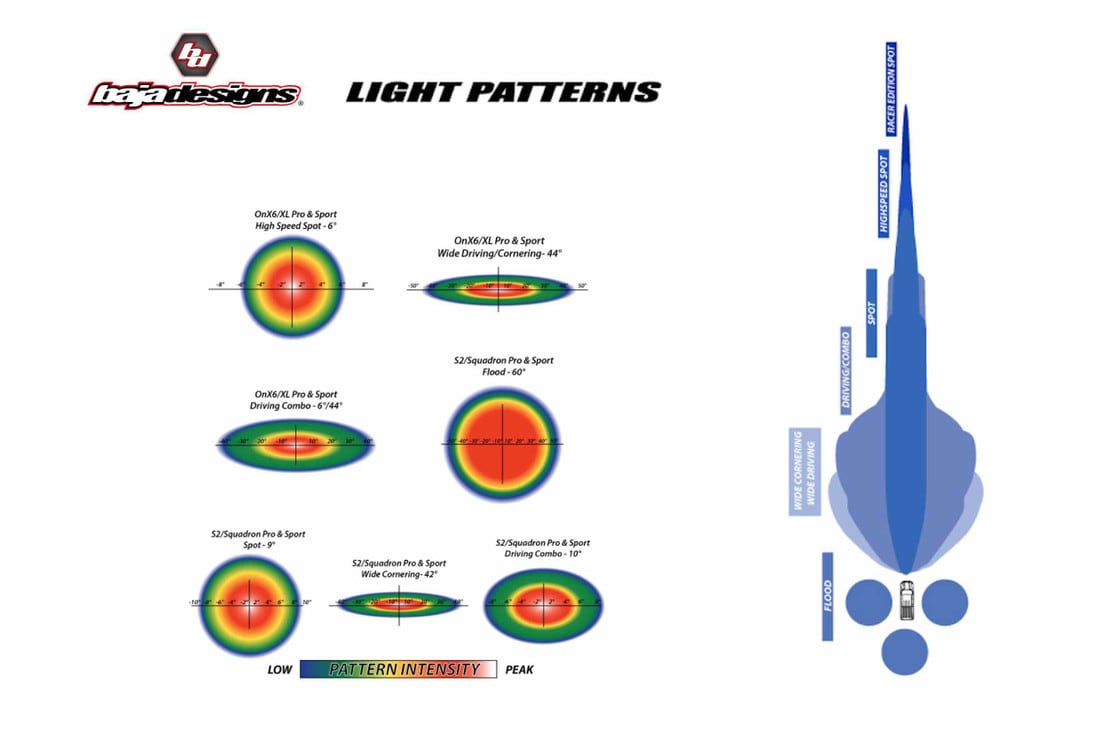

Spot, Work, Scene Beam Patterns

Baja Designs S1 LED Pods

BD3-HR

PART #: 1 x 380001


[ In Stock: 0 pieces ]

Product Details

Small But Mighty: Don’t settle for dimmer less reliable lighting. The Baja Designs S1 is one of the best 2.1”x 2.1” LED lights we’ve ever seen. Its small size means it’s versatile enough to fit almost anywhere and thanks to a proprietary reflector and LED chip combination it’s incredibly powerful. Want big power but don’t have a ton of space? The S1 is perfect for you! (Patent Pending)

uService from Baja Designs: uService is one of the coolest modular programs we’ve seen from any lighting company and it’s no surprise that Baja Designs has pioneered it. With uService you have the freedom to change your lenses and optics with ease at a moment’s notice. Gone are the days of being locked into one style or beam pattern. In addition, there’s no need to worry about water, these have MoistureBlock baked in so H2O doesn’t stand a chance no matter how deep in the creek you may get.

HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you’ll find for sale. We don’t favor any particular brand, so our commitment to you is that we’ll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the "buyers guide" on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

Product Specs

  • What's Included

  • 1x: S1 LED Light

  • 1x: Mounting Bracket

  • Satisfaction Guarantee: 30 day Money Back Guarantee*

  • Limited Lifetime Warranty: Complete Purchase Protection*

  • Compatibility

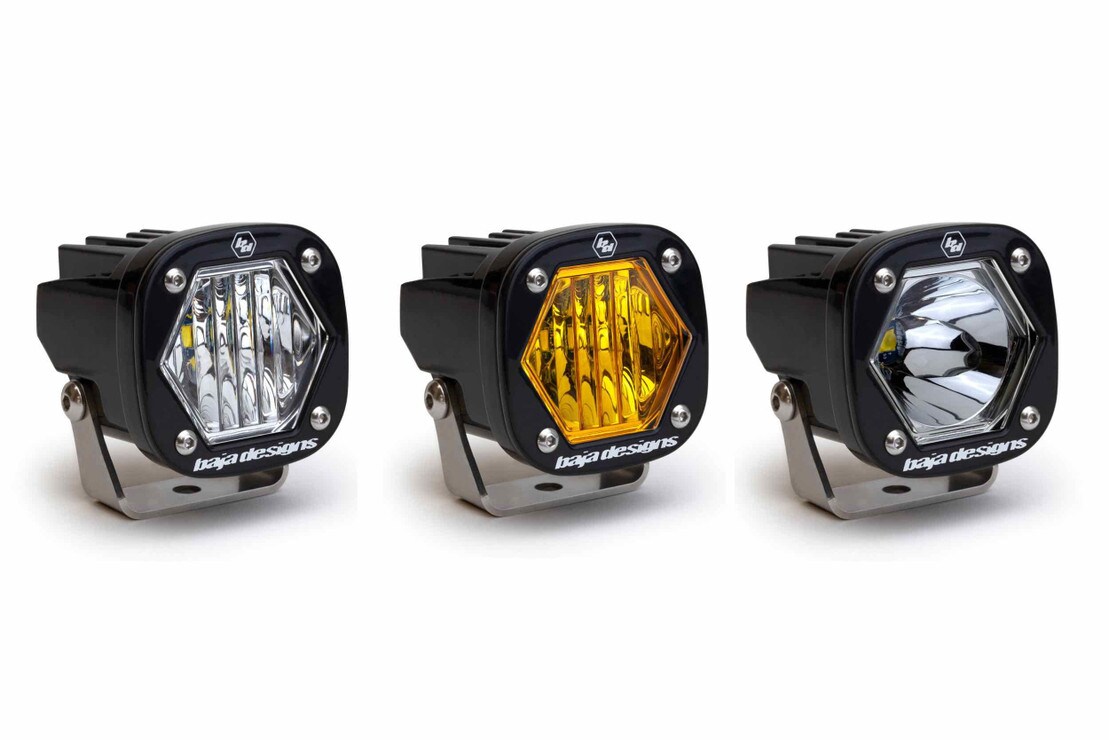

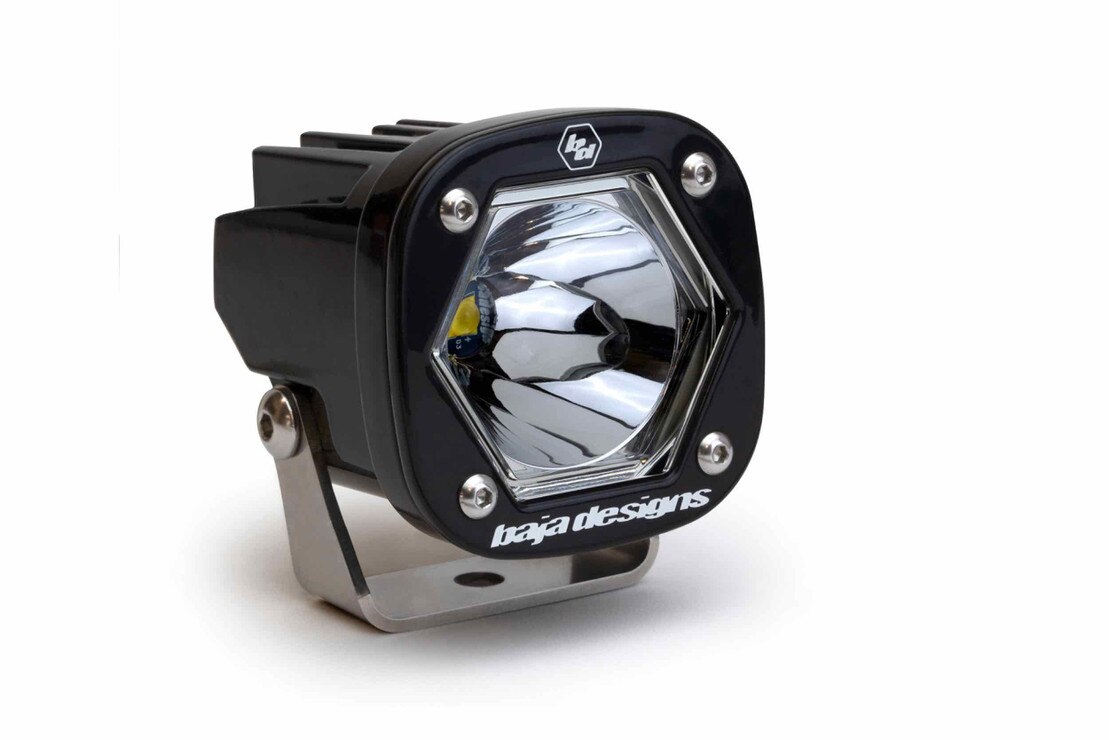

  • 380001: S1 LED Pod w/ Bracket (Each / White / Spot Beam)

  • 380005: S1 LED Pod w/ Bracket (Each / White / Wide Beam)

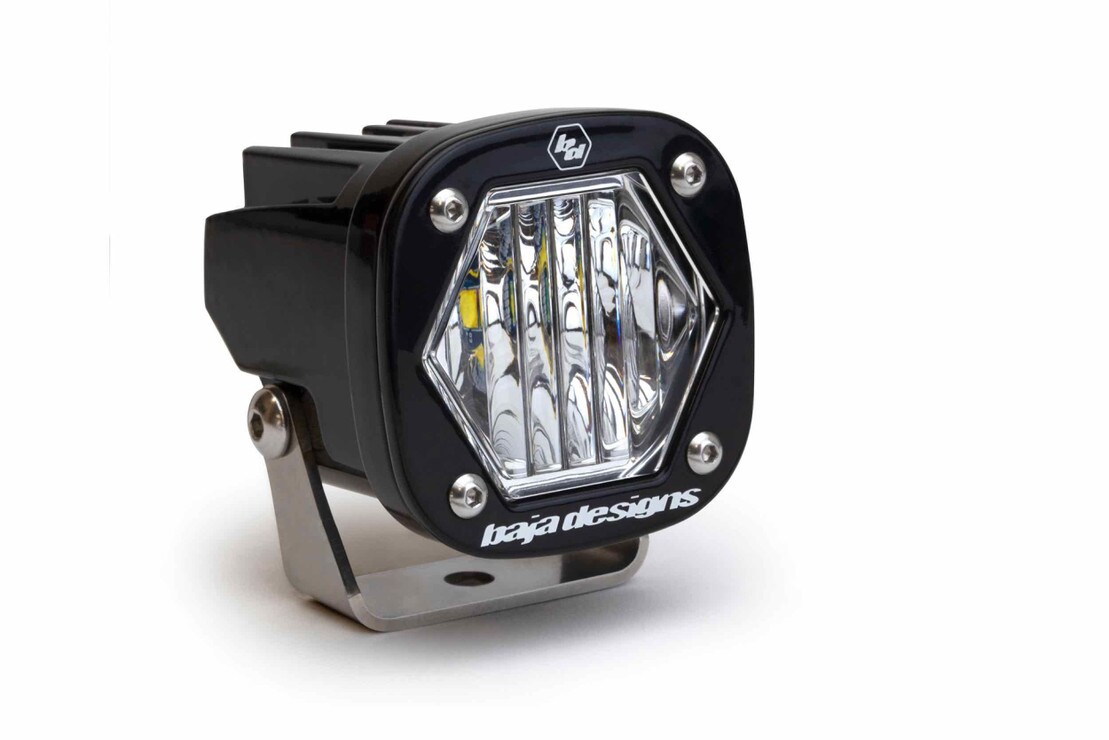

  • 380006: S1 LED Pod w/ Bracket (Each / White / Work-Scene Beam)

  • 380015: S1 LED Pod w/ Bracket (Each / Amber / Wide-Cornering Beam)

  • 380015: S1 LED Pod w/ Bracket (Each / White / Spot Beam) (Laser Model)

  • Tech Specs

  • Lumens: 2,375 Utilizing 1 LED

  • Kelvin: 5000K Daylight : Less Driver Fatigue, Natural Color

  • Wattage/Amps: 20W / 1.45A

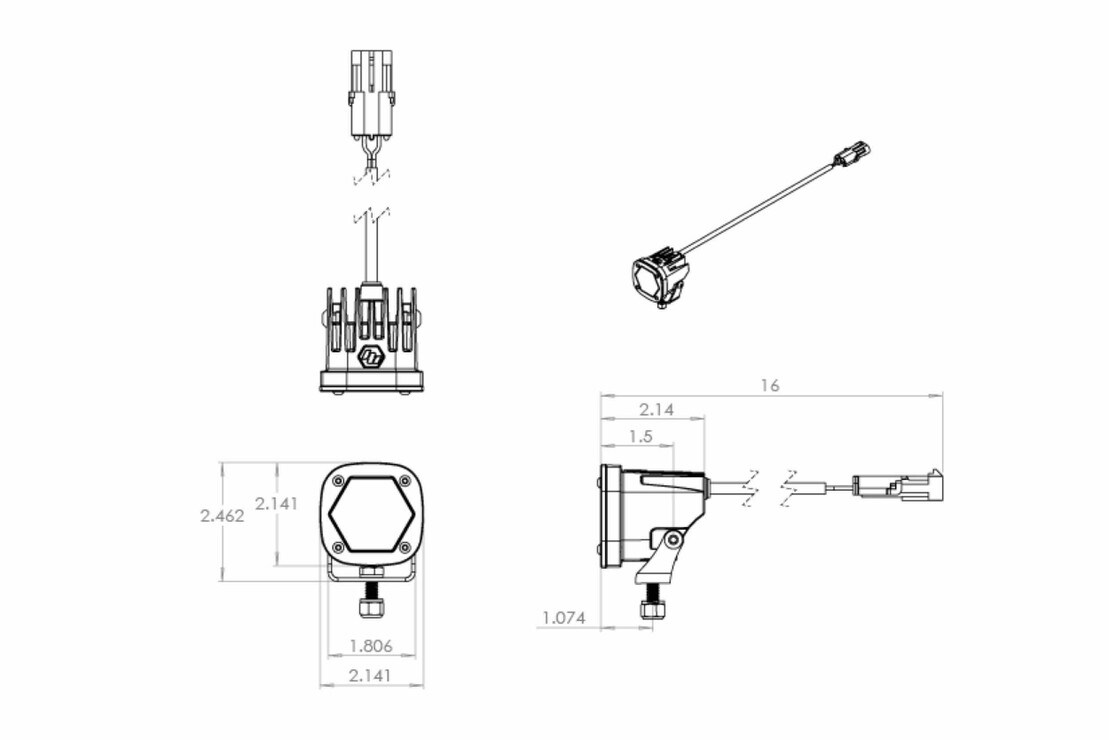

  • Dimensions: 2.1" x 2.1" x 2.1"

  • Safe Voltage Range: 9-28V

  • Weight: 0.4 lbs

  • LED Life Expectancy: 49,930 Hours

  • Front Lens: Hard Coated Polycarbonate

  • Housing: Hard Anodized & Powder Coated Cast Aluminum

  • Bezel: Billet Machined Aluminum

  • Hardware & Bracket Material: Stainless Steel

  • Exceeds: MIL-STD810G (Mil-Spec Testing)

  • Built-In: Overvoltage Protection

  • IP69K: (Waterproof up to 9ft & Pressure Washable)

  • IK10: Compliant (Mechanical Impact Testing)

  • uService: Replaceable Lenses And Optics

  • ClearView: All The Light, Right Where You Need It.

  • CopperDrive: Only LED Driven At 100%
