Dodge Ram HD (2019+) Bumper-Mount LED System

(0) No Reviews yet

Brand: Baja Designs




PART #: 1 x 448031


Introducing Baja Designs' Bumper Mounted LED Lighting kit, tailor-made for the 19+ Dodge RAM HD. This kit provides the option to equip your vehicle with either the powerful OnX6+ light bar for superior long-range visibility or the S8 Lightbar for remarkable near-field illumination. What sets it apart is the seamless integration, making your bumper appear as if it's from a special limited edition trim. The inclusion of Battery Management Technology ensures no flickering at low voltages, safeguards vehicle wiring, and offers protection against current spikes. takes pride in their uService modular program, allowing lens and optic changes on-the-go. Also, with MoistureBlock technology, your lights are impermeable to water. Every purchase is reinforced by a 30-Day Satisfaction Guarantee and a Limited Lifetime Warranty.


  • Custom Fit Designed explicitly for the 19+ Dodge RAM HD, ensuring a seamless integration.
  • OnX6+ or S8 Lightbar Choose between long-range visibility or near-field brilliance.
  • BMT Equipped Offers flicker-free performance, protects vehicle systems, and prevents current spikes.
  • uService Modular Program Change lenses and optics effortlessly for diverse lighting needs.
  • Waterproof Design Thanks to MoistureBlock, the lights are resistant to water-related damages.
  • Quality Assurance Enjoy peace of mind with Baja Designs' 30-Day Satisfaction Guarantee & Limited Lifetime Warranty.

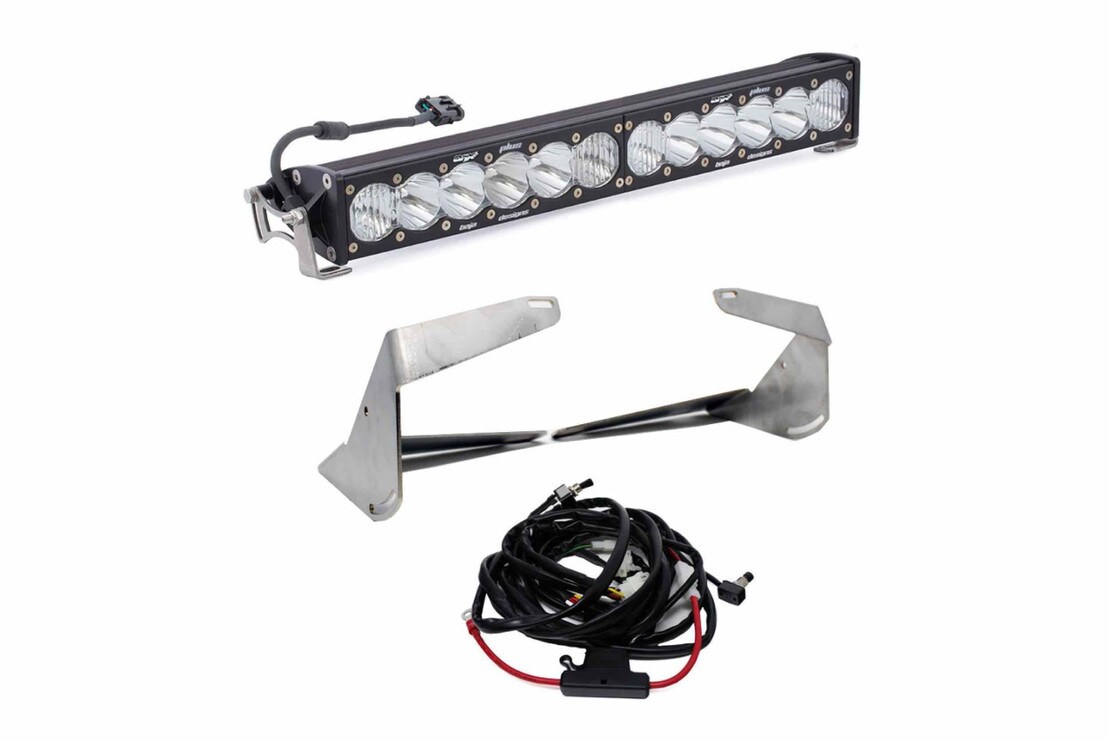

  • Light Bar: 1x 20in S8 or OnX6 LED Light Bar

  • Wiring: 1x Plug and Play Harness

  • Hardware: Mounting Brackets


This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Intensity: 24,920lm (High), 18,460lm (Low)

  • Power: 216w (High), 160w (Low)

  • Current: 16.6A (High), 12.0A (Low)

  • Weight: 7.85lbs

  • Light Color: 5000K (Pure White)

  • Material: Hard Coated Polycarbonate (Lens), Anodized Aluminum (Housing), Billet Aluminum (Bezel), Stainless Steel (Hardware, Bracket)


  • 448031: Baja Designs Bumper-Mount LED System: Dodge Ram HD (19+) (20" / OnX6+ Bar)

  • 448030: Baja Designs Bumper-Mount LED System: Dodge Ram HD (19+) (20" / S8 Combo Bar)

  • Ram: 2500/3500 2019+ (Tradesmen, Big Horn, Laramie, Longhorn, Limited)


IP69K, IK10, MIL-STD810G


Illuminating Bumpers: Crafted specifically for the 19+ Dodge RAM HD, this Bumper Mounted LED LIghting kit from Baja Designs gives you the freedom to choose from their exceptional and intense long-range OnX6+ light bar or their impressive near field S8 Lightbar line. It comes with everything you need including the brackets and wiring harness. Both will incorporate seamlessly into your bumper while looking like part of a special super rare trim version the general public couldn't get their hands on.

This lightbar is equipped with BMT: Battery Management Technology. Elimination Of Flickering at Low Voltage. Added Protection to Vehicle Wiring and Systems. Protection from Dangerous Current Spikes.

Warranty:Don't settle for less! Baja Designs features their industry-first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty on this light.

uService from Baja Designs: uService is one of the coolest modular programs we've seen from any lighting company and it's no surprise that Baja Designs has pioneered it. With uService you have the freedom to change your lenses and optics with ease at a moment's notice. Gone are the days of being locked into one style or beam pattern. In addition, there's no need to worry about water, these have MoistureBlock baked in so H2O doesn't stand a chance no matter how deep in the creek you may get.
