Bolt-On by Diode Dynamics

Grille-Mount LED Light Bar System: Subaru WRX (15-17)

DD49-HR

PART #: 1 x DD6008


[ In Stock: 0 pieces ]

Product Details

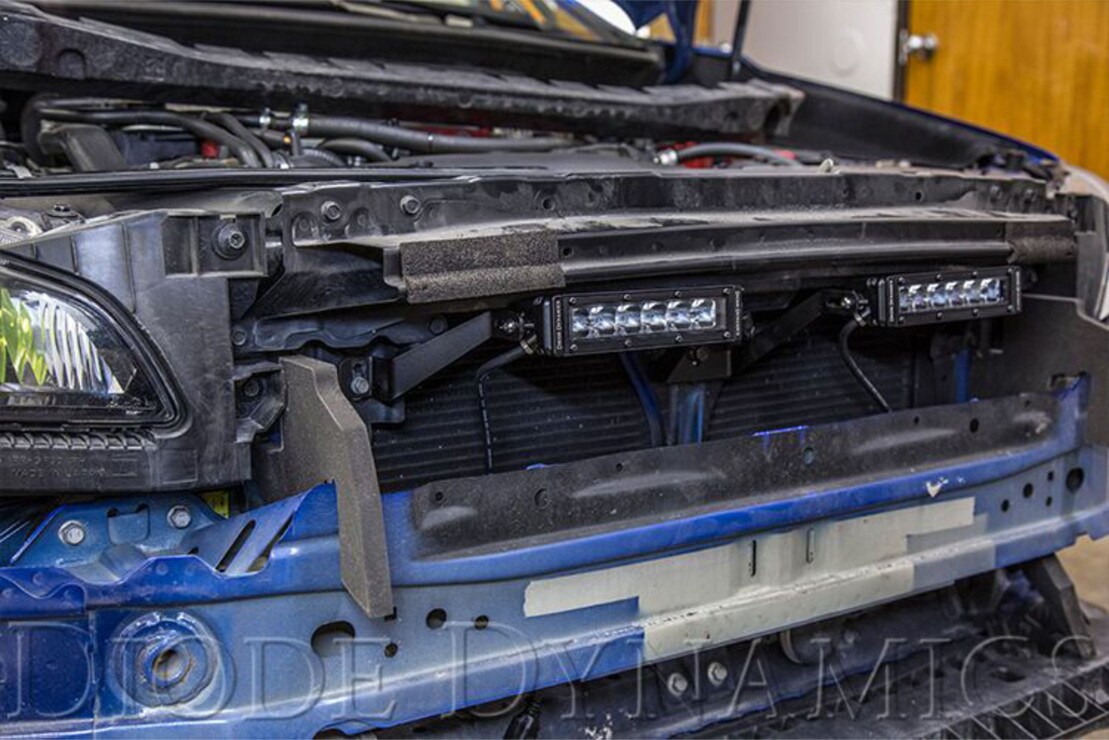

Subtle and Stylish: Diode Dynamics seems to be at the top of their game when it comes to subtle but stunning lighting options. This Grille Mounted LED Light Bar kit for the Subaru WRX & STI proves that point once again with CAD designed parts that will mount easily without cutting or otherwise modifying. It also comes complete with all wiring and the toggle switch to get professional results.

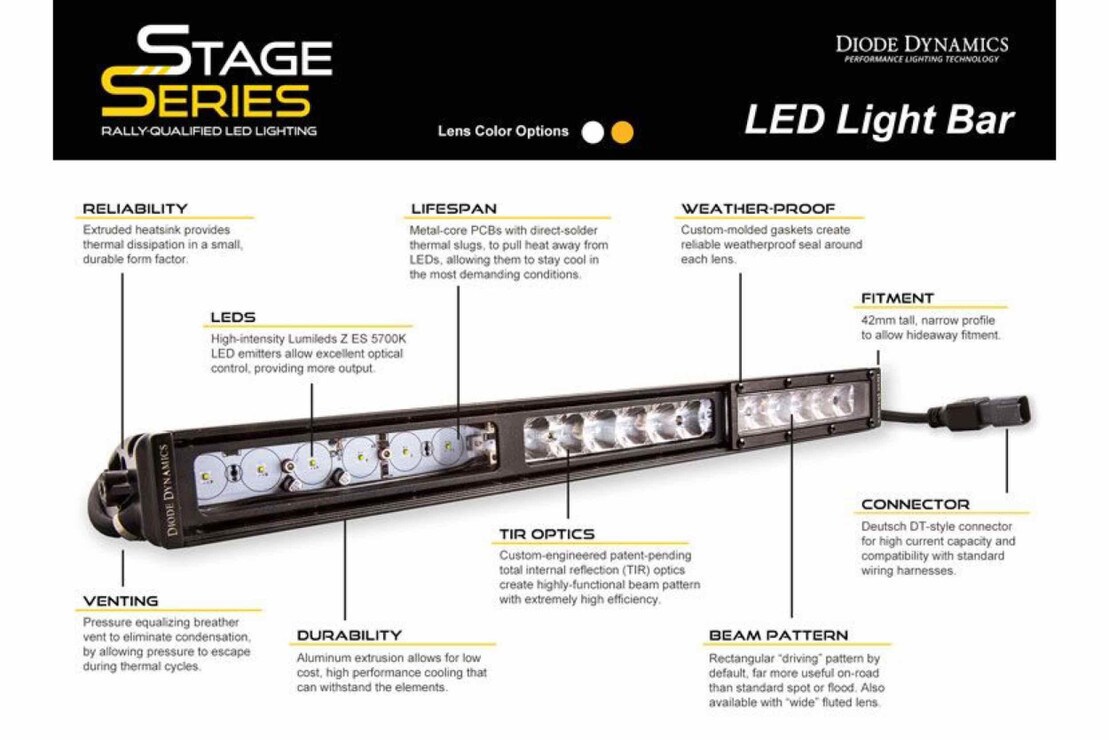

Options: The Stage Series light bar uses advanced TIR optics to ensure optimal performance and it can even be had in many styles. Choose from two beam patterns, Driving or Flood. Then choose if you want white or amber lighting. It’s as custom as you can get.

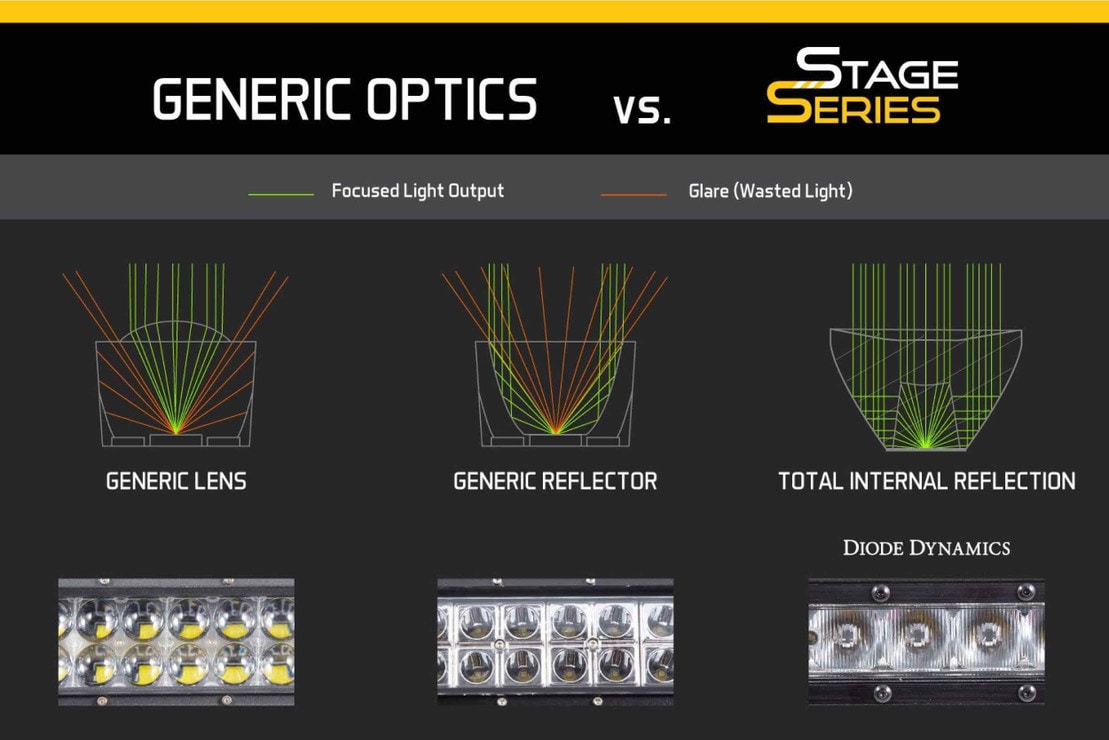

Measurable Performance: These lights aren’t just created based on opinion or previous designs. They’re put through a rigorous optical simulation during the design phase to ensure they’re going to perform with maximum lighting and efficiency. Diode Dynamics takes full advantage of their TIR optics and high-grade materials to create a light bar that’s unrivaled.

SAE: Both Patterns are Street Legal so you can use them where you need it most. (Please check your local laws and regulations for aiming, installation, and applicability).

Confidence: Diode Dynamics has real belief in their products and they back that up with an unprecedented 8 year warranty on this product.

HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you’ll find for sale. We don’t favor any particular brand, so our commitment to you is that we’ll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the "buyers guide" on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

Product Specs

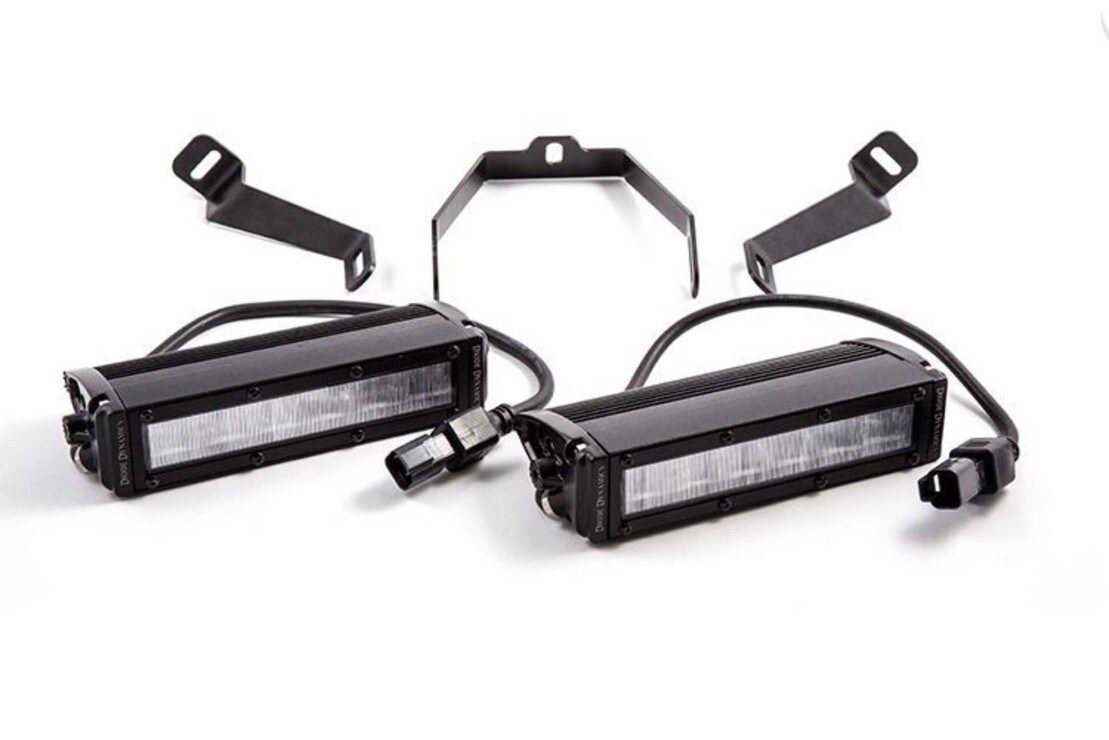

  • What's Included

  • Brackets: 3x Vehicle-Spec

  • SS6 Stage Series 6" Light Bars: 2x

  • Wiring: 1x Wire Harness

  • Hardware: Mounting Hardware

  • Warranty: 8 Years

  • Compatibility

  • NOTE: This kit is not compatible with Hella Horns, as they use the same mounting points

  • Make: Subaru

  • Model: WRX/Sti

  • Years: 2015, 2016, 2017

  • Electrical Compatibility: No electrical issues (tested and confirmed)

  • Tech Specs

  • Color Temp (CCT): 6000K

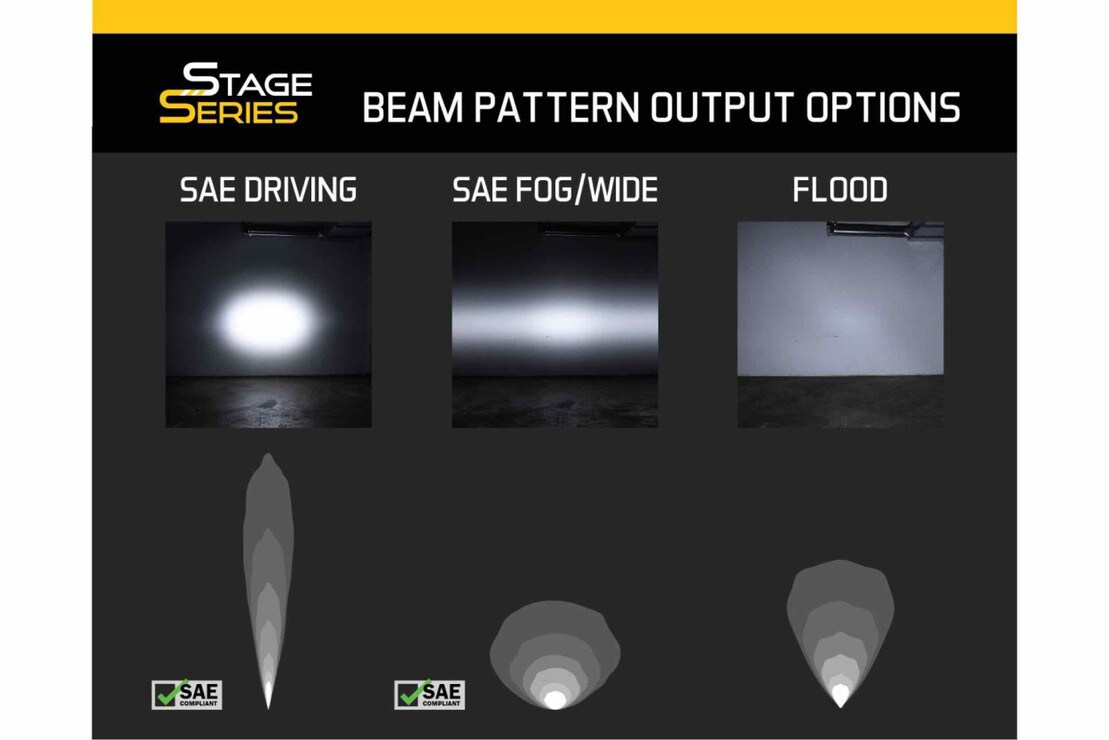

  • Beam Angle: Wide, 100degx8deg, Driving, 20degx8deg

  • Power (watts): 26.6

  • Operating Voltage: 9-16V

  • Current (amps @ 13.2V): 1.9

  • Polarity: Polarity Specific

  • Operating Temperature: -40C to 85C (-40F to 185F)

  • LED Emitter: Luxeon Z ES

  • Connector(s): Deutsch DT Input

  • Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink

  • Cooling: Passive, heatsink

  • Intrusion Ratings: IP68 Waterproof

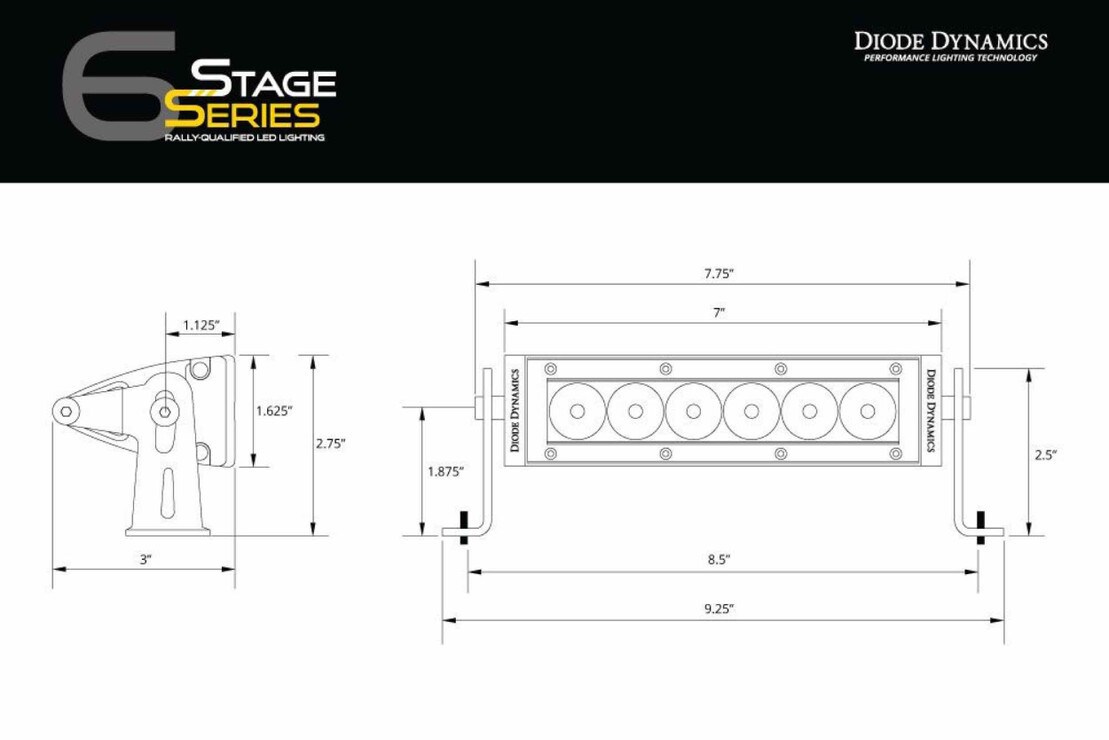

  • Product Dimensions (in): 7x3x1.63
