Ford Ranger (2019+) Grille-Mount LED System

(0) No Reviews yet

Brand: Baja Designs




PART #: 1 x 447611


Upgrade your Ford Ranger's lighting with the 20-inch S8 kit with backlighting. This all-inclusive kit, designed for models from 2019 to 2022, is tailored to fit perfectly into the lower grille without requiring any drilling or modifications. However, vehicles with the "Active Cruise Control" feature will need adjustments. The S8 light bar, engineered by Baja Designs, offers an impressive 12,700 lumens, ensuring unparalleled brightness and clarity. Its robust design includes features like ClearView for optimal light distribution, MoistureBlock for water resistance, and CopperDrive ensuring 100% LED drive. With Baja Designs' pioneering uService, lens and optics changes are no longer a daunting task. The kit, encapsulating both aesthetics and performance, promises durability exceeding MIL-STD810G standards and comes with a 30-day money-back guarantee.


  • High-performance Lighting The 20-inch S8 light bar illuminates with 12,700 lumens for unmatched brightness.

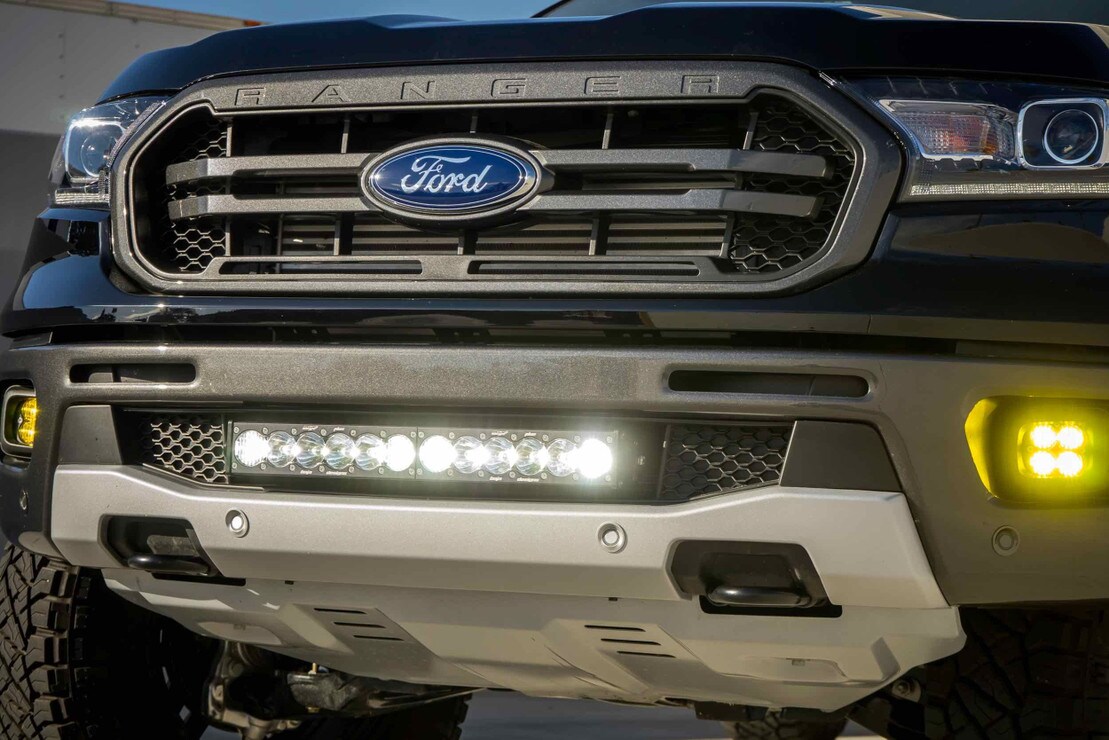

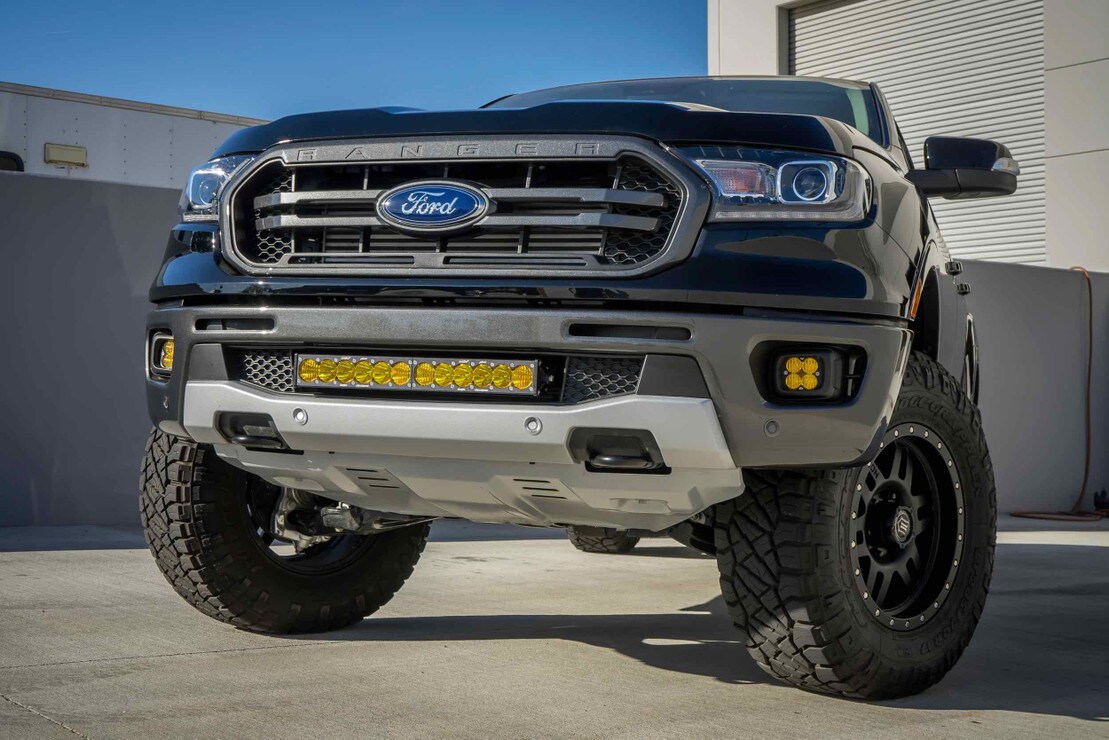

  • Effortless Installation Designed to fit seamlessly into the lower grille of Ford Ranger (2019-2022) without any modifications.
  • uService Advantage Change your lenses and optics easily, offering flexibility and adaptability for different conditions.
  • Unparalleled Durability Built to exceed MIL-STD810G standards, IK10 compliant, and IP69K waterproofing ensures longevity.
  • Optimal Visibility The 5000K Daylight specification provides a natural color, ensuring reduced fatigue and enhanced safety.

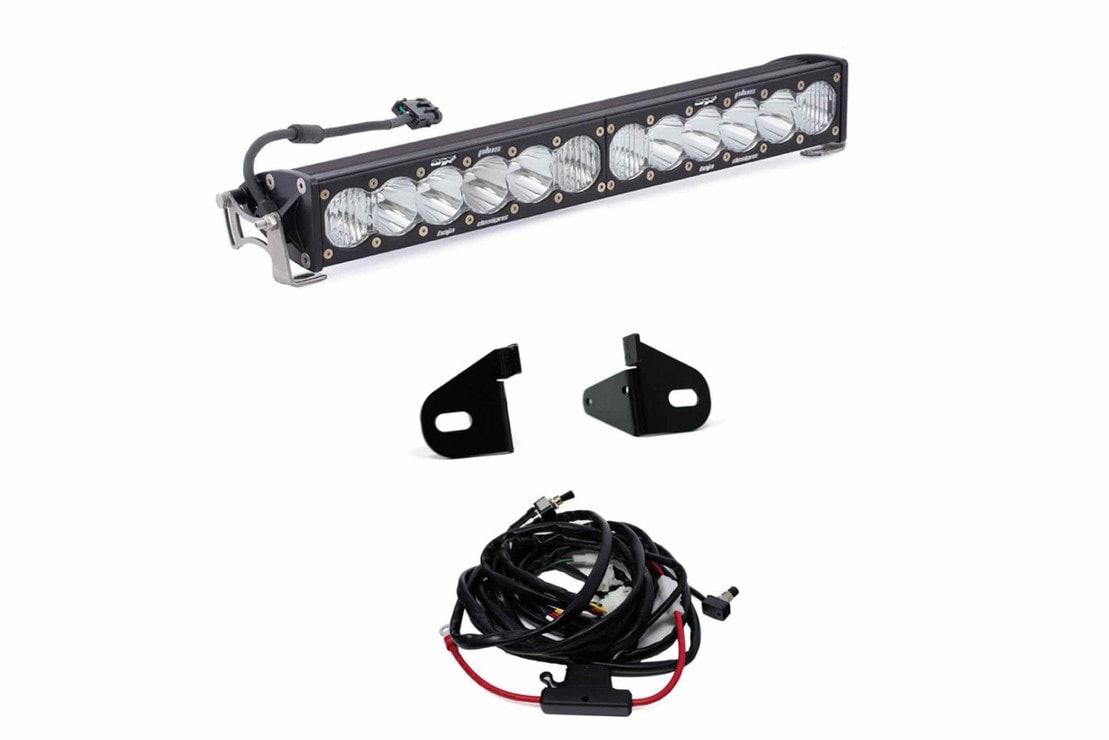

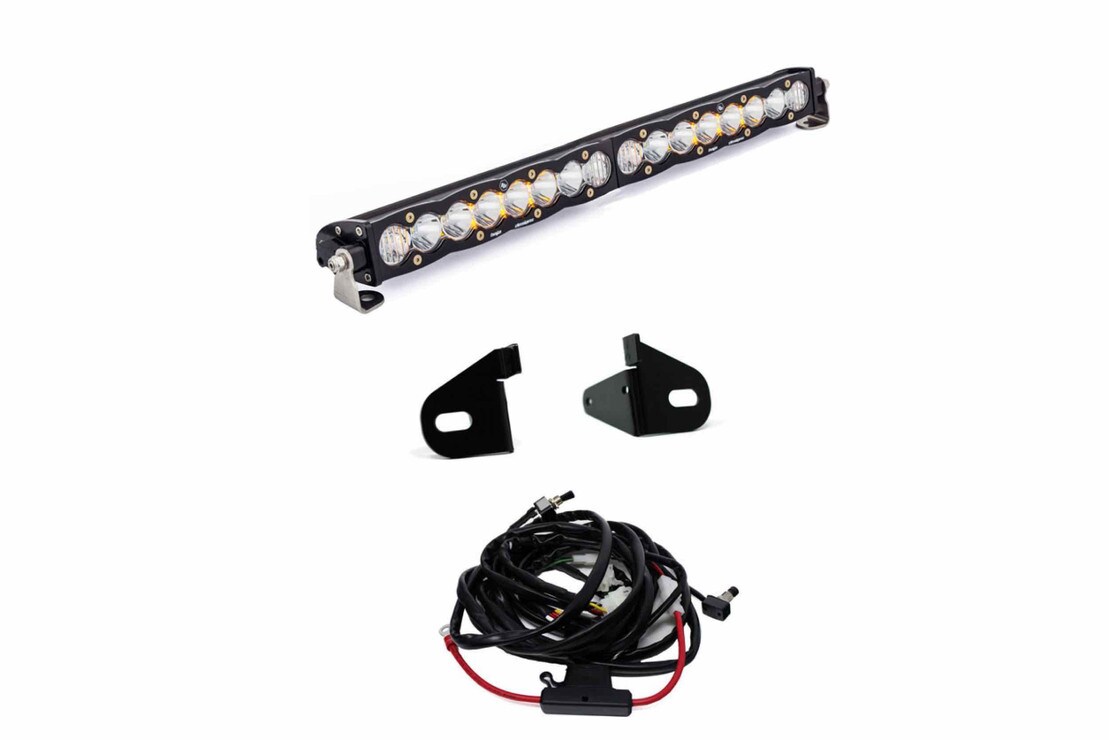

  • Light Bar: 1x 20in OnX6 LED Light Bar

  • Wiring: 1x Plug and Play Harness

  • Hardware: Mounting Brackets


This product is covered by a Lifetime Limited warranty, serviced and supported by the manufacturer directly. This warranty does not cover modifications, alterations, or misuse. For additional information,Click Here.


  • Intensity: 24,920lm (High), 18,460lm (Low)

  • Power: 216w (High), 160w (Low)

  • Current: 16.6A (High), 12.0A (Low)

  • Weight: 7.85lbs

  • Light Color: 5000K (Pure White)

  • Material: Hard Coated Polycarbonate (Lens), Anodized Aluminum (Housing), Billet Aluminum (Bezel), Stainless Steel (Hardware, Bracket)


  • 447612: Baja Designs Grille-Mount LED System: Ford Ranger (19+) (30" / OnX6+ Bar)

  • 447611: Baja Designs Grille-Mount LED System: Ford Ranger (19+) (30" / S8 Bar)

  • 447610: Baja Designs Grille-Mount LED System: Ford Ranger (19+) (Squadron Pro)

  • 447609: Baja Designs Grille-Mount LED System: Ford Ranger (19+) (Squadron Sport)


IP69K, IK10, MIL-STD810G


Baja Grille Upgrades: Baja Designs knows that customers want a tailored fit and finish that looks as good if not better than factory when they install LED lighting and that's why this Grille Mounted LED System for the 19+ Ford Ranger is so impressive. Designed to accept the 20" OnX6+ LED with a driving/combo beam pattern it comes with, it will install easily and provides the simplicity of tapping into your lighting to use the factory up-fitter switches. Please Note: Due to this intentional fitment with the OnX6+, other light bars will not fit.

This bar is equipped with BMT: Battery Management Technology. Elimination Of Flickering at Low Voltage. Added Protection to Vehicle Wiring and Systems. Protection from Dangerous Current Spikes.

uService from Baja Designs: uService is one of the coolest modular programs we've seen from any lighting company and it's no surprise that Baja Designs has pioneered it. With uService you have the freedom to change your lenses and optics with ease at a moment's notice. Gone are the days of being locked into one style or beam pattern. In addition, there's no need to worry about water, these have MoistureBlock baked in so H2O doesn't stand a chance no matter how deep in the creek you may get.
