Baja Designs S8 or OnX6+ LED Bars
Grille-Mount LED System: GMC Sierra (18-20)3P-BD51-HR
[ In Stock: 0 pieces ]

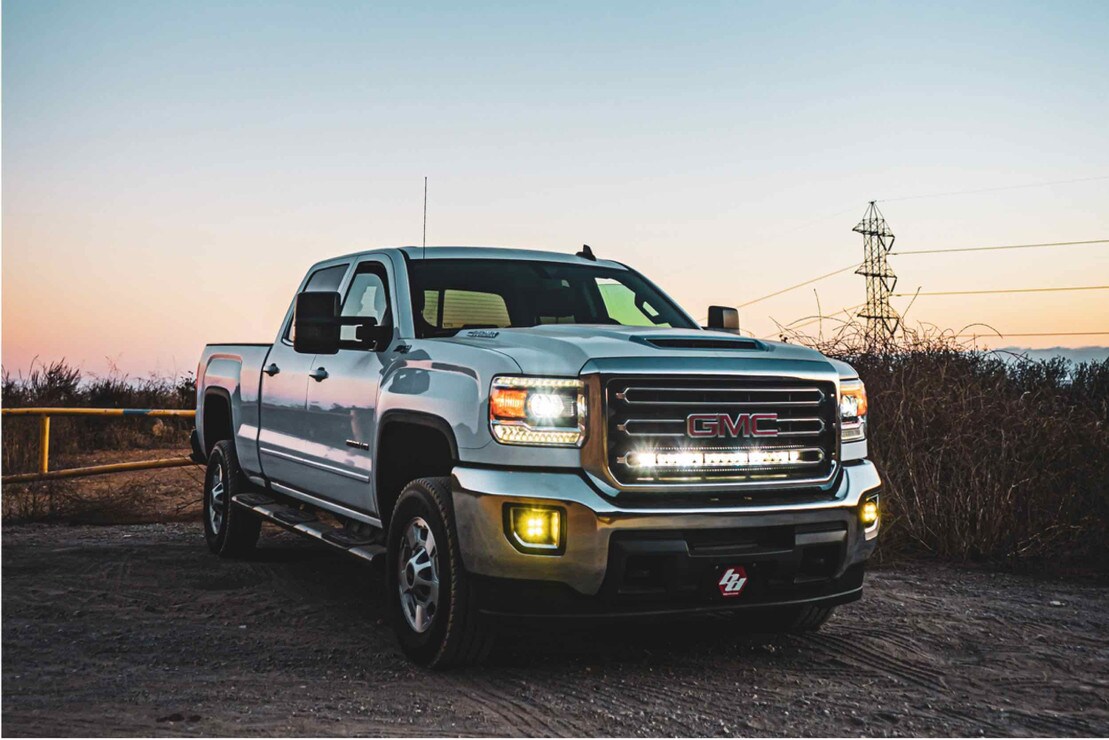

Baja Grille Upgrades: Baja Designs knows that customers want a tailored fit and finish that looks as good if not better than factory when they install LED lighting and that's why this Grille Mounted LED System for the 18-20 GMC Sierra is so impressive. Designed to accept the 30" OnX6+ LED with a driving/combo beam pattern it comes with, it will install easily and provides the simplicity of tapping into your lighting to use the factory up-fitter switches. Please Note: Due to this intentional fitment with the OnX6+, other light bars will not fit.
This bar is equipped with BMT: Battery Management Technology. Elimination Of Flickering at Low Voltage. Added Protection to Vehicle Wiring and Systems. Protection from Dangerous Current Spikes.
uService from Baja Designs: uService is one of the coolest modular programs we've seen from any lighting company and it's no surprise that Baja Designs has pioneered it. With uService you have the freedom to change your lenses and optics with ease at a moment's notice. Gone are the days of being locked into one style or beam pattern. In addition, there's no need to worry about water, these have MoistureBlock baked in so H2O doesn't stand a chance no matter how deep in the creek you may get.
HR Tested: Here at Headlight Revolution, we spend a lot of time installing and testing the products you'll find for sale. We don't favor any particular brand, so our commitment to you is that we'll deliver the best product for your application, period. To see all of the compatible lighting upgrades for your vehicle, use the "buyers guide" on our homepage! Be sure to check out the HR YouTube channel for hundreds of helpful install and review videos!

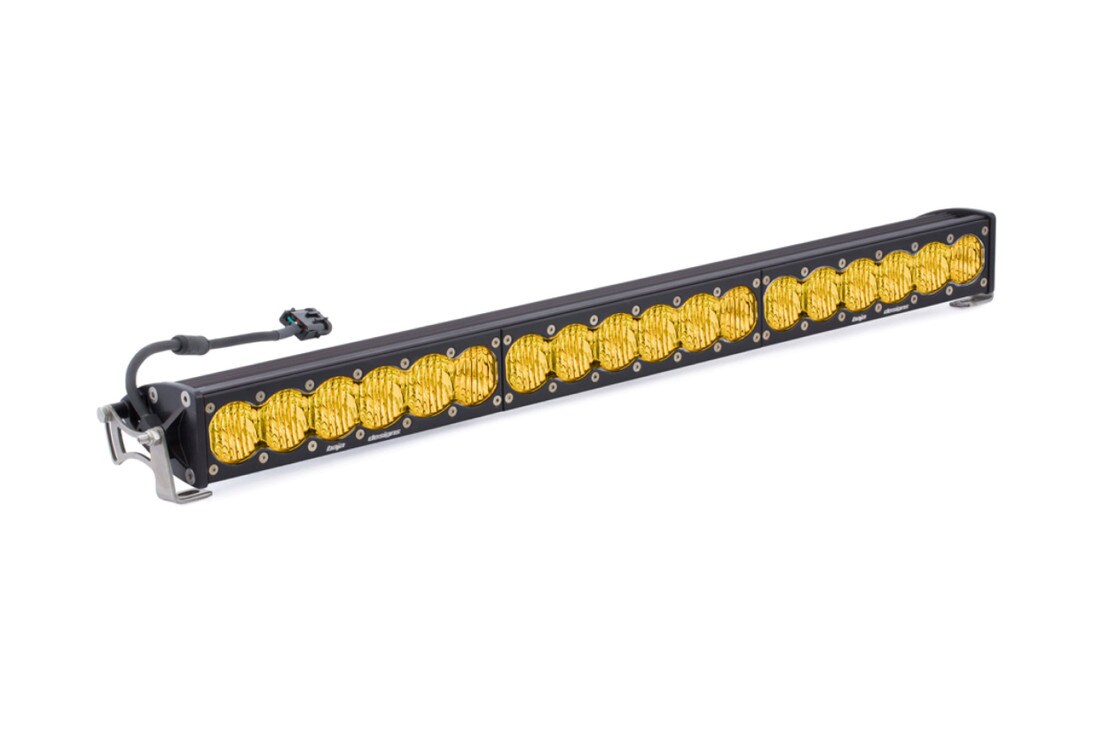

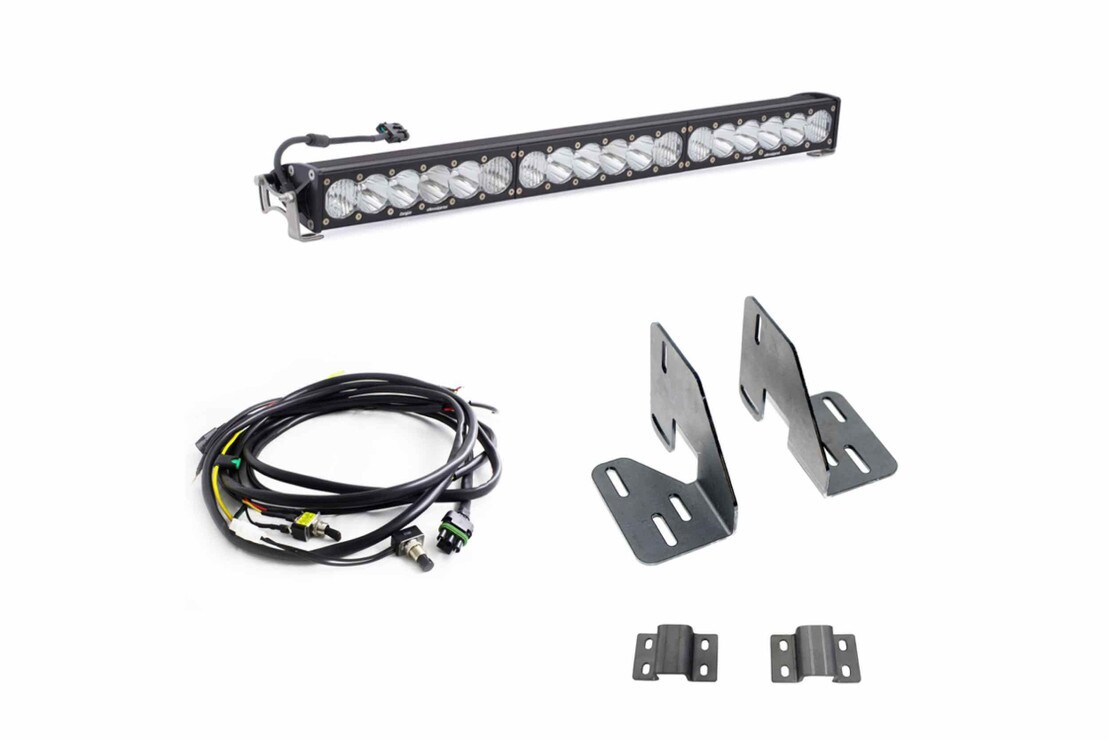

Light Bar: 1x 30in S8 or OnX6 LED Light Bar
Wiring: 1x Plug and Play Harness
Hardware: Mounting Brackets
Warranty:Lifetime Limited (Click for Details)
447633: Baja Designs Grille-Mount LED System: GMC Sierra (18-20) (30" / OnX6+ Bar)
447632: Baja Designs Grille-Mount LED System: GMC Sierra (18-20) (30" / S8 Bar)
Lumens: (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs
Kelvin: 5000K Daylight : Less Driver Fatigue, Natural Color
Wattage/Amps: (High) 281W / 21.7A (Low) 225W / 17.1A
Dimensions: 30" x 4.29" x 2.69"
Weight: 11.45 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds: MIL-STD810G (Mil-Spec Testing)
Built-In: Overvoltage Protection
IP69K: (Waterproof up to 9ft & Pressure Washable)
IK10: Compliant (Mechanical Impact Testing)
uService: Replaceable Lenses And Optics
ClearView: All The Light, Right Where You Need It.
CopperDrive: Only LED Driven At 100
