2Banger LED Pods: HXB Wide Beam

(0) No Reviews yet
Questions?

Brand: Morimoto

B-2B-HXBWIDE-HR

$285.00

PRODUCT OPTIONS

PART #: 1 x BAF116



Easy Return

DESCRIPTION

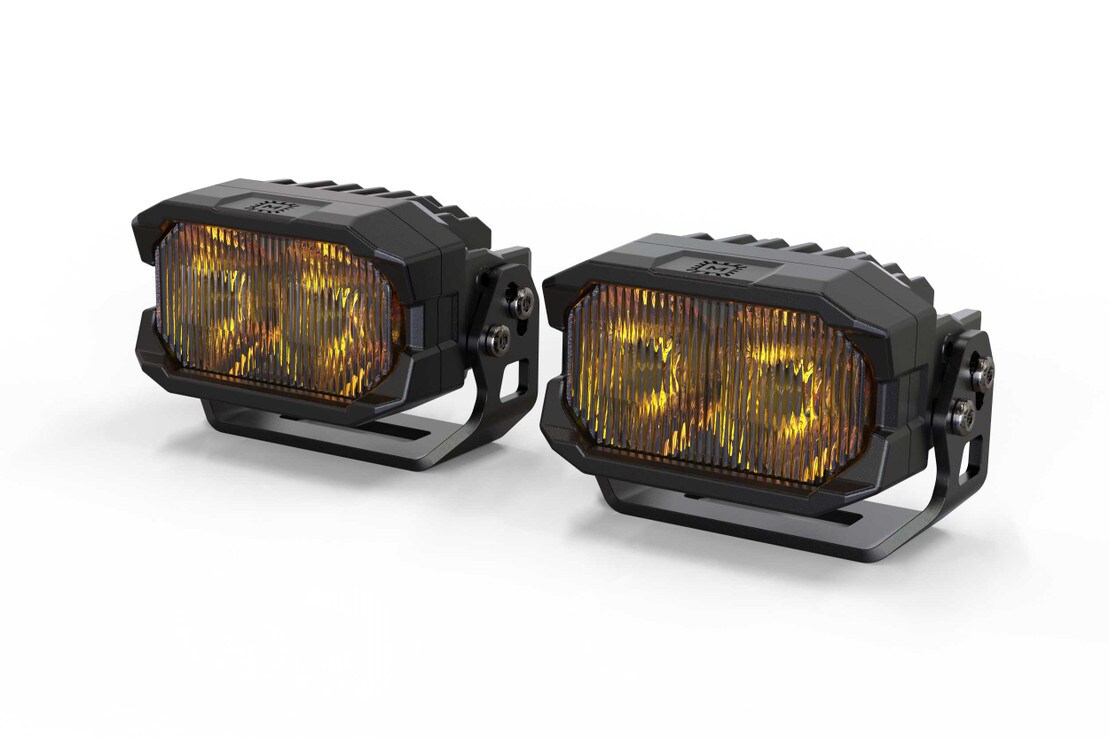

Introducing the game-changing Morimoto 2Banger Off-Road LED Pods, proudly engineered and tested in the USA. These revolutionary pods offer unparalleled versatility and performance, featuring a wide beam pattern that illuminates the ground directly in front of your vehicle. The 2Banger Wide Beam optics are designed to excel in low-visibility conditions, making them ideal for off-road adventures and challenging weather. They easily pass the latest SAE F regulations, ensuring safe and legal use as fog lights on public roads. Pair this impressive wide beam capability with the Morimoto 2Banger's compact design, universal fitment options, and application-specific bracket kits for a truly unbeatable lighting solution. These pods are built for reliability, featuring copper DTP PCBs, cast aluminum shells, and IP69K standard weather resistance. Upgrade your lighting game with Morimoto 2Banger LED Pods – setting new standards in wide beam performance and overall reliability. Elevate your off-road experience and stay ahead of the darkness.

FEATURES & BENEFITS

  • Compact Design: Perfect for tight spaces.
  • HXB Wide Beam: Illuminates close areas and complies with SAE regulations.
  • All-Weather Performance: Choose white or yellow output for any conditions.
  • Rugged Reliability: Built tough with copper DTP PCBs, cast aluminum, and IP69K weather resistance.
  • Easy Installation: Universal fitment with adjustable mounts for hassle-free setup.

WHAT’S INCLUDED

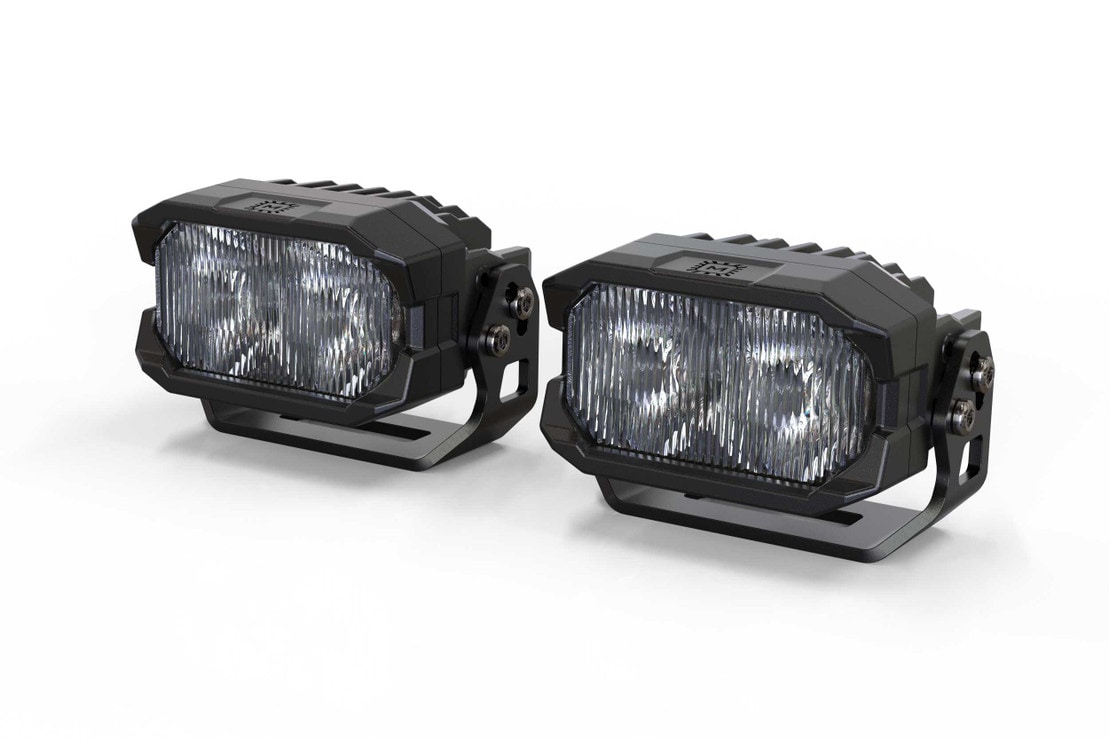

  • LED Pods: 2x (One Pair) Morimoto 2Banger HXB Wide (White or Yellow)

  • Brackets: 2x (One Pair) Universal U-Shape Mounts

  • Hardware: Complete pack (Stainless Steel)

  • Optional Wiring: 1x Morimoto Switched Relay Harness or 2x Deutsch DT Pigtails

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Note: These specifications are per pod / each!

  • Intensity (White): 12,700 Cd (127 lux @ 10m)

  • Intensity (Yellow): 8,400 Cd (84 lux @ 10m)

  • Power (stabilized): 24.0W

  • Current: 1.78A @ 13.5V DC

  • Peak Luminosity (raw): 2,000 lm

  • Dimensions: 81.0mm W, 49.8mm H (63.5mm w/ Bracket), 59.2mm D

  • Color: 2700K (Yellow) or 5700K (White)

  • Light Source: 2x Osram HX Boost

  • Input: Integrated Deutsch DT 2-Pin

  • Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

LINE DRAWINGS

COMPATIBILITY

  • Universal: With Included U Brackets

INSTALLATION DOCUMENTS

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. The 2Banger continues that tradition. In fact, the introduction of our entire offroad lineup has been a real wake-up-call for the old players in the category to get back on their game. The brand new, patent-pending line of 2Banger Off-Road LED Pods were completely designed, engineered, and torture tested in the USA, and everything about them is truly next level.

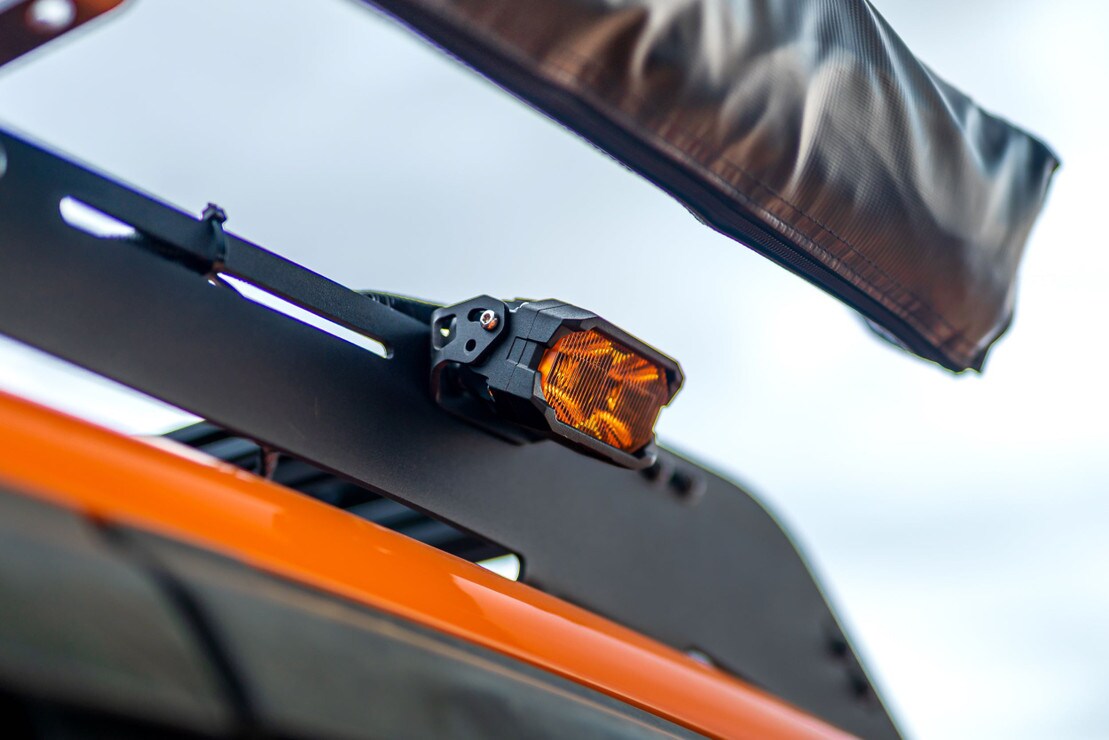

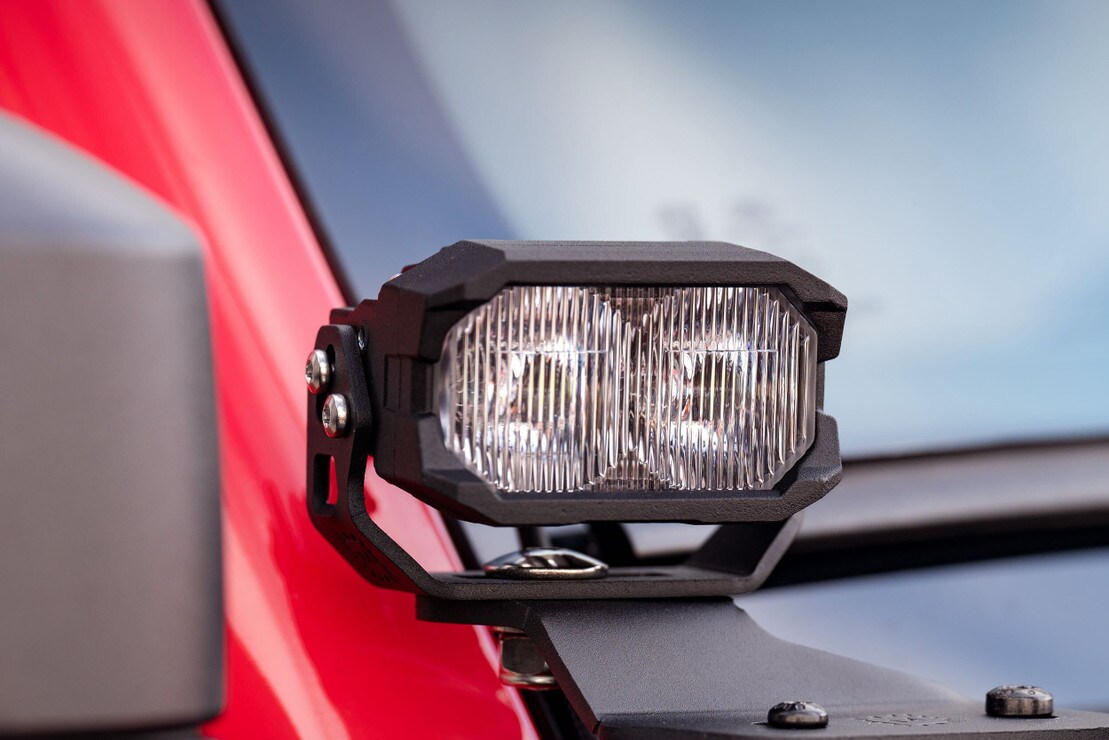

Form Meets Function: The overall footprint of the 2Banger is extremely compact, making them the perfect solution for adding extra light where full-size pods wont work. Each set of Morimoto 2Banger LED pods include a set of adjustable pedestal mounts for a universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for Racks and A-Pillars that make them bolt-on for many of today's most popular trucks. Check out the full lineup for details on what's available for your application.

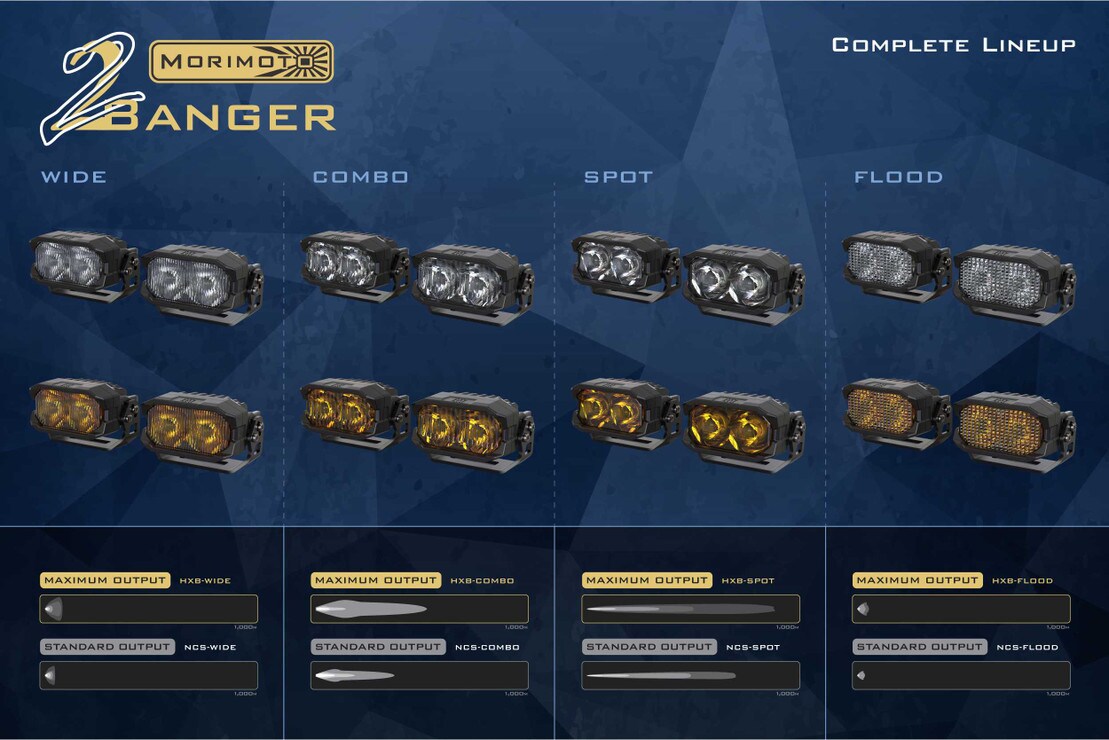

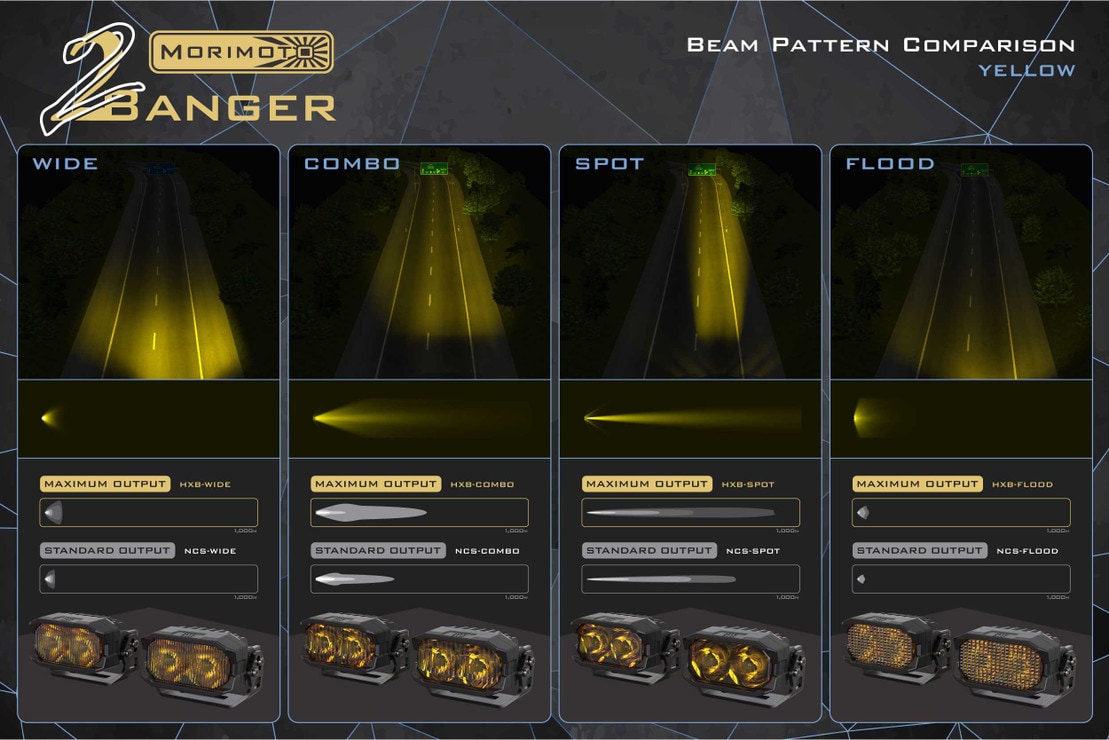

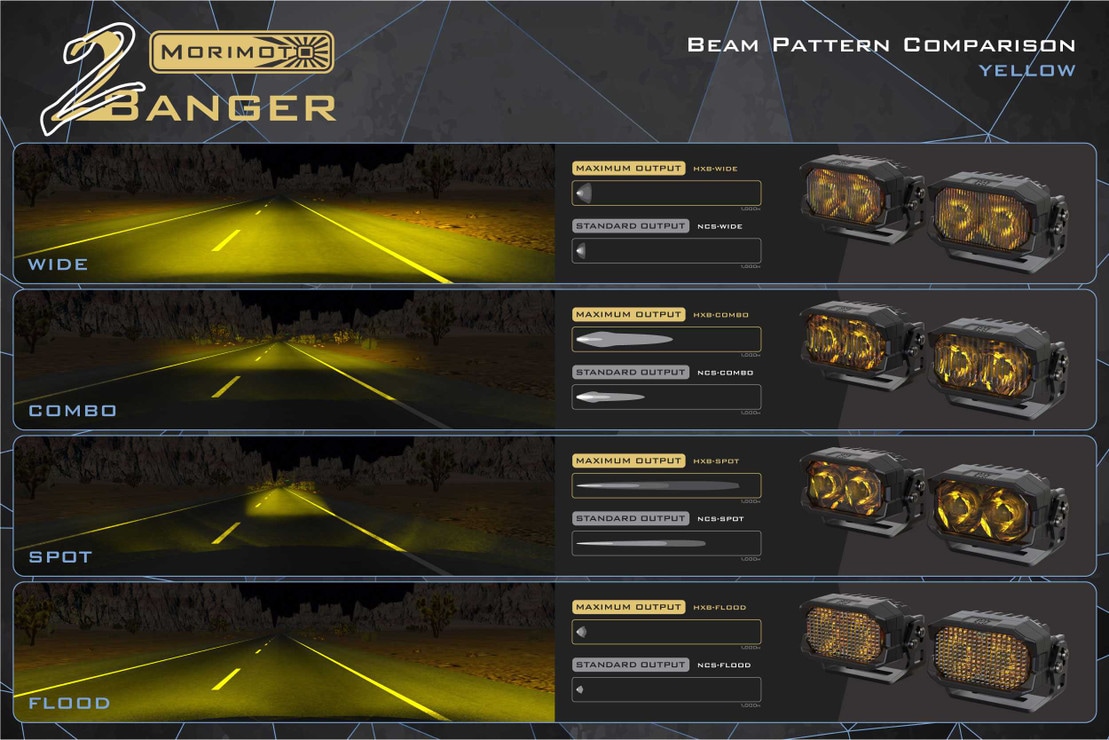

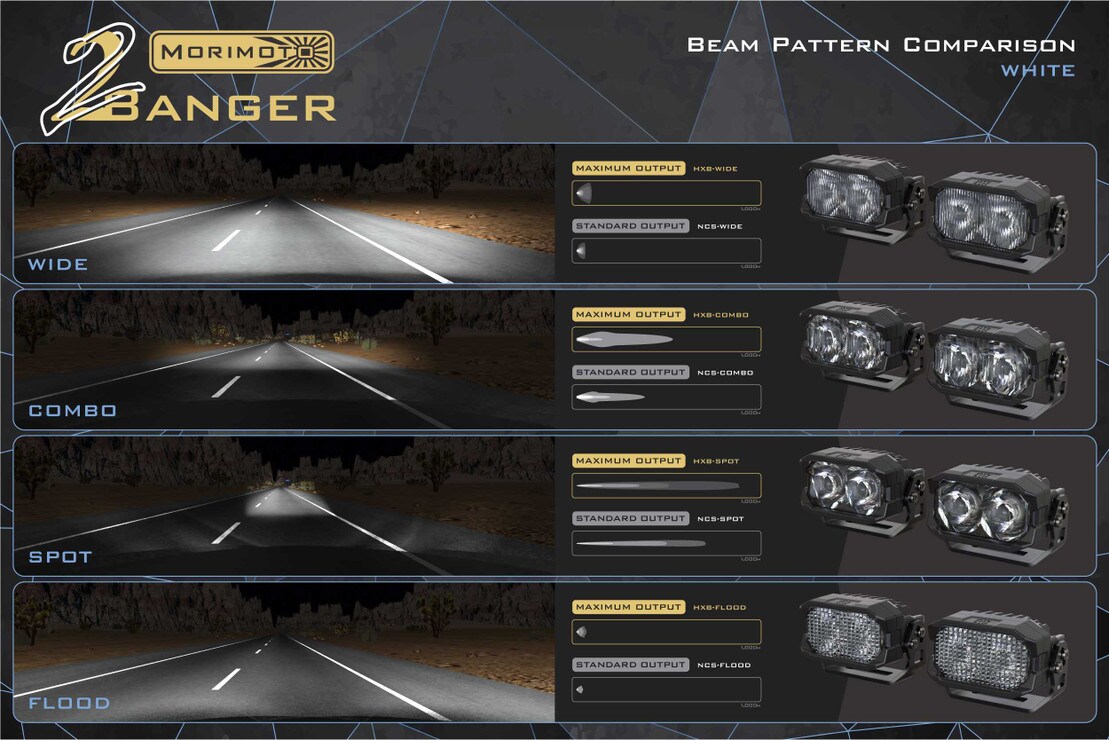

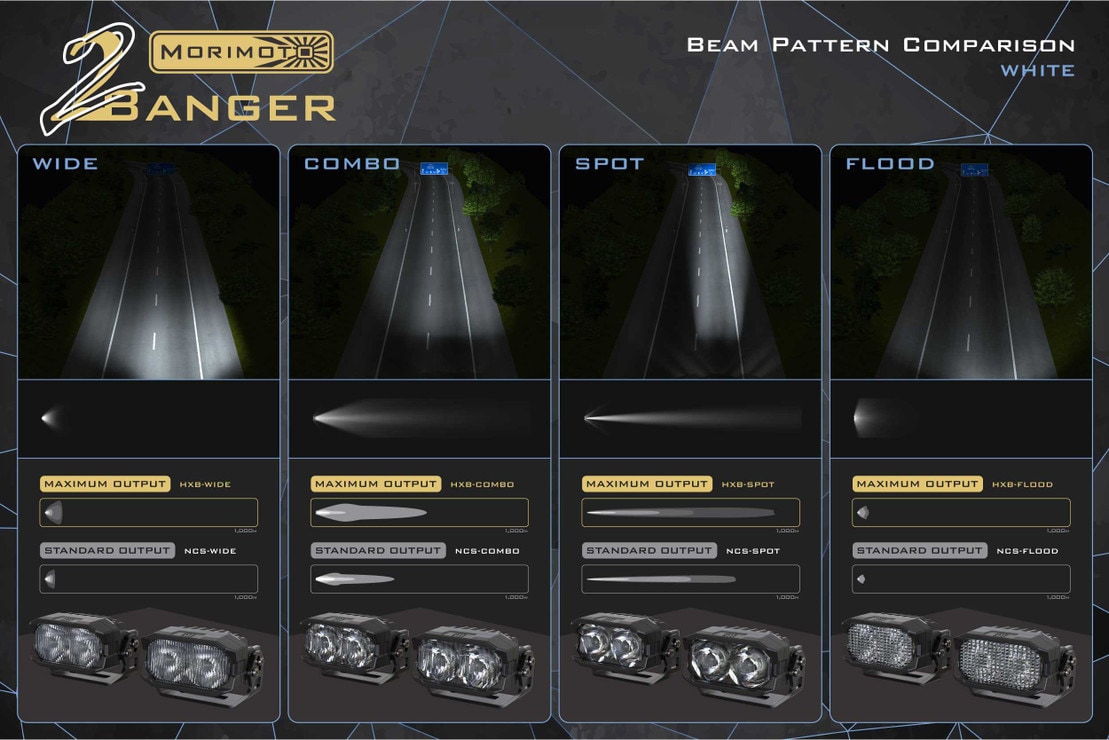

Performance: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 2Banger is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Osram. Thermal dynamics have been optimized using SolidWorks. With two performance tiers, white or yellow output, and four distinct beam patterns (Wide/Fog, Spot, Combo, and Flood)--there is a 2Banger to suit every performance need and driving style.


Versatility: The 2Banger can be mounted alone, or linked together into a serious light bar. Each set of pods includes universal pedestal mounts for an easy install on any flat surface, like your steel bumper or the the wide-variety of application-specific A-Pillar brackets we offer. The BangerBar links offer a turn-key way to bolt your Bangers together into a bespoke light bar, where you spec the color of the light. You spec the beam optics. You set the radius. And then you destroy the darkness. For more details, look for product listings dedicated to the BangerBars.

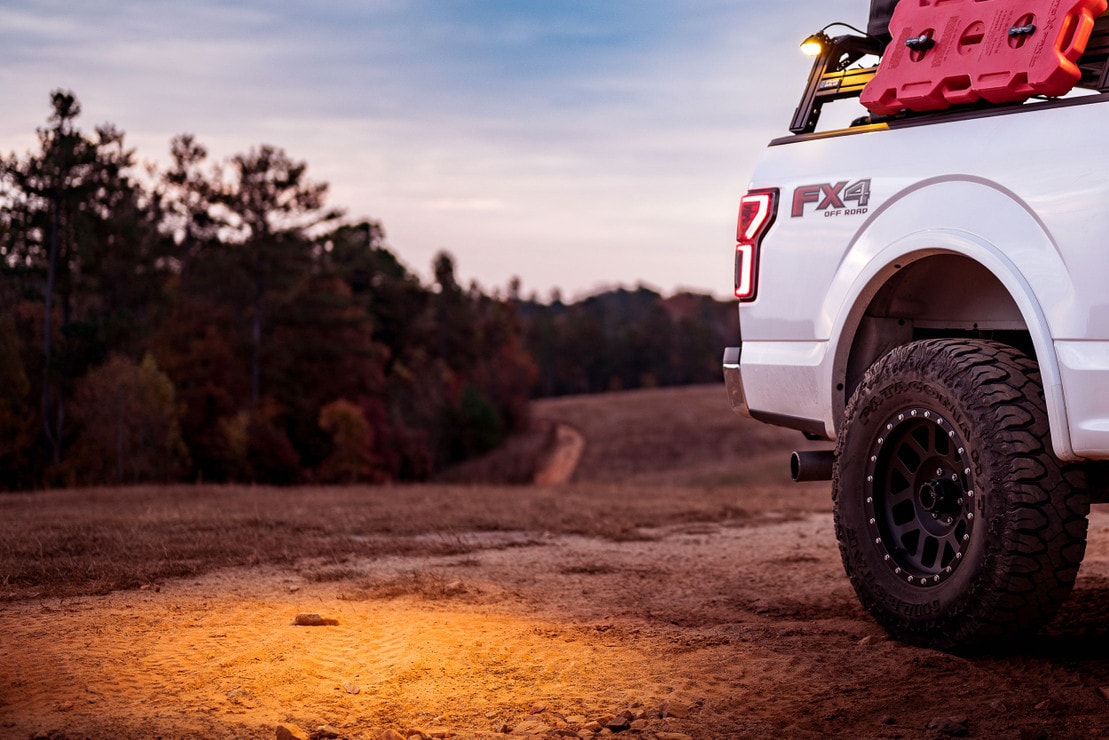

HXB Wide Beam: Illuminates the ground directly in front of the vehicle. The 2Banger Wide beam optics feature dual axis control. 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper cutoff line and vertical gradient easily passes the latest SAE F regulation for safe and legal use as a fog light on public roads. The 2Banger HXB Wide beam delivers best-in-class combination of width, intensity, making it the most effective off-road capable, on-road compliant Dual-LED pod light in the world.

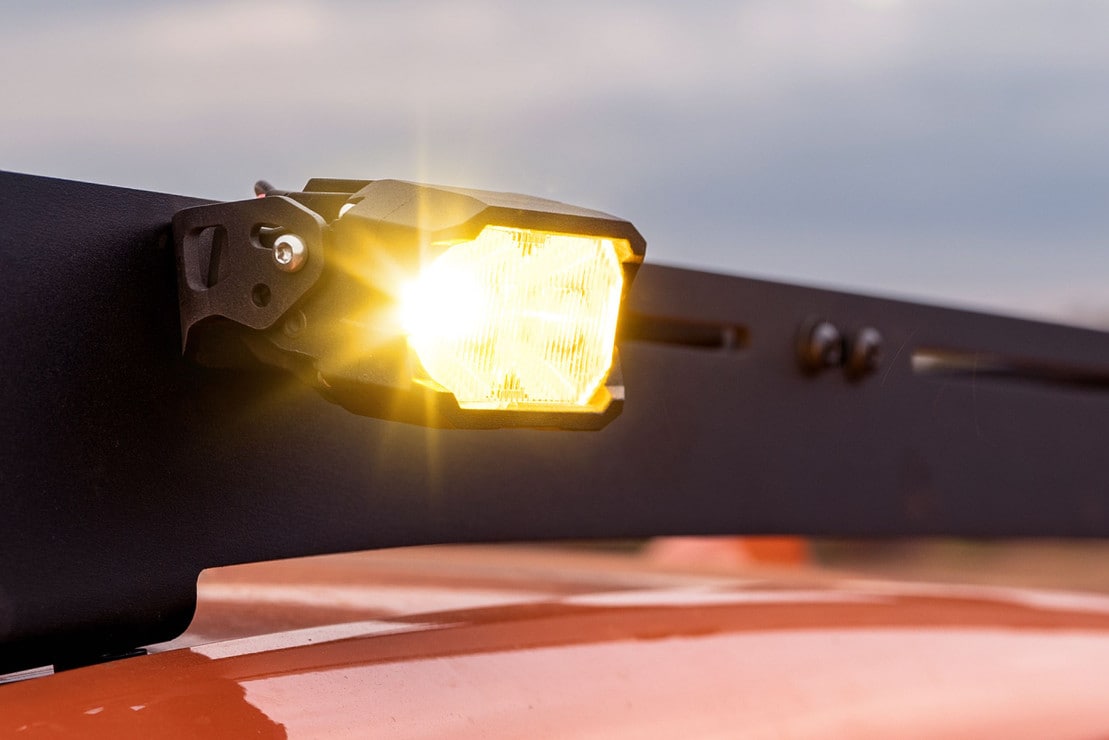

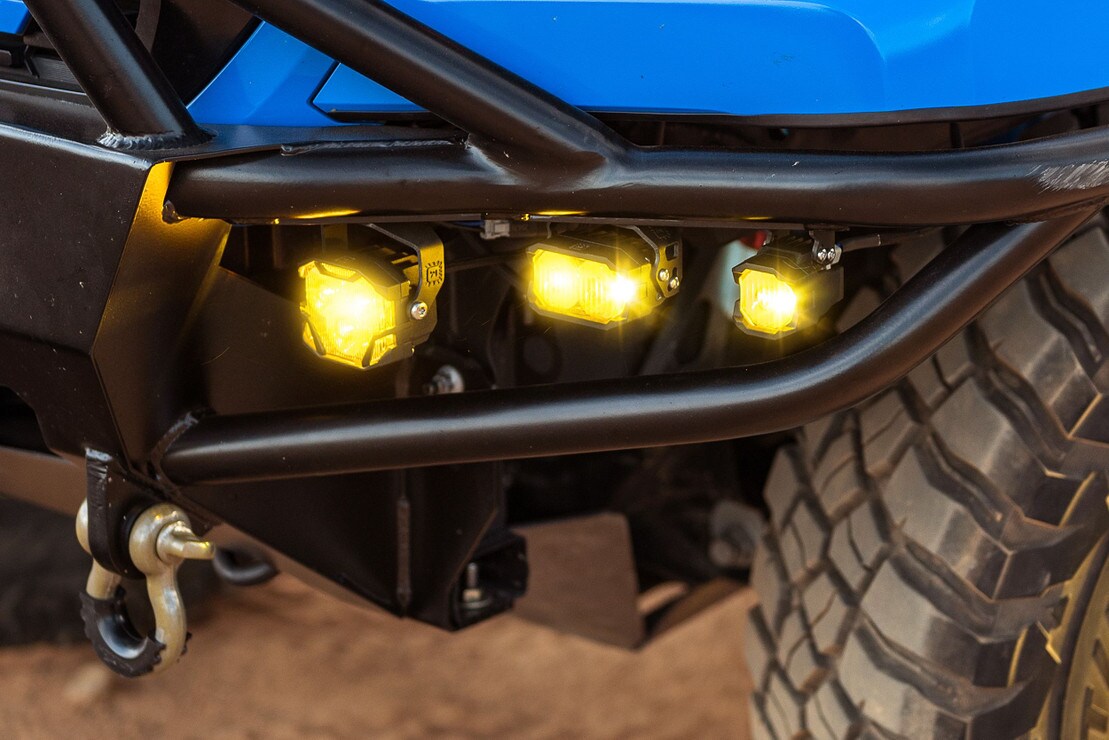

All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for Phosphor-converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather)

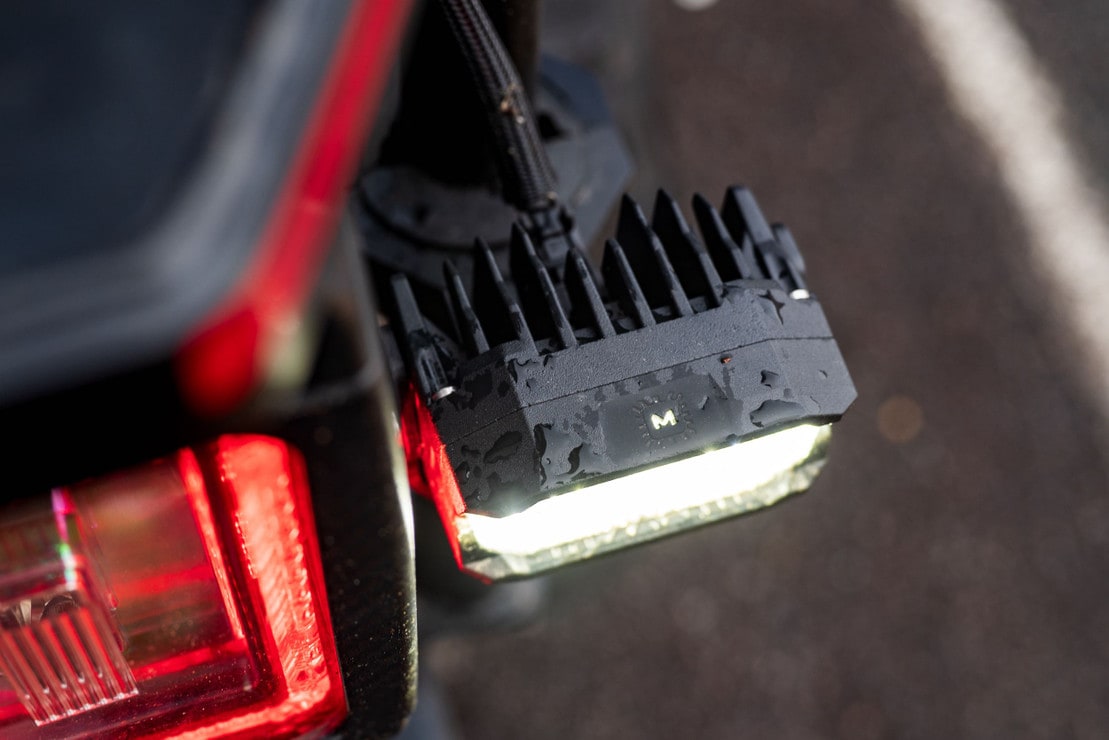

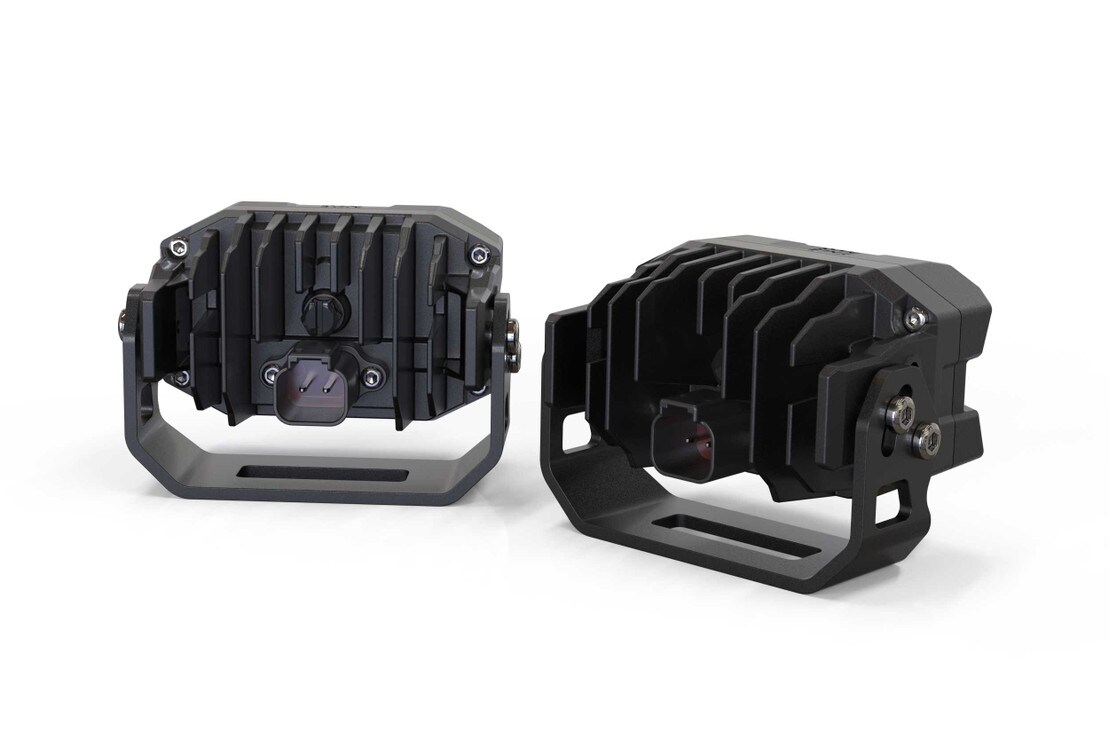

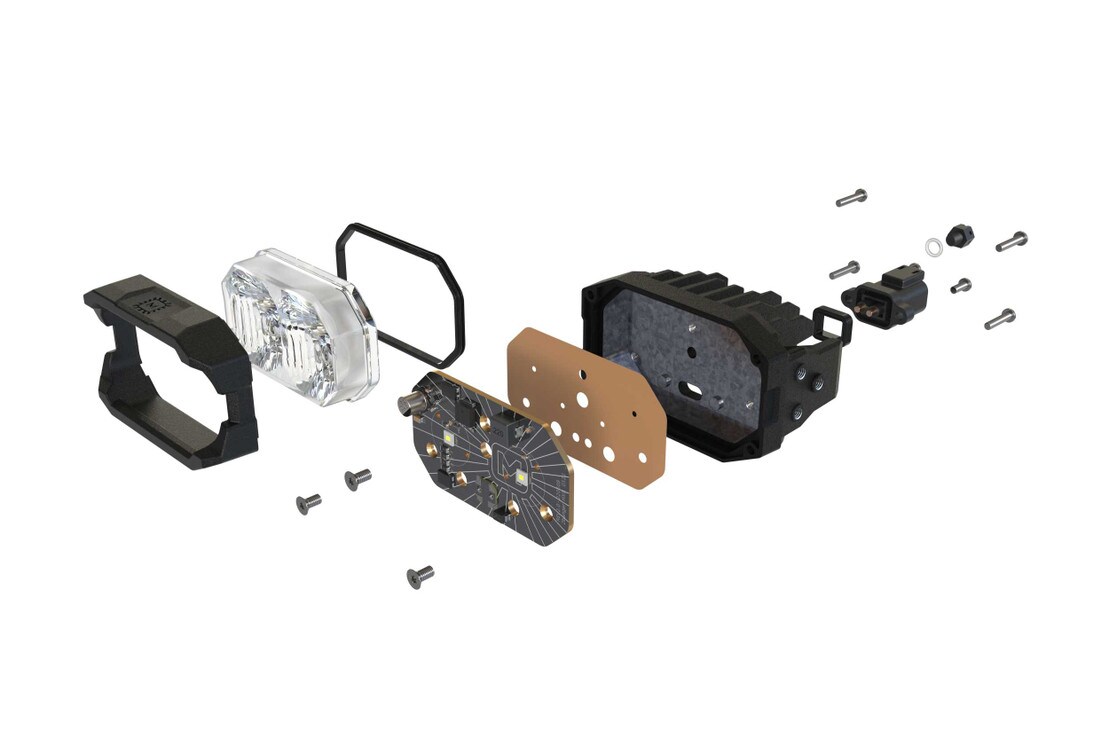

Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 2Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves all designed according to IP69K standards for full weather resistance.


Street Legality: When aimed properly, the Combo beam pattern complies with SAE J581 standards for an auxiliary high beam. If you're looking for a high-performance street-legal LED pod to use as a fog light, the 2Banger wide beam model has been verified compliant with the latest SAE-F regulation for on road use by Calcoast Labs in California.

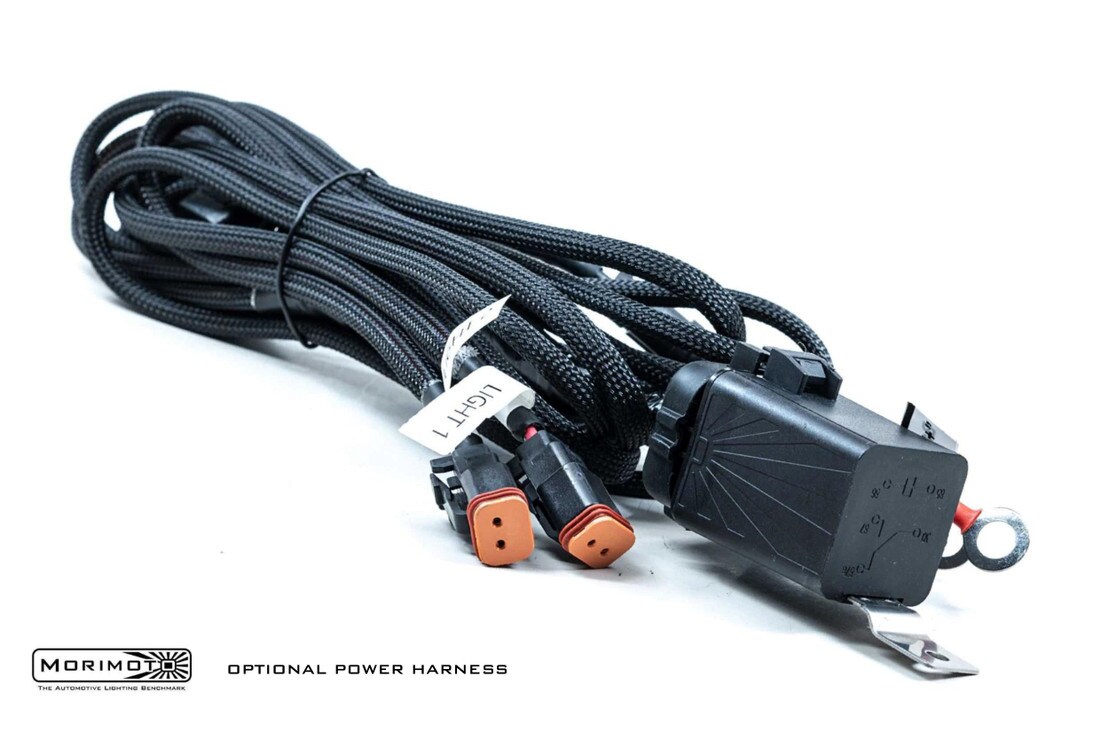

Power Up: The Morimoto 2Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
