Offroad: 6-Pod Power Harness

(0) No Reviews yet
Questions?

Brand: Morimoto

B-4B-6HARNESS-HR

$115.00

PRODUCT OPTIONS

PART #: 1 x BAF069H



Easy Return

DESCRIPTION

Introducing the Morimoto 4Banger LED Pods Wiring Harness -- the ultimate solution for powering up your off-road adventures! Engineered to set a new standard in its segment, this harness is a game-changer. Say goodbye to cheap alternatives, as every component has been meticulously designed for peak performance. With triple-sealed proprietary relays, over-molded fuse holders, and stainless steel terminals, it's built to withstand the toughest conditions. This powerhouse delivers flicker-free, reliable power for up to six off-road lights, thanks to its beefy 10 AWG copper wiring. Installation is a breeze with logically laid-out connections, and the in-line barrel connector for the in-cabin switch makes it even more convenient. Whether you have a Ford Raptor or any off-road lighting setup with a DT-style two-pin input, this harness is your perfect match. Don't settle for less -- power up with Morimoto today!

FEATURES & BENEFITS

  • Peak Performance: Sets a new standard for superior performance.
  • Rugged Reliability: Triple-sealed relays, over-molded fuse holder, and stainless steel terminals ensure durability.
  • Flicker-Free Power: Rated for reliable power delivery to six off-road lights.
  • Easy Installation: User-friendly layout with an in-line barrel connector for hassle-free setup.
  • Universal Compatibility: Perfect for Ford Raptor and DT-style two-pin input setups.

WHAT’S INCLUDED

  • Harness: 1x Morimoto Six Pod Power Harness

  • Switch: Controlled by Vehicle Auxiliary Switch

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Relays: 2x Triple-Sealed 40A M-Spec

  • Input: Bare Wire (Upfitter Switch input)

  • Outputs: 6x Deutsch DT 2-Pin Female

  • Main Input: 12V+/- Battery Ring Terminals (8.5mm ID / 15mm OD)

  • Wiring: 10AWG-18AWG Copper Stranded

  • Insulation: Black Tech Flex Braided Mesh

COMPATIBILITY

  • Morimoto Pods: 1Banger, 2Banger, and 4Banger

  • Other Pods: With Deutsch DT 2-Pin inputs

  • BangerBar System: Yes

  • Pod Quantity: 6

Power Up: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the wiring. If you want the best, bingo. If you want cheap, you'll want to look for an alternative (and sadly, that wont be hard to find -- because until now, everybody has overlooked the importance of quality cables).

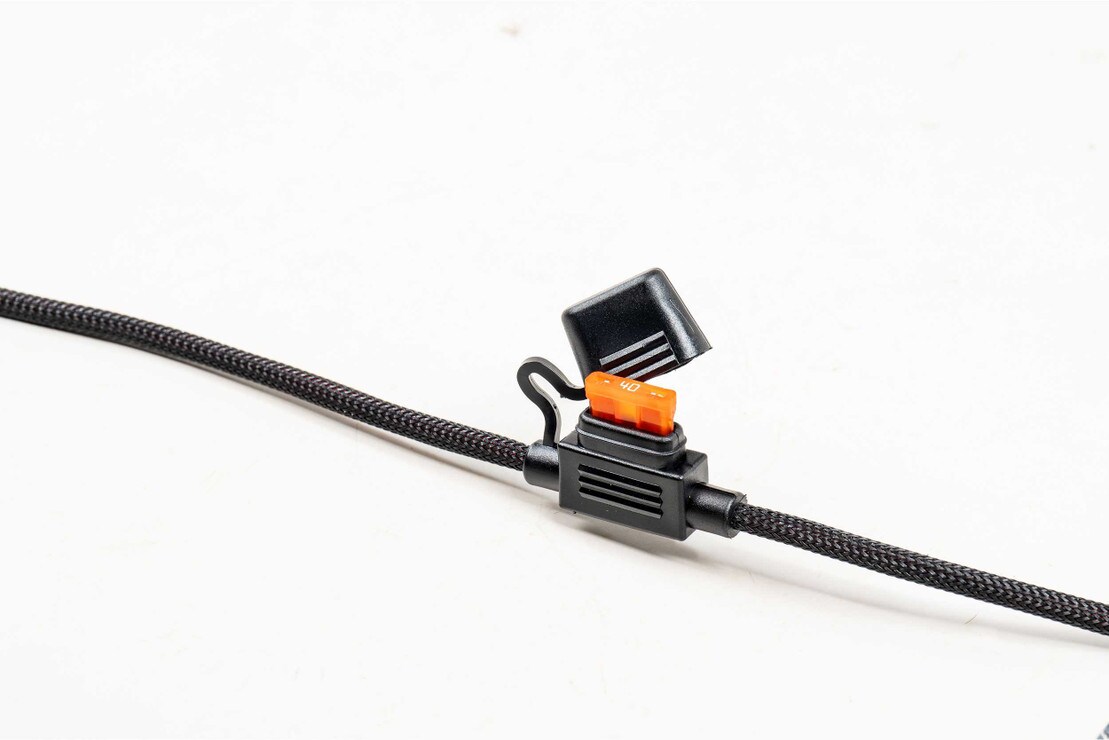

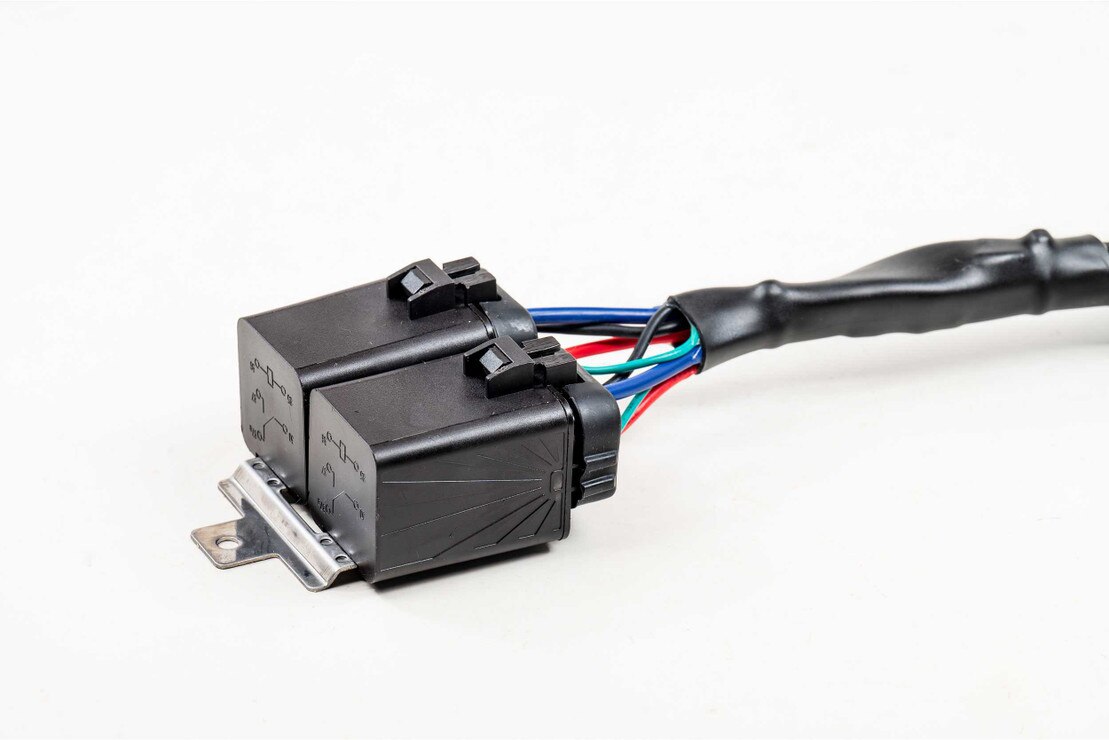

OEM+: Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relays with dual-hanger. Proprietary over-molded inline fuse holder with 40A ATO fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals.


Proper: All wiring is properly sized and relays rated for flicker-free, reliable power delivery for up to six off road lights. Every line of the beefy 10 AWG copper wiring is protected with black mesh insulation. Every connector has been over-molded, sealed, or protected with heavy duty heat shrink. Your factory wire harness will fall apart before this thing.

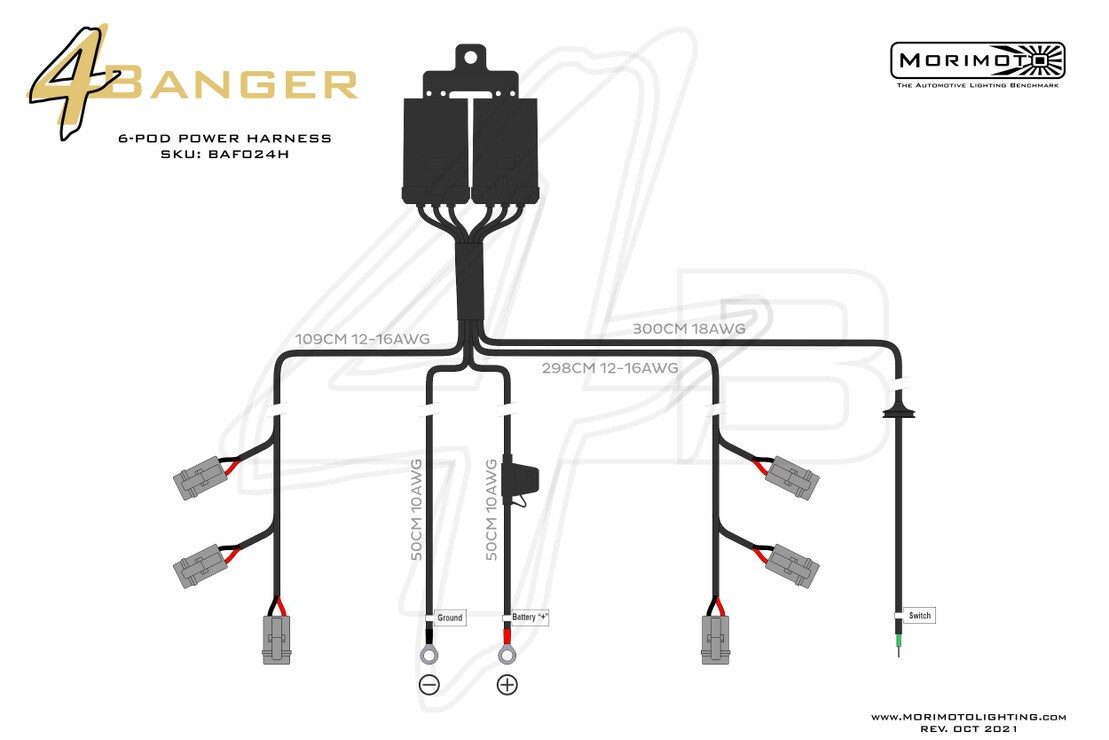

Plug n Play: The connections on the harness have been laid out in a logical way to power up to three LED pods on each side of your vehicle. There are six total deutsch outputs. A positive battery terminal, and a ground terminal. The wiring for the in-cabin push button switch has an in-line barrel connector that drastically improves ease of installation, since you don't have to jam the switch mechanism through the firewall.


Compatible: While this harness is a perfect match for the Morimoto 4Banger LED pods on the 16-21 Ford Raptor, you can make good use of it with any other off-road lighting setup that takes a DT-style two-pin input (which is basically the industry standard).
