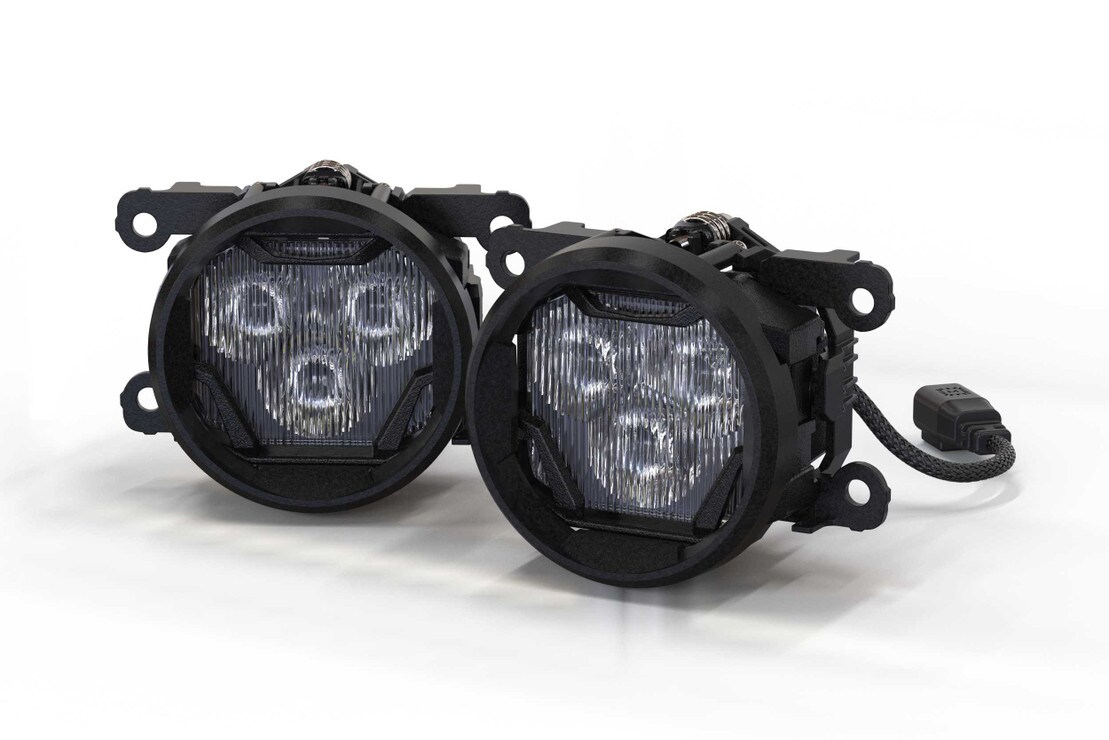

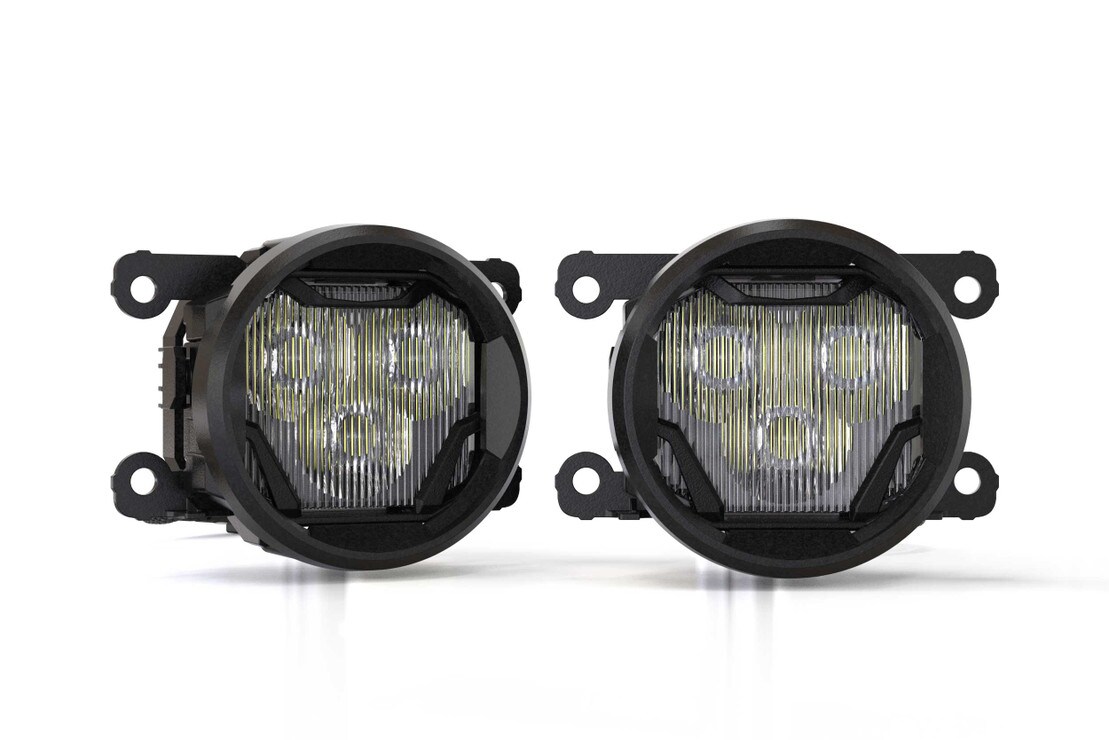

4Banger LED Fog Lights: Ford 3in

(0) No Reviews yet
Questions?

Brand: Morimoto

B-4B-FOGKIT28-HR

$233.75 Original Price:$275.0015% OFF

PRODUCT OPTIONS

PART #: 1 x BAF016NY



*Guaranteed Fitment
Easy Return

DESCRIPTION

Introducing the Morimoto 4Banger Fog Lights - your ticket to unmatched visibility and style on the road! The NCS Wide Beam is SAE compliant and street legal, ensuring you stay safe while enjoying exceptional illumination. The HXB Wide Beam, while incredibly bright, adds a touch of daring style. Engineered with precision, the 4Banger offers a seamless fit for your Ford, eliminating the need for unsightly adapter kits. Installation is a breeze with their bolt-on, plug-and-play design -- no vehicle modifications needed! Plus, enjoy full adjustability to customize your lighting angle. Morimoto goes the extra mile with air-cooled LED pods for superior lumen maintenance, and we've even got all-weather options for rain, snow, or fog. The HXB Wide Beam stands out as the brightest SAE-compliant fog light pod, while the NCS Wide Beam is not only super bright but also energy-efficient. Don't miss out on the best combination of style, performance, and safety -- upgrade your fog lights with Morimoto's 4Banger today!

FEATURES & BENEFITS

  • NCS Compliance: Street-legal fog lights meeting SAE regulations.
  • Easy Install: Plug-and-play setup with no modifications needed.
  • Adjustable: Customize beam direction with +/- 6 degrees of adjustability.
  • All-Weather: Reliable visibility in various conditions with white and yellow options.
  • HXB Brightness: HXB model with Osram HX Boost LEDs for superior brightness.

WHAT’S INCLUDED

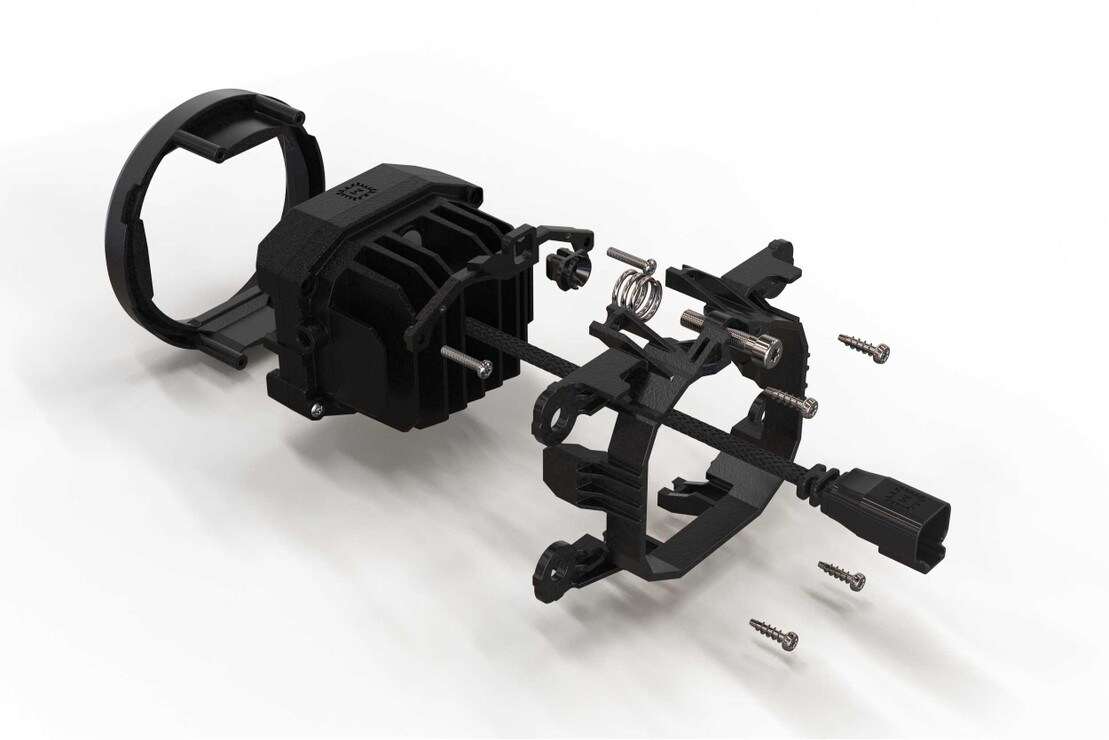

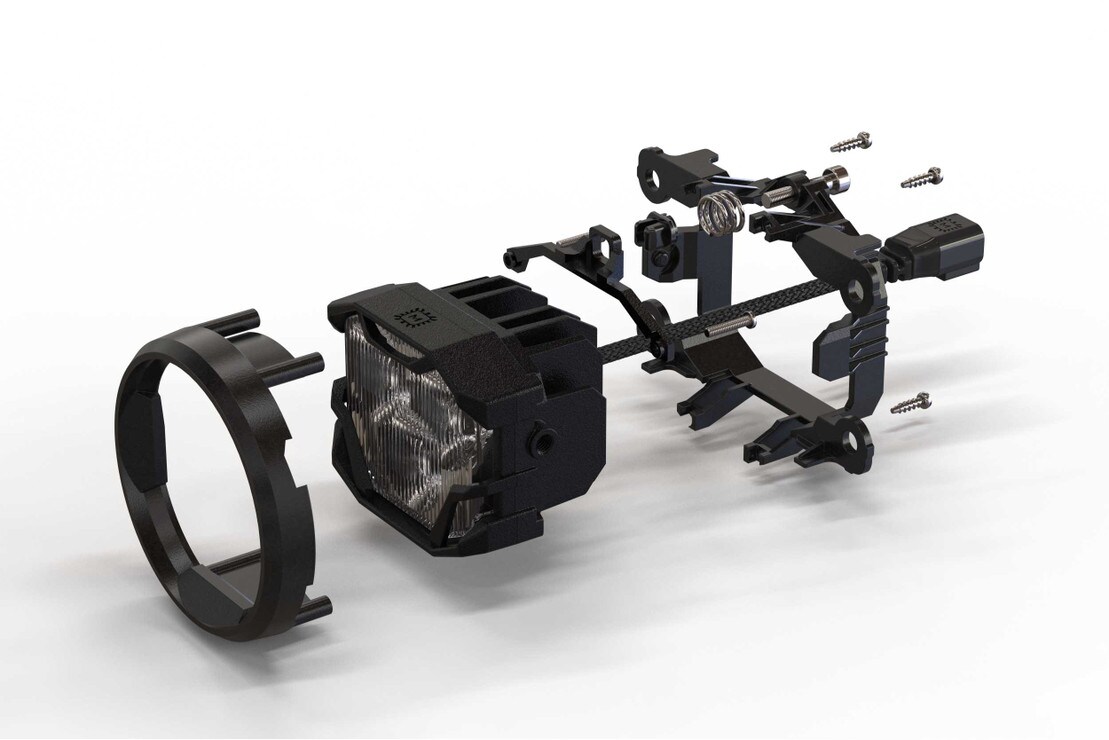

  • Fog Light Brackets: 2x (One Pair) BAF016 Brackets

  • LED Pods: 2x (One Pair) Morimoto 4Banger (Optional Color / Beam)

  • Hardware: Complete Pack (Stainless Steel)

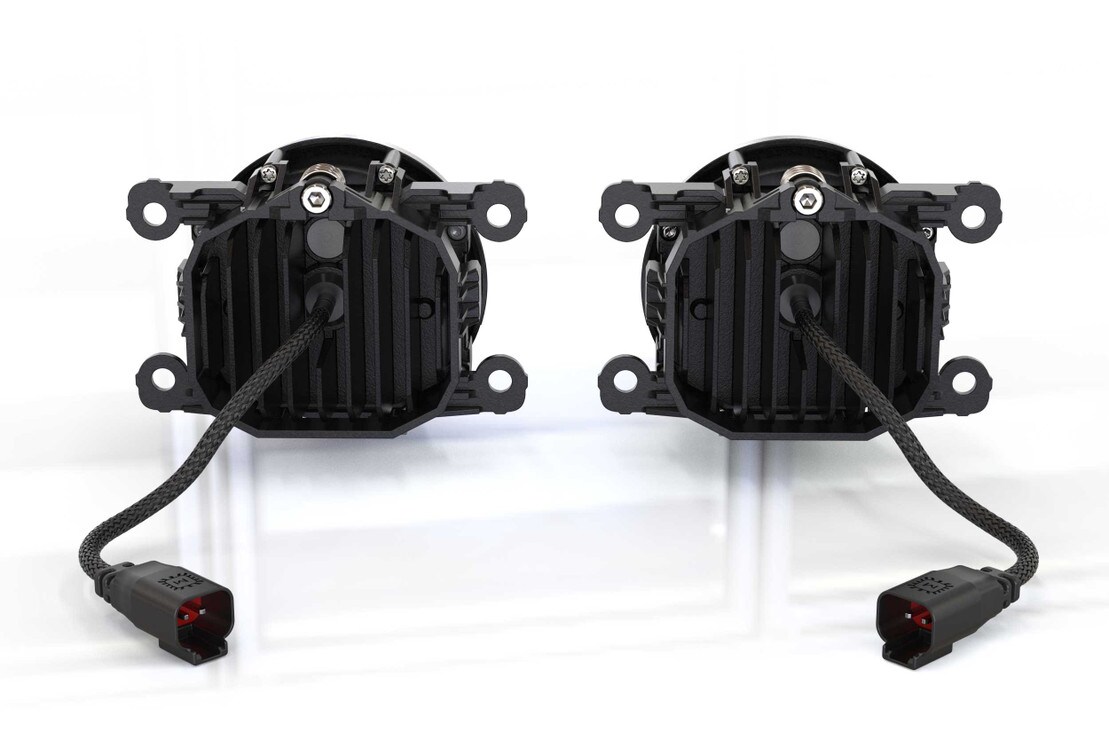

  • Wiring: Plug N Play Connection Kit

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Note: These specifications are per pod / each!

  • Intensity:

  • NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)

  • NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)

  • HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)

  • Input Voltage: 9-18V DC

  • Power (stabilized): 15.6w (NCS) 42w (HXB)

  • Current: 1.5A (NCS) or 3.2A (HXB)

  • Peak Luminosity (lm)(Raw): 1,300lm (NCS), 3,000lm (HXB)

  • Dimensions: 82mm W, 67mm H, 60mm D

  • Color: 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB))

  • Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost

  • Input: Proprietary Overmolded Deutsch DT 2-Pin

  • Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

LINE DRAWINGS

COMPATIBILITY

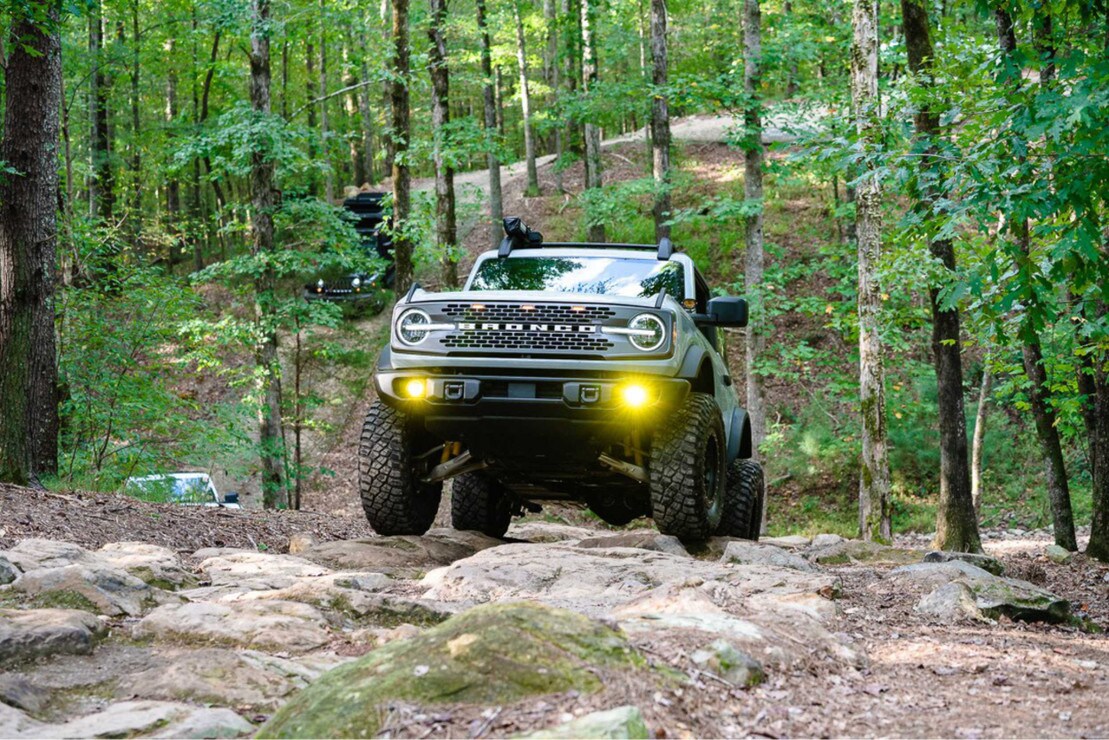

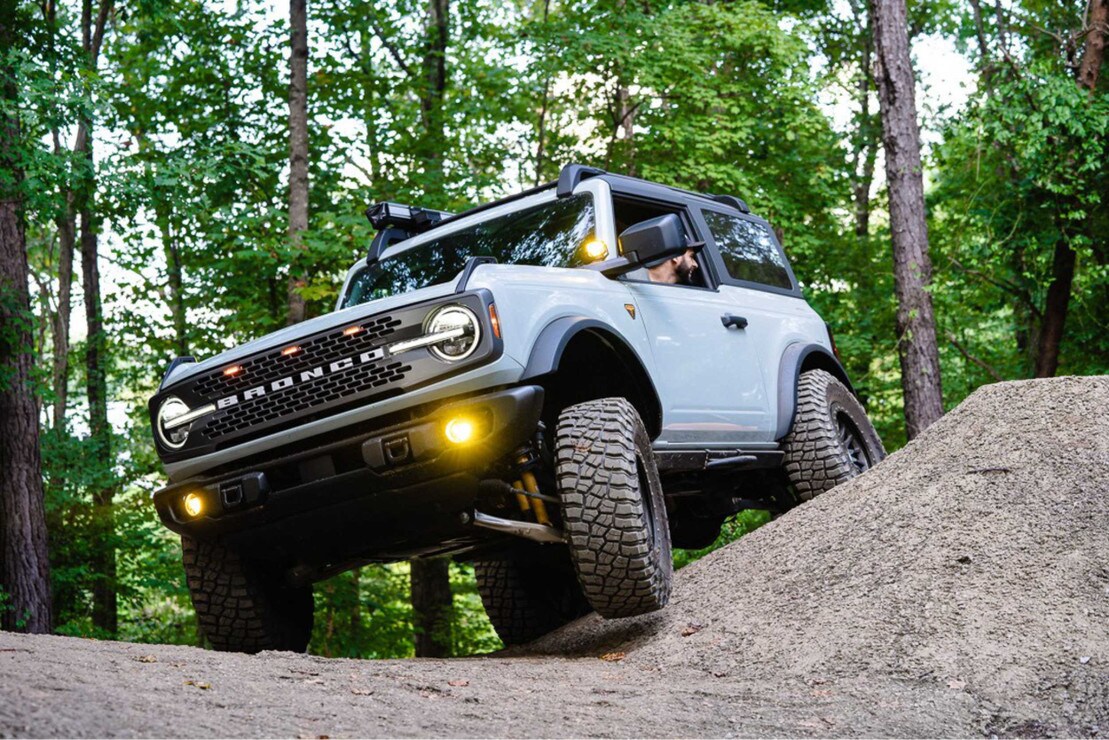

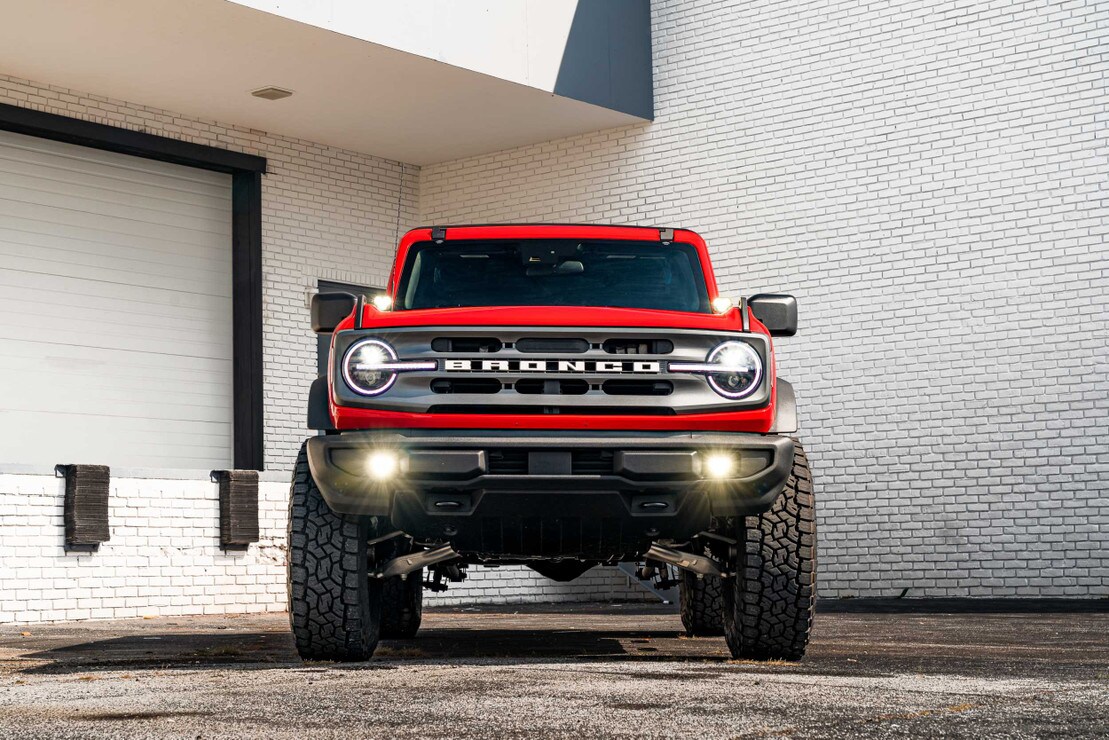

  • FORD BRONCO: 2021+ w/ OEM Plastic Bumper Only

  • FORD EXPLORER: 2012-2015

  • FORD FOCUS: 2013-2014

  • FORD FIESTA ST: 2014-2017

  • FORD MUSTANG: 2015-2017

  • FORD FREESTYLE: 2005-2007

  • FORD FUSION: 2013-2016

  • FORD RANGER: 2005-2007, 2019+

  • FORD TAURUS X: 2008-2009

  • FORD C-MAX: 2013-2016

  • REPLACES FORD PART #: 4F9Z15200AA

COMPLIANCE

Wide beam photometrics are SAE F 20 compliant (HXB Report)(NCS Report)

INSTALLATION DOCUMENTS

SAE Compliant Fog Lights: The Morimoto 4Banger NCS SAE Wide Beam out-performs the competition while complying with the latest SAE F regulations for a street legal fog light. The 4Banger HXB Wide Beam sets a new industry benchmark for intensity. But what's better than producing the best and brightest beam patterns that are safe for use on public roads as a fog light? The best fog-light specific mounting brackets for your Ford, of course.


Engineered Solution: Thanks to the smaller than usual footprint of the 4Banger, we now have a powerful fog light upgrade that fits properly and looks right. Other adapter kits for more traditionally-sized LED pods stick out like a sore thumb. Not here. Morimoto engineers spent hundreds of hours hands-on in the garage during development of the 4Banger brackets alone. Repeated rounds of design, prototyping, and test fitting have spawned the most refined set of fog light brackets that a Ford owner could ask for.


Easy Setup: Everything is designed to bolt-on and plug-n-play. No modifications are required to your vehicle or its wiring to install the 4Banger off-road lights in your fogs. Each kit includes all of the necessary hardware and high-quality wiring adapters to connect with your factory fog light harness. Note, your vehicle must have stock fog lights.


Fully Adjustable: These things are powerful, and while their wide beam pattern is perfect for use as a fog light, power is nothing without control. All brackets have +/- 6 degrees of vertical adjustability so that you can dial in the aim and ensure every ounce of intensity ends up on the road ahead, not in the eyes of oncoming traffic.


Air Cooled: As if the style, the fitment, the adjustability aren't enough --we have incorporated duct work into each bracket to actively cool the LED pods. This improves lumen maintenance by eliminating heat-soak, which is common in other LED Pod fog light kits that have no ventilation for the heat sink.


All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog --the Yellow-output version will slay in sour weather. For HXB Spot and Combo models, Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).


HXB Wide Beam: Offers an extremely wide beam pattern backed with powerful Osram HX Boost LEDs, making these the brightest SAE-Compliant fog light pod on the market today (80% brighter than Rigid D-Series SAE Fog and photometrics verified SAE Compliant by Calcoast ITL). The 4Banger HXB Wide beam delivers the best combination of width, intensity, and control - making it the most effective on and off-road LED fog light in the world.


NCS Wide Beam: Offers the same super wide beam pattern backed with LEDs from Nichia. Their superior vertical gradient control also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light, making them highly effective on the ground and glare-free for oncoming traffic. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W).
