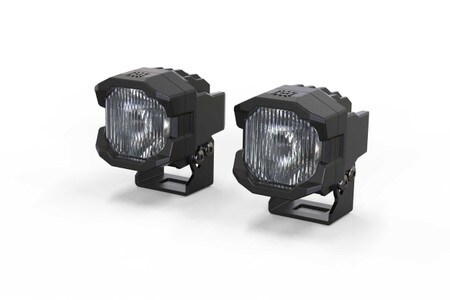

Flush Mounting Kit: Morimoto 4Banger Pods

(0) No Reviews yet
Questions?

Brand: Morimoto

B-4B-FLUSH-HR

$68.00 Original Price:$80.0015% OFF

PRODUCT OPTIONS

PART #: 1 x BAF025



Easy Return

DESCRIPTION

Introducing the Morimoto 4Banger NCS Off-Road LED Lights, the ultimate game-changer for automotive enthusiasts! Since 2008, Morimoto has been leading the way in lighting upgrades, and the 4Banger NCS is no exception. Designed, engineered, and tested in the USA, these lights redefine off-road illumination. Choose from a variety of beams, including Combo, Spot, and Wide, to suit your driving needs. With cutting-edge technology and precision design, they outshine the competition. Compact and sleek, they seamlessly integrate with your vehicle, ensuring a stylish, OEM+ fit. And don't forget reliability! These lights are built to withstand the toughest conditions, with IP69K weather resistance and efficient thermal management. Upgrade to the Morimoto 4Banger NCS today and experience a new level of off-road lighting performance. Don't settle for less when you can have the best!

FEATURES & BENEFITS

  • Illumination: Outstanding clarity and range for superior visibility.
  • USA Engineered: Designed and tested in the USA for top-quality performance.
  • Easy Install: Includes flush mounts for a sleek, hassle-free setup.
  • SAE F Compliant: Street-legal fog lights ensure safety and peace of mind.
  • Compact & Stylish: Sleek design with exceptional off-road lighting performance.

WHAT’S INCLUDED

  • Flush Mounting Bezels: 2x (One Pair) Morimoto 4Banger Flush Mounts

  • Hardware: Stainless Steel Assembly Kit

  • Optional LED Pods: 2x Morimoto 4Banger (Optional Color / Beam)

  • Optional Wiring: 1x Morimoto Switched Relay Harness or DT Deutsch DT Pigtails

  • Warranty: Lifetime Limited

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Installed Dimensions: 94mm/3.7in H, 106mm/4.2in W, 60mm/2.4in D

  • Material: Die-Cast Aluminum

  • Finish: Black Powdercoat

  • Hardware: Stainless Steel

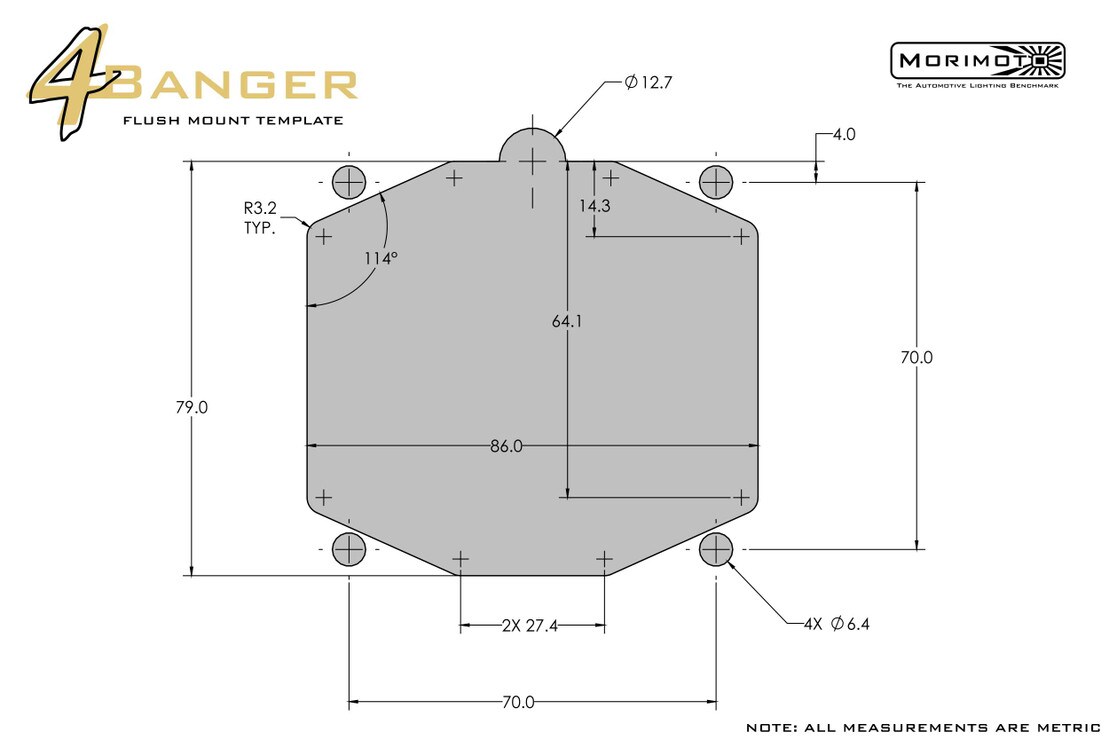

LINE DRAWINGS

COMPATIBILITY

  • LED Pods: Morimoto 4Banger (All)

  • Installation: Universal (All flat surfaces)

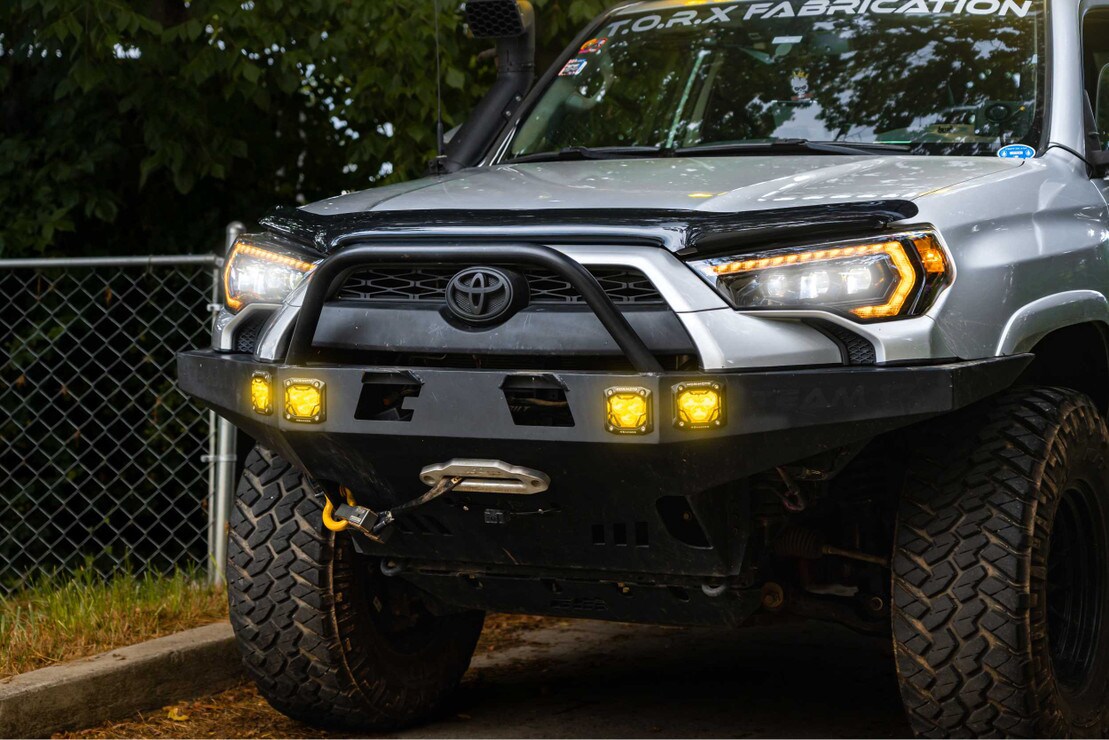

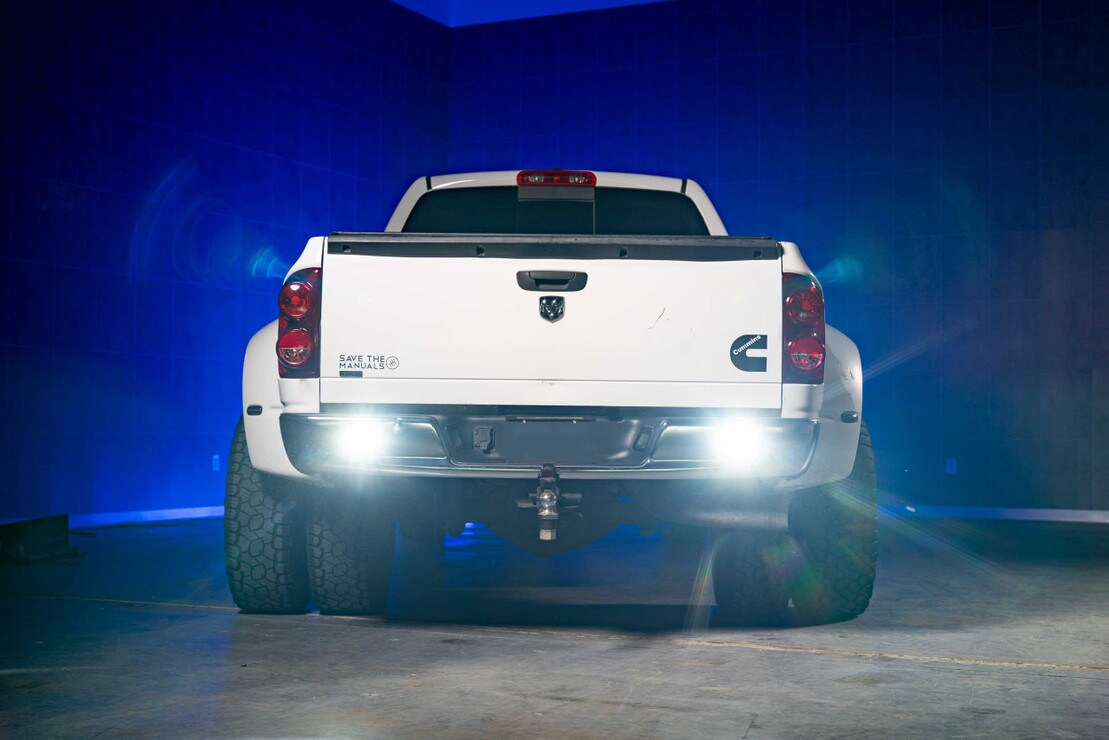

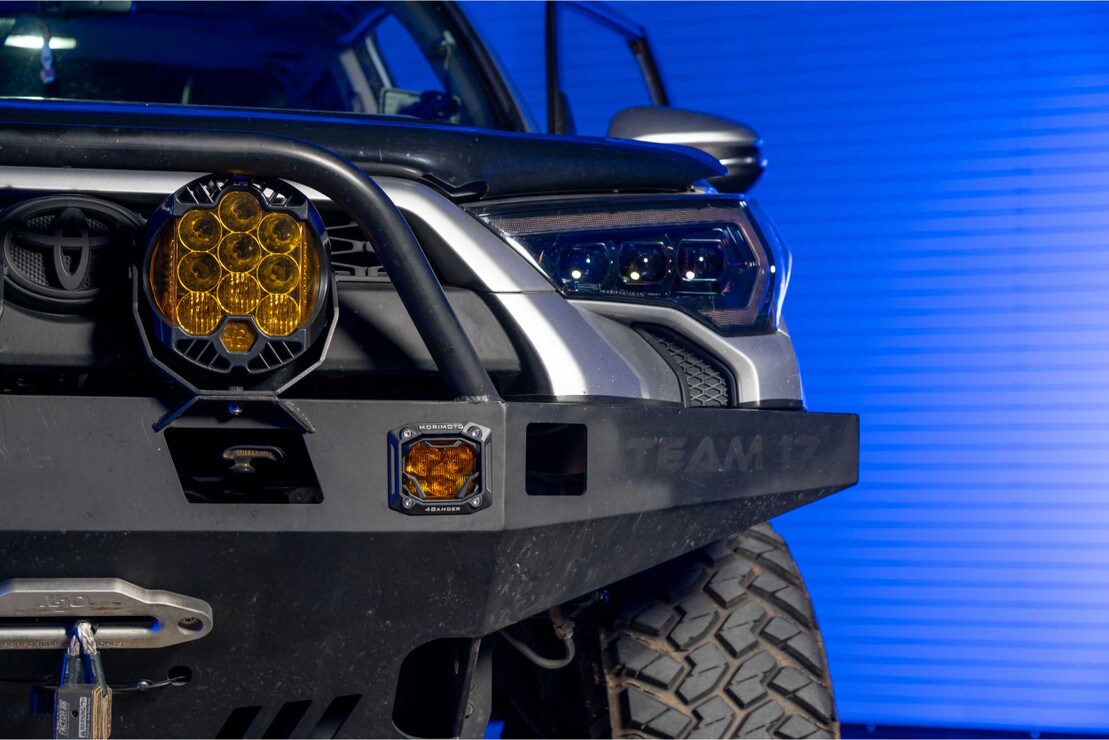

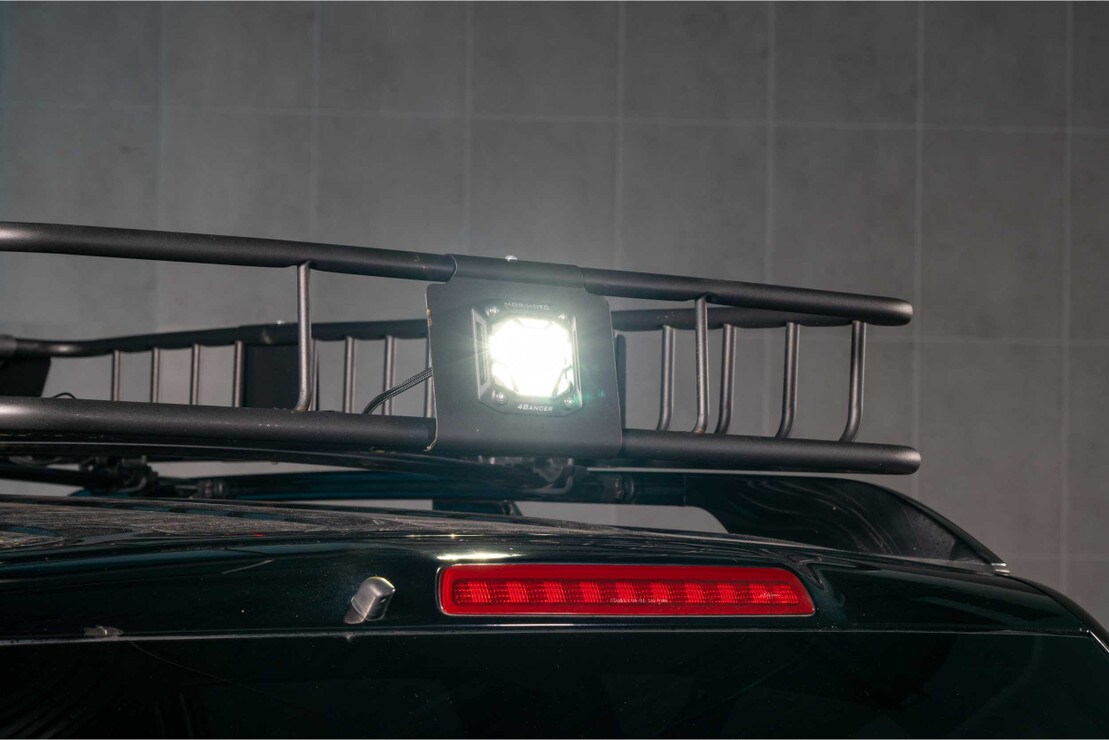

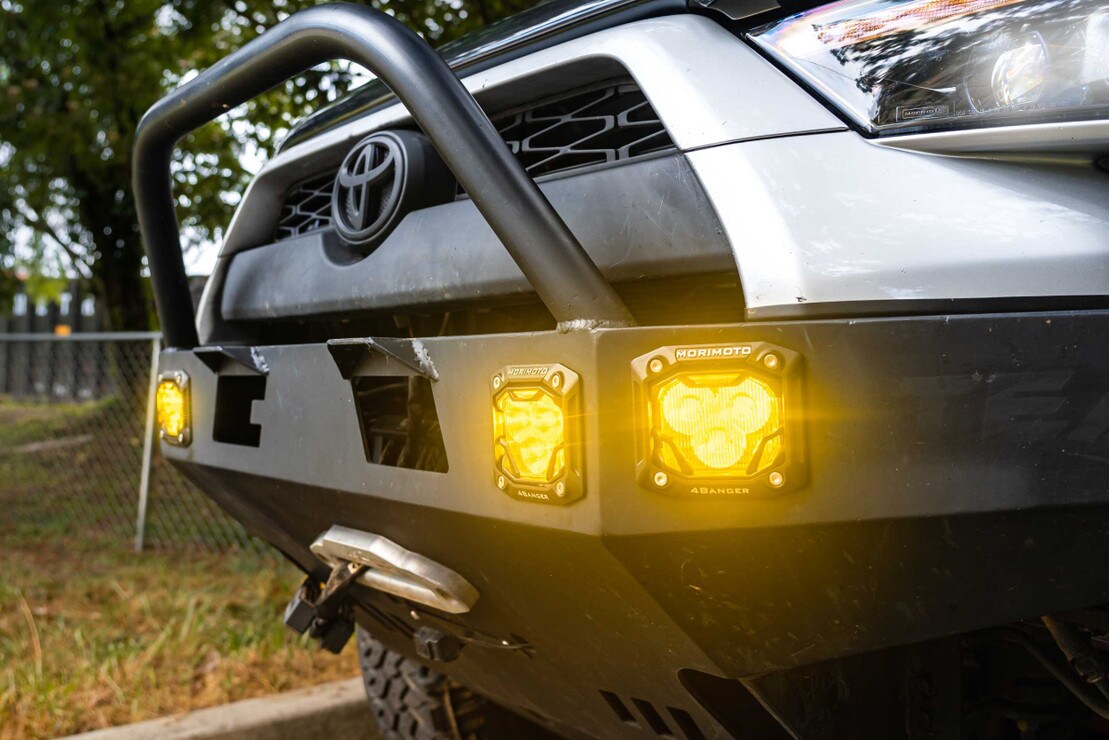

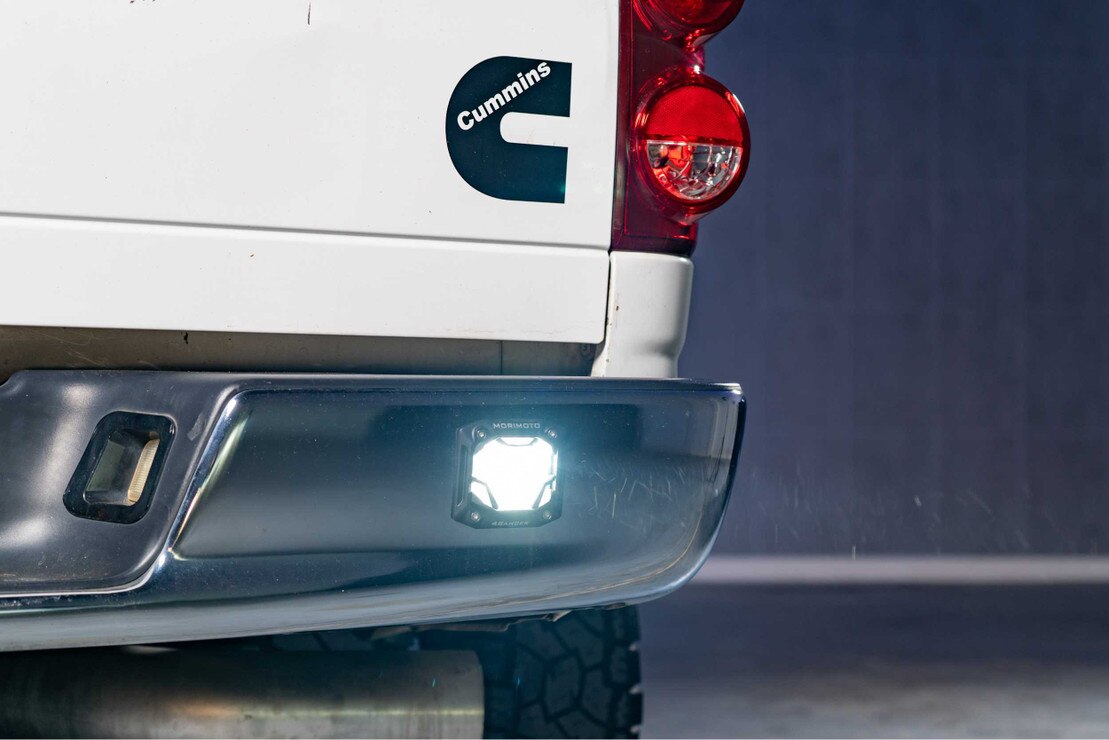

  • Ideal for: Front or Rear Bumpers and Roof Racks

COMPLIANCE

Wide beam photometrics are SAE F 20 compliant (HXB Report)(NCS Report)

INSTALLATION DOCUMENTS

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. As a new player in the off-road game, we have embraced that philosophy big time, pumped up the Redbull intake, and now it's time for the old competition to rethink their strategy. The brand new, patent-pending line of 4Banger NCS Off-Road LED lights were completely designed, engineered, and tested in the USA, and everything about them is truly next level.

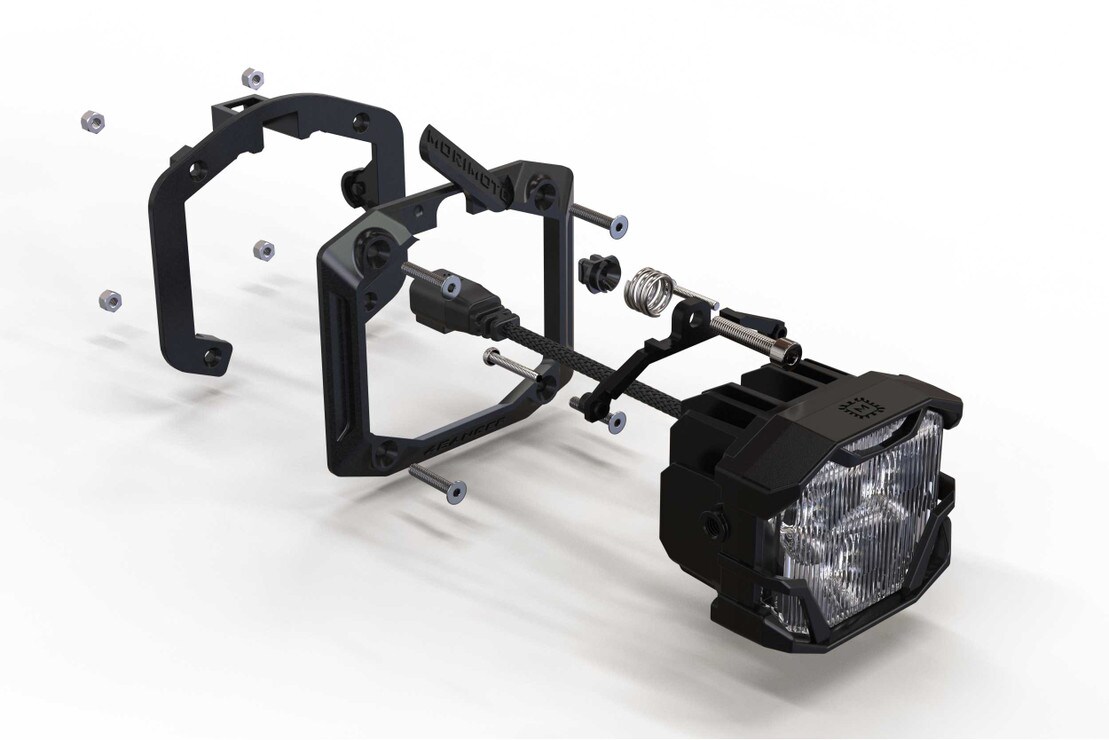

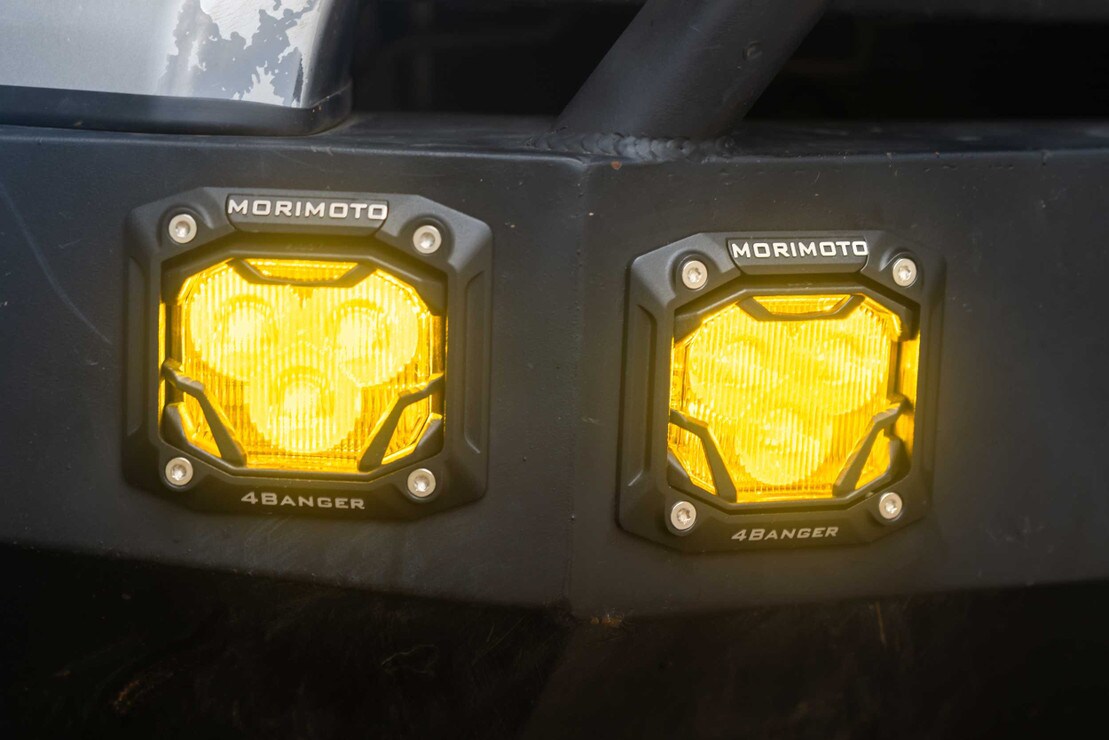

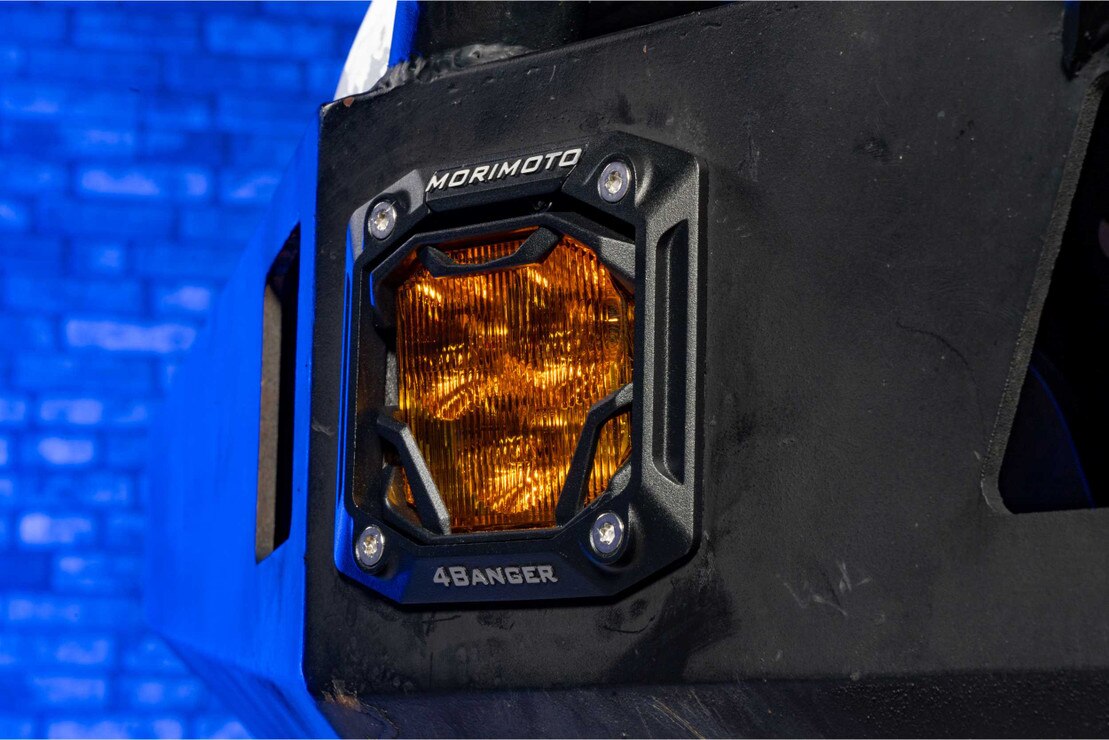

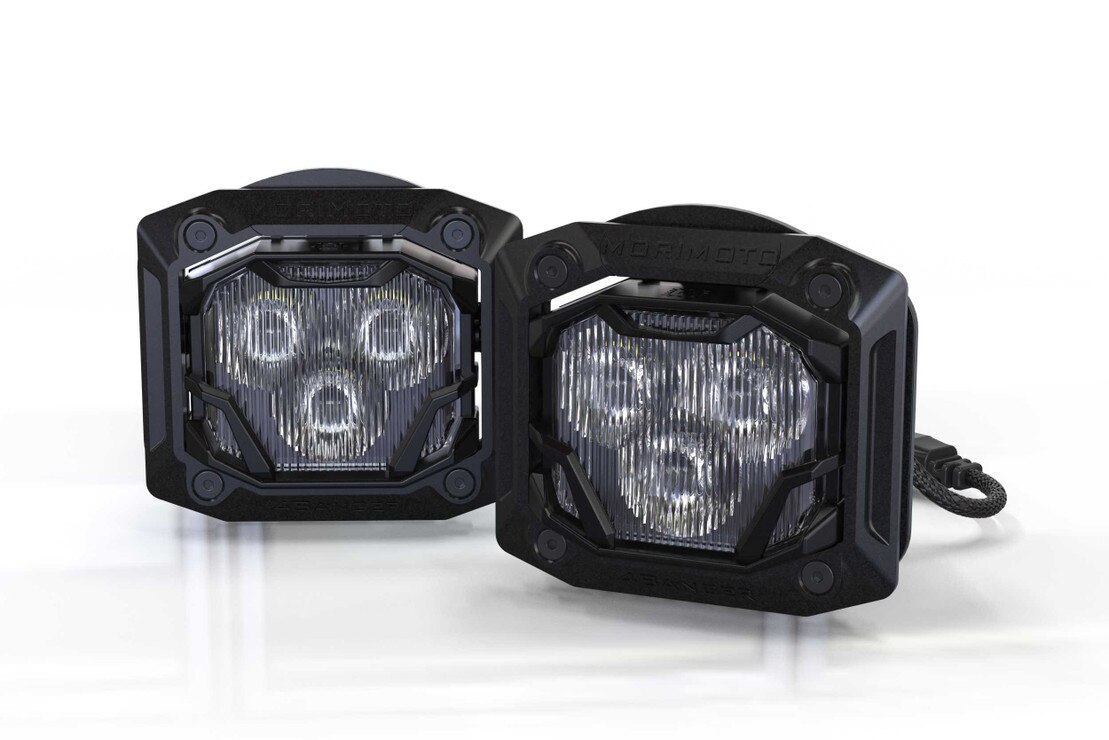

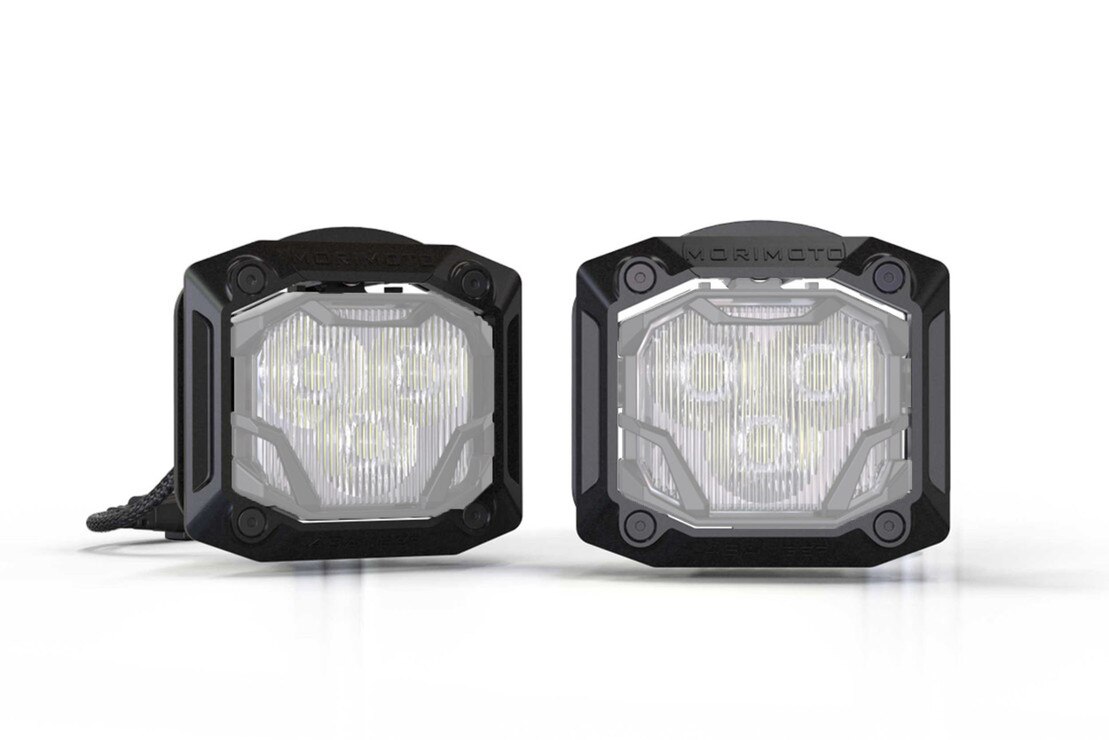

Flush Mount: The flush mounts brackets allow you to easily mount a 4Banger LED pod in any flat surface, and do it in style. Our patent-pending, fully adjustable design allows users to dial-in the aim from the front-side, which is unlike anything else on the market. Each kit includes the cast aluminum brackets, all hardware, and a cutting template to take the guess work out of your install. They are compatible with all versions of the 4Banger HXB and NCS LED Pods, just pick what projects the light in the direction you need it most!


HXB Combo Beam: Illuminates a clear path with medium range. The HXB Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The 4Banger HXB Combo is an excellent aid to any set of high-performance headlights.


HXB Spot Beam: Illuminates far into the distance unlike anything else on the market. The HXB Spot comes standard with the most powerful Osram LEDs, which in combination with the HXB LED optics produces a beam pattern capable of penetrating up to 800 meters into your future. No matter the speed, you'll never outrun your ability to see with the 4Banger HXB Spots.


HXB Wide Beam: Illuminates the ground directly in front of the vehicle. The HXB Optics feature dual axis control. 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper vertical gradient and powerful Osram HX Boost LEDs make these the brightest SAE-Compliant fog light pod on the market today (80% brighter than Rigid D-Series SAE Fog and photometrics verified SAE Compliant by Calcoast ITL). The 4Banger HXB Wide beam delivers the best combination of width, intensity, and control -- making it the most effective on and off-road LED fog light in the world.


NCS Combo Beam: Illuminates a clear path with medium range. The NCS Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The 4Banger NCS Combo is an excellent aid to any set of high-performance headlights.


NCS Spot Beam: Illuminates well into the distance. The NCS Spot features a highly focused 5-degree hot spot that's surrounded by a 14H x 4C degree flood beam, making it the perfect weapon for long range visibility. While not quite as powerful as the 4Banger HXB Spot (which uses Osram LEDs), when paired up with a set of NCS Combos, you will have no problems avoiding deer in the distance.


NCS Wide Beam: Illuminates the ground directly in front of the vehicle, making them a perfect complement to a set of high-performance Morimoto headlights. They produce a very wide beam to drastically improve visibility off to the sides of the road. Superior vertical gradient control eliminates glare to oncoming traffic, and when mounted in the fog light position and aimed appropriately. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W) and has also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light.


Form Meets Function: The overall footprint of the 4Banger NCS is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable OEM+ like fitment when paired with Morimoto's fog light or A-Pillar mounting kits, which are available for today's most popular trucks. Don't be that guy with LED pods bulging out of your bumper.


Performance: There are no "off the shelf" guts inside of a fancy housing here. Every element of the 4Banger NCS is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Nichia. Thermal dynamics have been optimized using SolidWorks. The 4Banger NCS is available with three industry-leading beam patterns to suit every need. Wide/Fog, Spot, and Combo. Patent Pending Design.


All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).


Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance.


Bolt-On: This set of Morimoto 4Banger LED pods include a set of flush mounts for a universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for fog lights and A-Pillars that make them bolt-on for many of today's most popular trucks. Check out the full lineup for details on what's available for your application.


Street Legality: With a standard -4 degree aim, the beam pattern produced by both the NCS and HXB Wide Beam models has been verified compliant with the latest SAE F regulation for use as a street-legal fog light. You can see the test data in the "Compatibility" section below.


Power Up: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
