LED Ditch Light System: Ford F150 (15-20)

(0) No Reviews yet

Brand: ProComp




PART #: 1 x EXP76413P, 1 x BAF038

ON SALE! Get 10% off from 4/12 - 4/21!!!


Introducing the ProComp A-Pillar LED system -- your ticket to a brighter, safer, and more versatile driving experience! Designed for the 15-20 Ford F-150, this kit is engineered for a perfect fit, ensuring hassle-free installation without any modifications. Crafted from robust 304 stainless steel and powder-coated for durability, our A-Pillar kit is built to withstand the toughest conditions. With proprietary technology optimized for maximum performance, the LED pods come in two performance tiers, white or yellow output, and offer four beam patterns to suit your every driving need. Whether it's the HXB Spot's incredible long-range illumination or the NCS Wide Beam's wide coverage, we've got you covered. Stay street-legal with SAE compliance for auxiliary high beams and fog lights, and choose from our all-weather options for optimal visibility in any condition. Plus, our optional wire harness is packed with top-notch features, including a triple-sealed relay, over-molded fuse holder, and M-Spec push-button switch.

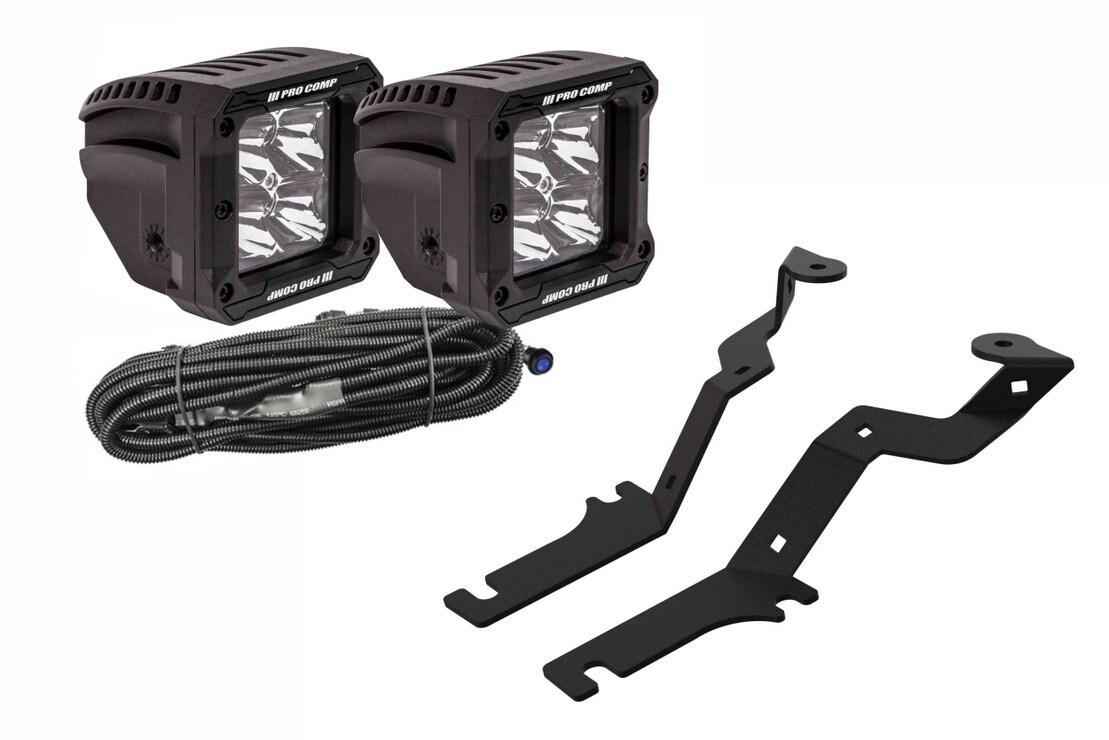

  • Ditch Light Brackets: 2x (One Pair) Ditch Brackets (BAF038 / Ford F-150)

  • Hardware: Stainless bolts & plastic cable clips

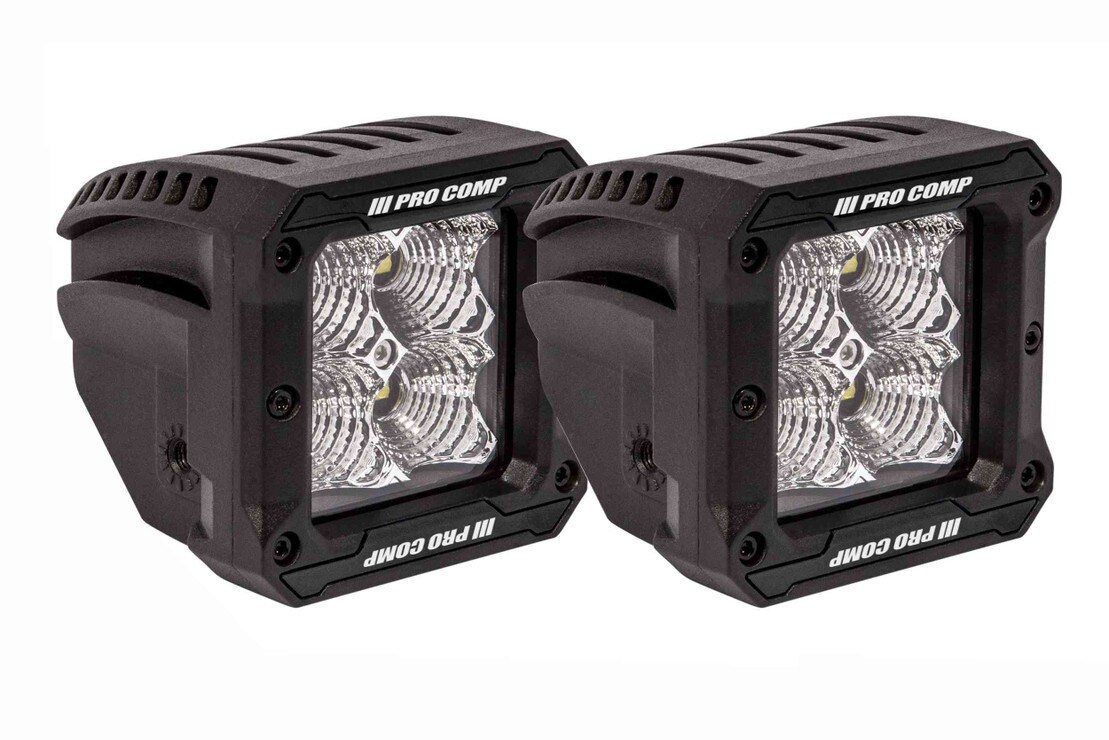

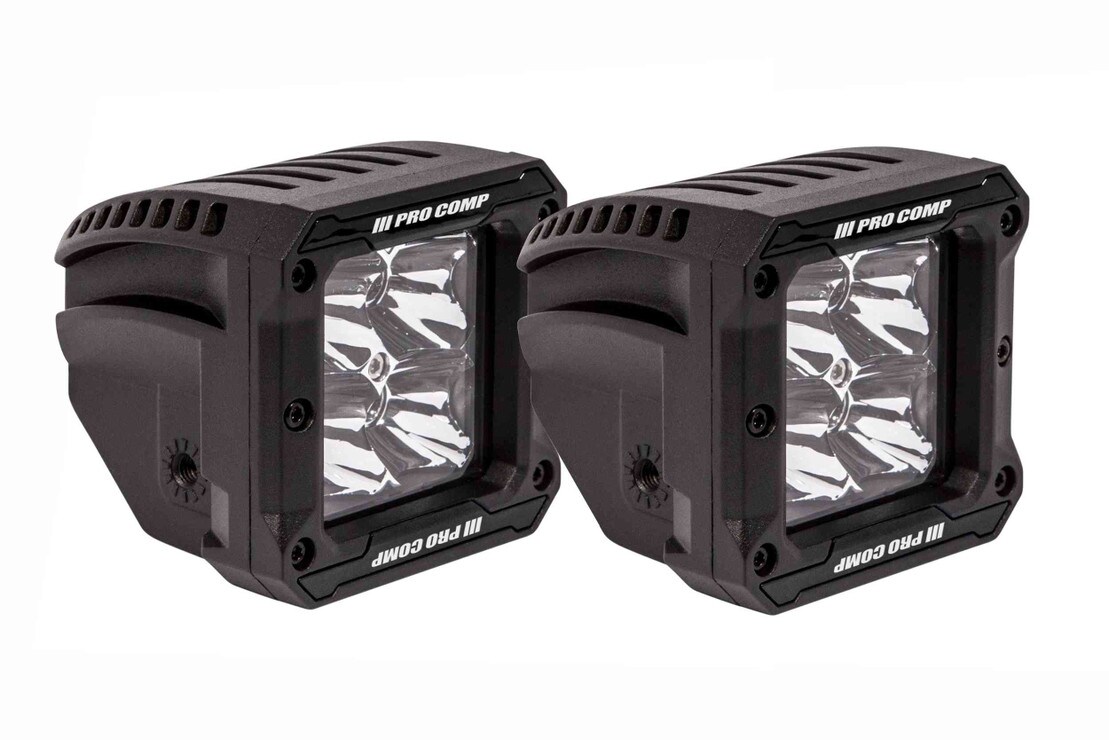

  • LED Pods: 2x ProComp Gen 3 Pods (Flood or Spot Beam)

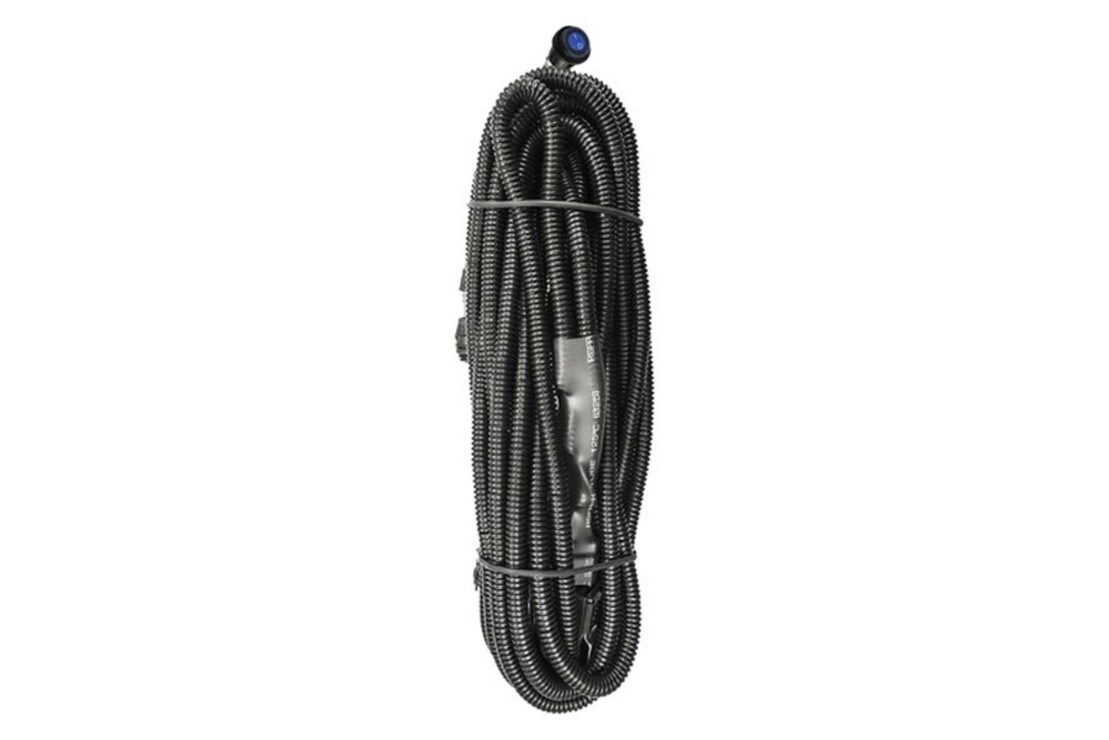

  • Wiring: 1x ProComp Relay Harness

  • Warranty: Lifetime Limited


This product includes a Lifetime Limited warranty, serviced and supported by our team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, contact us.


  • Peak Luminosity (lm, Raw): 1,680 lm

  • Input Voltage: 12-24V DC

  • Power: 12w (Each)

  • Current: 1.37A @ 12V DC, 0.68A @ 24V DC

  • Input: Deutsch DT 2-Pin

  • Dimensions: 3.25in W, 3.75in H, 3.1in D

  • Light Source: 4x Osram 6000K LED

  • Material: Aluminum (Housing), Polycarbonate (Lens)

  • Compliance: IP31


  • Ford F-150: 2015-2020

  • Ford F-150 Raptor: 2017-2020


IP67 Rated
