4Banger Bar: 6 Pod / 24.5"

(0) No Reviews yet
Questions?

Brand: Morimoto

B-2RBAR-24.5IN-HR

$1,483.00

PRODUCT OPTIONS

Morimoto 4Banger: Bar-End Mounting Feet (Set)
Morimoto 4Banger: Pod-Link (Each)
Morimoto 4Banger: Banger Bar Middle Support Leg (Each)
Morimoto Switched Power Harness: 2 or 4Banger Bar (6-8 Pods / Each)

PART #: 2 x BAF003.2, 1 x BAF005.2, 1 x BAF088SF, 5 x BAF088, 1 x BAF088SB, 1 x BAF130H

DESCRIPTION

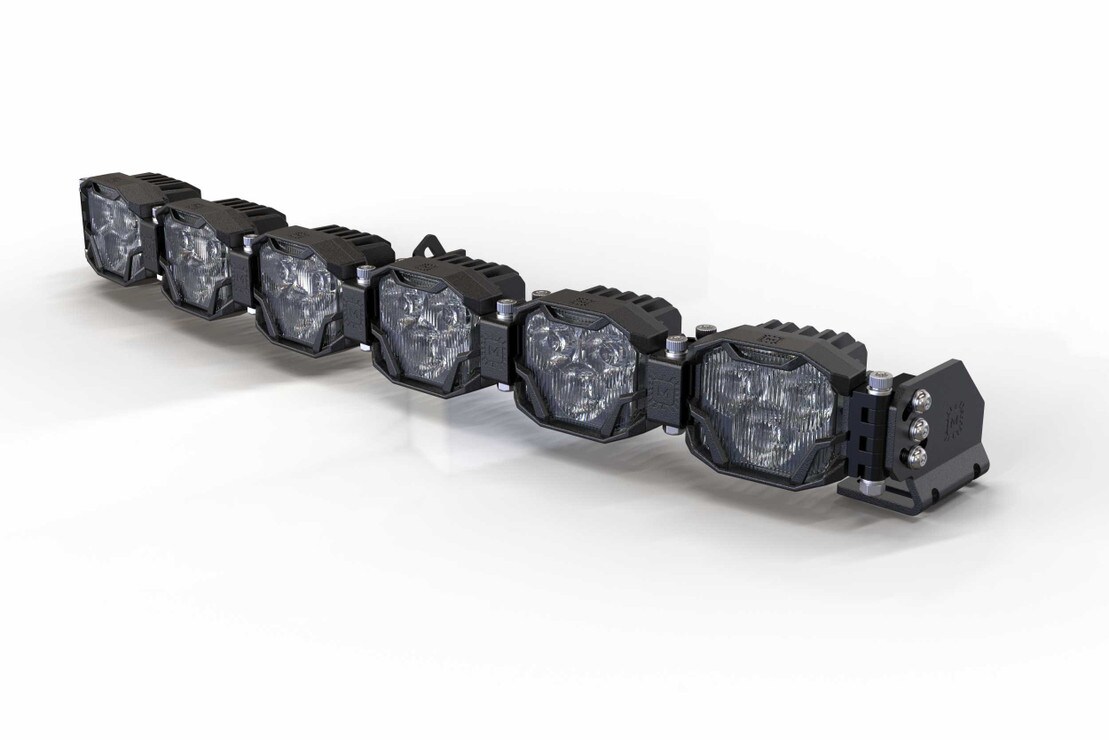

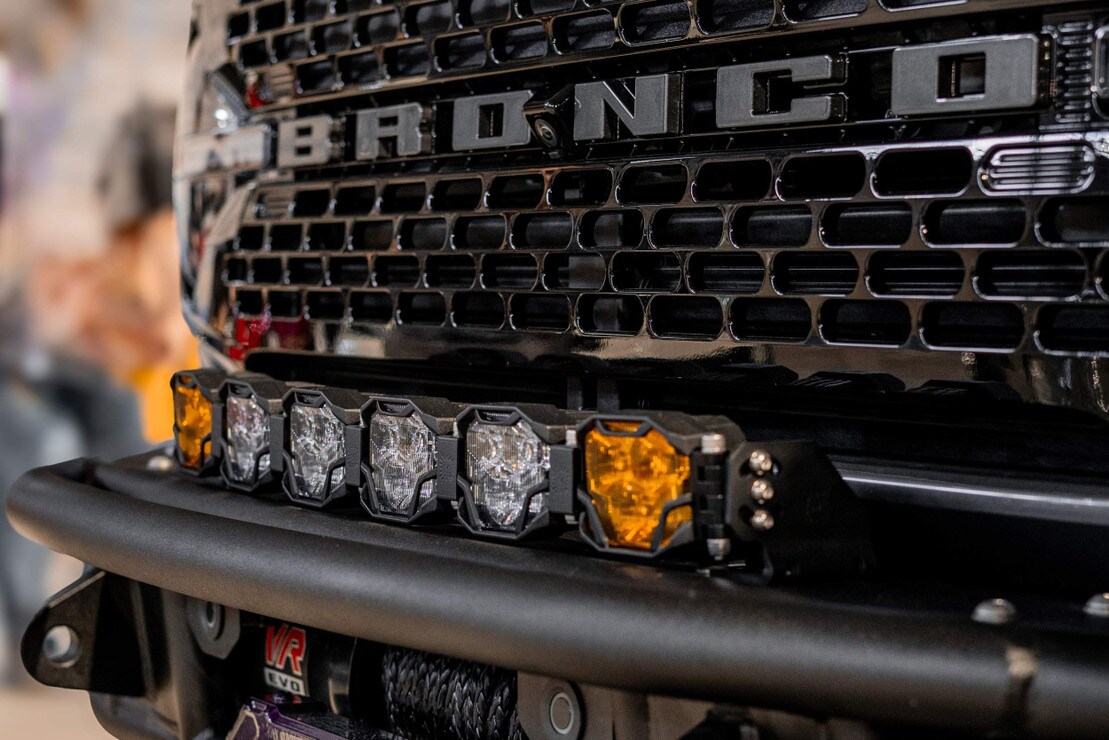

Introducing the Morimoto Double Row BangerBar -- the ultimate off-road lighting upgrade for your vehicle! Since 2008, Morimoto has been dedicated to delivering top-notch automotive lighting solutions, and the BangerBar continues that legacy. With customizable power, color, length, and radius options, you're in control. This bespoke light bar features 4Banger Pods, inner links, universal end-mounts, and all the necessary hardware for assembly. Choose between the NCS version for maximum value or the HXB version for peak performance, both powered by the latest Osram LED chips. Enjoy flexibility with its adjustable straight or curved setup, perfect for any application, from front bumpers to roof racks. The Double Row BangerBar boasts an optimized design, combining combo, spot, and wide beam pods for high-output illumination using Nichia and Osram LEDs. Experience enhanced visibility with its coverage and intensity options, including white, yellow, or a white/yellow combo. Rest easy with its unmatched reliability, featuring copper DTP PCBs, weather-resistant construction, and solid aluminum hardware. Don't settle for less; upgrade to the Morimoto Double Row BangerBar and conquer the darkness with confidence!

FEATURES & BENEFITS

  • Customizable: Available in your choice of lengths, 4Banger light bars can be configured as straight or curved. Customization has never been easier.
  • Light Source: Banger pods are built around the high performance Nichia NCS or Osram HX Boost LEDs for incredible output.
  • All-Weather Versatility: Designed to IP69K weather resistance standards and available in white or yellow output for optimal visibility.
  • Beam Patterns: Curated lens options offer a bright and useful output at both low and high speeds.
  • US-Based Engineering: Designed, engineered, and tested by our team of enthusiasts in Atlanta, GA.

WHAT’S INCLUDED

  • LED Pods : 4x Morimoto 4Banger Combo (White or Yellow)

  • LED Pods : 2x Morimoto 4Banger Wide (White or Yellow)

  • Pod Links : 5x 4Banger Adjustable CNC Links w/ Hardware

  • Center Support Legs : 2x Adjustable Central Support Legs w/ Hardware

  • Universal Mounting Feet : 1x Adjustable Surface Mounts w/ Hardware

  • Relay Harness : 1x Morimoto Switched Power Harness

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (raw) : 8,100lm (NCS), 18,000lm (HXB)

  • Intensity (HXB White) : 356,800 Cd (3,568 lux @ 10m)

  • Intensity (HXB Dual Color) : 341,400 Cd (3,414 lux @ 10m)

  • Intensity (HXB Yellow) : 247,800 Cd (2,478 lux @ 10m)

  • Intensity (NCS White) : 250,800 Cd (2,508 lux @ 10m)

  • Intensity (NCS Dual Color) : 239,360 Cd (2,394 lux @ 10m)

  • Intensity (NCS Yellow) : 172,760 Cd (1,728 lux @ 10m)

  • Power (stabilized) : 93.6w (NCS), 252.0w (HXB)

  • Current (amps @ 13.5V DC) : 9.00A (NCS), 19.20A (HXB)

COMPATIBILITY

  • Universal : Mounts anywhere w/ included mounting Feet

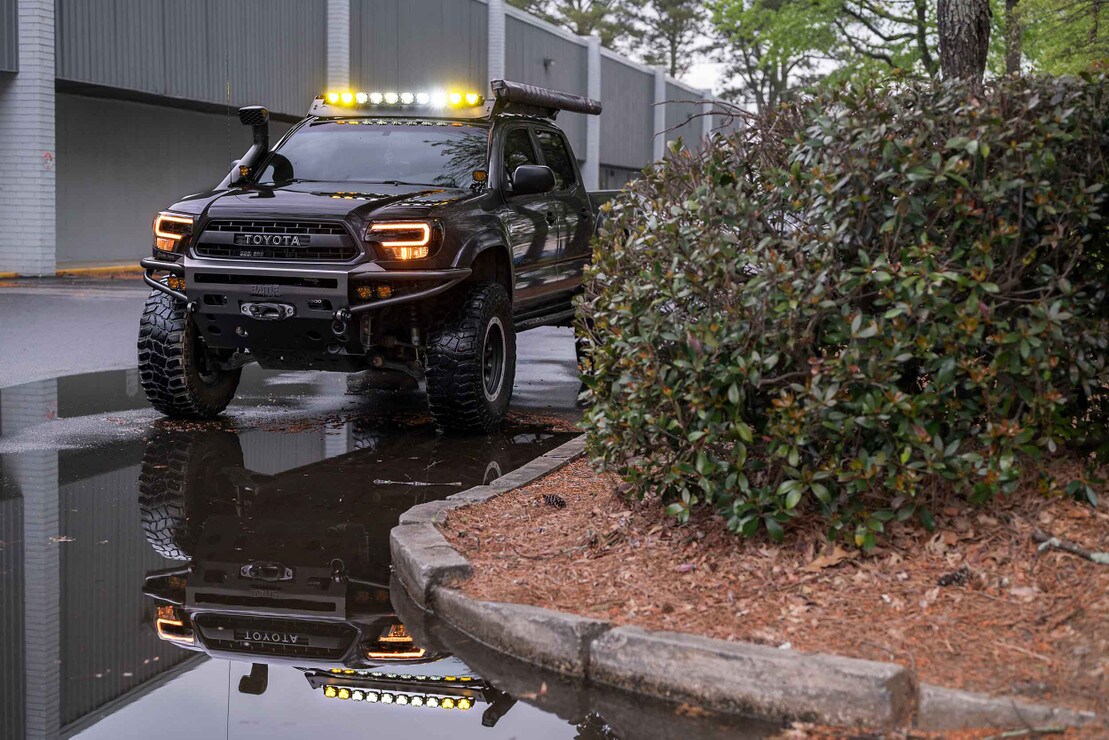

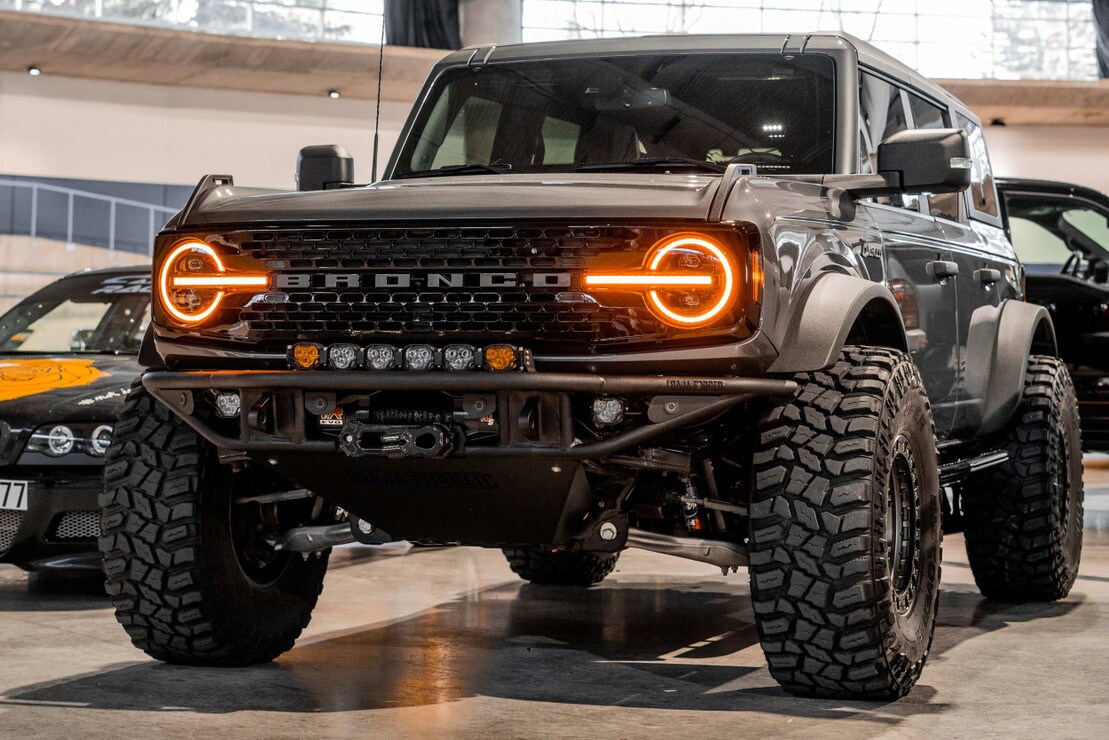

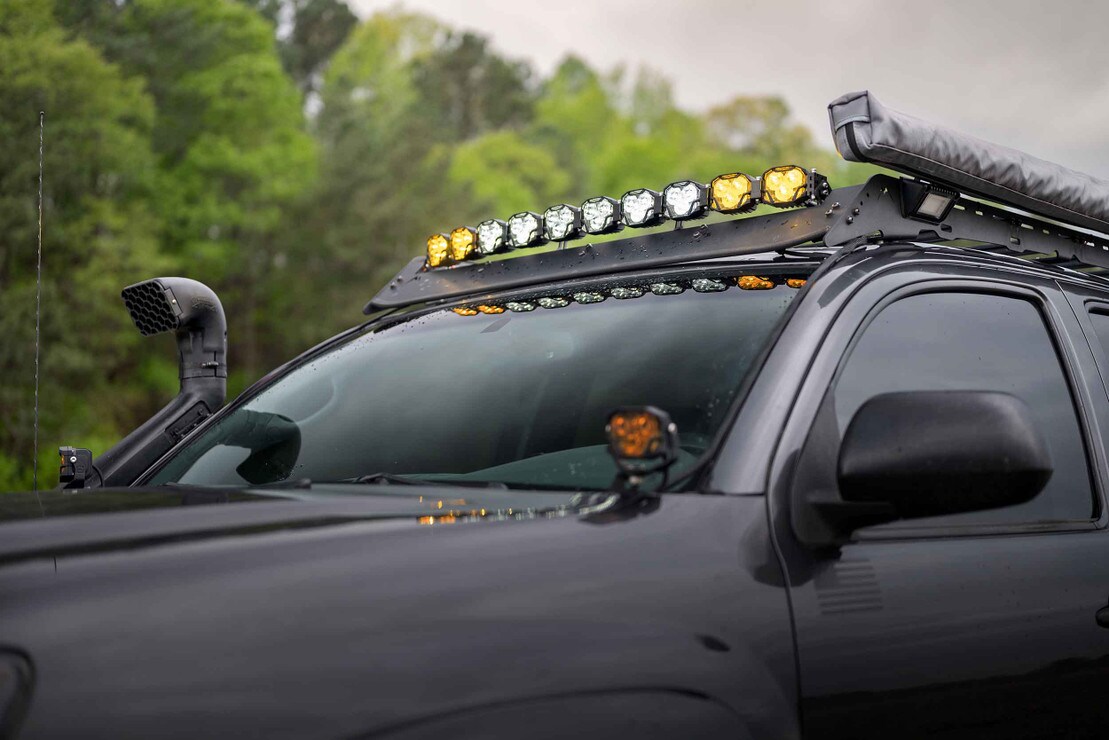

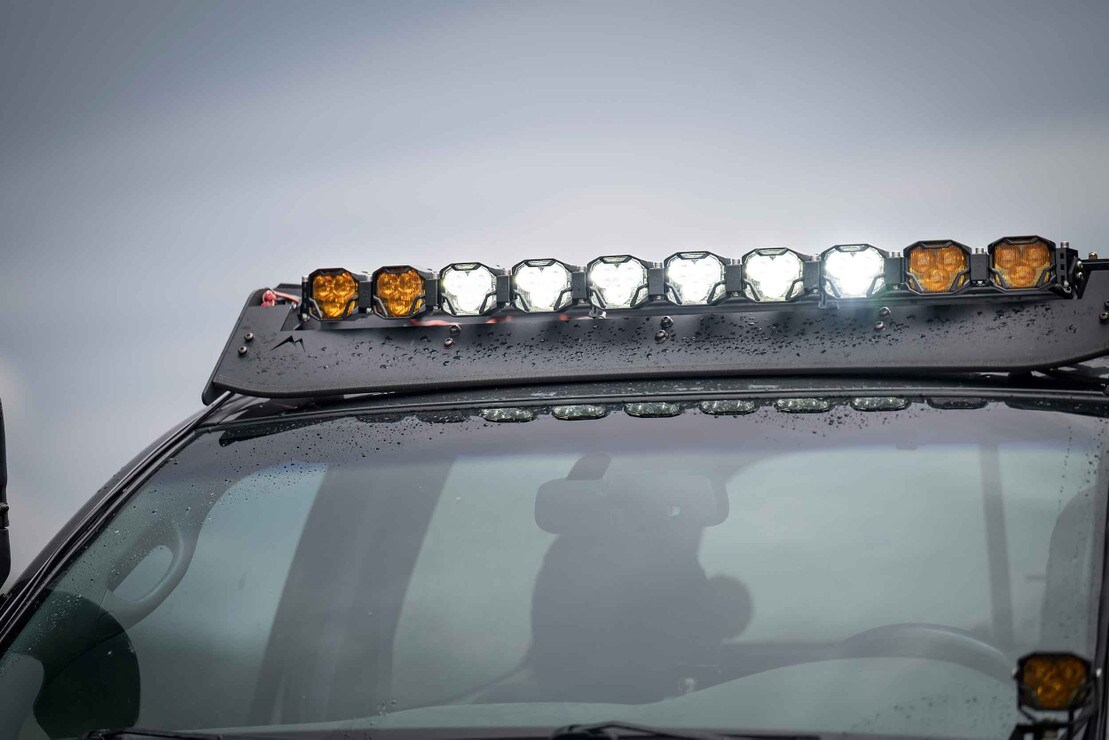

  • Ideal for : Steel Roof Racks and Bumpers

  • Width : 62.28cm / 24.52in

  • Height : 49.8mm / 1.96in

  • Depth : 59.2mm / 2.33in

  • Weight : 5.38kg / 11.85lb

  • Mounting Width Range : 22.27-27.02" / 56.57-68.63cm
