BigBanger Bar: 6 Pod / 43"

(0) No Reviews yet
Questions?

Brand: Morimoto

B-3RBAR-43IN-HR

$2,617.00

PRODUCT OPTIONS

PART #: 2 x BAF118, 4 x BAF120, 1 x BAF089SF, 5 x BAF089, 2 x BAF089SB, 1 x BAF133H



Easy Return

DESCRIPTION

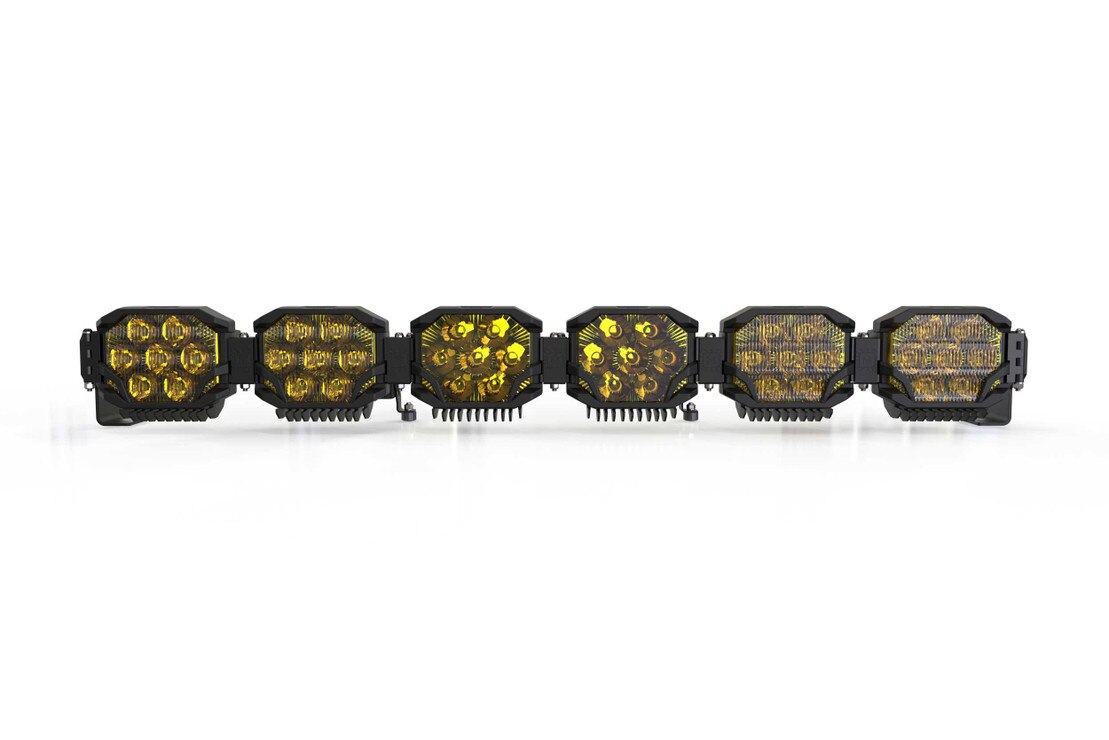

Introducing the Morimoto BangerBar - the ultimate custom lighting solution! With the BangerBar, you're in control. Choose your desired power, color, length, and radius to create the perfect light bar for your needs. It comes pre-loaded with BigBanger Pods, universal end-mounts, and all the necessary hardware for easy assembly. Experience unrivaled performance with the HXB series, boasting top-tier candela output and unmatched brightness. The adjustable design allows for straight or curved setups, making it a versatile addition to any vehicle. Whether you're tackling off-road adventures or enhancing visibility on the road, the BangerBar delivers outstanding results. Not only is it powerful, but it's also built to last. Designed for all-weather conditions, this bar ensures reliability and longevity. Plus, the integrated amber backlight adds a safety feature for nighttime driving. Don't settle for less. Elevate your lighting game with the Morimoto BangerBar – where customization meets exceptional performance!

FEATURES & BENEFITS

  • Customizable: Tailor your BangerBar with adjustable power, color, and setup.
  • Premium Performance: Choose from BigBanger Pods, HXB, and NCS series for brightness and range.
  • Durable Build: Built tough with advanced thermal dynamics and IP69K weather resistance.
  • Precise Adjustability: Install it straight, curved, or both with CNC machined aluminum links.
  • Easy Control: The included wire harness provides intuitive controls for effortless lighting customization.

WHAT’S INCLUDED

  • LED Pods: 2x Morimoto BigBanger Spot (White or Yellow)

  • LED Pods: 4x Morimoto BigBanger Combo (White or Yellow)

  • Pod Links: 5x Adjustable CNC Links w/ Hardware

  • Center Support Legs: 2x Adjustable Central Support Legs w/ Hardware

  • Universal Mounting Feet: 2x Adjustable Surface Mounts w/ Hardware

  • Relay Harness: 1x Morimoto Switched Power Harness

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here.

TECHNICAL SPECIFICATIONS

  • Peak Luminosity (raw): 18,900lm (NCS), 42,000lm (HXB)

  • Intensity (HXB White): 1,910,000 Cd (19,100 lux @ 10m)

  • Intensity (HXB Dual Color): 1,702,000 Cd (17,020 lux @ 10m)

  • Intensity (NCS White): 1,420,000 Cd (14,200 lux @ 10m)

  • Intensity (NCS Dual Color): 1,290,000 Cd (12,900 lux @ 10m)

  • Intensity (NCS Yellow): 910,000 Cd (9,100 lux @ 10m)

  • Power (stabilized): 219.0w (NCS), 462.0w (HXB)

  • Current (amps @ 13.5V DC): 16.46A (NCS), 33.32A (HXB)

COMPATIBILITY

  • Universal: Mounts anywhere w/ included mounting Feet

  • Ideal for: Steel Roof Racks and Bumpers

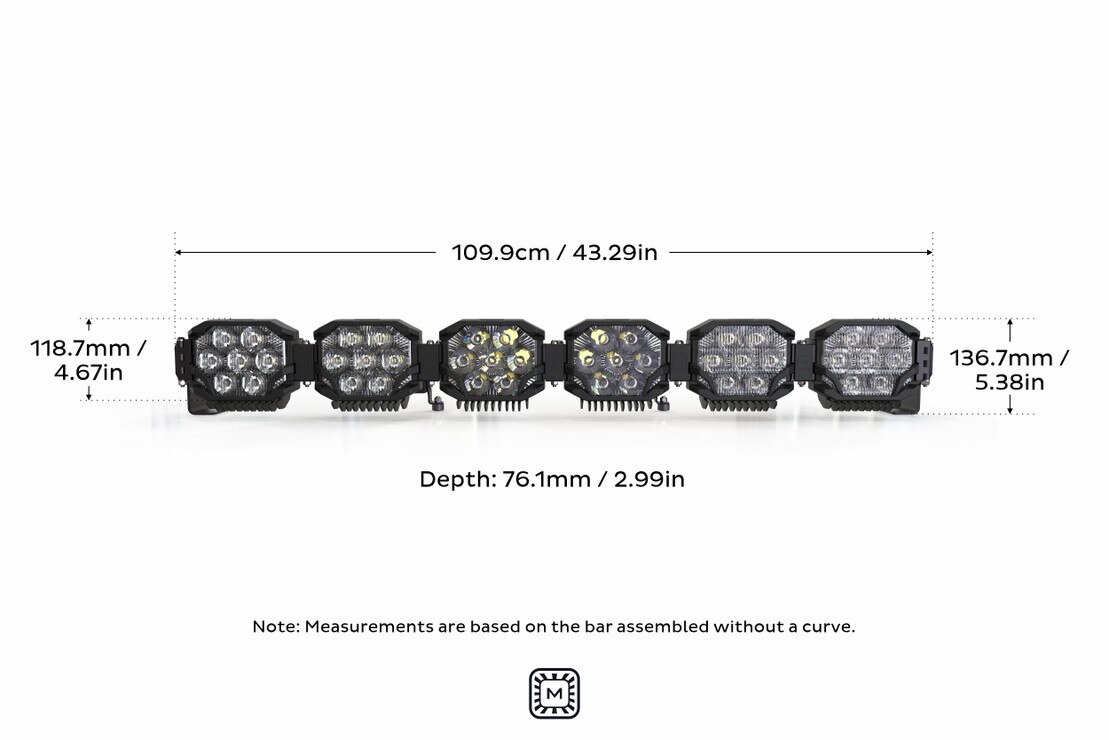

  • Width: 109.9cm / 43.29in

  • Height: 136.7mm / 5.38in

  • Depth: 76.1mm / 2.99in

  • Weight: 15.76kg / 34.75lb

  • Mounting Width Range: 40.49-46.42" / 102.84-117.91cm

INSTALLATION DOCUMENTS

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... Consistently turning out products packed with more performance, reliability, and best in-class fitment & style. The triple row BangerBar continues that tradition as a bespoke light bar, where you spec the power. You spec the color. You spec the length. You set the radius. And then you destroy the darkness. Every bar is pre-spec'd with the BigBanger Pods, the inner links, a set of universal end-mounts, and all the hardware necessary to assemble.


BigBanger NCS and HXB: The HXB series sits at the top of the performance totem-poll and produces maximum output, they are the undisputed king of candela. Just look at the numbers they're putting out! Each spot beam produces over a half million CD alone, which is staggering! It shares the same housing and optics with the more affordable NCS series, which still out-performs most comparable options in the aftermarket.

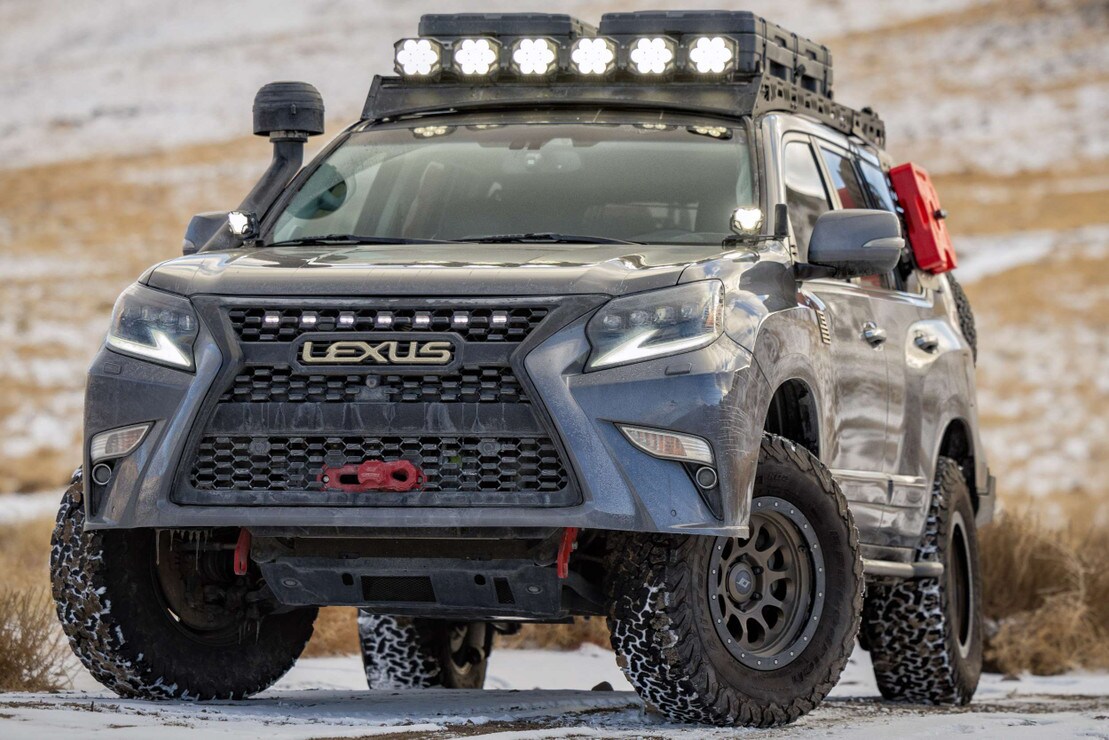

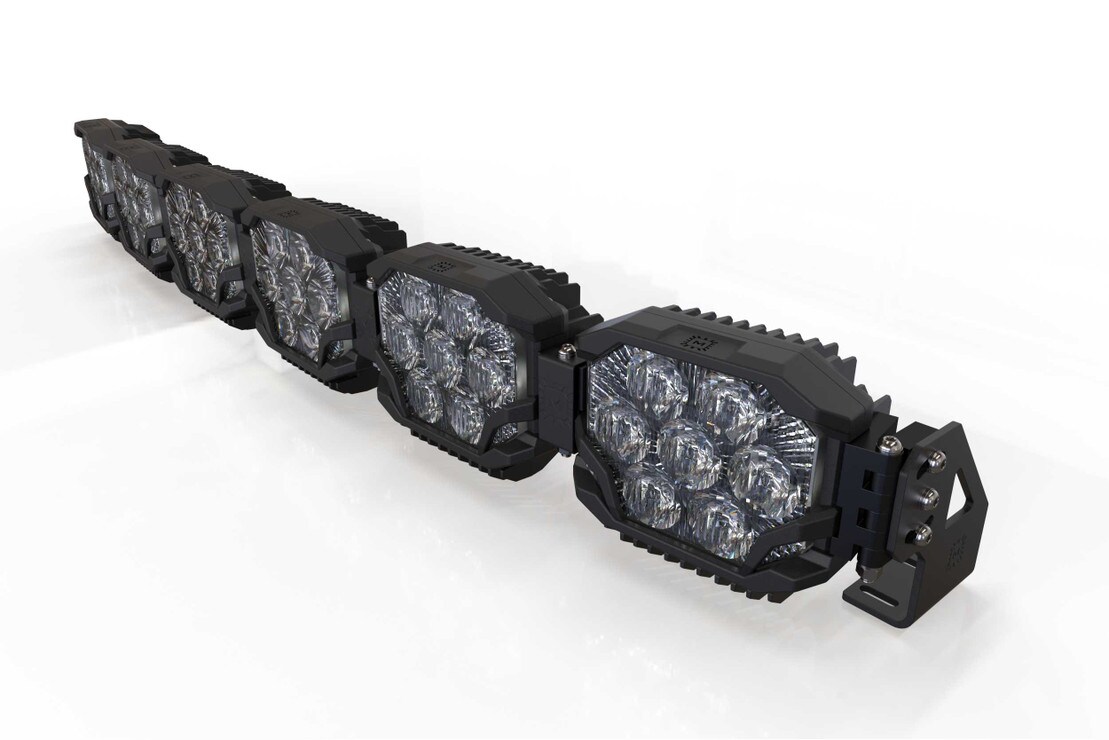

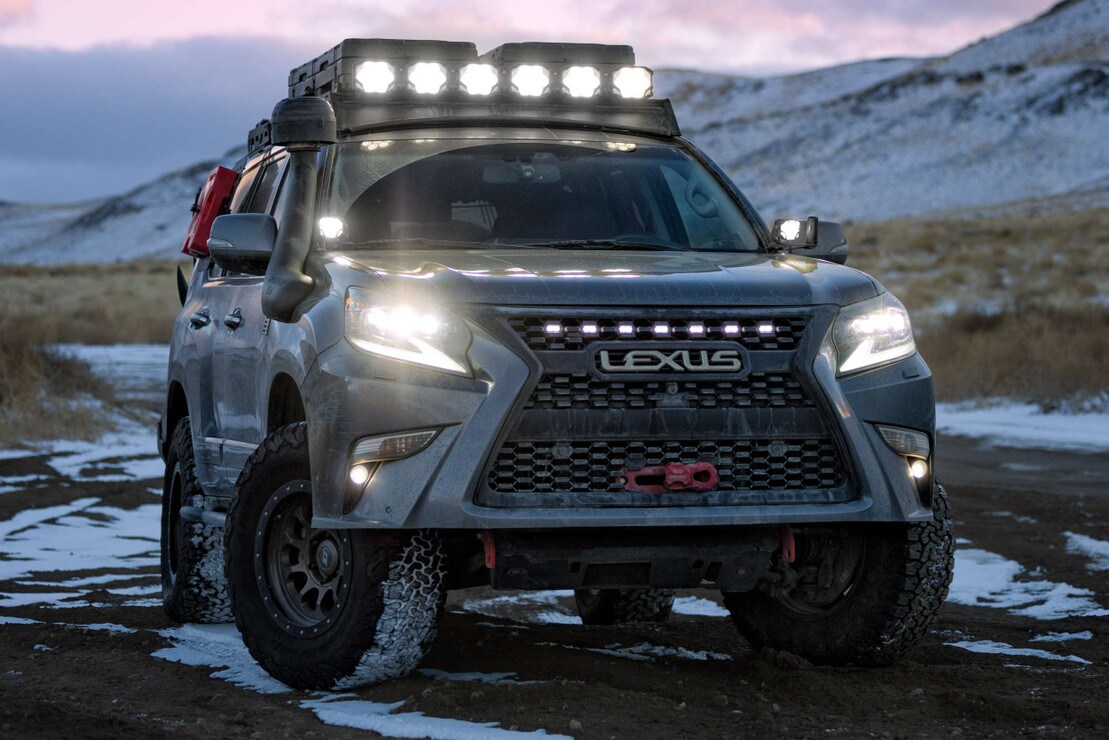

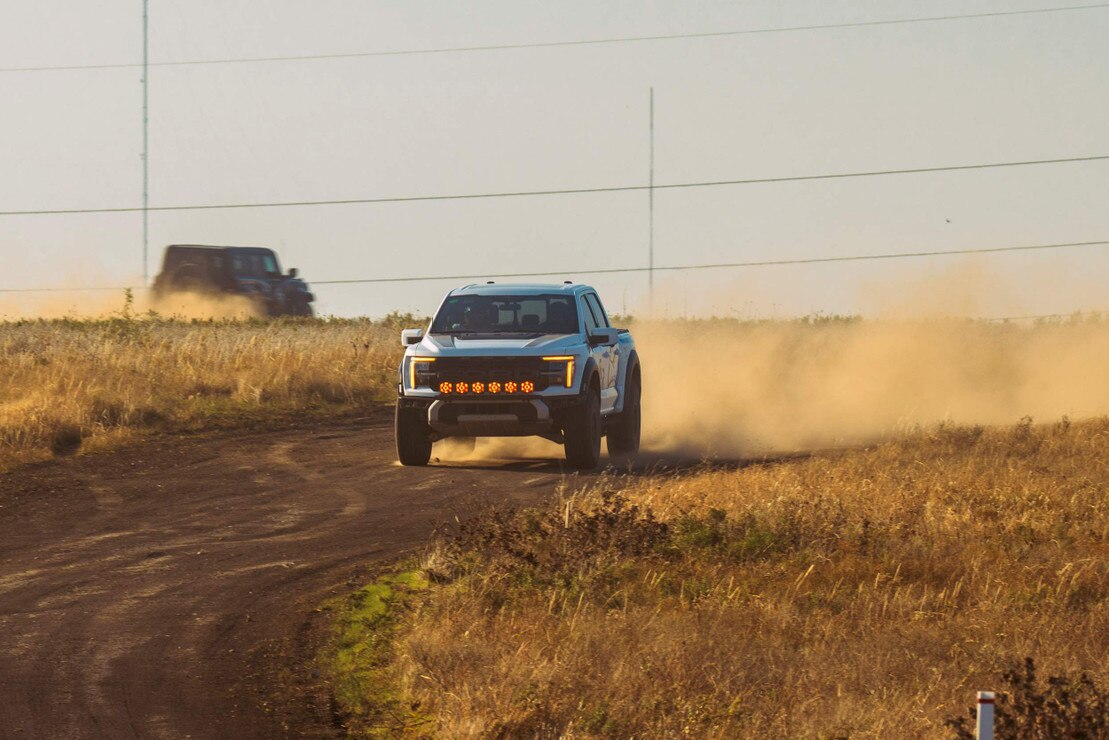

Straight or Curved: Here, you have a full range of adjustability. The entire bar can be setup either straight or curved from the end to end. It can also be setup straight in the center, and angled only on the outer edges. The beefy, CNC machined aluminum links are all independently adjustable, allowing you to dial it in for every application. They are a perfect addition to any front bumper, grille, or roof rack.


Performance: Its big. Its heavy. Its expensive, but nothing else out there can compete. Out on the trail at night, one BigBanger will easily roast the Pro6, LP9, SS5, or the Rigid 360... so when stacked together in a row, its game over. Every element has been designed to maximize light output without compromise. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Nichia and Osram. Thermal dynamics have been optimized using SolidWorks. With two performance tiers, two beam patterns (spot or combo) and two colors (white or yellow output); the BigBanger family is perfectly suited to out-perform expectations in the dark.

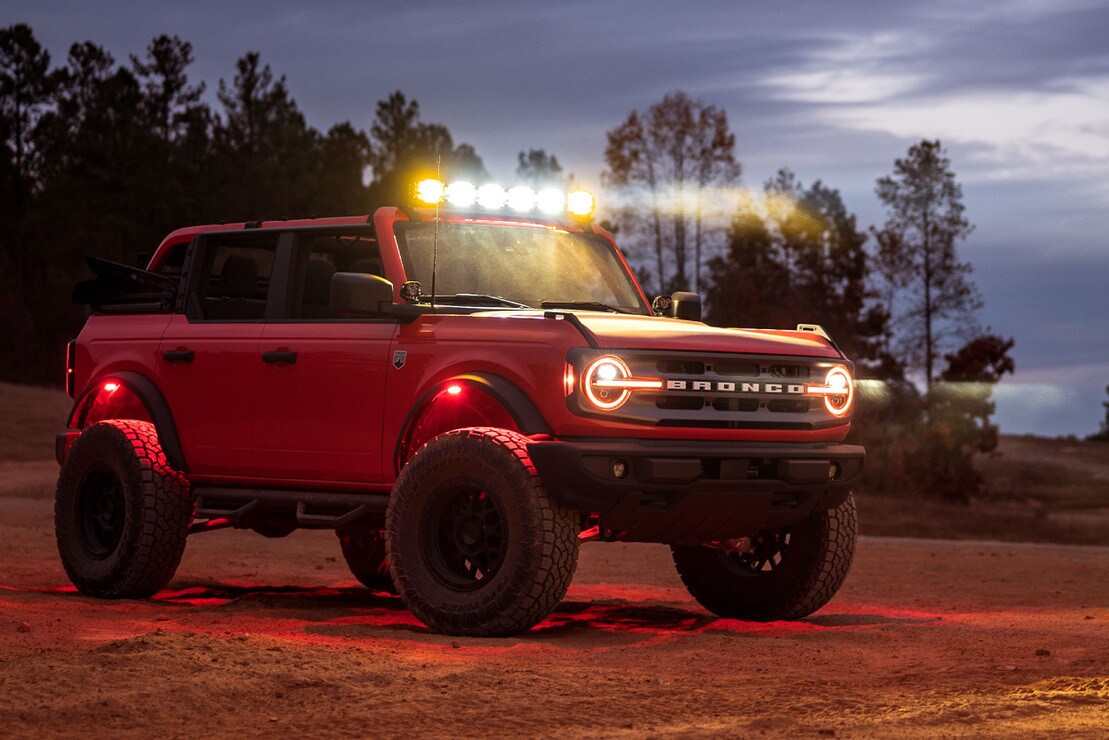

Amber Back Light: Comes standard on all BigBanger Bars. While amber back-light does not produce any forward illumination, the daytime-setting is so bright that they will dim by 90% at night to avoid creating glare for oncoming traffic. The dual-intensity control for the backlight is integrated into the wire harness, which comes standard with the BigBanger Light bar.


Intensity and Coverage: The Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The spot beam Illuminates well into the distance and features a highly focused 5-degree hot spot, making it the perfect weapon for long range visibility. While each of these easily does the job on its own--nothing will compare to their coverage when combined.

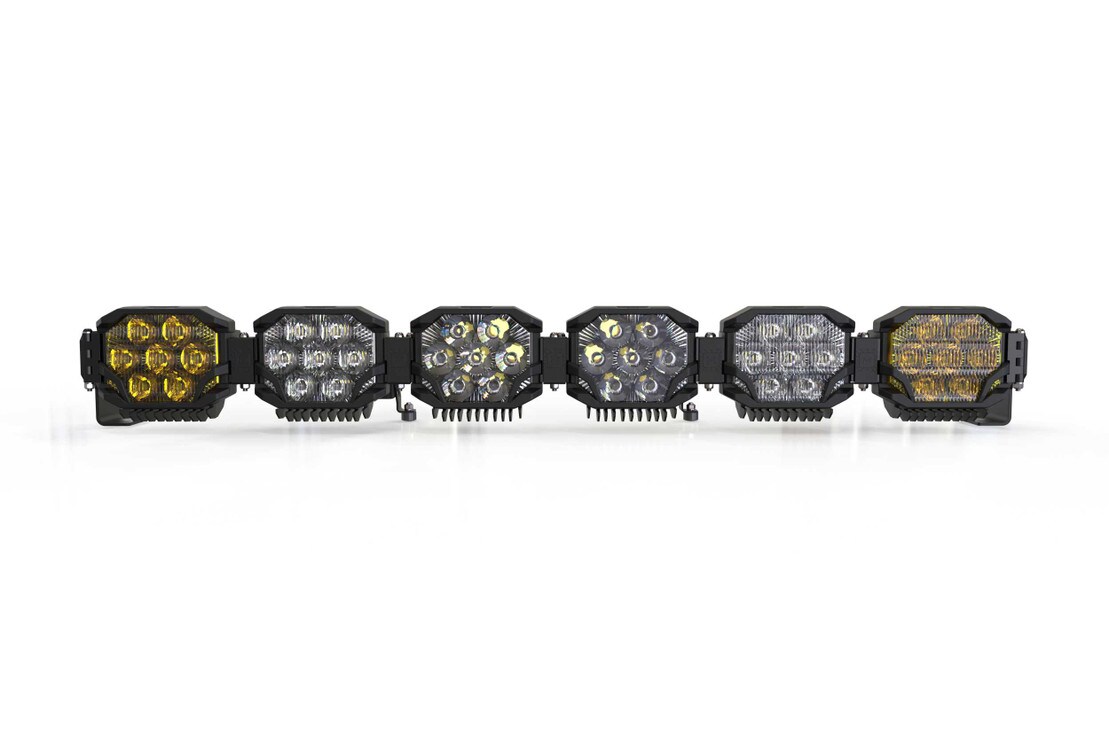

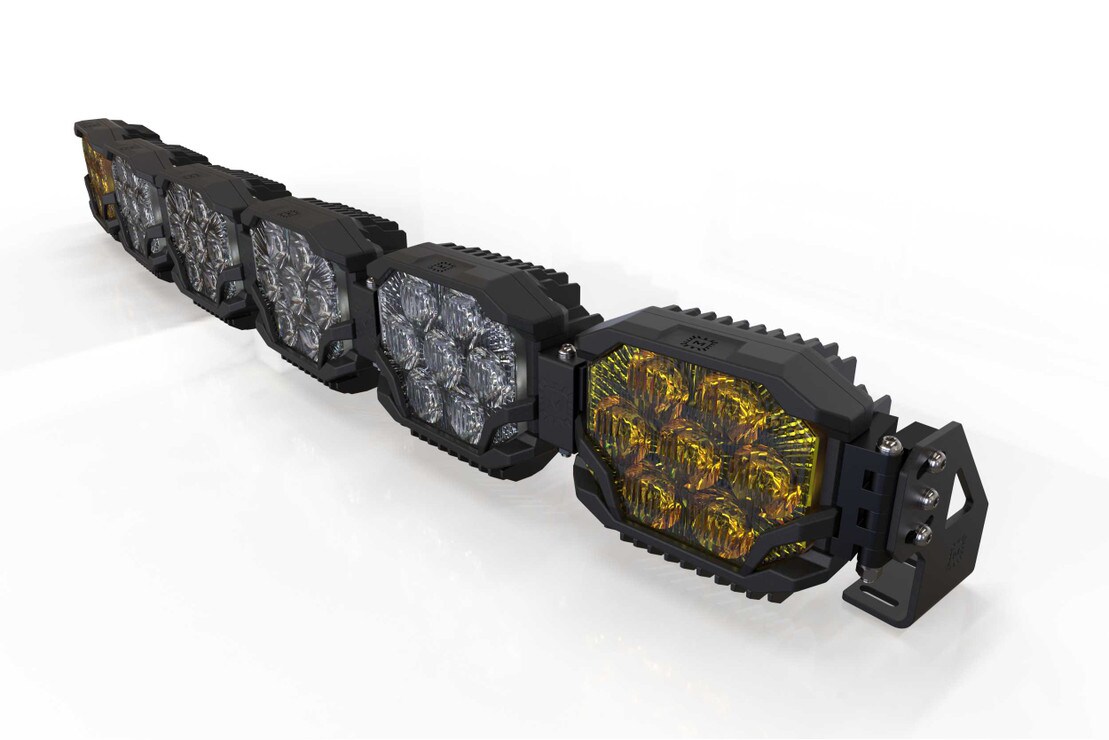

All Weather: The white-output version is ideal for maximum-visibility in the middle of the night. For those who desire optimal output in rain, snow, or fog; the Yellow-output version will slay in shady weather... and if you are ready to roll rain or shine, go with the white/yellow combo; where we spec yellow optics that are ideal for nearfield visibility and white output for central illumination.


Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the BigBanger pods features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves all designed according to IP69K standards for full weather resistance. All BangerBar hardware is CNC machined from solid aluminum and then protected with a dual-layer anodized finish. Your roof rack will rip off your truck before the BangerBar fails.


Power Up: The Morimoto BangerBar has been developed from the ground up to set a new standard in their segment, and the same goes for the wire harness that comes included. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder. DT06-4S female outputs with dual seals. Proprietary M-Spec push button switch with Amber-LED backlight is wired with a quick-disconnect for an easy installation into the cabin. It provides full control over the dual-intensity backlight feature in the pods. The harness can be setup to control all pods together, or the inner and outer pods independently.
