DESCRIPTION
FEATURES & BENEFITS
- Perfect Fit: Designed for easy, modification-free installation on your truck's hood hinges.
- Durable Construction: Laser cut from 304 stainless steel for unmatched strength and longevity.
- Compatibility: Works with Morimoto 1/2/4Banger LED pods and other leading brands.
- Reliable Performance: Say goodbye to poor fitment issues with these branch-proof lighting solutions.
- Lifetime Warranty: Includes the same limited lifetime warranty that comes with the Banger Pods.
WHAT’S INCLUDED

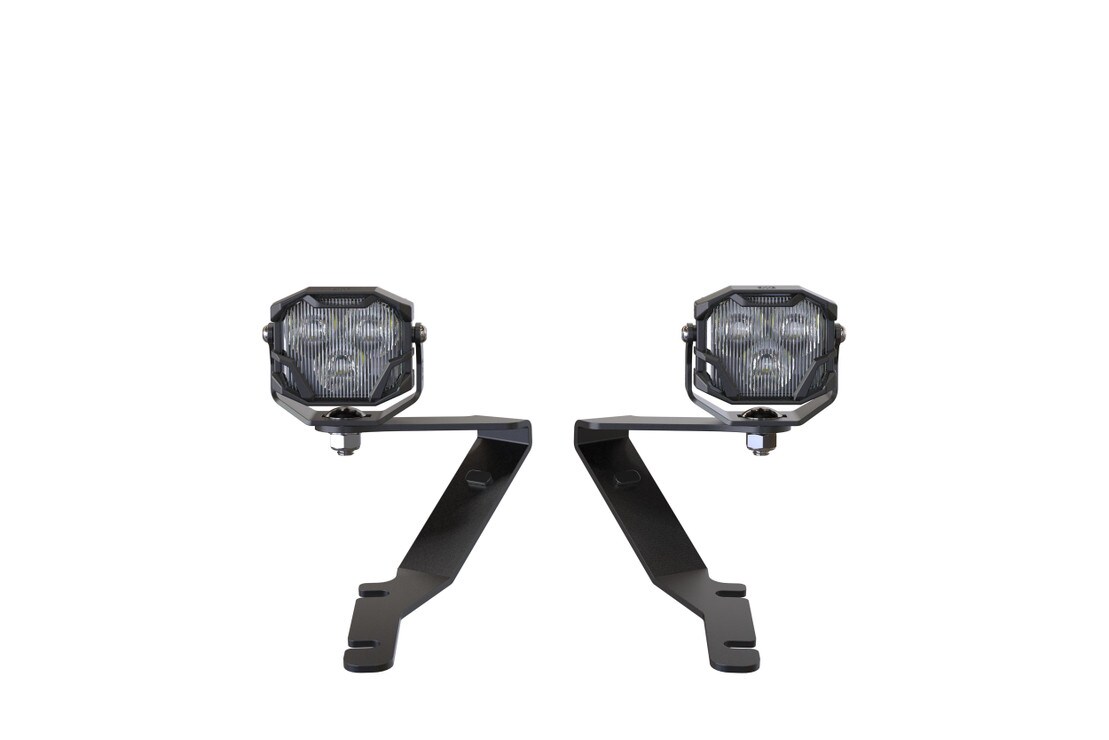

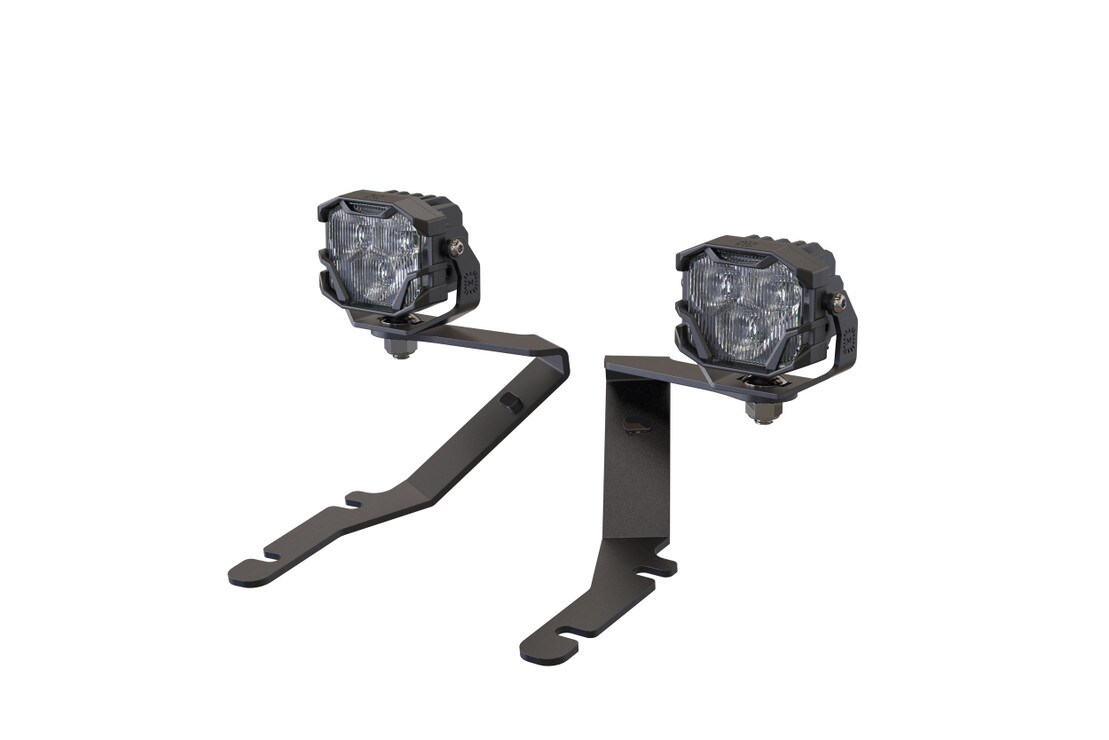

Ditch Brackets: 2x (One Pair) BAF148 Brackets
Hardware: 2x Plastic cable clips
U-Mount Brackets: 2x BAF046 Brackets

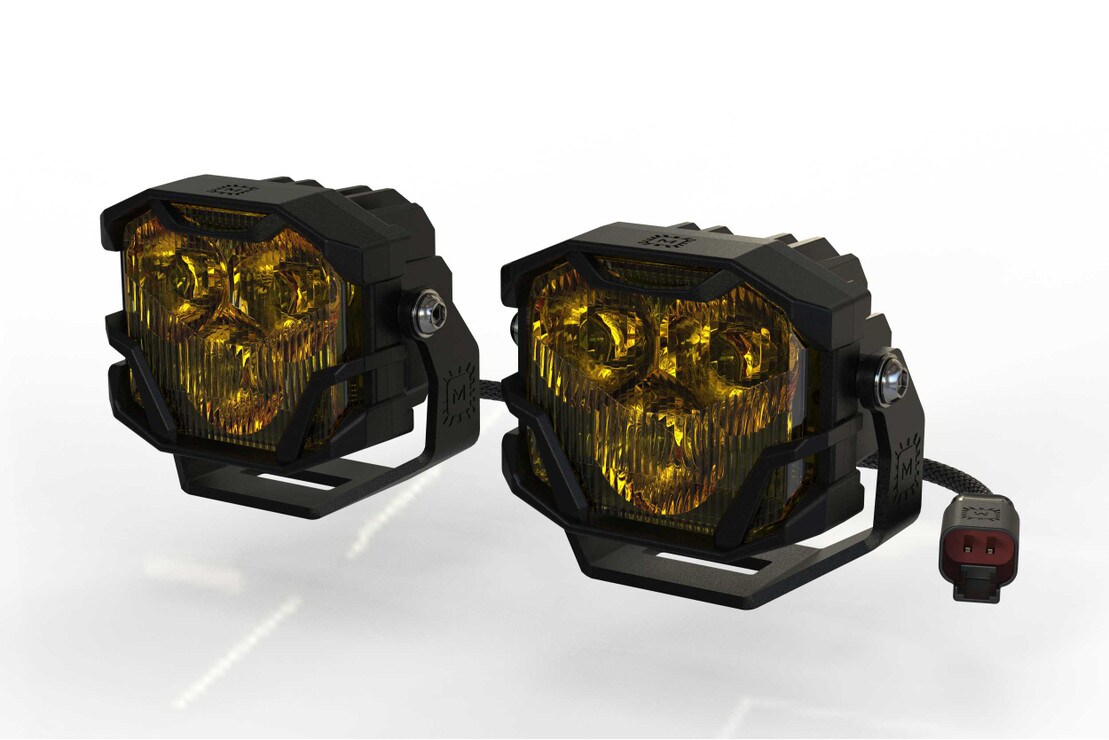

Optional LED Pods: 2x Morimoto 4Banger (Optional Color / Beam)

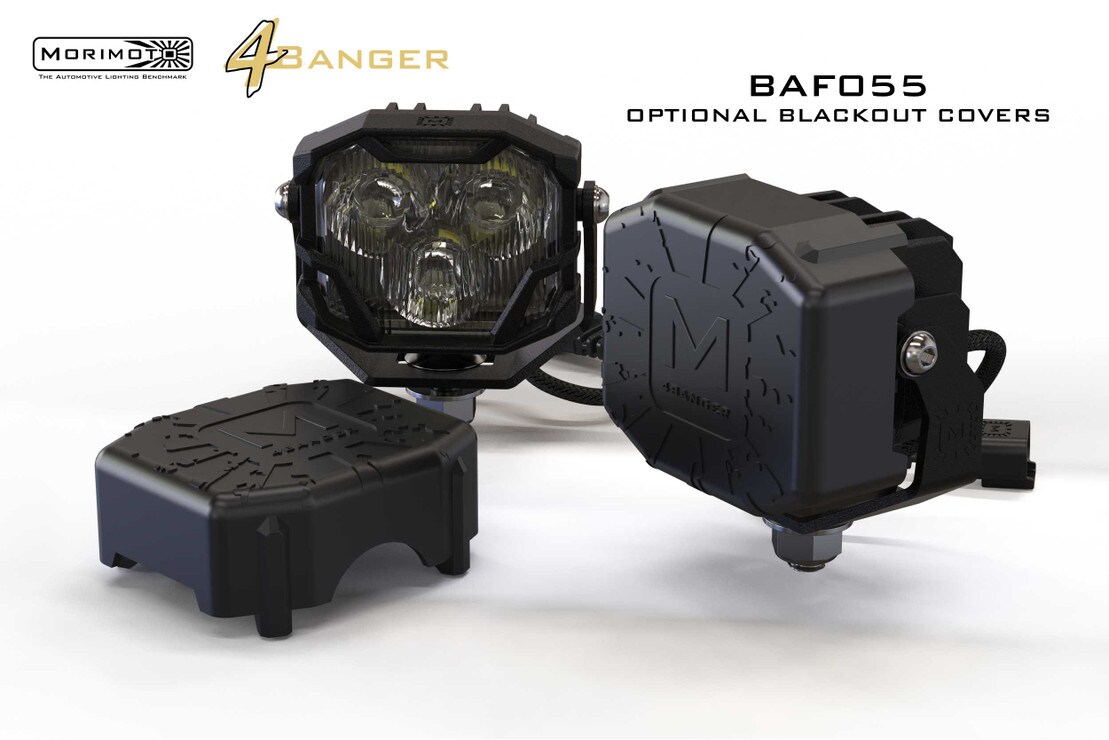

Optional Covers: 2x Blackout Covers
Optional Wiring: 1x Morimoto Power Harness or 2x Deutsch DT pigtails
Warranty: Lifetime Limited
WARRANTY INFORMATION
TECHNICAL SPECIFICATIONS
Note: These specifications are per pod / each!
Intensity:
NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
NCS Combo White: 55,500 Cd (Post Warm-Up) (555lux @ 10m)
NCS Spot Yellow: 73,500 Cd (Post Warm-Up) (735lux @ 10m)
NCS Spot White: 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
HXB Wide Yellow: 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m)
HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
HXB Combo Yellow: 54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m)
HXB Combo White: 78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m)
HXB Spot Yellow: 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m)
HXB Spot White: 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)
Input Voltage: 9-18V DC
Power: 15.6w (NCS) 42w (HXB)
Current: 1.5A (NCS) or 3.2A (HXB)
Dimensions: 82mm W, 67mm H, 60mm D
Hardware: M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
Color: 2400K (Yellow NCS), 2700K (Yellow HXB), 5600K (White NCS), or 5700K (White HXB))
Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
Input: Proprietary Overmolded Deutsch DT 2-Pin
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
LINE DRAWINGS
COMPATIBILITY
Dodge Durango: 2011-2024 (all)
Morimoto LED Pods: 4Banger (all)
INSTALLATION DOCUMENTS
Bolt on Brighter: The Morimoto Ditch Light system is the perfect solution for more light, aimed exactly where you want it. From long-range spotlights for high-speed driving to ditch lights to illuminate the side of the road, our ditch light kit is all about versatility. Select a set of high performance offroad Banger LED pods in your choice of beam pattern, pair that with the brackets to make installation a breeze, and power it properly with our switched wire harness.

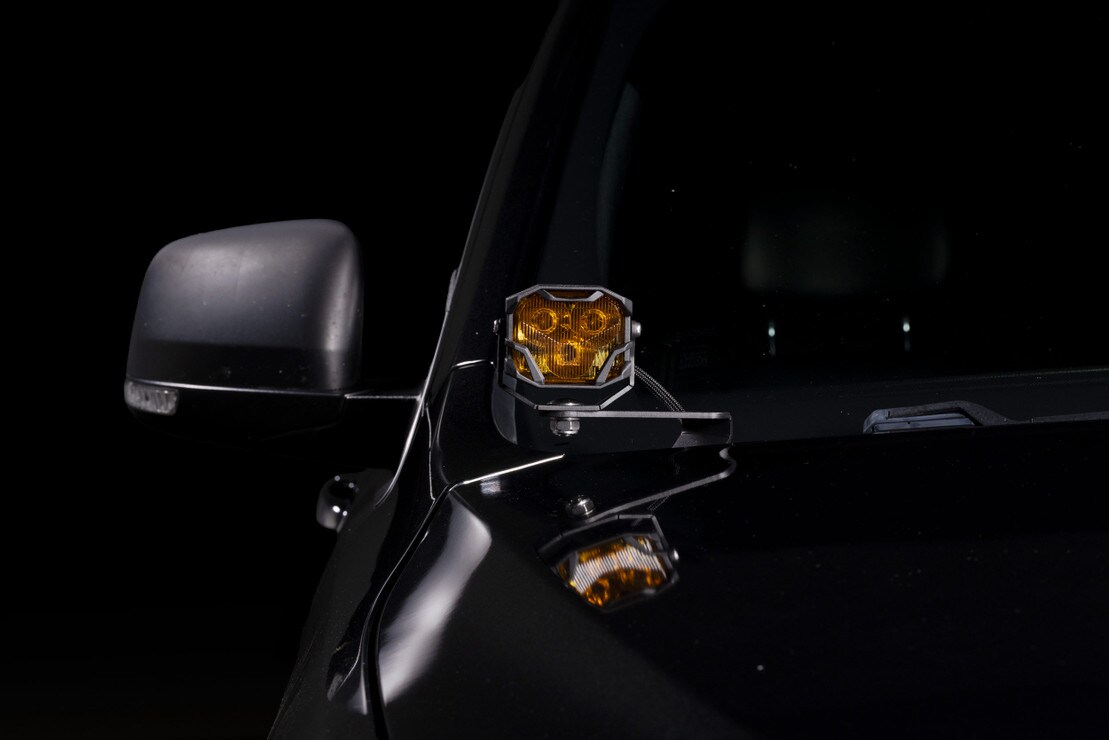

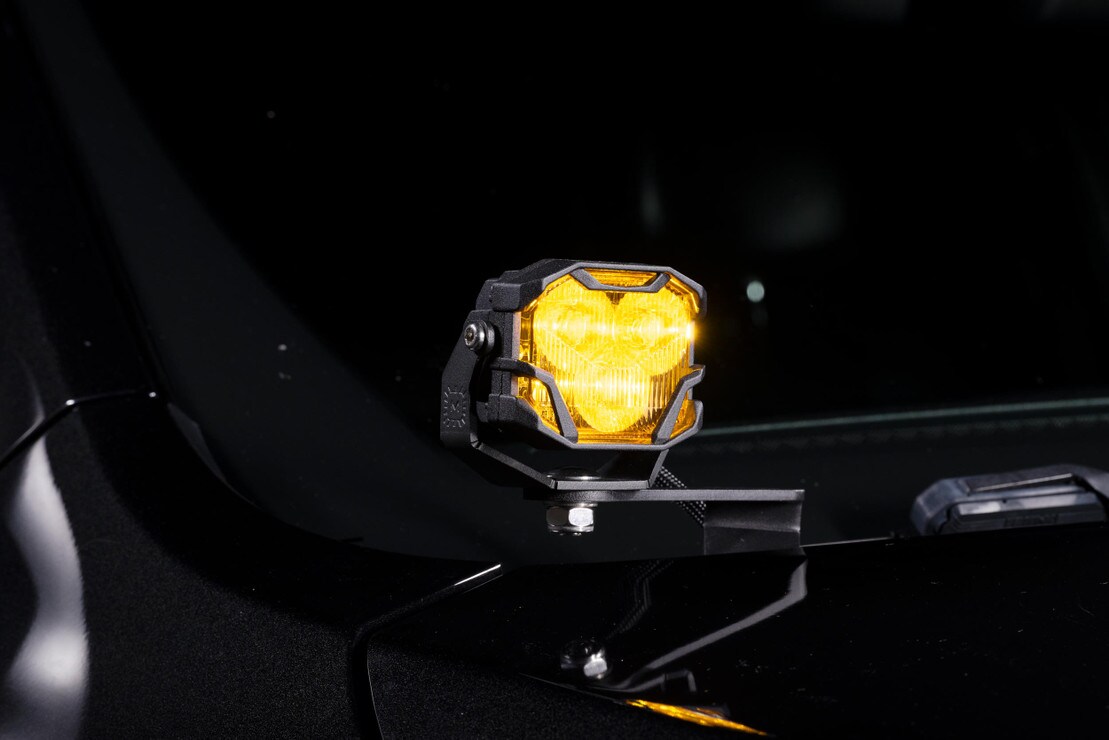

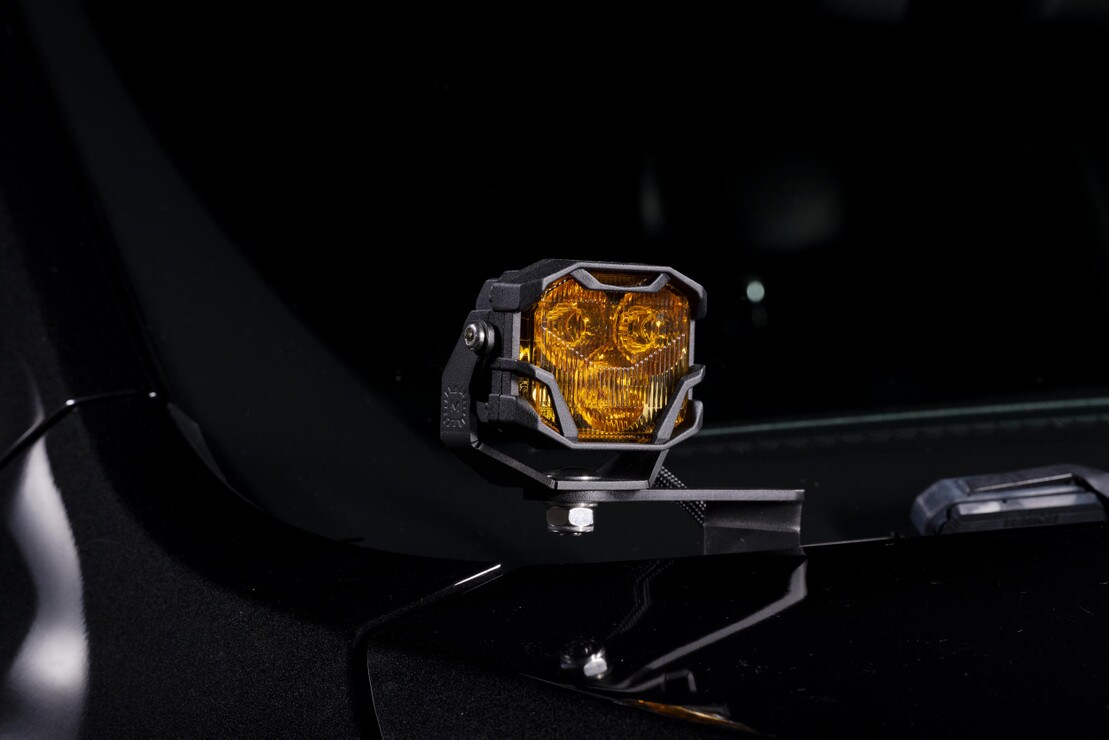

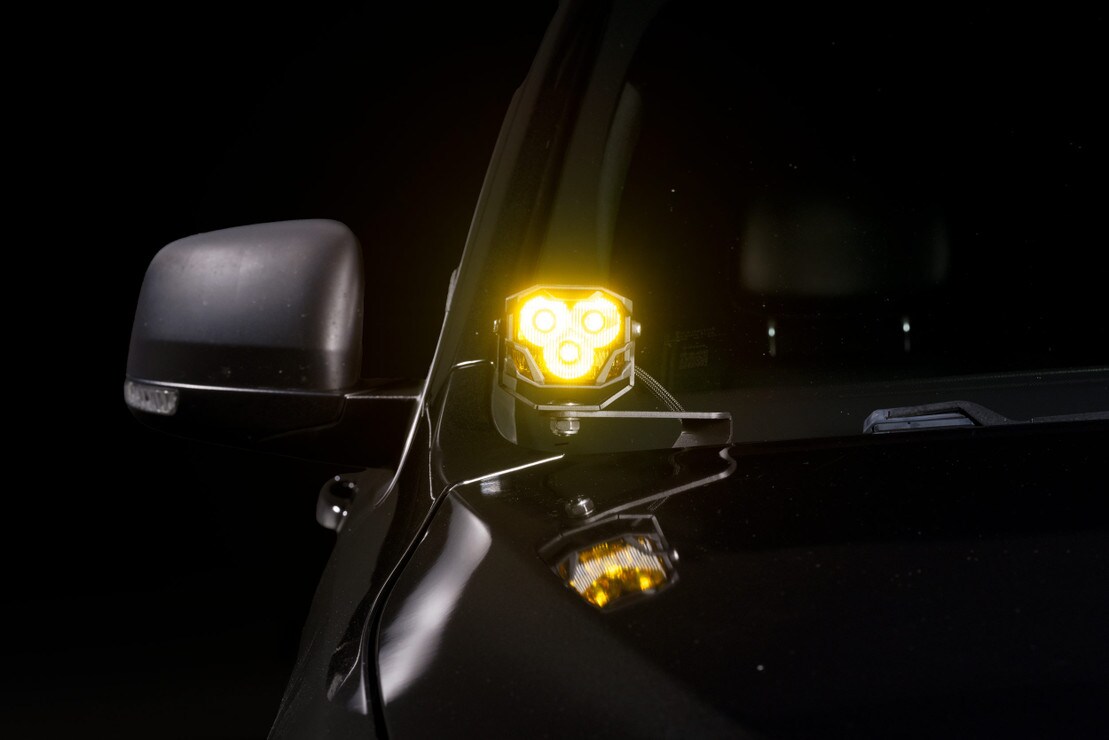

Engineered Fitment: Morimoto's ditch light kit for the 2011-2024 Dodge Durango has been through numerous rounds of design, prototyping and testing directly on the truck to ensure perfect compatibility. Everything lines up with pre-existing mounting points to create an installation that is truly modification-free.
Branches Beware: Each bracket is laser cut from 304 stainless steel, then powder coated. Put simply, the side mirrors on your truck will rip off way before our ditch light kit even flexes a muscle.

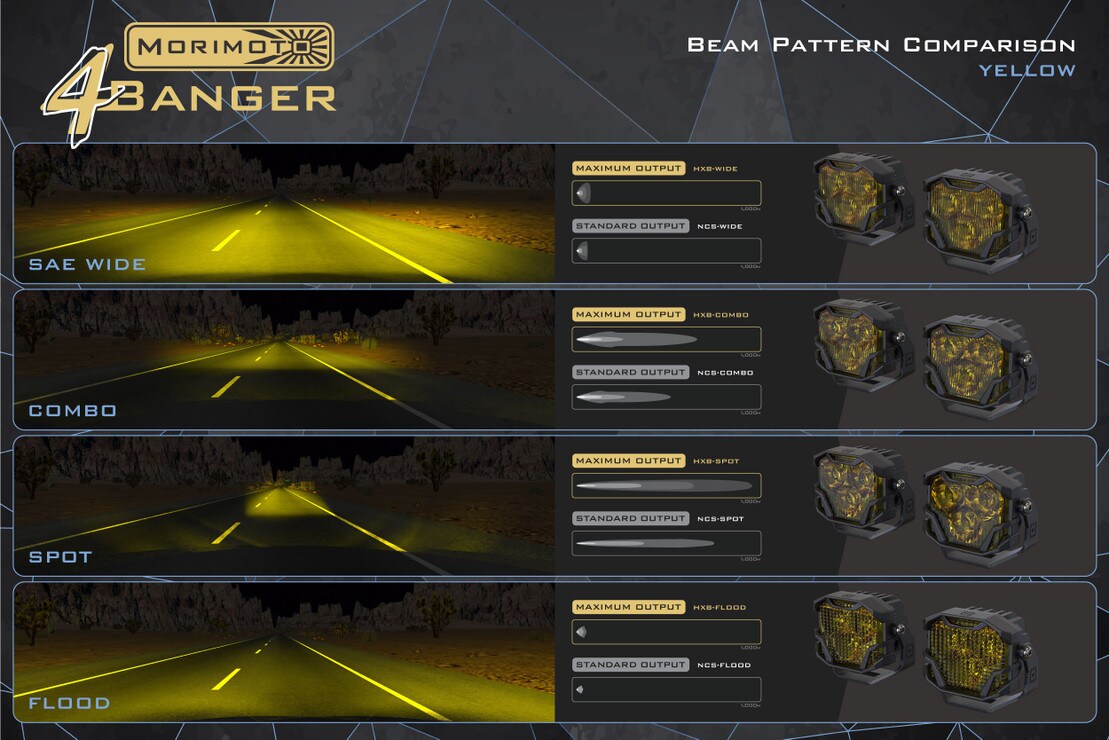

All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).
Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why our Banger LED Pods feature a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance.
Wiring & Cable Management: No sloppy wiring allowed. We have incorporated several mounting locations and cable routing clips on the stem of the bracket to direct the input wiring from your LED pods down into the engine bay. From there, you can plug n play with Morimoto's switched relay wire harness for a clean and reliable install.

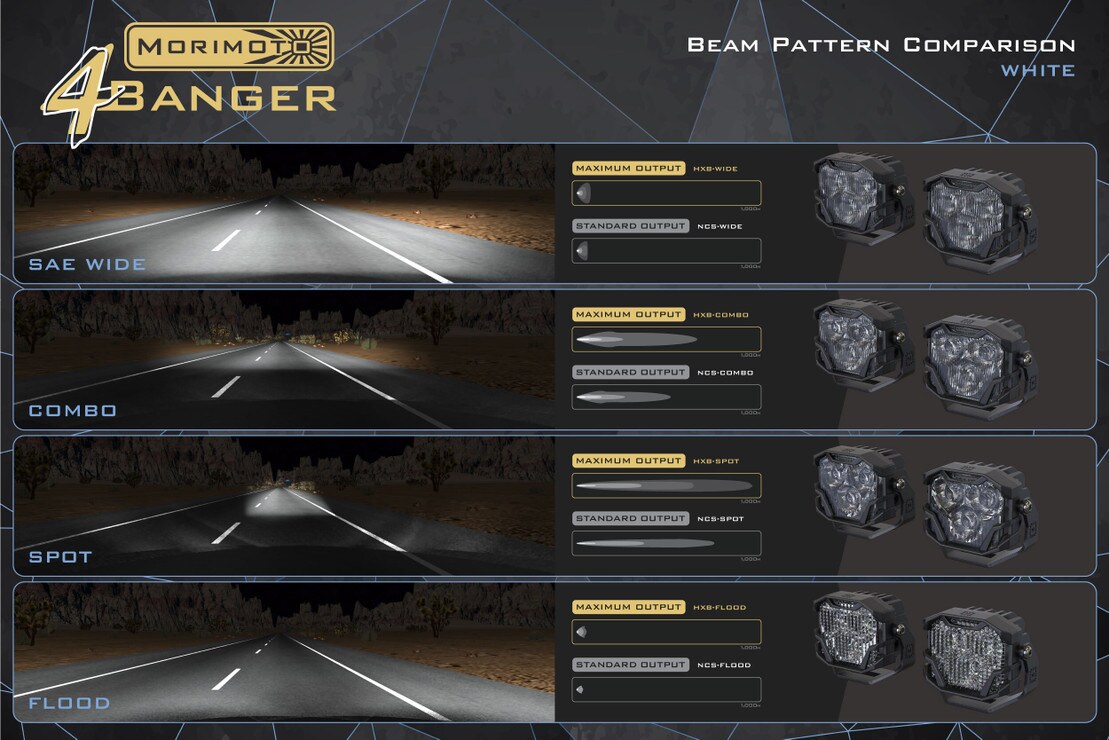

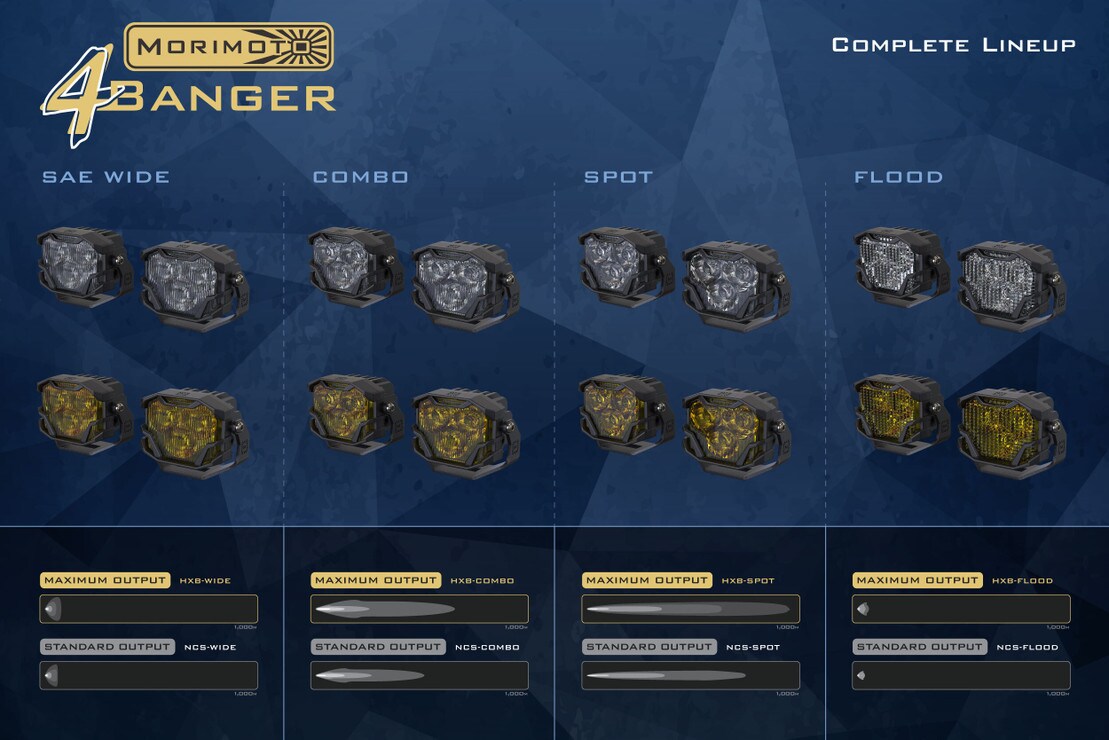

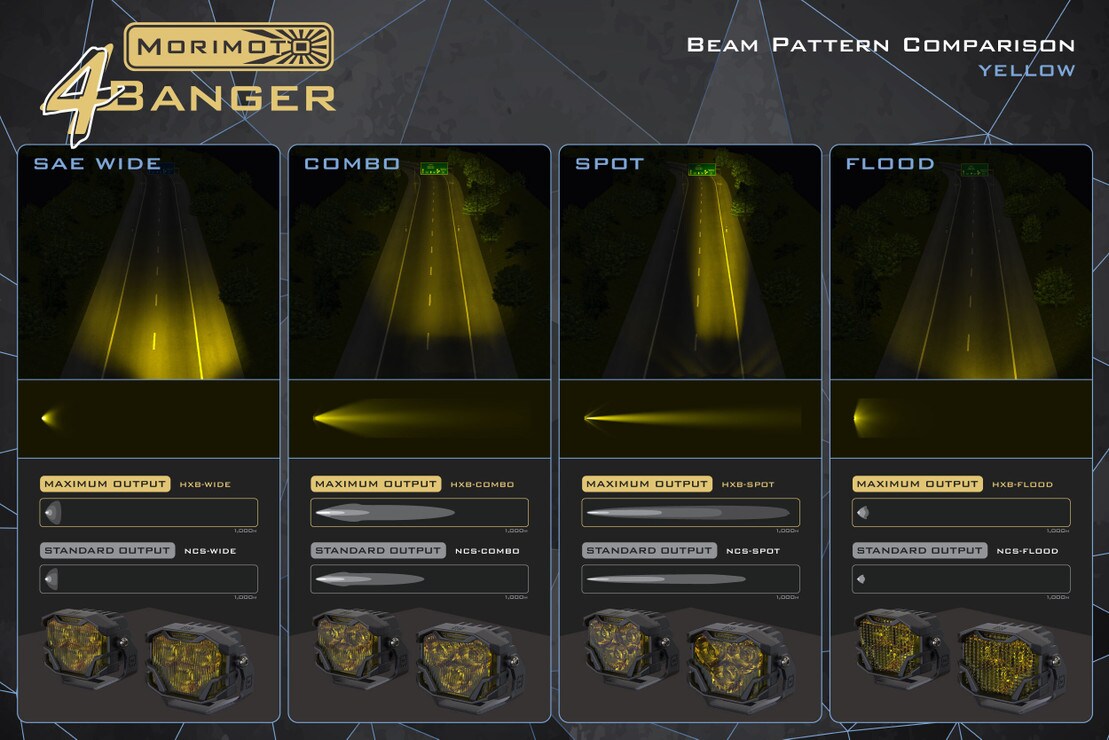

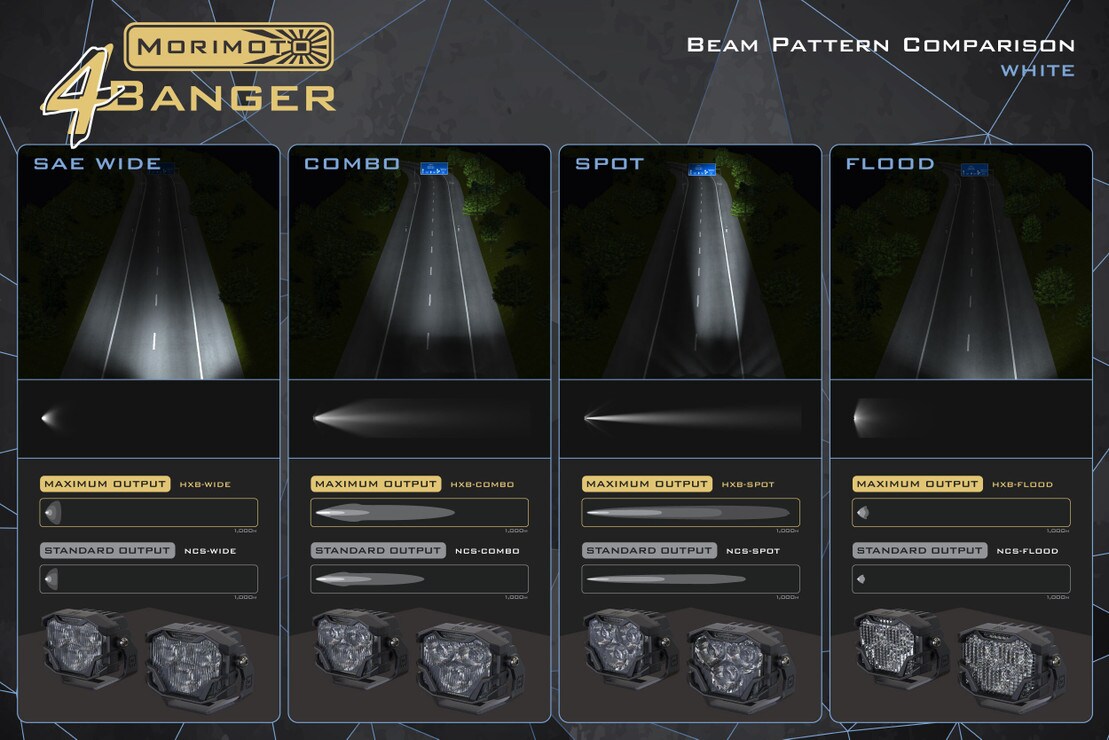

Performance: Just like the brackets, every element of the patented line of LED pods is proprietary. LucidShape was used to optimize performance around the most modern, lumen-dense LEDs from Nichia and Osram. Optics are produced according to world-class standards. Thermal dynamics have been optimized using SolidWorks. They are available with five industry-leading beam patterns to suit every need. Wide/Fog, Spot, Combo, Flood, and Trail.
Combo Beam: Illuminates a clear path with medium range. The Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The Combo pattern is an excellent aid to any set of high-performance headlights.
Spot Beam: Illuminates far into the distance unlike anything else on the market. The HXB Spot comes standard with the most powerful Osram LEDs, which in combination with the optics produces a beam pattern capable of penetrating up to 800 meters into your future. No matter the speed, you'll never outrun your ability to see with the Banger Spot beams.
SAE Wide Beam: Illuminates the ground directly in front of the vehicle. The Optics feature dual axis control. 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper vertical gradient and sharp cutoff has proven SAE-Compliant for use on road as a fog light. The Wide beam delivers the best combination of width, intensity, and control -- making it the most effective off-road LED fog light in the world.
Flood Beam: When focus is irrelevant and broad output to illuminate everything in your immediate locale is priority number one, the Flood beam is where its at. Designed to diffuse the output of the potent Nichia or Osram chips within, the Flood lens emits a very broad (but shallow) range of output.
Power Up: The Morimoto Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
